Nissan Note E12. Manual - part 506

COMPONENT PARTS

PWC-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

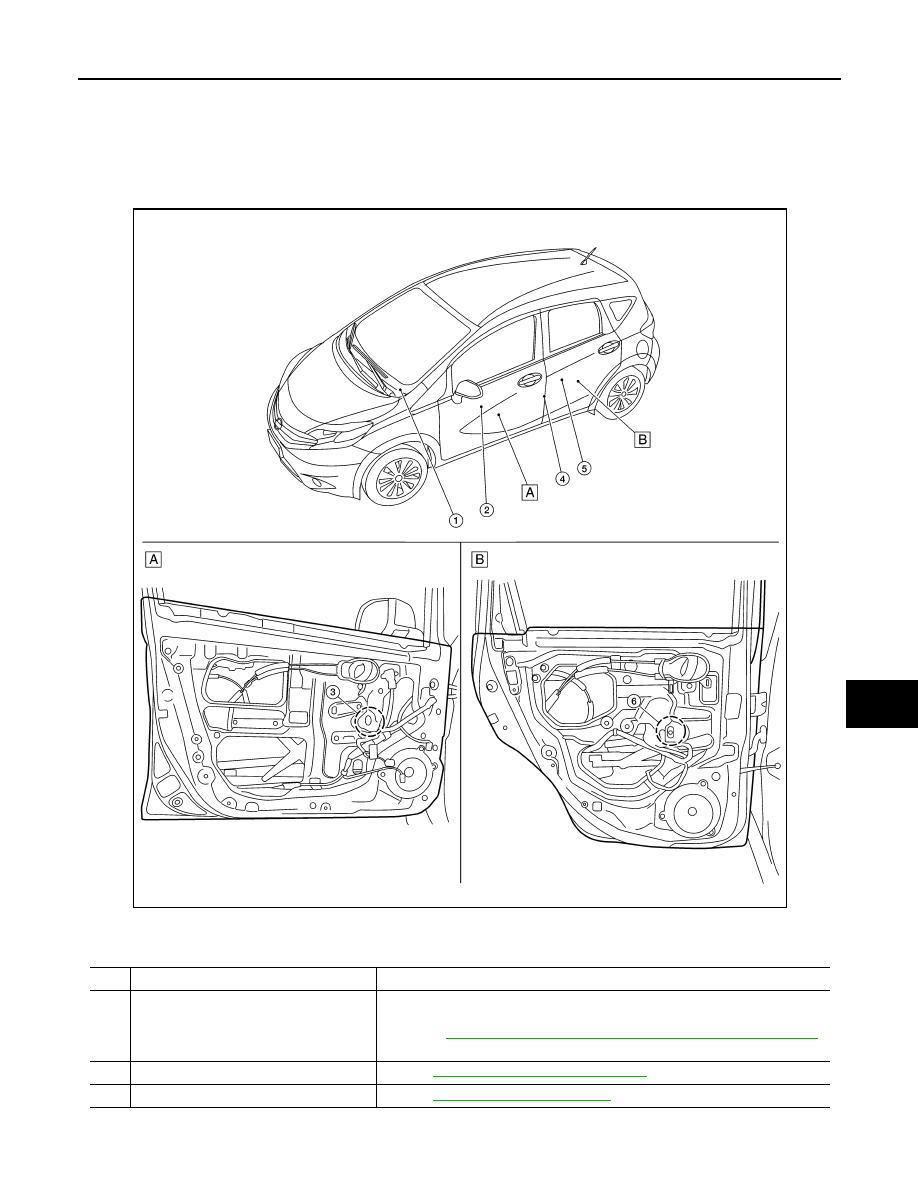

Component Parts Location

INFOID:0000000009015827

A.

View with LH front door finisher removed

B.

View with LH rear door finisher removed

No.

Component parts

Function

1.

BCM

• Supplies power supply to power window switch.
• Controls retained power.
• Refer  to

BCS-4, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

2.

Power window main switch

Refer to

PWC-6, "Power Window Main Switch"

.

3.

Front power window motor (driver side)

Refer to

PWC-6, "Power Window Motor"

.

ALKIA3202ZZ

PWC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

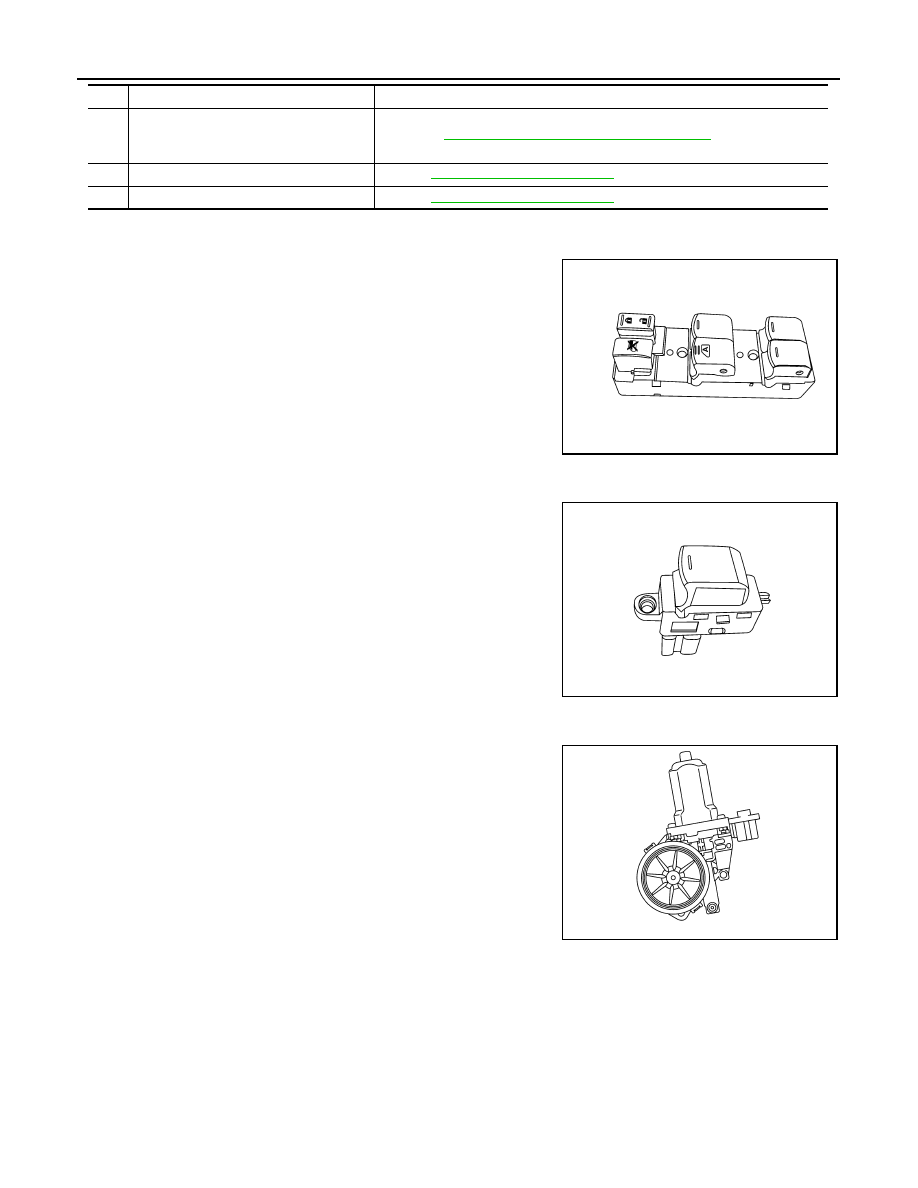

Power Window Main Switch

INFOID:0000000009578748

• Power window main switch controls all power windows.

• Power window main switch integrates UP/DOWN switch, power

window lock switch, and door lock/unlock switch.

• Power window main switch controls the power window lock

function.

Power Window Switch

INFOID:0000000009578749

• Each power window switch transmits UP/DOWN signal to each

motor.

• Each power window switch transmits UP/DOWN signal from power

window main switch to each motor.

Power Window Motor

INFOID:0000000009578750

• Starts operation according to signals from power window main

switch (front driver side).

• Transmits front power window motor (driver side) rotation as a

pulse signal to power window main switch.

• Excepting power window motor for driver door, starts operation

according to signals from power window main switch or each

power window switches.

4.

Front door switch (driver side)

• Inputs door open/close condition to BCM.
• Refer  to

DLK-16, "DOOR LOCK SYSTEM : Door Switch"

 for detailed installa-

tion location.

5.

Rear power window switch LH

Refer to

PWC-6, "Power Window Switch"

.

6.

Rear power window motor LH

Refer to

PWC-6, "Power Window Switch"

.

No.

Component parts

Function

ALKIA3203ZZ

ALKIA3204ZZ

JMKIA6528ZZ

SYSTEM

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYSTEM

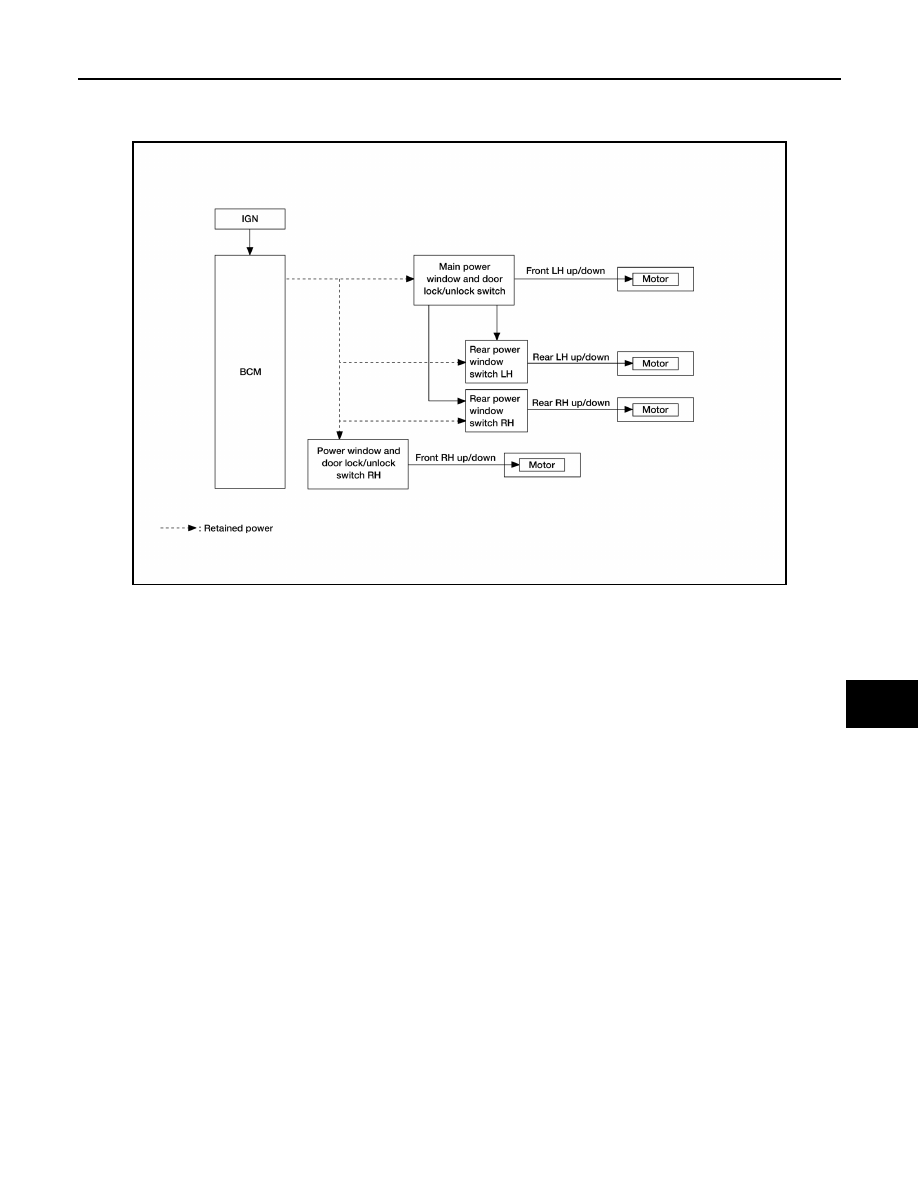

System Diagram

INFOID:0000000009578780

System Description

INFOID:0000000009578781

BASIC OPERATION

• Power window system is activated by power window switch when ignition switch turns ON.

• Power window main switch opens/closes all door glass.

• Front and rear power window switch opens/closes the corresponding door glass.

• AUTO DOWN operation can be performed when power window main switch is depressed to the second

detent.

• Power window lock switch can lock all power windows other than driver seat.

POWER WINDOW AUTO-OPERATION (FRONT DRIVER SIDE)

AUTO DOWN operation can be performed when power window main switch is depressed to the second

detent.

POWER WINDOW LOCK

Ground circuit inside power window main switch shuts off when power window lock switch is ON. This inhibits

each power window switch operation except the power window main switch.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate for an additional 45 seconds after the ignition switch is turned OFF.

RETAINED ACCESSORY POWER CANCEL CONDITIONS:

• Front door CLOSE (door switch OFF)

→OPEN (door switch ON).

• When ignition switch is ON again.

• When timer expires. (45 seconds)

ALKIA2285GB

PWC-8

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009578818

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

RETAINED PWR

Direct Diagnostic Mode

Description

ECU identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU id

en

tif

ica

tion

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a

 M

on

ito

r

Acti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

ig

ur

at

io

n

CAN DIAG SUP

P

OR

T MNTR

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×
