DIAGNOSIS SYSTEM (BCM)

PWC-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

INFOID:0000000009578834

DATA MONITOR

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

PWC-10

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009015829

ECU

Reference

BCM

BCS-28, "Reference Value"

BCS-44, "Fail-safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-46, "DTC Index"

POWER WINDOW MAIN SWITCH

PWC-11

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000009015830

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA5358ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/

Output

1

(BR)

Ground

Rear power window motor LH
UP signal

Output

When the rear LH switch
(power window main switch)
is pulled UP.

Battery Voltage

3

(G)

Ground

Rear power window motor LH
DOWN signal

Output

When the rear LH switch
(power window main switch)
is pressed DOWN.

Battery Voltage

5

(Y)

Ground

Rear power window motor RH
DOWN signal

Output

When the rear RH switch
(power window main switch)
is pressed DOWN.

Battery Voltage

7

(V)

Ground

Rear power window motor RH
UP signal

Output

When the rear RH switch
(power window main switch)
is pulled UP.

Battery Voltage

8

(R)

Ground

Front power window motor
(driver side) UP signal

Output

When the front LH switch
(power window main switch)
is pulled UP.

Battery Voltage

10

(L)

Ground Ignition switch power supply

Input

Ignition switch ON

Battery Voltage

Other than above

0

11

(LG)

Ground

Front power window motor
(driver side) DOWN
signal

Output

When the front LH switch
(power window main switch)
is pressed DOWN.

Battery Voltage

12

(SB)

Ground

Front power window motor
(passenger side) DOWN sig-
nal

Output

When the front RH switch
(power window main switch)
is pressed DOWN.

Battery Voltage

16

(W)

Ground

Front power window motor
(passenger side) UP signal

Output

When the front RH switch
(power window main switch)
is pulled UP.

Battery Voltage

17

(B)

Ground Ground

—

—

0

PWC-12

< WIRING DIAGRAM >

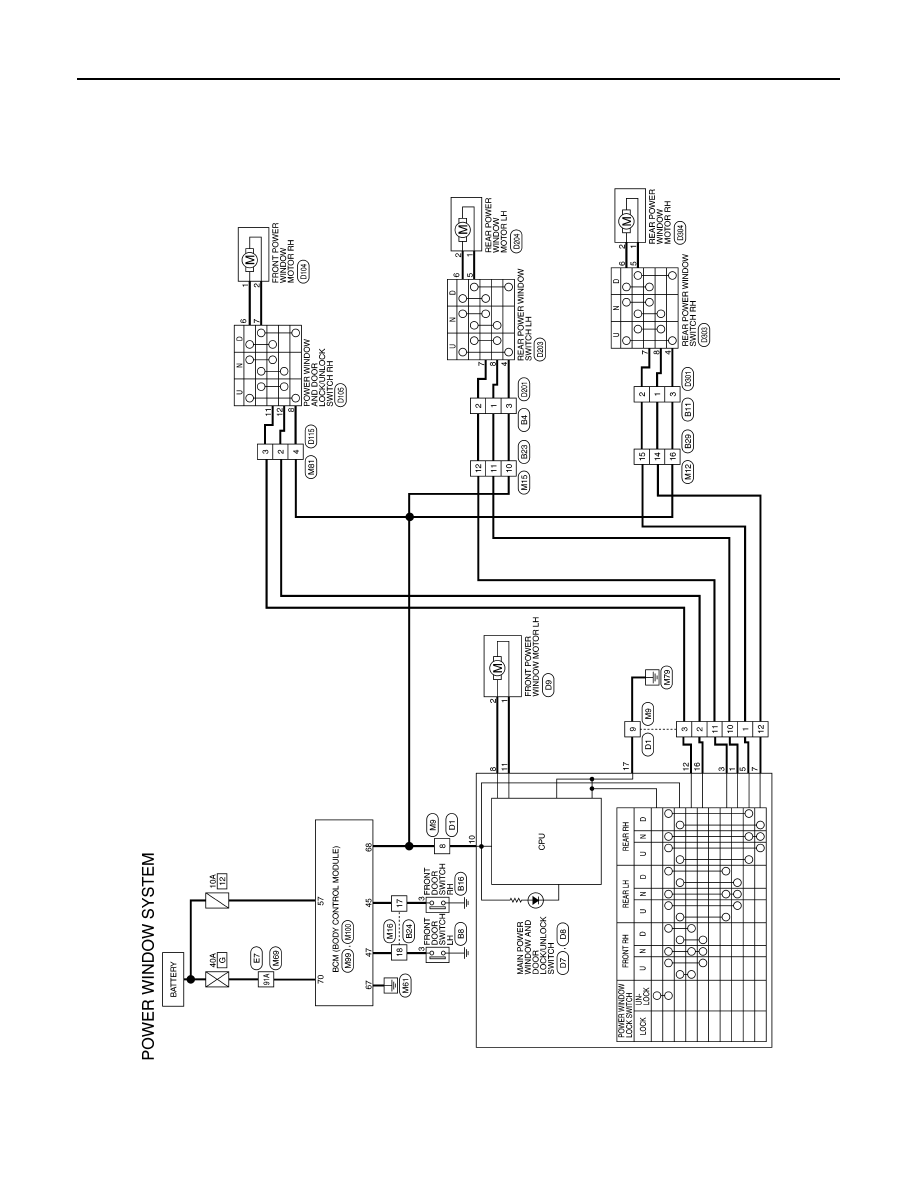

POWER WINDOW SYSTEM

WIRING DIAGRAM

POWER WINDOW SYSTEM

Wiring Diagram

INFOID:0000000009015832

AAKWA0622GB
