Nissan Note E12. Manual - part 504

PG

BATTERY

PG-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BATTERY

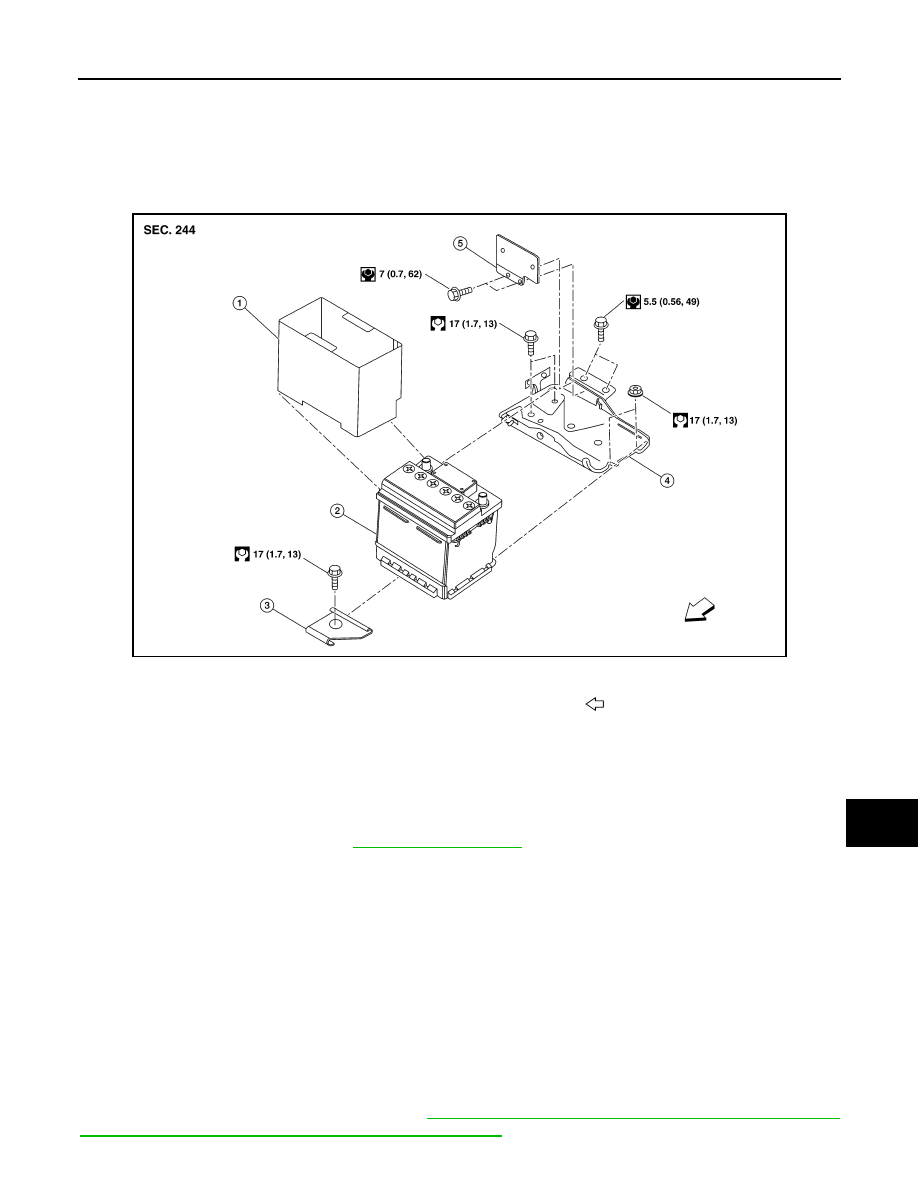

Exploded View

INFOID:0000000009015555

Removal and Installation (Battery)

INFOID:0000000009015556

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

REMOVAL

1. Remove the air duct inlet. Refer to

EM-26, "Exploded View"

.

2. Disconnect the battery cable from the negative terminal and set aside.
3. Disconnect the battery cable from the positive terminal and set aside.
4. Remove the remove the battery wedge bracket.
5. Remove the battery cover and the battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the battery if it has been dropped or sustained and impact.

To install the battery, carefully read the following instructions:

• To prevent damage to the parts, connect the battery cable to the positive terminal first.

• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-63, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

AWGIA0296ZZ

1.

Battery cover

2.

Battery

3.

Battery wedge bracket

4.

Battery tray

5.

Battery tray bracket

Front

PG-70

< REMOVAL AND INSTALLATION >

BATTERY

Removal and Installation (Battery Tray)

INFOID:0000000009643002

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

REMOVAL

1. Remove battery. Refer to

PG-69, "Removal and Installation (Battery)"

.

2. Remove the battery bracket. Refer to

PG-69, "Exploded View"

.

3. Remove the IPDM E/R. Refer to

PCS-30, "Removal and Installation"

.

4. Disconnect the harness connector from the TCM and remove the TCM bracket. Refer to

TM-235,

"Exploded View"

.

5. Disconnect the harness connectors from the battery tray and battery tray bracket.
6. Remove the nuts and bolts and remove the battery tray bracket and battery tray. Refer to

PG-69,

"Exploded View"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace electrical components as necessary, if any have been dropped or sustained and impact.

To install the battery, carefully read the following instructions:

• To prevent damage to the parts, connect the battery cable to the positive terminal first.

• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-63, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

PG

BATTERY TERMINAL WITH FUSIBLE LINK

PG-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY TERMINAL WITH FUSIBLE LINK

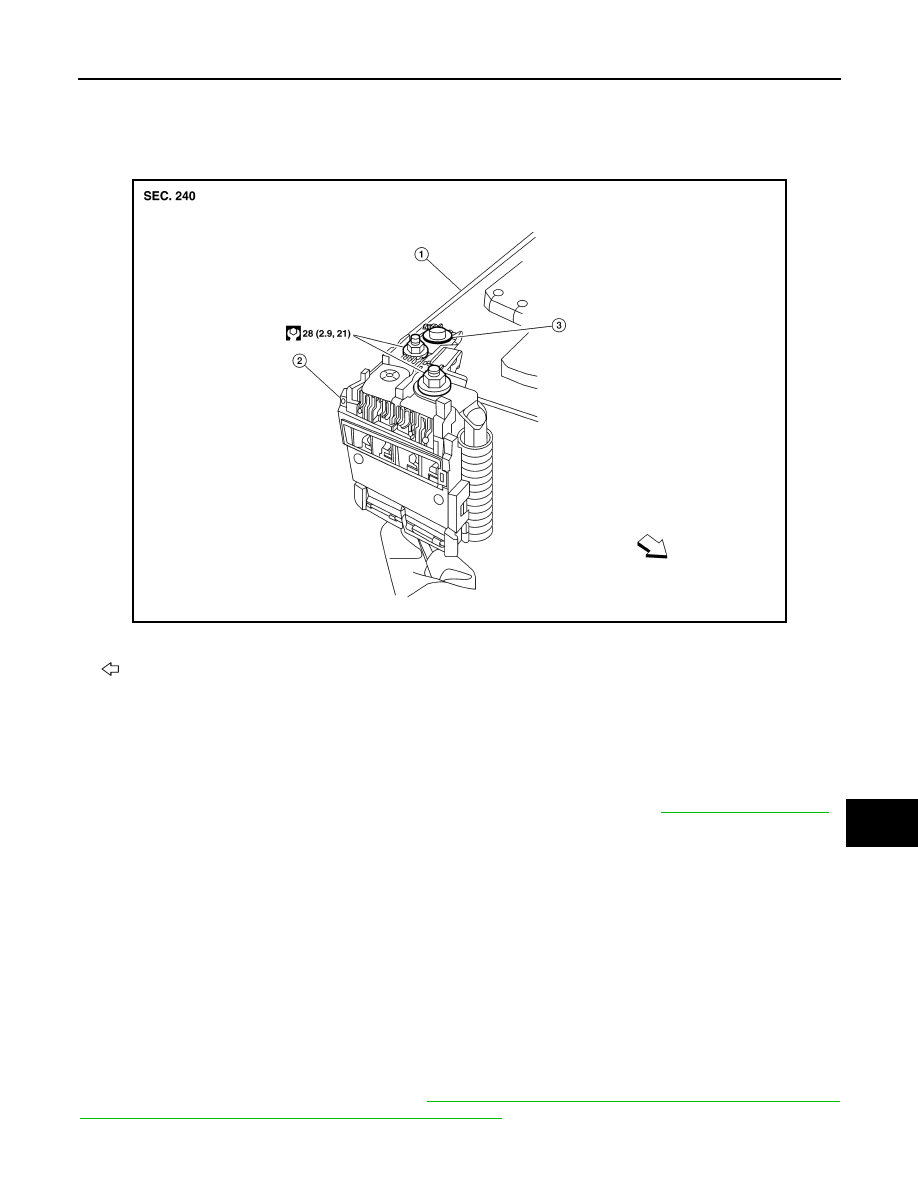

Exploded View

INFOID:0000000009015557

Removal and Installation

INFOID:0000000009015558

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

REMOVAL

1. Disconnect the battery cable from the negative terminal and set aside. Refer to

PG-69, "Exploded View"

.

2. Disconnect the battery cable with the fusible link box (battery) from positive terminal.
3. Open cover of the fusible link box (battery).
4. Remove harness nut from the fusible link box (battery) and separate the fusible link box (battery) from ter-

minal connector.

5. Disconnect harness connectors and remove the fusible link box (battery).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the fusible link box (battery) if it has been dropped or sustained and impact.

To install the battery, carefully read the following instructions:

• To prevent damage to the parts, connect the battery cable to the positive terminal first.

• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-63, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

AWGIA0297ZZ

1.

Battery

2.

Fusible link box (battery)

3.

Terminal connector

Front

PG-72

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000009015560

*: Always check with the Parts Department for the latest parts information.

Type

Q-85

5 hour rate minimum

[V – Ah]

12 – 36

Cold cranking current A (For reference value)

A

470
