PG

FUSE INSPECTION

PG-65

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

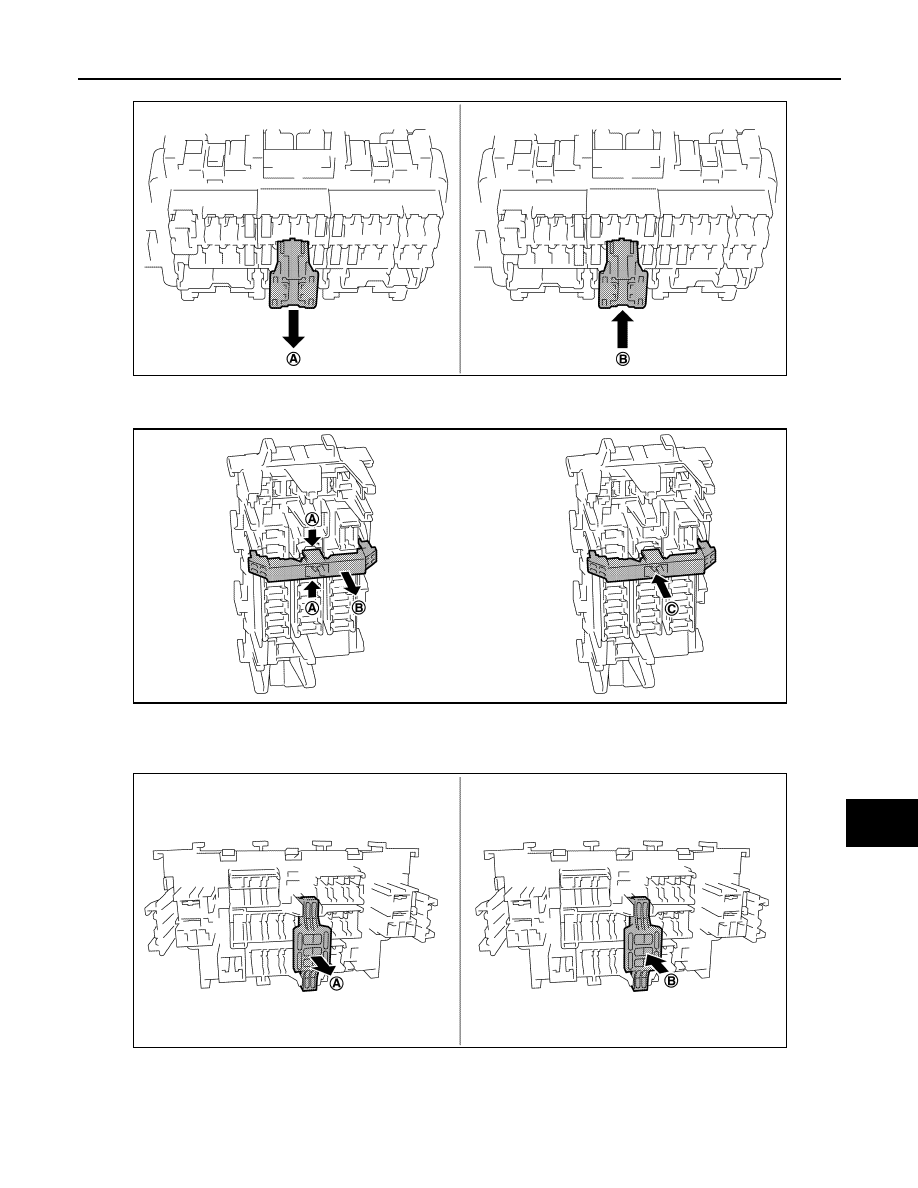

• Type A

- To turn the extended storage fuse switch OFF, pull it up in (A) direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in (B) direction as shown in the figure.

• Type B

- To turn the extended storage fuse switch OFF, hold (A) of the switch and pull up in (B) direction as shown in

the figure.

- To turn the extended storage fuse switch ON, press it in (C) direction as shown in the figure.

• Type C

- To turn the extended storage fuse switch OFF, pull it up in (A) direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in (B) direction as shown in the figure.

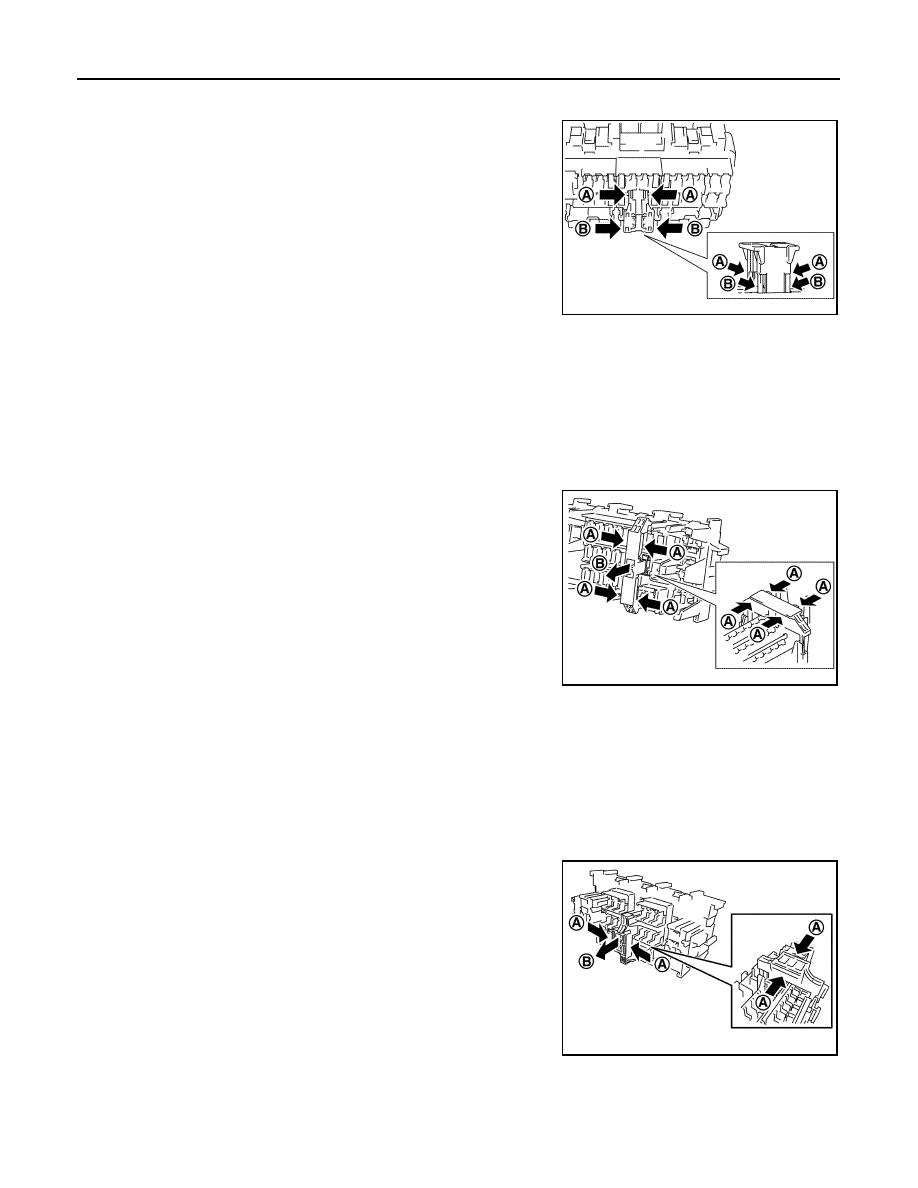

How To Remove Extended Storage Fuse Switch

Type A

JSMIA0472ZZ

JSMIA0473ZZ

JSMIA0794ZZ

PG-66

< BASIC INSPECTION >

FUSE INSPECTION

1. Turn the ignition switch OFF.

2. Turn the extended storage fuse switch OFF.

3. Press pawl (A) and tilt to disengage the extended storage fuse

switch. Press pawl (B) and tilt to remove the extended storage

fuse switch.

NOTE:

• Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse

switch, if necessary.

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type B

1. Turn the ignition switch OFF.

2. Turn the extended storage fuse switch OFF.

3. Hold (A) and pull up the extended storage fuse switch hard in

(B) direction.

NOTE:

• Extended storage fuse switch and fuse may be removed together. Remove fuse from extended storage

fuse switch, if necessary.

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type C

1. Turn the ignition switch OFF.

2. Turn the extended storage fuse switch OFF.

3. Hold (A) and pull up the extended storage fuse switch hard in

(B) direction.

NOTE:

• Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse

switch, if necessary.

JSMIA0476ZZ

JSMIA0477ZZ

JSMIA0795ZZ

PG

FUSE INSPECTION

PG-67

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

PG-68

< BASIC INSPECTION >

FUSIBLE LINK INSPECTION

FUSIBLE LINK INSPECTION

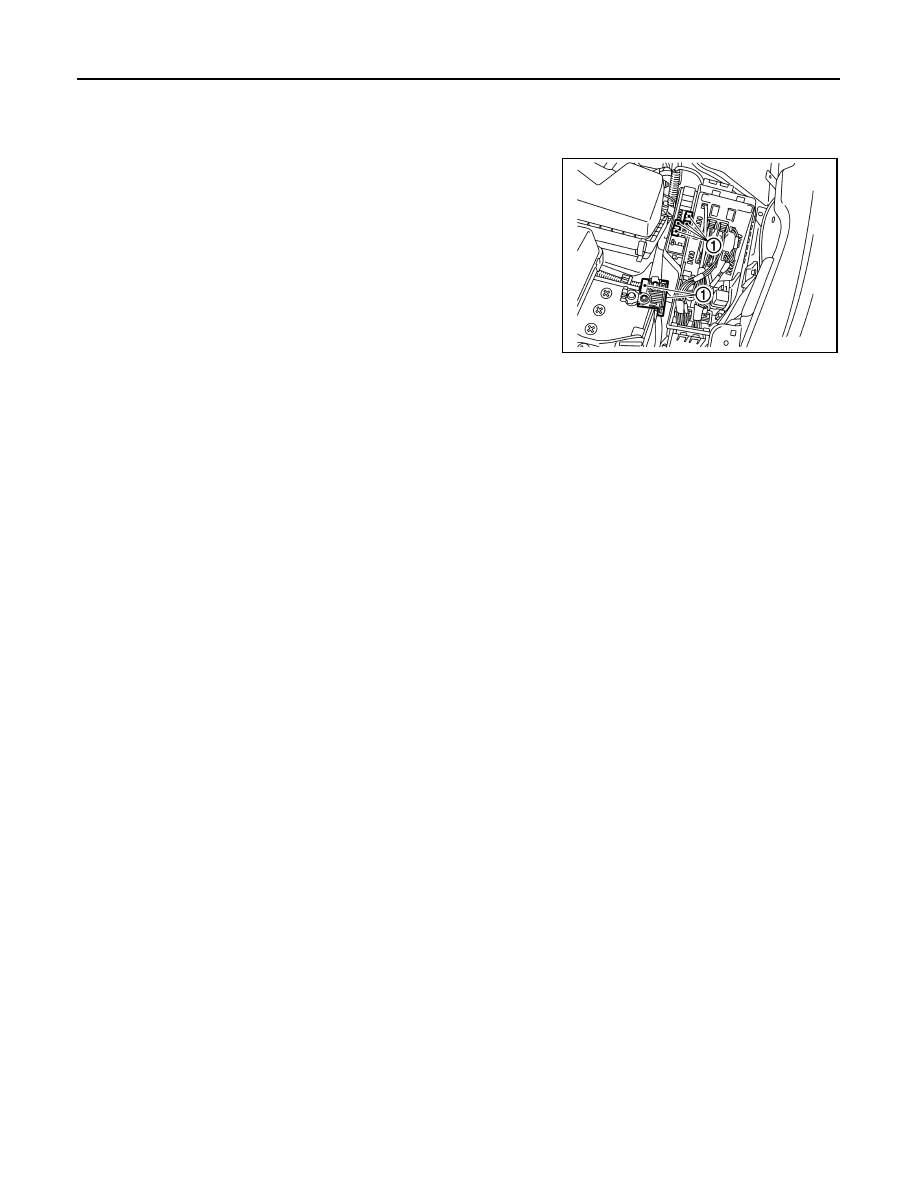

How To Check

INFOID:0000000009725277

A melted fusible link can be detected either by visual inspection or by

feeling with finger tip. If its condition is questionable, use circuit

tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit

(power supply or large current carrying circuit) is shorted. In

such a case, carefully check and eliminate cause of malfunc-

tion.

• Never wrap outside of fusible link with vinyl tape. Important:

Never let fusible link touch any other wiring harness, vinyl or

rubber parts.

1

:Fusible link
