MA-20

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

AIR CLEANER FILTER : Exploded View

INFOID:0000000009670486

AIR CLEANER FILTER : Removal and Installation

INFOID:0000000009670487

REMOVAL

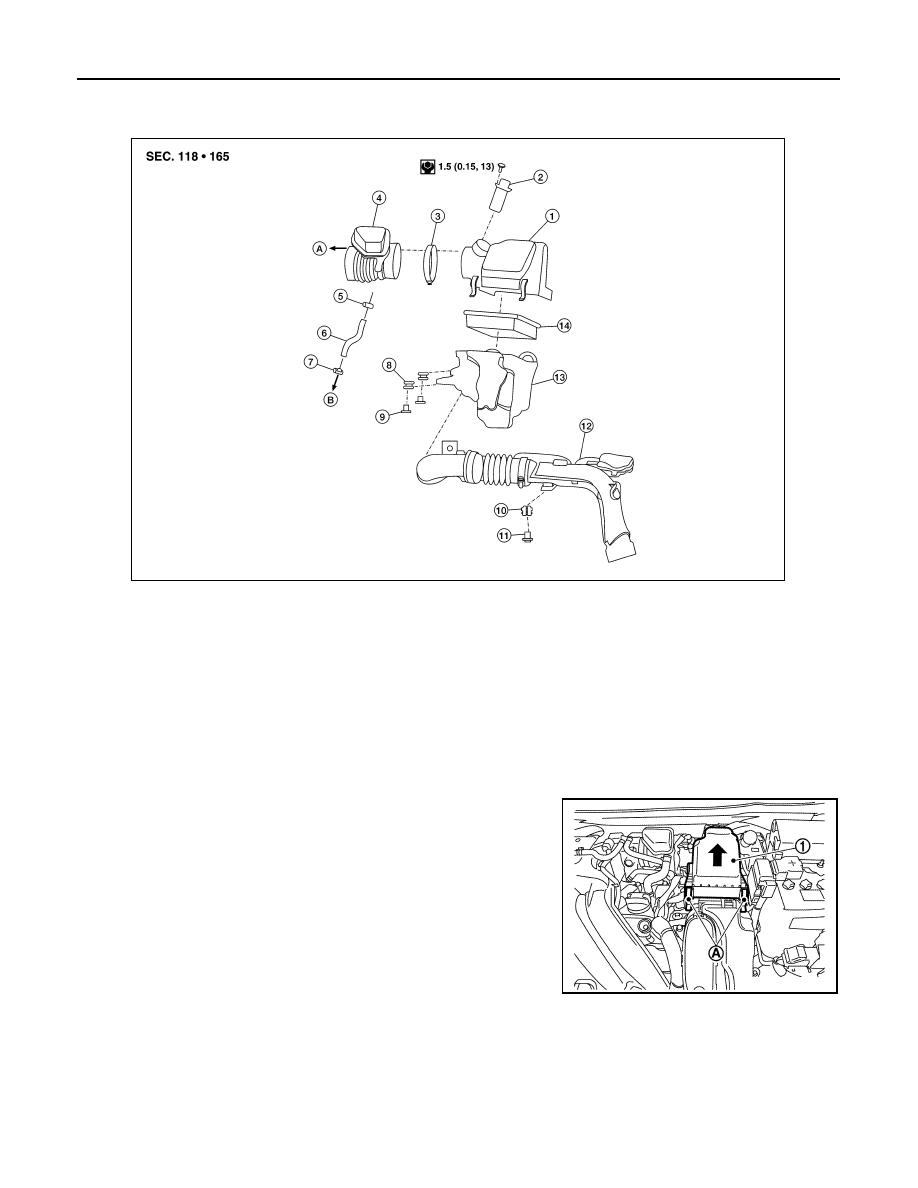

1. Unhook clips (A) and pull the air cleaner cover (1) upward.

Air cleaner cover

Mass air flow sensor

Clamp

Air duct

Clamp

Hose

Clamp

Grommet

Grommet insert

10. Grommet

11. Grommet insert

12. Air duct inlet

13. Air cleaner body

14. Air cleaner filter

To electric throttle control actuator

To rocker cover

AWBIA1598ZZ

JSBIA1092ZZ

ENGINE MAINTENANCE

MA-21

< PERIODIC MAINTENANCE >

2. Remove the air cleaner filter (1) from the air cleaner body.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Check that the air cleaner filter is securely placed in the air cleaner body.

ENGINE OIL
ENGINE OIL : Inspection

INFOID:0000000009670490

ENGINE OIL LEVEL

NOTE:

Before starting engine, position the vehicle so that it is level and check the engine oil level. If engine is already

started, stop it and allow 10 minutes before checking.

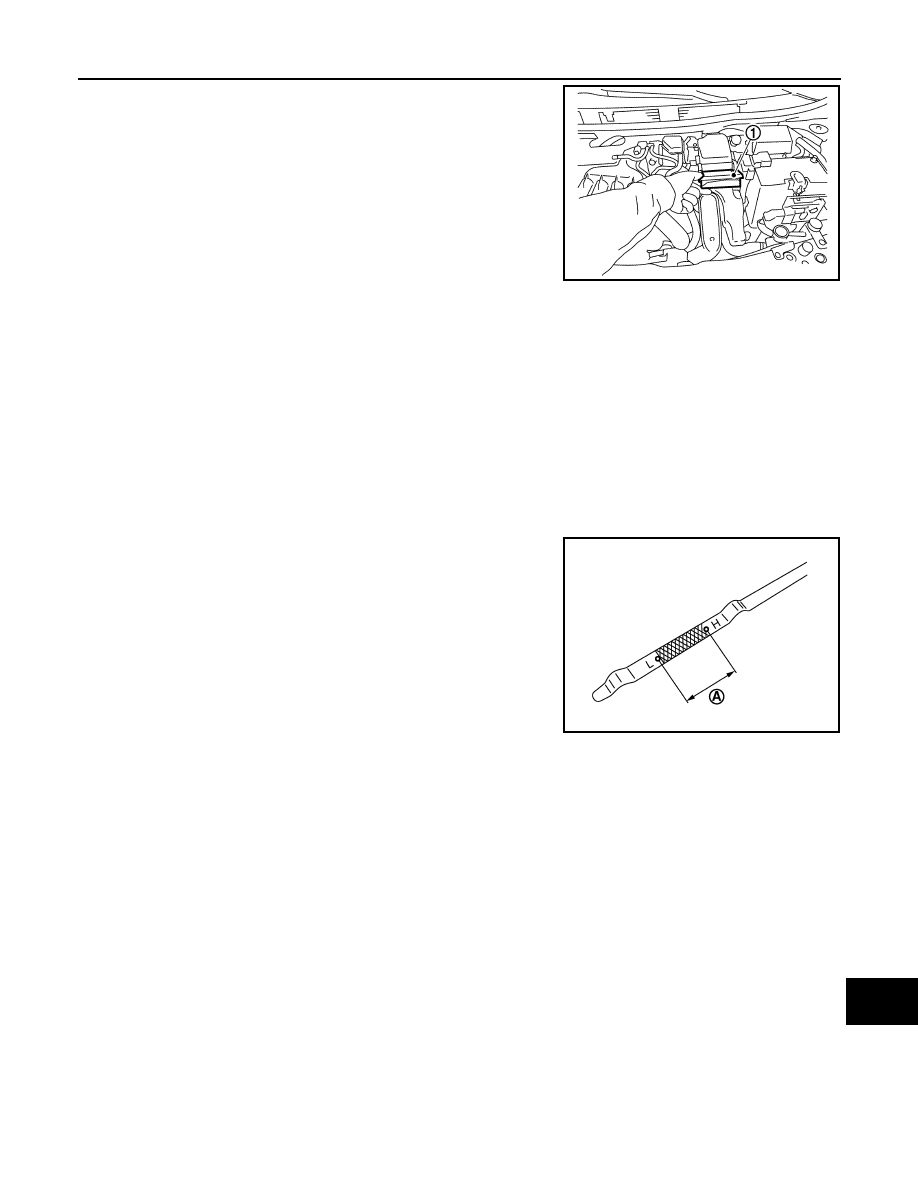

1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and check that the engine oil level is within

the range (A) as shown.

3. If it is out of range, adjust it.

ENGINE OIL APPEARANCE

• Check engine oil for white milky appearance or excessive contamination.

• If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.

Repair or replace damaged parts.

ENGINE OIL LEAKS

Check for engine oil leaks around the following areas:

• Oil pan (upper and lower)

• Oil pan drain plug

• Oil pressure sensor

• Oil filter

• Oil cooler

• Oil level sensor

• Engine oil temperature sensor

• Intake valve timing control solenoid valve

• Exhaust valve timing control solenoid valve

• Mating surface between front cover and rocker cover

• Mating surface between cylinder block and cylinder head

• Mating surface between cylinder head and rocker cover

• Crankshaft oil seals (front and rear)

• Front cover

ENGINE OIL PRESSURE CHECK

JSBIA1093ZZ

JPBIA0554ZZ

MA-22

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

WARNING:

• Be careful not to burn yourself, as engine oil may be hot.

• When checking engine oil pressure, shift selector should be in the "P" (Park) or "N" (Neutral) posi-

tion, and apply parking brake securely.

1. Check engine oil level.

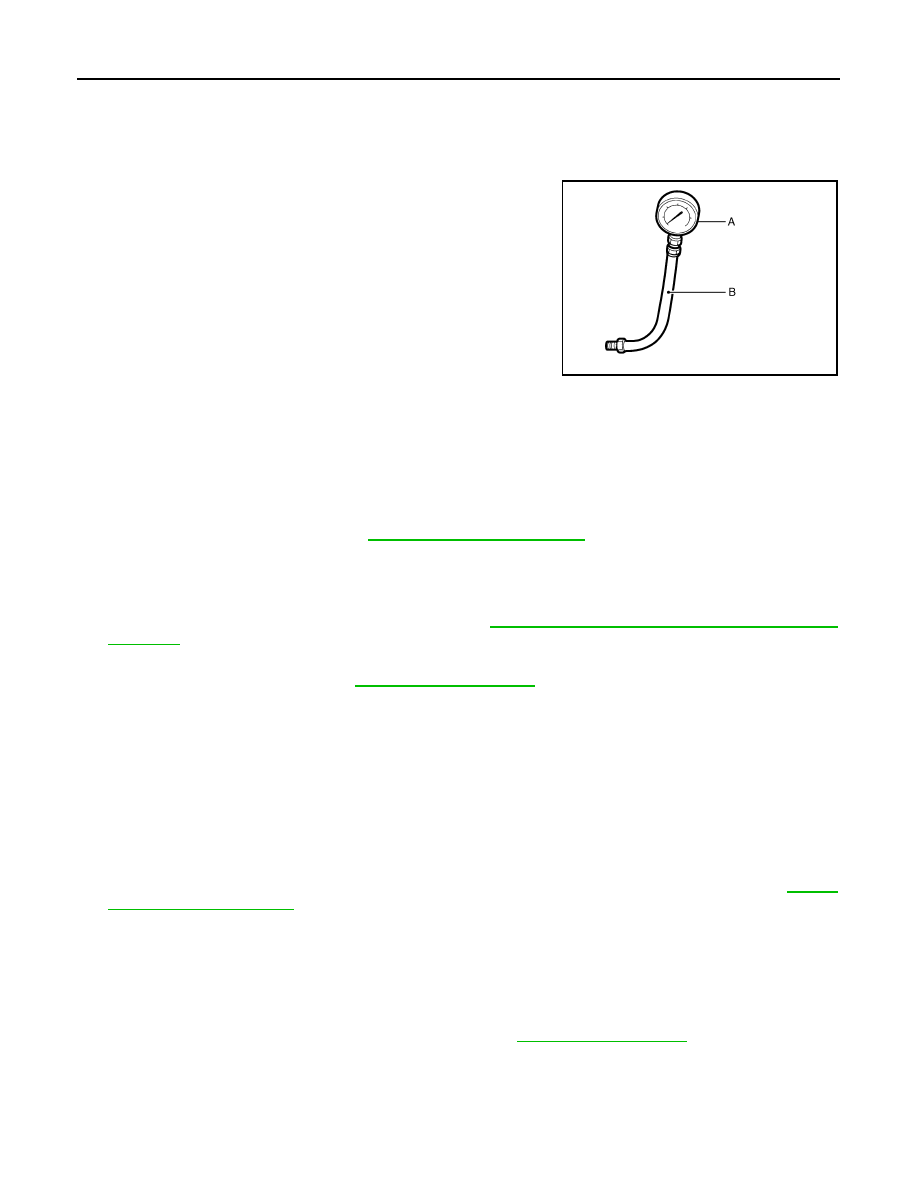

2. Disconnect harness connector at oil pressure switch. Remove

oil pressure switch using suitable tool and install suitable tools

(A/B).

CAUTION:

Do not drop or shock oil pressure switch.

3. Start engine and warm it up to normal operating temperature.
4. Check engine oil pressure with engine running under no-load.

NOTE:

• When engine oil temperature is low, engine oil pressure becomes high.

• If difference is extreme, check oil passage and oil pump for engine oil leaks.

5. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch and engine.
b. Apply liquid gasket and tighten oil pressure switch to specification.

Use Genuine Liquid Gasket or equivalent. Refer to

Sealants"

6. Check engine oil level.
7. After warming up engine, check that there is no engine oil leaks with the running engine.

ENGINE OIL : Draining

INFOID:0000000009670491

WARNING:

• Be careful not to get burned, as engine oil may be hot.

• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as

soon as possible.

1. Warm up the engine, park the vehicle on a level surface and check for engine oil leaks. Refer to

MA-21,

"ENGINE OIL : Inspection"

2. Stop the engine and wait for 10 minutes.
3. Loosen oil filler cap.
4. Remove drain plug and then drain engine oil.

ENGINE OIL : Refilling

INFOID:0000000009670492

1. Install drain plug with new copper sealing washer. Refer to

EM-34, "Exploded View"

CAUTION:

• Be sure to clean drain plug.

• Do not reuse copper sealing washer.

2. Refill with new engine oil.

JPBIA0074ZZ

Engine oil pressure

: Refer to

LU-15, "Engine Oil Pressure"

Tightening torque

: Refer to

EM-92, "Exploded View"

ENGINE MAINTENANCE

MA-23

< PERIODIC MAINTENANCE >

CAUTION:

• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in the engine.

3. Warm up engine and check area around drain plug and oil filter for engine oil leaks. Repair as necessary.
4. Stop engine and wait for 10 minutes.
5. Check the engine oil level. Refer to

LU-7, "Inspection"

OIL FILTER
OIL FILTER : Removal and Installation

INFOID:0000000009670493

REMOVAL

1. Drain engine oil. Refer to

MA-22, "ENGINE OIL : Draining"

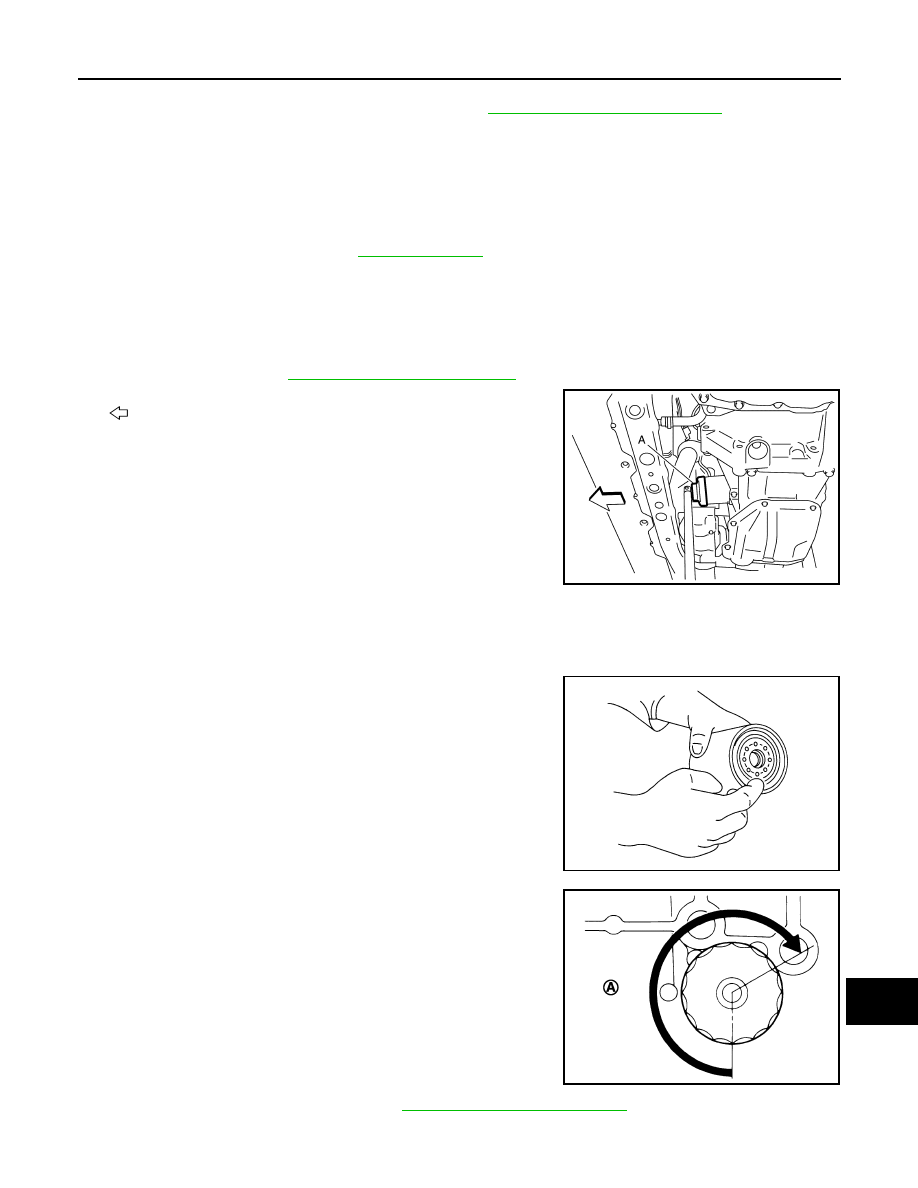

2. Remove oil filter using suitable tool (A).

: Front

WARNING:

Be careful not to get burned; engine and engine oil may be

hot.

CAUTION:

• When removing, prepare a shop cloth to absorb engine oil

leaks and spills.

• Do not spill engine oil on drive belt.

• Completely wipe off any engine oil that spills on engine

and vehicle.

• Oil filter is provided with relief valve. Use Genuine NIS-

SAN oil filter or equivalent.

INSTALLATION

1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply new engine oil to the oil seal contact surface of new oil fil-

ter.

3. Screw oil filter manually until it touches the installation surface,

then tighten it by 2/3 turn (A), or tighten to specification.

4. Refill engine with new engine oil. Refer to

MA-22, "ENGINE OIL : Refilling"

Engine oil capacity and viscosity

: Refer to

MA-12, "Fluids and Lubricants"

JSBIA0620ZZ

SMA010

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ
