3. Adjust the belt tension by turning the adjusting bolt. Refer to

EM-115, "Drive Belt"

.

CAUTION:

• When checking immediately after installation, first adjust it to the specified value. Then, after

turning crankshaft two turns or more, readjust to the specified value to avoid variation in deflec-

tion between pulleys.

• When the tension adjustment is performed, the lock nut should be in the condition at Step 2. If

the tension adjustment is performed when the lock nut is loosened more than the temporary

tightening, the idler pulley tilts and the correct tension adjustment cannot be performed.

4. Tighten the lock nut to final tightening specification.

ENGINE COOLANT
ENGINE COOLANT : Inspection

INFOID:0000000009670482

CHECKING COOLING SYSTEM HOSES

Check hoses for the following:

• Improper attachment

• Leaks

• Cracks

• Damage

• Loose connections

• Chafing

• Deterioration

CHECKING RESERVOIR LEVEL

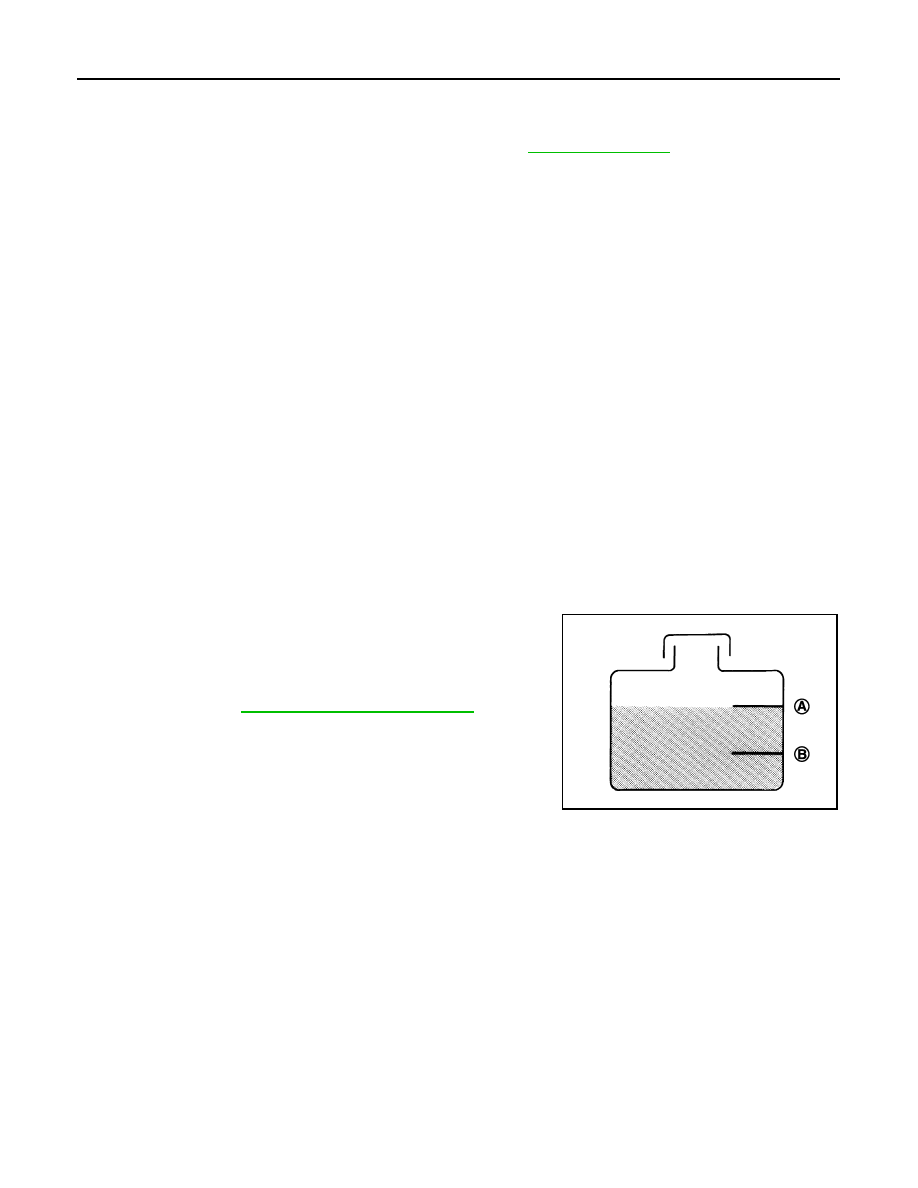

• Check that the reservoir tank engine coolant level is within the

MAX (A) to MIN (B) range when the engine is cool.

• Adjust the engine coolant level if necessary.

CAUTION:

Refill the engine cooling system with the specified coolant or

equivalent. Refer to

MA-12, "Fluids and Lubricants"

.

CHECKING COOLING SYSTEM FOR LEAKS

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and

turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down

and turning it all the way.

CAUTION:

• Perform this step when the engine is cold.

• Do not spill engine coolant on drive belt.

(6)

: Drive belt

(B)

: Adjusting bolt

Lock nut (Final tightening)

: 34.8 N·m (3.5 kg-m, 26 ft-lb)

JPBIA0102ZZ

ENGINE MAINTENANCE

MA-17

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

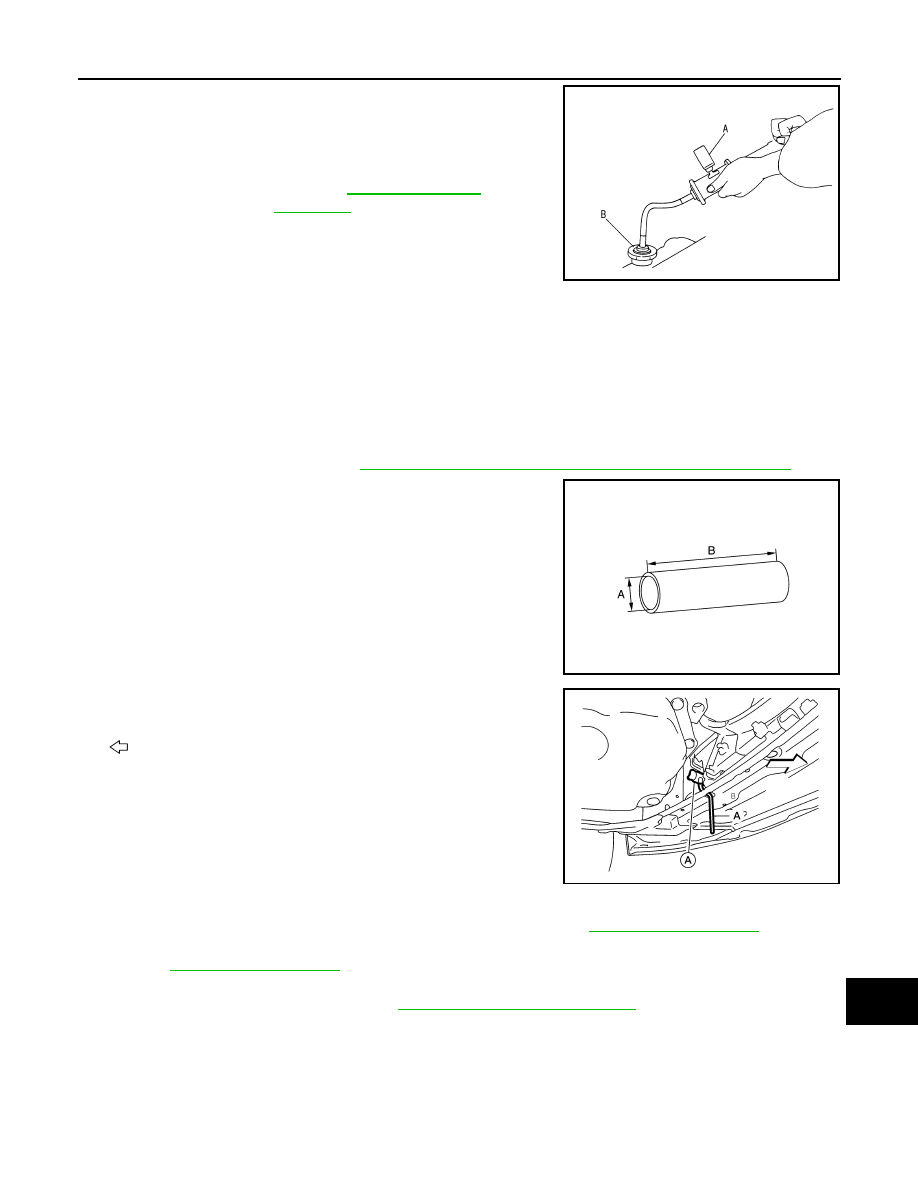

To check for leaks, apply pressure to the cooling system using suit-

able tool (A) and Tool (B).

ENGINE COOLANT : Draining Engine Coolant

INFOID:0000000009670483

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and

turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down

and turning it all the way.
1. Remove front under cover. Refer to

EXT-25, "FRONT UNDER COVER : Removal and Installation"

.

2. Connect a suitable hose to the radiator drain plug.

• Use a suitable hose with the dimensions as shown.

3. Open radiator drain plug (A) at the bottom of radiator, and then

remove radiator cap.

(A): Suitable hose

: Front

CAUTION:

• Perform this step when engine is cold.

• Do not spill engine coolant on the drive belt.

4. It is necessary to drain the cylinder block when draining all of engine coolant in the system. To drain the

cylinder block, open the water drain plugs on cylinder block. Refer to

EM-92, "Exploded View"

.

5. Remove reservoir tank if necessary, and drain engine coolant and clean reservoir tank before installing.

Refer to

CO-14, "Exploded View"

.

6. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,

flush the engine cooling system. Refer to

CO-11, "Flushing Cooling System"

.

ENGINE COOLANT : Refilling

INFOID:0000000009670484

1. Install the radiator drain plug. Install the reservoir tank and cylinder block drain plug, if removed for a total

system drain or for engine removal or repair.

• The radiator must be completely empty of engine coolant and water.

Tool number (B)

: EG17650301 (J-33984-A)

Testing pressure

: Refer to

CO-26, "Standard

and Limit"

.

PBIC5121J

Diameter (A)

: 0.8 mm (0.31 in)

Length (B)

: 300 mm (11.81 in)

JPBIA4770ZZ

ALBIA1140ZZ

MA-18

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

• Apply sealant to the threads of the cylinder block drain plug. Use Genuine High Performance

Thread Sealant or equivalent. Refer to

MA-12, "Fluids and Lubricants"

.

2. If disconnected, reattach the upper radiator hose at the engine side.
3. Set the vehicle heater controls to the full HOT and heater ON position. Turn the vehicle ignition ON with

the engine OFF as necessary to activate the heater mode.

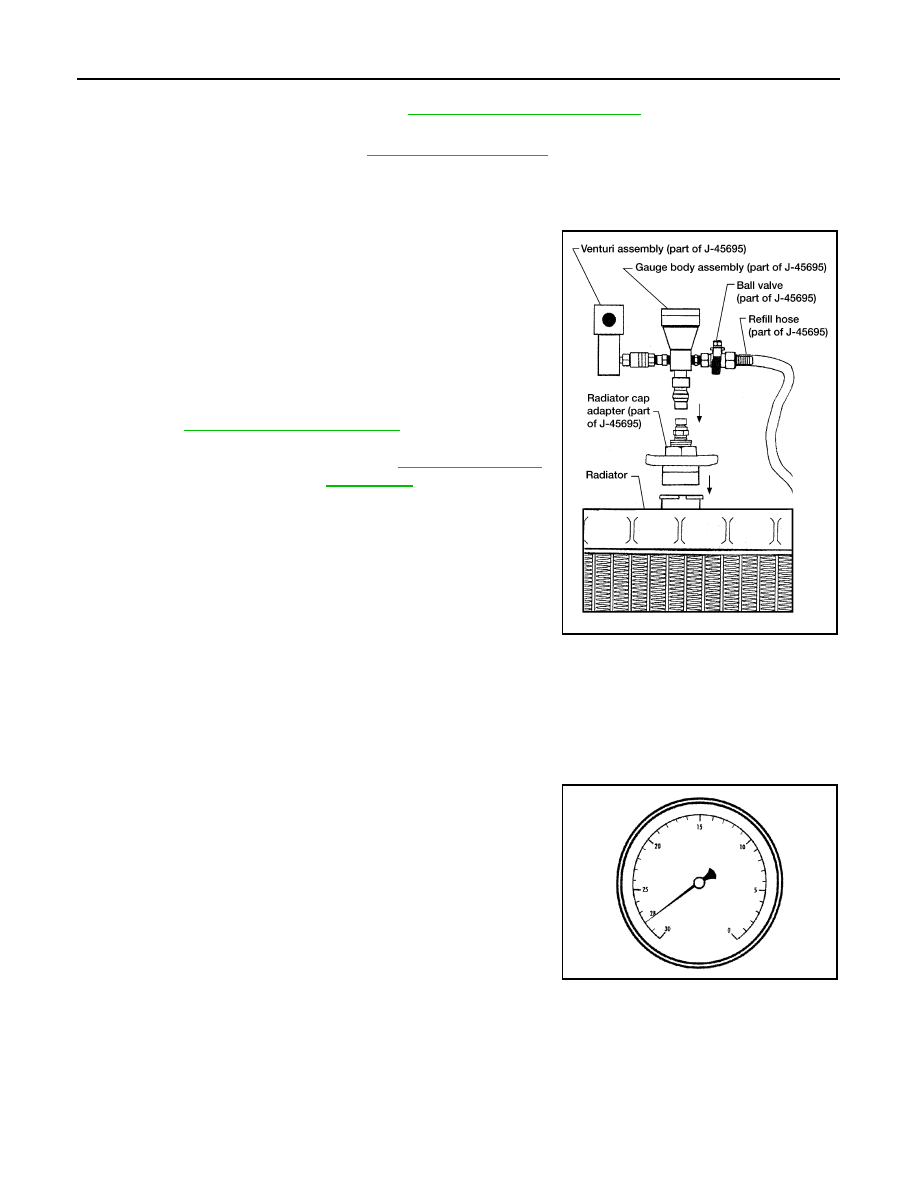

4. Install the Tool by installing the radiator cap adapter onto the

radiator neck opening. Then attach the gauge body assembly

with the refill tube and the venturi assembly to the radiator cap

adapter.

5. Insert the refill hose into the engine coolant mixture container

that is placed at floor level. Make sure the ball valve is in the

closed position.

• Use recommended engine coolant or equivalent.

Refer to

MA-12, "Fluids and Lubricants"

.

CAUTION:

Do not use any cooling system additives such as radiator

sealer. Additives may clog the cooling system and cause

damage to the engine, transmission and/or cooling system.

6. Install an air hose to the venturi assembly, the air pressure must

be within specification.

CAUTION:

The compressed air supply must be equipped with an air dryer.

7. The vacuum gauge will begin to rise and there will be an audible hissing noise. During this process open

the ball valve on the refill hose slightly. Engine coolant will be visible rising in the refill hose. Once the refill

hose is full of engine coolant, close the ball valve. This will purge any air trapped in the refill hose.

8. Continue to draw the vacuum until the gauge reaches 28 inches

of vacuum. The gauge may not reach 28 inches in high altitude

locations, use the vacuum specifications based on the altitude

above sea level.

9. When the vacuum gauge has reached the specified amount, disconnect the air hose and wait 20 seconds

to see if the system loses any vacuum. If the vacuum level drops, perform any necessary repairs to the

system and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for any leaks.

10. Place the engine coolant container (with the refill hose inserted) at the same level as the top of the radia-

tor. Then open the ball valve on the refill hose so the engine coolant will be drawn up to fill the cooling sys-

tem. The cooling system is full when the vacuum gauge reads zero.

CAUTION:

Radiator drain plug

: Refer to

EM-92, "Exploded View"

.

Tool number

: KV991J0070 (J-45695)

Engine coolant capacity
(with reservoir tank)

: Refer to

MA-12, "Fluids and

Lubricants"

.

Compressed air
supply pressure

: 549 - 824 kPa (5.6 - 8.4 kg/cm

2

,

80 - 119 psi)

LLIA0058E

Altitude above sea level

Vacuum gauge reading

0 - 100 m (328 ft)

: 28 inches of vacuum

300 m (984 ft)

: 27 inches of vacuum

500 m (1,641 ft)

: 26 inches of vacuum

1,000 m (3,281 ft)

: 24 - 25 inches of vacuum

LLIA0057E

ENGINE MAINTENANCE

MA-19

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Do not allow the engine coolant container to get too low when filling, to avoid air from being drawn

into the cooling system.

11. Remove the Tool from the radiator neck opening.
12. Fill the cooling system reservoir tank to the specified level and install the radiator cap. Run the engine to

warm up the cooling system and top up the system as necessary.

13. Install the front under cover. Refer to

EXT-25, "FRONT UNDER COVER : Removal and Installation"

.

ENGINE COOLANT : Flushing Cooling System

INFOID:0000000009670485

1. Install radiator drain plug and reservoir tank, if removed.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

2. If water drain plugs on cylinder block were removed, close and tighten them. Refer to

EM-92, "Exploded

View"

.

3. Remove air duct from between air cleaner case and electric throttle control actuator. Refer to

EM-19,

"Removal and Installation"

.

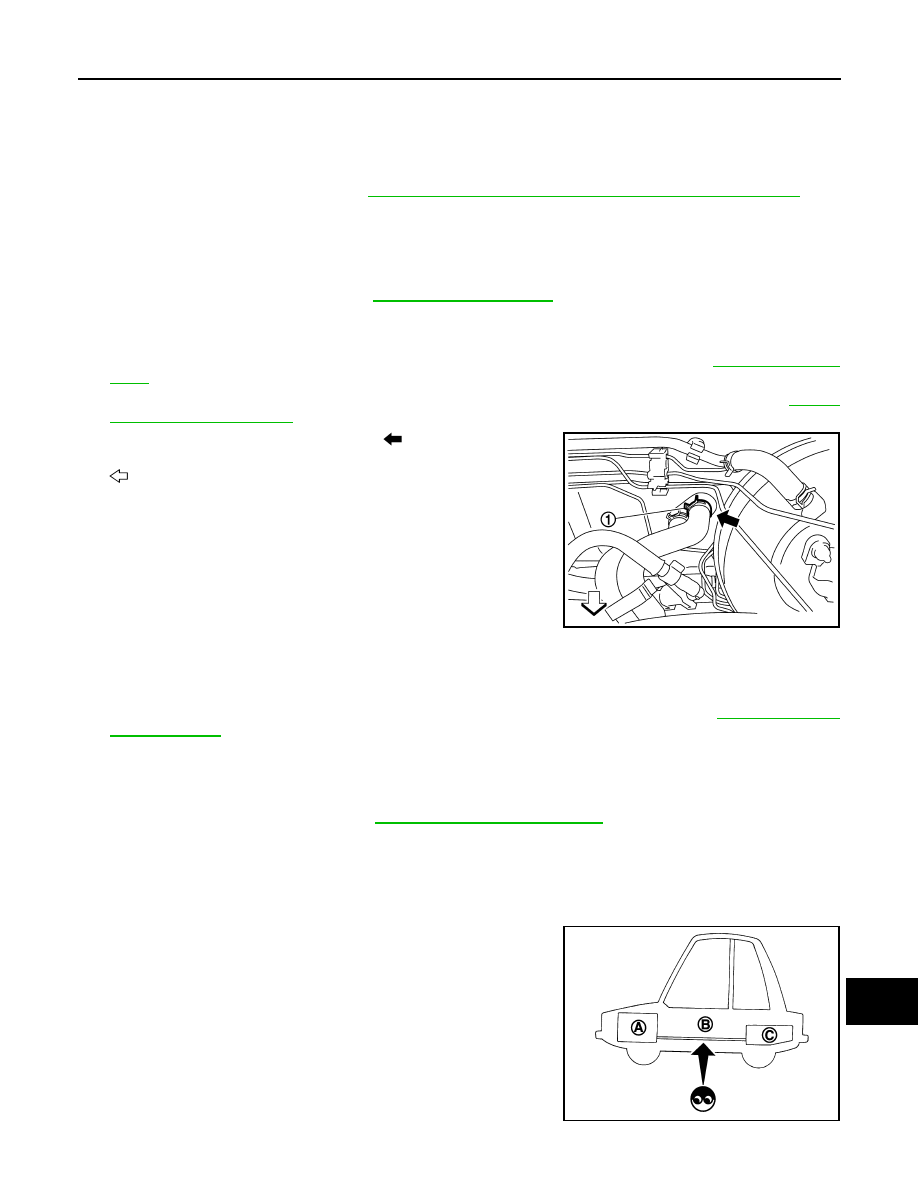

4. Disconnect heater hose (1) at location (

) as shown.

• Position heater hose as high as possible.

: Front

5. Fill radiator until engine coolant flows out of the disconnected heater hose and then reconnect the heater

hose.

6. Finish filling the engine and reservoir tank with water and reinstall the radiator cap.
7. Install air duct in between air cleaner case and electric throttle control actuator. Refer to

EM-19, "Removal

and Installation"

.

8. Run the engine and warm it up to normal operating temperature.
9. Rev the engine two or three times under no-load.
10. Stop the engine and wait until it cools down.
11. Drain water from the system. Refer to

CO-8, "Draining Engine Coolant"

.

12. Repeat steps 1 through 11 until clear water begins to drain from radiator.

FUEL LINES
FUEL LINES : Inspection

INFOID:0000000009417638

Inspect fuel lines, fuel filler cap, and fuel tank for improper attach-

ment, leakage, cracks, damage, loose connections, chafing or dete-

rioration.

If necessary, repair or replace damaged parts.

AIR CLEANER FILTER

Radiator drain plug

: Refer to

CO-14, "Exploded View"

.

JSBIA0616ZZ

(A)

: Engine

(B)

: Fuel line

(C)

: Fuel tank

JPBIA0129ZZ
