DIAGNOSIS AND REPAIR WORKFLOW

LAN-17

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

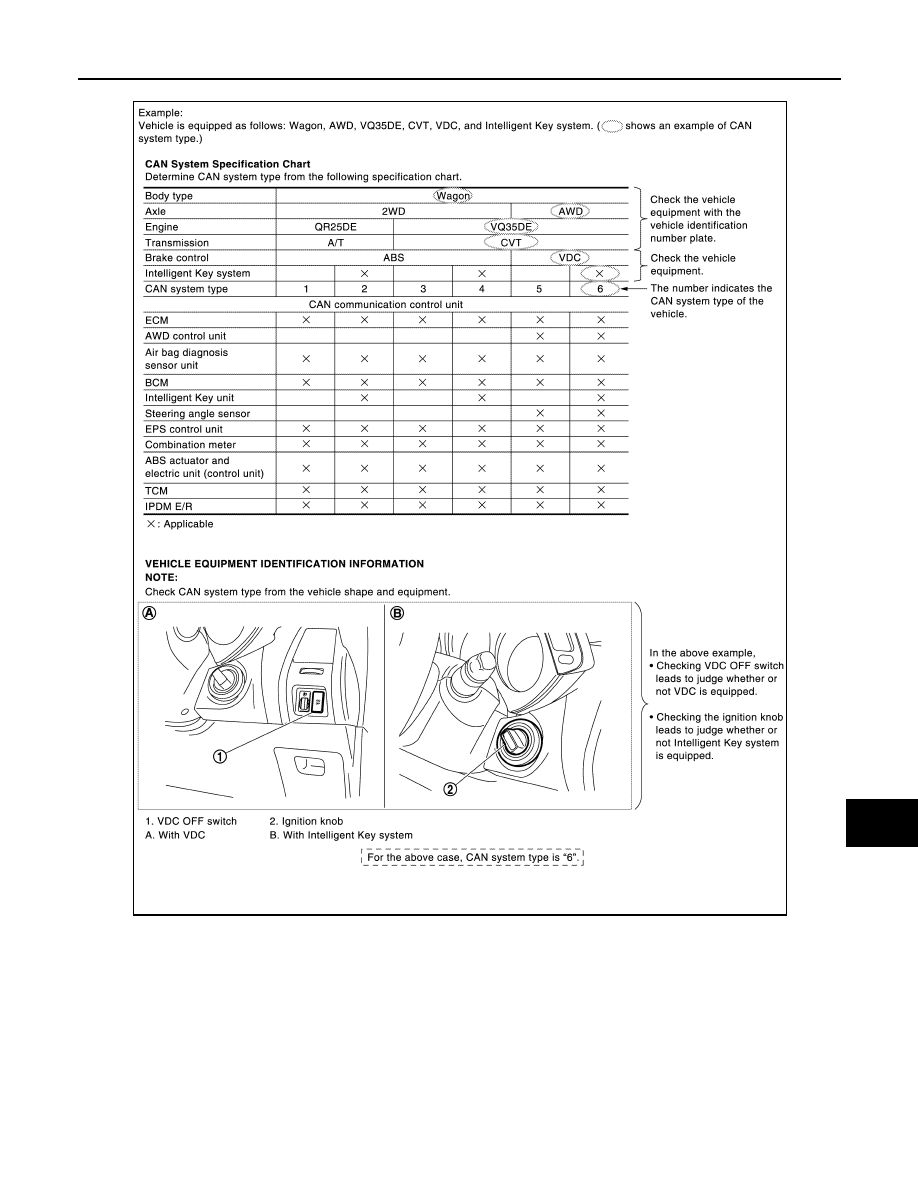

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CAN System Type Specification Chart (Style B)

NOTE:

JSMIA0529GB

LAN-18

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

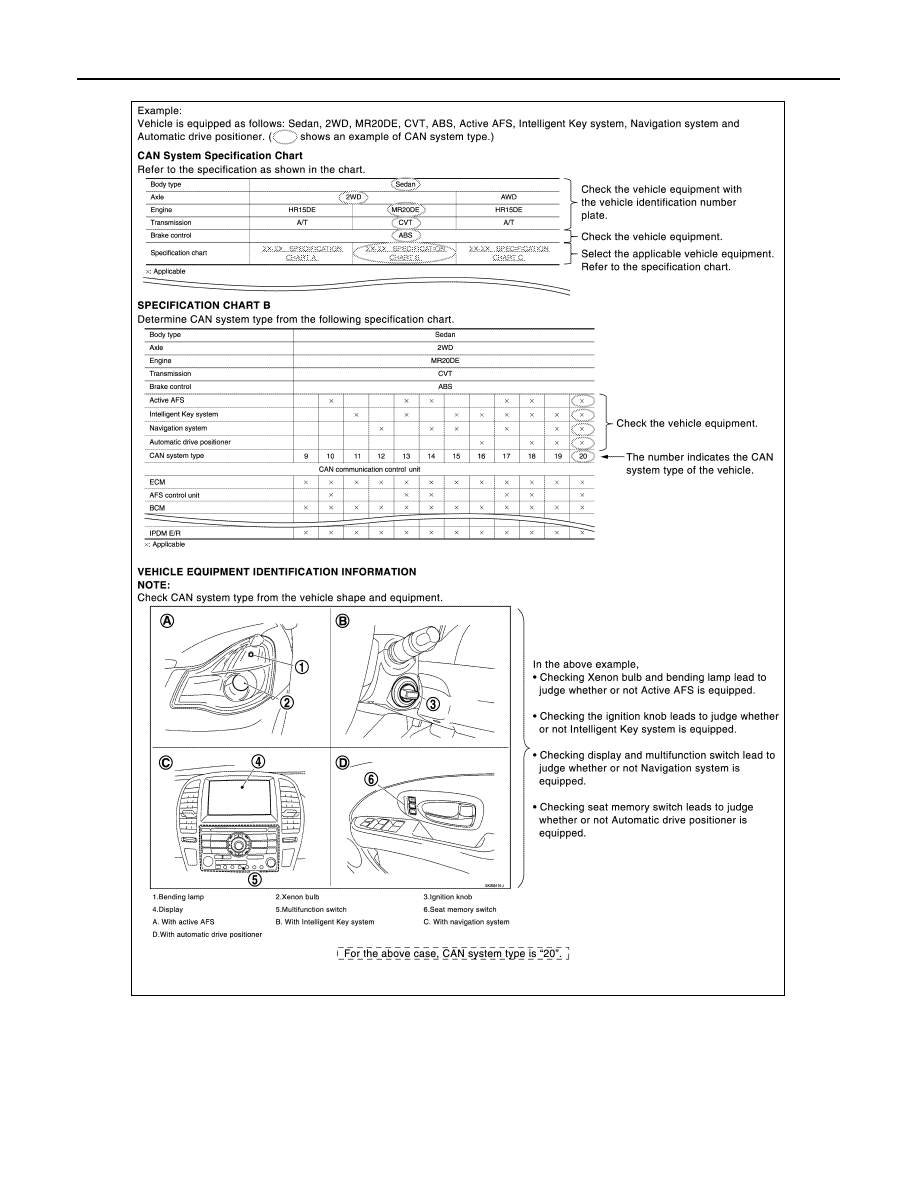

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CREATE INTERVIEW SHEET

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview

sheet.

JSMIA0530GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-19

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

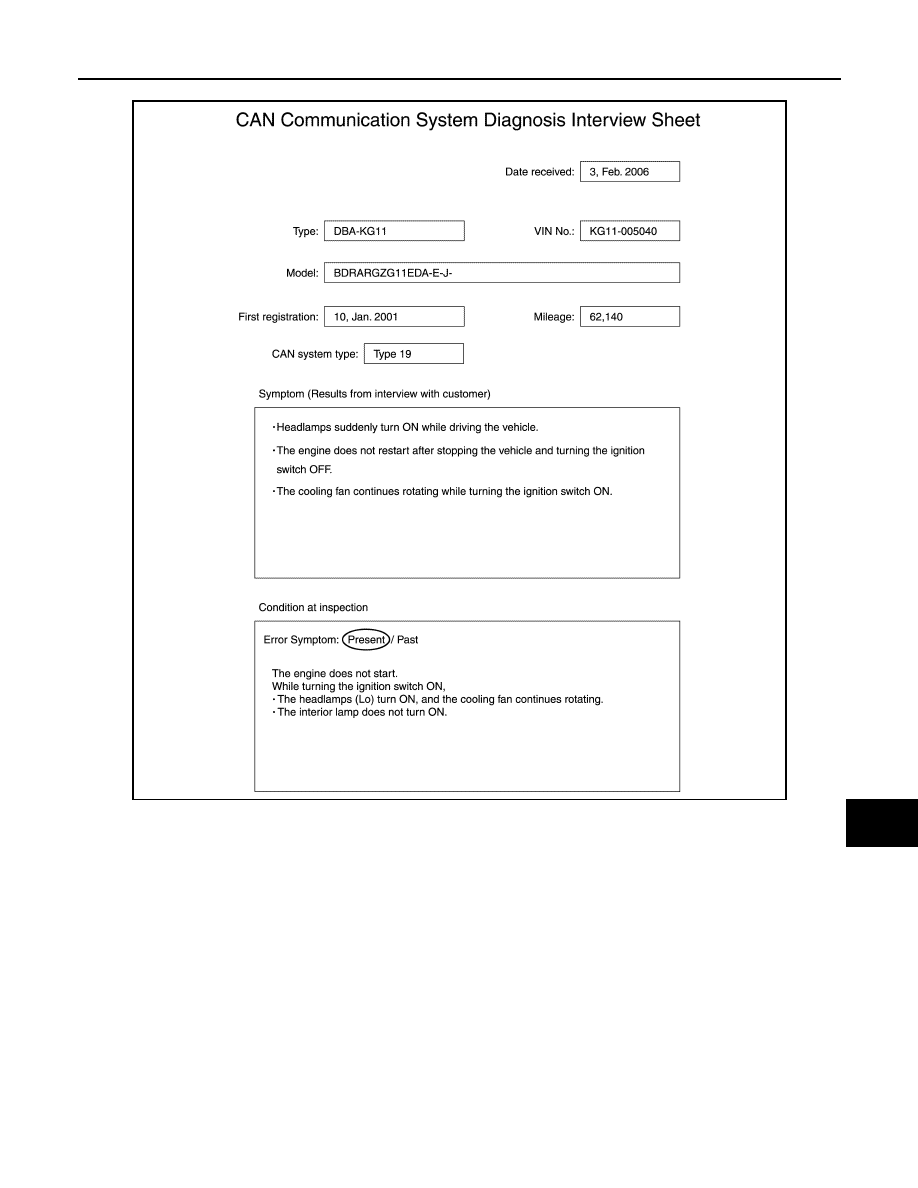

Interview Sheet (Example)

DETECT THE ROOT CAUSE

CAN diagnosis function of CONSULT detects the root cause.

JSMIA0531GB

LAN-20

< HOW TO USE THIS MANUAL >

[CAN]

HOW TO USE THIS SECTION

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Information

INFOID:0000000009014733

• “CAN” of LAN Section describes information peculiar to a vehicle and inspection procedures.

• For trouble diagnosis procedure, refer to

LAN-15, "Trouble Diagnosis Flow Chart"

 of “CAN FUNDAMEN-

TAL”.

Abbreviation List

INFOID:0000000009014734

Unit name abbreviations in CONSULT CAN diagnosis and in this section are as per the following list.

Abbreviation

Unit name

A-BAG

Air bag diagnosis sensor unit

ABS

ABS actuator and electric unit (control unit)

AV

AV control unit

BCM

BCM

DLC

Data link connector

ECM

ECM

EPS

EPS control unit

IPDM-E

IPDM E/R

M&A

Combination meter

TCM

TCM
