Symptom When Error Occurs in CAN Communication System

INFOID:0000000009014726

In CAN communication system, multiple control units mutually transmit and receive signals. Each control unit

cannot transmit and receive signals if any error occurs on CAN communication line. Under this condition, mul-

tiple control units related to the root cause malfunction or go into fail-safe mode.

ERROR EXAMPLE

NOTE:

Each vehicle differs in symptom of each control unit under fail-safe mode and CAN communication line wiring.

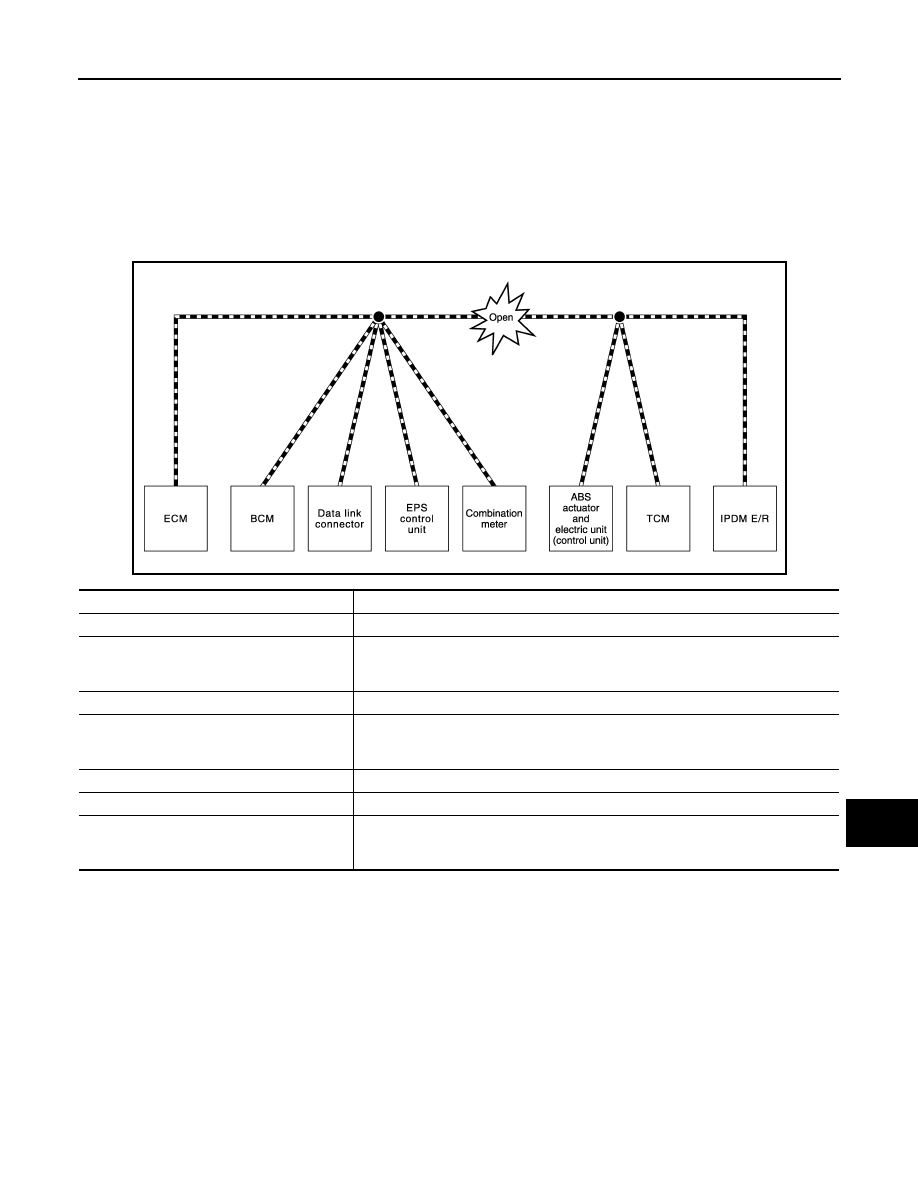

Example: Main Line Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Open Circuit

JSMIA0442GB

Unit name

Major symptom

ECM

Engine torque limiting is affected, and shift harshness increases.

BCM

• Reverse warning buzzer does not sound.
• The front wiper moves under continuous operation mode even though the front wip-

er switch being in the intermittent position.

EPS control unit

The steering effort increases.

Combination meter

• The shift position indicator and OD OFF indicator turn OFF.
• The speedometer is inoperative.
• The odo/trip meter stops.

ABS actuator and electric unit (control unit)

Normal operation.

TCM

No impact on operation.

IPDM E/R

When the ignition switch is ON,
• The headlamps (Lo) turn ON.
• The cooling fan continues to rotate.

LAN-10

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSIS

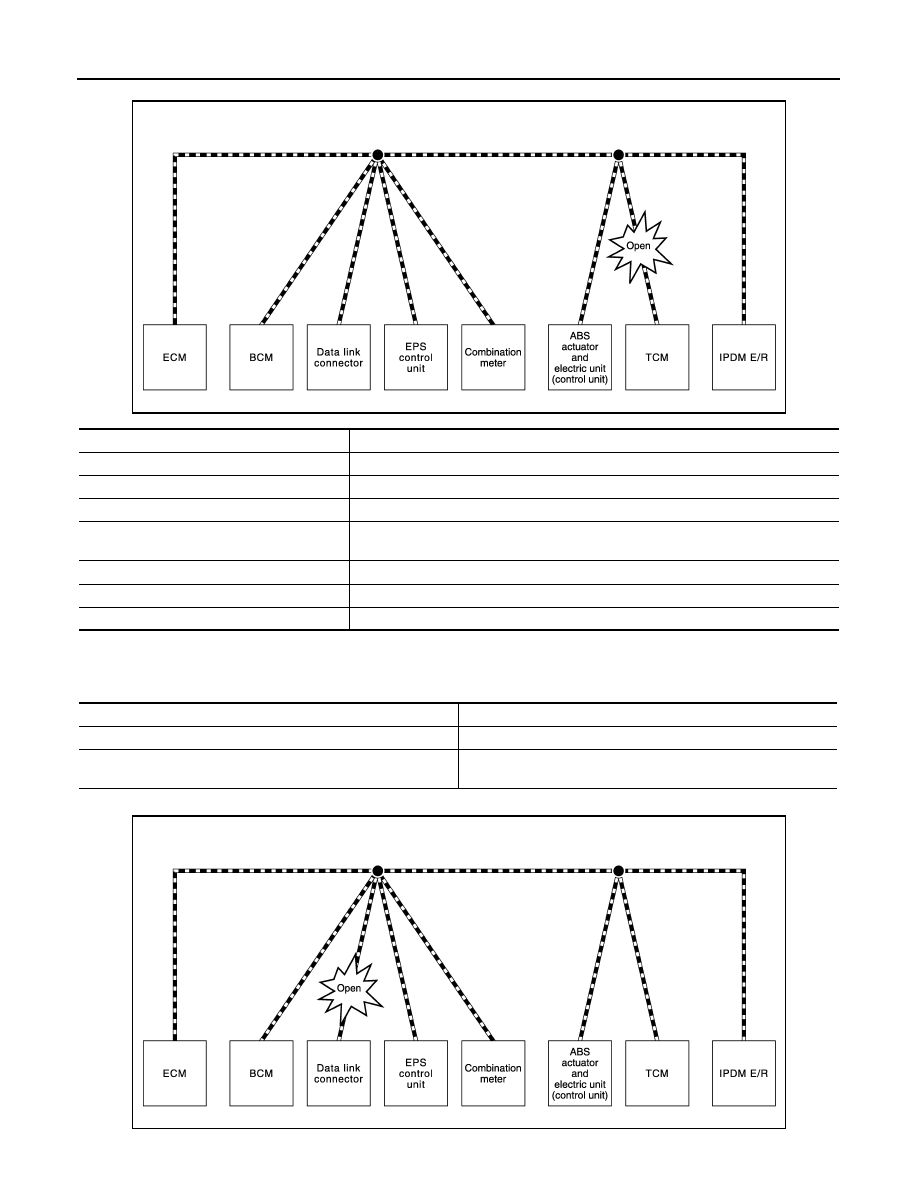

Example: TCM Branch Line Open Circuit

NOTE:

The model (all control units on CAN communication system are Diag on CAN) cannot perform CAN diagnosis

with CONSULT if the following error occurs. The error is judged by the symptom.

Example: Data Link Connector Branch Line Open Circuit

JSMIA0443GB

Unit name

Major symptom

ECM

Engine torque limiting is affected, and shift harshness increases.

BCM

Reverse warning buzzer does not sound.

EPS control unit

Normal operation.

Combination meter

• Shift position indicator and O/D OFF indicator turn OFF.
• Warning lamps turn ON.

ABS actuator and electric unit (control unit)

Normal operation.

TCM

No impact on operation.

IPDM E/R

Normal operation.

Error

Difference of symptom

Data link connector branch line open circuit

Normal operation.

CAN-H, CAN-L harness short-circuit

Most of the control units which are connected to the CAN commu-
nication system enter fail-safe mode or are deactivated.

JSMIA0444GB

LAN

TROUBLE DIAGNOSIS

LAN-11

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NOTE:

When data link connector branch line is open, transmission and reception of CAN communication signals are

not affected. Therefore, no symptoms occur. However, be sure to repair malfunctioning circuit.

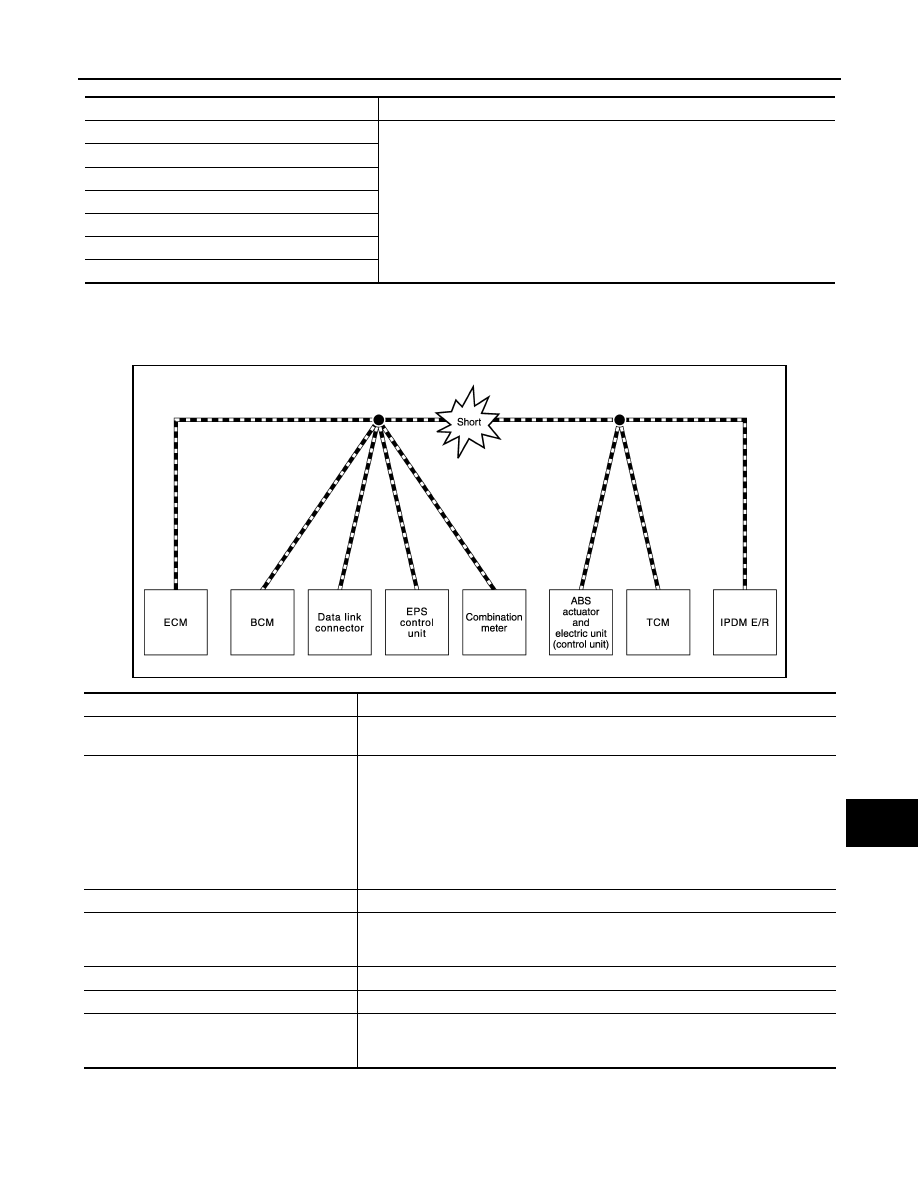

Example: CAN-H, CAN-L Harness Short Circuit

CAN Diagnosis with CONSULT

INFOID:0000000009014727

CAN diagnosis on CONSULT extracts the root cause by receiving the following information.

Unit name

Major symptom

ECM

Normal operation.

BCM

EPS control unit

Combination meter

ABS actuator and electric unit (control unit)

TCM

IPDM E/R

JSMIA0445GB

Unit name

Major symptom

ECM

• Engine torque limiting is affected, and shift harshness increases.
• Engine speed drops.

BCM

• Reverse warning buzzer does not sound.
• The front wiper moves under continuous operation mode even though the front

wiper switch being in the intermittent position.

• The room lamp does not turn ON.
• The engine does not start (if an error or malfunction occurs while turning the igni-

tion switch OFF.)

• The steering lock does not release (if an error or malfunction occurs while turning

the ignition switch OFF.)

EPS control unit

The steering effort increases.

Combination meter

• The tachometer and the speedometer do not move.
• Warning lamps turn ON.
• Indicator lamps do not turn ON.

ABS actuator and electric unit (control unit)

Normal operation.

TCM

No impact on operation.

IPDM E/R

When the ignition switch is ON,
• The headlamps (Lo) turn ON.
• The cooling fan continues to rotate.

LAN-12

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSIS

• Response to the system call

• Control unit diagnosis information

• Self-diagnosis

• CAN diagnostic support monitor

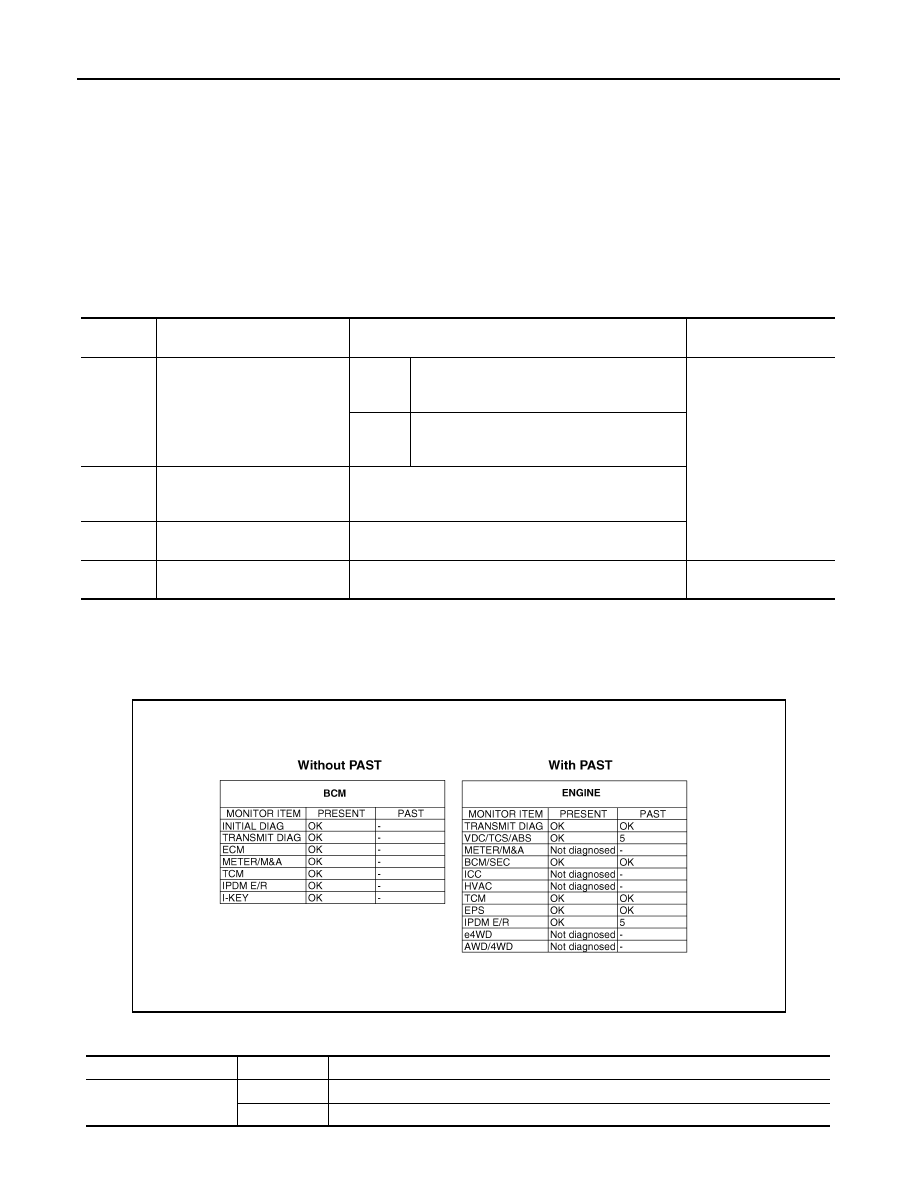

Self-Diagnosis

INFOID:0000000009014728

If communication signals cannot be transmitted or received among control units communicating via CAN com-

munication line, CAN communication-related DTC is displayed on the CONSULT “Self Diagnostic Result”

screen.

NOTE:

The following table shows examples of CAN communication-related DTC. For other DTC, refer to the applica-

ble sections.

CAN Diagnostic Support Monitor

INFOID:0000000009014729

MONITOR ITEM (CONSULT)

Example: CAN DIAG SUPPORT MNTR indication

Without PAST

DTC

Self-diagnosis item

 (CONSULT indication)

DTC detection condition

Inspection/Action

U1000

CAN COMM CIRCUIT

ECM

When ECM is not transmitting or receiving CAN
communication signal of OBD (emission-relat-
ed diagnosis) for 2 seconds or more.

Start the inspection. Re-
fer to the applicable sec-
tion of the indicated
control unit.

Except
for ECM

When a control unit (except for ECM) is not
transmitting or receiving CAN communication
signal for 2 seconds or more.

U1001

CAN COMM CIRCUIT

When ECM is not transmitting or receiving CAN communi-
cation signal other than OBD (emission-related diagnosis)
for 2 seconds or more.

U1002

SYSTEM COMM

When a control unit is not transmitting or receiving CAN
communication signal for 2 seconds or less.

U1010

CONTROL UNIT(CAN)

When an error is detected during the initial diagnosis for
CAN controller of each control unit.

Replace the control unit
indicating “U1010”.

JSMIA0964GB

Item

PRESENT

Description

Initial diagnosis

OK

Normal at present

NG

Control unit error (Except for some control units)
