DIAGNOSIS AND REPAIR WORK FLOW

BRC-35

< BASIC INSPECTION >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Is ON/OFF timing normal?

YES

>> GO TO 5.

NO

>> Perform warning lamp diagnosis. Refer to

BRC-60, "Component Function Check"

 (ABS warning

lamp),

BRC-61, "Component Function Check"

 (brake warning lamp).

5.

PERFORM DIAGNOSIS APPLICABLE TO THE SYMPTOM

Perform diagnosis applicable to the symptom. Refer to

BRC-62, "Symptom Table"

.

>> GO TO 6.

6.

FINAL CHECK

Perform self diagnostic result again, and check that the malfunction is repaired. After checking, erase the self

diagnosis memory. Refer to

BRC-19, "CONSULT Function (ABS)"

.

>> Inspection End.

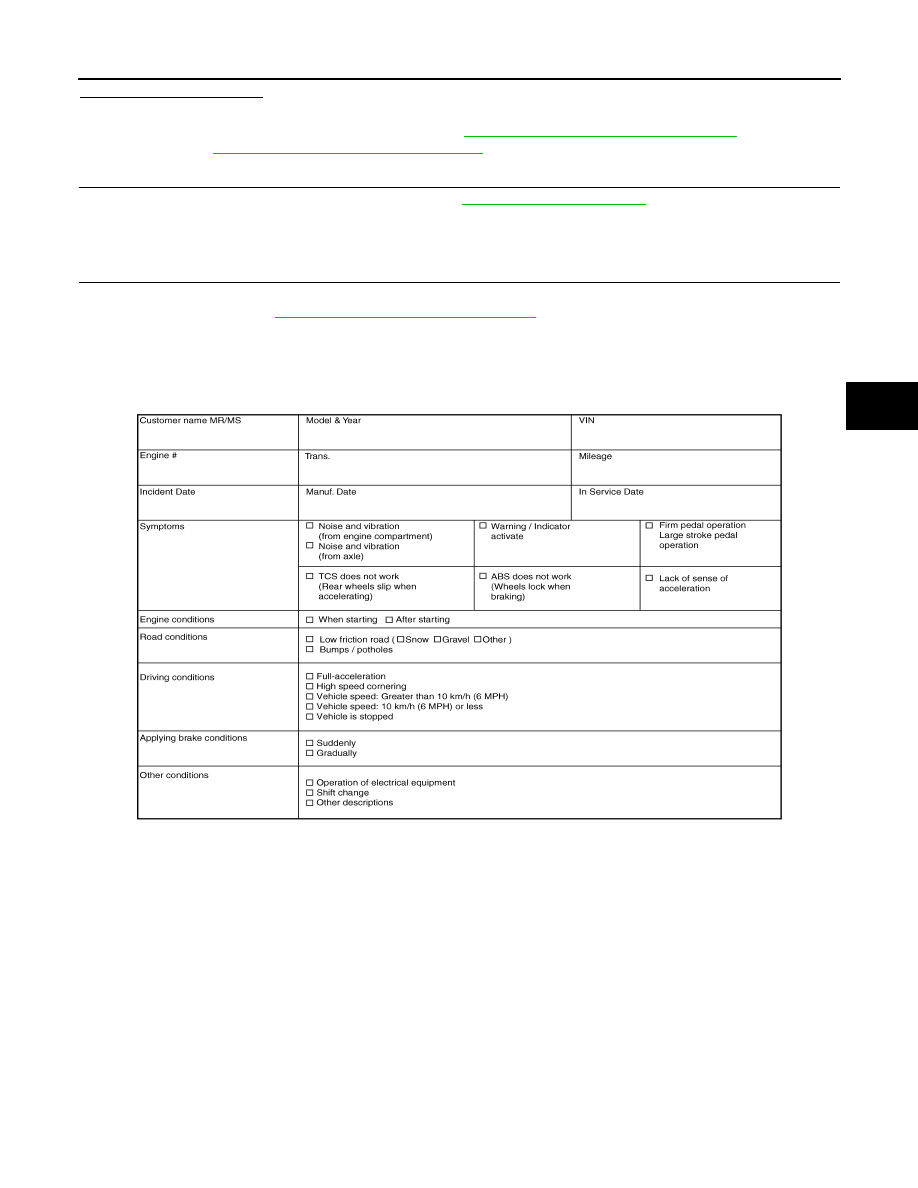

Diagnostic Work Sheet

INFOID:0000000009365072

SFIA3265E

BRC-36

< DTC/CIRCUIT DIAGNOSIS >

[ABS]

C1101, C1102, C1103, C1104 WHEEL SENSOR

DTC/CIRCUIT DIAGNOSIS

C1101, C1102, C1103, C1104 WHEEL SENSOR

DTC Logic

INFOID:0000000009549271

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULT

 With

CONSULT.

1. Start engine and drive vehicle at approximately 21 km/h (13 MPH) or more for approximately 5 minutes.

2. Perform self-diagnostic result.
Is DTC C1101, C1102, C1103 or C1104 detected?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-36, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009549272

Regarding Wiring Diagram information, refer to

BRC-27, "Wiring Diagram"

.

1.

CONFIRM DTC

 With CONSULT

1. Perform self-diagnostic result of ABS and record all active DTCs.

2. Clear all DTCs.

3. Perform DTC confirmation procedure. Refer to

BRC-36, "DTC Logic"

.

Does DTC C1101, C1102, C1103 or C1104 reset?

YES

>> GO TO 2.

NO

>> Refer to

GI-41, "Intermittent Incident"

.

2.

INSPECT WHEEL SENSOR

Inspect the suspect wheel sensor for damage or deformation.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace as necessary.

3.

HARNESS AND CONNECTOR INSPECTION

DTC

Display Item

Malfunction detected condition

Possible causes

C1101

RR RH SENSOR-1

• When power supply voltage of rear wheel sensor

RH is low.

• When an open or shorted circuit is detected in rear

wheel sensor RH circuit.

• Harness or connector
• Wheel sensor
• ABS actuator and electric unit

(control unit)

C1102

RR LH SENSOR-1

• When power supply voltage of rear wheel sensor

LH is low.

• When an open or shorted circuit is detected in rear

wheel sensor LH circuit.

C1103

FR RH SENSOR-1

• When power supply voltage of front wheel sensor

RH is low.

• When an open or shorted circuit is detected in front

wheel sensor RH circuit.

C1104

FR LH SENSOR-1

• When power supply voltage of front wheel sensor

LH is low.

• When an open or shorted circuit is detected in front

wheel sensor LH circuit.

C1101, C1102, C1103, C1104 WHEEL SENSOR

BRC-37

< DTC/CIRCUIT DIAGNOSIS >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1. Disconnect ABS actuator and electric unit (control unit) connector E33 and wheel sensor connector of

suspect wheel.

2. Check harness, connectors and terminals for corrosion, deformation, disconnection, looseness or dam-

age.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace as necessary.

4.

CHECK WHEEL SENSOR OUTPUT SIGNAL

1. Connect ABS active wheel sensor tester (J-45741) to wheel sensor using appropriate adapter.

2. Turn on the ABS active wheel sensor tester power switch.

NOTE:

The green POWER indicator should illuminate. If the POWER indicator does not illuminate, replace the

battery in the ABS active wheel sensor tester before proceeding.

3. Spin the wheel of the vehicle by hand and observe the red SENSOR indicator on the ABS active wheel

sensor tester. The red SENSOR indicator should flash ON and OFF to indicate an output signal.

NOTE:

If the red SENSOR indicator illuminates but does not flash, reverse the polarity of the tester leads and

retest.

Does the ABS active wheel sensor tester detect a signal?

YES

>> GO TO 5.

NO

>> Replace the wheel sensor. Refer to

BRC-69, "FRONT WHEEL SENSOR : Removal and Installa-

tion"

 or

BRC-70, "REAR WHEEL SENSOR : Removal and Installation"

.

5.

CHECK WIRING HARNESS FOR SHORT TO VOLTAGE

1. Turn ignition switch ON.

2. Check voltage between wheel sensor harness connector terminals of suspect wheel and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair the circuit.

6.

CHECK WIRING HARNESS FOR SHORT TO GROUND

1. Turn ignition switch OFF.

2. Check continuity between wheel sensor harness connector terminals of suspect wheel and ground.

Wheel Sensor

Ground

Voltage

Wheel

Connector

Terminal

Front LH

E51

1

—

0V

2

Front RH

E52

1

2

Rear LH

B22

1

2

Rear RH

B35

1

2

Wheel Sensor

Ground

Continuity

Wheel

Connector

Terminal

BRC-38

< DTC/CIRCUIT DIAGNOSIS >

[ABS]

C1101, C1102, C1103, C1104 WHEEL SENSOR

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair the circuit.

7.

CHECK WIRING HARNESS FOR SHORT BETWEEN CIRCUITS

Check continuity between wheel sensor harness connector terminals of suspect wheel.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair the circuit.

8.

CHECK WIRING HARNESS FOR OPEN CIRCUIT

Check continuity between ABS actuator and electric unit (control unit) harness connector E33 and harness

connector of suspect wheel sensor.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair the circuit.

9.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT

1. Turn ignition switch ON.

2. Check voltage between ABS actuator and electric unit (control unit) harness connector E33 terminal and

ground.

Front LH

E51

1

—

No

2

Front RH

E52

1

2

Rear LH

B22

1

2

Rear RH

B35

1

2

Wheel Sensor

(+)

(-)

Continuity

Wheel

Connector

Terminal

Terminal

Front LH

E51

1

2

No

Front RH

E52

Rear LH

B22

Rear RH

B35

Wheel sensor

ABS actuator and electric unit (control unit)

Wheel sensor

Continuity

Connector

Terminal

Connector

Terminal

Yes

Front LH

E33

37

E51

1

36

2

Front RH

26

E52

1

27

2

Rear LH

30

B22

1

29

2

Rear RH

33

B35

1

34

2
