Nissan Note E12. Manual - part 85

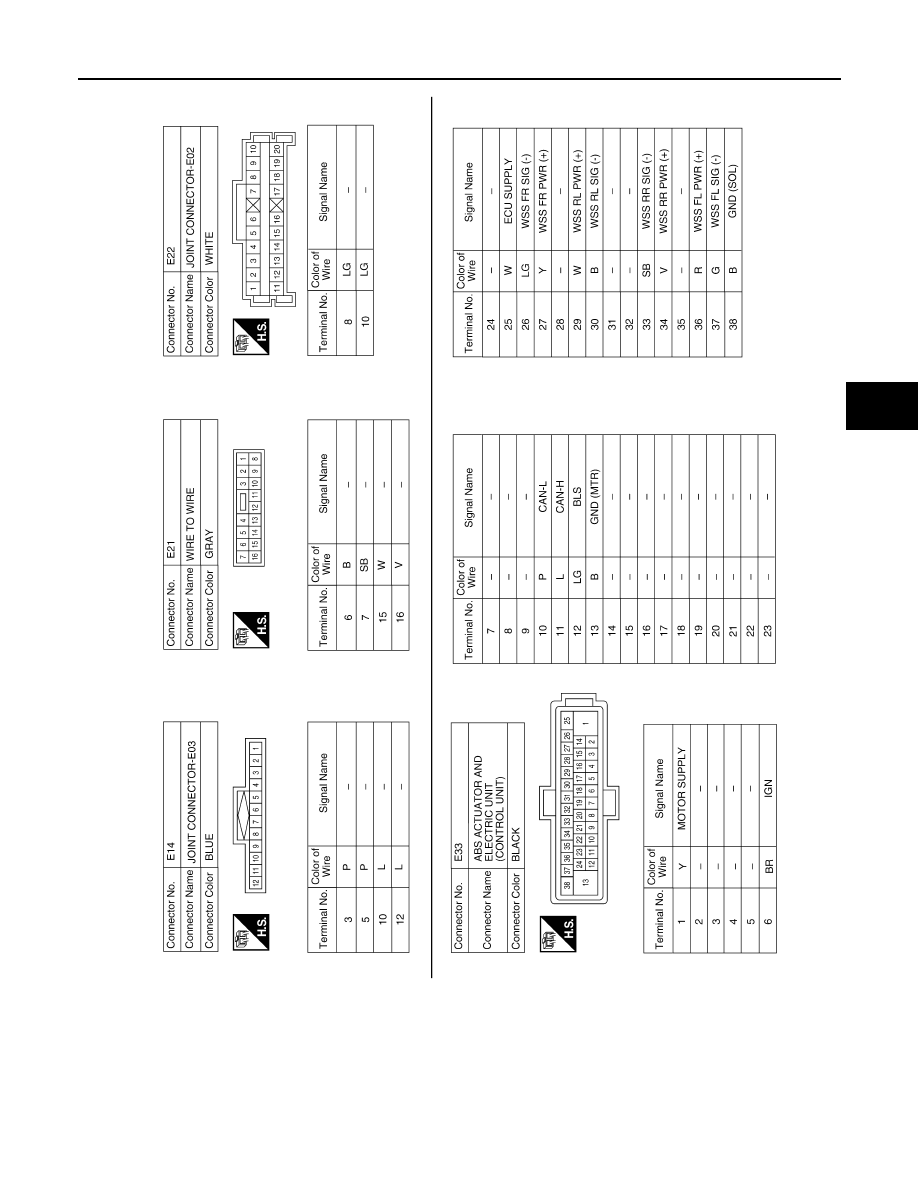

BRAKE CONTROL SYSTEM

BRC-31

< WIRING DIAGRAM >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

AAFIA0168GB

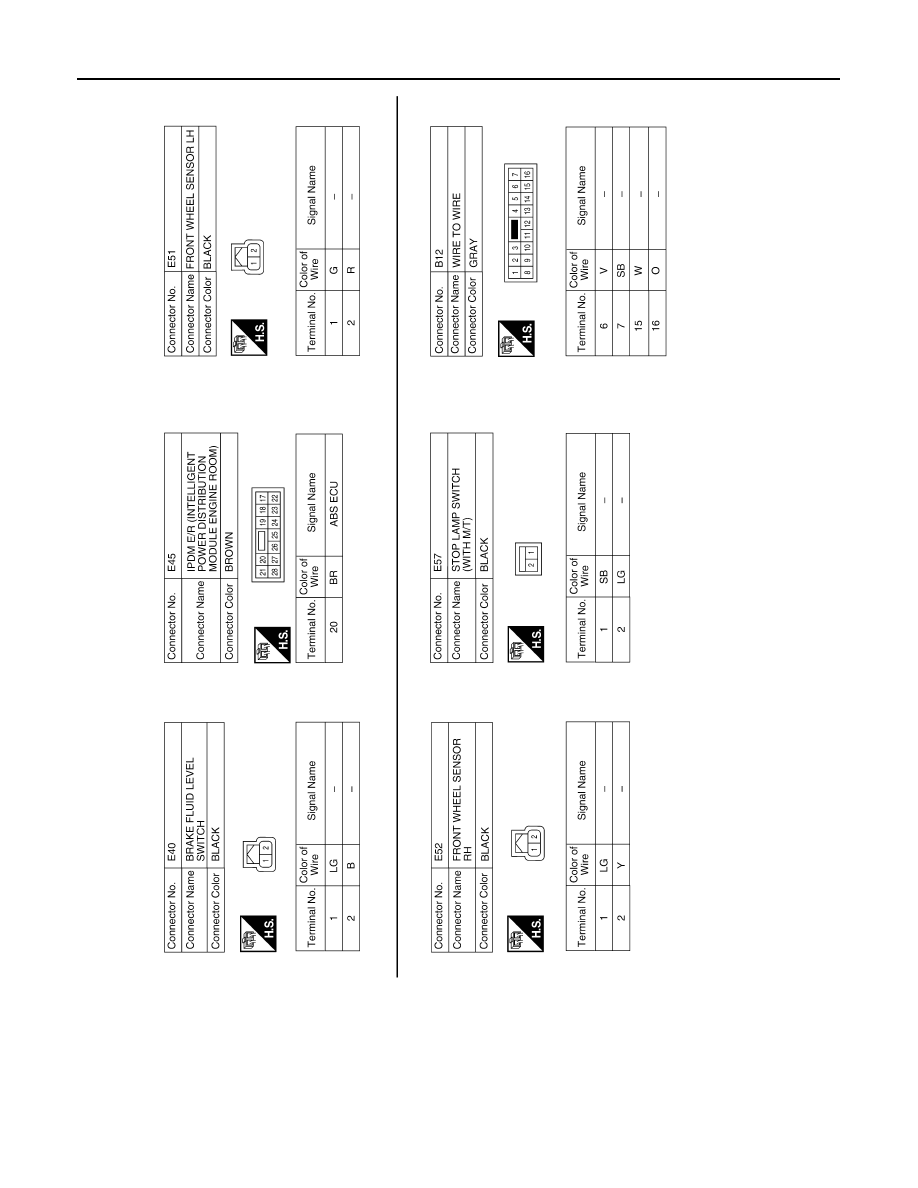

BRC-32

< WIRING DIAGRAM >

[ABS]

BRAKE CONTROL SYSTEM

AAFIA0169GB

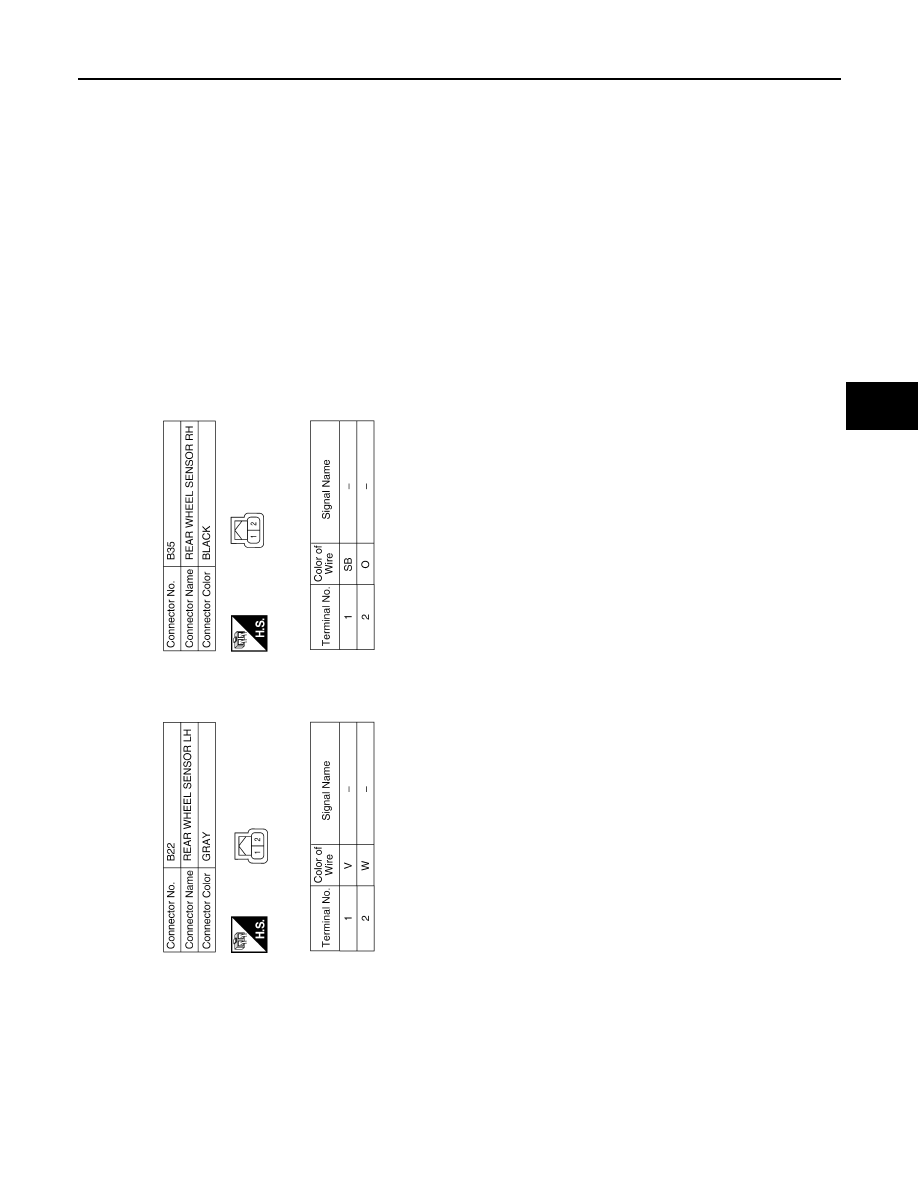

BRAKE CONTROL SYSTEM

BRC-33

< WIRING DIAGRAM >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

AAFIA0170GB

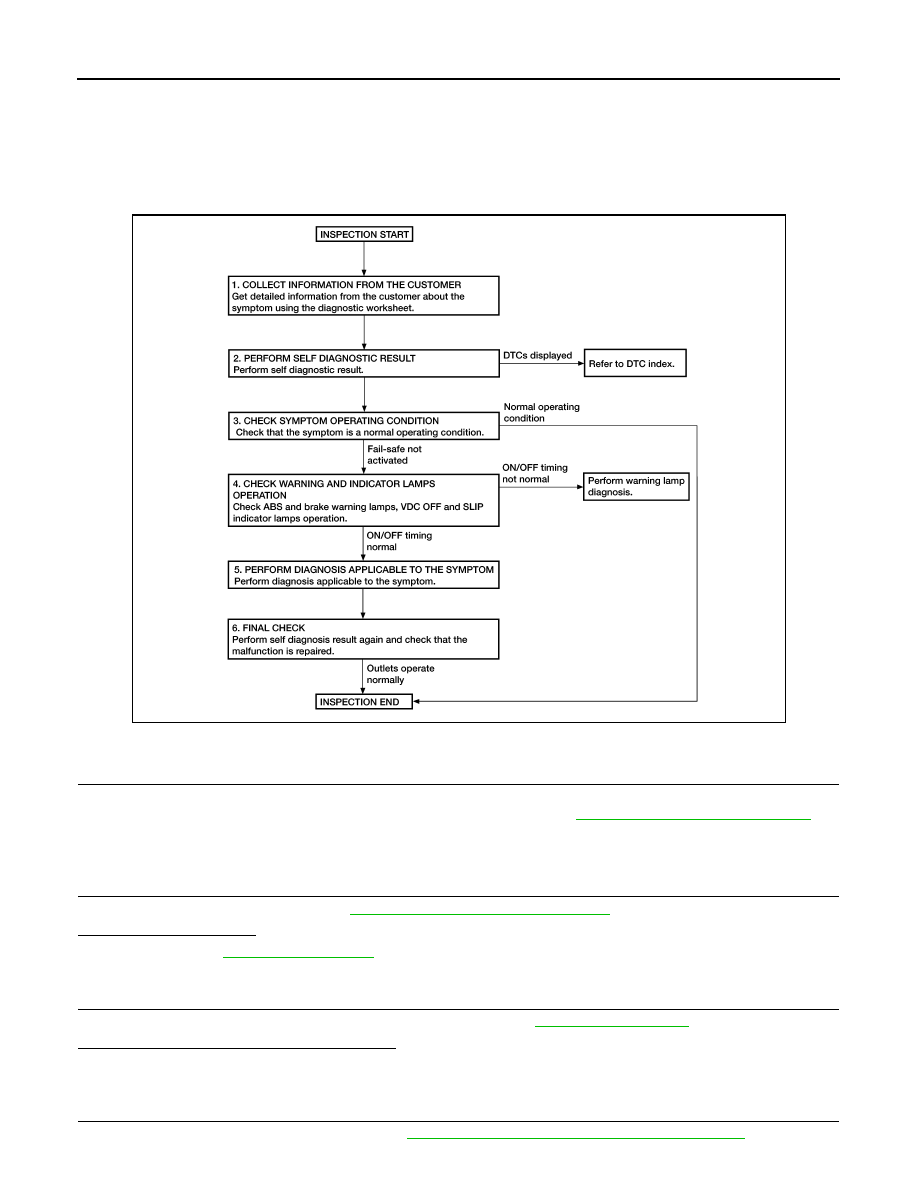

BRC-34

< BASIC INSPECTION >

[ABS]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009365071

OVERALL SEQUENCE

DETAILED FLOW

1.

COLLECT INFORMATION FROM THE CUSTOMER

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred) using the diagnostic worksheet. Refer to

BRC-35, "Diagnostic Work Sheet"

.

>> GO TO 2.

2.

PERFORM SELF DIAGNOSTIC RESULT

Perform self diagnostic result. Refer to

BRC-19, "CONSULT Function (ABS)"

.

Are any DTCs displayed?

YES

>> Refer to

BRC-26, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK SYMPTOM OPERATING CONDITION

Check that the symptom is a normal operating condition. Refer to

BRC-68, "Description"

.

Is the symptom a normal operating condition?

YES

>> Inspection End.

NO

>> GO TO 4.

4.

CHECK WARNING AND INDICATOR LAMPS OPERATION

Check ABS and brake warning lamps. Refer to

MWI-7, "METER SYSTEM : System Description"

.

AWFIA0208GB
