Nissan Note E12. Manual - part 6

AV-16

< WIRING DIAGRAM >

[BASE AUDIO]

BASE AUDIO

WIRING DIAGRAM

BASE AUDIO

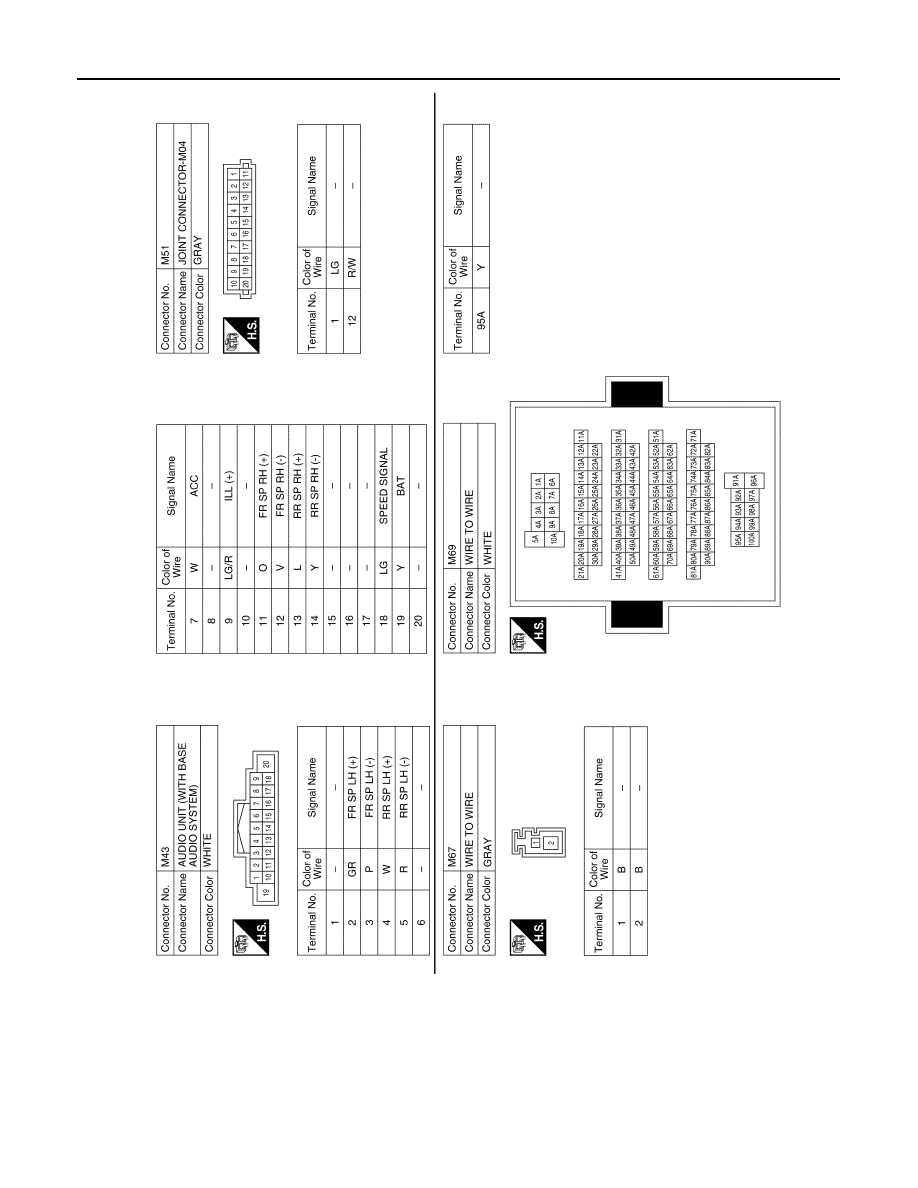

Wiring Diagram

INFOID:0000000009460112

AANWA0858GB

AV

BASE AUDIO

AV-17

< WIRING DIAGRAM >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

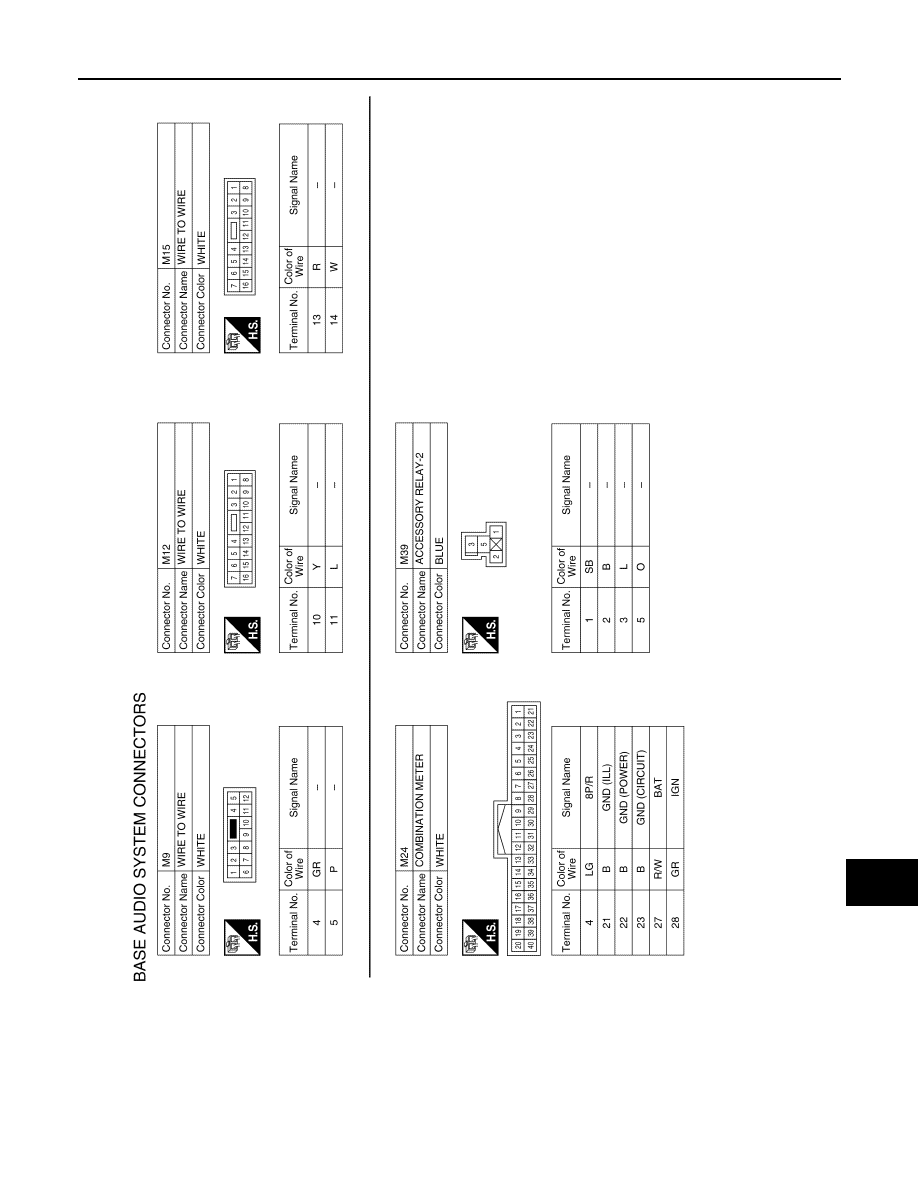

AANIA1704GB

AV-18

< WIRING DIAGRAM >

[BASE AUDIO]

BASE AUDIO

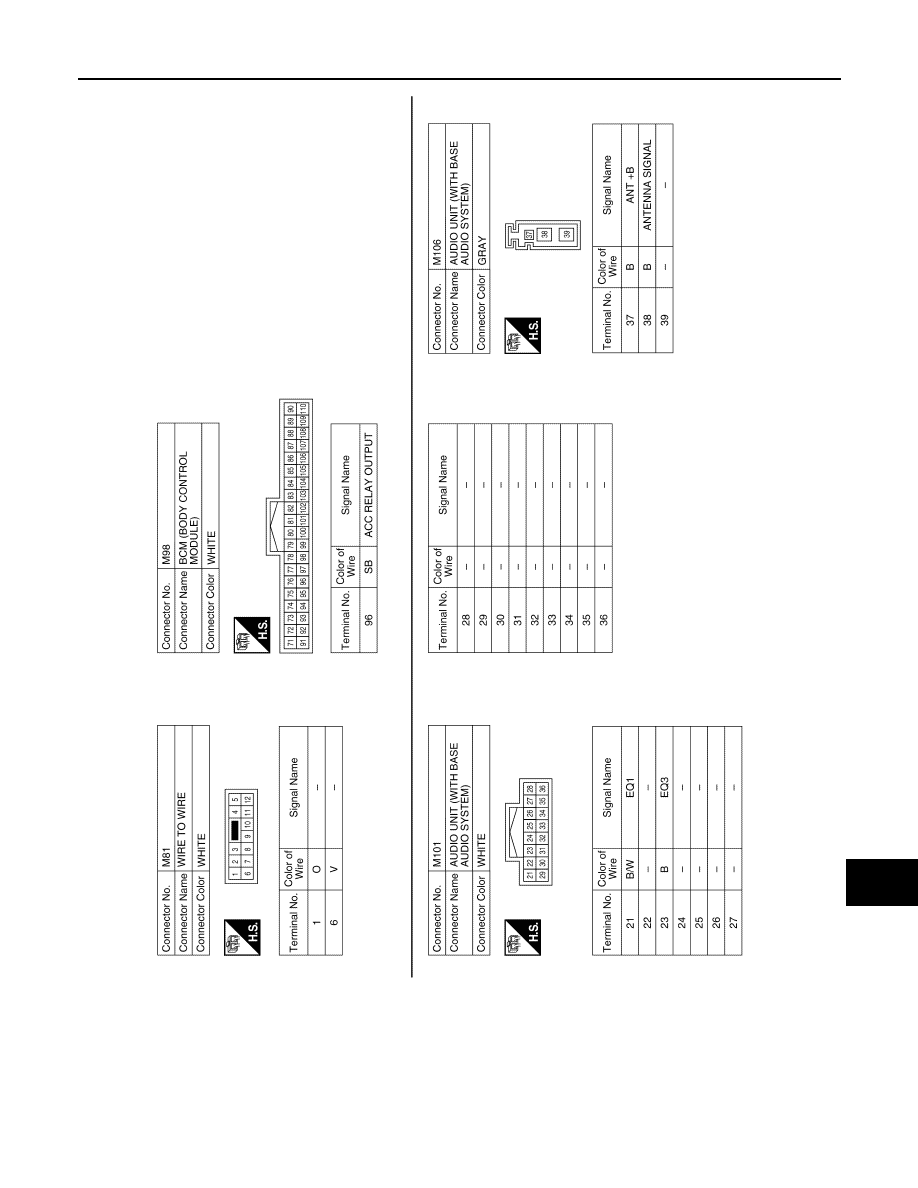

AANIA1705GB

AV

BASE AUDIO

AV-19

< WIRING DIAGRAM >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA1706GB
