COMPONENT PARTS

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

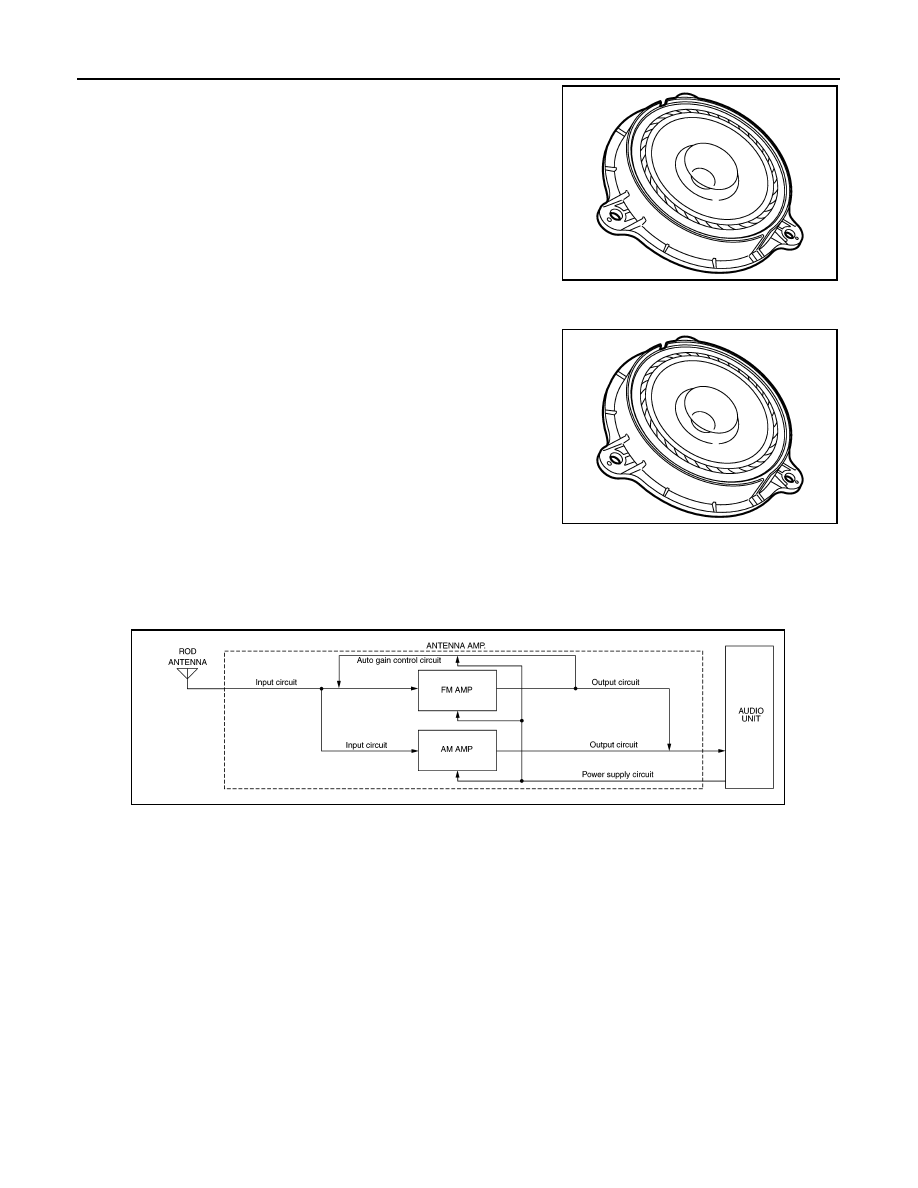

Rod Antenna, Antenna Amp. and Antenna Feeder

INFOID:0000000009509280

RADIO ANTENNA

AM/FM radio rod antenna and antenna base is located on the rear of the roof. The antenna amp. is built into

the antenna base.

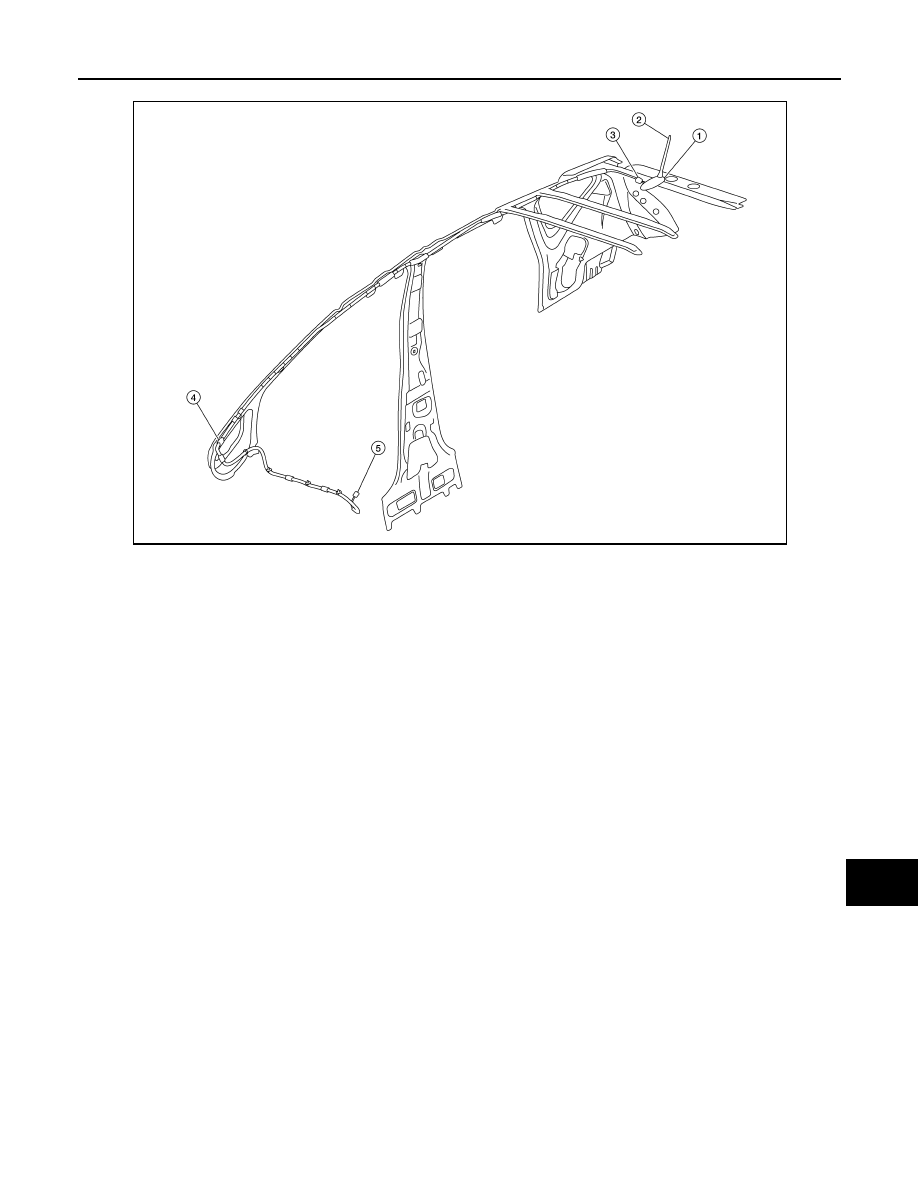

ANTENNA FEEDER LAYOUT

JPNIA1454ZZ

JPNIA1454ZZ

AWNIA3059GB

AV

COMPONENT PARTS

AV-9

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1.

Antenna base (antenna amp.)

2.

Rod Antenna

3.

M351

4.

M67, M350

5.

M106

AWNIA3114ZZ

AV-10

< SYSTEM DESCRIPTION >

[BASE AUDIO]

SYSTEM

SYSTEM

System Description

INFOID:0000000009460105

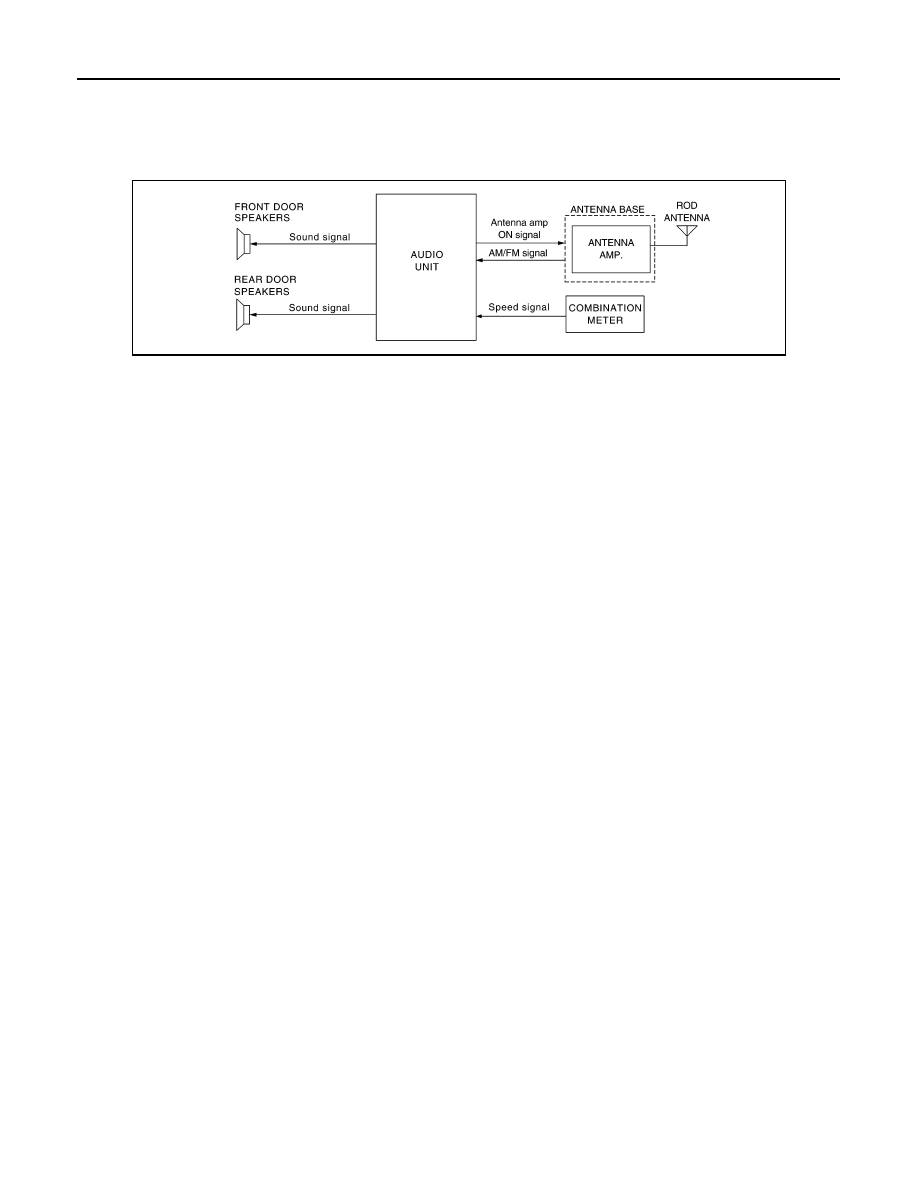

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Front door speakers

• Rear door speakers

• Antenna amp.

• Rod antenna

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the audio unit. The audio unit then sends audio signals to the front door speakers and rear door

speakers.

Refer to Owner's Manual for audio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

ALNIA1522GB

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-11

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AUDIO UNIT)

Diagnosis Description

INFOID:0000000009460106

The audio unit on board diagnosis performs the functions listed in the table below:

On Board Diagnosis Function

INFOID:0000000009460107

METHOD OF STARTING

Hardware/Software Versions and Speaker Channel Check

1. Turn the ignition ON.

2. Turn the audio system OFF.

3. While pressing the preset 1 button, turn the volume control dial

clockwise or counterclockwise 30 clicks or more.

4. Initially, all display segments will be illuminated.

5. To exit hardware/software versions and speaker channel check, turn the ignition OFF.

Communication Diagnosis

1. Turn the ignition ON.

2. Turn the audio system OFF.

Mode

Description

Hardware/Software Versions

The following information is available for the audio unit:
• hardware version.
• software version.
• EQ  pin  info.

Speaker Channel Check

The connection of the speakers to the audio unit can be confirmed.

Communication Diagnosis

The AV communication (M-CAN) message history can be monitored.

AWNIA3042ZZ

ALNIA1382GB
