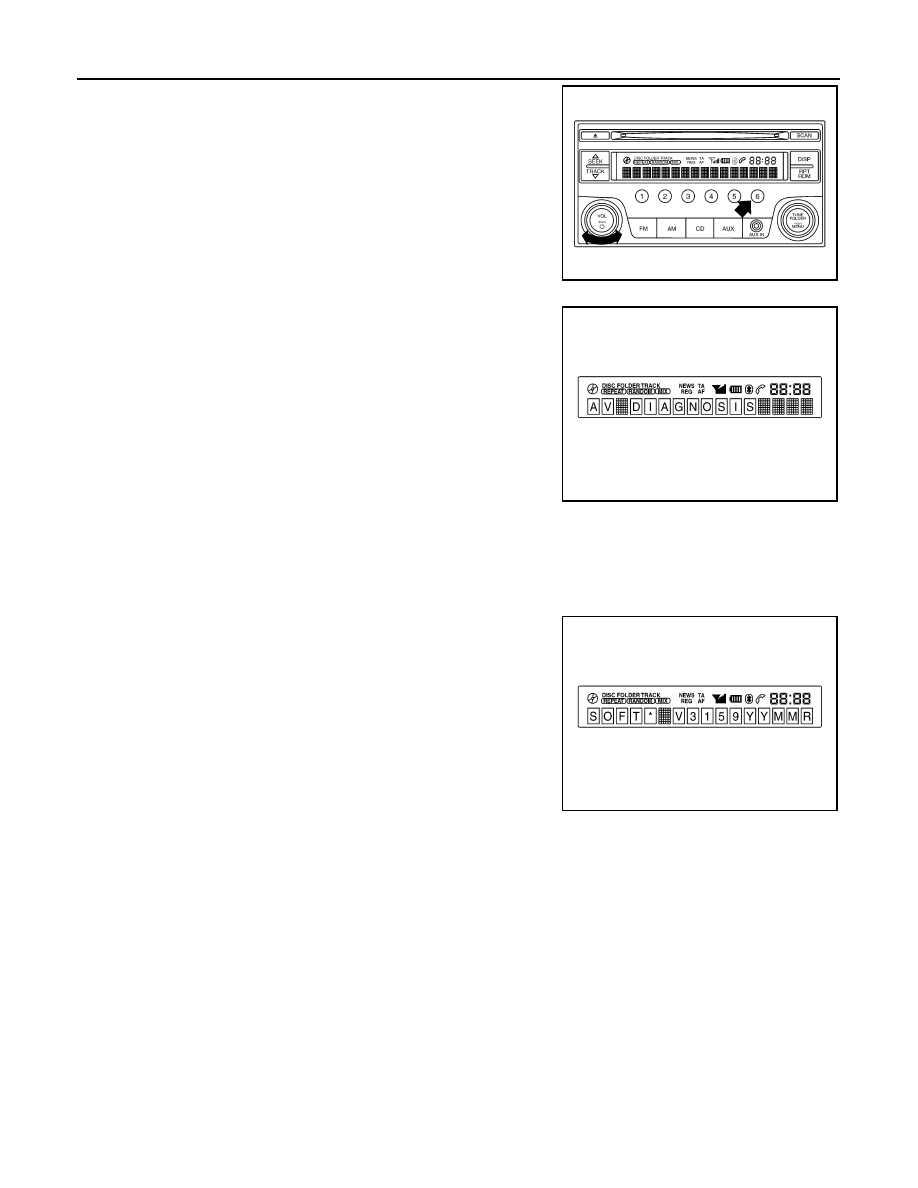

DIAGNOSIS SYSTEM (AUDIO UNIT)

3. While pressing the preset 6 button, turn the volume control dial

clockwise or counterclockwise 30 clicks or more.

4. Initially, the communication diagnosis mode is displayed.

5. To exit communication diagnosis, turn the ignition OFF.

SELF DIAGNOSIS MODE

Hardware/Software Versions

1. Press the DISP button to enter versions display, and the audio

head unit software version is displayed.

2. With each additional press of the DISP button, the following information is available:

-

HARD V###### (hardware version)

-

EEP V###### (EEPROM version)

-

@@@@ EQ1-4 # (EQ pin info)

If an EQ error is present, INVALID EQ is displayed

3. Hold the DISP button down to return to all display segments screen.

Speaker Channel Check

ALNIA1516ZZ

ALNIA1387GB

ALNIA1383GB

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-13

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

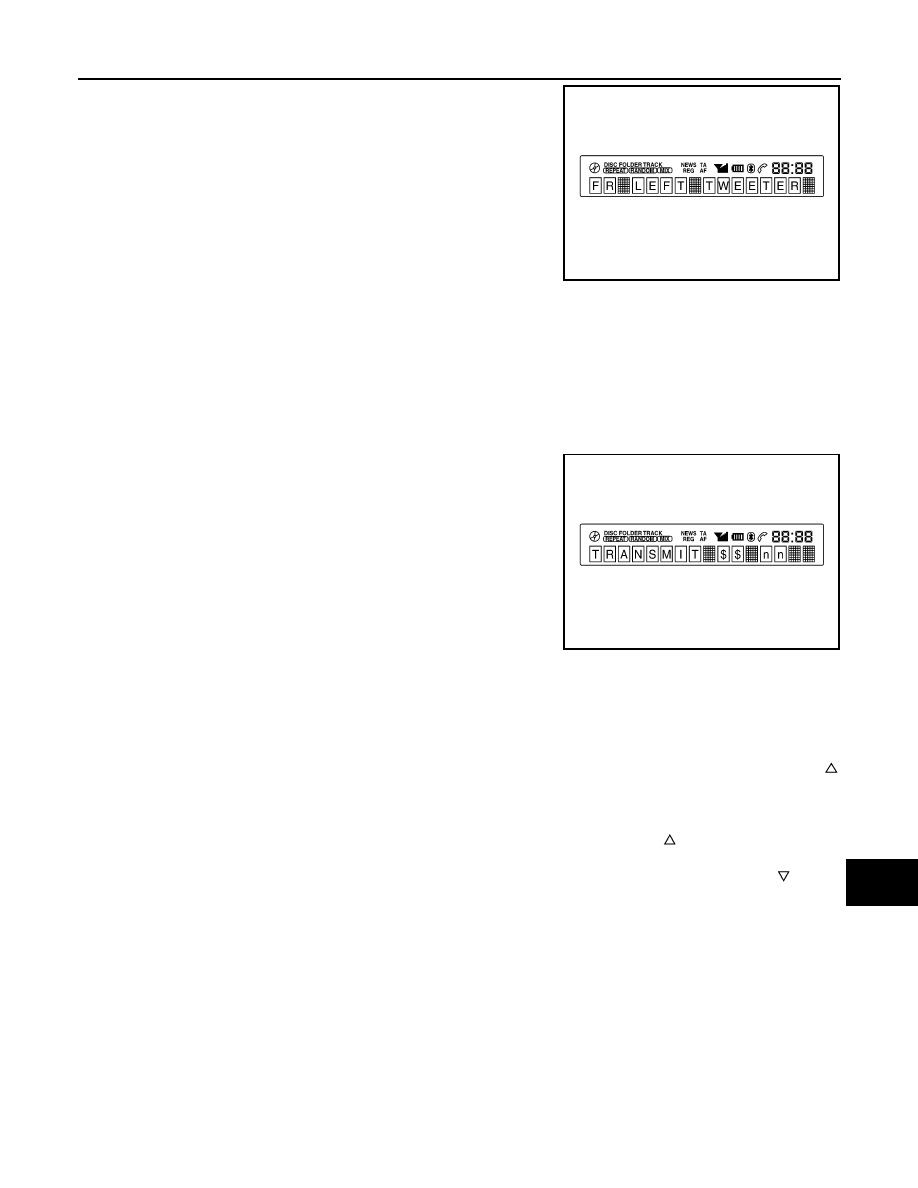

1. Press the RPT/DRM button to enter speaker channel check, and

the front left tweeter (front tweeter LH) is displayed.

2. With each additional press of the RPT/DRM button, the following information is available:

-

FR RIGHT TWEETER (front tweeter RH)

-

FR RIGHT (front door speaker RH)

-

RR RIGHT (rear speaker RH)

-

RR LEFT (rear speaker LH)

-

FR LEFT (front door speaker LH)

3. Hold the RPT/DRM button down to return to all display segments screen.

Communication Diagnosis

1. Press the DISP button, and the M-CAN message transmission

error history screen is displayed.

2. Press the DISP button again, and the TEL $$ nn (CMF message reception error history from M-CAN TEL)

screen is displayed.

3. Press the DISP button again, and the TROUBLE DEL. (deletion of M-CAN message communication his-

tory) screen is displayed. To retain the M-CAN message communication history and return to the commu-

nication diagnosis mode screen, press the DISP button.

4. To proceed to the M-CAN message communication history deletion screen, press the SEEK/TRACK

button. The REC DEL-NO? (selection of M-CAN message communication history deletion) screen is dis-

played. To cancel M-CAN message communication history deletion, wait 6 seconds and you will be

returned to the TROUBLE DEL. (deletion of M-CAN message communication history) screen. To proceed
with M-CAN message communication history deletion, press the SEEK/TRACK   button again.

5. The REC DEL-YES?@ (selection of M-CAN message communication history deletion) screen is dis-

played. To cancel M-CAN message communication history deletion, press the SEEK/TRACK   button

and you will be returned to the REC DEL-NO? (selection of M-CAN message communication history dele-

tion) screen. To proceed with M-CAN message communication history deletion, wait 6 seconds and the

communication history deletion will be executed. After the communication history deletion has been exe-

cuted, you will be returned to the TROUBLE DEL. (deletion of M-CAN message communication history)

screen. To return to the communication diagnosis mode screen, press the DISP button.

ALNIA1384GB

ALNIA1386GB

AV-14

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

AUDIO UNIT

ECU DIAGNOSIS INFORMATION

AUDIO UNIT

Reference Value

INFOID:0000000009460110

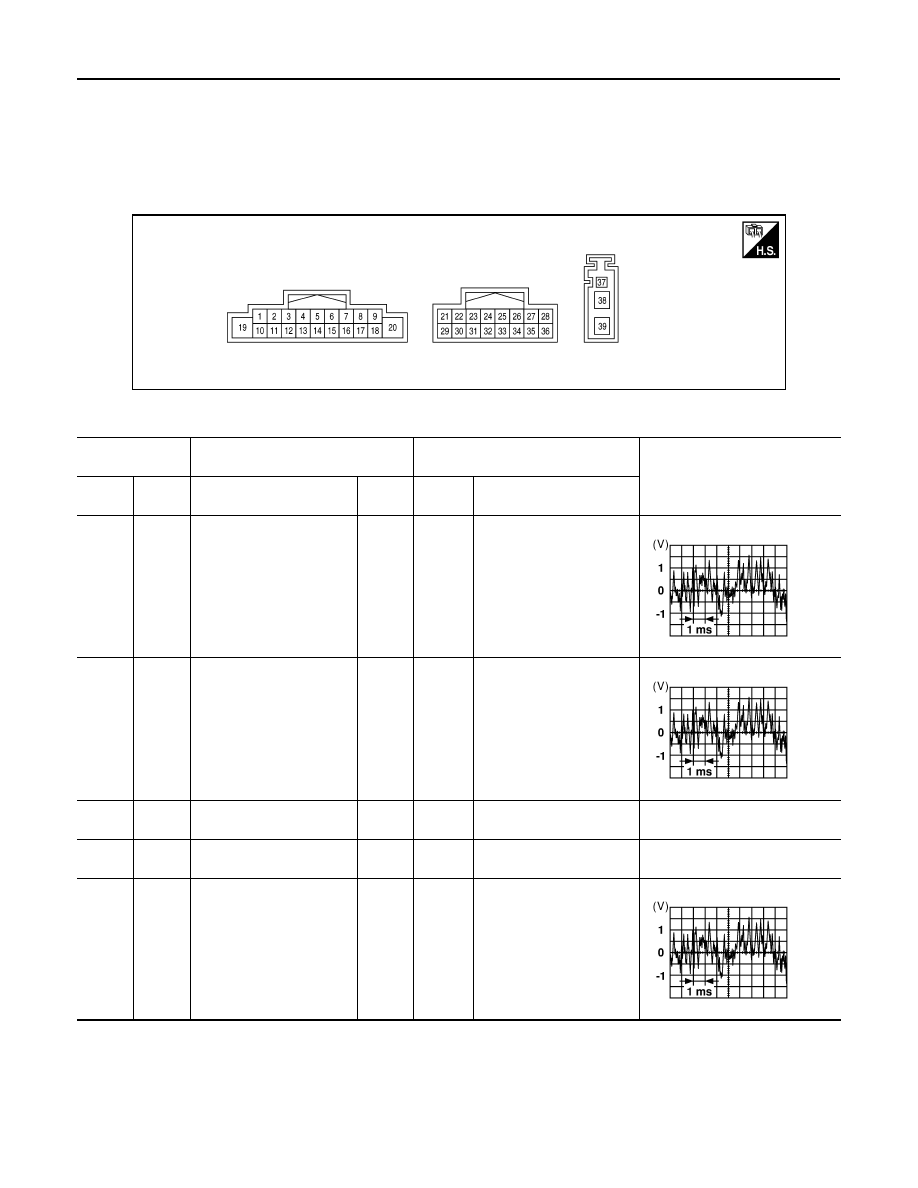

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA3055ZZ

Terminal

 (Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

2

(GR)

3

 (P)

Sound signal front speaker
LH

Output

ON

Sound output.

4

(W)

5

(R)

Sound signal rear speaker
LH

Output

ON

Sound output.

7

 (W)

Ground

ACC power supply

Input

ACC

—

Battery voltage

9

 (LG/R)

Ground Illumination control signal

Input

ON

Headlamps ON.

Battery voltage

11

(O)

12

(V)

Sound signal front speaker
RH

Output

ON

Sound output.

SKIA0177E

SKIA0177E

SKIA0177E

AV

AUDIO UNIT

AV-15

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

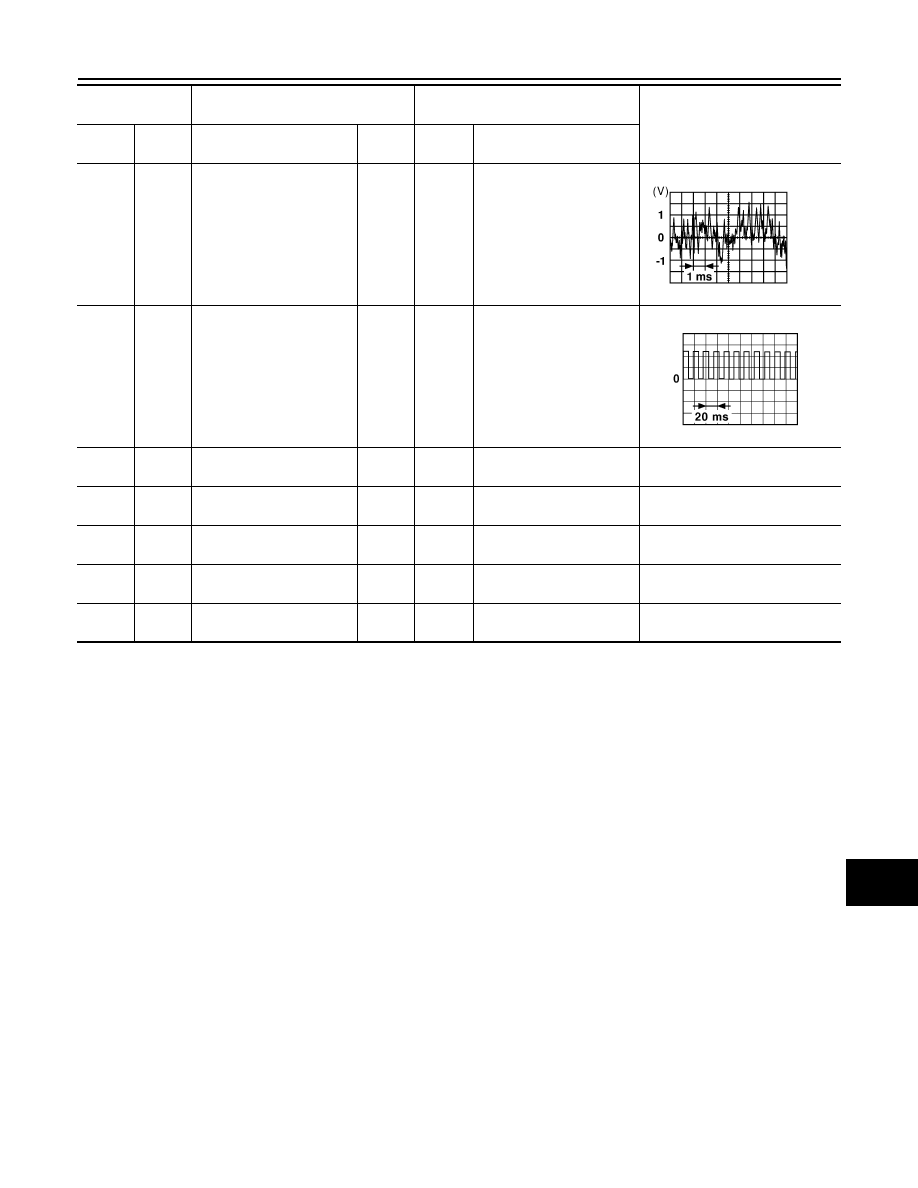

13

 (L)

14

 (Y)

Sound signal rear speaker
RH

Output

ON

Sound output.

18

(LG)

Ground Vehicle speed signal

Input

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH).

19

(Y)

Ground

Battery power supply

Input

OFF

—

Battery voltage

21

(B/W)

Ground EQ1 Ground

—

ON

—

0 V

23

(B)

Ground EQ3 Ground

—

ON

—

0 V

37

(B)

Ground Antenna amp. ON signal

Output

ON

Audio unit ON, AM or FM
selected.

Battery voltage

38

(B)

Ground AM/FM antenna signal

Input

ON

Audio unit ON, AM or FM
selected.

5.0 V

Terminal

 (Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation
