CENTER CONSOLE ASSEMBLY

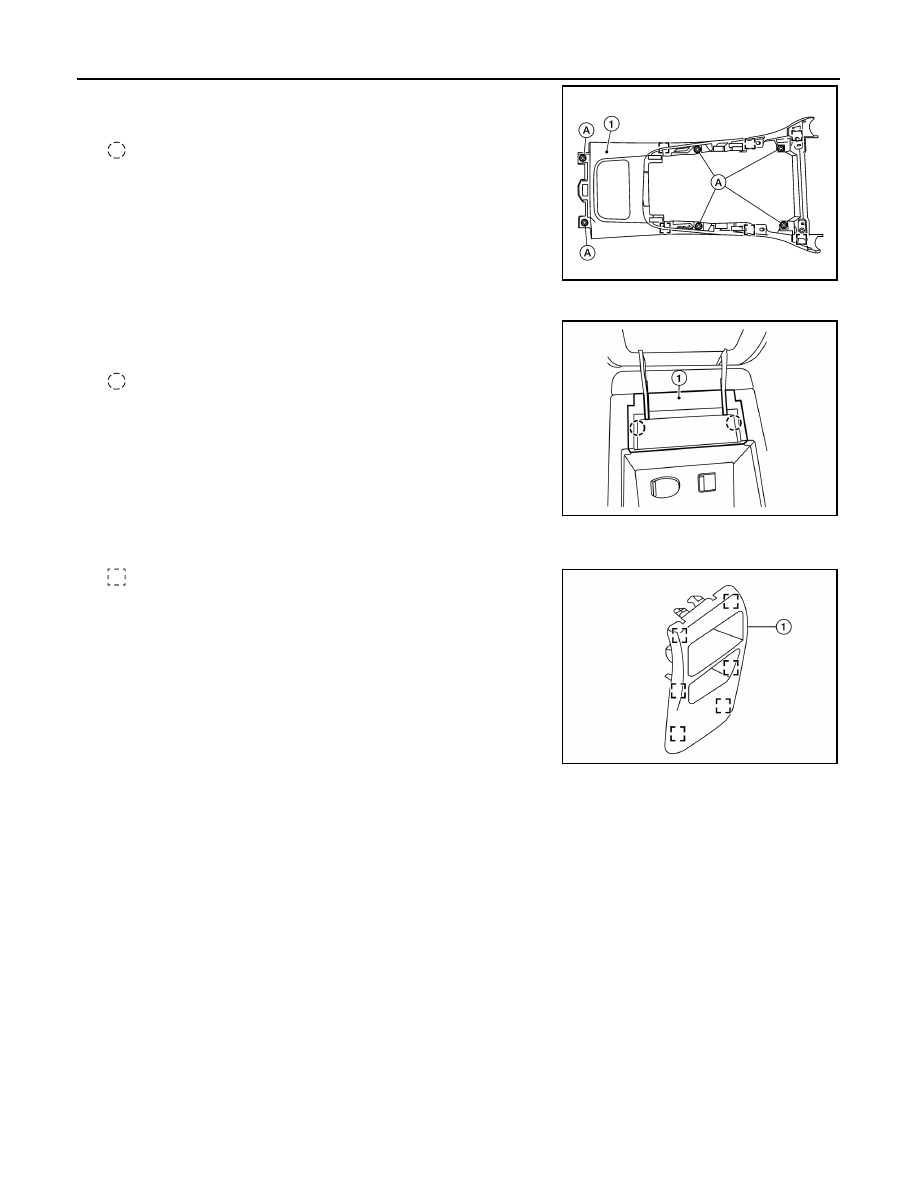

a. Remove the center console upper finisher screws (A).
b. Release the center console upper finisher pawls using a suitable

tool.

: Pawl

c.

Remove the center console upper finisher (1).

3. Remove the center console rear finisher.
a. Release the center console rear finisher cover pawls using a

suitable tool, then remove the center console rear finisher cover

(1).

: Pawl

b. Release the center console rear finisher clips using a suitable tool, then remove the center console rear

finisher (1).

: Metal clip

4. Release the center console accessory finisher pawls using a suitable tool and remove.

ASSEMBLY

Assembly is in the reverse order of disassembly.

AWJIA1281ZZ

ALJIA1041ZZ

ALJIA1042ZZ

LU-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

LU

A

LU

N

O

P

CONTENTS

ENGINE LUBRICATION SYSTEM

MRA8DE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Liquid Gasket .....................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tools ................................................

4

Commercial Service Tools  ........................................

4

SYSTEM DESCRIPTION  ..............................

6

DESCRIPTION ....................................................

6

Engine Lubrication System Schematic ......................

6

PERIODIC MAINTENANCE ..........................

7

ENGINE OIL  ........................................................

7

Inspection ..................................................................

7

Draining .....................................................................

8

Refilling .....................................................................

9

OIL FILTER  .......................................................

10

Removal and Installation  .........................................

10

Inspection ................................................................

11

REMOVAL AND INSTALLATION ...............

12

OIL COOLER  ....................................................

12

Exploded View .........................................................

12

Removal and Installation  .........................................

13

Inspection ................................................................

14

UNIT DISASSEMBLY AND ASSEMBLY  ....

15

OIL PUMP  .........................................................

15

 .................................................................................

15

Removal and Installation  .........................................

15

Inspection ................................................................

16

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

17

Oil Pressure .............................................................

17

Oil Capacity  .............................................................

17

LU-2

< PRECAUTION >

[MRA8DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010289411

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Liquid Gasket

INFOID:0000000010289412

REMOVAL OF LIQUID GASKET

• After removing nuts and bolts, separate the mating surface, using Tool and remove old liquid gasket.

CAUTION:

Be careful not to damage the mating surfaces.

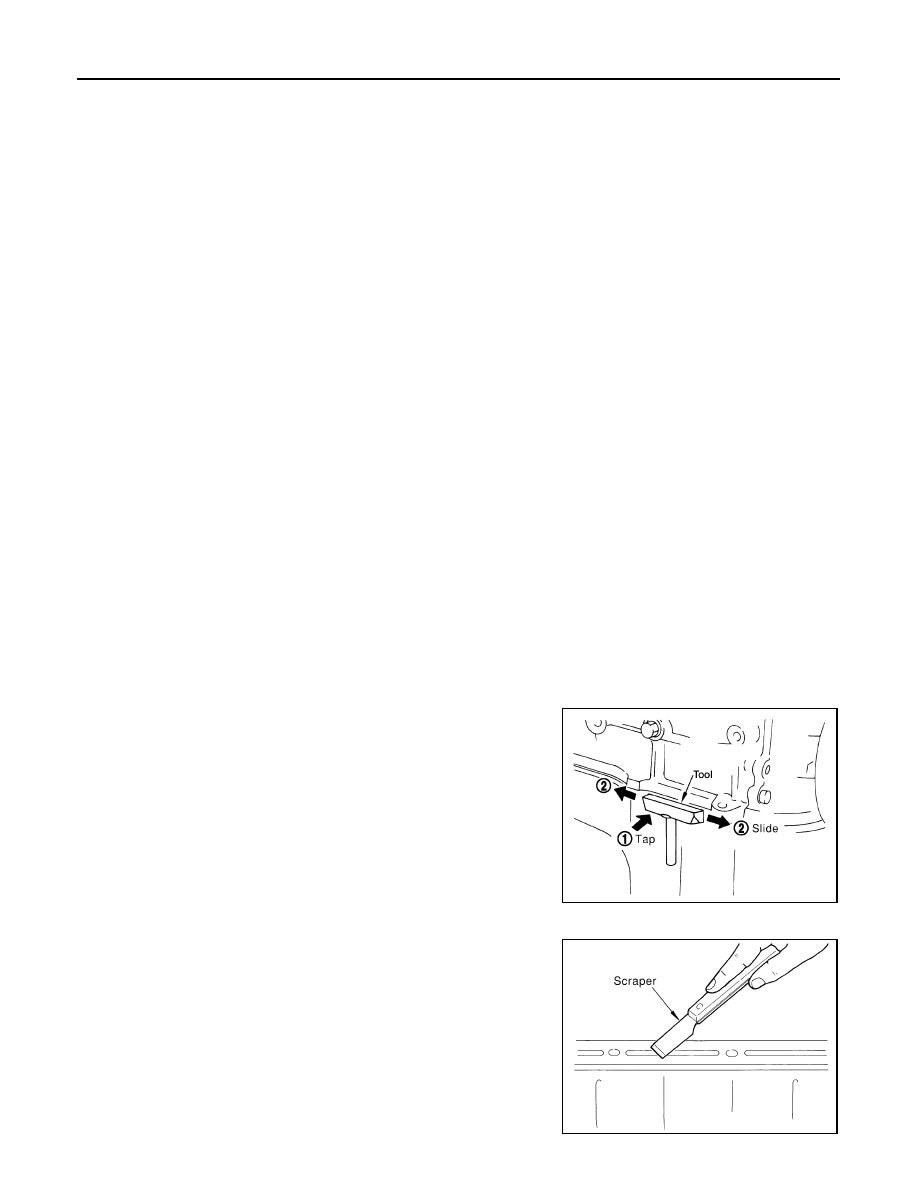

• Tap (1) Tool to insert it, and then slide it (2) by tapping on the side
