CLUSTER LID C

CLUSTER LID C

Removal and Installation - Cluster Lid C

INFOID:0000000009756858

REMOVAL

1. Remove cluster lid C lower. Refer to

IP-20, "Removal and Installation - Cluster Lid C Lower"

.

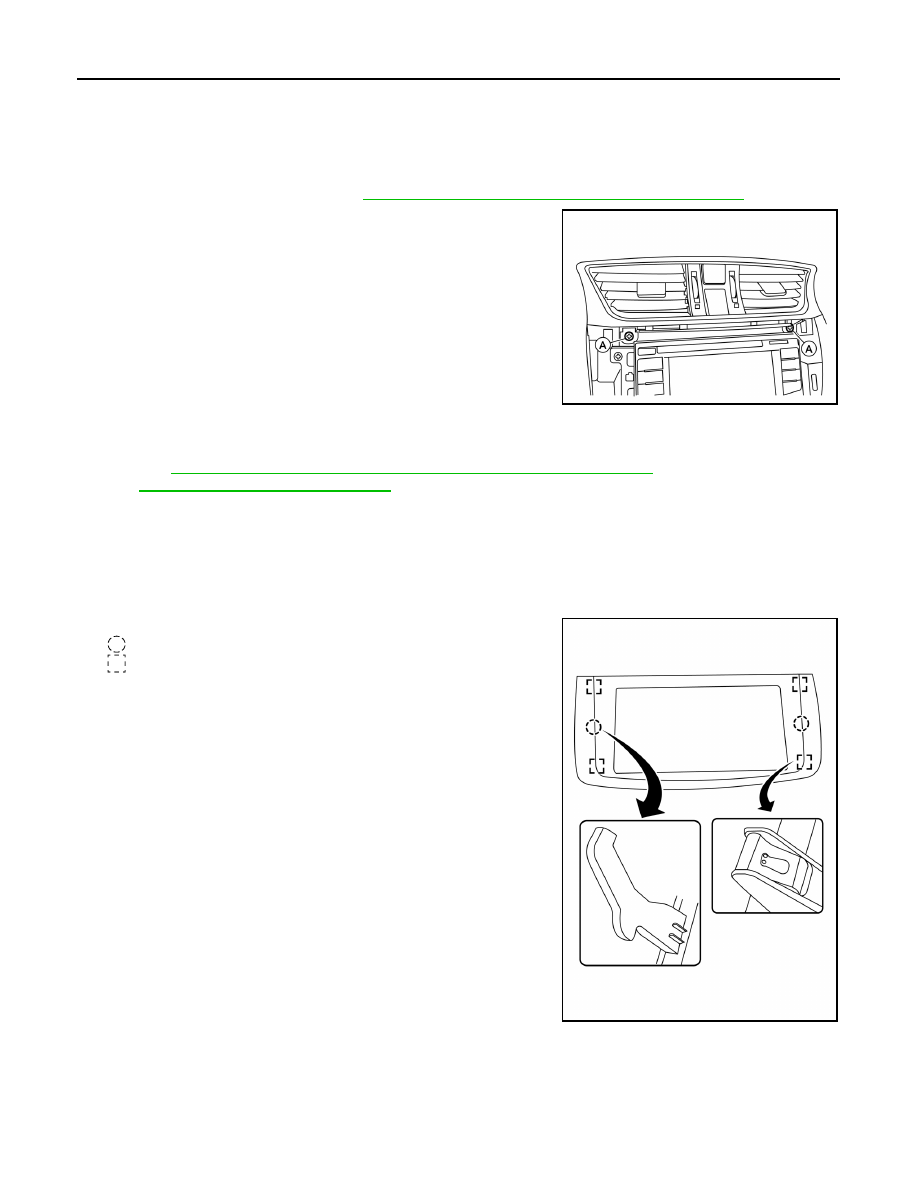

2. Remove the cluster lid C screws (A).

3. Disconnect the harness connector from cluster lid C.
4. Remove the center ventilator grilles assembly and hazard switch from the cluster lid C (if necessary).

Refer to

VTL-9, "CENTER VENTILATOR GRILLE : Removal and Installation"

 (Center Ventilator Grilles)

and

EXL-129, "Removal and Installation"

 (Hazard Switch).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Cluster Lid C Lower

INFOID:0000000009756859

REMOVAL

1. Release cluster lid C lower clips and pawls using a suitable tool.

: Pawl
: Metal clip

2. Remove cluster lid C lower.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1046ZZ

ALJIA1047ZZ

INSTRUMENT LOWER PANEL LH

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000009756860

REMOVAL

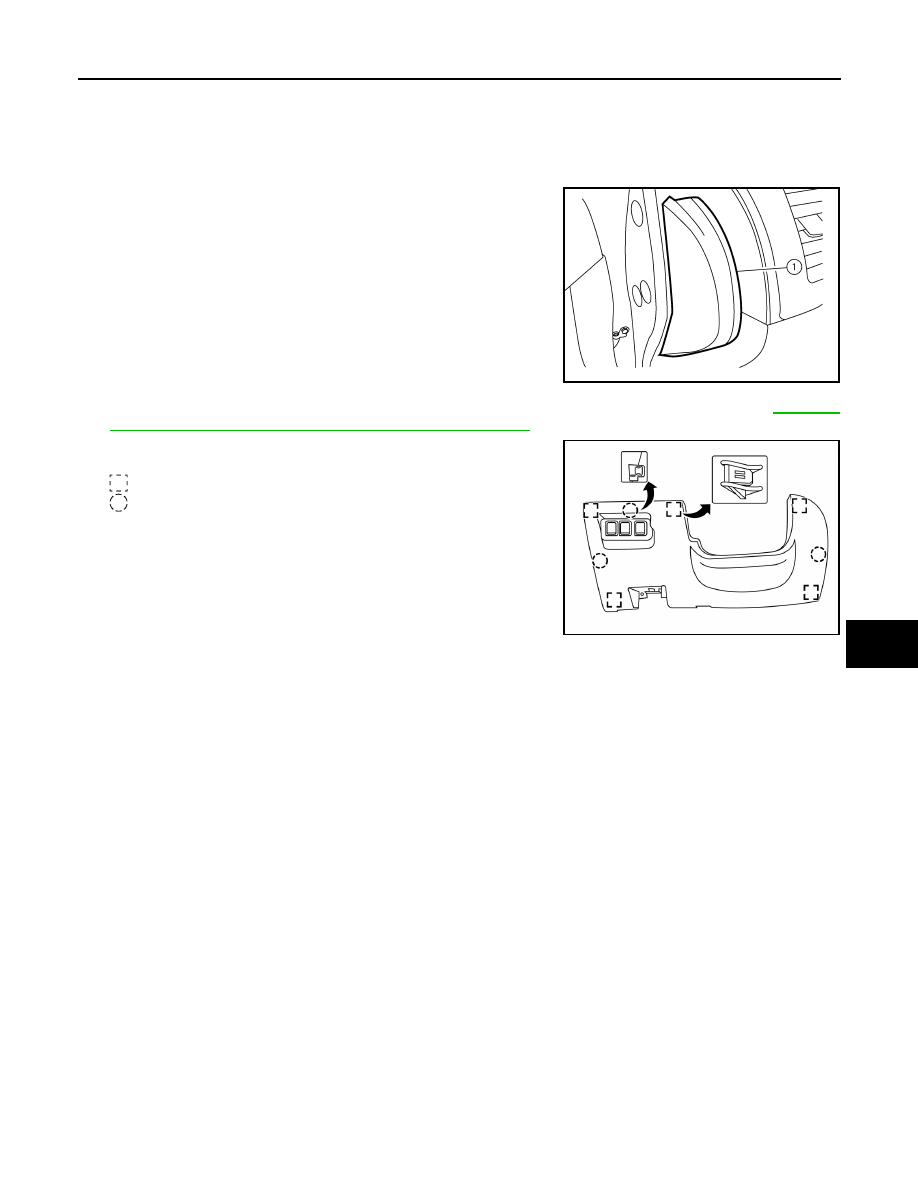

1. Remove the instrument side finisher LH (1) using a suitable tool.

2. Remove the hood and fuel filler handle assembly from the instrument lower panel LH. Refer to

DLK-191,

"FUEL FILLER OPENER CABLE : Removal and Installation"

.

3. Release the instrument lower panel LH clips and pawls using a

suitable tool.

: Metal clip
: Pawl

4. Disconnect the harness connectors from the instrument lower panel LH and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0018ZZ

ALJIA1048ZZ

IP-22

< REMOVAL AND INSTALLATION >

GLOVE BOX ASSEMBLY

GLOVE BOX ASSEMBLY

Removal and Installation

INFOID:0000000009756861

REMOVAL

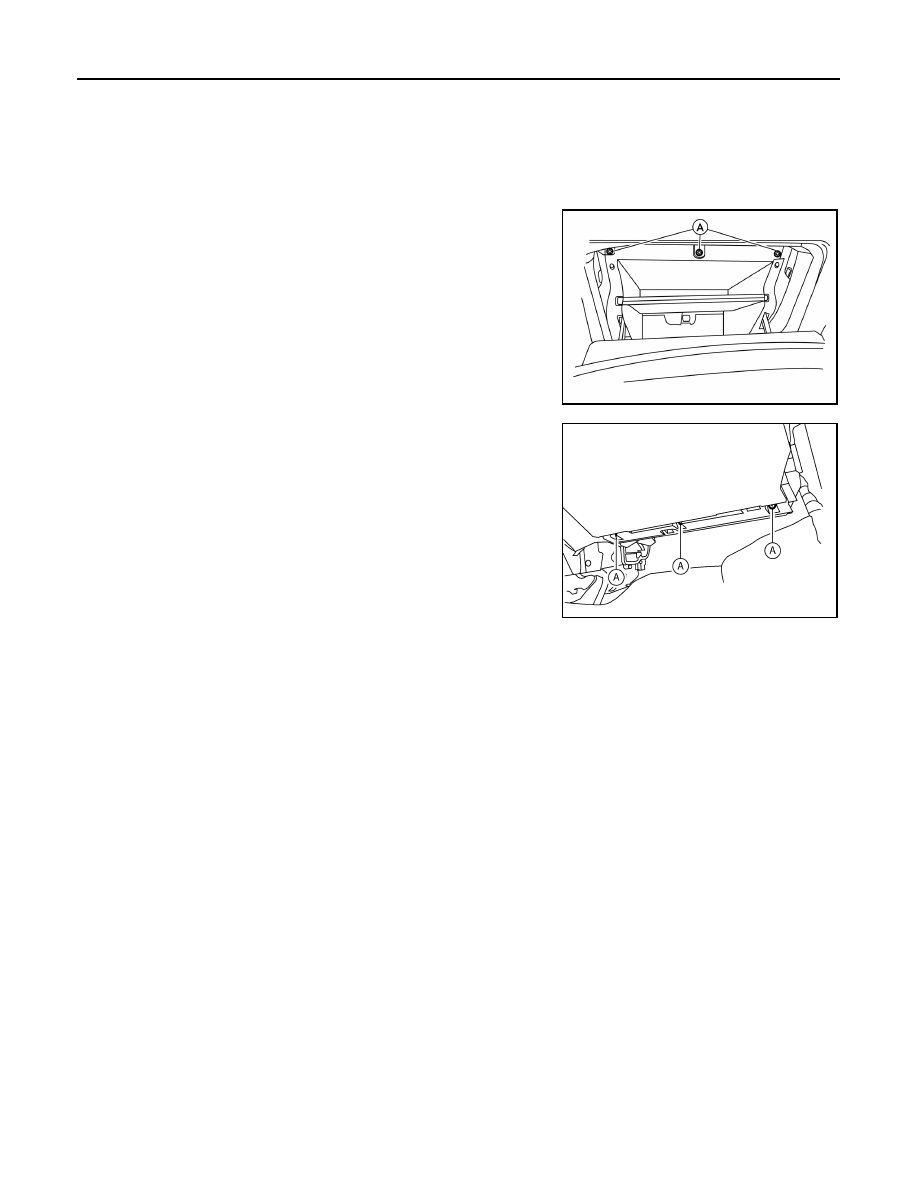

1. Remove the instrument side finisher RH using a suitable tool.
2. Remove the glove box assembly upper screws (A).

3. Remove the glove box assembly lower screws (A).

4. Disconnect the harness connectors from the trunk switch and glove box lamp, then remove the glove box

assembly.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1049ZZ

ALJIA0021ZZ

CENTER CONSOLE ASSEMBLY

IP-23

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000009756862

Disassembly and Assembly

INFOID:0000000009756863

DISASSEMBLY

1. Remove the center console assembly. Refer to

IP-17, "Removal and Installation"

.

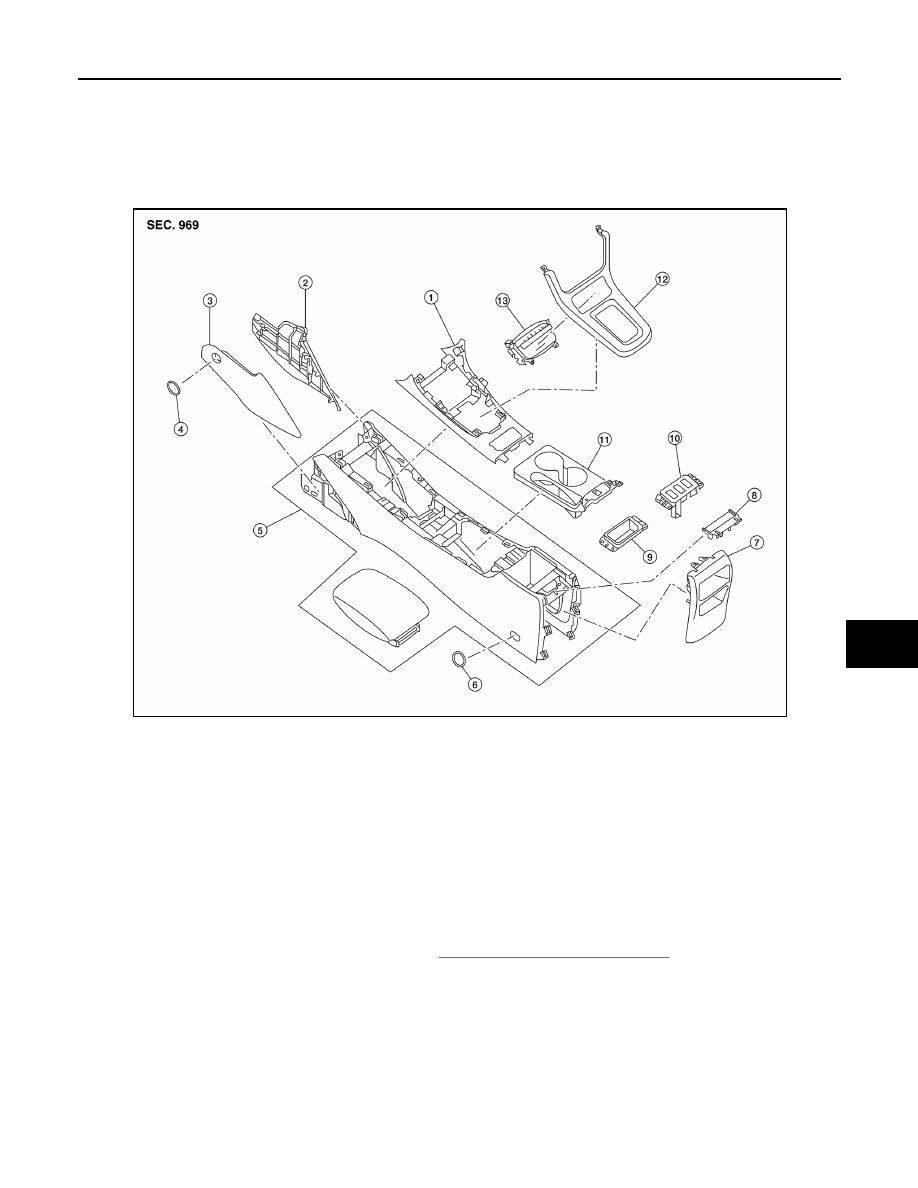

2. Remove the center console upper finisher.

1.

Center console upper finisher

2.

Center console side finisher (RH)

3.

Center console side finisher (LH)

4.

Center console side finisher screw cover
(LH/RH)

5.

Center console assembly

6.

Center console screw cover (LH/RH)

7.

Center console rear finisher

8.

Center console rear finisher cover

9.

Center console coin tray (if
equipped)

10. Heated seat switch finisher (if equipped) 11. Center console cup holder finisher

12. Shift selector finisher

13. Storage bin

ALJIA1036ZZ
