STEERING COLUMN COVERS

STEERING COLUMN COVERS

Removal and Installation

INFOID:0000000009756854

REMOVAL

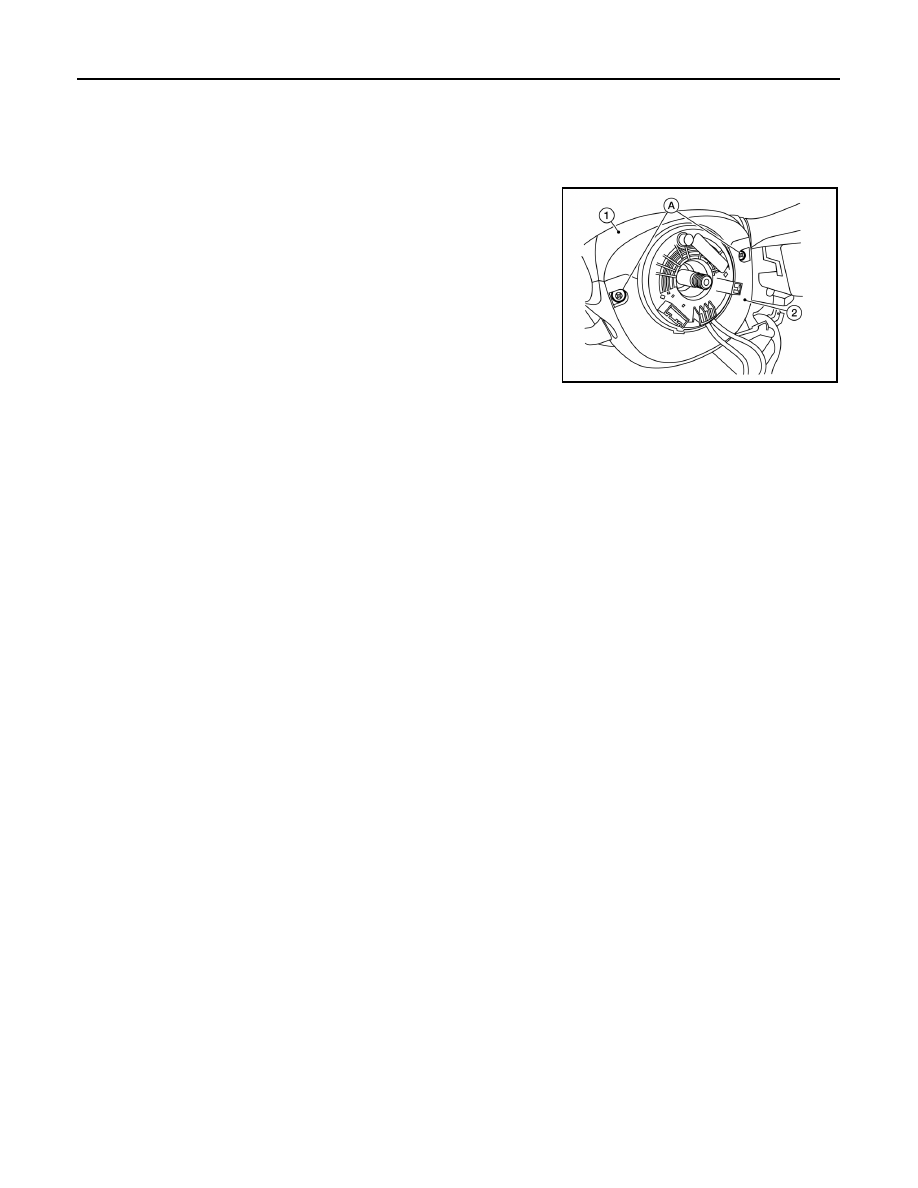

1. Remove the steering column cover screws (A), then remove the

steering column upper (1) and lower (2) covers.

NOTE:

• Shown with steering wheel removed for clarity.

• If necessary, rotate steering wheel to access steering column

cover screws (A).

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1003ZZ

CENTER CONSOLE ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

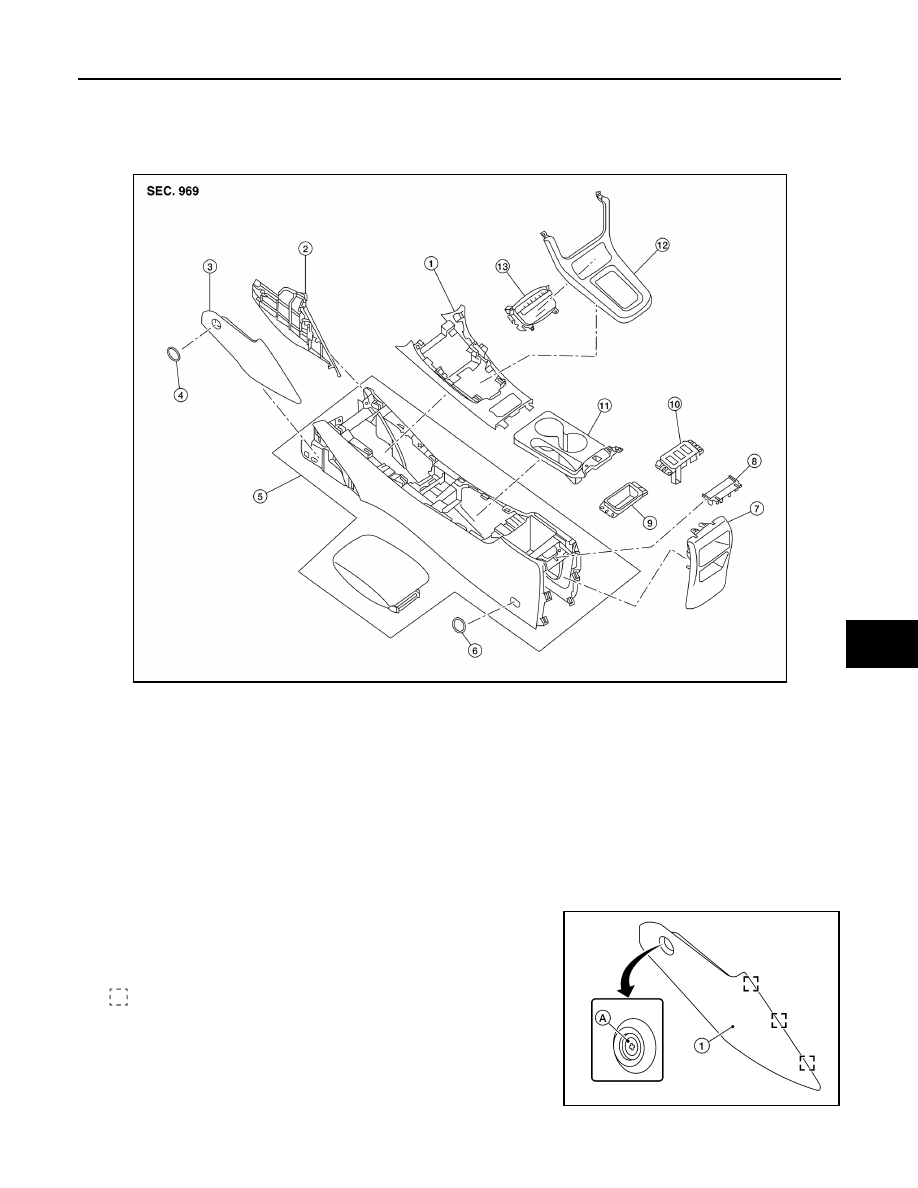

Exploded View

INFOID:0000000009756855

Removal and Installation

INFOID:0000000009756856

REMOVAL

1. Remove the center console side finishers (1) (LH/RH).
a. Remove the center console side finisher screw (A) (LH/RH).
b. Release the clips using a suitable tool, then remove the center

console side finisher.

: Metal clip

1.

Center console upper finisher

2.

Center console side finisher (RH) 3.

Center console side finisher (LH)

4.

Center console side finisher screw cover (LH/
RH)

5.

Center console assembly

6.

Center console screw cover (LH/
RH)

7.

Center console rear finisher

8.

Center console rear finisher cover 9.

Center console coin tray (if
equipped)

10. Heated seat switch finisher (if equipped)

11. Center console cup holder finisher 12. Shift selector finisher

13. Storage bin

ALJIA1036ZZ

ALJIA1037ZZ

IP-18

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

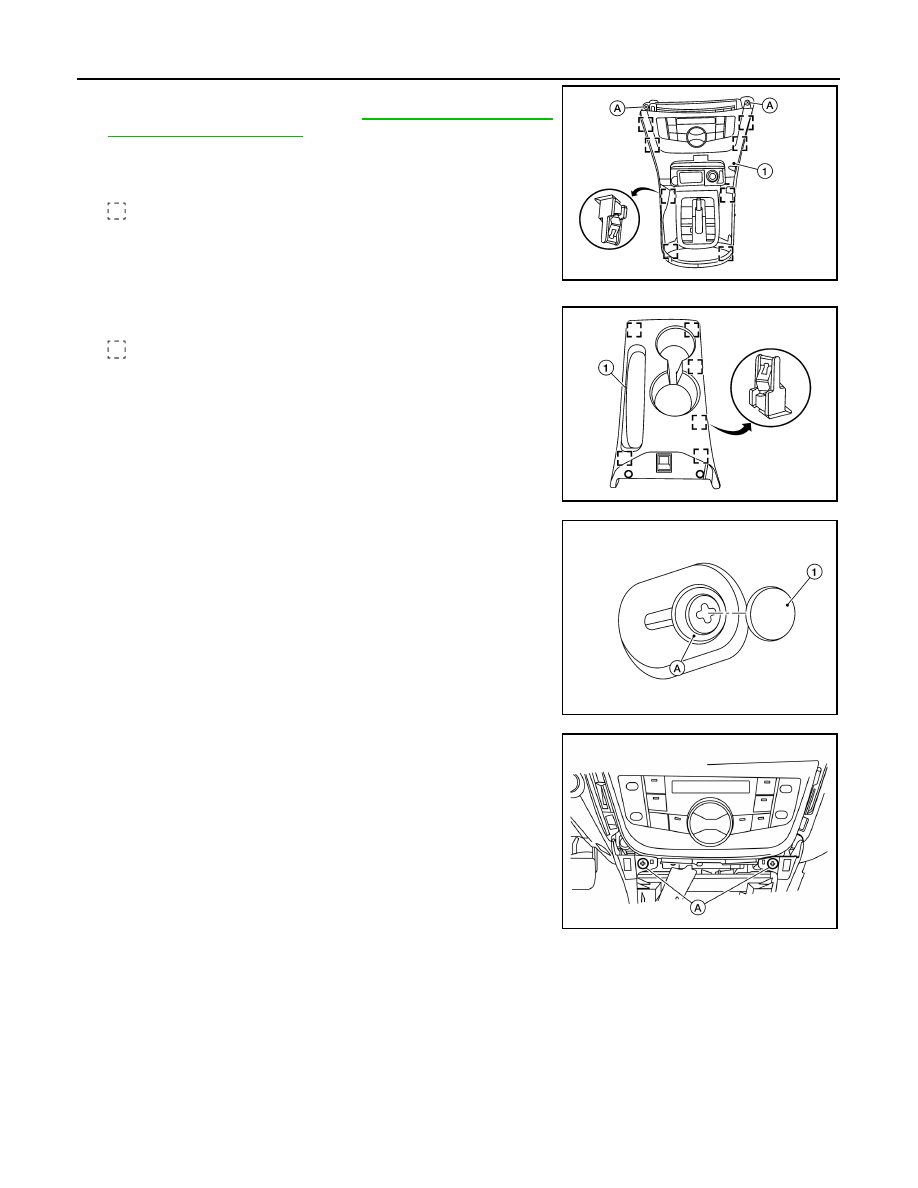

2. Remove the shift selector finisher (1).
a. Remove cluster lid C lower. Refer to

IP-20, "Removal and Instal-

lation - Cluster Lid C Lower"

.

b. Remove the shift selector screws (A).
c.

Release the clips using a suitable tool, then remove the shift

selector finisher.

: Metal clip

3. Release the center console cup holder finisher clips, then

remove the center console cup holder finisher (1).

: Metal clip

4. Remove the center console screw cover (1) using a suitable tool

and the center console screws (A) (LH/RH).

5. Remove the remaining center console screws (A).

6. Disconnect the harness connectors from the center console assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1038ZZ

ALJIA1039ZZ

ALJIA1040ZZ

ALJIA1043ZZ

CLUSTER LID A

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID A

Removal and Installation

INFOID:0000000009756857

REMOVAL

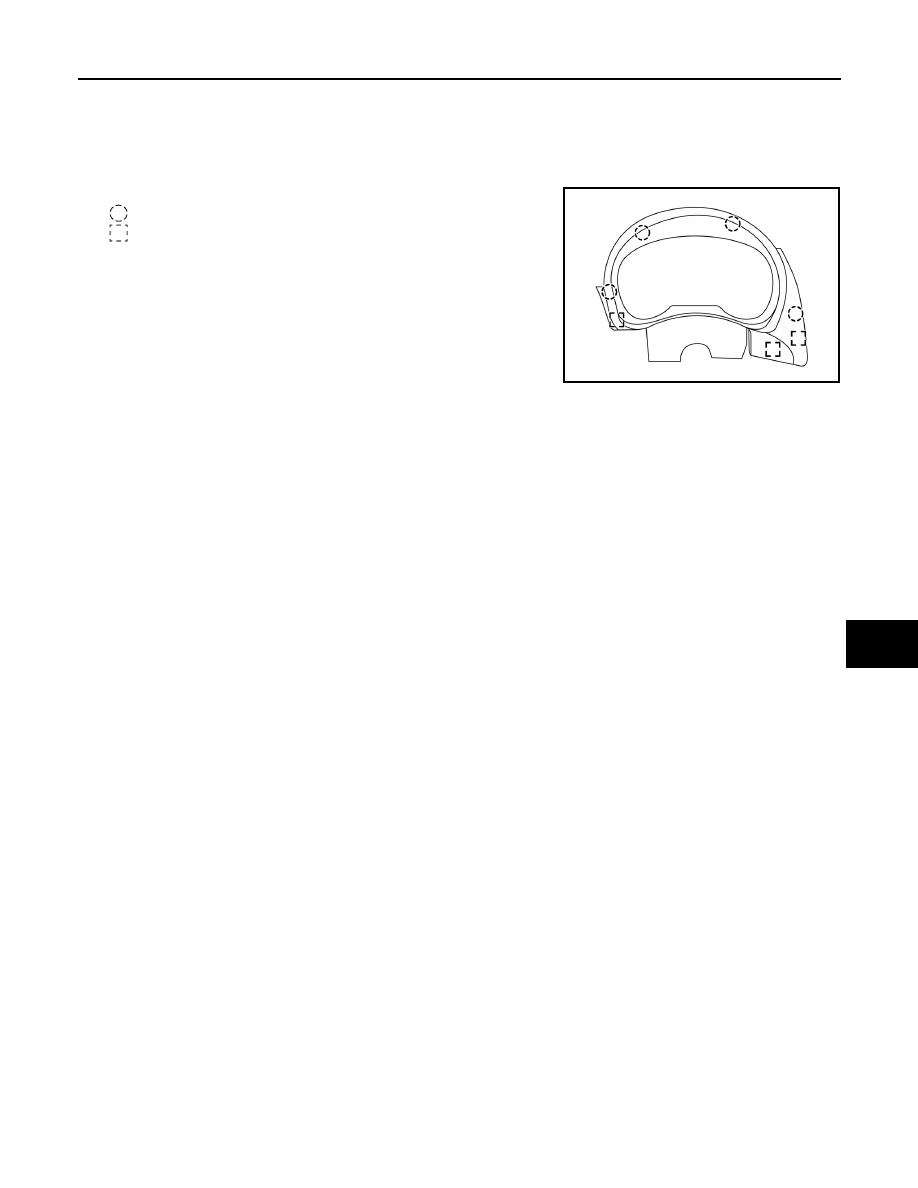

1. Release cluster lid A clips and pawls using a suitable tool.

: Pawl
: Metal clip

2. Remove cluster lid A.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1045ZZ
