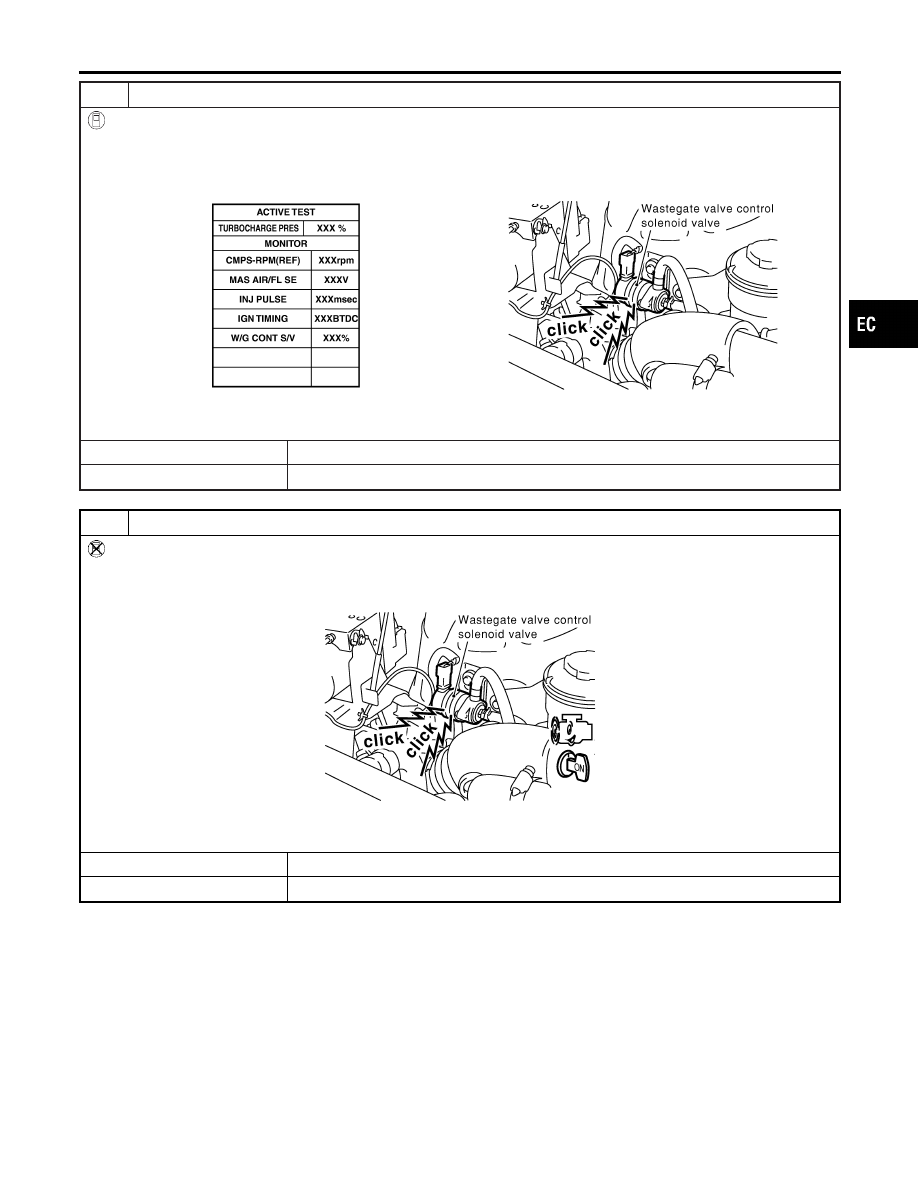

CHECK WASTEGATE VALVE CONTROL SOLENOID VALVE CIRCUIT

With CONSULT-II

1. Turn ignition switch “ON”.
2. Select “TURBOCHARGE PRES” in ACTIVE TEST mode with CONSULT-II.
3. Check wastegate valve control solenoid valve operating sound when touching “Qd” and “Qu” on the CONSULT-II

screen.

SEC396C

Clicking sound should be heard.

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 6.

4

CHECK WASTEGATE VALVE CONTROL SOLENOID VALVE CIRCUIT

Without CONSULT-II

1. Start engine.
2. Check wastegate valve control solenoid valve operating sound when revving engine up to 2,000 rpm and returning it to

idle.

SEC397C

Clicking sound should be heard.

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 6.

GI

MA

EM

LC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

WASTEGATE VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-183

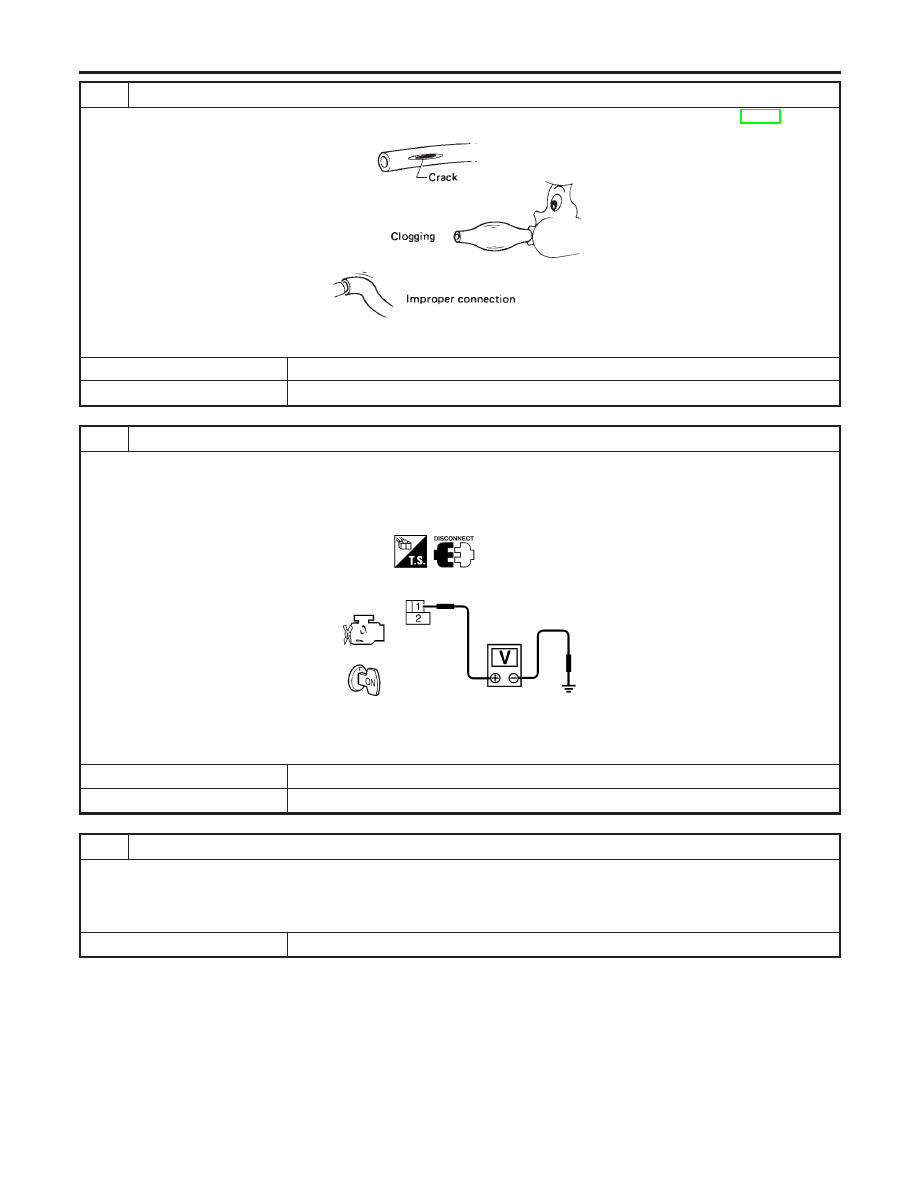

5

CHECK AIR PASSAGE HOSES

Check air passage hoses for clogging, cracks and improper connections. Refer to “Vacuum Hose Drawing”, EC-16.

SEF816F

OK or NG

OK

©

GO TO 10.

NG

©

Repair or replace air passage hoses.

6

CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect wastegate valve control solenoid valve harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between wastegate valve control solenoid valve terminal 1 and ground with CONSULT-II or tester.

SEC451C

Voltage: Battery voltage

OK or NG

OK

©

GO TO 8.

NG

©

GO TO 7.

7

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M60, F4

I

Fuse block (J/B) connector M7

I

Harness for open and short between wastegate valve control solenoid valve and fuse

©

Repair open circuit or short to ground or short to power in harness or connectors.

WASTEGATE VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-184

8

CHECK OUTPUT SIGNAL CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 115 and wastegate valve control solenoid valve terminal 2. Refer to

Wiring Diagram.

Continuity should exist.

OK or NG

OK

©

GO TO 9.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

9

CHECK WASTEGATE VALVE CONTROL SOLENOID VALVE

Refer to “Component Inspection”, EC-185.

OK or NG

OK

©

GO TO 10.

NG

©

Replace wastegate valve control solenoid valve.

10

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-82.

©

INSPECTION END

SEC452C

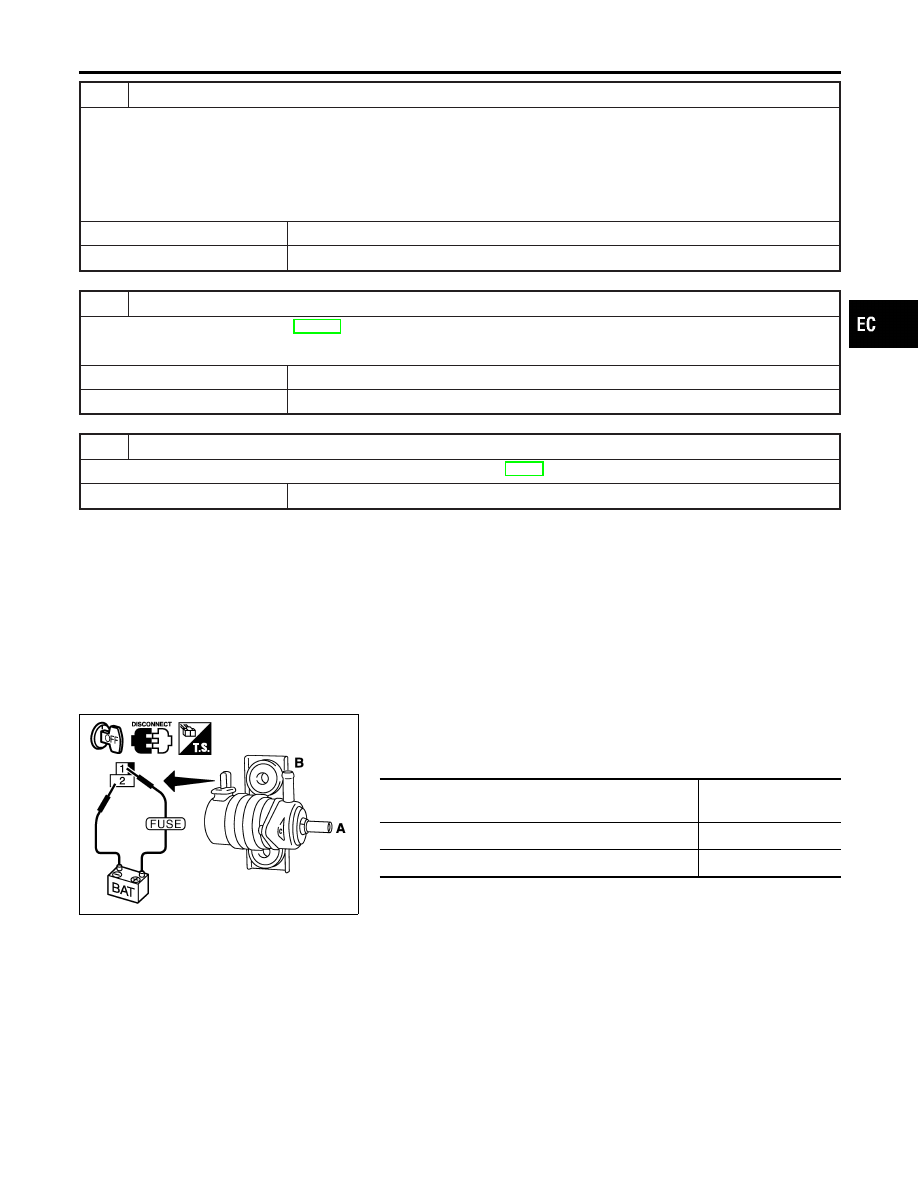

Component Inspection

NMEC0761

WASTEGATE VALVE CONTROL SOLENOID VALVE

NMEC0761S01

Check air passage continuity under the following conditions.

Condition

Air passage continuity

between and B

12V direct current supply between terminals 1 and 2

No

No supply

Yes

If NG, replace wastegate valve control solenoid valve.

GI

MA

EM

LC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

WASTEGATE VALVE CONTROL SOLENOID VALVE

Diagnostic Procedure (Cont’d)

EC-185

AEC877A

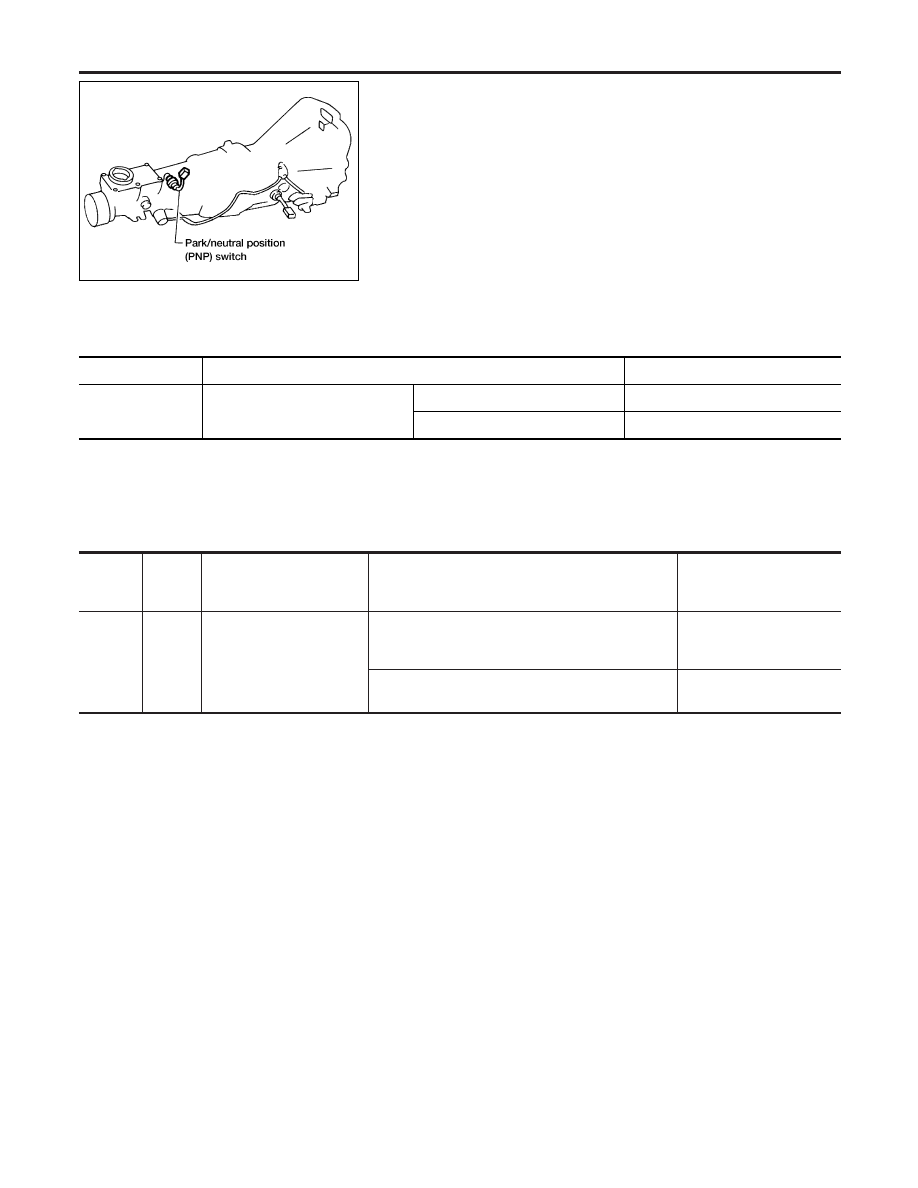

Component Description

NMEC0762

When the gear position is “P” or “N”, park/neutral position (PNP)
switch is “ON”.
ECM detects the park/neutral position when continuity with ground
exists.

CONSULT-II Reference Value in Data Monitor
Mode

NMEC0763

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

I

Ignition switch: ON

Shift lever: “P” or “N”

ON

Except above

OFF

ECM Terminals and Reference Value

NMEC0764

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

35

R/G
(A/T)
G/OR
(M/T)

PNP switch

[Ignition switch “ON”]

I

Gear position is “N” or “P” (A/T models)

I

Gear position is in neutral position (M/T models)

Approximately 0V

[Ignition switch “ON”]

I

Except the above gear position

BATTERY VOLTAGE
(11 - 14V)

PARK/NEUTRAL POSITION (PNP) SWITCH

Component Description

EC-186
