Removal and Installation

NMBT0019

JBT116A

IDX

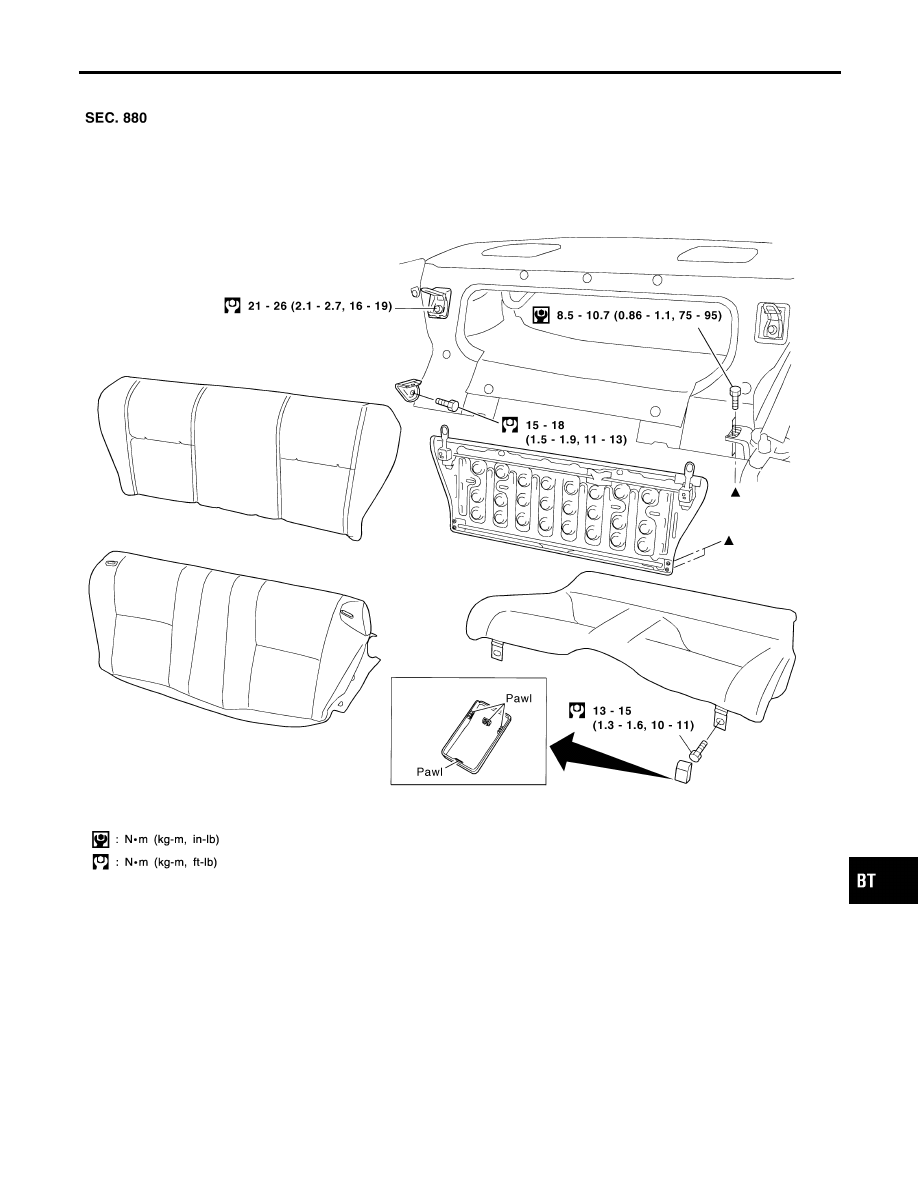

REAR SEAT

Removal and Installation

BT-39

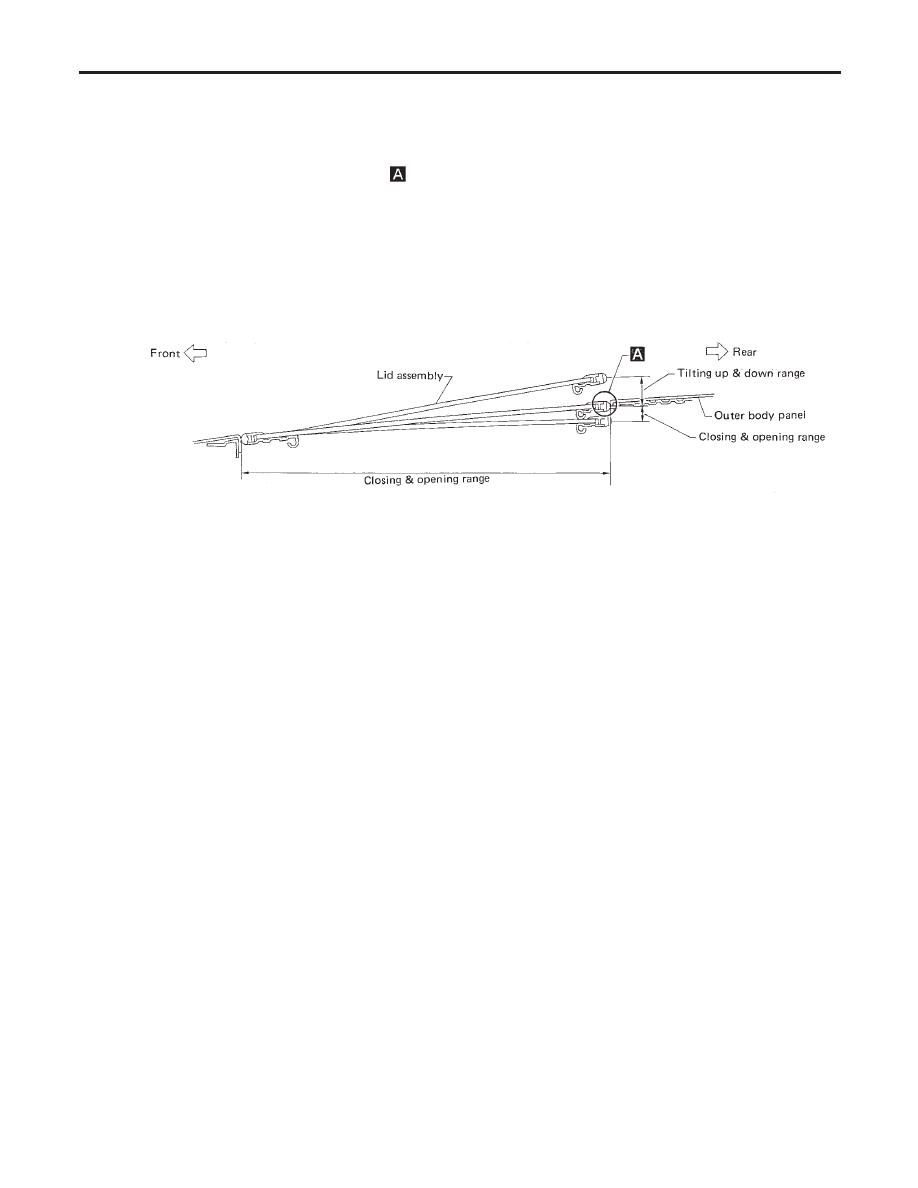

Adjustment

NMBT0020

Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Connect sunroof connector to sunroof switch and positive (+) power supply.
3. Set lid assembly to fully closed position

by operating OPEN switch and TILT switch.

4. Fit outer side of lid assembly to the surface of roof on body outer panel.
5. Remove motor, and keep OPEN switch pressed until motor pinion gear reaches the end of its rotating

range.

6. Install motor.
7. Check that motor drive gear fits properly in wires.
8. Press TILT-UP switch to check lid assembly for normal tilting.
9. Check sunroof lid assembly for normal operations (tilt-up, tilt-down, open, and close).

SBF920F

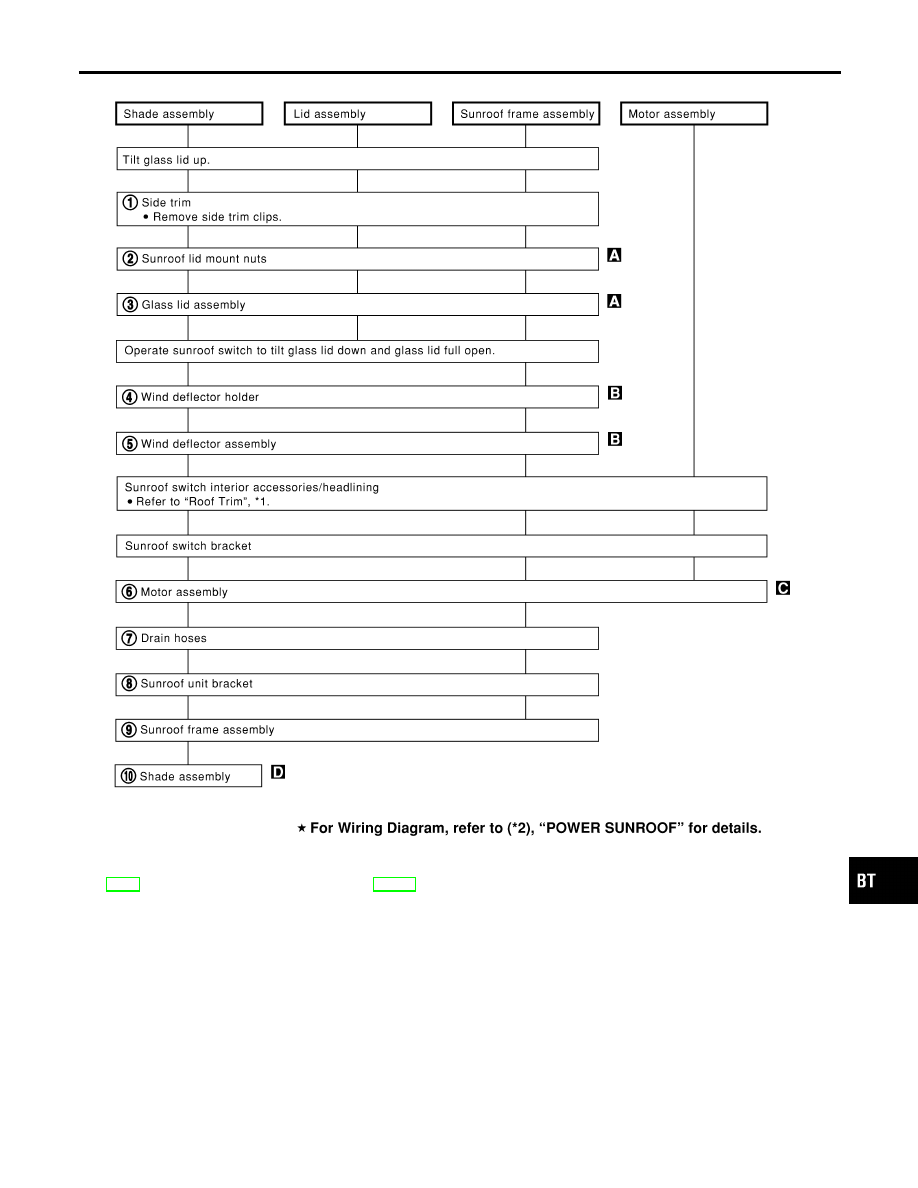

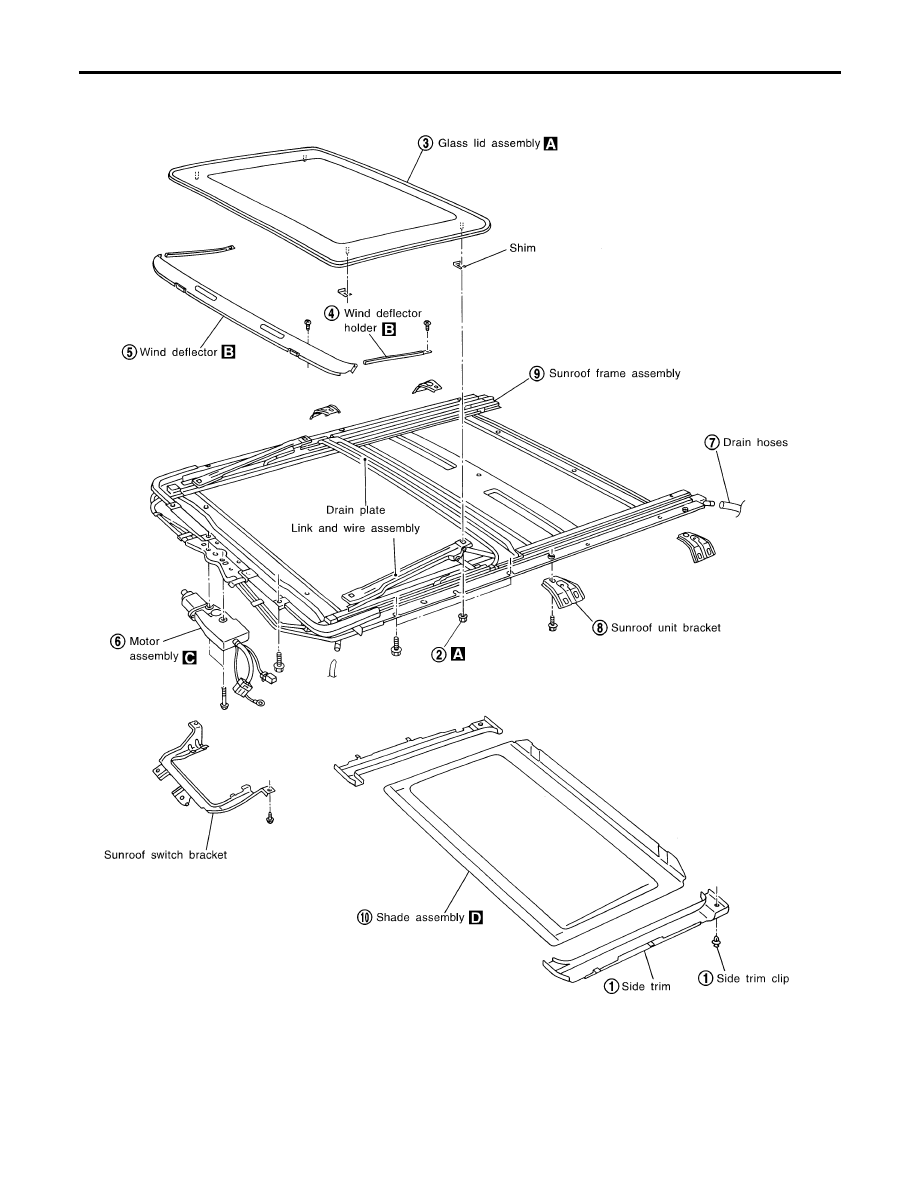

Removal

NMBT0021

After any adjustment, check sunroof operation and lid align-
ment.

Handle finisher plate and glass lid with care so not to cause
damage.

It is desirable for easy installation to mark each point before
removal.

CAUTION:

Always work with a helper.

Before removal, fully close glass lid assembly, then after
removal, do not move motor assembly.

SUNROOF

Adjustment
