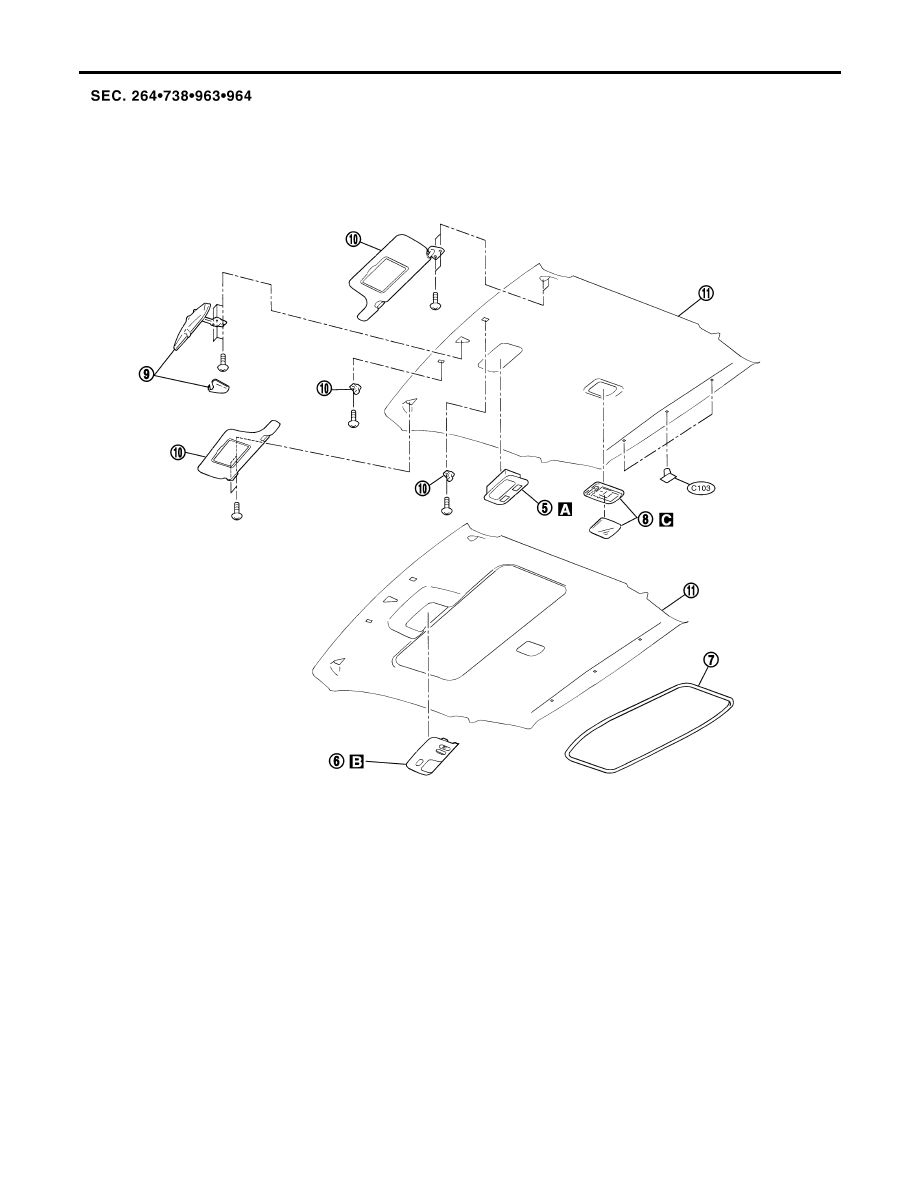

Removal and Installation
NMBT0015
1. Remove rear seat. Refer to “REAR SEAT” for details, BT-39.
2. Remove shoulder anchor bolts. Refer to RS-4, “Front Seat Belt” for details.
3. Remove front pillar garnishes, kicking plates, rear side finishers, rear parcel shelf finisher and rear pillar
finishers. Refer to “SIDE AND FLOOR TRIM” for details, BT-26.
4. Push back the front seatback.
5. Remove spot lamp switch, then disconnect connectors. (Except model with sunroof)
6. Remove sunroof and spot lamp switch, then disconnect connectors. (Model with sunroof)
7. Remove sunroof welt. (Model with sunroof)
8. Remove interior lamp assembly, then disconnect connectors.
9. Remove inside mirror.
10. Remove sun visors.
11. Remove clips securing headlining, then remove headlining from vehicle through front passenger side.
JBT112A
GI
MA
EM
LC
EC
FE
CL
MT
AT
PD
AX
SU
BR
ST
RS
HA
SC
EL
IDX
ROOF TRIM
Removal and Installation
BT-31
