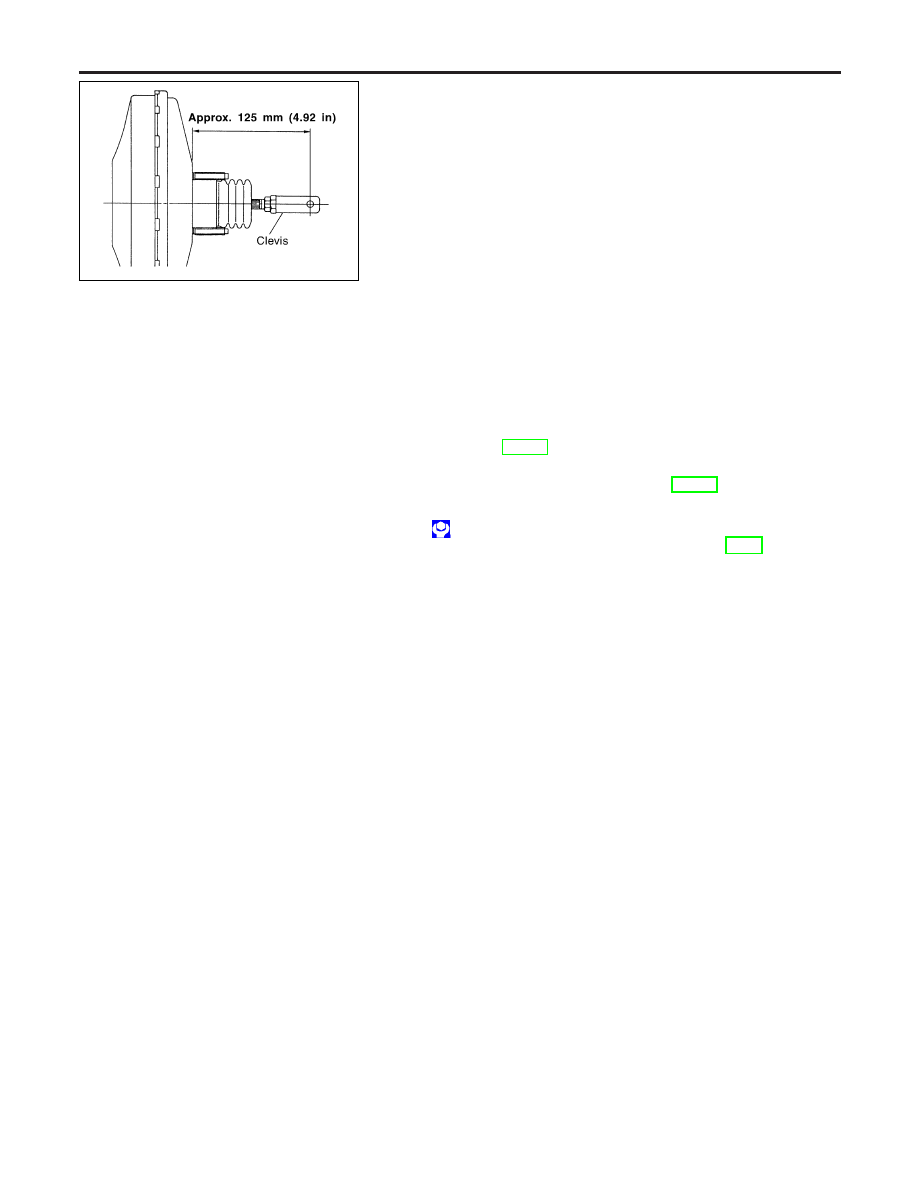

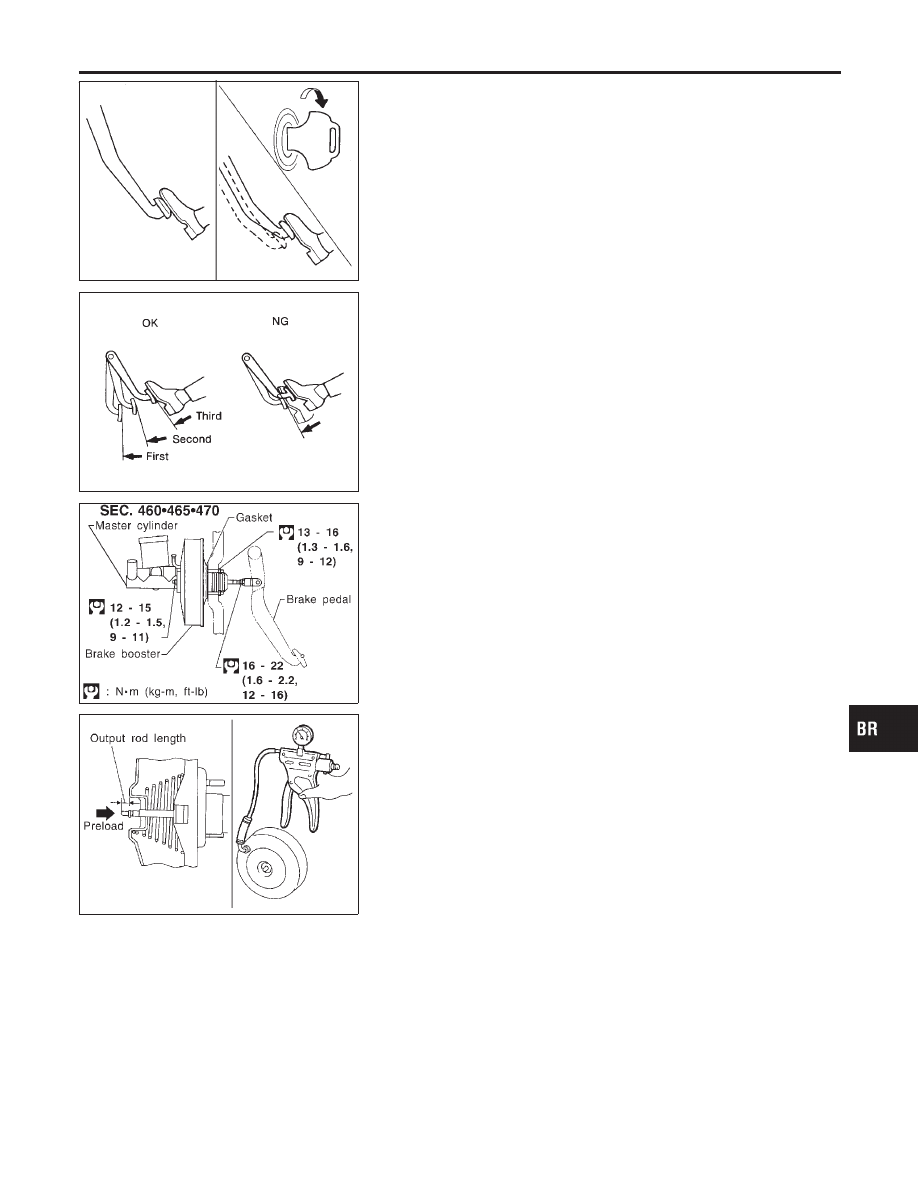

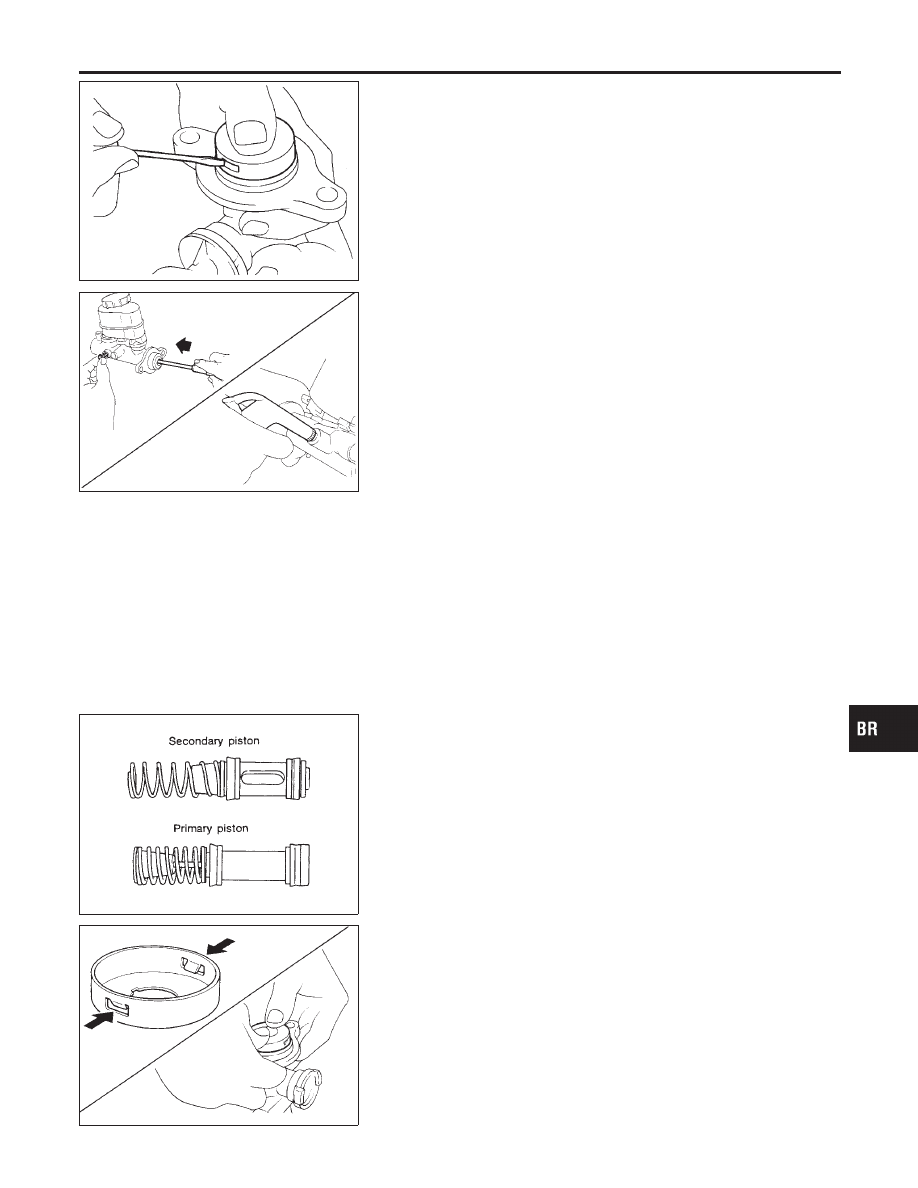

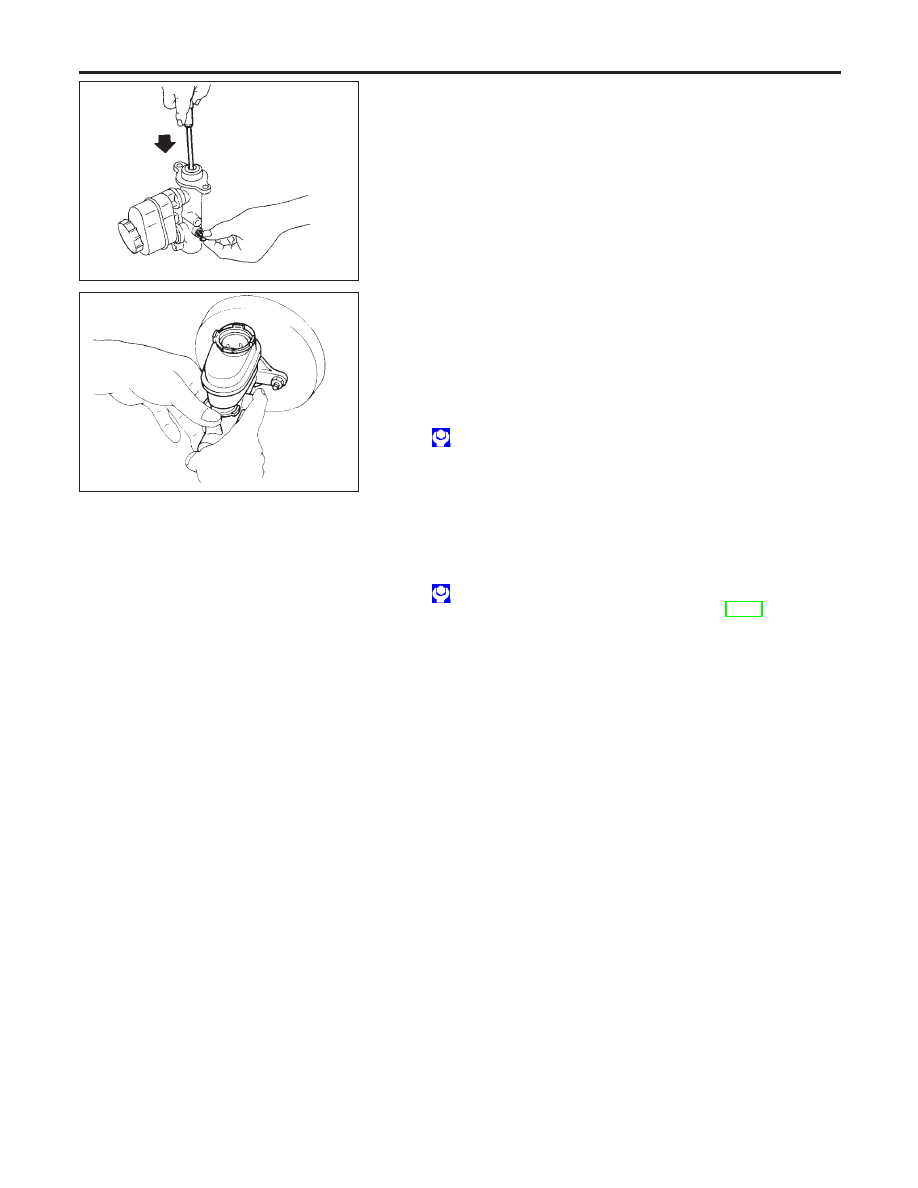

SBR938A Disassembly NMBR0020 1. Bend claws of stopper cap outward. SBR231C 2. Remove piston stopper while piston is pushed into cylinder. 3. Remove piston assemblies. If it is difficult to remove secondary piston assembly, gradu- Draw out reservoir tank (TOKIKO made-master cylinder). Inspection NMBR0021 Check master cylinder inner wall for pin holes and scratches. SBR354C Assembly NMBR0022 1. Insert secondary piston assembly. Then insert primary piston I Do not reuse primary and secondary pistons. I Pay attention to direction of piston cups in figure at left. I Pay attention to alignment of secondary piston slit with SBR940A 2. Install stopper cap. Before installing stopper cap, ensure that claws are bent Push reservoir tank seals into cylinder body. 4. Push reservoir tank into cylinder body. GI MA EM LC EC FE CL MT AT PD AX SU ST RS BT HA SC EL IDX MASTER CYLINDER Disassembly BR-15 |
