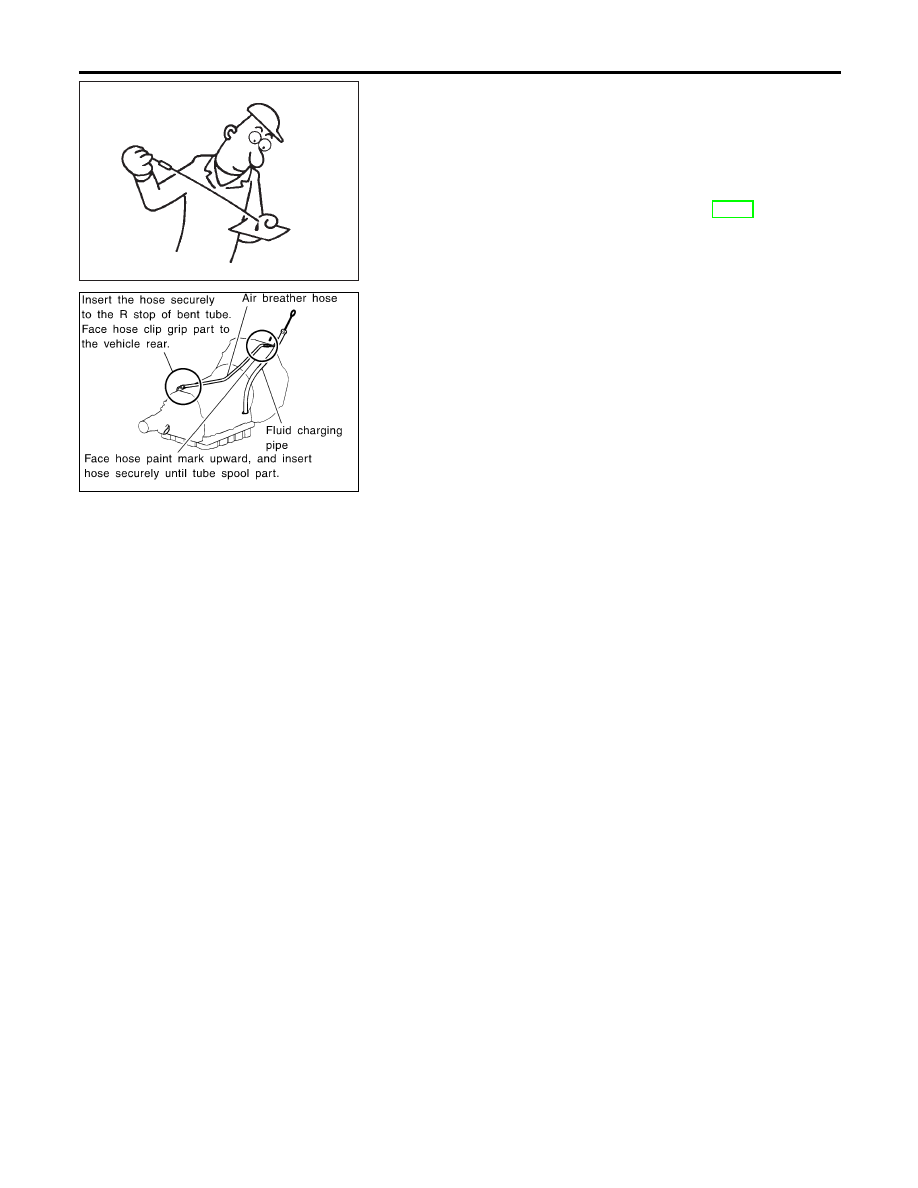

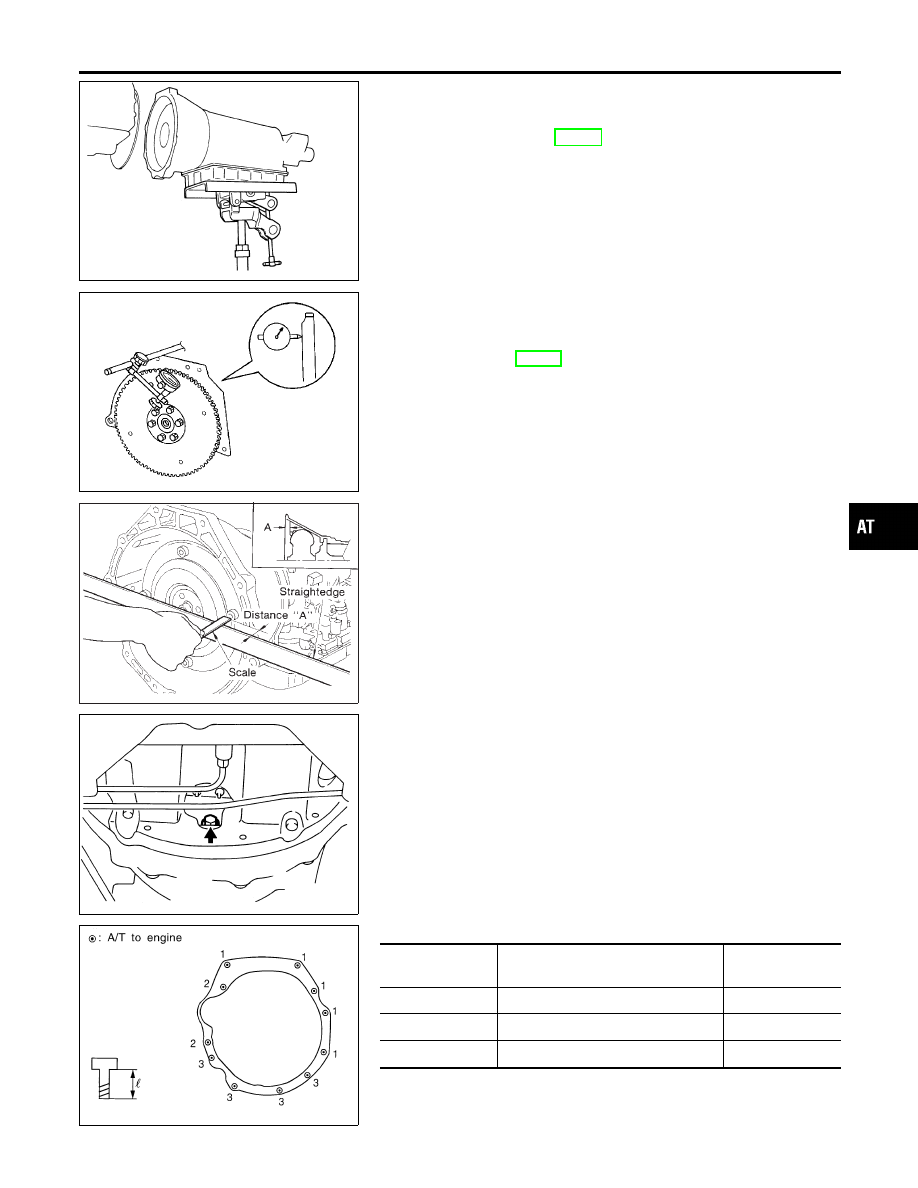

JAT437K 13. Support A/T with a jack. assembly. Tighten rear engine mounting member to the speci- 15. Remove bolts securing A/T assembly to engine. I Secure torque converter to prevent it from dropping. I Secure A/T assembly to a jack. 16. Lower A/T assembly. SAT977H Installation NMAT0107 1. Drive plate runout Maximum allowable runout: Refer to EM-77, “Flywheel/Drive Plate Runout”. I If this runout is out of specification, replace drive plate with ring SAT017B 2. When connecting torque converter to transmission, measure Distance “A”: 23.5 mm (0.925 in) or more JAT436K 3. Install converter to drive plate. I After converter is installed to drive plate, rotate crankshaft JAT439K 4. Tighten bolts securing transmission. Bolt No. Tightening torque N·m (kg-m, ft-lb) Bolt length “ ” mm (in) 1 70 - 79 (7.1 - 8.1, 52 - 58) 68 (2.68) 2 70 - 79 (7.1 - 8.1, 52 - 58) 78 (3.07) 3 29 - 39 (3.0 - 4.0, 22 - 29) 65 (2.56) 5. Reinstall any part removed. GI MA EM LC EC FE CL MT PD AX SU BR ST RS BT HA SC EL IDX REMOVAL AND INSTALLATION Removal (Cont’d) AT-209 |
