Available Adjusting Shims

NLMT0081

INPUT SHAFT REAR BEARING ADJUSTING SHIM

NLMT0081S01

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness

mm (in)

Part number*

0.74 (0.0291)

32225-6J003

0.78 (0.0307)

32225-6J004

0.82 (0.0323)

32225-6J005

0.86 (0.0339)

32225-6J006

0.90 (0.0354)

32225-6J007

0.94 (0.0370)

32225-6J008

0.98 (0.0386)

32225-6J009

1.02 (0.0402)

32225-6J010

1.06 (0.0417)

32225-6J011

1.10 (0.0433)

32225-6J012

1.14 (0.0449)

32225-6J013

1.18 (0.0465)

32225-6J014

1.22 (0.0480)

32225-6J015

1.26 (0.0496)

32225-6J016

1.30 (0.0512)

32225-6J017

1.34 (0.0528)

32225-6J018

1.38 (0.0543)

32225-6J019

1.42 (0.0559)

32225-6J020

1.46 (0.0575)

32225-6J021

1.50 (0.0591)

32225-6J022

1.54 (0.0606)

32225-6J023

1.58 (0.0622)

32225-6J024

1.62 (0.0638)

32225-6J060

1.66 (0.0654)

32225-6J061

*: Always check with the parts department for the latest information.

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F70A

Available Adjusting Shims

MT-92

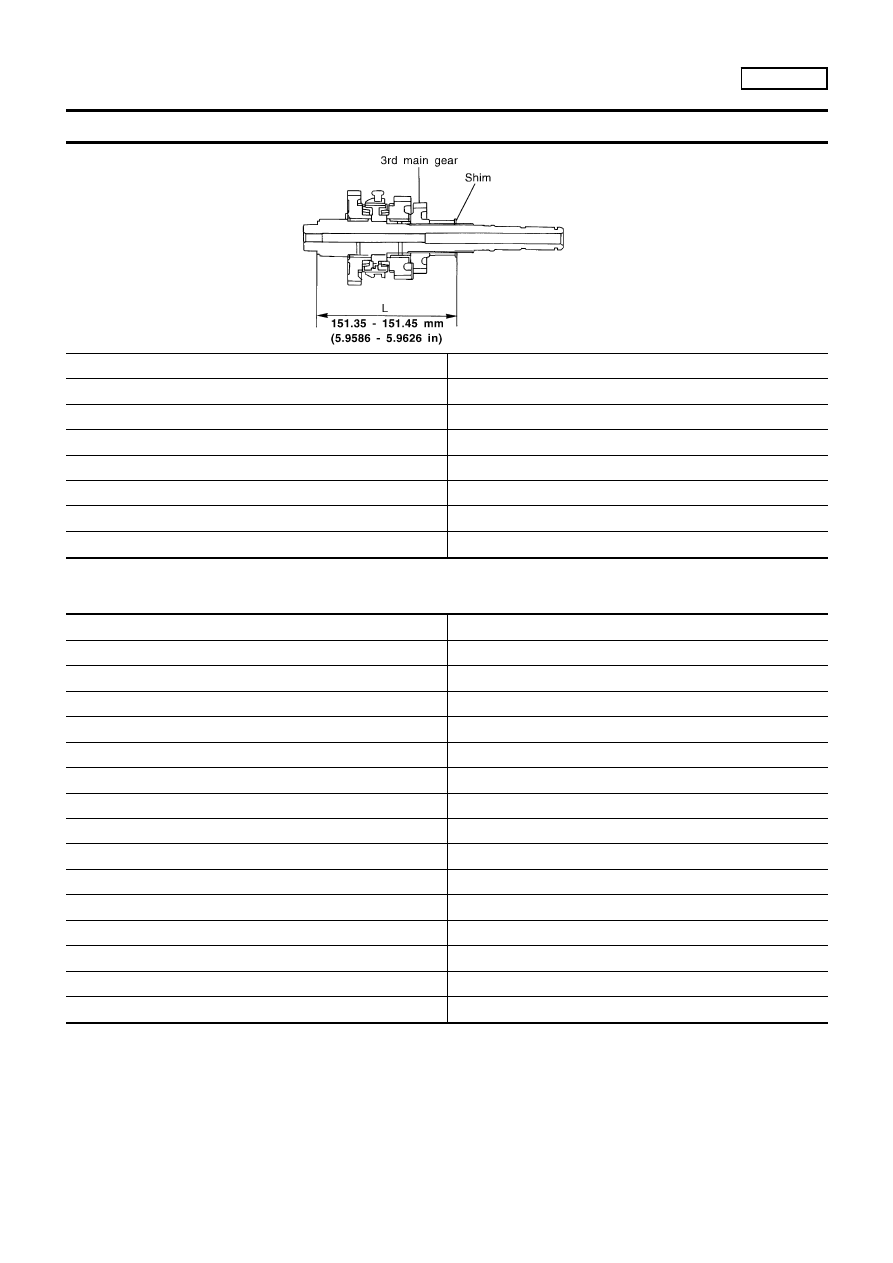

MAINSHAFT ADJUSTING SHIM

NLMT0081S02

SMT907D

Standard length “L”

151.35 - 151.45 mm (5.9586 - 5.9626 in)

Thickness

mm (in)

Part number*

0.48 (0.0189)

32238-6J000

0.56 (0.0220)

32238-6J001

0.64 (0.0252)

32238-6J002

0.72 (0.0283)

32238-6J003

0.80 (0.0315)

32238-6J004

0.88 (0.0346)

32238-6J005

*: Always check with the parts department for the latest information.

MAINSHAFT REAR BEARING ADJUSTING SHIM

NLMT0081S03

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness

mm (in)

Part number*

2.99 (0.1177)

32238-6J010

3.03 (0.1193)

32238-6J011

3.07 (0.1209)

32238-6J012

3.11 (0.1224)

32238-6J013

3.15 (0.1240)

32238-6J014

3.19 (0.1256)

32238-6J015

3.23 (0.1272)

32238-6J016

3.27 (0.1287)

32238-6J017

3.31 (0.1303)

32238-6J018

3.35 (0.1319)

32238-6J019

3.39 (0.1335)

32238-6J020

3.43 (0.1350)

32238-6J021

3.47 (0.1366)

32238-6J022

3.51 (0.1382)

32238-6J023

*: Always check with the parts department for the latest information.

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F70A

Available Adjusting Shims (Cont’d)

MT-93

Available Thrust Washer

NLMT0082

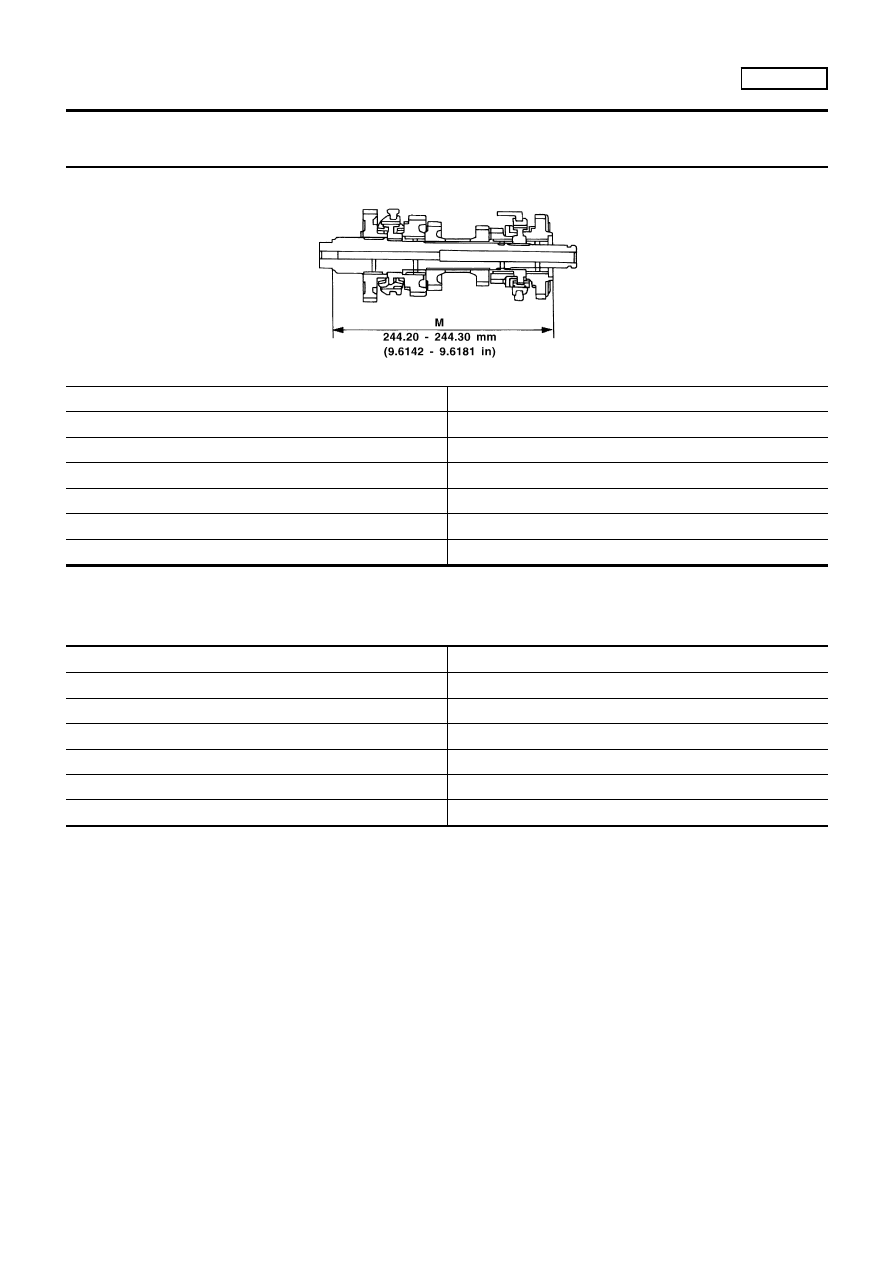

MAINSHAFT THRUST WASHER

NLMT0082S01

SMT843D

Standard length “M”

244.20 - 244.30 mm (9.6142 - 9.6181 in)

Thickness

mm (in)

Part number*

6.04 (0.2378)

32246-6J000

6.12 (0.2409)

32246-6J001

6.20 (0.2441)

32246-6J002

6.28 (0.2472)

32246-6J003

6.36 (0.2504)

32246-6J004

*: Always check with the parts department for the latest information.

Available Washers

NLMT0083

DIFFERENTIAL SIDE GEAR THRUST WASHER

NLMT0083S01

Clearance between side gear and differential case

0.1 - 0.2 mm (0.004 - 0.008 in)

Thickness mm (in)

Part number*

0.75 - 0.80 (0.0295 - 0.0315)

38424-D2111

0.80 - 0.85 (0.0315 - 0.0335)

38424-D2112

0.85 - 0.90 (0.0335 - 0.0354)

38424-D2113

0.90 - 0.95 (0.0354 - 0.0374)

38424-D2114

0.95 - 1.00 (0.0374 - 0.0394)

38424-D2115

*: Always check with the parts department for the latest information.

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F70A

Available Thrust Washer

MT-94

Available Shims — Differential Side Bearing
Preload and Adjusting Shim

=NLMT0084

BEARING PRELOAD

NLMT0084S01

Unit: mm (in)

Differential side bearing preload: T*

0.15 - 0.21 (0.0059 - 0.0083)

*: Install shims which are “deflection of differential case” + “T” in thickness.

DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS

NLMT0084S02

Thickness mm (in)

Part number*

0.44 (0.0173)

38454-M8000

0.48 (0.0189)

38454-M8001

0.52 (0.0205)

38454-M8002

0.56 (0.0220)

38454-M8003

0.60 (0.0236)

38454-M8004

0.64 (0.0252)

38454-M8005

0.68 (0.0268)

38454-M8006

0.72 (0.0283)

38454-M8007

0.76 (0.0299)

38454-M8008

0.80 (0.0315)

38454-M8009

0.84 (0.0331)

38454-M8010

0.88 (0.0346)

38454-M8011

*: Always check with the parts department for the latest information.

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F70A

Available Shims — Differential Side Bearing Preload and Adjusting Shim

MT-95

General Specifications

NLMT0024

TRANSAXLE

NLMT0024S01

Applied model

YD22DDTi

Model code number

4U107

Transaxle model

RS5F50A

Number of speeds

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.400

2nd

1.955

3rd

1.206

4th

0.829

5th

0.641

Reverse

3.428

Number of teeth

Input gear

1st

2nd

3rd

4th

5th

Rev.

Main gear

1st

2nd

3rd

4th

5th

Rev.

Reverse idler gear

Oil capacity

(US pt, Imp pt)

4.5 - 4.8 (9-1/2 - 10-1/8, 7-7/8 - 8-1/2)

Remarks

1st & 2nd double baulk ring type synchronizer

FINAL GEAR

NLMT0024S02

Engine

YD22DDTi

Transaxle model

RS5F50A

Final gear ratio

3.823

Number of teeth

Final gear/Pinion

65/17

Side gear/Pinion

14/10

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F50A

General Specifications

MT-96

Gear End Play

NLMT0025

Unit: mm (in)

Gear

End play

1st main gear
2nd main gear
3rd input gear
4th input gear
5th input gear

0.23 - 0.43 (0.0091 - 0.0169)
0.23 - 0.58 (0.0091 - 0.0228)
0.23 - 0.43 (0.0091 - 0.0169)
0.25 - 0.55 (0.0098 - 0.0217)
0.23 - 0.48 (0.0091 - 0.0189)

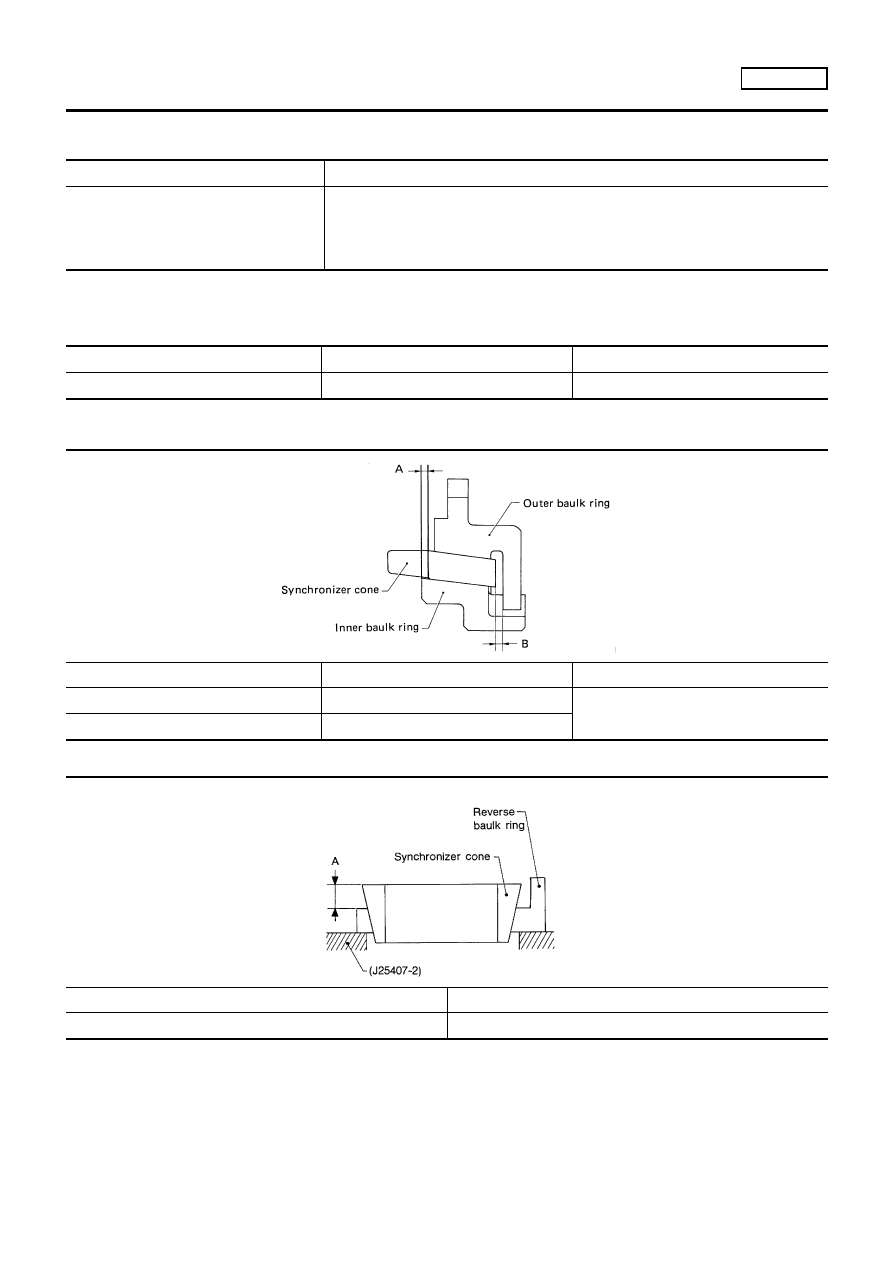

Clearance Between Baulk Ring and Gear

NLMT0026

3RD, 4TH & 5TH BAULK RING

NLMT0026S01

Unit: mm (in)

Gear

Standard

Wear limit

3rd, 4th & 5th

1.0 - 1.35 (0.0394 - 0.0531)

0.7 (0.028)

1ST AND 2ND DOUBLE BAULK RING

NLMT0026S02

Unit: mm (in)

SMT806B

Dimension

Standard

Wear limit

0.6 - 0.8 (0.024 - 0.031)

0.2 (0.008)

0.6 - 1.1 (0.024 - 0.043)

REVERSE BAULK RING

NLMT0026S03

SMT581B

Dimension

Wear limit

1.2 mm (0.047 in)

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F50A

Gear End Play

MT-97

Available Snap Rings

=NLMT0027

1ST & 2ND SYNCHRONIZER HUB (AT MAINSHAFT)

NLMT0027S01

Allowable clearance

0 - 0.1 mm (0 - 0.004 in)

Thickness mm (in)

Part number*

1.95 (0.0768)
2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)

32269-03E03
32269-03E00
32269-03E01
32269-03E02

*: Always check with the Parts Department for the latest parts information.

3RD & 4TH SYNCHRONIZER HUB (AT INPUT SHAFT)

NLMT0027S02

Allowable clearance

0 - 0.1 mm (0 - 0.004 in)

Thickness mm (in)

Part number*

1.95 (0.0768)
2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)

32269-03E03
32269-03E00
32269-03E01
32269-03E02

*: Always check with the Parts Department for the latest parts information.

5TH MAIN GEAR (AT MAINSHAFT)

NLMT0027S03

Allowable clearance

0 - 0.15 mm (0 - 0.0059 in)

Thickness mm (in)

Part number*

1.95 (0.0768)
2.05 (0.0807)
2.15 (0.0846)
2.25 (0.0886)

32348-05E00
32348-05E01
32348-05E02
32348-05E03

*: Always check with the Parts Department for the latest parts information.

Available Thrust Washer

NLMT0028

4TH INPUT GEAR (AT INPUT SHAFT)

NLMT0028S01

Allowable clearance

0 - 0.06 mm (0 - 0.0024 in)

Thickness mm (in)

Part number*

4.500 (0.1772)
4.525 (0.1781)
4.550 (0.1791)
4.575 (0.1801)

32278-03E01
32278-03E02
32278-03E03
32278-03E04

*: Always check with the Parts Department for the latest parts information.

DIFFERENTIAL SIDE GEAR THRUST WASHER

NLMT0028S02

Allowable clearance between side gear and differential case with washer

0.1 - 0.2 mm (0.004 - 0.008 in)

Thickness mm (in)

Part number*

0.75 - 0.80 (0.0295 - 0.0315)
0.80 - 0.85 (0.0315 - 0.0335)
0.85 - 0.90 (0.0335 - 0.0354)
0.90 - 0.95 (0.0354 - 0.0374)

38424-E3020
38424-E3021
38424-E3022
38424-E3023

*: Always check with the Parts Department for the latest parts information.

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F50A

Available Snap Rings

MT-98

Available Shims

=NLMT0029

— INPUT SHAFT END PLAY AND MAINSHAFT AND DIFFERENTIAL SIDE BEARING PRELOAD AND
ADJUSTING SHIM

BEARING PRELOAD AND END PLAY

NLMT0029S01

Unit: mm (in)

Mainshaft bearing preload

0.06 - 0.11 (0.0024 - 0.0043)

Input shaft end play

0 - 0.05 (0 - 0.0020)

Differential side bearing preload

0.40 - 0.45 (0.0157 - 0.0177)

TOTAL TURNING TORQUE (NEW BEARING)

NLMT0029S02

Unit: N·m (kg-cm, in-lb)

Total turning torque (new bearing)

8.8 - 21.6 (90 - 220, 78 - 191)

MAINSHAFT BEARING ADJUSTING SHIM

NLMT0029S03

Thickness mm (in)

Part number*

0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
1.20 (0.0472)

32139-03E11

32139-03E00
32139-03E01
32139-03E12
32139-03E02
32139-03E03
32139-03E04
32139-03E05
32139-03E06
32139-03E07
32139-03E08
32139-03E13

*: Always check with the Parts Department for the latest parts information.

TABLE FOR SELECTING MAINSHAFT BEARING ADJUSTING SHIM(S)

NLMT0029S04

Unit: mm (in)

Dimension “C”

Suitable shim(s)

0.30 - 0.34 (0.0118 - 0.0134)

0.34 - 0.38 (0.0134 - 0.0150)
0.38 - 0.42 (0.0150 - 0.0165)
0.42 - 0.46 (0.0165 - 0.0181)
0.46 - 0.50 (0.0181 - 0.0197)
0.50 - 0.54 (0.0197 - 0.0213)
0.54 - 0.58 (0.0213 - 0.0228)
0.58 - 0.62 (0.0228 - 0.0244)
0.62 - 0.66 (0.0244 - 0.0260)
0.66 - 0.70 (0.0260 - 0.0276)
0.70 - 0.74 (0.0276 - 0.0291)
0.74 - 0.78 (0.0291 - 0.0307)
0.78 - 0.82 (0.0307 - 0.0323)
0.82 - 0.86 (0.0323 - 0.0339)
0.86 - 0.90 (0.0339 - 0.0354)
0.90 - 0.94 (0.0354 - 0.0370)
0.94 - 0.98 (0.0370 - 0.0386)
0.98 - 1.02 (0.0386 - 0.0402)
1.02 - 1.06 (0.0402 - 0.0417)
1.06 - 1.10 (0.0417 - 0.0433)
1.10 - 1.14 (0.0433 - 0.0449)
1.14 - 1.18 (0.0449 - 0.0465)
1.18 - 1.22 (0.0465 - 0.0480)
1.22 - 1.26 (0.0480 - 0.0496)
1.26 - 1.30 (0.0496 - 0.0512)
1.30 - 1.34 (0.0512 - 0.0528)
1.34 - 1.38 (0.0528 - 0.0543)
1.38 - 1.42 (0.0543 - 0.0559)
1.42 - 1.46 (0.0559 - 0.0575)
1.46 - 1.50 (0.0575 - 0.0591)

0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)

0.40 + 0.44 (0.0157 + 0.0173)
0.44 + 0.44 (0.0173 + 0.0173)
0.44 + 0.48 (0.0173 + 0.0189)
0.48 + 0.48 (0.0189 + 0.0189)
0.48 + 0.52 (0.0189 + 0.0205)
0.52 + 0.52 (0.0205 + 0.0205)
0.52 + 0.56 (0.0205 + 0.0220)
0.56 + 0.56 (0.0220 + 0.0220)
0.56 + 0.60 (0.0220 + 0.0236)
0.60 + 0.60 (0.0236 + 0.0236)
0.60 + 0.64 (0.0236 + 0.0252)
0.64 + 0.64 (0.0252 + 0.0252)
0.64 + 0.68 (0.0252 + 0.0268)
0.68 + 0.68 (0.0268 + 0.0268)
0.68 + 0.72 (0.0268 + 0.0283)
0.72 + 0.72 (0.0283 + 0.0283)
0.72 + 0.76 (0.0283 + 0.0299)
0.76 + 0.76 (0.0299 + 0.0299)
0.76 + 0.80 (0.0299 + 0.0315)

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F50A

Available Shims

MT-99

INPUT SHAFT BEARING ADJUSTING SHIM

NLMT0029S05

Thickness mm (in)

Part number*

0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
1.20 (0.0472)

32225-08E00
32225-08E01
32225-08E02
32225-08E03
32225-08E04
32225-08E05
32225-08E06
32225-08E07
32225-08E08
32225-08E09
32225-08E10

32225-08E11

*: Always check with the Parts Department for the latest parts information.

TABLE FOR SELECTING INPUT SHAFT BEARING ADJUSTING SHIM(S)

NLMT0029S06

Unit: mm (in)

Dial indicator indication

Suitable shim(s)

0.65 - 0.69 (0.0256 - 0.0272)
0.69 - 0.73 (0.0272 - 0.0287)
0.73 - 0.77 (0.0287 - 0.0303)
0.77 - 0.81 (0.0303 - 0.0319)
0.81 - 0.85 (0.0319 - 0.0335)
0.85 - 0.89 (0.0335 - 0.0350)
0.89 - 0.93 (0.0350 - 0.0366)
0.93 - 0.97 (0.0366 - 0.0382)
0.97 - 1.01 (0.0382 - 0.0398)
1.01 - 1.05 (0.0398 - 0.0413)
1.05 - 1.09 (0.0413 - 0.0429)
1.09 - 1.13 (0.0429 - 0.0445)
1.13 - 1.17 (0.0445 - 0.0461)
1.17 - 1.21 (0.0461 - 0.0476)
1.21 - 1.25 (0.0476 - 0.0492)
1.25 - 1.29 (0.0492 - 0.0508)
1.29 - 1.33 (0.0508 - 0.0524)
1.33 - 1.37 (0.0524 - 0.0539)
1.37 - 1.41 (0.0539 - 0.0555)
1.41 - 1.45 (0.0555 - 0.0571)
1.45 - 1.49 (0.0571 - 0.0587)
1.49 - 1.53 (0.0587 - 0.0602)
1.53 - 1.57 (0.0602 - 0.0618)
1.57 - 1.61 (0.0618 - 0.0634)
1.61 - 1.65 (0.0634 - 0.0650)
1.65 - 1.69 (0.0650 - 0.0665)

0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)

DIFFERENTIAL SIDE BEARING ADJUSTING SHIM

NLMT0029S07

Thickness mm (in)

Part number*

0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
1.20 (0.0472)

38453-96E00
38453-96E01
38453-96E02
38453-96E03
38453-96E04
38453-96E05
38453-96E06
38453-96E07
38453-96E08
38453-96E09
38453-96E10

38453-96E11

38453-96E12
38453-96E13

*: Always check with the Parts Department for the latest parts information.

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F50A

Available Shims (Cont’d)

MT-100

TABLE FOR SELECTING DIFFERENTIAL SIDE BEARING ADJUSTING SHIM(S)

=NLMT0029S08

Unit: mm (in)

Dial indicator deflection

Suitable shim(s)

0.47 - 0.51 (0.0185 - 0.0201)
0.51 - 0.55 (0.0201 - 0.0217)
0.55 - 0.59 (0.0217 - 0.0232)
0.59 - 0.63 (0.0232 - 0.0248)
0.63 - 0.67 (0.0248 - 0.0264)
0.67 - 0.71 (0.0264 - 0.0280)
0.71 - 0.75 (0.0280 - 0.0295)

0.75 - 0.79 (0.0295 - 0.0311)
0.79 - 0.83 (0.0311 - 0.0327)

0.83 - 0.87 (0.0327 - 0.0343)
0.87 - 0.91 (0.0343 - 0.0358)
0.91 - 0.95 (0.0358 - 0.0374)
0.95 - 0.99 (0.0374 - 0.0390)
0.99 - 1.03 (0.0390 - 0.0406)
1.03 - 1.07 (0.0406 - 0.0421)

1.07 - 1.11 (0.0421 - 0.0437)
1.11 - 1.15 (0.0437 - 0.0453)

1.15 - 1.19 (0.0453 - 0.0469)
1.19 - 1.23 (0.0469 - 0.0484)
1.23 - 1.27 (0.0484 - 0.0500)
1.27 - 1.31 (0.0500 - 0.0516)

0.44 + 0.48 (0.0173 + 0.0189)
0.48 + 0.48 (0.0189 + 0.0189)
0.48 + 0.52 (0.0189 + 0.0205)
0.52 + 0.52 (0.0205 + 0.0205)
0.52 + 0.56 (0.0205 + 0.0220)
0.56 + 0.56 (0.0220 + 0.0220)
0.56 + 0.60 (0.0220 + 0.0236)
0.60 + 0.60 (0.0236 + 0.0236)
0.60 + 0.64 (0.0236 + 0.0252)
0.64 + 0.64 (0.0252 + 0.0252)
0.64 + 0.68 (0.0252 + 0.0268)
0.68 + 0.68 (0.0268 + 0.0268)
0.68 + 0.72 (0.0268 + 0.0283)
0.72 + 0.72 (0.0283 + 0.0283)
0.72 + 0.76 (0.0283 + 0.0299)
0.76 + 0.76 (0.0299 + 0.0299)
0.76 + 0.80 (0.0299 + 0.0315)
0.80 + 0.80 (0.0315 + 0.0315)
0.44 + 1.20 (0.0173 + 0.0472)
0.48 + 1.20 (0.0189 + 0.0472)
0.52 + 1.20 (0.0205 + 0.0472)

SERVICE DATA AND SPECIFICATIONS (SDS)

RS5F50A

Available Shims (Cont’d)

MT-101

SERVICE DATA AND SPECIFICATIONS (SDS)

Available Shims (Cont’d)

MT-102

RESTRAINT SYSTEM

SECTION

CONTENTS

SEAT BELTS

...................................................................3

Precautions ..................................................................3

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SEAT BELT PRE-TENSIONER

″

........3

PRECAUTION FOR SEAT BELT SERVICE

..................3

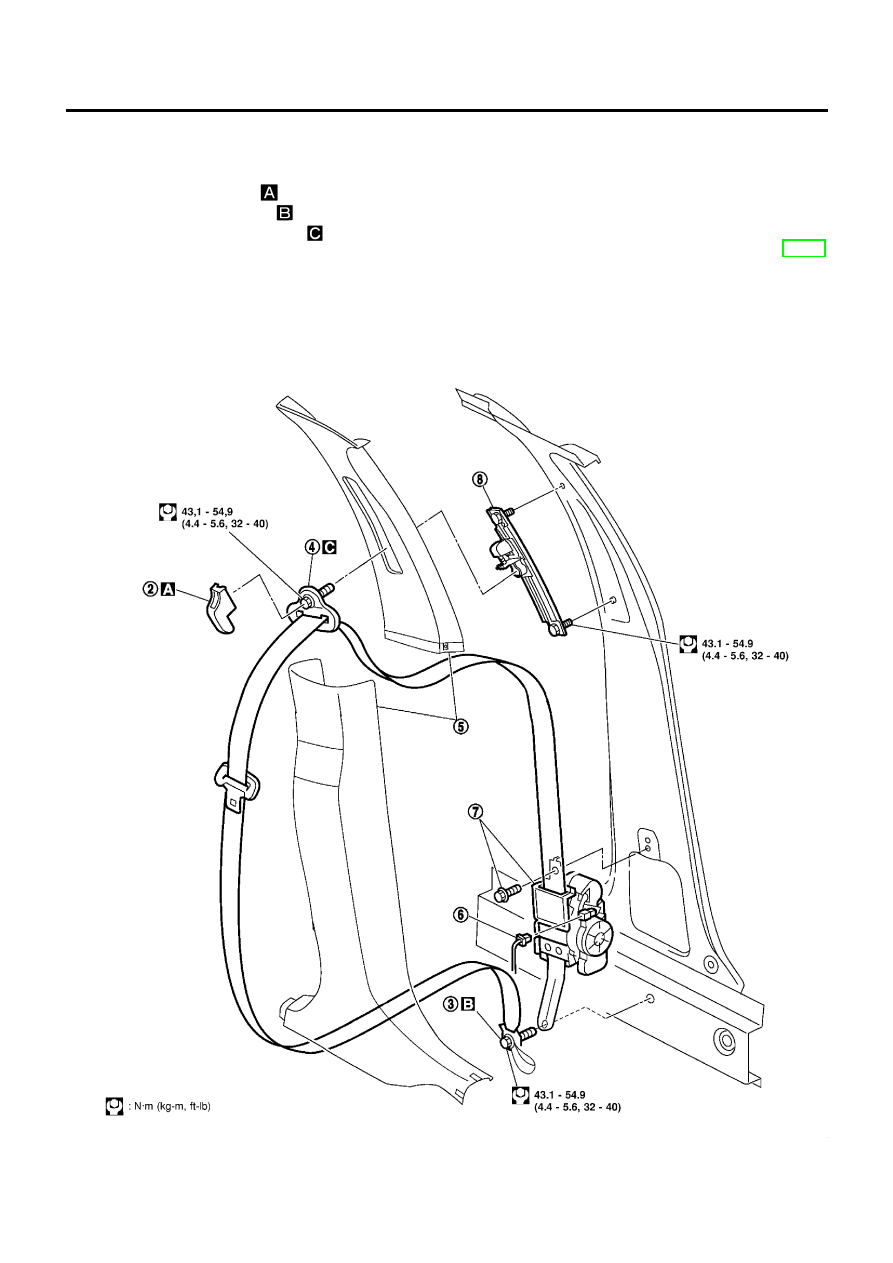

Front Seat Belt.............................................................5

REMOVAL AND INSTALLATION

.................................5

Rear Seat Belt .............................................................7

REMOVAL AND INSTALLATION (MODELS WITH
BUILT-IN SEAT BELT)

...............................................7

REMOVAL AND INSTALLATION (MODELS WITH
ROOF SEAT BELT)

.................................................10

REMOVAL AND INSTALLATION (MODELS WITH
2-POINTS CENTER SEAT BELT)

..............................13

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

.........16

Precautions ................................................................16

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SEAT BELT PRE-TENSIONER

......16

...........................16

WIRING DIAGRAMS AND TROUBLE DIAGNOSIS

.....16

Preparation ................................................................17

SPECIAL SERVICE TOOLS

......................................17

COMMERCIAL SERVICE TOOL

................................18

SRS Configuration .....................................................18
Seat Belt Pre-tensioner with Load Limiter.................19
Built-in Type Side Air Bag..........................................19
SRS Component Parts Location ...............................20
Maintenance Items ....................................................20
Diagnosis Sensor Unit ...............................................21

REMOVAL AND INSTALLATION

...............................21

Front Seat Belt Pre-tensioner....................................22

REMOVAL AND INSTALLATION

...............................22

Side Air Bag (Satellite) Sensor..................................23

REMOVAL AND INSTALLATION

...............................23

Driver Air Bag Module and Spiral Cable ...................24

REMOVAL AND INSTALLATION

...............................24

REMOVAL

...............................................................24

INSTALLATION

........................................................26

Front Passenger Air Bag Module ..............................27

REMOVAL

...............................................................27

INSTALLATION

........................................................28

Front Side Air Bag Module ........................................28

REMOVAL

...............................................................28

INSTALLATION

........................................................29

Disposal of Air Bag Module and Seat Belt Pre-
tensioner ....................................................................30

CHECKING DEPLOYMENT TOOL

.............................31

DEPLOYMENT PROCEDURES FOR AIR BAG
MODULE (OUTSIDE OF VEHICLE)

...........................32

DEPLOYMENT PROCEDURES FOR SEAT BELT
PRE-TENSIONER (OUTSIDE OF VEHICLE)

..............34

DEPLOYMENT OF AIR BAG MODULE AND SEAT
BELT PRE-TENSIONER WHILE MOUNTED IN
VEHICLE

.................................................................35

DISPOSING OF AIR BAG MODULE AND SEAT
BELT PRE-TENSIONER

...........................................36

Trouble Diagnoses Introduction.................................37

DIAGNOSIS FUNCTION

...........................................37

DIAGNOSIS MODE FOR CONSULT-II

.......................37

HOW TO CHANGE SELF-DIAGNOSIS MODE

WITH CONSULT-II

...................................................38

HOW TO CHANGE SELF-DIAGNOSIS MODE

WITHOUT CONSULT-II

............................................38

HOW TO ERASE SELF-DIAGNOSIS RESULTS

.........38

How to Perform Trouble Diagnoses for Quick
and Accurate Repair ..................................................40

INFORMATION FROM CUSTOMER

..........................40

PRELIMINARY CHECK

............................................40

WORK FLOW

..........................................................41

Wiring Diagram - SRS -.............................................42

MODELS WITH FRONT SEAT BELT
PRE-TENSIONER B21, B27

.....................................43

MODELS WITH FRONT SEAT BELT
PRE-TENSIONER B52, B53

.....................................44

SRS Operation Check ...............................................45

DIAGNOSTIC PROCEDURE 1

..................................45

Trouble Diagnoses with CONSULT-II...................46

DIAGNOSTIC PROCEDURE 2

..................................46

DIAGNOSTIC PROCEDURE 3

..................................49

DIAGNOSTIC PROCEDURE 4 (CONTINUED
FROM DIAGNOSTIC PROCEDURE 2)

......................51

DIAGNOSTIC PROCEDURE 5

..................................51

Trouble Diagnoses without CONSULT-II..............55

DIAGNOSTIC PROCEDURE 6

..................................55

DIAGNOSTIC PROCEDURE 7

..................................60

DIAGNOSTIC PROCEDURE 8 (CONTINUED
FROM DIAGNOSTIC PROCEDURE 6)

......................62

Does Not Turn Off .....................................................63

DIAGNOSTIC PROCEDURE 9

..................................63

Does Not Turn On .....................................................65

DIAGNOSTIC PROCEDURE 10

................................65

Collision Diagnosis ....................................................66

FOR FRONTAL COLLISION

.....................................66

FOR SIDE COLLISION

.............................................68

CONTENTS

(Cont’d)

RS-2

Precautions

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) “AIR BAG” AND “SEAT BELT
PRE-TENSIONER”

NLRS0001

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS composition which is available to NISSAN MODEL V10 is as follows (The composition var-
ies according to the destination and optional equipment.):

For a frontal collision
The Supplemental Restraint System consists of driver’s air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

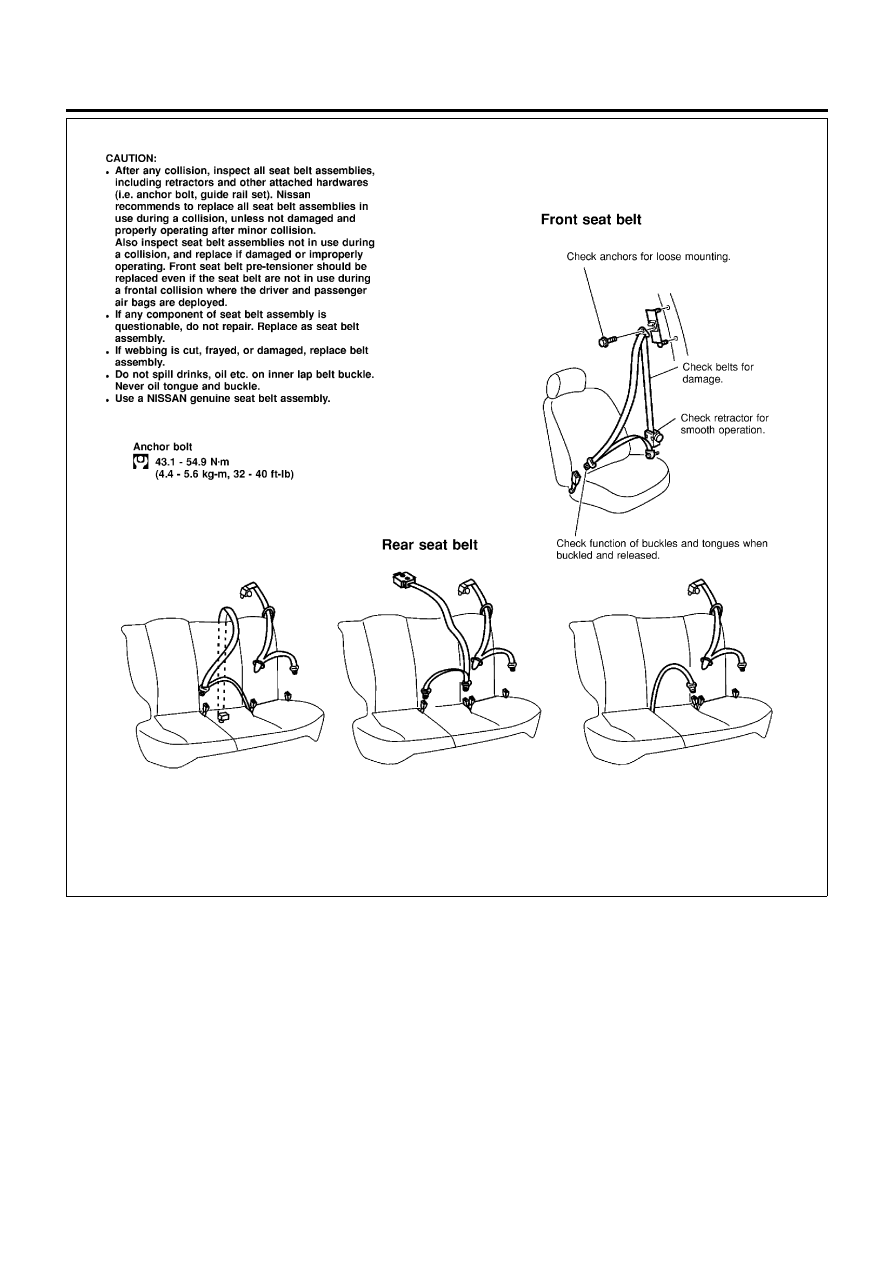

PRECAUTION FOR SEAT BELT SERVICE

NLRS0002

CAUTION:

Before removing the seat belt pre-tensioner assembly, turn the ignition switch off, disconnect both
battery cables and wait at least 3 minutes.

Do not use electrical test equipment for seat belt pre-tensioner connector.

After replacing or reinstalling seat belt pre-tensioner assembly, or reconnecting seat belt pre-ten-
sioner connector, check the system function. Refer to “SRS Operation Check” for details. (RS-45)

Do not disassemble buckle or seat belt assembly.

Replace anchor bolts if they are deformed or worn out.

Never oil tongue and buckle.

If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.

If webbing is cut, frayed, or damaged, replace seat belt assembly.

When replacing seat belt assembly, use a genuine seat belt assembly.

After A Collision

NLRS0002S01

WARNING:

Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the
collision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioner
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly if:

The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).

The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)

The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for dam-
age or distortion and repair as necessary before installing a new seat belt assembly.

Anchor bolts are deformed or worn out.

SEAT BELTS

Precautions

RS-3

NRS127

SEAT BELTS

Precautions (Cont’d)

RS-4

Front Seat Belt

REMOVAL AND INSTALLATION

=NLRS0056

1. Slide the seat all the way forward. Tilt the seatback toward the front and remove the rear floor boxes.
2. Remove adjuster cover.
3. Remove floor anchor bolt.
4. Remove shoulder anchor bolt.
5. Remove front and rear kicking plate, then remove center pillar upper and lower garnish. Refer to BT-28,

“SIDE AND FLOOR TRIM” for details.

6. Disconnect seat belt pre-tensioner connector.
7. Remove the screw securing seat belt pre-tensioner retractor, then remove seat belt and seat belt pre-ten-

sioner retractor.

8. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

NRS096

SEAT BELTS

Front Seat Belt

RS-5

Content .. 179 180 181 182 ..
