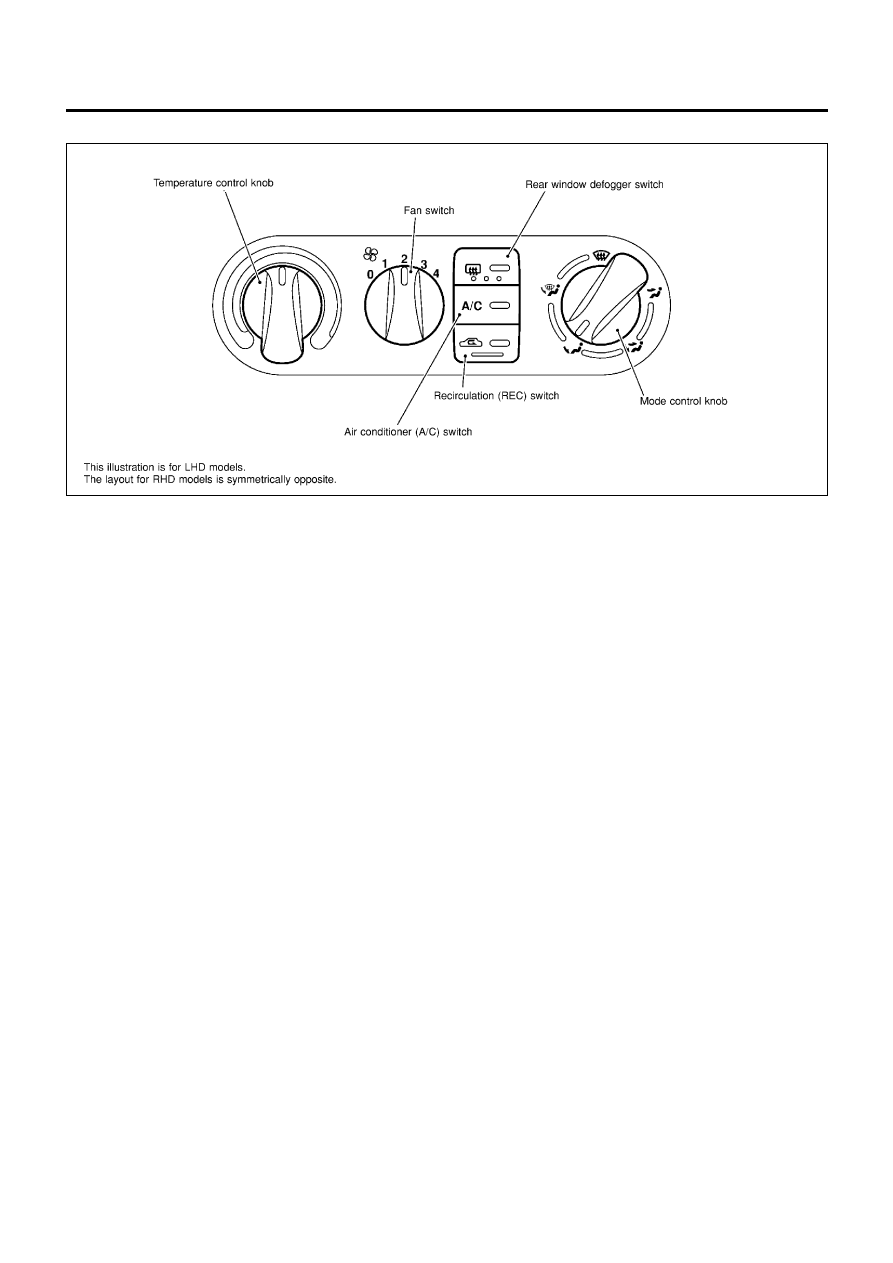

Control Operation
NLHA0123
NHA370

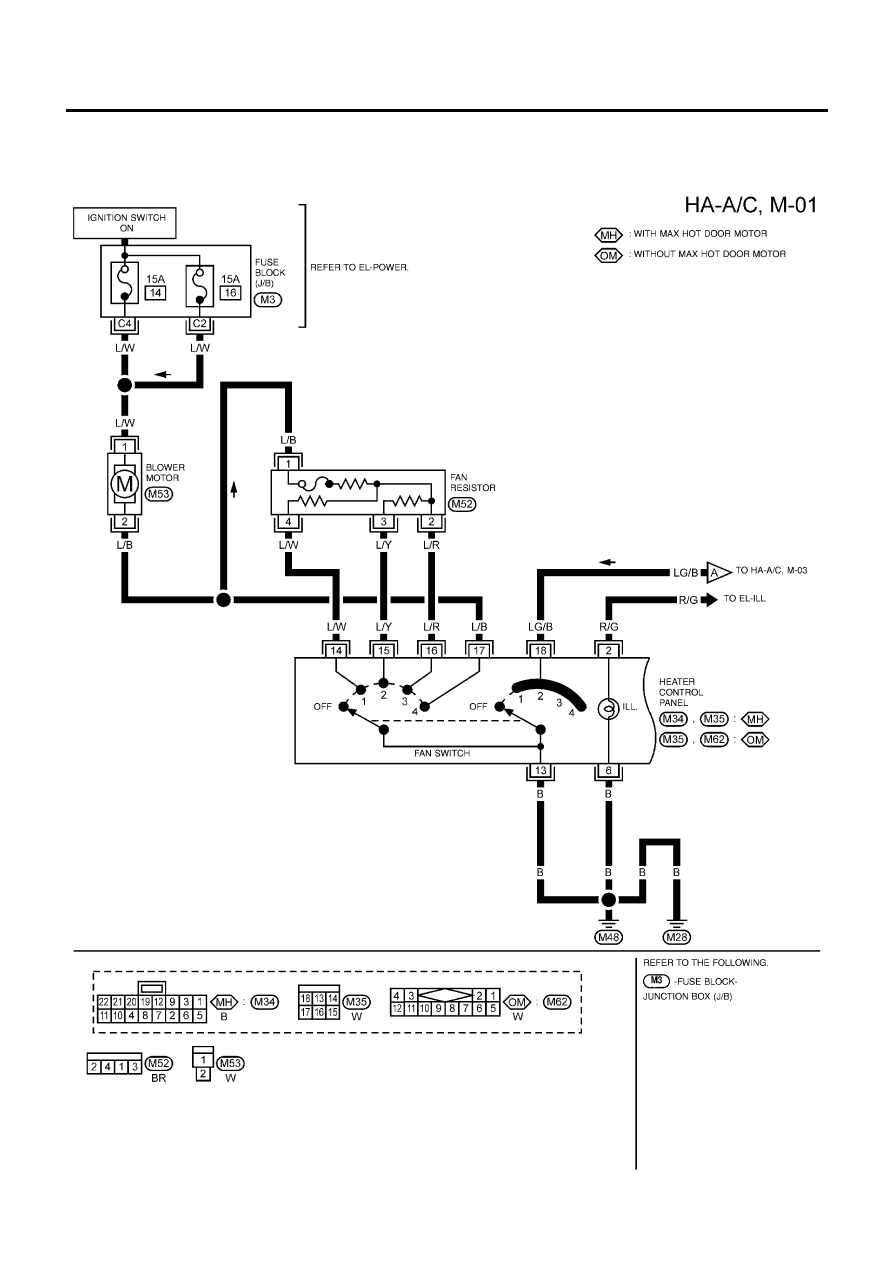

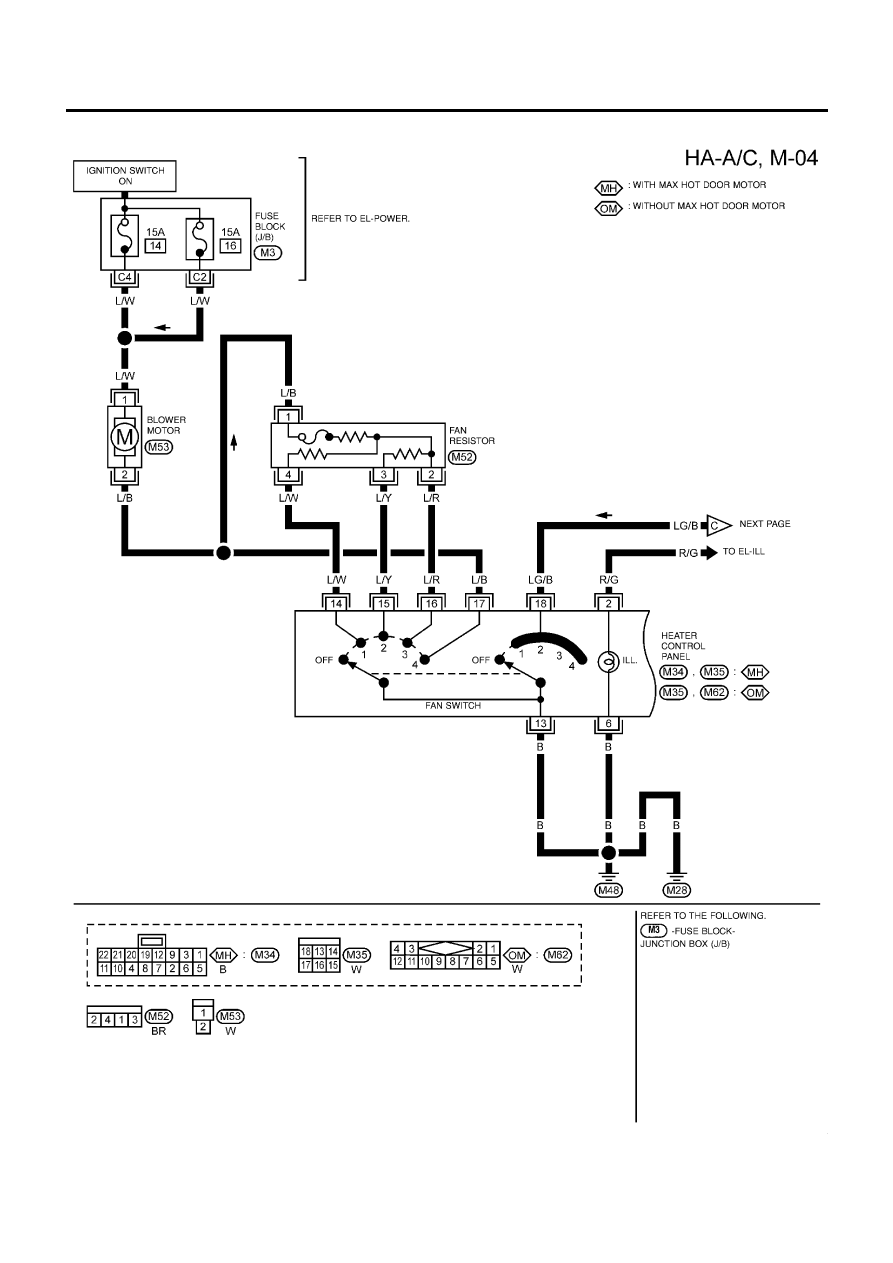

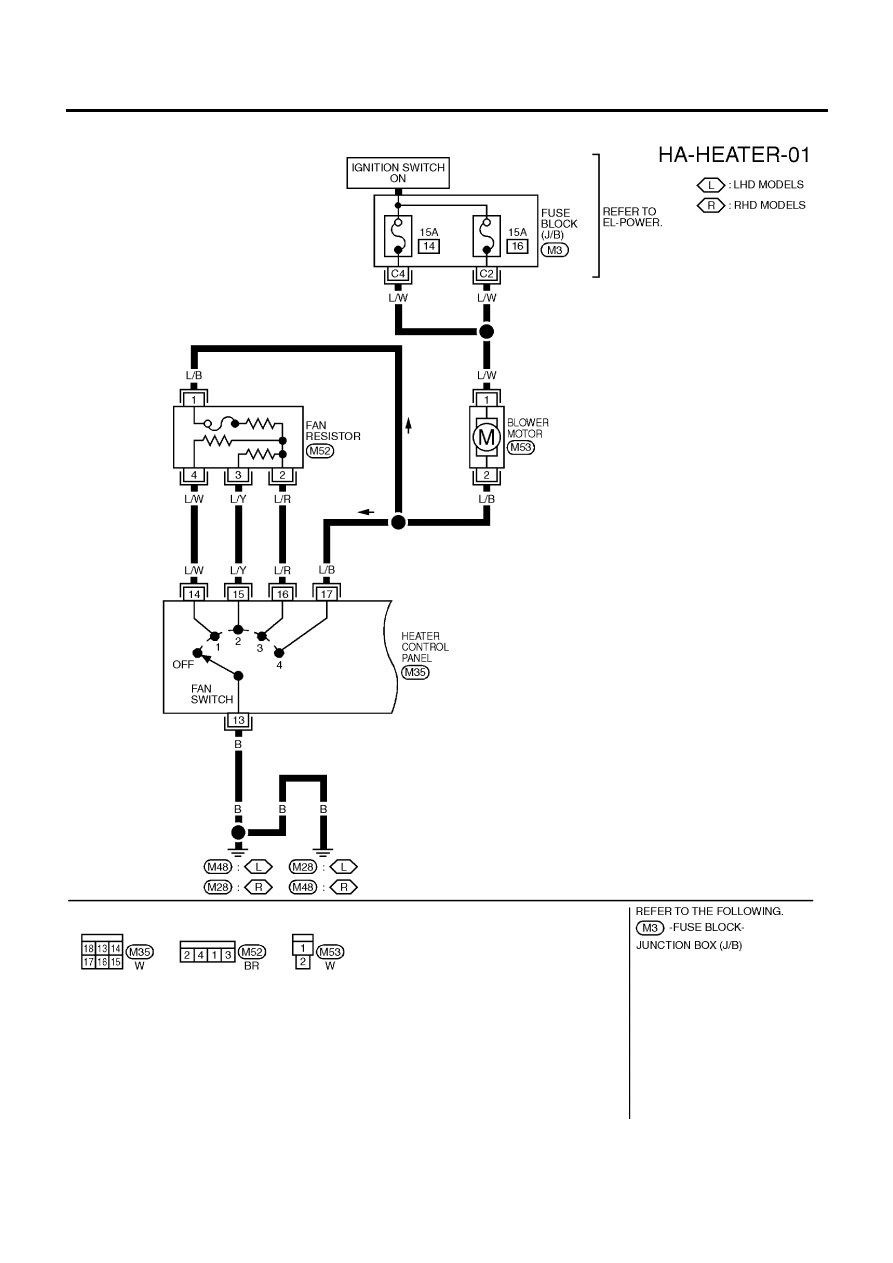

FAN CONTROL SWITCH
NLHA0123S01
This switch turns the fan ON and OFF, and controls fan speed.

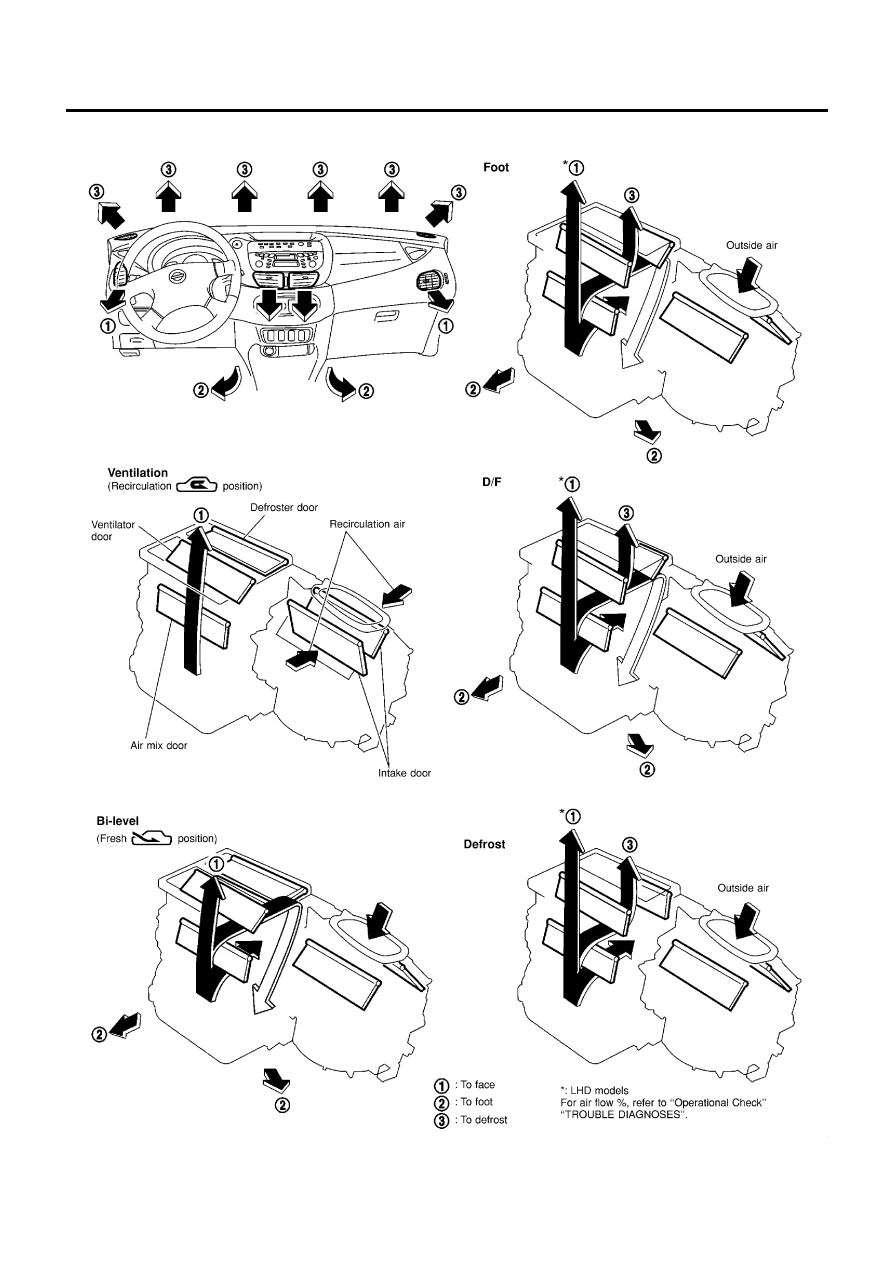

MODE CONTROL KNOB
NLHA0123S02
This knob controls the outlet air flow.
TEMPERATURE CONTROL KNOB
NLHA0123S03
This knob allows you to adjust the temperature of the discharge air.
REAR WINDOW DEFOGGER SWITCH
NLHA0123S07
When illumination is ON, rear window is defogged.

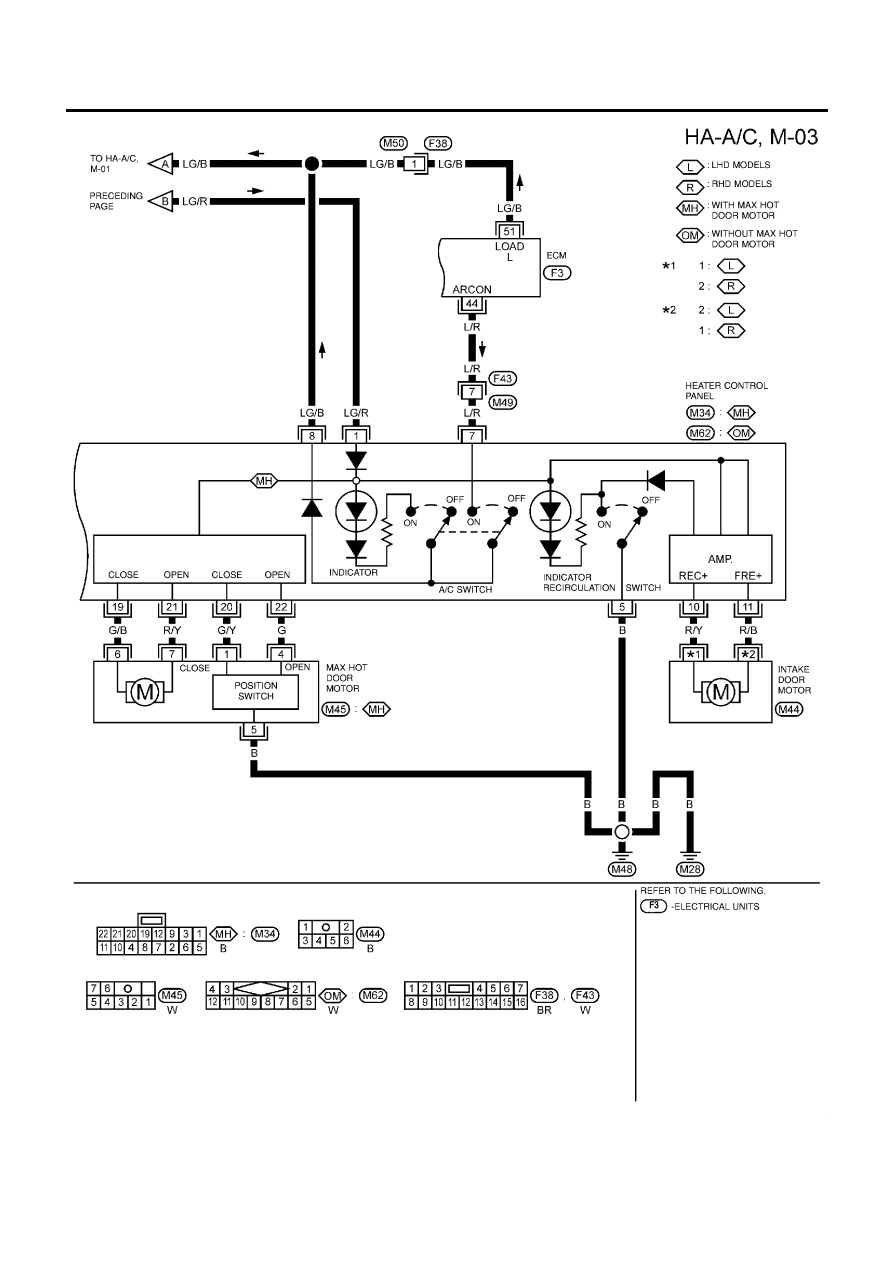

AIR CONDITIONER (A/C) SWITCH
NLHA0123S05
The air conditioner switch controls the A/C system. When the switch is depressed with the fan ON, the com-
pressor will turn ON. The indicator lamp will also light.
The air conditioner cooling function operates only when the engine is running.

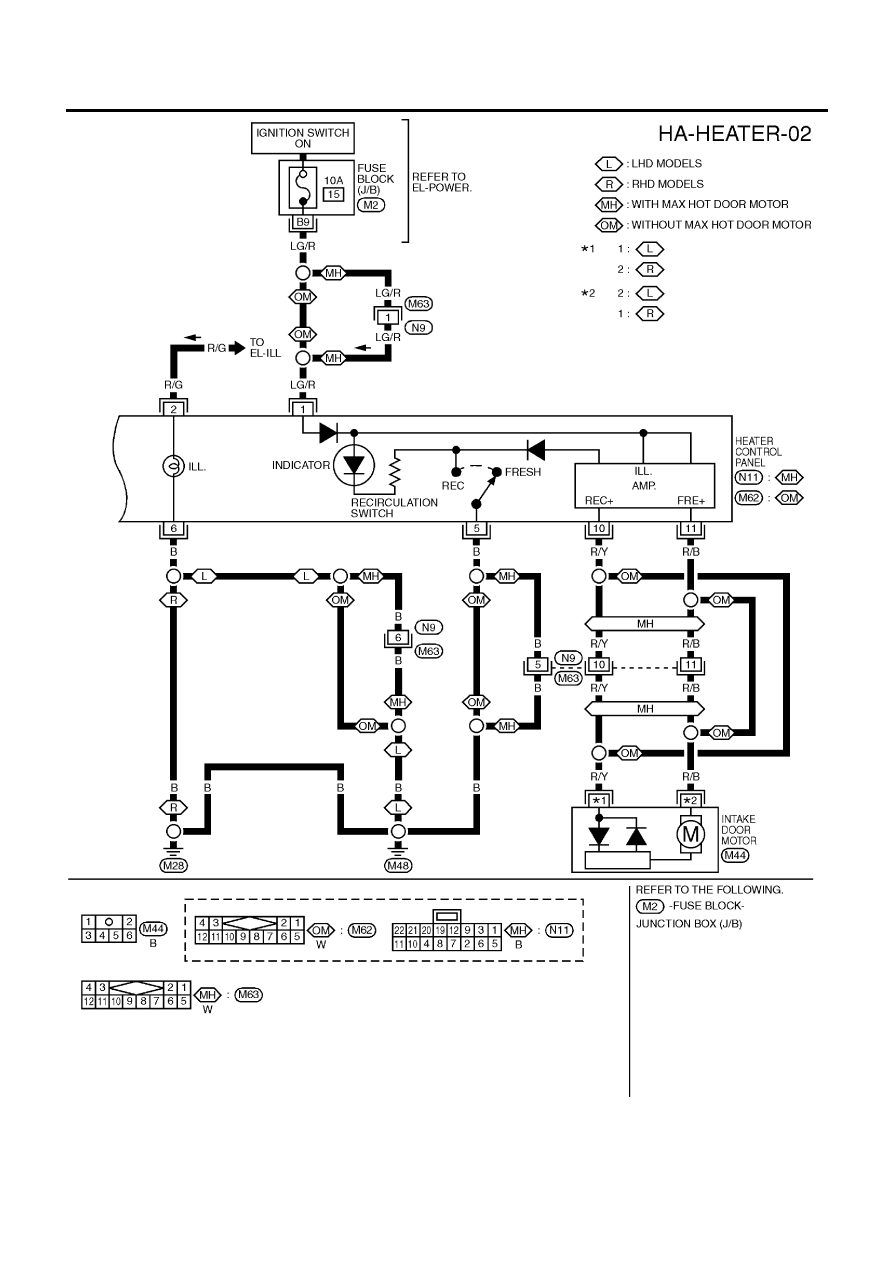

RECIRCULATION (REC) SWITCH
NLHA0123S08
Recirculation (REC) position: Interior air is recirculated inside the vehicle. (The indicator lamp will light.)
Fresh (FRE) position: Outlet air is drawn into the passenger compartment.
DESCRIPTION
Control Operation
HA-18
