PERFORM INITIALIZATION WITH CONSULT-II AGAIN

1. Replace IMMU.
2. Perform initialization with CONSULT-II.

For initialization, refer to “CONSULT-II operation manual NATS”.

SEL297W

NOTE:

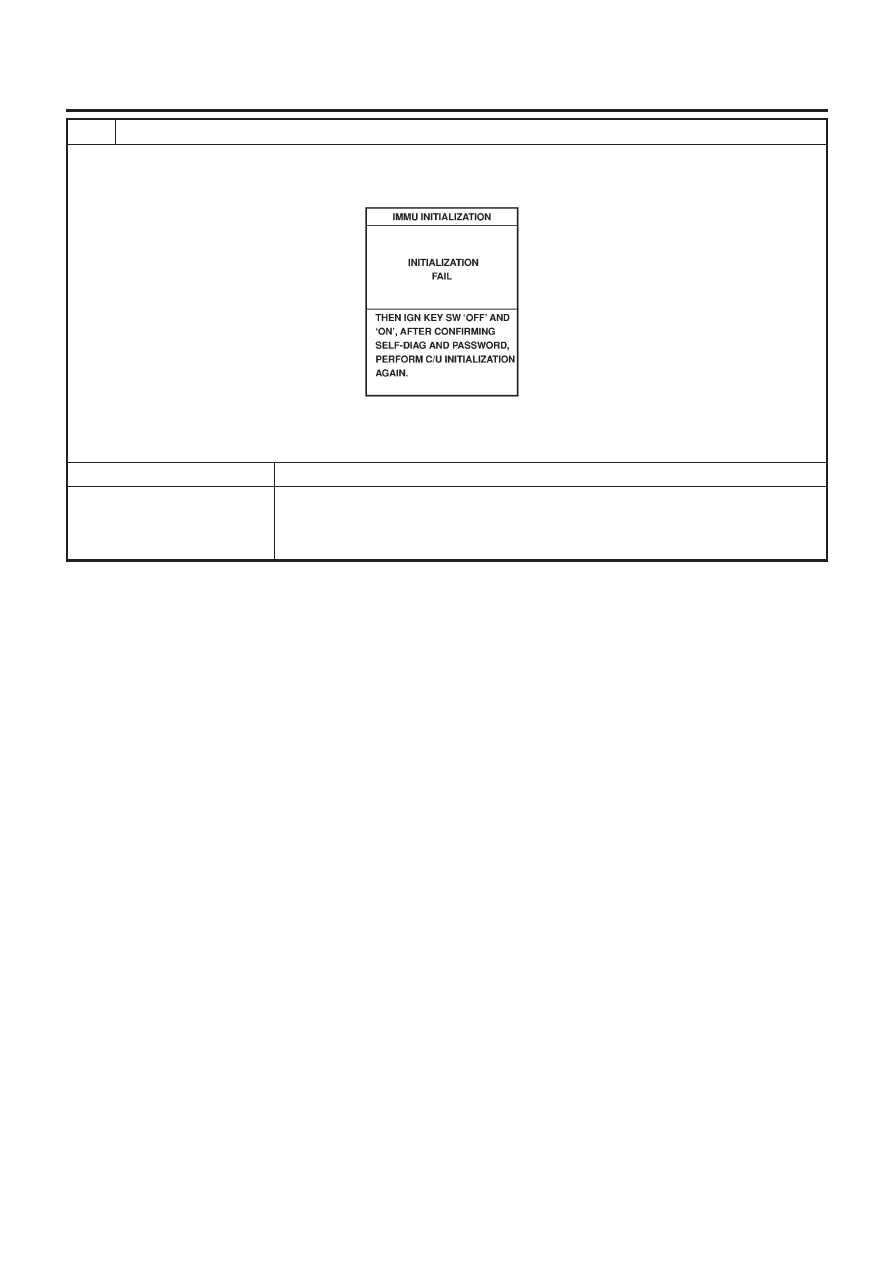

If the initialization is not completed or fails, CONSULT-II shows the above message on the screen.

Can the system be initialized?

Yes

System is OK. (IMMU is malfunctioning. Ref. part No. A)

ECM is malfunctioning.
Replace ECM. Ref. part No. B
Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II operation manual NATS”.

NATS (NISSAN ANTI-THEFT SYSTEM)

Trouble Diagnoses (Cont’d)

EL-367

DIAGNOSTIC PROCEDURE 8

=NLEL0411S14

CHECK HARNESS CONNECTOR CONNECTION

Perform initialization with CONSULT-II.
Check harness connector connection between M31 and M102.
Then initialize NATS. For the initialization operation, refer to “CONSULT-II operation NATS”.

Does the security indicator blink just after initialization?

Yes

System is OK. (The malfunction is caused by improper connector connection.)

GO TO 2.

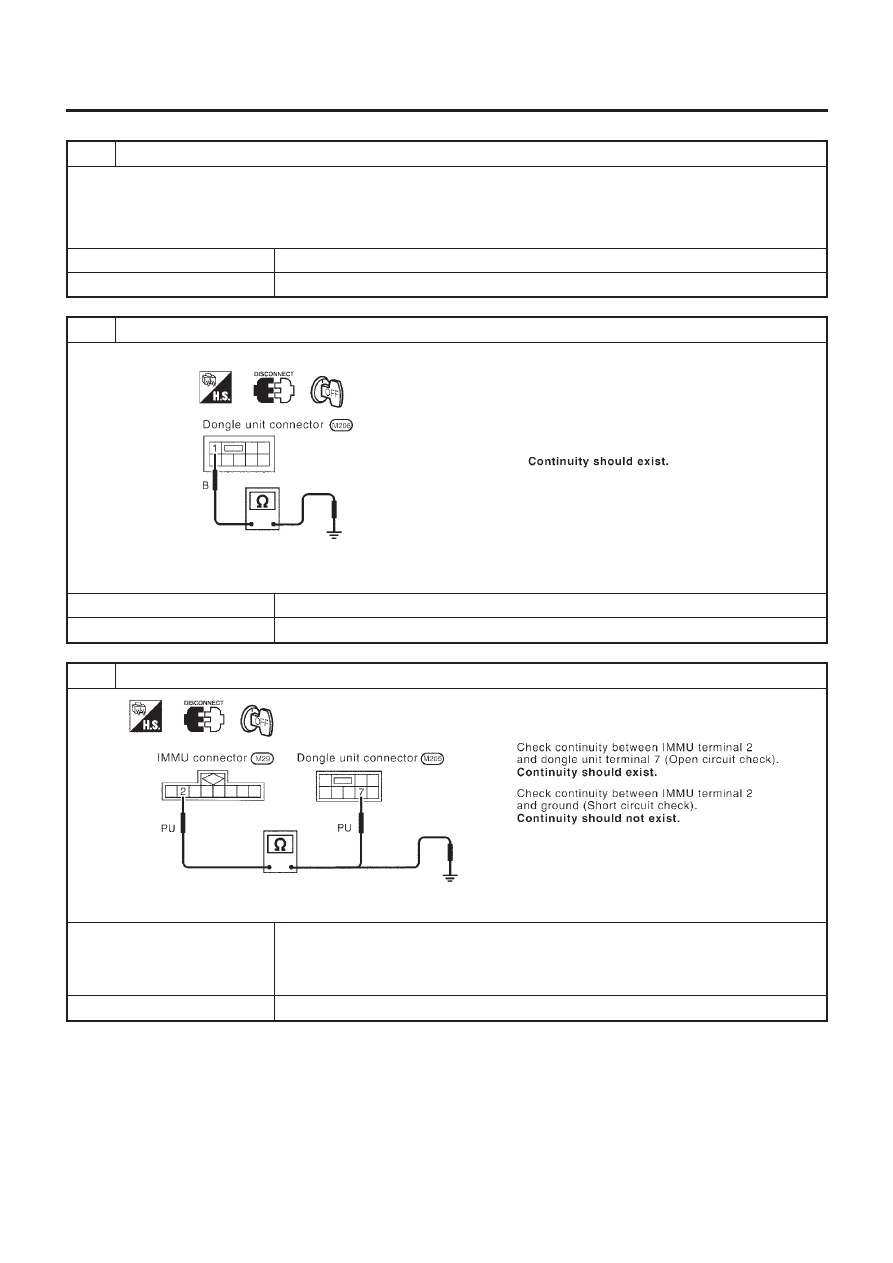

CHECK GROUND CIRCUIT FOR DONGLE UNIT

Check continuity between dongle unit terminal 1 and ground.

NEL777

Yes or No

Yes

GO TO 3.

Repair harness.

CHECK INTERFACE CIRCUIT

NEL778

Yes or No

Yes

Dongle unit is malfunctioning.
1. Replace dongle unit.
2. Perform initialization with CONSULT-II. For the initialization procedure, refer to “CON-

SULT-II Operation Manual NATS”.

Repair harness.

NATS (NISSAN ANTI-THEFT SYSTEM)

Trouble Diagnoses (Cont’d)

EL-368

SEL096WC

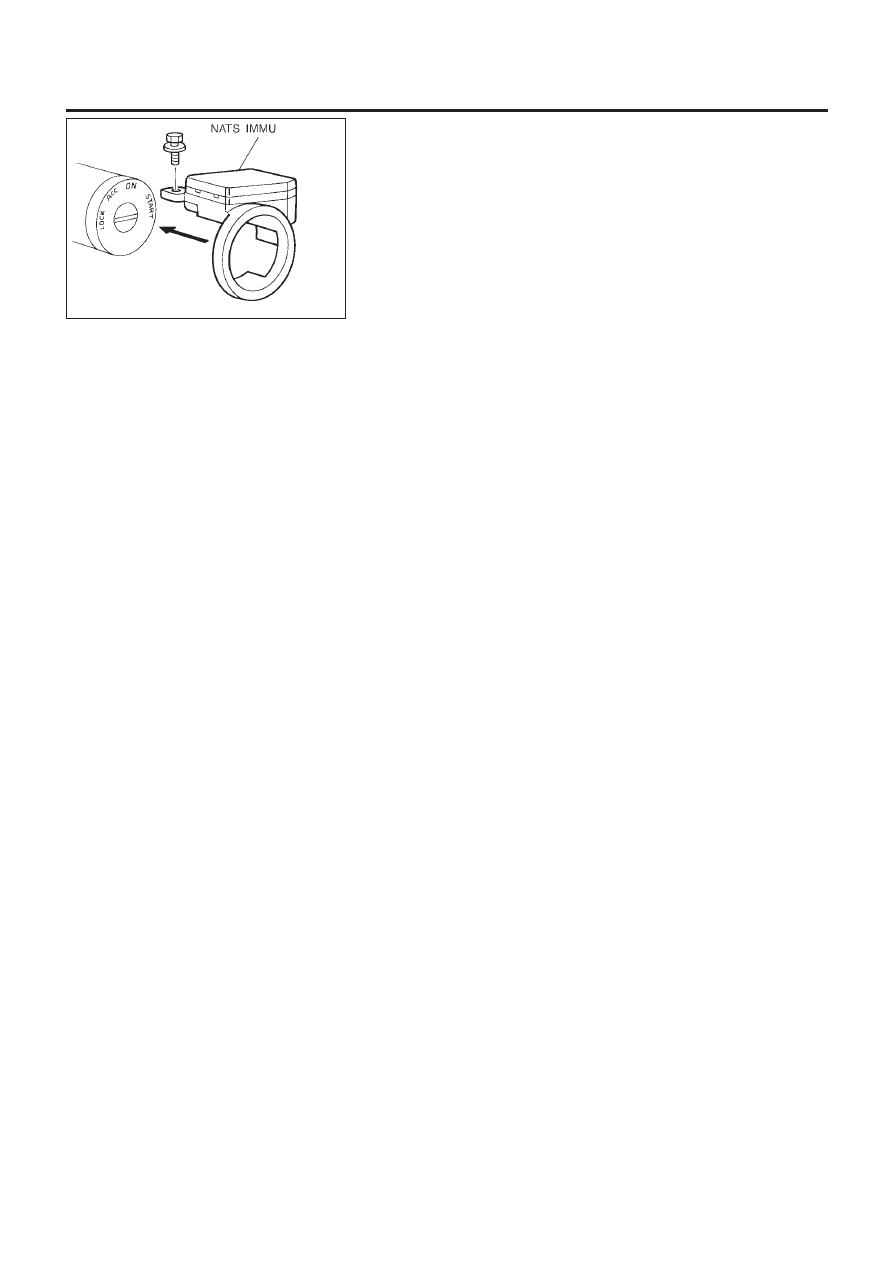

How to Replace NATS IMMU

NLEL0412

NOTE:

If NATS IMMU is not installed correctly, NATS system will
not operate properly and SELF-DIAG RESULTS on CON-
SULT-II screen will show “LOCK MODE”.

NATS (NISSAN ANTI-THEFT SYSTEM)

How to Replace NATS IMMU

EL-369

Precautions

NLEL0510

WARNING:

Do not attempt to disassemble the monitor. Parts of the monitor have high voltages that can result in
severe and dangerous electric shock.

CAUTION:

Do not reverse battery connections.

Do not attach unauthorized parts.

Protect the unit from severe impact.

NOTE:
Before beginning repair, determine whether or not the unit is defective. Refer to “This Condition Is Not
Abnormal” (EL-432).

Component Parts Location

NLEL0511

For details, refer to “ELECTRICAL UNIT LAYOUT” (EL-442) and “HARNESS LAYOUT” (EL-452).

SEL504X

System Description

NLEL0512

OUTLINE

NLEL0512S01

The Navigation System (Multi-AV System) relies upon three sens-
ing devices in order to determine vehicle location at regular time
intervals.
1.

Vehicle speed sensor: Determines the distance the vehicle has
traveled.

Gyro (Angular velocity sensor): Determines vehicle steering
angle and directional change.

GPS antenna (GPS data): Determines vehicle forward move-
ment and direction.

The data provided by the three sensing functions together with a
comparison of the mapping information read from the CD-ROM
drive permit accurate determination of the vehicle’s current location
and subsequent course (map matching). The information appears
on a liquid crystal display.
This comparison of GPS data (vehicle position sensing) and map
matching permits precise determination of vehicle location.

SEL684V

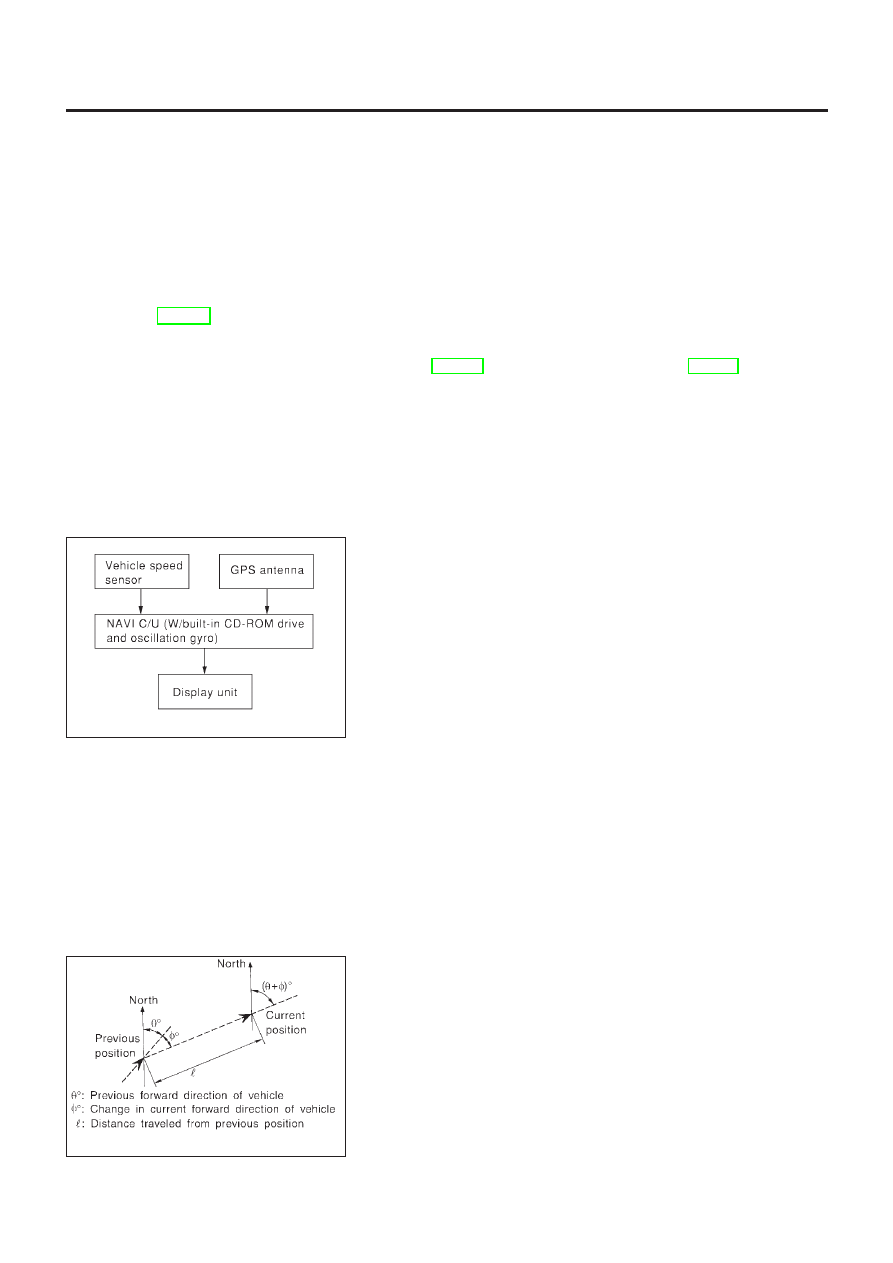

Position Sensor Operating Principles

NLEL0512S0101

The sensor determines current vehicle location by calculating the
previously sensed position, the distance traveled from this position,
and the directional changes occurring during this travel.
1.

Distance traveled
The distance traveled is calculated using signals received from
the vehicle speed sensor. The sensor automatically compen-
sates for the slightly reduced wheel and tire diameter resulting
from tire wear.

Forward movement (Direction)
Changes in the direction of forward movement are calculated
by the gyro (angular velocity sensor) and the GPS antenna

NAVIGATION SYSTEM

Precautions

EL-370

(GPS data). Each of these functions has its advantage and
disadvantages. Depending upon conditions, one function takes
precedence over the other to accurately determine the direc-
tion of forward movement.

Function type

Advantage

Disadvantage

Gyro (Angular
velocity sen-
sor)

Able to accurately detect
minute changes in steering
angle and direction.

Calculation errors may
accumulate over a long
period of continuous
vehicle travel.

GPS antenna
(GPS data)

Able to sense vehicle travel
in four general directions
(North, South, East, and
West)

Unable to detect direction
of vehicle travel at low
vehicle speeds.

SEL685V

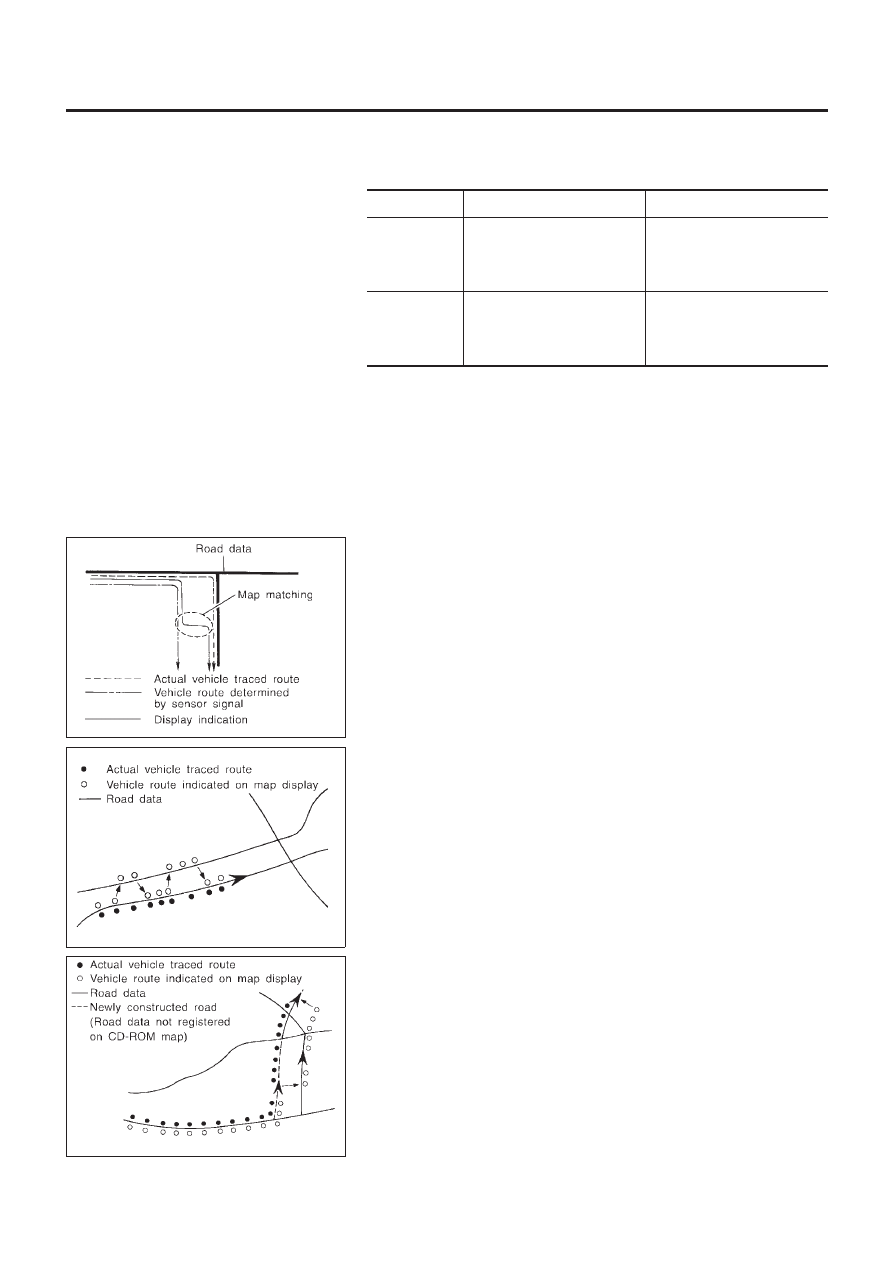

Map Matching

NLEL0512S0102

Map matching allows the driver to compare the sensed vehicle
location data with the road map contained in the CD-ROM drive.
Vehicle position is marked on the CD-ROM map. This permits the
driver to accurately determine his/her present position on the high-
way and to make appropriate course decisions.
When GPS data reception is poor during travel, the vehicle posi-
tion is not amended. At this time, manual manipulation of the CD-
ROM map position marker is required.

SEL686V

Map matching permits the driver to make priority judgments about
possible appropriate roads other than the one currently being trav-
eled.
If there is an error in the distance or direction of travel, there will
also be an error in the relative position of other routes. When two
routes are closely parallel to one another, the indicated position for
both routes will be nearly the same priority. This is so that, slight
changes in the steering direction may cause the marker to indicate
both routes alternately.

SEL687V

Newly constructed roads may not appear on the CD-ROM map. In
this case, map matching is not possible. Changes in the course of
a road will also prevent accurate map matching.
When driving on a road not shown on the CD-ROM map, the posi-
tion marker used for map matching may indicate a different route.
Even after returning to a route shown on the map, the position
marker may jump to the position currently detected.

NAVIGATION SYSTEM

System Description (Cont’d)

EL-371

SEL526V

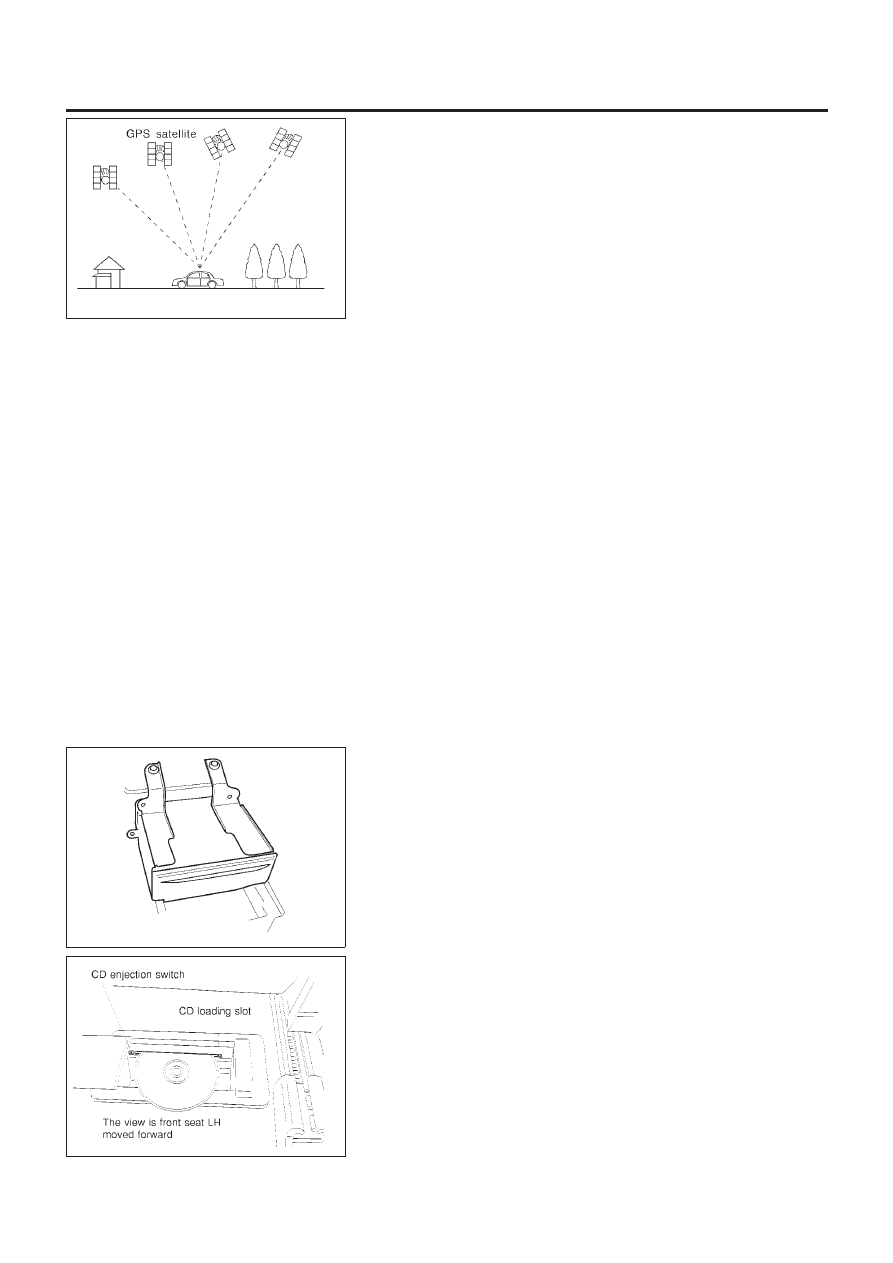

GPS (Global Positioning System)

NLEL0512S0103

GPS is the global positioning system developed and operated by
the US Department of Defense. GPS satellites (NAVSTAR) trans-
mit radio waves and orbit around the earth at an altitude of approxi-
mately 21,000 km (13,000 miles).
GPS receiver calculates the three-dimensional position of the
vehicle (latitude, longitude, and altitude from the sea level) by the
time difference of the radio wave arriving from more than four GPS
satellites (three-dimensional positioning).
When the radio wave is received from only three GPS satellites, the
two-dimensional position (latitude and longitude) is calculated,
using the altitude from the sea level data calculated by using four
GPS satellites (two-dimensional positioning).

Positioning capability is degraded in the following cases.

In two-dimensional positioning, when the vehicle’s altitude
from the sea level changes, the precision becomes lower.

The location detection performance can have an error of about
100 m (300 ft) even in three-dimensional positioning with high
precision. Because the precision is influenced by the location
of GPS satellites used for positioning, the location detection
performance may drop depending on the location of GPS sat-
ellites.

When the radio wave from GPS satellites cannot be received,
for example, when the vehicle is in a tunnel, in a parking lot
inside building, under an elevated superhighway or near strong
power lines, the location may not be detected. Turbulent/
electric weather conditions may also affect positioning perfor-
mance. If something is placed on the antenna, the radio wave
from GPS satellites may not be received.

NEL727

COMPONENT DESCRIPTION

NLEL0512S02

NAVI Control Unit

NLEL0512S0201

The gyro (angular speed sensor) and the CD-ROM drive are
built-in units that control the navigation functions.

Signals are received from the gyro, the vehicle speed sensor,
and the GPS antenna. Vehicle location is determined by com-
bining this data with the data contained in the CD-ROM map.
Locational information is shown on liquid crystal display panel.

NEL728

CD-ROM Driver

NLEL0512S0202

Maps, traffic control regulations, and other pertinent information
can be easily red from the CD-ROM disc.

NAVIGATION SYSTEM

System Description (Cont’d)

EL-372

Map CD-ROM

NLEL0512S0203

The map CD-ROM has maps, traffic control regulations, and
other pertinent information.

To improve CD-ROM map matching and route determination
functions, the CD-ROM uses an exclusive Nissan format.
Therefore, the use of a CD-ROM provided by other manufac-
turers cannot be used.

SEL690V

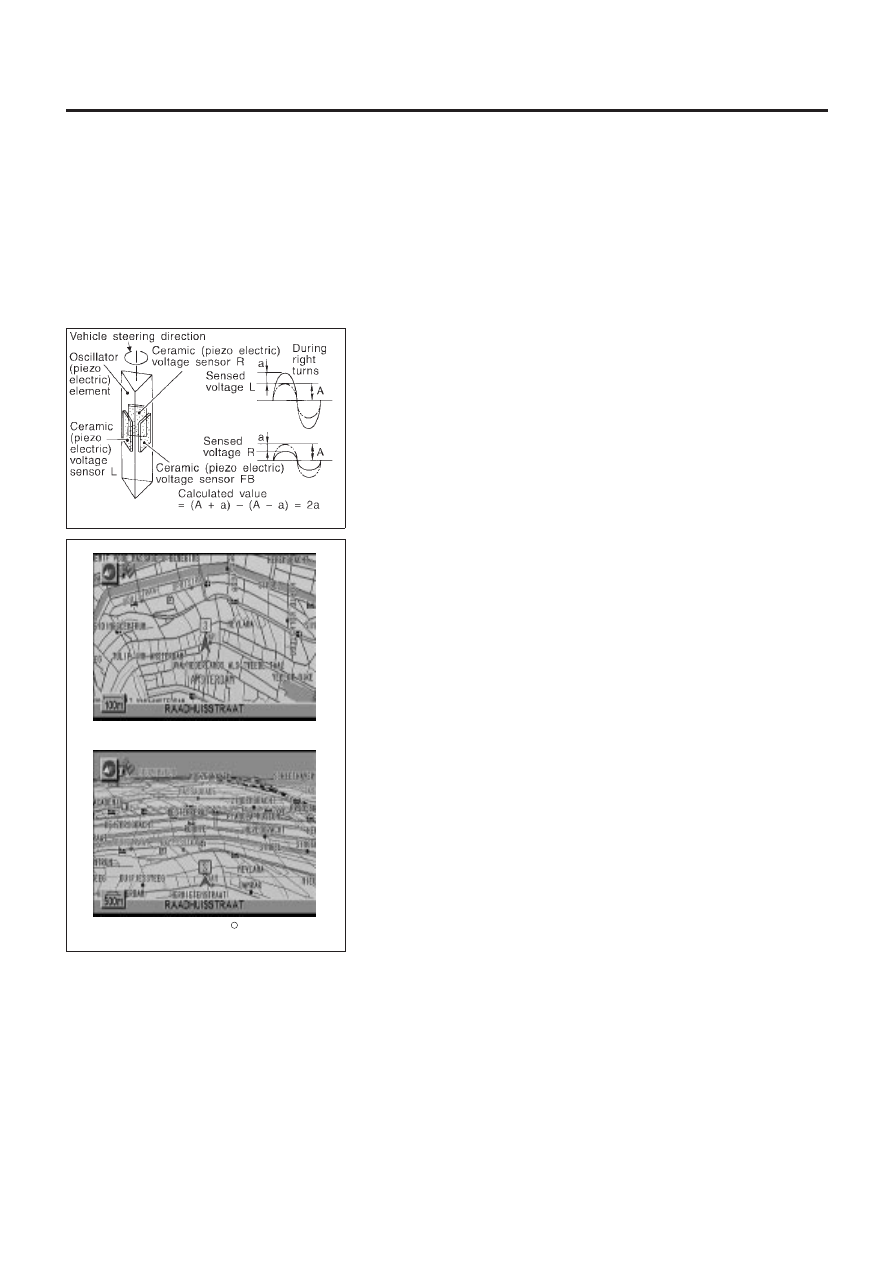

Gyro (Angular Speed Sensor)

NLEL0512S0204

The oscillator gyro sensor is used to detect changes in vehicle
steering angle.

The oscillator gyro periodically senses oscillatory variation at
the oscillation terminals. This variation is caused by changes
in the vehicle angular velocity. Voltage variations are sensed
by ceramic voltage sensors at the left and right sides of the
terminals. Vehicle angular velocity corresponds directly with
these changes in voltage.

The gyro is built into the navigation (NAVI) control unit.

MAP DISPLAY

BIRDVIEW

SEL524X

BIRDVIEW

NLEL0512S0205

The BIRDVIEW

provides a detailed and easily seen display of

road conditions covering the vehicle’s immediate to distant area.

NAVIGATION SYSTEM

System Description (Cont’d)

EL-373

SEL691V

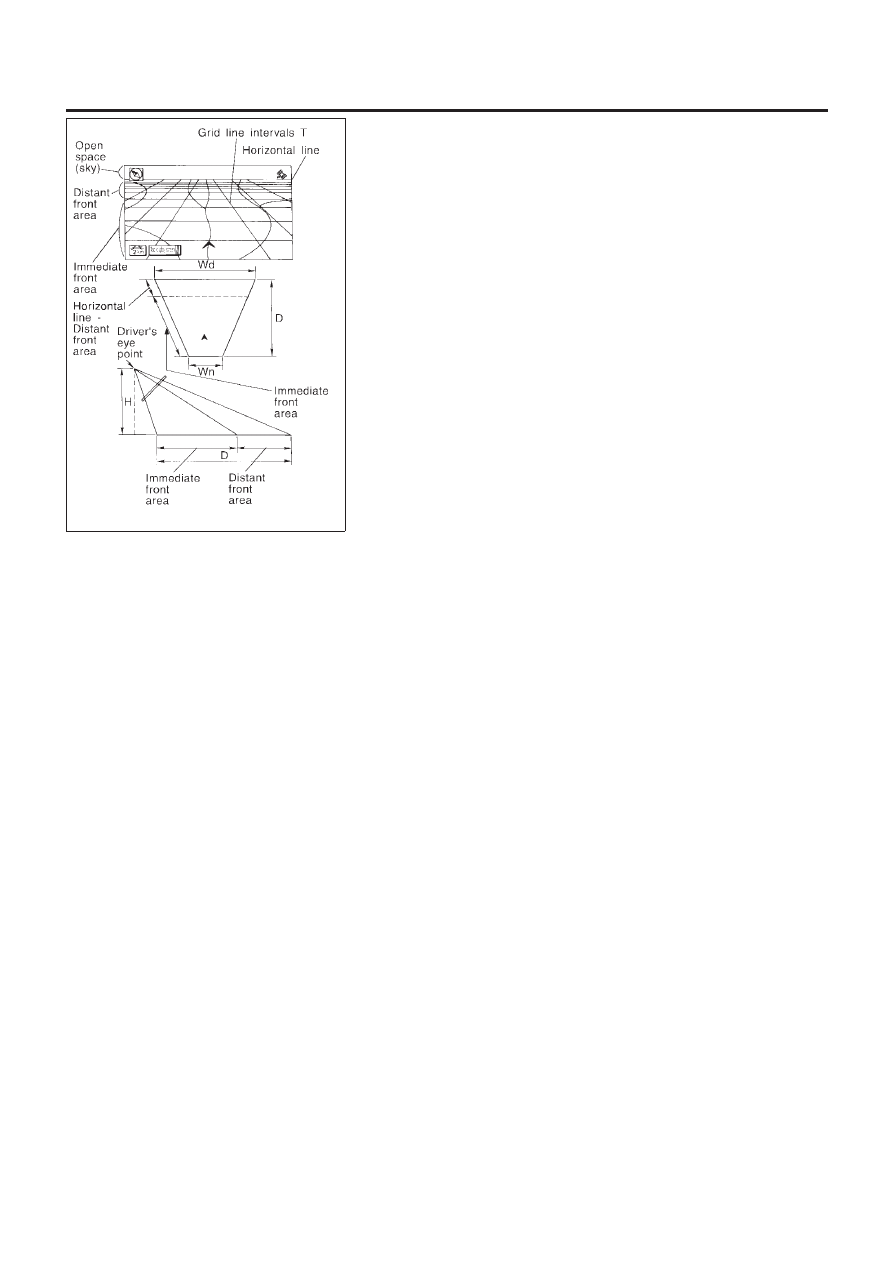

Description

NLEL0512S0206

Display area: Trapezoidal representation showing approximate
distances (Wn, D, and Wd).

Ten horizontal grid lines indicate display width while six verti-
cal grid lines indicate display depth and direction.

Drawing line area shows open space, depth, and immediate
front area. Each area is to a scale of approximately 5:6:25.

Pushing the “ZOOM IN” button during operation displays the
scale change and the view point height on the left side of the
screen.
The height of the view point increases or decreases when
“ZOOM” or “WIDE” is selected with the joystick.

NAVIGATION SYSTEM

System Description (Cont’d)

EL-374

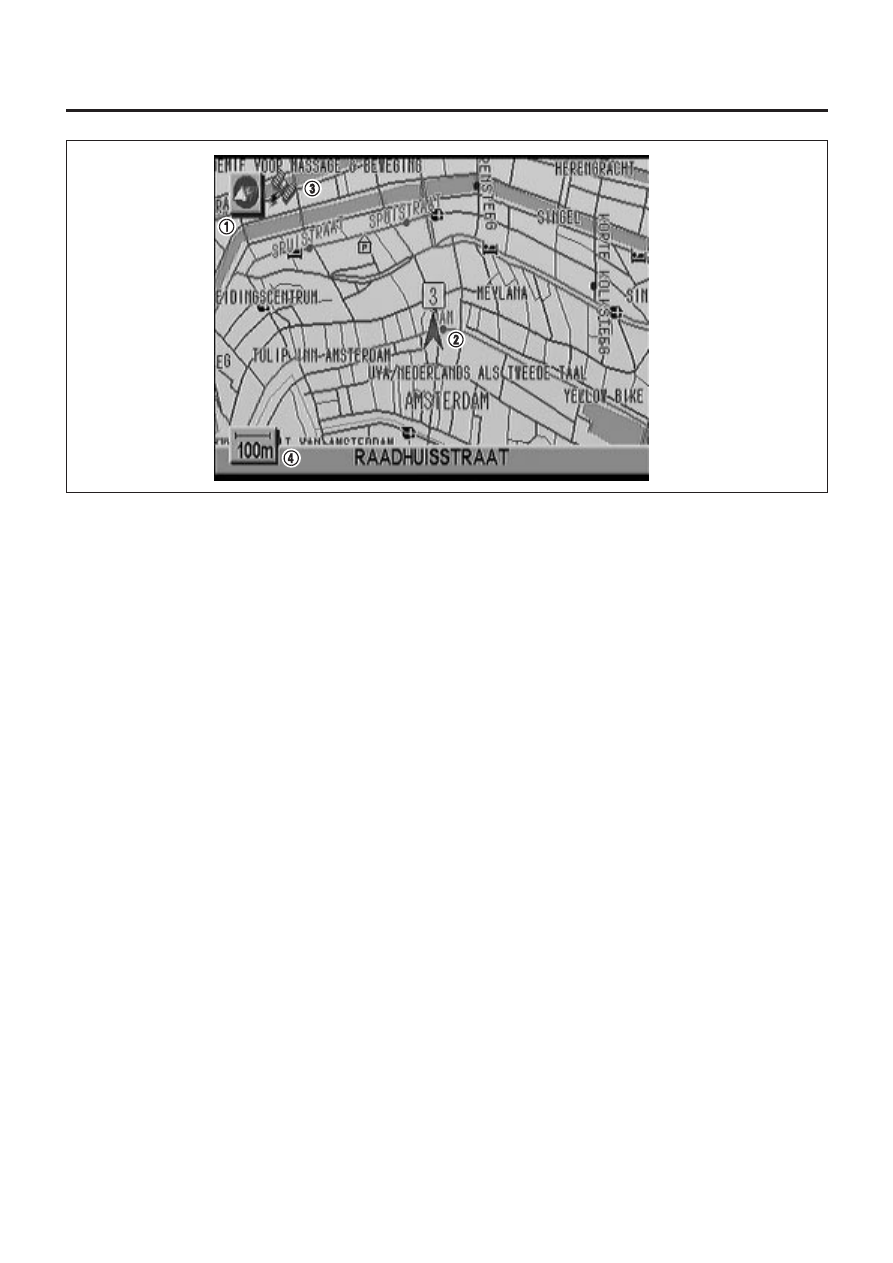

MAP DISPLAY

=NLEL0512S03

SEL525X

Function of each icon is as follows:
1)

Azimuth indication

Position marker
The tip of the arrow shows the current position. The shaft of
the arrow indicates the direction in which the vehicle is travel-
ing.

GPS reception signal (indicates current reception conditions)

Distance display (shows the distance in a reduced scale)

NAVIGATION SYSTEM

System Description (Cont’d)

EL-375

FUNCTION OF PANEL SWITCH

=NLEL0512S04

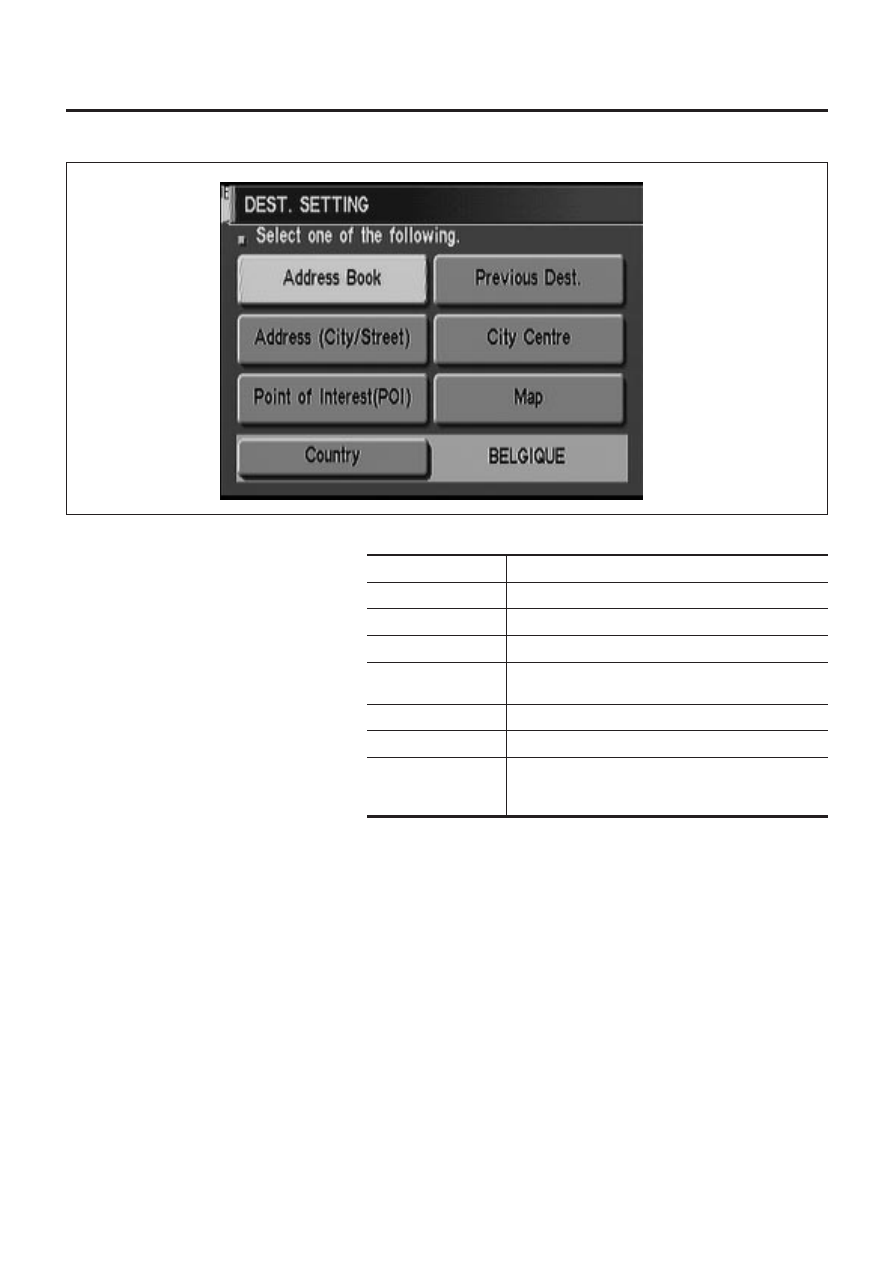

Display with Pushed “DEST” Switch

NLEL0512S0401

SEL615X

The function of each icon is as follows:

Icon

Description

Address Book

Favorite areas can be saved to memory.

Address (City/Street)

The information can be searched from the address.

Point of Interest (POI)

The information of favorite areas can be searched.

Previous Dest.

The previous ten destinations stored in memory are
displayed.

City Centre

The information can be searched from city name.

Map

The information can be searched from the map.

Country

When two or more countries are included in a map
CD-ROM, the destination can be searched for under
the country name.

NAVIGATION SYSTEM

System Description (Cont’d)

EL-376

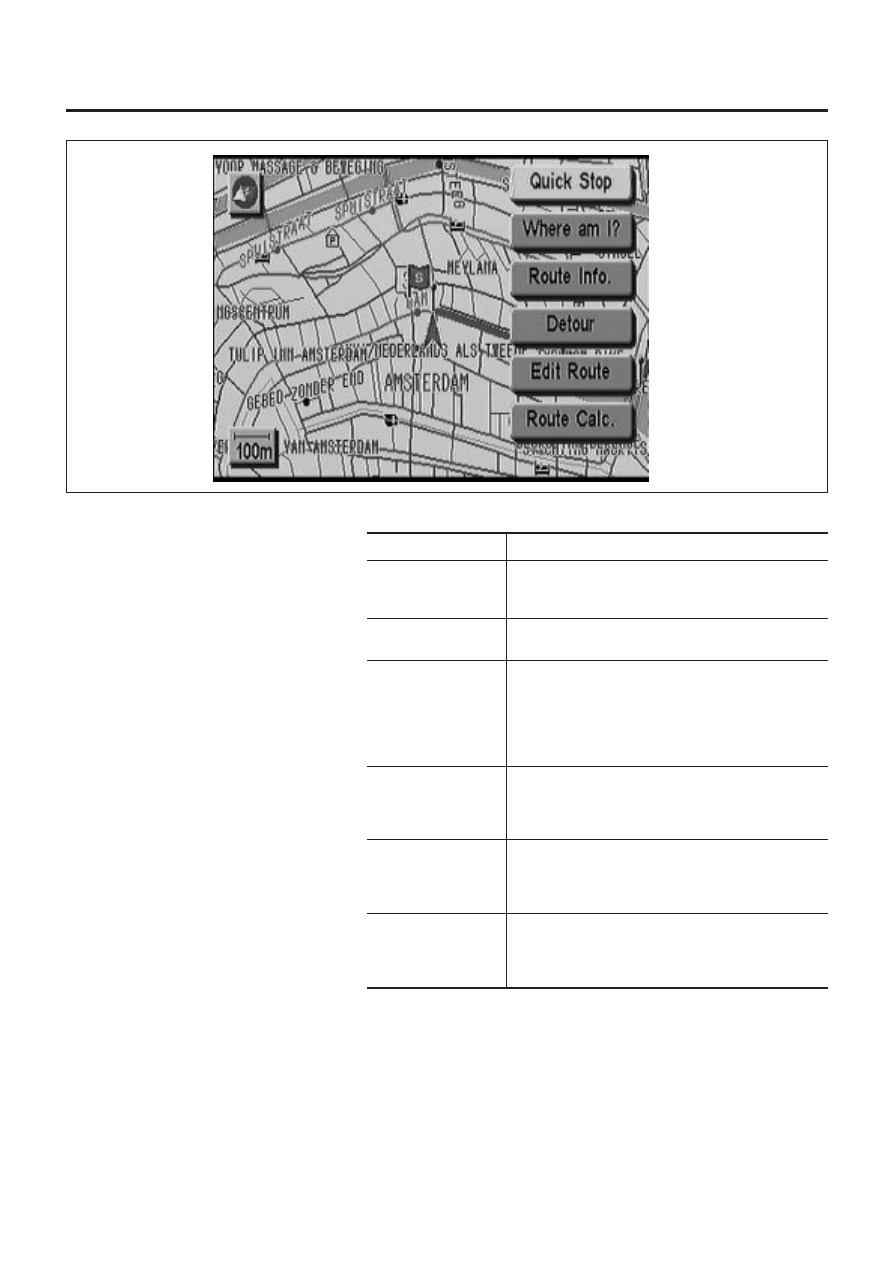

Display with Pushed “ROUTE” Switch

=NLEL0512S0402

SEL526X

The function of each icon is as follows:

Icon

Description

Quick Stop

Select facility is set as destination or waypoint.
(Route guidance has been turned OFF or the destina-
tion has been reached.)

Where am I?

Next current and previous street names can be dis-
played.

Route Info.*

The following items can be set.

Complete Route

Turn List

Route Simulation

(Displayed only when the destination area has been
set.)

Detour*

Based on the selected distance, an alternative route is
searched.
[Displayed only when the recommended route (not its
reverse) is followed.]

Edit Route*

Change the destination or add the transit points of the
route set in the route guide. (Displayed only when the
automatic reroute function has been turned OFF and
the recommended route is not followed.)

Route Calc.

Search for a recommended route between the vehi-
cle’s current location and the destination area.
(Displayed only when the destination area has been
set.)

*: When destinations have been entered, route guidance OFF or destination have
been reached, “Route Info.”, “Detour”, “Edit Route” and “Route Clac.” are not
displayed.

NAVIGATION SYSTEM

System Description (Cont’d)

EL-377

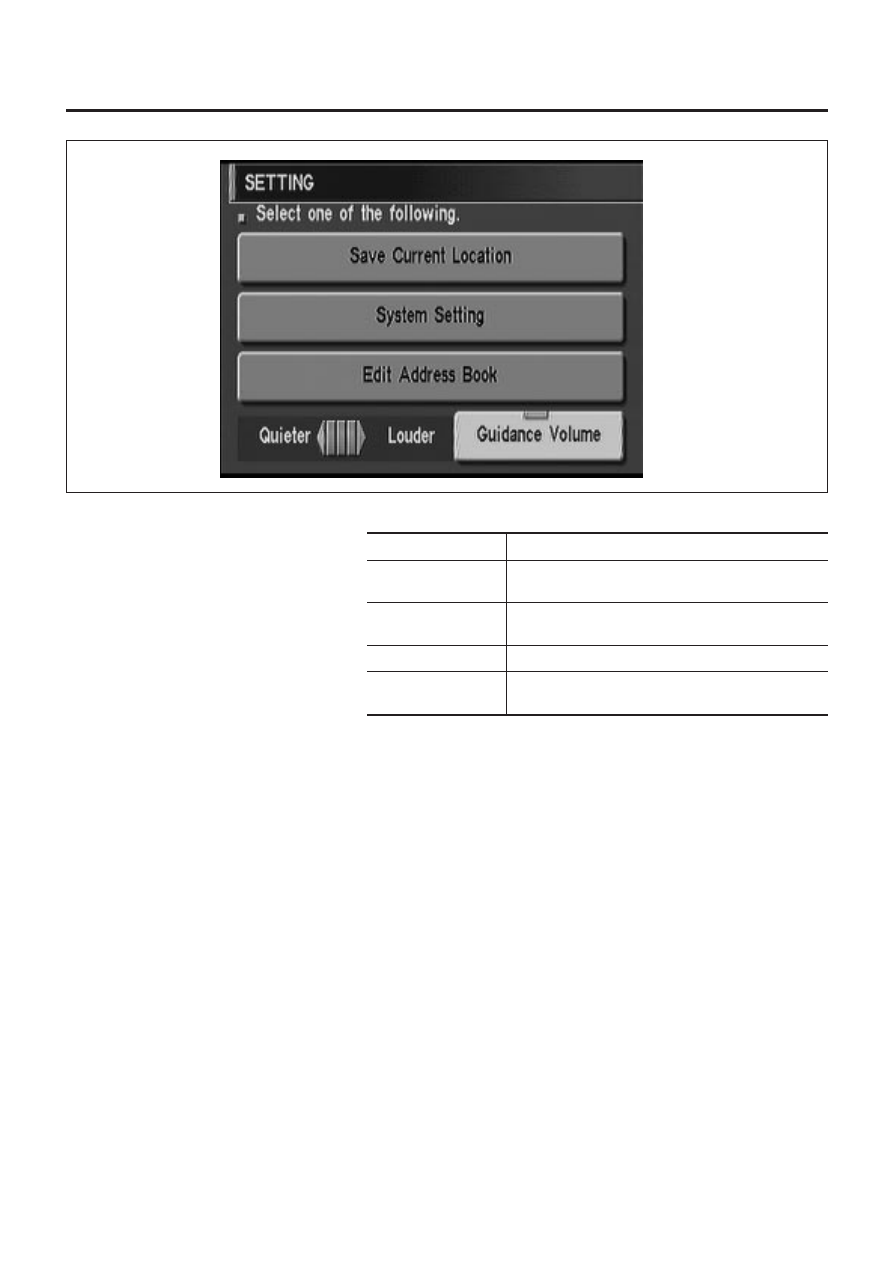

Display with Pushed “SETTING” Switch

=NLEL0512S0403

SEL614X

The function of each icon is as follows:

Icon

Description

Save Current Location

The current location can be stored in the Address
Book.

System Setting

Many adjustments and settings can be made for maxi-
mum driving pleasure and convenience.

Edit Address Book

The Address Book data can be edited.

Guidance Volume

The volume and/or on/off of voice prompt can be con-
trolled by the joystick.

NAVIGATION SYSTEM

System Description (Cont’d)

EL-378

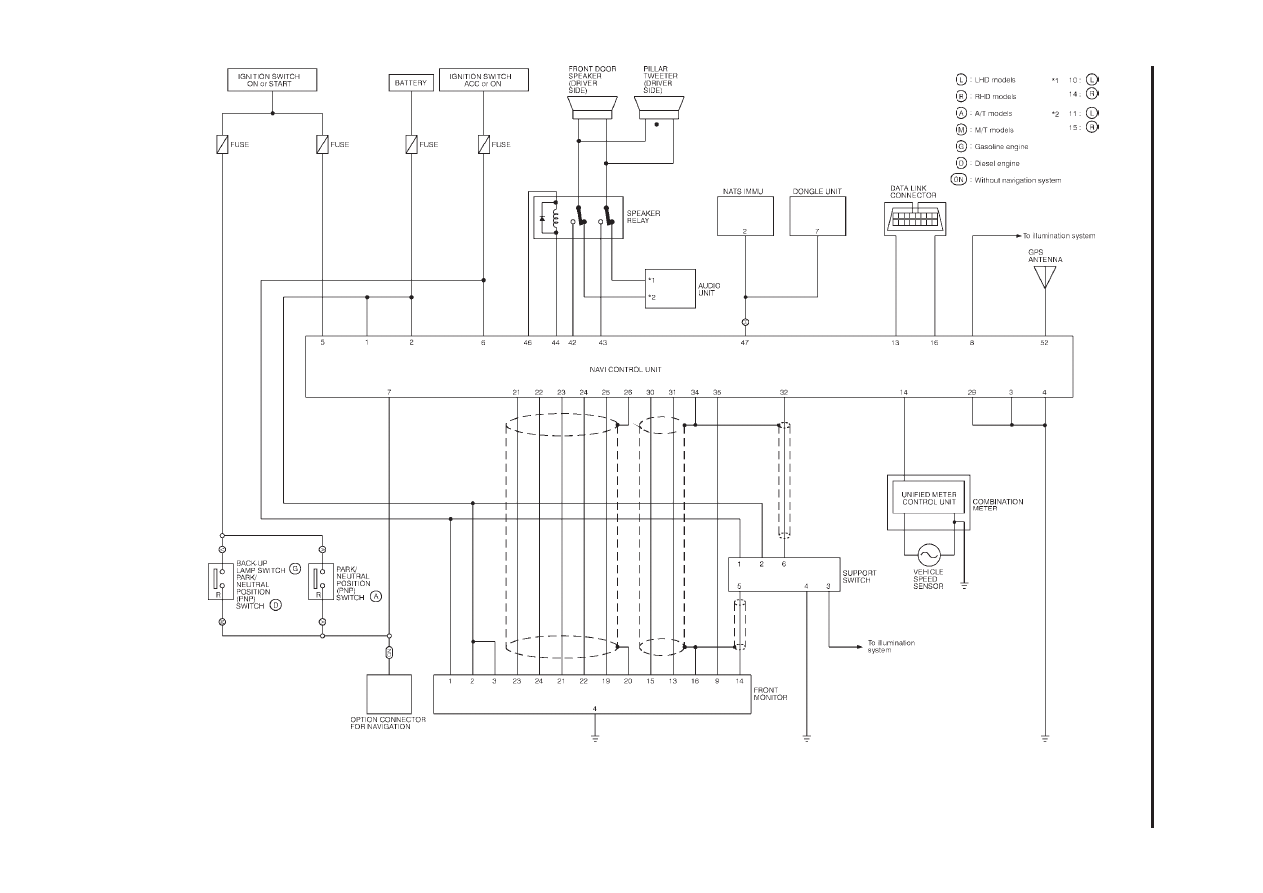

Schematic

NLEL0513

MODELS

WITH

FUSE

AND

FUSIBLE

LINK

BOX

E43

NLEL0513S01

YEL956B

NAVIGATION

SYSTEM

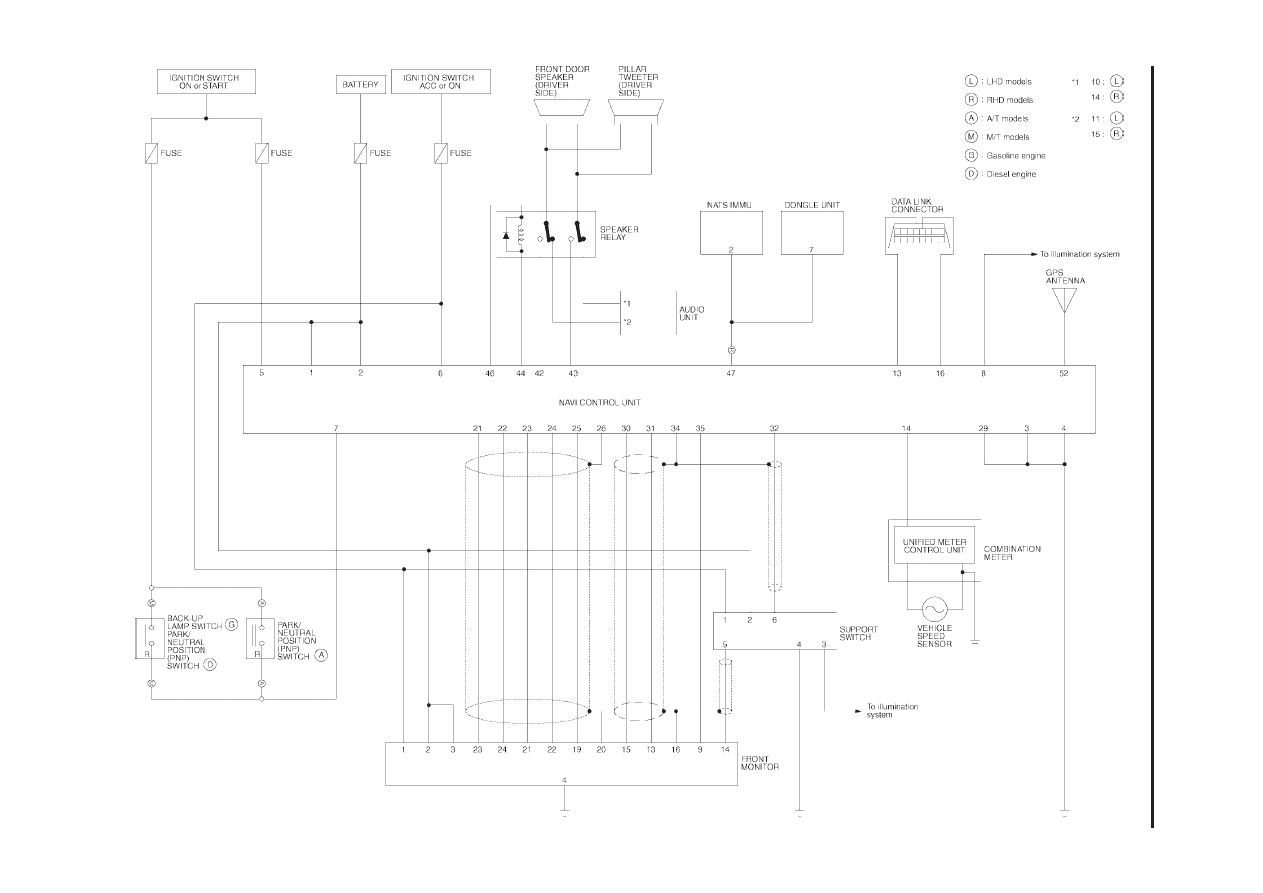

Schematic

EL-379

MODELS

WITH

FUSE

AND

FUSIBLE

LINK

BOX

E90

NLEL0513S02

YEL473C

NAVIGATION

SYSTEM

Schematic

(Cont’d)

EL-380

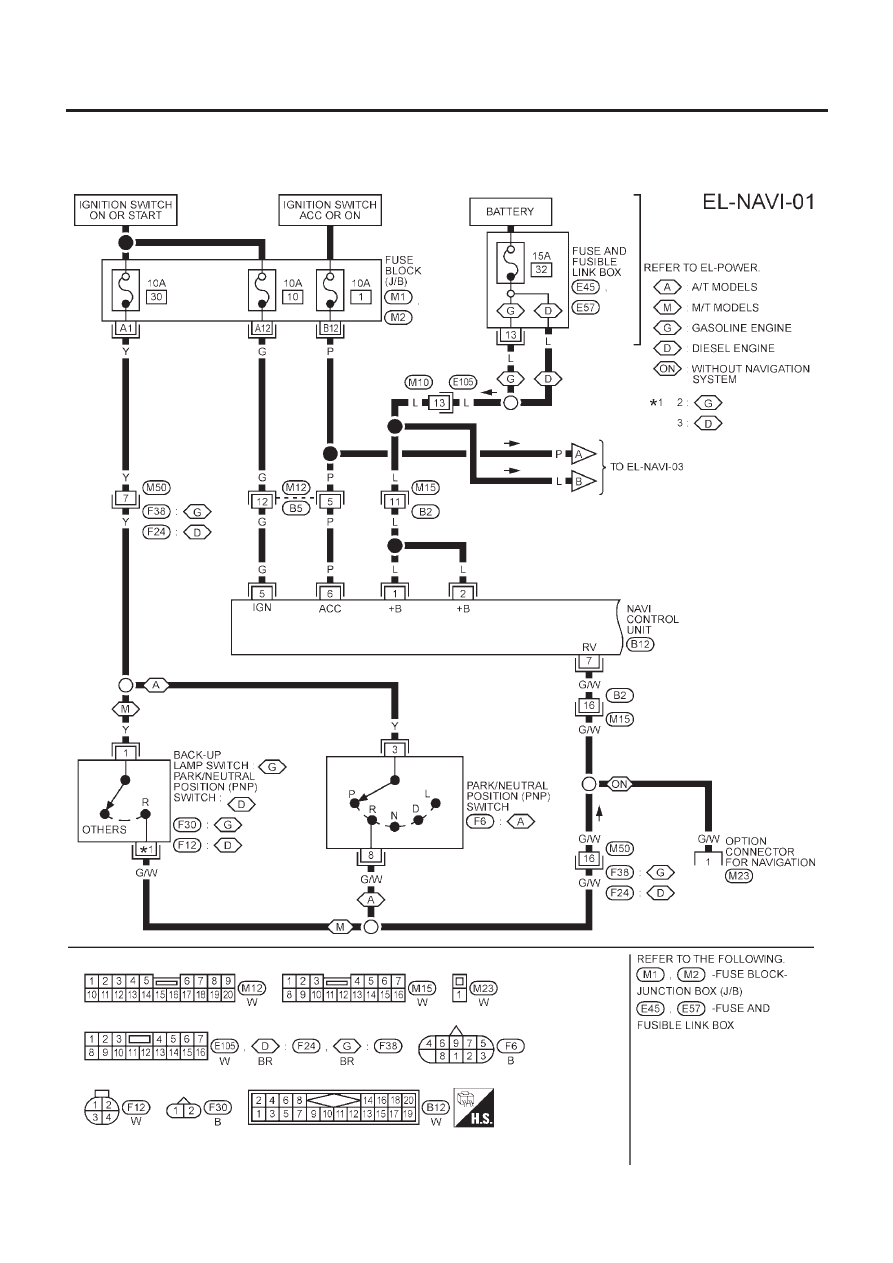

Wiring Diagram — NAVI —

NLEL0514

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLEL0514S05

LHD Models

NLEL0514S0501

YEL957B

NAVIGATION SYSTEM

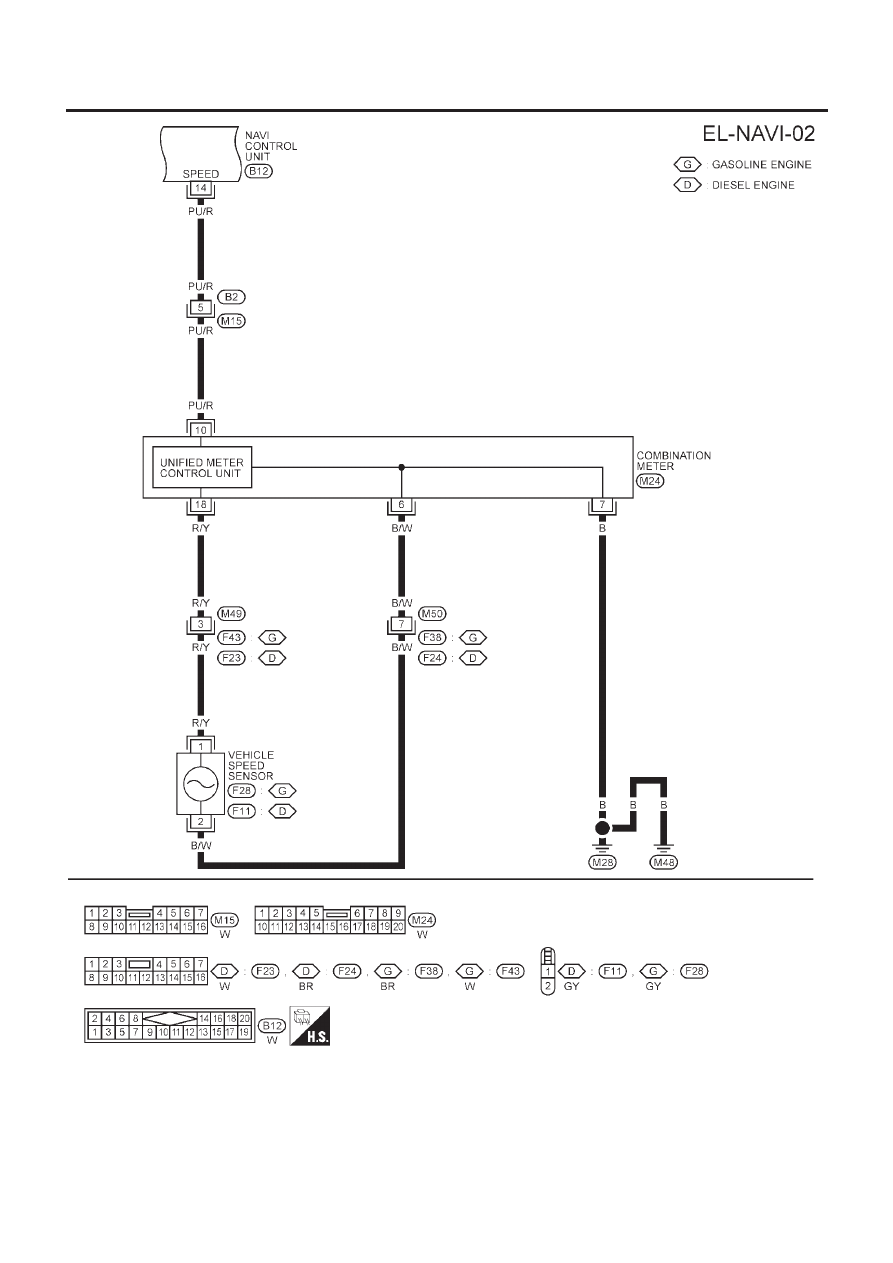

Wiring Diagram — NAVI —

EL-381

YEL958B

NAVIGATION SYSTEM

Wiring Diagram — NAVI — (Cont’d)

EL-382

Content .. 130 131 132 133 ..
