Nissan Almera Tino V10 (2001 year). Manual - part 102

CHECK COMMUNICATION LINE FOR OPEN AND SHORT

1. Check continuity between the following terminals. Refer to Wiring Diagram.

MTBL0462

Continuity should exist.

2. Also check harness for short to ground and short to power.

OK or NG

GO TO 5.

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-1135.

OK or NG

Replace electronic control fuel injection pump.

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1180 P9·FUEL TEMP SEN

YD22DDTI

Diagnostic Procedure (Cont’d)

EC-1193

SEF437Y

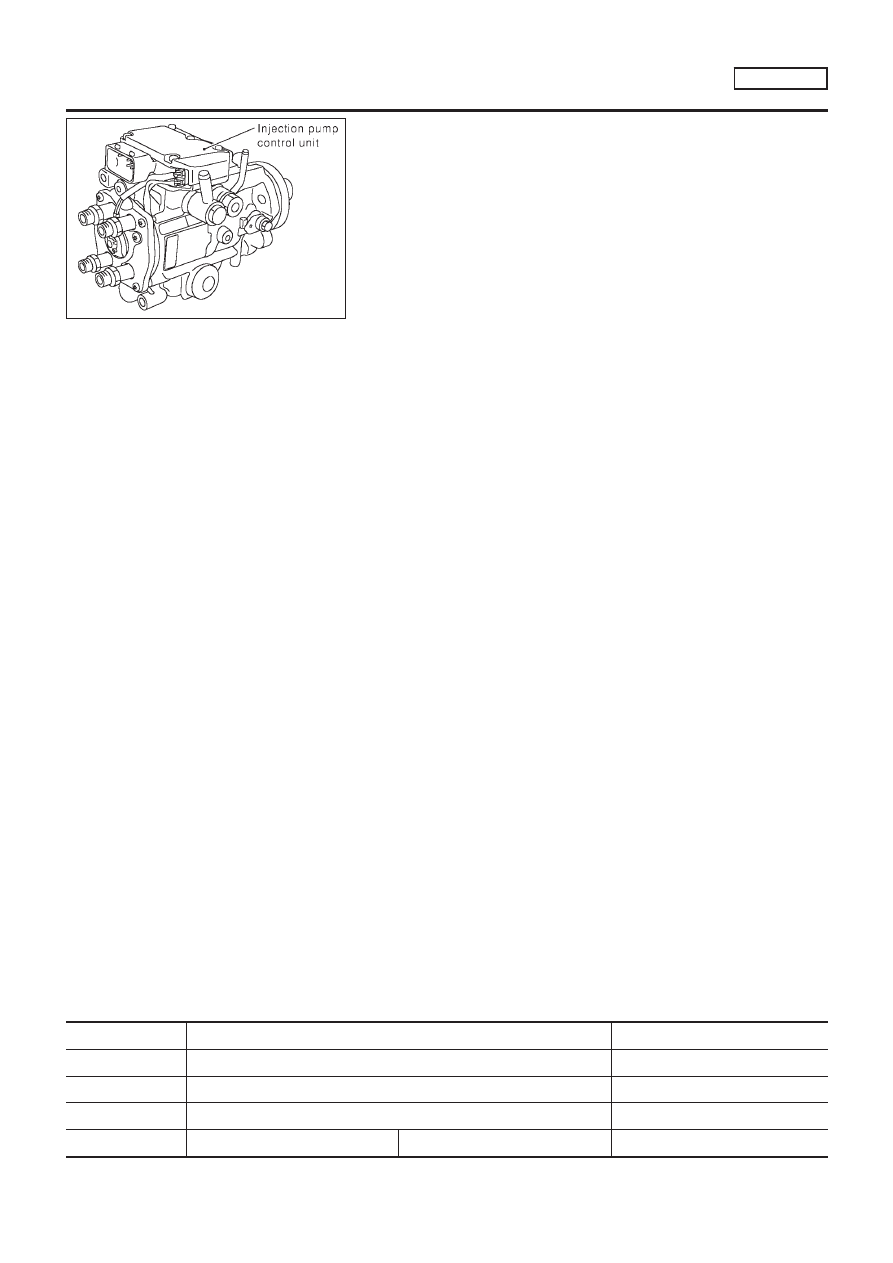

Description

NLEC0753

SYSTEM DESCRIPTION

NLEC0753S01

The ECM and the electronic control fuel injection pump control unit
(abbreviated as the injection pump control unit) perform the real
time communication (signal exchange).
The ECM transmits the signals of the target fuel injection amount,
target fuel injection timing, and engine speed, etc., and receives
the signals of the pump speed and fuel temperature, etc. from the
injection pump control unit.
By those signals, the injection pump controls the optimum fuel
injection amount and injection timing of the spill valve and timing
control valve.
Injection pump control unit has an on board diagnostic system,
which detects malfunctions related to sensors or actuators built-into
electronic control fuel injection pump. These malfunction informa-
tion are transferred through the line (circuit) from injection pump
control unit to ECM.

FUEL INJECTION AMOUNT CONTROL

NLEC0753S02

In accordance with the target fuel injection amount signal from the
ECM, the injection amount is controlled by controlling the spill valve
in the injection pump and by changing the needle opening time.

FUEL INJECTION TIMING CONTROL

NLEC0753S03

Based on the target fuel injection timing signal from the ECM, the
injection timing is controlled in accordance with the timer spring by
performing the duty control of the timing control valve in the injec-
tion pump and by adjusting the pressure of the timer piston high
pressure chamber.

FUEL TEMPERATURE SENSOR

NLEC0753S04

The sensor detects the fuel temperature in the injection pump and
calibrates the injection amount change by the fuel temperature.

CAM RING POSITION SENSOR

NLEC0753S05

The sensor detects the passing of the protrusion on the sensor
wheel in the injection pump by the semiconductor magnetic resis-
tance element sensor. The cam ring position sensor synchronizes
with the cam ring, and detects the actual advance amount. The
injection pump control unit measures the injection pump revolution
by the signal of the cam ring position sensor.

CONSULT-II Reference Value in Data Monitor
Mode

NLEC0754

Remarks: Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

FUEL TEMP SEN

Engine: After warming up

More than 40°C (104°F)

SPILL/V

Engine: After warming up, idle the engine.

Approx. 12 - 13°CA

INT/A VOLUME

Engine: After warming up, idle the engine.

Approx. 150 - 450 mg/st

F/CUT SIGNAL

Engine: After warming up

Idle

DTC P1202 FUEL CUT SYSTEM2

YD22DDTI

Description

EC-1194

MONITOR ITEM

CONDITION

SPECIFICATION

BARO SEN

Ignition switch: ON

Altitude
Approx. 0 m (0 ft): Approx. 100.62
kPa (1.0062 bar, 1.026 kg/cm

14.59 psi)
Approx. 1,000 m (3,281 ft): Approx.
88.95 kPa (0.8895 bar, 0.907
kg/cm

, 12.90 psi)

Approx. 1,500 m (4,922 ft): Approx.
83.16 kPa (0.8316 bar, 0.848
kg/cm

, 12.06 psi)

Approx. 2,000 m (6,562 ft): Approx.
78.36 kPa (0.7836 bar, 0.799
kg/cm

, 11.36 psi)

ECM Terminals and Reference Value

NLEC0755

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

313

L/W

Electronic control fuel
injection pump

[Engine is running]

Warm-up condition

Idle speed

Approximately 0.1V

314

L/R

Electronic control fuel
injection pump

[Engine is running]

Warm-up condition

Idle speed

Approximately 0.4V

316

Electronic control fuel
injection pump

[Engine is running]

Warm-up condition

Idle speed

Approximately 2.5V

317

Electronic control fuel
injection pump

[Engine is running]

Warm-up condition

Idle speed

Approximately 2.5V

On Board Diagnosis Logic

NLEC0756

DTC

Malfunction is detected when ....

Check Items (Possible cause)

P1202
1002

Fuel cut control system does not function properly.

Harness or connectors
(Electronic control fuel circuit is open or shorted.)

Electronic control fuel

SEF817Y

DTC Confirmation Procedure

NLEC0757

WITH CONSULT-II

NLEC0757S01

Turn ignition switch “ON” and wait at least 2 seconds.

Select “DATA MONITOR” mode with CONSULT-II.

Start engine and run it for at least 2 seconds at idle speed.
(If engine does not run, turn ignition switch to “START” for at
least 2 seconds.)

Turn ignition switch “OFF”, wait at least 5 seconds and then
turn “ON”.

If DTC is detected, go to “Diagnostic Procedure”, EC-1199.

DTC P1202 FUEL CUT SYSTEM2

YD22DDTI

CONSULT-II Reference Value in Data Monitor Mode (Cont’d)

EC-1195

WITHOUT CONSULT-II

NLEC0757S02

Turn ignition switch “ON” and wait at least 2 seconds.

Start engine and run it for at least 2 seconds at idle speed.
(If engine does not run, turn ignition switch to “START” for at
least 2 seconds.)

Turn ignition switch “OFF”, wait at least 5 seconds and then
turn “ON”.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with
ECM.

If DTC is detected, go to “Diagnostic Procedure”, EC-1199.

DTC P1202 FUEL CUT SYSTEM2

YD22DDTI

DTC Confirmation Procedure (Cont’d)

EC-1196

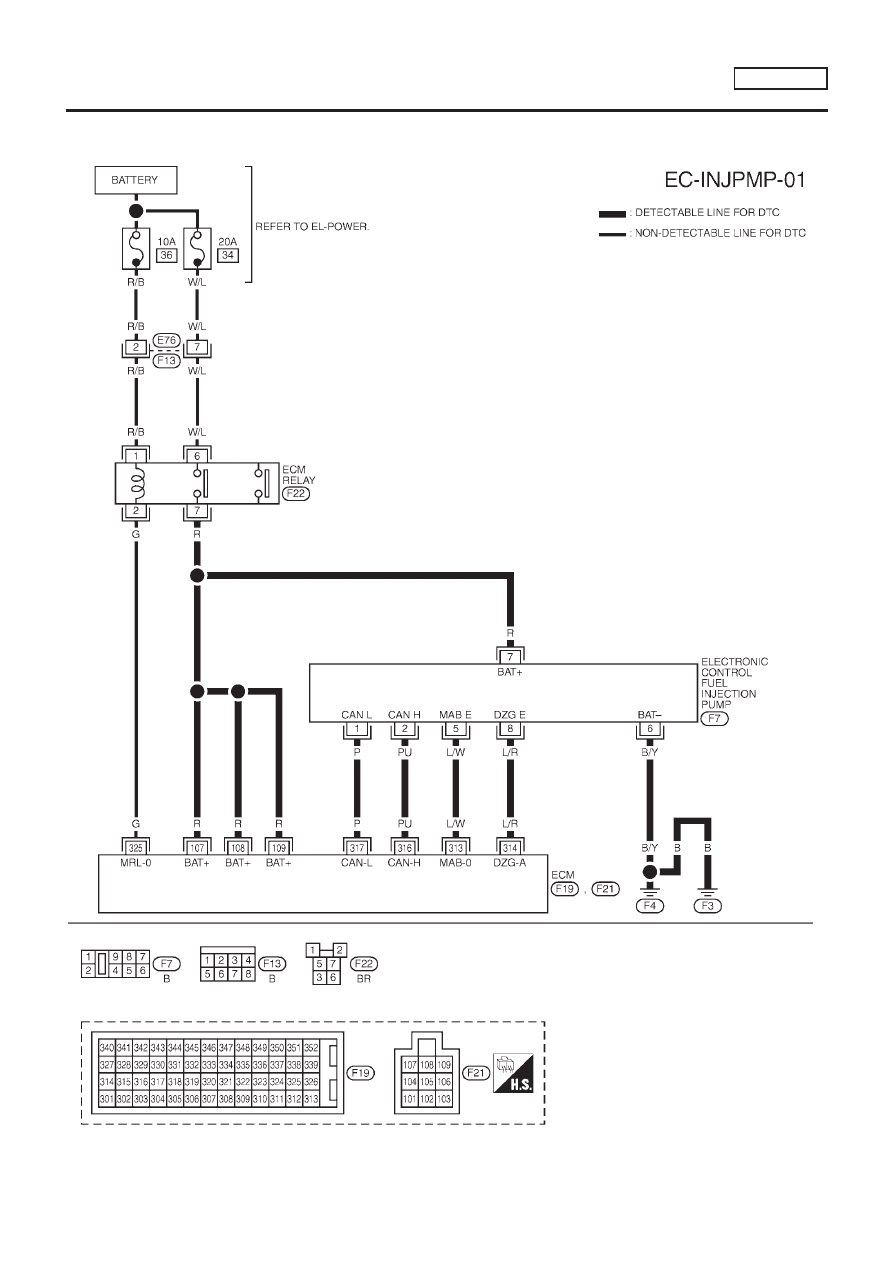

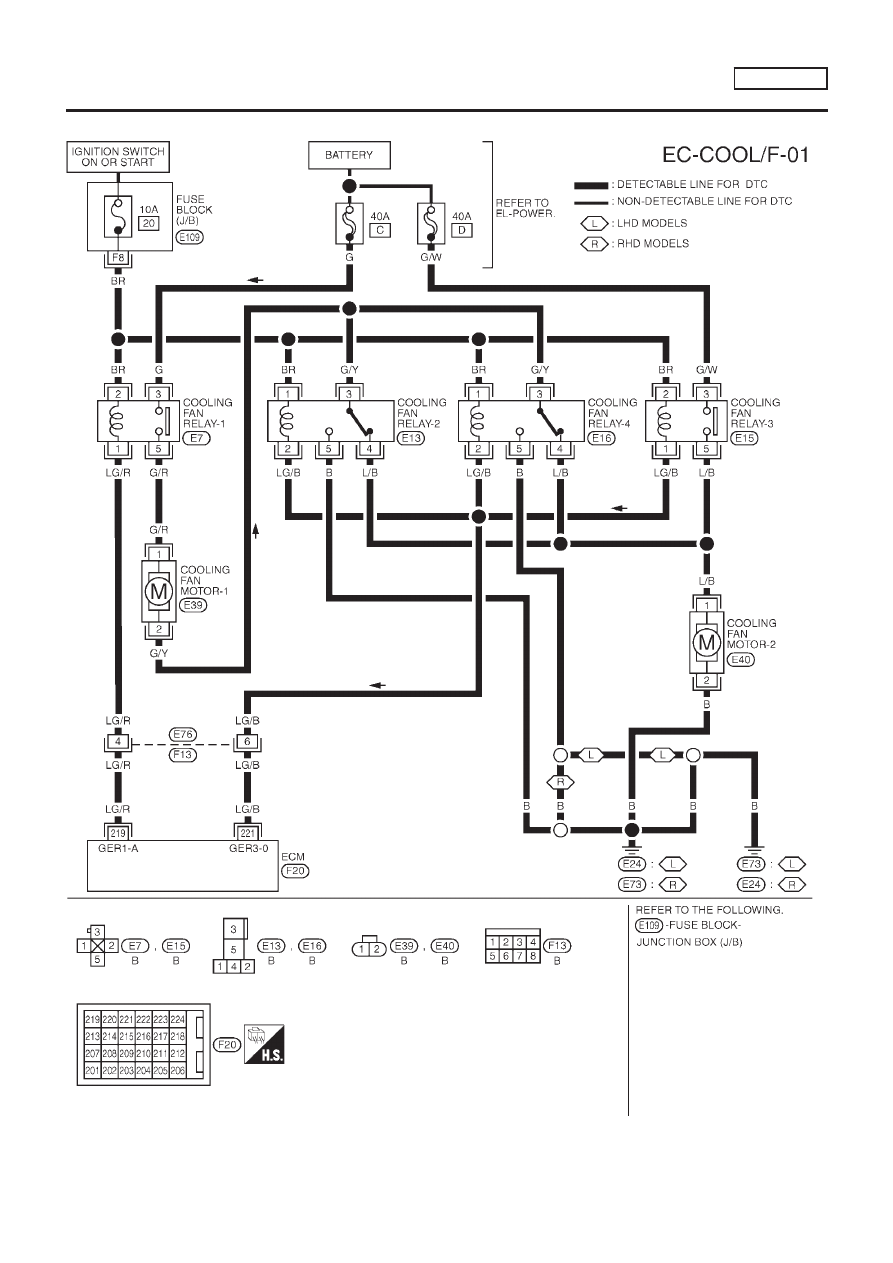

Wiring Diagram

NLEC0758

MODELS WITH ECM IN ENGINE COMPARTMENT

NLEC0758S01

YEC726

DTC P1202 FUEL CUT SYSTEM2

YD22DDTI

Wiring Diagram

EC-1197

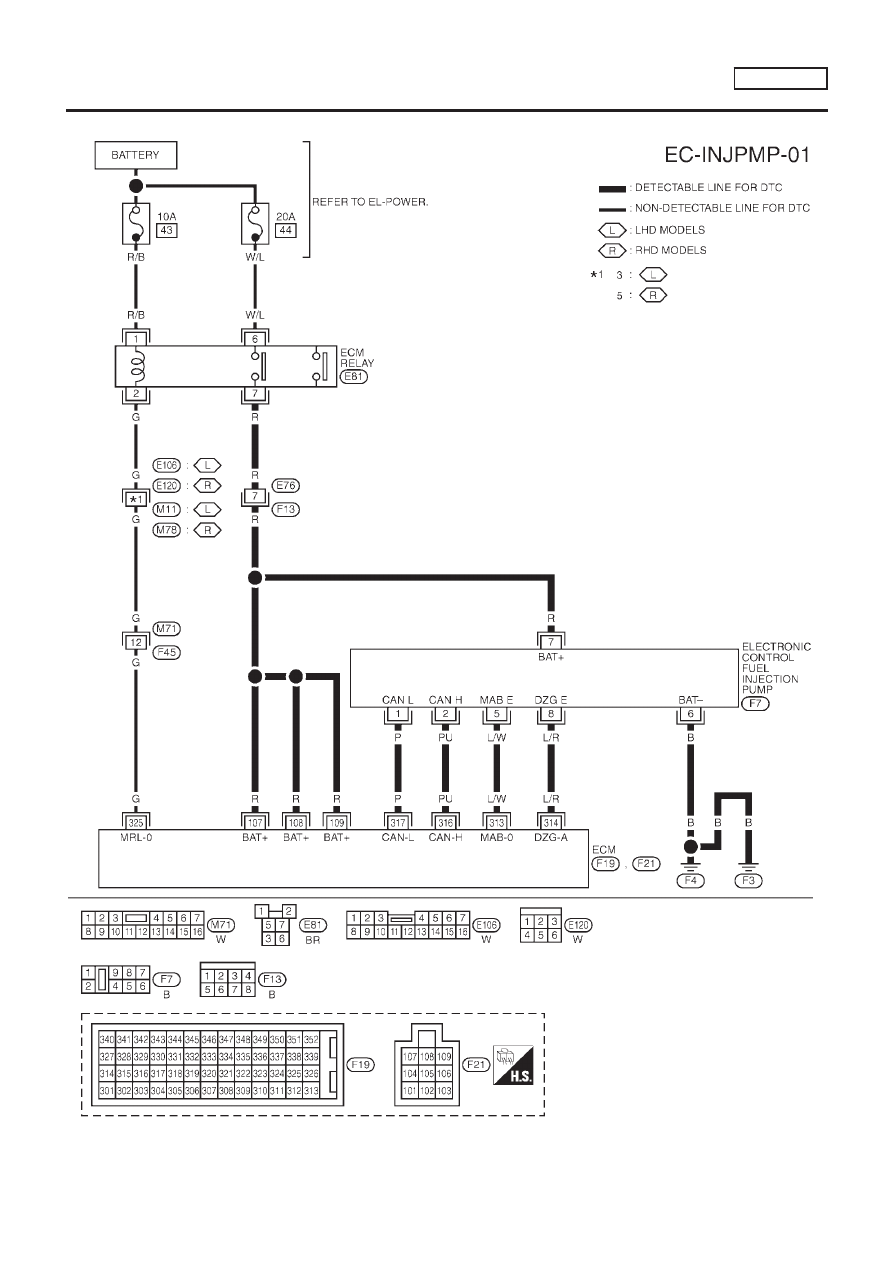

MODELS WITH ECM IN CABIN

NLEC0758S02

YEC862

DTC P1202 FUEL CUT SYSTEM2

YD22DDTI

Wiring Diagram (Cont’d)

EC-1198

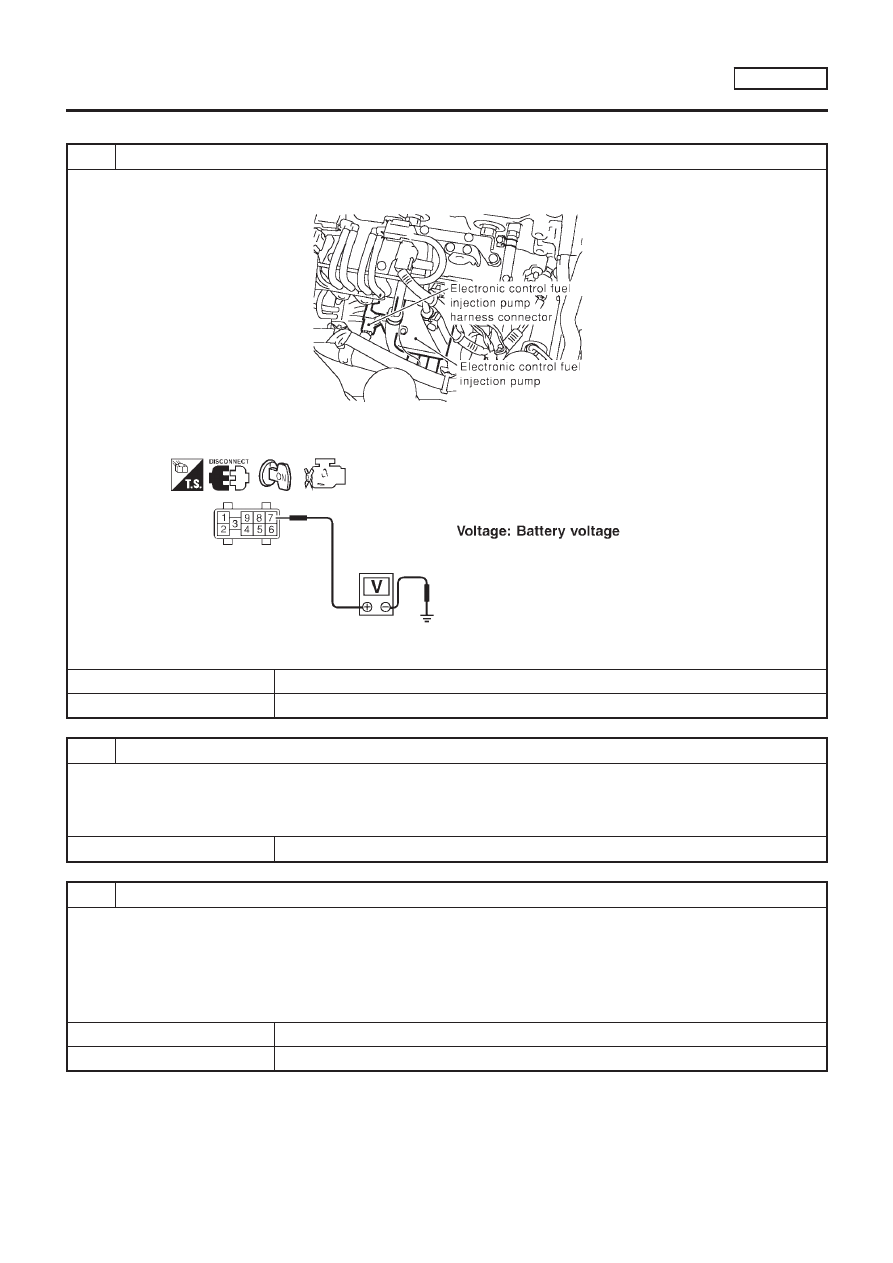

Diagnostic Procedure

NLEC0759

CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect electronic control fuel injection pump harness connector.

SEF390Y

3. Turn ignition switch “ON”.
4. Check voltage between electronic control fuel injection pump terminal 7 and ground.

SEF438Y

OK or NG

GO TO 3.

GO TO 2.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors E76, F13 (where fitted)

Harness for open or short between electronic control fuel injection pump and ECM

Harness for open or short between electronic control fuel injection pump and ECM relay

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Check harness continuity between electronic control fuel injection pump terminal 6 and ground. Refer to Wiring Dia-

gram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

GO TO 4.

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1202 FUEL CUT SYSTEM2

YD22DDTI

Diagnostic Procedure

EC-1199

CHECK COMMUNICATION LINE FOR OPEN AND SHORT

1. Check continuity between the following terminals. Refer to Wiring Diagram.

MTBL0462

Continuity should exist.

2. Also check harness for short to ground and short to power.

OK or NG

GO TO 5.

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-1135.

OK or NG

Replace electronic control fuel injection pump.

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P1202 FUEL CUT SYSTEM2

YD22DDTI

Diagnostic Procedure (Cont’d)

EC-1200

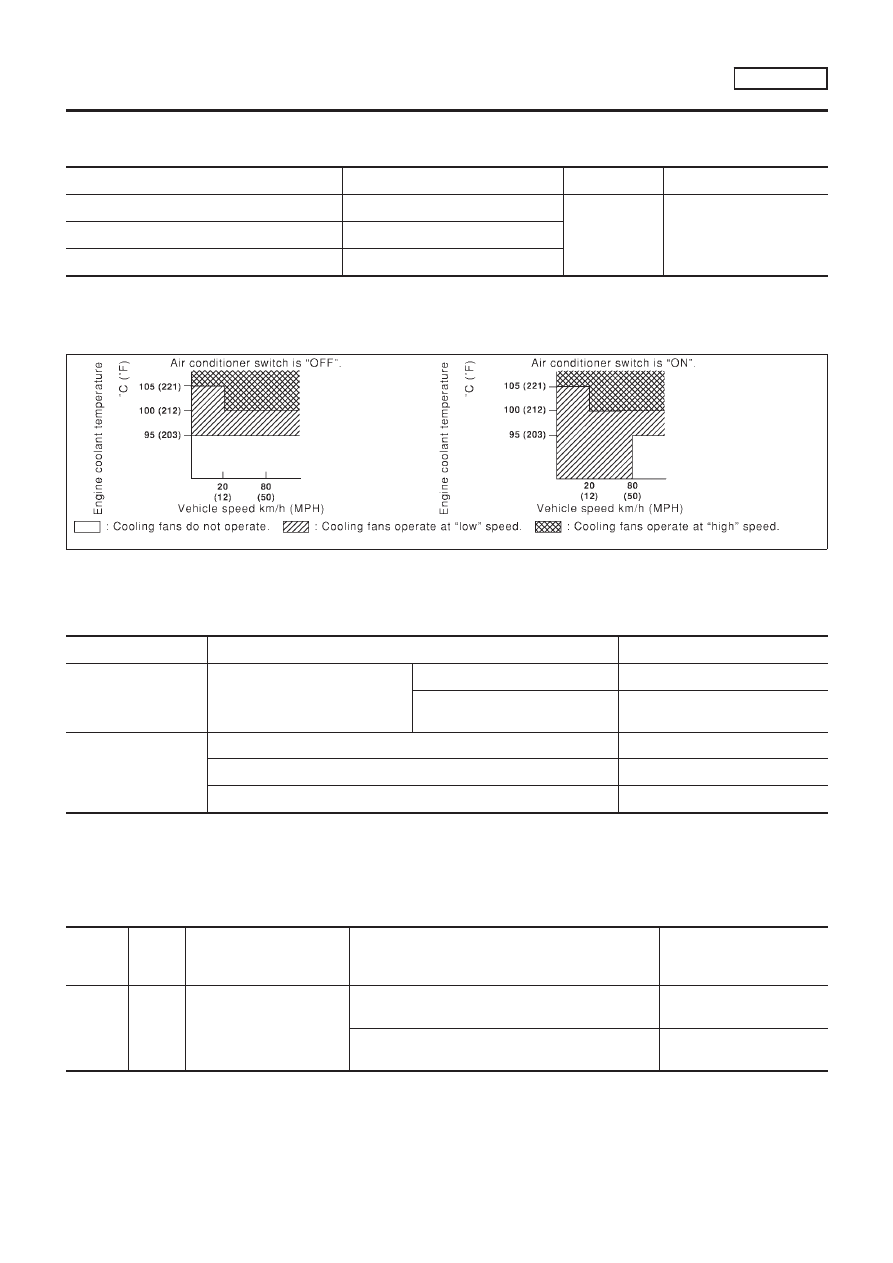

Description

NLEC0660

SYSTEM DESCRIPTION

NLEC0660S01

Sensor

Input signal to ECM

ECM function

Actuator

Vehicle speed sensor

Vehicle speed

Cooling fan
control

Cooling fan relay

Engine coolant temperature sensor

Engine coolant temperature

Air conditioner switch

Air conditioner “ON” signal

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, air condi-
tioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

OPERATION

NLEC0660S02

SEF421Z

CONSULT-II Reference Value in Data Monitor
Mode

NLEC0661

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

AIR COND SIG

Engine: After warming up, idle
the engine

Air conditioner switch: OFF

OFF

Air conditioner switch: ON
(Compressor operates.)

COOLING FAN

When cooling fan is stopped.

OFF

When cooling fans operate at low speed.

LOW

When cooling fans operate at high speed.

HIGH

ECM Terminals and Reference Value

NLEC0662

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA(DC Voltage)

219

LG/R

Cooling fan relay (Low)

[Engine is running]

Cooling fans are not operating

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

Cooling fans are operating

Approximately 0.1V

DTC P1217 OVER HEAT

YD22DDTI

Description

EC-1201

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA(DC Voltage)

221

LG/B

Cooling fan relay (High)

[Engine is running]

Cooling fans are not operating

Cooling fans are operating at low speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

Cooling fans are operating at high speed

Approximately 0.1V

On Board Diagnosis Logic

NLEC0663

This diagnosis continuously monitors the engine coolant temperature.
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.

DTC

Malfunction is detected when ...

Check Items (Possible Cause)

P1217
0208

Cooling fan does not operate properly (Overheat).

Cooling fan system does not operate properly
(Overheat).

Engine coolant was not added to the system using
the proper filling method.

Harness or connectors
(The cooling fan circuit is open or shorted.)

Cooling fan

Radiator hose

Radiator

Radiator cap

Water pump

Thermostat

Engine coolant temperature sensor

For more information, refer to “MAIN 12 CAUSES OF
OVERHEATING”, EC-1217.

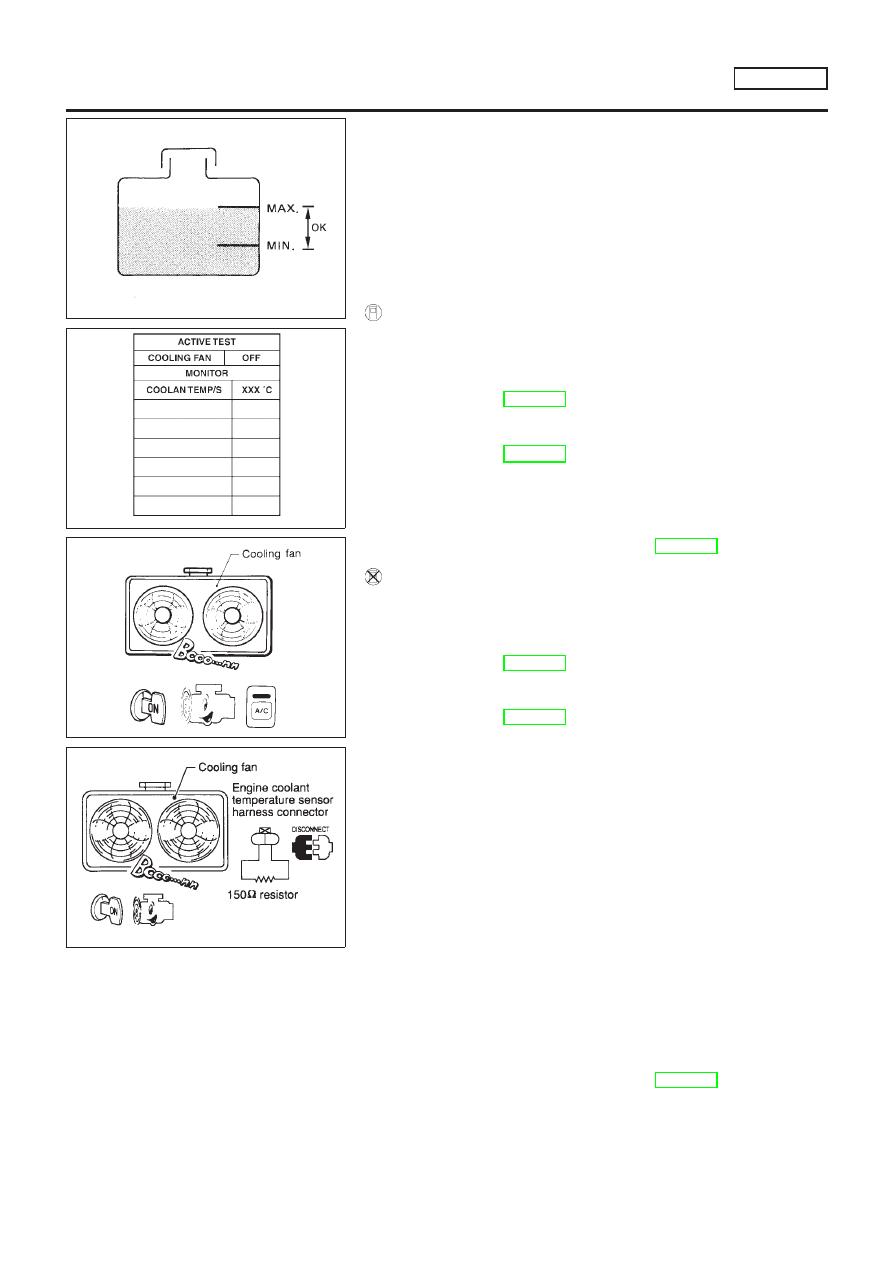

CAUTION:

When a malfunction is indicated, be sure to replace the coolant following the procedure in the LC-59,
“Changing Engine Coolant”. Also, replace the engine oil.
1) Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure

to use coolant with the proper mixture ratio. Refer to MA-22, “Engine Coolant Mixture Ratio”.

2) After refilling coolant, run engine to ensure that no water-flow noise is emitted.

DTC P1217 OVER HEAT

YD22DDTI

ECM Terminals and Reference Value (Cont’d)

EC-1202

AEC640

SEF111X

SEC163BA

MEC475B

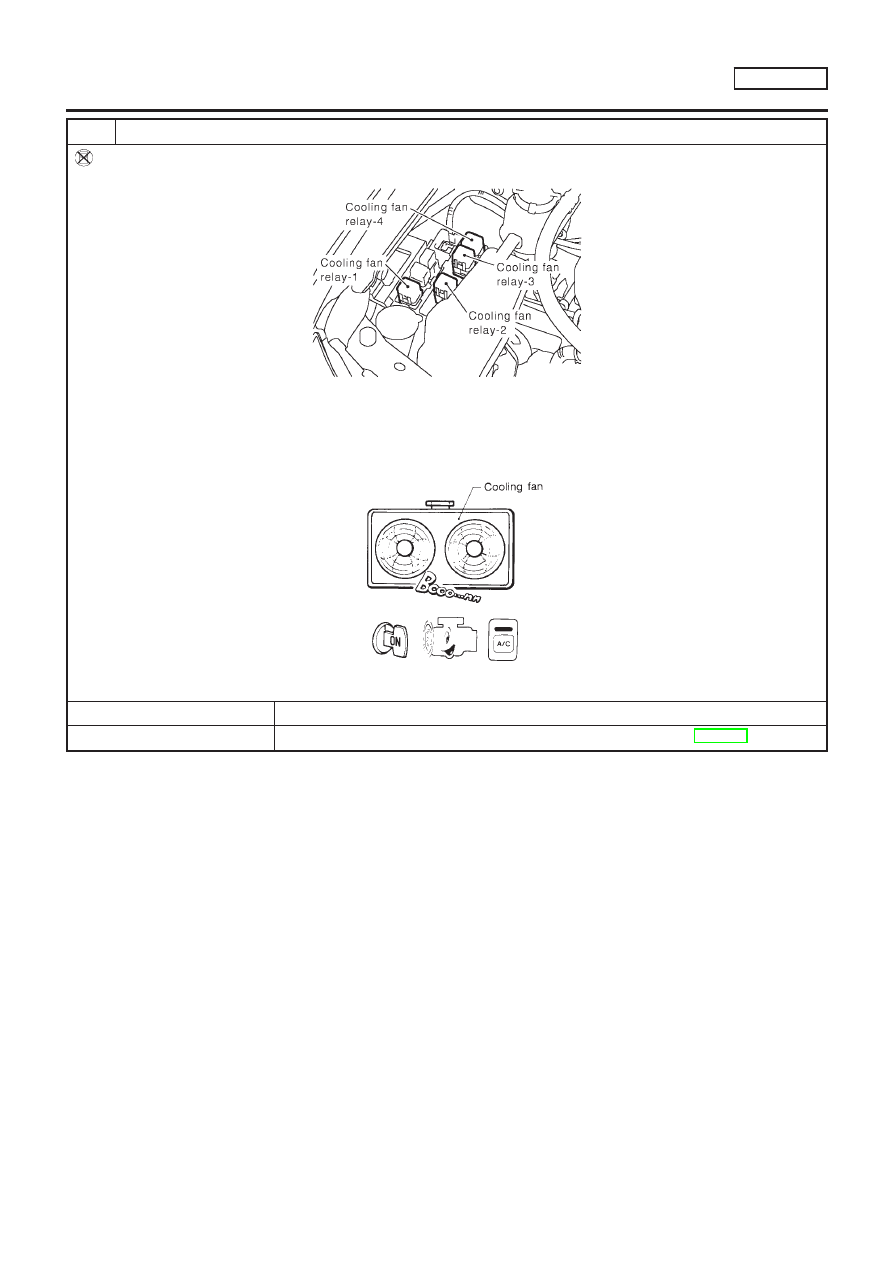

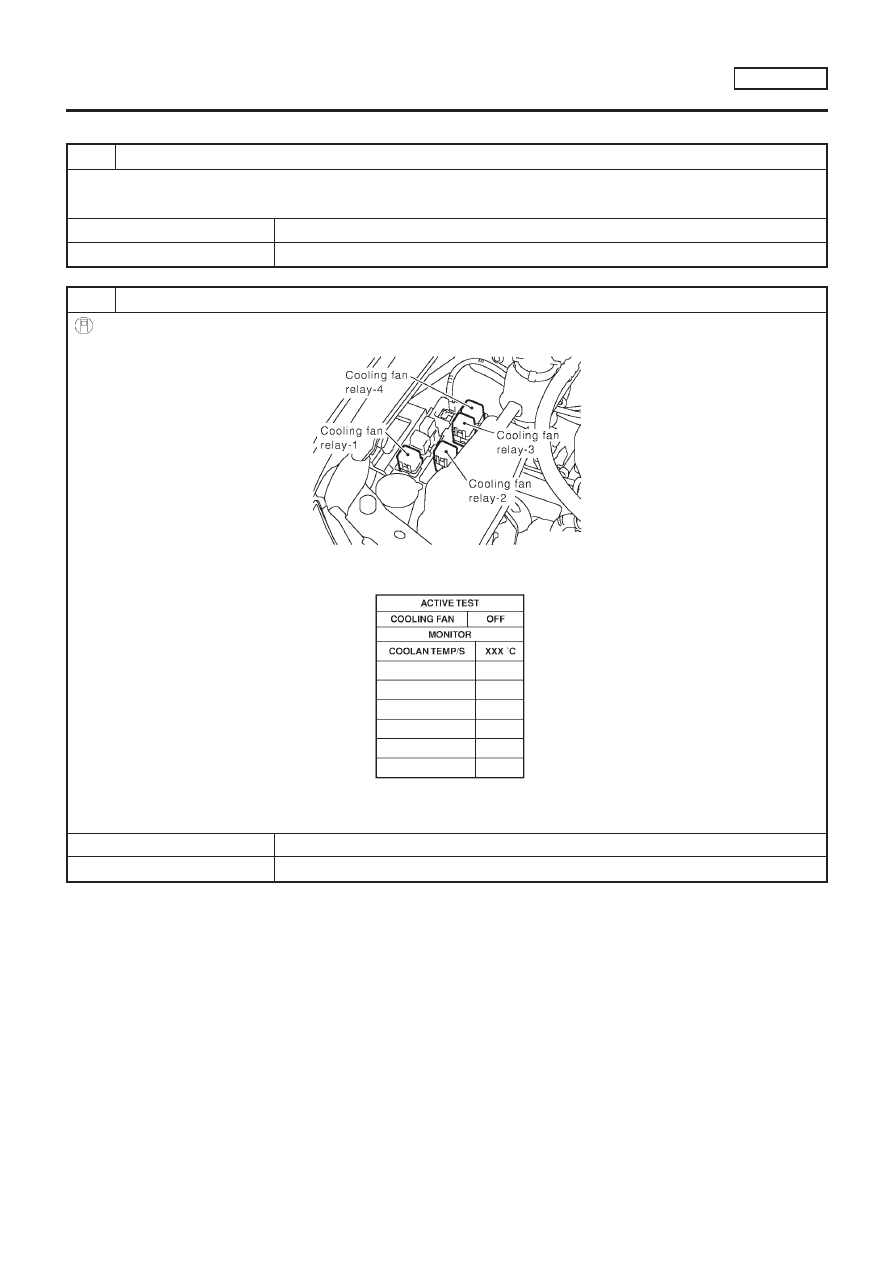

Overall Function Check

NLEC0664

Use this procedure to check the overall function of the cooling fan.
During this check, a DTC might not be confirmed.

WARNING:

Never remove the radiator cap when the engine is hot. Serious
burns could be caused by high pressure fluid escaping from
the radiator.
Wrap a thick cloth around the cap. Carefully remove the cap
by turning it a quarter turn to allow built-up pressure to
escape. Then turn the cap all the way off.

WITH CONSULT-II

NLEC0664S01

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to “Diagnos-
tic Procedure”, EC-1206.

Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to “Diagnos-
tic Procedure”, EC-1206.

Turn ignition switch “ON”.

Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II and make sure that cooling fans operate when touch-
ing “HIGH” or “LOW”.
If NG, go to “Diagnostic Procedure”, EC-1206.

WITHOUT CONSULT-II

NLEC0664S02

Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to “Diagnos-
tic Procedure”, EC-1206.

Start engine.
Be careful not to overheat engine.

Set temperature control lever to full cold position.

Turn air conditioner switch “ON”.

Turn blower fan switch “ON”.

Run engine at idle for a few minutes with air conditioner oper-
ating.
Be careful not to overheat engine.

Make sure that cooling fans operate at low speed.

Turn ignition switch “OFF”.

10) Turn air conditioner switch and blower fan switch “OFF”.
11) Disconnect engine coolant temperature sensor harness con-

nector.

12) Connect 150

Ω

resistor to engine coolant temperature sensor

harness connector.

13) Start engine and make sure that cooling fans operate at higher

speed than low speed.
Be careful not to overheat engine.

14) If NG, go to “Diagnostic Procedure”, EC-1206.

DTC P1217 OVER HEAT

YD22DDTI

On Board Diagnosis Logic (Cont’d)

EC-1203

Wiring Diagram

NLEC0665

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLEC0665S03

YEC725

DTC P1217 OVER HEAT

YD22DDTI

Wiring Diagram

EC-1204

MODELS WITH FUSE AND FUSIBLE LINK BOX E90

NLEC0665S04

YEC863

DTC P1217 OVER HEAT

YD22DDTI

Wiring Diagram (Cont’d)

EC-1205

Diagnostic Procedure

NLEC0666

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

GO TO 2.

GO TO 4.

CHECK COOLING FAN LOW SPEED OPERATION

With CONSULT-II

1. Disconnect cooling fan relay-3.

SEF871Z

2. Turn ignition switch “ON”.
3. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.

SEF646X

4. Make sure that cooling fans-1 and -2 operate at low speed.

OK or NG

GO TO 3.

Check cooling fan low speed control circuit. (Go to PROCEDURE A, .)

DTC P1217 OVER HEAT

YD22DDTI

Diagnostic Procedure

EC-1206

CHECK COOLING FAN HIGH SPEED OPERATION

With CONSULT-II

1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relay-3.
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.

SEF111X

5. Make sure that cooling fans-1 and -2 operate at high speed.

OK or NG

GO TO 6.

Check cooling fan high speed control circuit. (Go to PROCEDURE B, EC-1214.)

DTC P1217 OVER HEAT

YD22DDTI

Diagnostic Procedure (Cont’d)

EC-1207

CHECK COOLING FAN LOW SPEED OPERATION

Without CONSULT-II

1. Disconnect cooling fan relay-3.

SEF871Z

2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.

SEC163BA

OK or NG

GO TO 5.

Check cooling fan low speed control circuit. (Go to PROCEDURE A, EC-1211.)

DTC P1217 OVER HEAT

YD22DDTI

Diagnostic Procedure (Cont’d)

EC-1208

Content .. 100 101 102 103 ..
