Air Conditioning Cut Control

DESCRIPTION

NLEC0614

Input/Output Signal Chart

NLEC0614S01

Sensor

Input Signal to ECM

ECM Function

Actuator

Air conditioner switch

Air conditioner “ON” signal

Air conditioner
cut control

Air conditioner relay

Accelerator position sensor

Accelerator valve opening angle

Vehicle speed sensor

Vehicle speed

Engine coolant temperature sensor

Engine coolant temperature

System Description

NLEC0614S02

This system improves acceleration when the air conditioner is used.
When the accelerator pedal is fully depressed, the air conditioner is turned off for a few seconds.
When engine coolant temperature becomes excessively high, the air conditioner is turned off. This continues
until the engine coolant temperature returns to normal.

Fuel Cut Control (at no load & high engine
speed)

DESCRIPTION

NLEC0615

Input/Output Signal Chart

NLEC0615S01

Sensor

Input Signal to ECM

ECM Function

Actuator

Vehicle speed sensor

Vehicle speed

Fuel cut control

Electronic control fuel
injection pump

Accelerator position switch

Accelerator position

Crankshaft position sensor (TDC)

Engine speed

If the engine speed is above 2,800 rpm with no load (for example, in neutral and engine speed over 2,800
rpm) fuel will be cut off after some time. The exact time when the fuel is cut off varies based on engine speed.
Fuel cut will operate until the engine speed reaches 1,500 rpm, then fuel cut is cancelled.
NOTE:
This function is different from deceleration control listed under “Fuel Injection Control System”,
EC-1079.

ENGINE AND EMISSION BASIC CONTROL SYSTEM

DESCRIPTION

YD22DDTI

Air Conditioning Cut Control

EC-1081

SEF440ZA

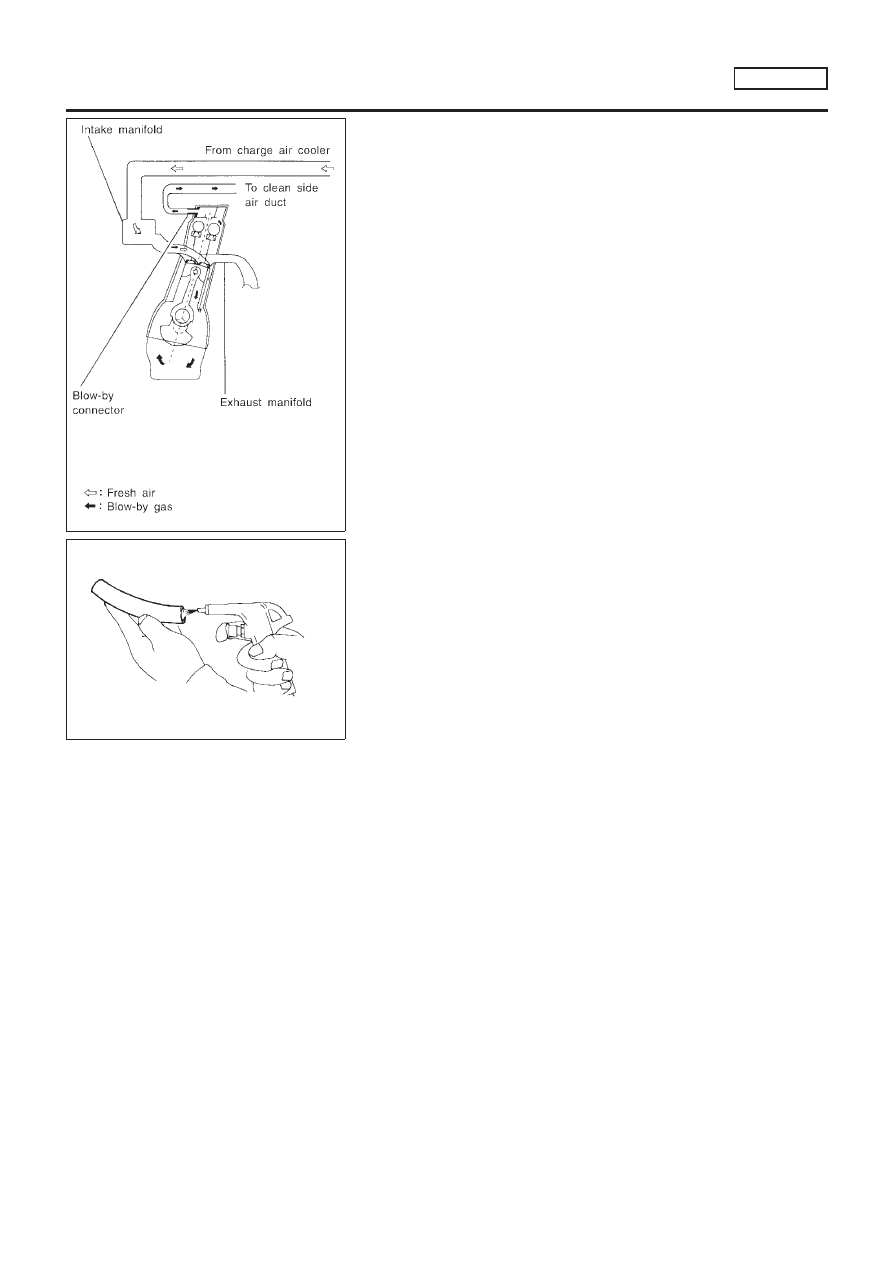

Crankcase Ventilation System

DESCRIPTION

NLEC0616

In this system, blow-by gas is sucked into the air duct after oil
separation by oil separator in the rocker cover.

SEC692

INSPECTION

NLEC0617

Ventilation Hose

NLEC0617S01

Check hoses and hose connections for leaks.

Disconnect all hoses and clean with compressed air. If any
hose cannot be freed of obstructions, replace.

ENGINE AND EMISSION BASIC CONTROL SYSTEM

DESCRIPTION

YD22DDTI

Crankcase Ventilation System

EC-1082

Injection Tube and Injection Nozzle

REMOVAL AND INSTALLATION

NLEC0618

CAUTION:

Do not disassemble injection nozzle assembly. If NG,
replace injection nozzle assembly.

Plug flare nut with a cap or rag so that no dust enters the
nozzle. Cover nozzle tip to protect it.

JEF443Z

JEF340Y

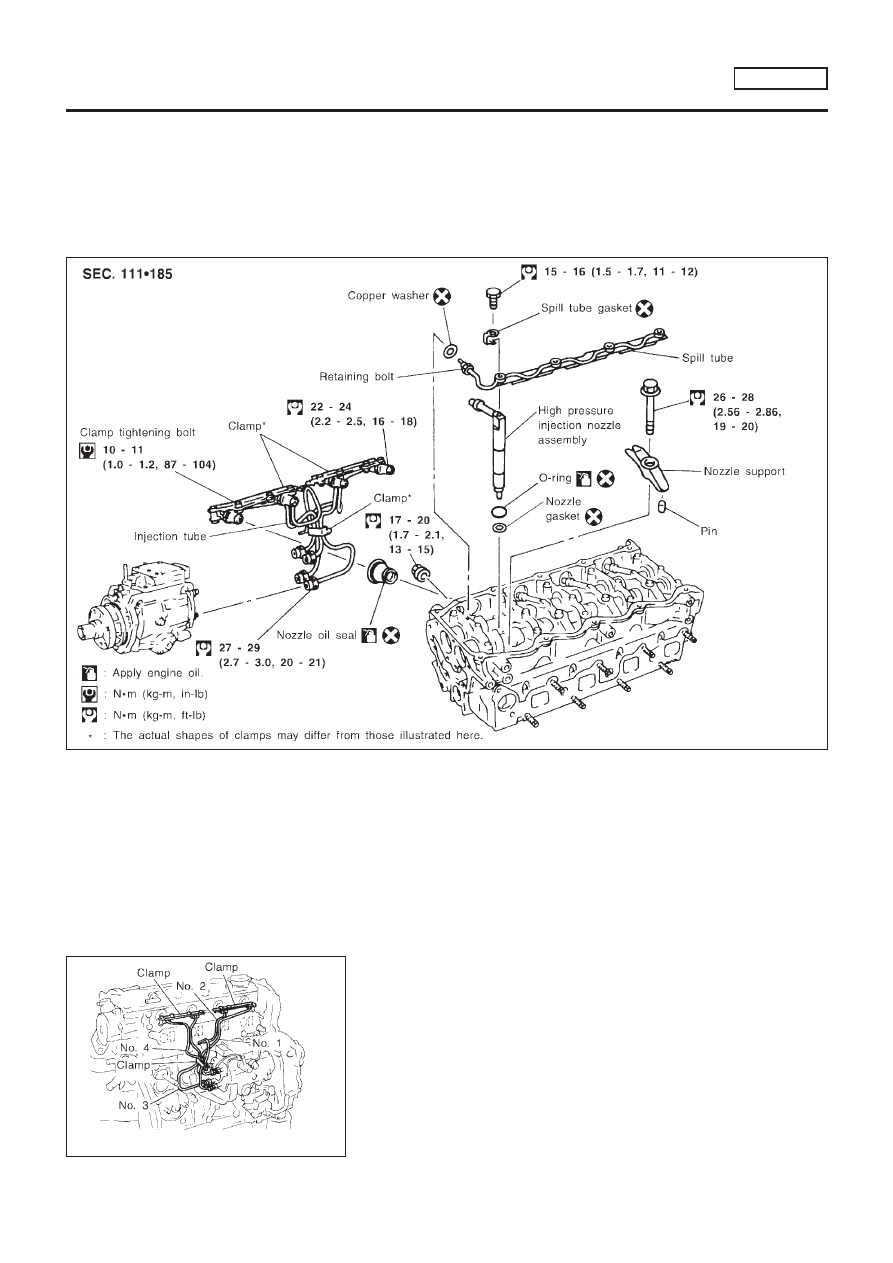

Injection Tube

NLEC0618S01

Removal

NLEC0618S0101

Mark the cylinder Nos. to the injection tubes, then disconnect
them.

Marking should be made at proper locations and by the
proper method, so that they are not erased by fuel, etc.

Remove the clamps, then disconnect the tubes one by one.

The intake manifold is removed for explanation in the figure.

BASIC SERVICE PROCEDURE

YD22DDTI

Injection Tube and Injection Nozzle

EC-1083

JEF341Y

Installation

NLEC0618S0102

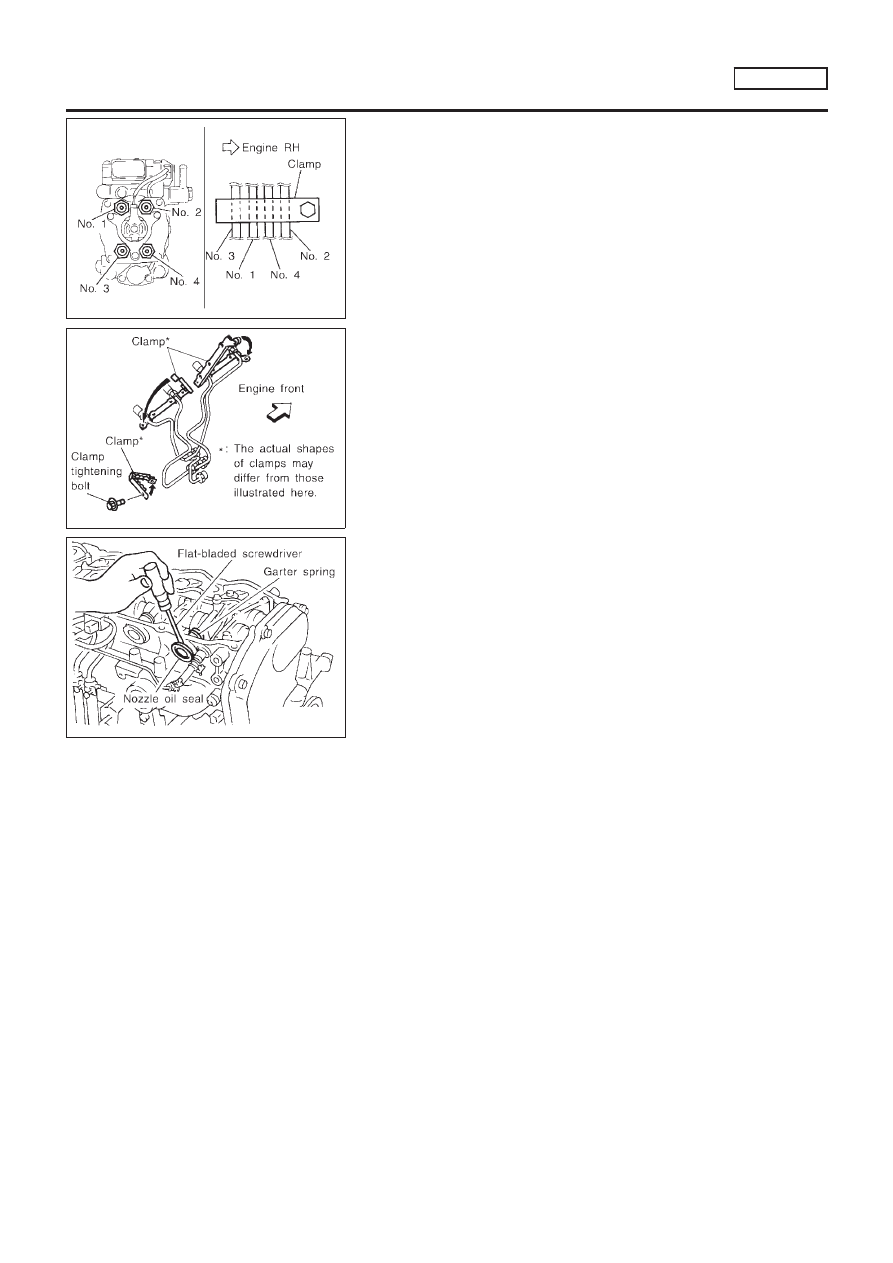

Referring to the figure and the marking which were made for
installation, connect the injection tubes to all the cylinders.

Connect temporarily the tubes to the cylinder head side only
by screwing 2 to 3 turns. Make sure that all tubes can be con-
nected to the pump side also.

Then, tighten the flare nuts of the cylinder head side and pump
side, starting from the opposite side from you.

JEF444Z

Attach the injection tube clamp in the direction shown in the
figure.

Insert tightening bolts of the clamp (4-tube type) from the rear
to the front of the engine.

JEF343Y

Injection Nozzle Oil Seal

NLEC0618S02

Removal

NLEC0618S0201

Using a tool such as a flat-bladed screwdriver, pry the flange of the
seal, then remove it.
Installation

NLEC0618S0202

After the high-pressure injection nozzle assembly is installed,
push the seal from the cylinder head side until it contacts the
flange.

Make sure that the garter spring of the seal on the high-pres-
sure injection nozzle assembly side is not falling.

Replace the oil seal with new one when the high-pressure
injection nozzle assembly is removed. (It is not necessary
to replace the oil seal when only injection tubes are
removed.)

BASIC SERVICE PROCEDURE

YD22DDTI

Injection Tube and Injection Nozzle (Cont’d)

EC-1084

JEF344Y

Spill Tube

NLEC0618S03

Removal

NLEC0618S0301

Loosen and remove the mounting bolts and flare nuts in the
reverse order of the numbers in the figure.

When the flare nuts are loosened, hold the head of hexagonal
retaining bolts (head inside) using a wrench.

Installation

NLEC0618S0302

Tighten the flare nuts and mounting bolts in the numerical
order shown in the figure.

When the flare nuts are tightened, hold the head of the hex-
agonal retaining bolts (head inside) using a wrench.

To prevent interference with the rocker cover, place the spill
gasket joint within the range shown by the arrow, then tighten
the mounting bolts. (Be especially careful about No. 2 and 4
cylinders.)

After the spill tube is installed, check the airtightness of
the spill tube.

After the bolts are tightened, the joint of the spill tube gasket
might be broken. However, this will not affect function.

JEF345Y

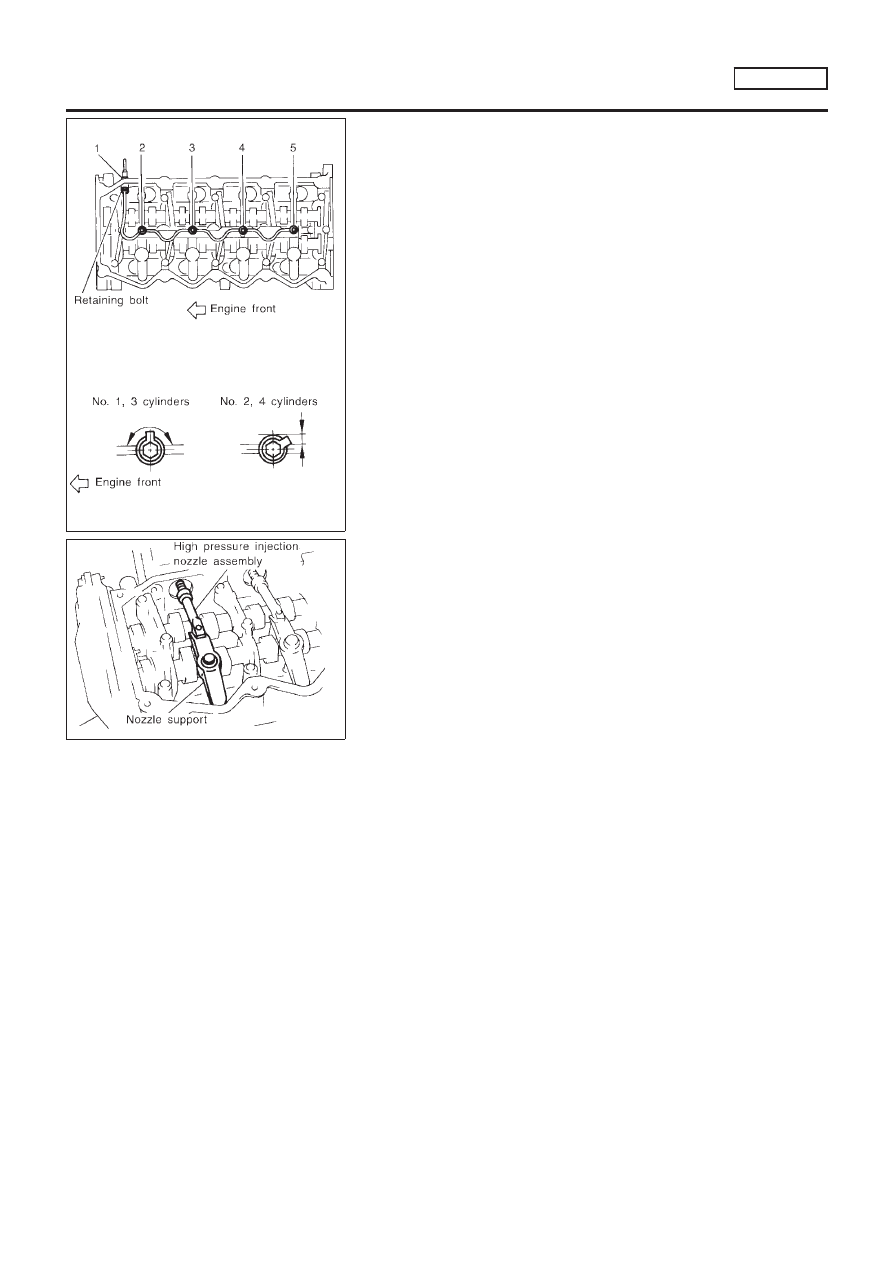

High Pressure Injection Nozzle Assembly

NLEC0618S04

Removal

NLEC0618S0401

Remove the nozzle support, then pull out the high-pressure
injection

nozzle

assembly

turning

clockwise/

counterclockwise.

Using a tool such as a flat-head screwdriver, remove the cop-
per washer inside the cylinder head.

CAUTION:

Do not disassemble the high-pressure injection nozzle.
Installation

NLEC0618S0402

Insert the nozzle gasket to the cylinder head hole.

Attach the O-ring to the mounting groove of the nozzle side,
then insert it in the cylinder head.

TEST AND ADJUSTMENT

NLEC0619

WARNING:

When using nozzle tester, be careful not to allow diesel fuel
sprayed from nozzle to contact your hands or body, and make
sure your eyes are properly protected with goggles.

BASIC SERVICE PROCEDURE

YD22DDTI

Injection Tube and Injection Nozzle (Cont’d)

EC-1085

JEF346Y

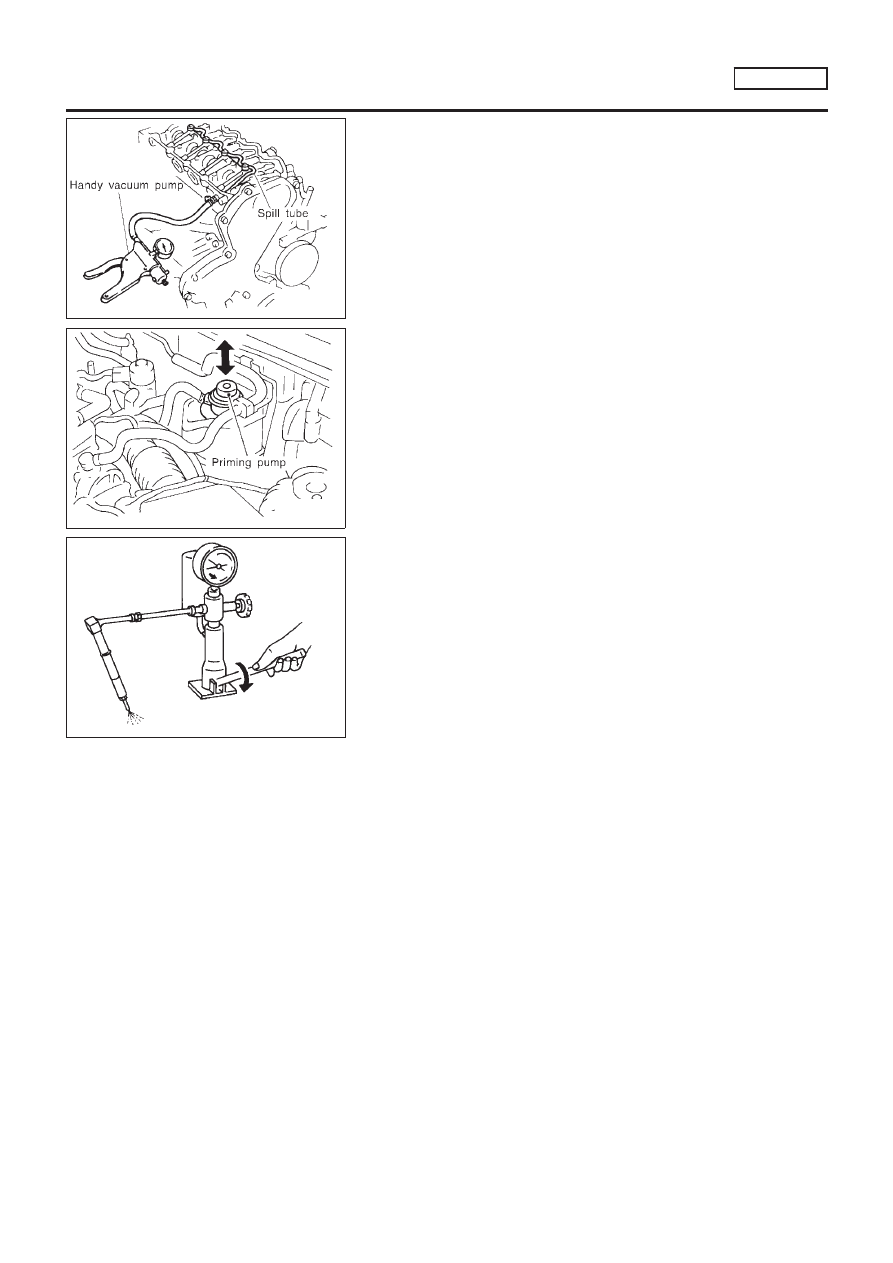

Inspection for Spill Tube Airtightness

NLEC0619S01

Before the rocker cover is installed, perform the inspection as fol-
lows.
1.

Connect the handy vacuum pump to the spill hose.

Check that the airtightness is maintained after the negative
pressure shown below is applied.

Standard:

–53.3 to –66.7 kPa (–533 to –667 mbar, –400 to –500
mmHg, –15.75 to –19.69 inHg)

JEF347Y

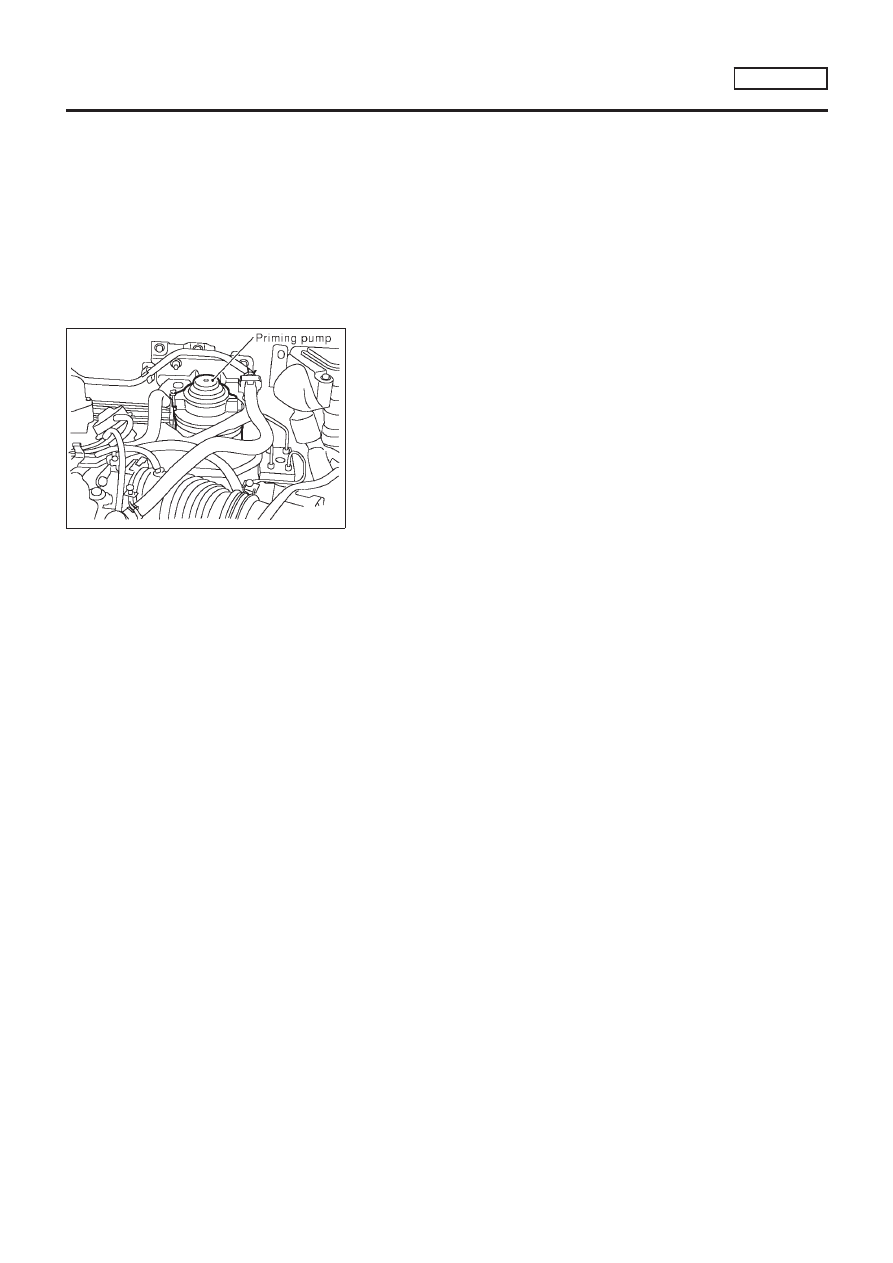

Air Bleeding of Fuel Piping

NLEC0619S02

After the repair, bleed air in the piping by pumping the priming
pump up and down until it becomes heavy.

JEF348Y

Injection Pressure Test

NLEC0619S03

Install injection nozzle assembly to injection nozzle tester and
bleed air from flare nut.

Pump the tester handle slowly (one time per second) and
watch the pressure gauge.

Read the pressure gauge when the injection pressure just
starts dropping.

Initial injection pressure:

New

21,476 - 22,457 kPa (214.7 - 224.5 bar, 219 - 229
kg/cm

, 3,114 - 3,256 psi)

Limit

18,275 kPa (182.7 bar, 186 kg/cm

, 2,650 psi)

The injection nozzle assembly has a 2-stage pressure injection
function. However, the judgement should be made at the first
stage of the valve opening pressure.

Always check initial injection pressure using a new nozzle.

BASIC SERVICE PROCEDURE

YD22DDTI

Injection Tube and Injection Nozzle (Cont’d)

EC-1086

SEF434Z

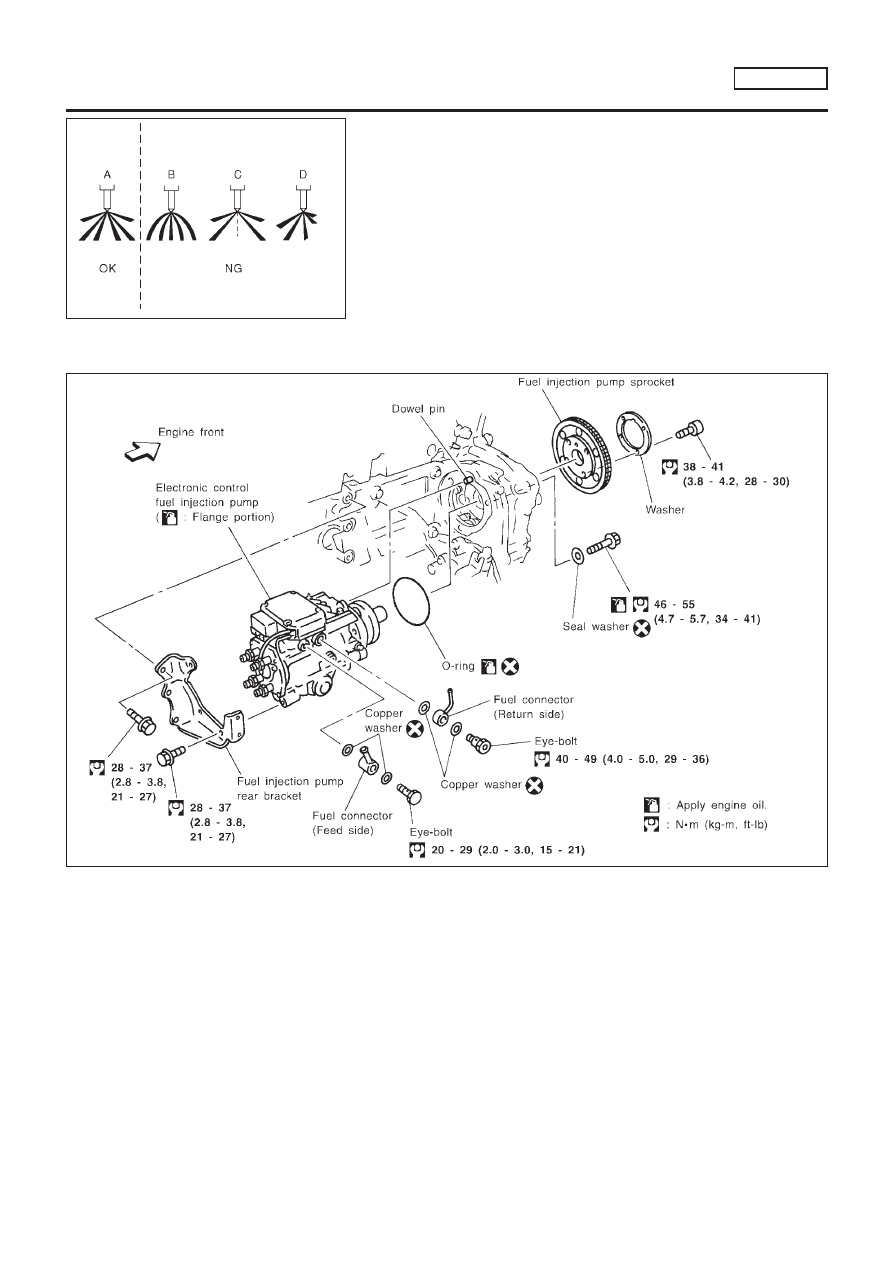

Spray Pattern Test

NLEC0619S05

Check spray pattern by pumping tester handle one full stroke
per second.

NG spray pattern:

Does not inject straight and strong (B in the figure).
Fuel drips (C in the figure).
Does not inject evenly (D in the figure).

If the spray pattern is not correct, replace injection nozzle
assembly.

Electronic Control Fuel Injection Pump

REMOVAL AND INSTALLATION

NLEC0620

JEF350Y

Removal

NLEC0620S01

Remove the parts shown below.

Engine hood

Engine coolant (drain)

Engine cover

Heater pipe under intake manifold

Injection tubes

Right splash cover (with undercover)

Right front wheel

BASIC SERVICE PROCEDURE

YD22DDTI

Injection Tube and Injection Nozzle (Cont’d)

EC-1087

JEF351Y

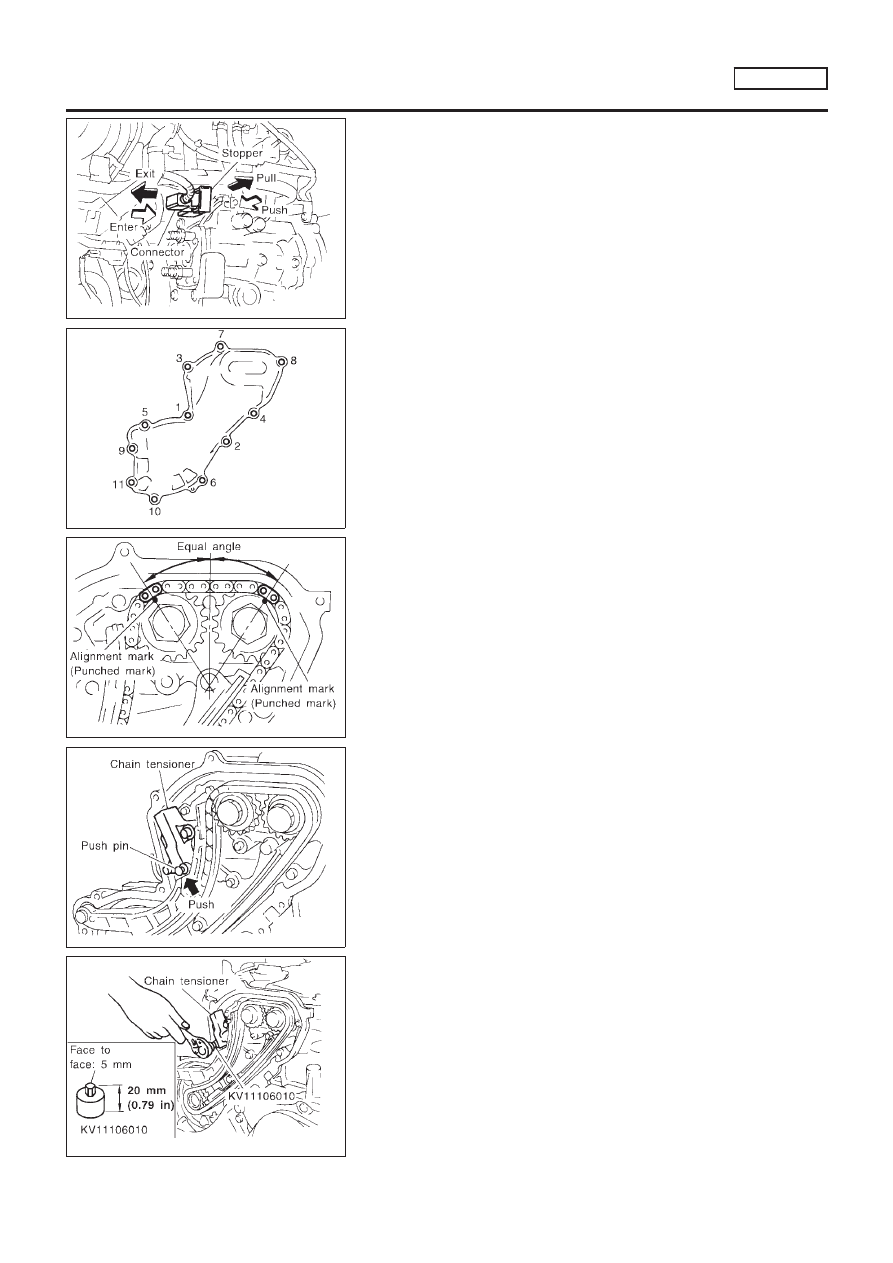

Disconnect the fuel hoses from the fuel injection pump.

Disconnect the harness connector from the fuel injection
pump.

Disconnect the connector by pulling the connector stopper
fully.

When the stopper is fully pulled, the connector will be discon-
nected together. For installation, push the connector half way
first, then press the stopper until it locks, so that the connec-
tor is connected together.

Remove the fuel injection pump rear bracket.

JEF352Y

Remove the front chain case.

Move the power steering fluid reservoir tank from the bracket.

Loosen and remove the mounting bolts in the reverse order of
the numbers shown in the figure.

As for bolts 6, 10, and 11, remove with rubber washer because
there is not enough space for removing only the bolts.

CAUTION:

To prevent foreign objects from getting in the engine, cover
the opening during the removal of the front chain case.

JEF353Y

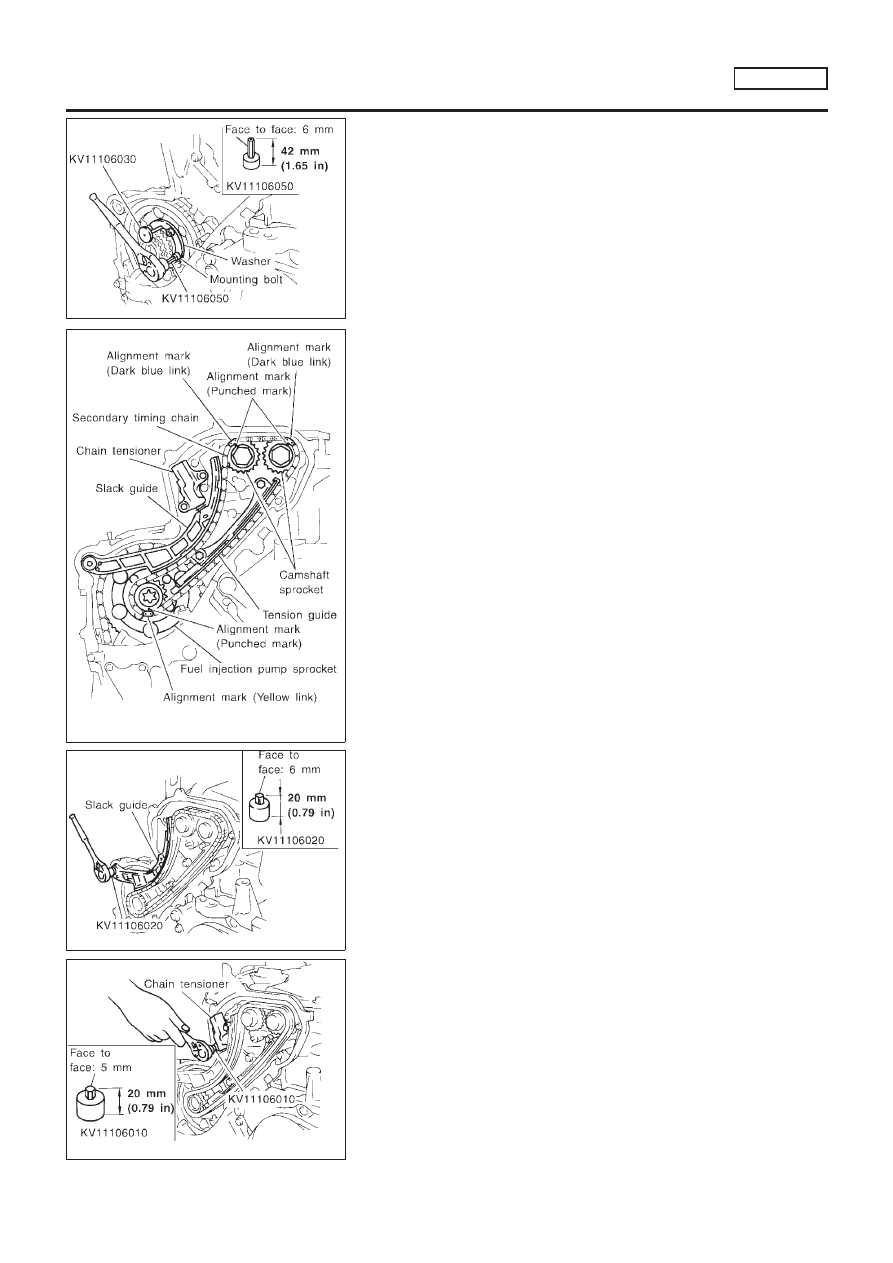

Adjust the No. 1 cylinder to the top dead center position.

Turn the crankshaft pulley clockwise, then align the alignment
mark (punched mark) of the camshaft sprocket to the position
shown in the figure.

There is no indicator on the crankshaft pulley.

It is not necessary to mark the secondary timing chain for
removal because it can be matched by the link color for instal-
lation. However, the alignment mark on the fuel injection pump
sprocket is difficult to see; mark it if necessary.

JEF354Y

Remove the chain tensioner.

Push the plunger of the chain tensioner, then fix it with a tool
such as a push pin.

JEF355Y

Using the hexagon wrench (face to face: 5 mm) (SST), remove
the mounting bolts, then remove the chain tensioner.

A multi-purpose tool may also be used.

BASIC SERVICE PROCEDURE

YD22DDTI

Electronic Control Fuel Injection Pump (Cont’d)

EC-1088

JEF356Y

Remove the timing chain slack guide.

Using the hexagon wrench (face to face: 6 mm, short-type)
(SST), remove the mounting bolts, then remove the timing
chain slack guide.

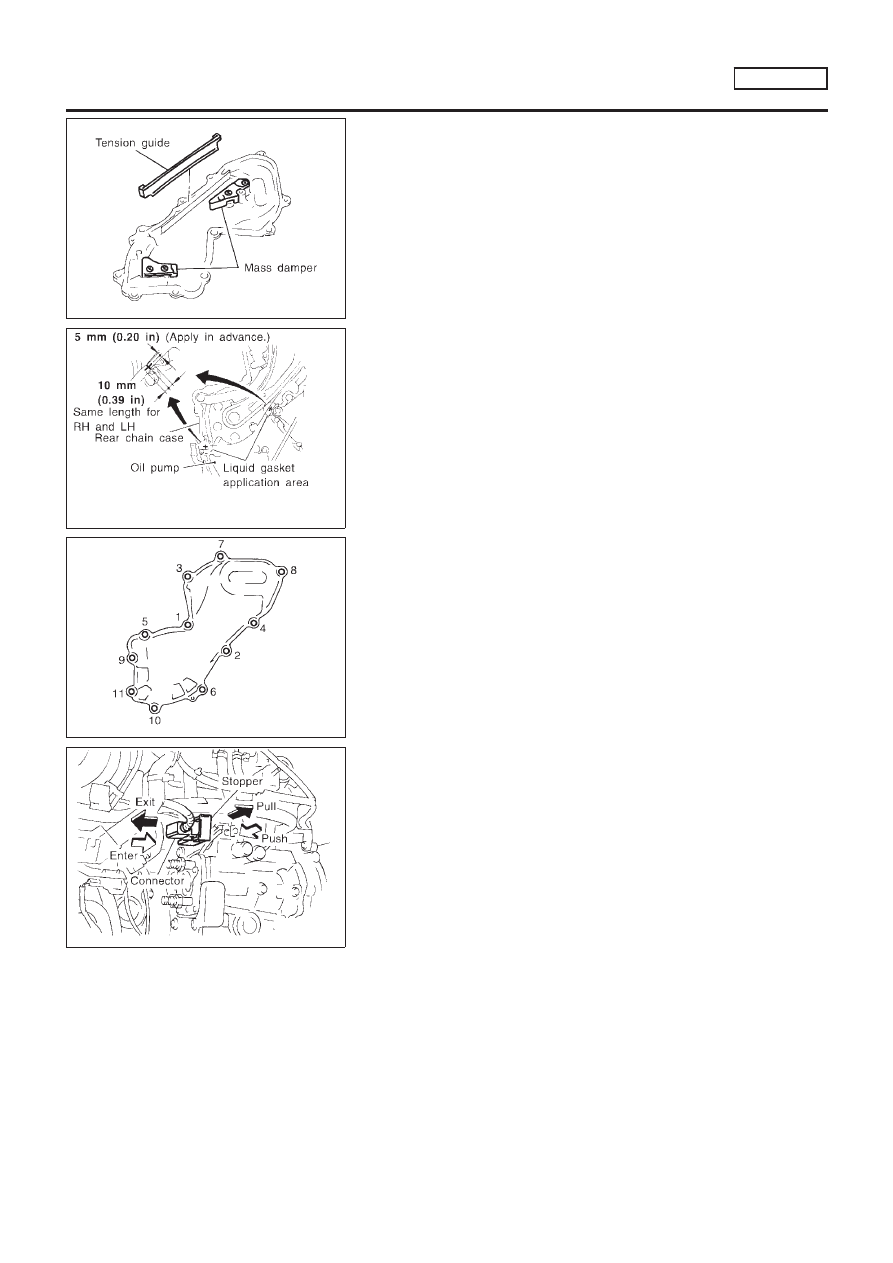

JEF357Y

Remove the timing chain tension guide.

10. Remove the secondary timing chain.

Only the timing chain can be removed without removing the
sprockets.

JEF358Y

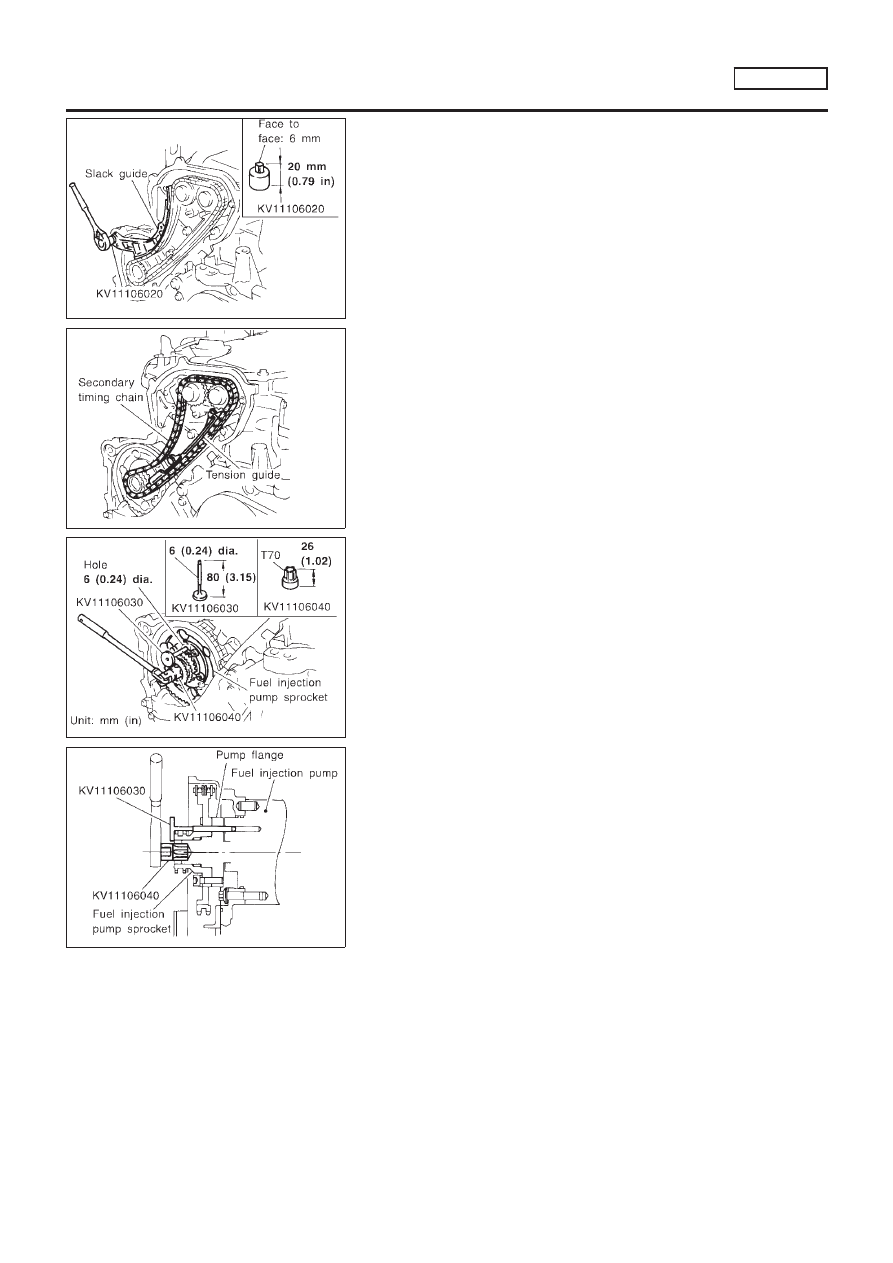

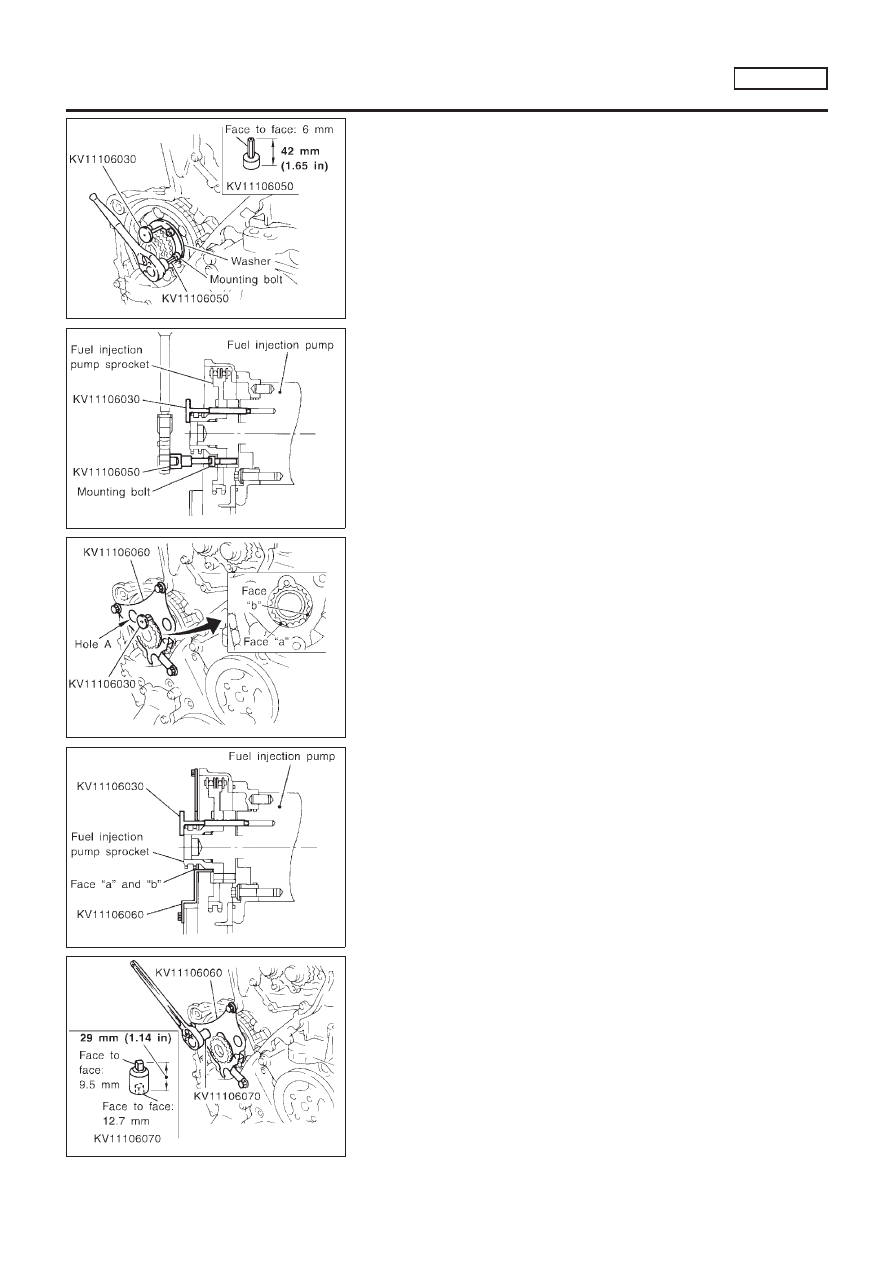

11. Fix the fuel injection pump sprocket.
a.

Insert the positioning stopper pin (SST) in the 6 mm (0.24 in)
dia. hole of the fuel injection pump sprocket.

Using the torx wrench (SST), turn the pump shaft gradually to
adjust the hole position of the fuel injection pump sprocket.

Insert the positioning stopper pin through the fuel injection
pump body to fix the sprocket.

JEF359Y

Insert the positioning stopper pin until its flange contacts the
fuel injection pump sprocket.

Remove the torx wrench (SST).

BASIC SERVICE PROCEDURE

YD22DDTI

Electronic Control Fuel Injection Pump (Cont’d)

EC-1089

JEF360Y

JEF361Y

12. Using the hexagon wrench (face to face: 6 mm, long-type)

(SST), remove the mounting bolts of the fuel injection pump
sprocket.

It is not necessary to remove the washer of the fuel injection
pump sprocket.

JEF362Y

JEF363Y

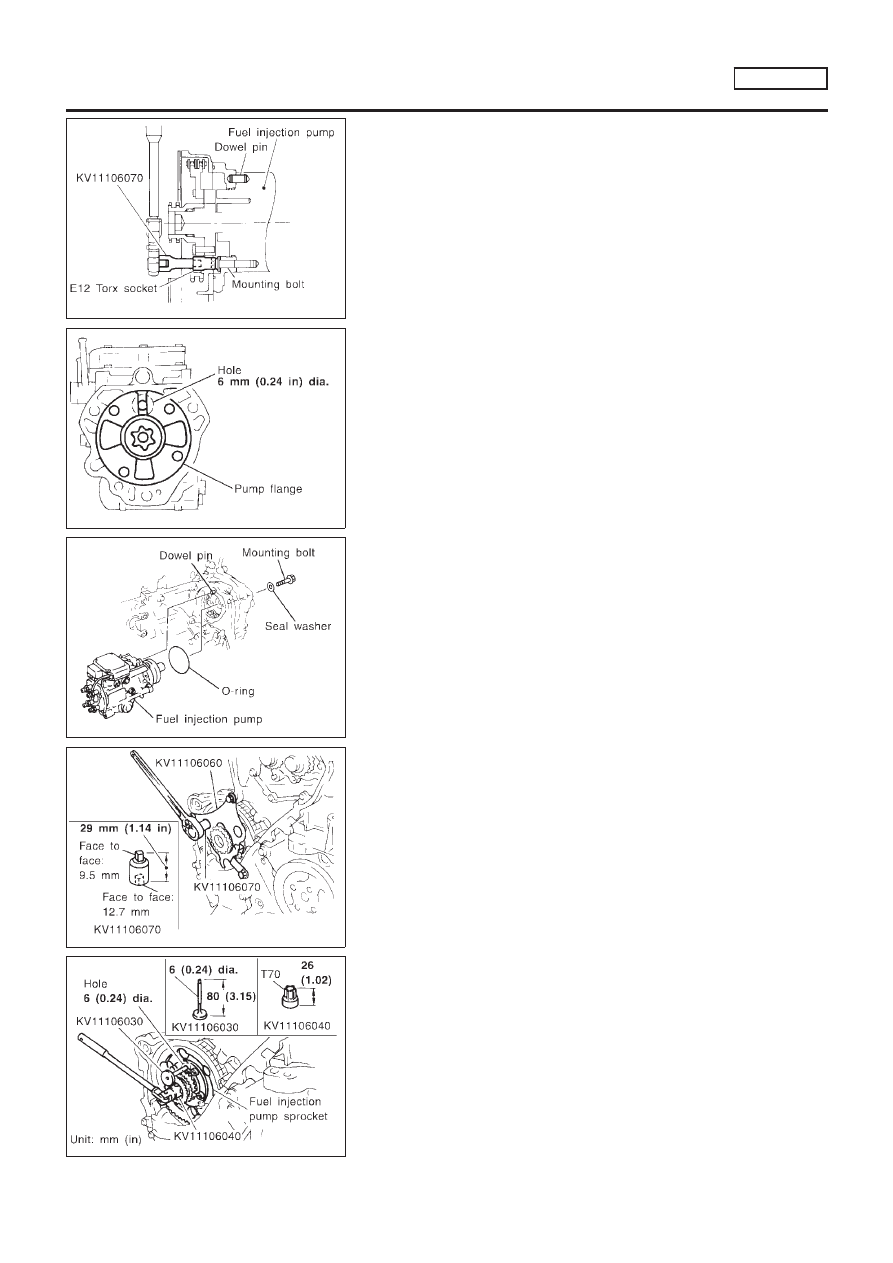

13. Using the sprocket holder (SST), hold the fuel injection pump

sprocket to prevent falling.

When the sprocket holder is installed, if the positioning stop-
per pin interferes, pull out the stopper pin approximately 10
mm (0.39 in), then install it.

After the sprocket holder is installed temporarily, insert the
extension bar (SST) and Torx socket in the three holes A. After
positioning the holes, tighten the holder mounting bolts. (Refer
to the step 14 about the tool.)

The length of the sprocket holder mounting bolts should be
approximately 15 mm (0.59 in) (M6 thread length).

Make sure that the a- and b-faces of the sprocket holder con-
tact the bottom side of the sprocket 15 mm (0.59 in) (small
diameter side).

CAUTION:

Do not remove the sprocket holder until the fuel injection
pump is installed.

After the sprocket holder is installed, pull out the positioning
stopper pin (SST) from the fuel injection pump sprocket.

JEF364Y

14. Using the extension bar [SST: whole length 43 mm (1.69 in)]

and the Torx socket (Q6-E12: commercially available), remove
the mounting bolts, them remove the fuel injection pump
toward the rear of the engine.

Even after all the mounting bolts are removed, the fuel injec-
tion pump is still held by a dowel pin.

CAUTION:

Do not disassemble or adjust the fuel injection pump.

BASIC SERVICE PROCEDURE

YD22DDTI

Electronic Control Fuel Injection Pump (Cont’d)

EC-1090

JEF365Y

15. Remove the fuel injection pump mounting bolts.

The seal washer of the mounting bolts cannot be reused.

CAUTION:

For removal, be careful not to drop the seal washer into the
engine.

JEF366Y

Installation

NLEC0620S02

It is not necessary to adjust the injection timing by changing the
installation angle which used to be performed with conven-
tional fuel injection pumps. The installation position can be
simply decided by the dowel pin and the mounting bolts.

Before the fuel injection pump is installed, check that the notch
of its flange and the 6 mm (0.24 in) dia. hole on the body are
aligned.

JEF367Y

Insert the fuel injection pump to the mounting position from the
rear of the engine.

Adjust the fuel injection pump bracket position to the dowel pin,
then install it.

JEF364Y

Using the extension bar (SST) and the Torx socket, tighten the
mounting bolts of the fuel injection pump.

Remove the sprocket holder (SST).

JEF358Y

Using the torx wrench (SST), turn the pump shaft gradually to
adjust the position of the flange. Then, insert the positioning
stopper pin (SST) to the 6 mm (0.24 in) dia. hole of the fuel
injection pump sprocket through the pump flange and the
pump body.

Remove the torx wrench (SST).

BASIC SERVICE PROCEDURE

YD22DDTI

Electronic Control Fuel Injection Pump (Cont’d)

EC-1091

JEF360Y

Using the hexagon wrench (face to face: 6 mm, long-type)
(SST), tighten the sprocket mounting bolt.

When the washer of the fuel injection pump sprocket is
removed, install it with the marking “F” (front) facing the front
of the engine.

Pull out the positioning stopper pin (SST).

JEF368Y

Install the secondary timing chain.

Align the alignment marks of the sprockets and those of the
chain, then install it.

The figure shows the installation state and names of the sec-
ondary timing chain and other related parts.

10. Install timing chain tension guide.

The upper installation bolt is longer than the lower.

JEF356Y

11. Using a hexagon wrench (face to face: 6 mm, short-type)

(SST), install the timing chain slack guide.

JEF355Y

12. Install the chain tensioner.
a.

Push the plunger of the chain tensioner, then hold it with a tool
such as a push pin, and install it.

Using a hexagon wrench (face to face: 5 mm) (SST), tighten
the mounting bolts.

Installation is possible by a multi-purpose tool also.

Pull out the tool such as a push pin which holds the plunger.

Make sure that the alignment marks of the sprockets and
timing chain are aligned.

BASIC SERVICE PROCEDURE

YD22DDTI

Electronic Control Fuel Injection Pump (Cont’d)

EC-1092

JEF369Y

13. Install the front chain case.
a.

Install the tension guide to the back side of the front chain
case.

If the front chain case is tilted, the tension guide may fall off.
Therefore, when installing the front chain case, hold it verti-
cally.

JEF370Y

Apply Three Bond 1207C (KP510 00150) to both ends of the
arch area of the oil pump (contact surface of rear chain case)
as shown in the figure.

Install the front chain case.

Align the dowel pin of the oil pump case to the pin hole, then
install it.

Install bolts 6, 10, and 11 (shown in the figure) with the rubber
washer to the front chain case.

JEF352Y

Tighten the mounting bolts in the numerical order shown in the
figure.

After all bolts are tightened, tighten the mounting bolts in the
numerical order shown in the figure again.

14. Install the fuel injection pump rear bracket.

Tighten all the bolts temporarily, then tighten them securely
with the mounting face securely contacting the fuel injection
pump and the pump bracket.

JEF351Y

15. Connect the fuel injection pump harness connector.

Insert the harness connector securely until the stopper locks.

Push the connector half way first, then press the stopper until
it locks, so that the connector is connected together.

16. Connect the fuel hoses.

When the hoses are disconnected at the fuel gallery side,
insert until the hoses contact the valve, then install the clamp
securely.

17. Install other parts in the reverse order of removal.

BASIC SERVICE PROCEDURE

YD22DDTI

Electronic Control Fuel Injection Pump (Cont’d)

EC-1093

Fuel Filter

DESCRIPTION

NLEC0623

A water draining cock is on the lower side and a priming pump for
bleeding air is on the upper side.

SEF375Y

AIR BLEEDING

NLEC0624

After the repair, bleed air from the piping by pumping the prim-
ing pump up and down until it becomes heavy.

To start the engine, rotate the starter for a maximum of 30
seconds. To start the engine more quickly, crank the engine
while pumping the priming pump (requires two workers).

If the engine does not start after rotating the starter for a maxi-
mum of 30 seconds, stop it once, and pump the priming pump
again until it becomes heavy.

Rotate the starter again until the engine starts running.

After the engine starts, let it idle for at least 1 minute to stabi-
lize the behavior.

When air is bled completely, the pumping of the priming
pump suddenly becomes heavy. Stop the operation at that
time.

If it is difficult to bleed air by the pumping of the priming
pump (the pumping of the priming pump does not become
heavy), disconnect the fuel supply hose between the fuel
filter and the injection pump. Then, perform the operation
described above, and make sure that fuel comes out. (Use
a pan, etc. so as not to spill fuel. Do not let fuel get on
engine and other parts.) After that, connect the hose, then
bleed air again.

Start engine and let it idle for at least one minute after
performing air bleeding.

WATER DRAINING

NLEC0625

If the MI lights up (not flashes) during the engine operation,
drain the water as follows. (If fuel filter switch is equipped.)

Remove the fuel filter, filter bracket, protector assembly from
the dash panel as follows.

Remove the air cleaner case (upper), air duct assembly, and
vacuum hose for brake booster (between the vacuum pump
and vacuum pipe).

CAUTION:

After the duct is removed, cover the opening with gum tape,
etc. to prevent foreign object from getting into the engine
during the operation.
b.

Disconnect the water level warning sensor harness connector.

Remove the mounting nuts on the dash panel, then remove the
fuel filter, filter bracket, and protector assembly from the dash
panel.

It is not necessary to disconnect the fuel hose.

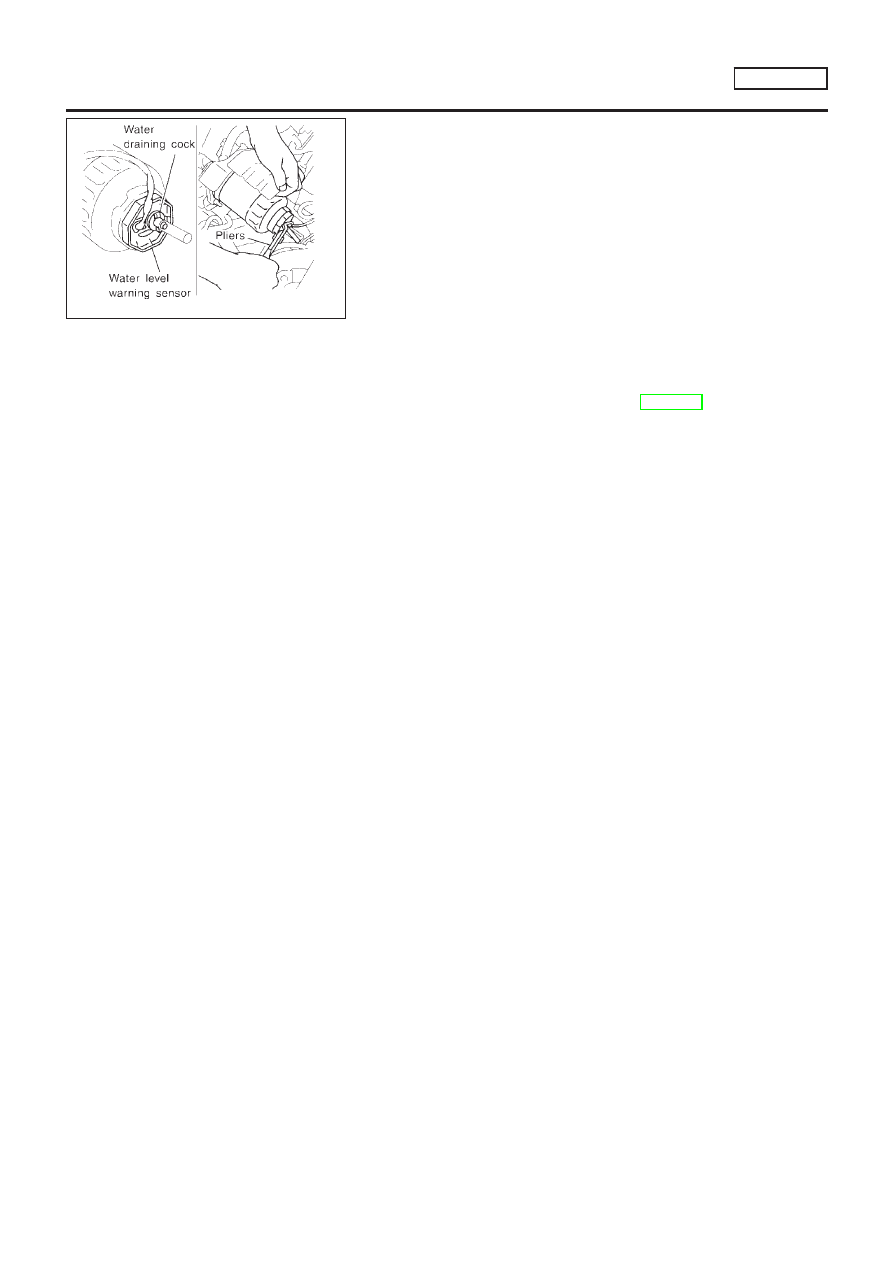

Using a tool such as a pliers, loosen the water draining cock
at the bottom of the water level warning sensor located under
the fuel filter.

BASIC SERVICE PROCEDURE

YD22DDTI

Fuel Filter

EC-1094

JEF377Y

Install the fuel filter, filter bracket, and protector assembly tem-
porarily. Then, drain the water by pumping the priming pump
with the filter standing straight.

Extend the drain hose if necessary.

Water amount when the MI lights up:

65 - 100 m

(2.2 - 3.5 Imp fl oz)

CAUTION:

When the water is drained, the fuel is also drained. Use a pan,
etc. to avoid fuel adherence to the rubber parts such as the
engine mount insulator.
4.

Tighten the water draining cock, then install the fuel filter, filter
bracket, protector assembly in the reverse order of removal.

CAUTION:

Do not over-tighten the water draining cock. This will damage
the cock thread, resulting in water or fuel leak.
5.

Bleed air of the fuel filter. Refer to EC-1094.

Start engine and let it idle for at least one minute after
performing air bleeding.

Start the engine, then check that the MI goes off. (If fuel filter
switch is equipped.)

BASIC SERVICE PROCEDURE

YD22DDTI

Fuel Filter (Cont’d)

EC-1095

DTC and MI Detection Logic

NLEC0626

When a malfunction is detected, the malfunction (DTC) is stored in the ECM memory.
The MI will light up each time the ECM detects malfunction. For diagnostic items causing the MI to light up,
refer to “TROUBLE DIAGNOSIS — INDEX”, EC-1064.

Diagnostic Trouble Code (DTC)

NLEC0627

HOW TO READ DTC

NLEC0627S01

The DTC can be read by the following methods.

Without CONSULT-II

ECM displays the DTC by a set of four digit numbers with MI illumination in the diagnostic test mode II (Self-
diagnostic results). Example: 0103, 0807, 1002, etc.

With CONSULT-II

CONSULT-II displays the DTC in “SELF-DIAG RESULTS” mode. Examples: P0115, P0571, P1202, etc.
These DTCs are prescribed by ISO15031-6.
(CONSULT-II also displays the malfunctioning component or system.)

Output of the trouble code means that the indicated circuit has a malfunction. However, in the Mode
II it does not indicate whether the malfunction is still occurring or occurred in the past and returned
to normal.
CONSULT-II can identify them. Therefore, using CONSULT-II (if available) is recommended.

HOW TO ERASE DTC

NLEC0627S02

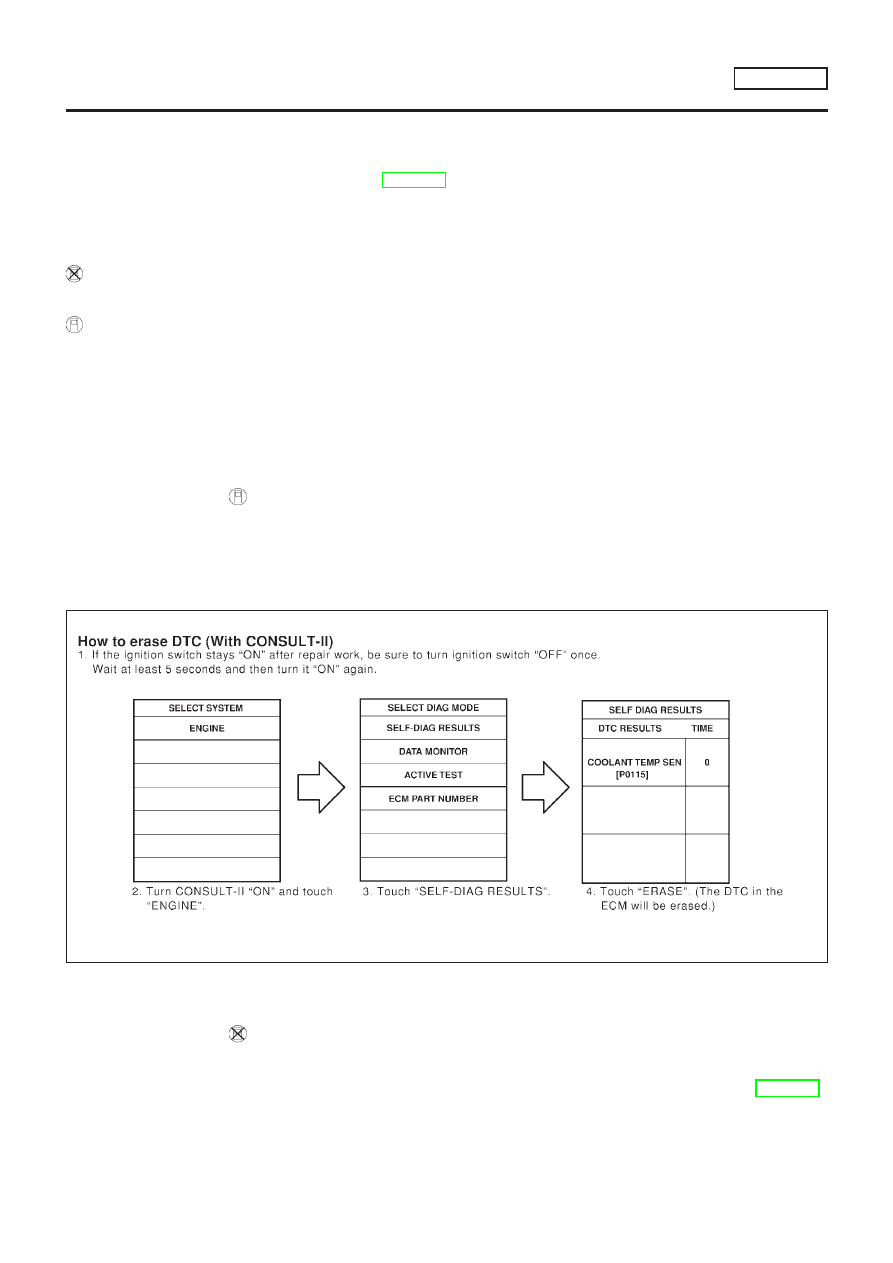

How to Erase DTC (

With CONSULT-II)

NLEC0627S0201

1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch “OFF” once. Wait at least

5 seconds and then turn it “ON” (engine stopped) again.

2. Touch “ENGINE”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The DTC in the ECM will be erased.)

SEF246Z

The emission related diagnostic information in the ECM can be erased by selecting “ERASE” in the “SELF-
DIAG RESULTS” mode with CONSULT-II.

How to Erase DTC (

Without CONSULT-II)

NLEC0627S0202

1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch “OFF” once. Wait at least

5 seconds and then turn it “ON” (engine stopped) again.

2. Change the diagnostic test mode from Mode II to Mode I by using the data link connector. (See EC-1099.)
The emission related diagnostic information in the ECM can be erased by changing the diagnostic test mode.

If the battery is disconnected, the emission-related diagnostic information will be lost after approx.
24 hours.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

YD22DDTI

DTC and MI Detection Logic

EC-1096

Content .. 93 94 95 96 ..
