Removal and Installation

NLBT0004

When removing or installing hood, place a cloth or other padding on hood. This prevents vehicle body from
being scratched.

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.

Hood adjustment: Adjust at hinge portion.

Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood
locks engaging mechanism.

Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.

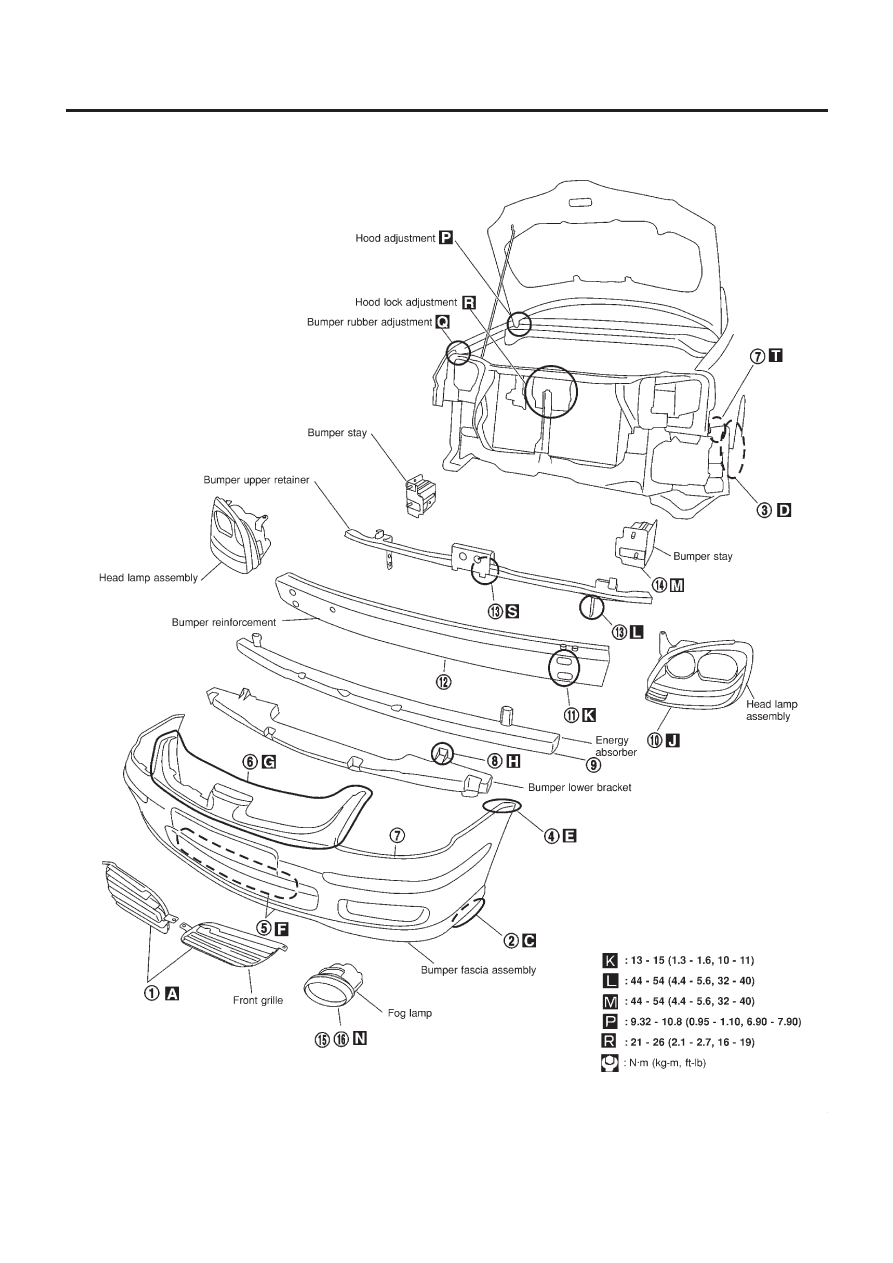

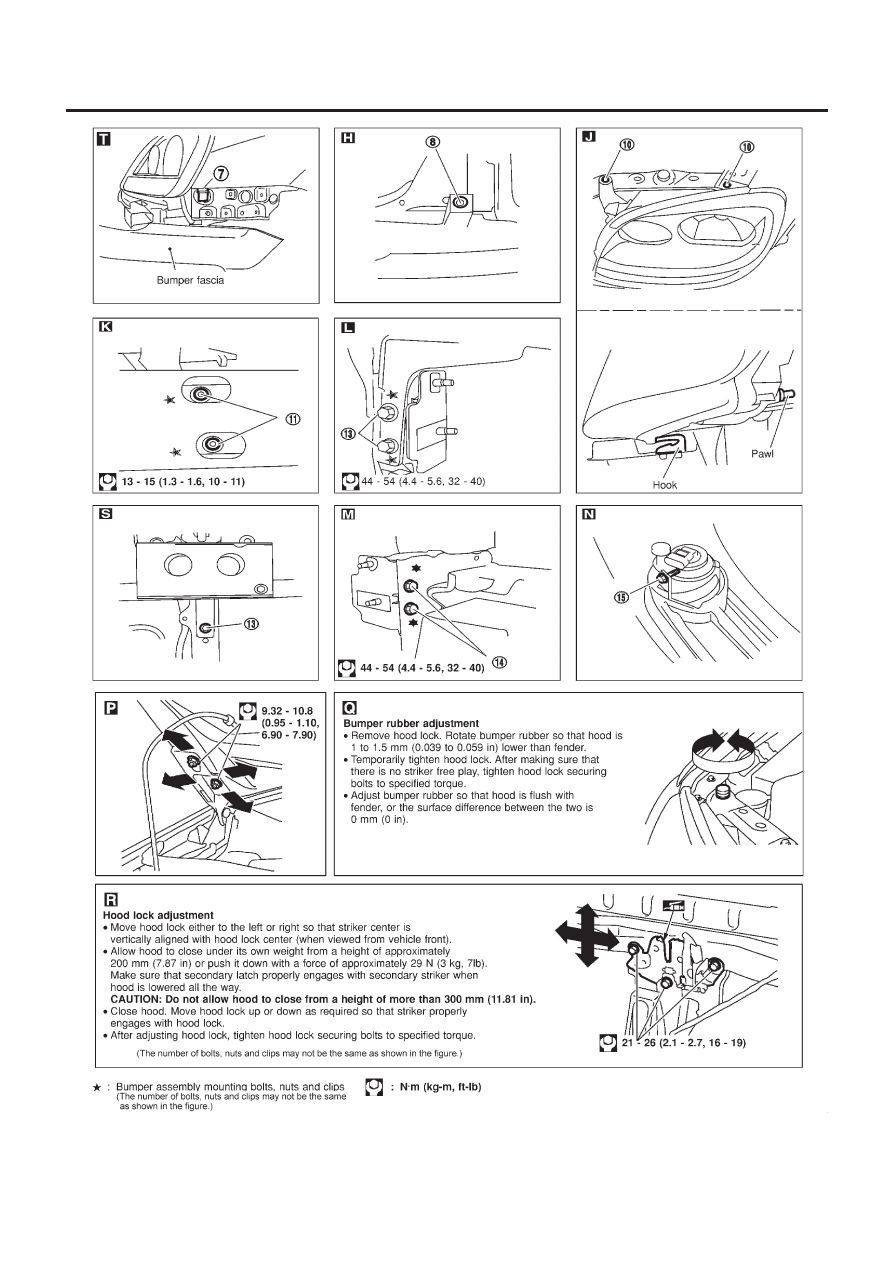

FRONT BUMPER ASSEMBLY

NLBT0004S01

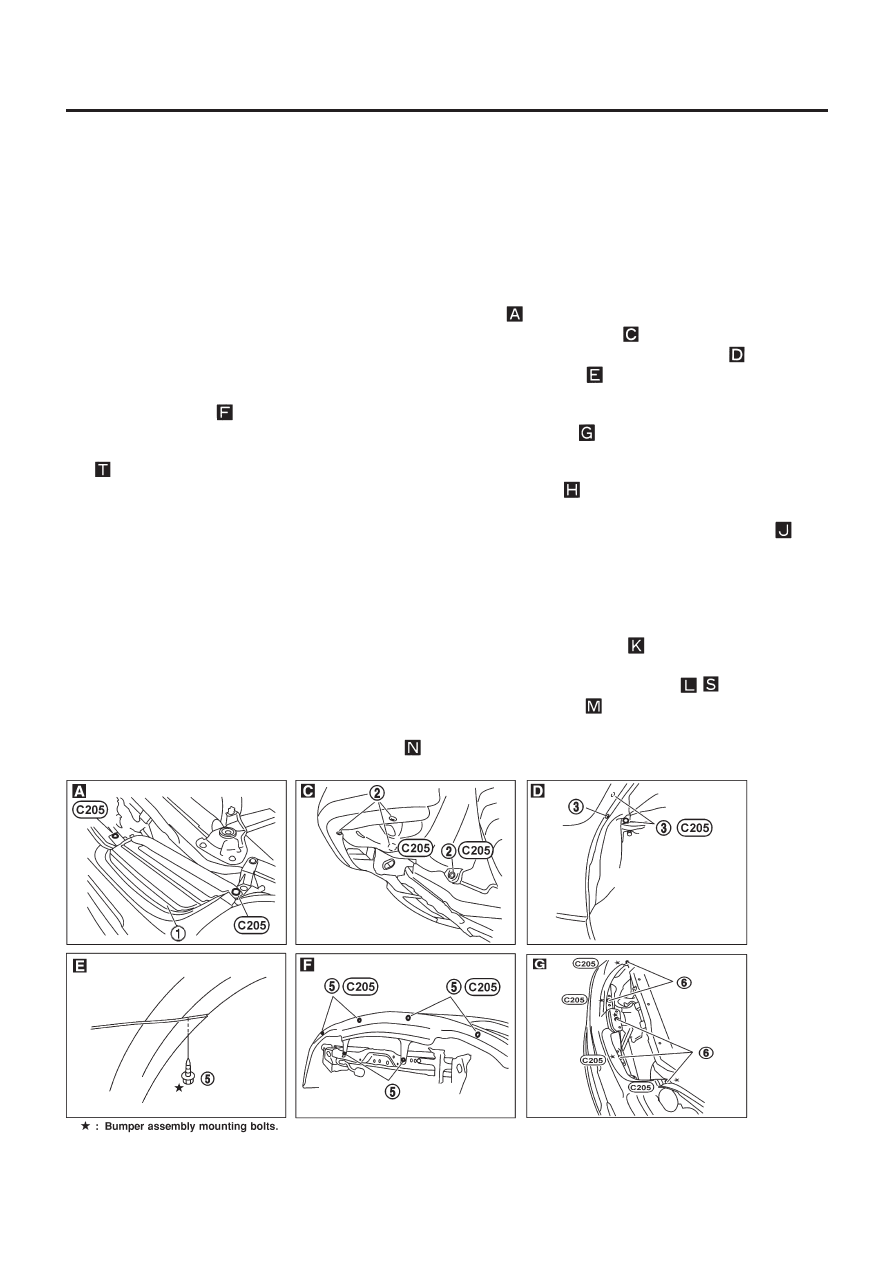

1. Remove clips securing front grille, then remove front grille.
2. Remove clips and screws securing left and right sides of fender protectors.
3. Remove clips and screws securing left and right sides of fender protectors in wheelhouse.
4. Remove screws securing left and right front fenders to bumper fascia.
5. Remove bolts securing radiator core support lower to bumper fascia and remove clips securing lower side

of bumper fascia.

6. Remove clips securing radiator core support upper to bumper fascia.
7. Extract bumper fascia assembly. Then disconnect harness connectors. (Models with fog lamp assembly)

8. Remove bolts securing left and right side of bumper lower bracket.
9. Remove energy absorber.
10. Remove bolts and hooks securing the headlamp assembly, then disconnect harness connectors.

In case of headlamp bracket breakage, repair of the headlamp unit is possible by means of the bracket
repair kit.

Headlamp bracket repair kit part number:

KE260–BU125 (RH side)
KE260–BU025 (LH side)

11. Remove nuts securing bumper reinforcement to left and right bumper stays.
12. Extract bumper reinforcement.
13. Remove bolts securing bumper upper retainer, then remove bumper upper retainer.
14. Remove bolts securing bumper stays, then remove the bumper stays.
Fog lamp assembly (Models with fog lamp assembly)
15. Remove screw securing fog lamp assembly.
16. Extract fog lamp assembly.

NBT137

BODY FRONT END

Removal and Installation

BT-7

NBT138

BODY FRONT END

Removal and Installation (Cont’d)

BT-8

NBT167

BODY FRONT END

Removal and Installation (Cont’d)

BT-9

Removal and Installation

NLBT0034

When removing or installing back door, place a cloth or other padding on back door. This prevents vehicle
body from being scratched.

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.

Back door adjustment: Adjust at hinge-back door portion for proper back door fit.

Back door lock system adjustment: Adjust striker so that it is in the center of the lock. After adjustment,
check back door lock operation.

After installation, make sure that back door and fuel filler lid open smoothly.

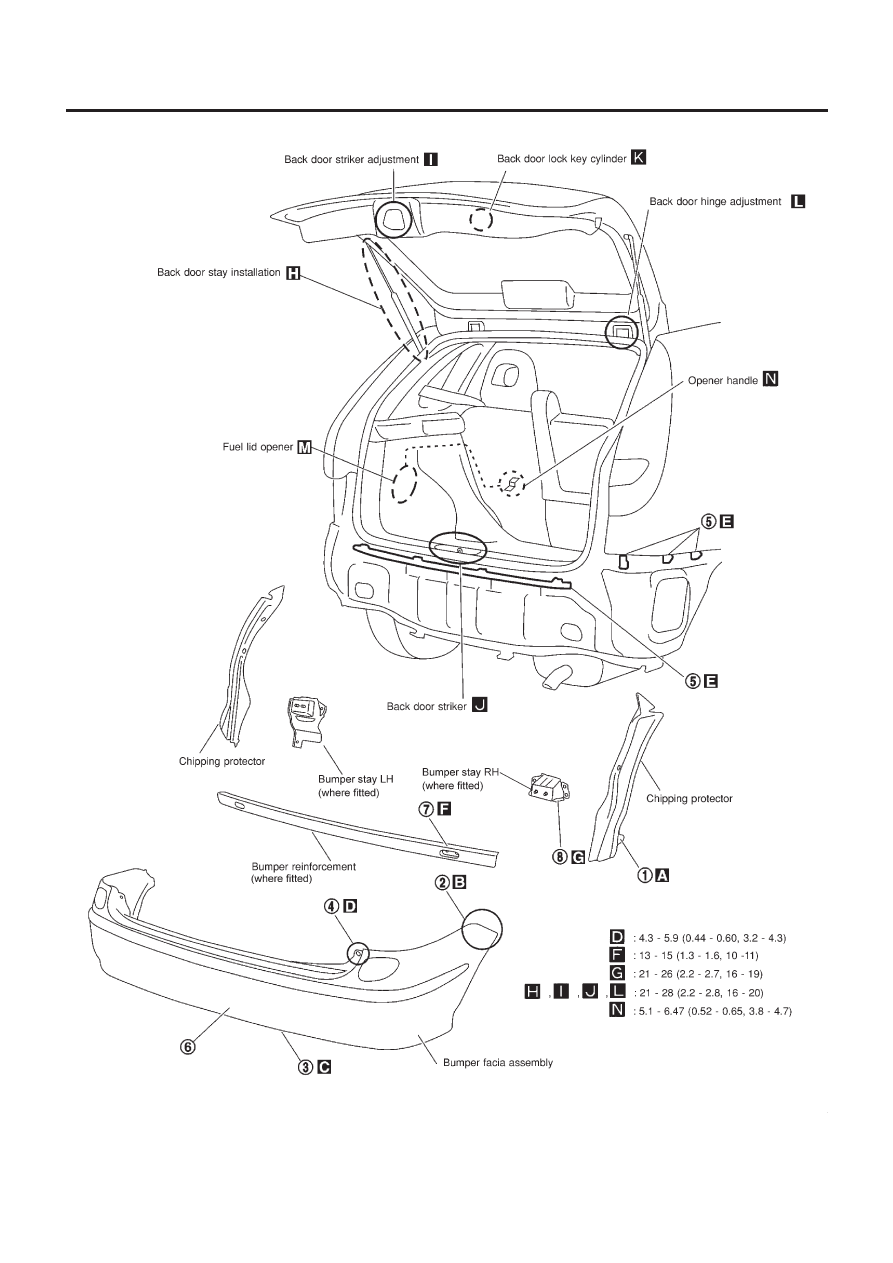

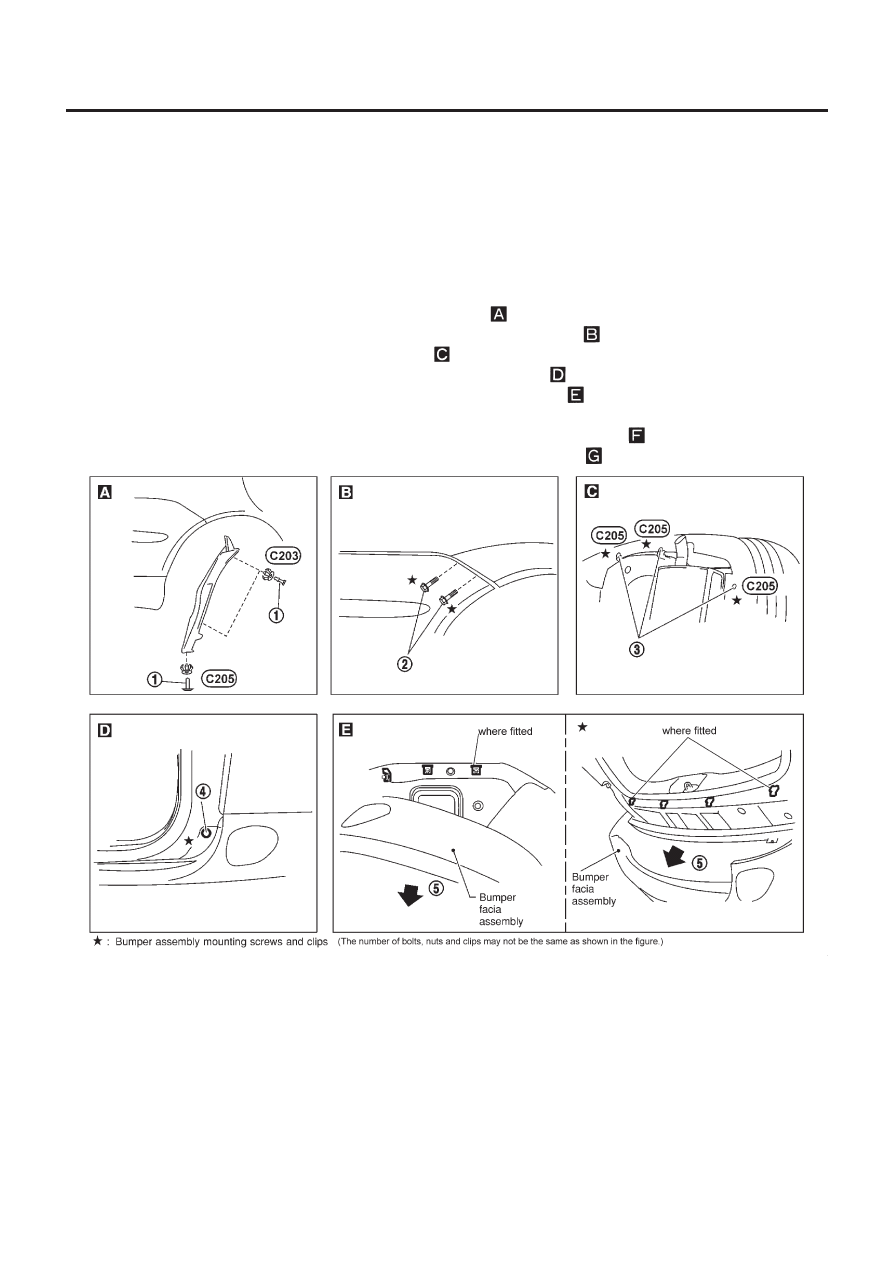

REAR BUMPER ASSEMBLY

NLBT0034S01

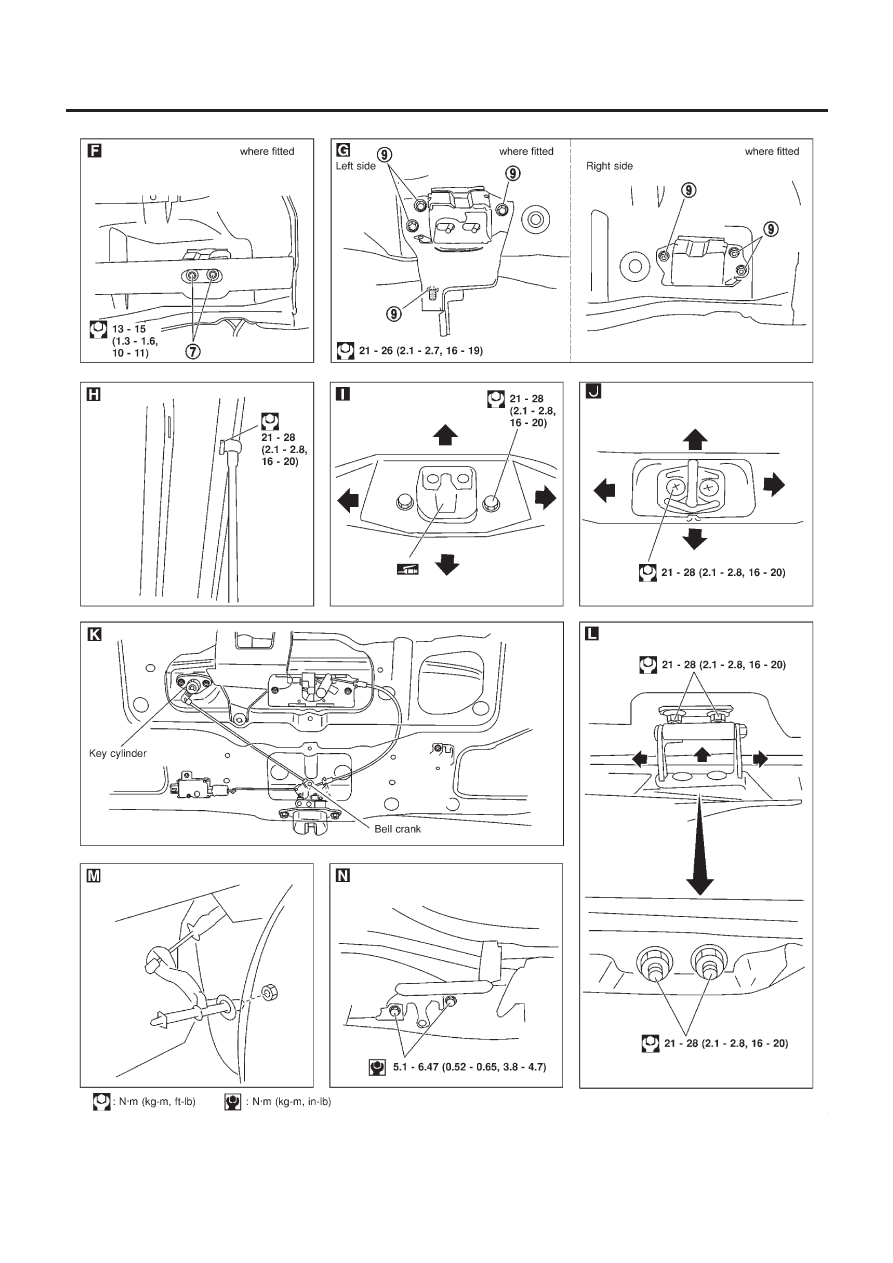

1. Remove clips securing left and right chipping protectors.
2. Remove screws securing left and right rear fenders to bumper fascia.
3. Remove clips securing bumper fascia assembly.
4. Remove bolts securing left and right rear body to bumper fascia.
5. Open the bumper fascia side outward to disengage from side clips.
6. Extract bumper fascia assembly.
7. Remove nuts securing bumper reinforcement to left and right bumper stays.
8. Remove bolts securing bumper stays, then remove the bumper stays.

NBT168

BODY REAR END AND OPENER

Removal and Installation

BT-10

NBT169

BODY REAR END AND OPENER

Removal and Installation (Cont’d)

BT-11

NBT170

BODY REAR END AND OPENER

Removal and Installation (Cont’d)

BT-12

Adjustment

NLBT0006

NBT085

SBT772-B

STRIKER ADJUSTMENT

NLBT0006S01

Adjust striker so that it is parallel with advancing direction of door
lock.

DOOR

Adjustment

BT-13

Front Door Glass

=NLBT0007

Make sure that door glass is positioned in glass run groove.

Make sure that there is no abnormality when door glass is
raised or lowered.

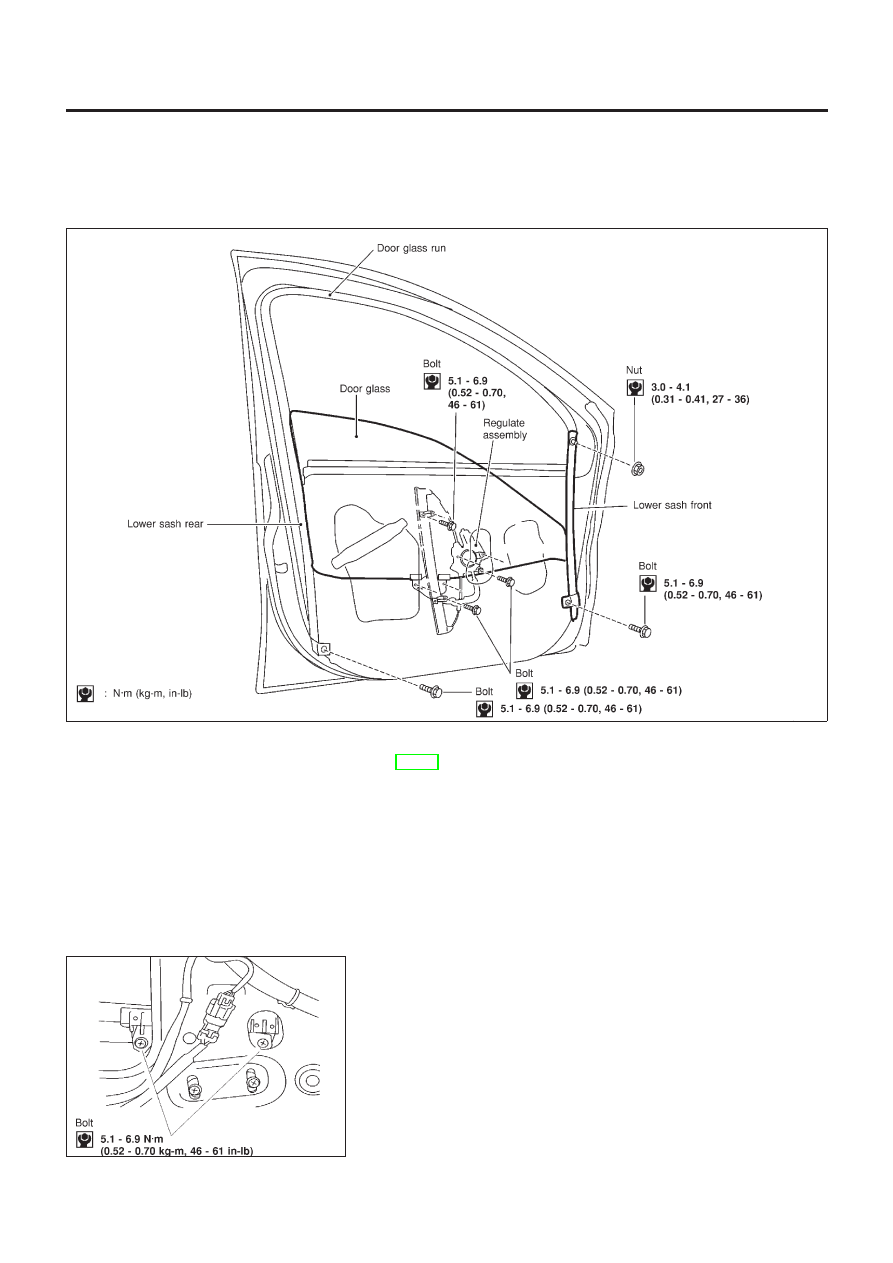

FRONT DOOR GLASS AND REGULATOR

NLBT0007S01

NBT086

For removal of front door finisher, refer to “DOOR TRIM”,
BT-32.

Remove sealing screen.

NBT087

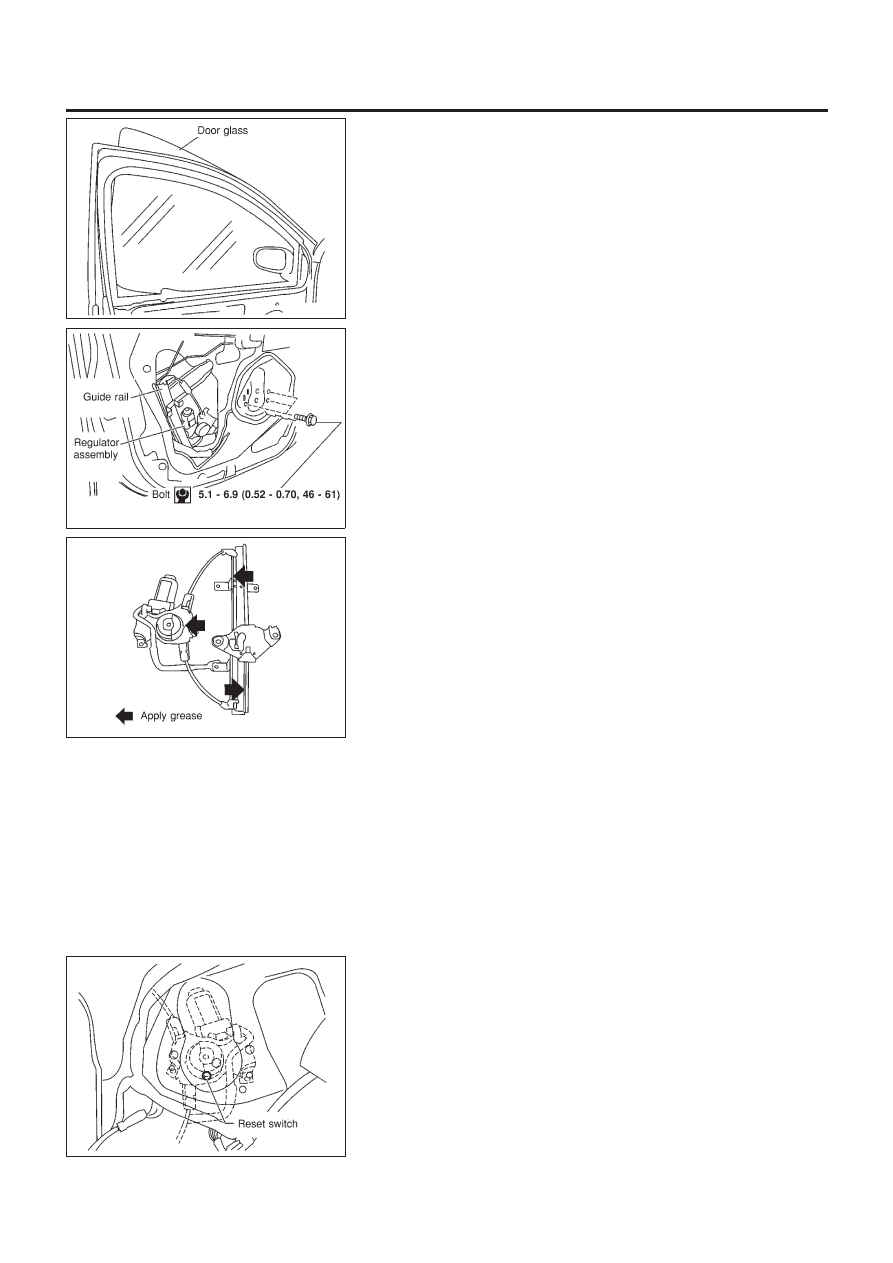

Using power window main switch, raise or lower door glass
until carrier plate securing bolts are visible.

Remove bolts securing carrier plate.

DOOR

Front Door Glass

BT-14

NBT088

Hold door glass with both hands. While raising rear end of door
glass, remove door glass from sash and away from outside the
door.

NBT089

Disconnect regulator assembly connector.

Remove bolts securing regulator assembly and guide rail, then
remove regulator assembly and guide rail.

NBT090

Inspection

NLBT0007S0101

Check regulator assembly for the following parts. Replace faulty
parts with new ones.

Wire for wear

Regulator for deformation

Sliding parts for lubrication

Front Door Limit Switch Reset (Driver side
only)

NLBT0008

RESET CONDITIONS

NLBT0008S01

After each of the following operations are performed, reset the limit
switch (with built-in motor).

Regulator removal and installation

Removal of motor from regulator

Operation of regulator as a single unit

Door glass removal and installation

Glass run removal and installation

NBT135

RESET PROCEDURES

NLBT0008S02

After installing parts, proceed as follows:
1.

Close the door window completely.

Press the reset switch and open the door window completely.

Release the reset switch. After making sure the reset switch
has returned to the original position, close the door window
completely.

The limit switch is now reset.

CAUTION:

Be sure to manually open or close the door window. (Do not
use the automatic open-close procedures.)

DOOR

Front Door Glass (Cont’d)

BT-15

Rear Door Glass

NLBT0009

Make sure that door glass is positioned in glass run groove.

Make sure that there is no abnormality when door glass is
raised or lowered.

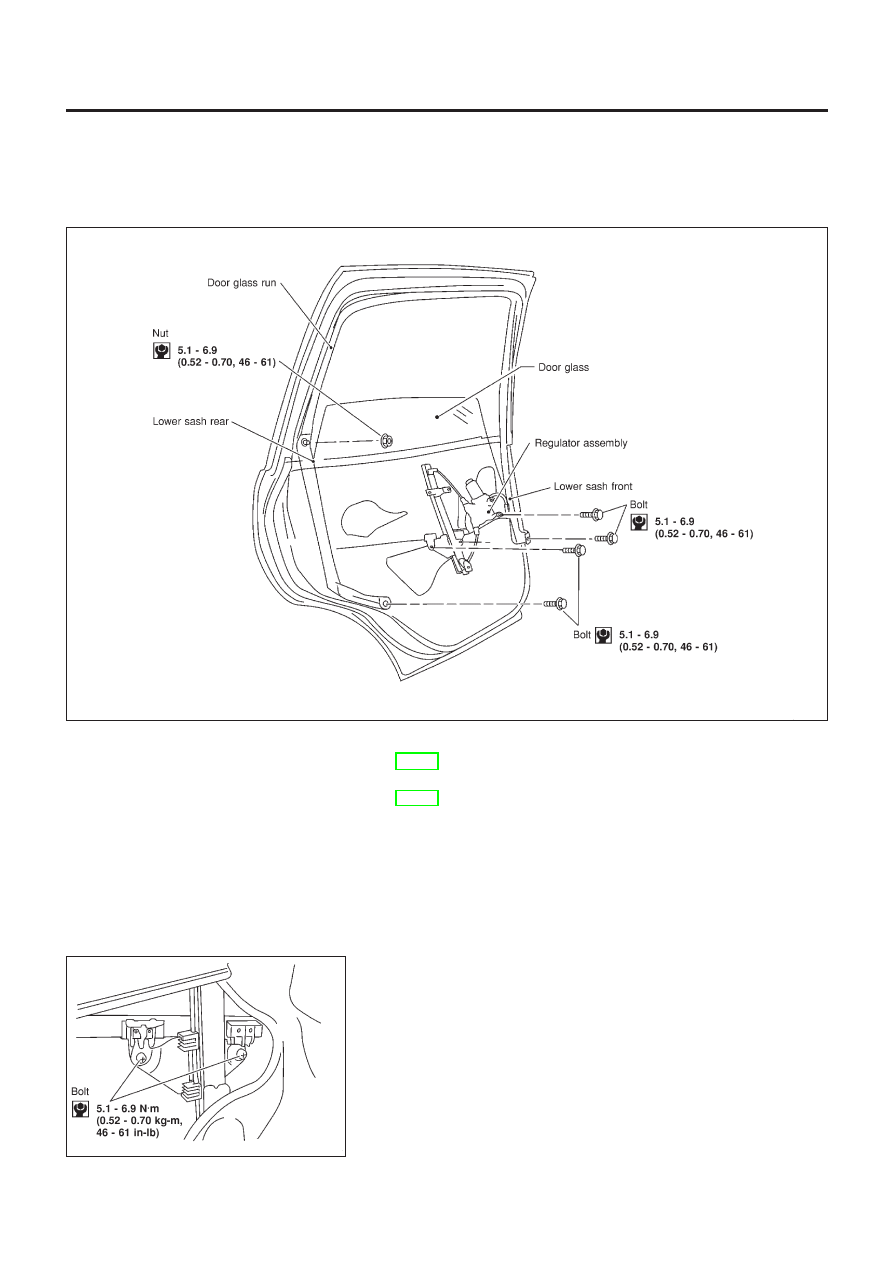

REAR DOOR GLASS AND REGULATOR

NLBT0009S01

NBT092

For removal of rear door finisher, refer to “DOOR TRIM”,
BT-32.

For removal of door outside molding, refer to “EXTERIOR”,
BT-38.

Remove sealing screen.

NBT093

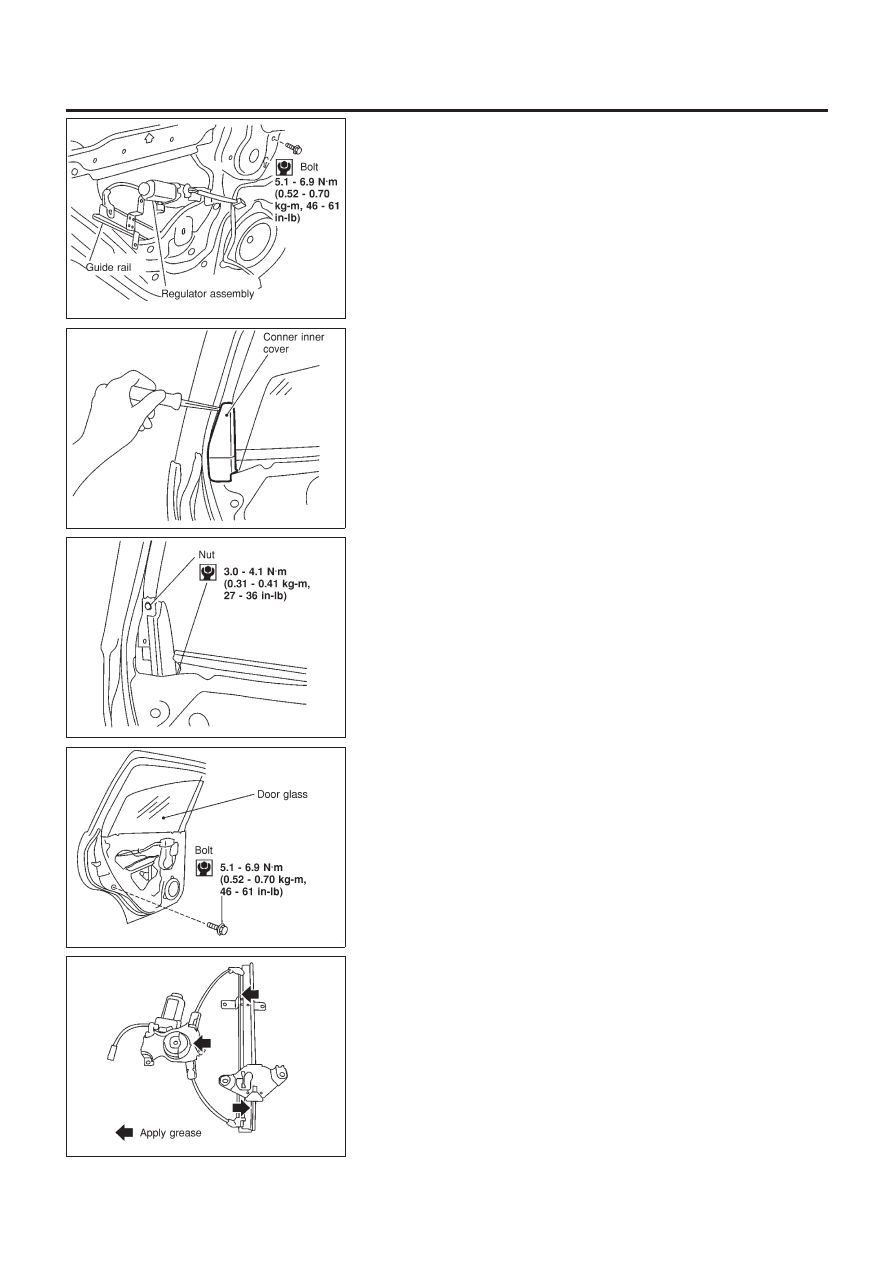

Remove bolts securing lower sash rear, then remove lower
sash rear.

Using power window main switch, raise or lower door glass
until carrier plate securing bolts are visible.

Remove bolts securing main channel.

DOOR

Rear Door Glass

BT-16

NBT094

Disconnect regulator assembly connector.

Remove bolts securing regulator assembly, then remove regu-
lator assembly.

NBT095

Remove corner inner cover.

NBT096

Remove nut securing lower sash rear.

NBT097

Remove bolt securing under of lower sash rear.

Remove door glass from glass run and away from outside the
door.

NBT136

Inspection

NLBT0009S0101

Check regulator assembly for the following parts. Replace faulty
parts with new ones.

Wire for wear

Regulator for deformation

Sliding parts for lubrication

DOOR

Rear Door Glass (Cont’d)

BT-17

Front Door Lock

NLBT0010

NBT098

For removal of front door finisher, refer to “DOOR TRIM”,
BT-32.

Remove sealing screen.

SBT978

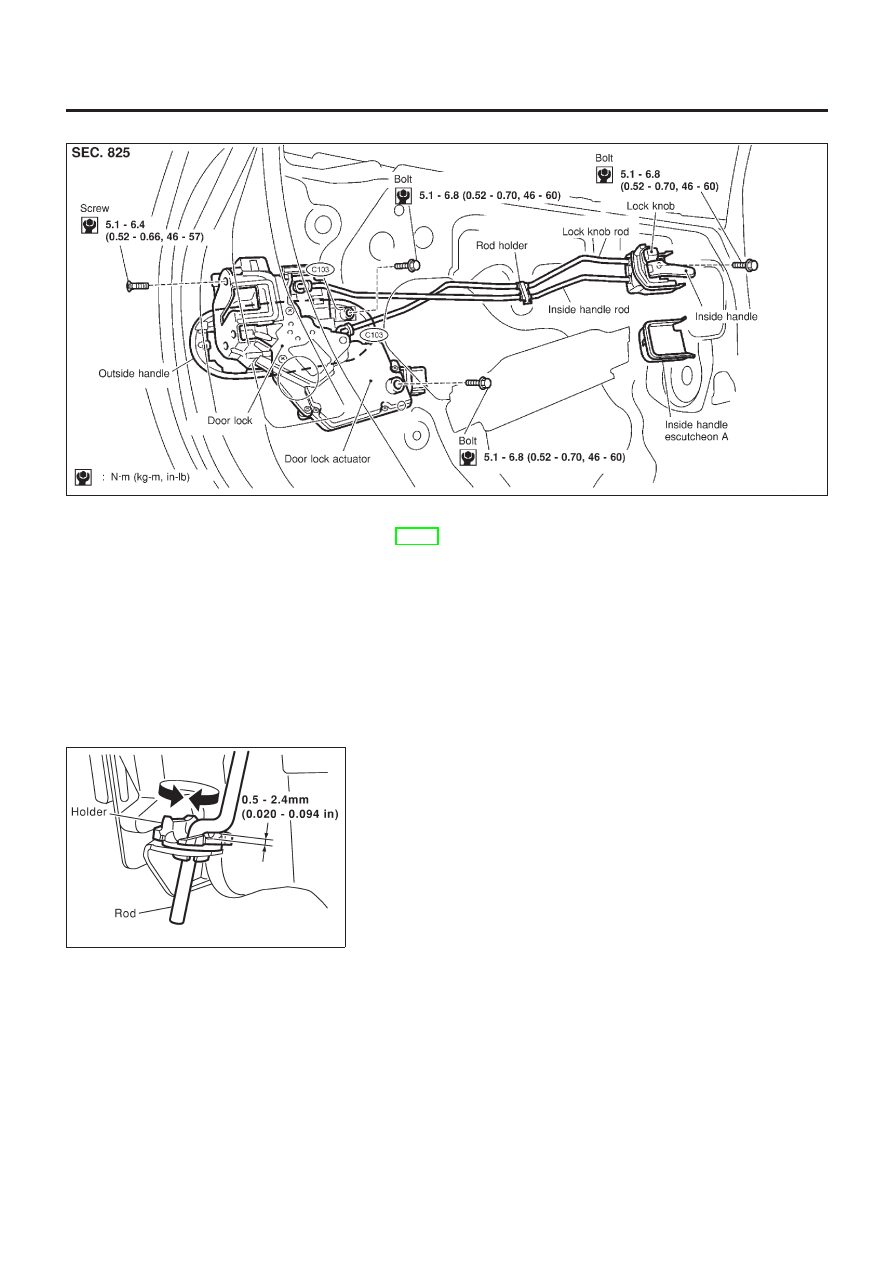

OUTSIDE HANDLE ROD ADJUSTMENT

NLBT0010S02

Rotate rod holder so that rod-to-holder clearance is adjusted as
shown in the figure at left.

CAUTION:

Make sure that rod-to-holder clearance is not “0” mm (0 in),
and that rod is not held pressed.

NBT099

REMOVAL

NLBT0010S03

For removal of front door finisher, refer to “DOOR TRIM”,
BT-32.

Remove sealing screen.

For removal of front door glass, refer to “Front Door Glass”,
BT-14.

Remove lower rear sash (unitized with glass run) securing
bolts. Remove lower rear sash from door panel and away from
door lock.

DOOR

Front Door Lock

BT-18

NBT100

Remove inside handle escutcheon A.

Remove screw securing inside handle.

Detach bell crank at lock knob joining area.

Detach inside handle rod on the door lock assembly side.

Slide inside handle backward and remove inside handle.

Remove rod from inside handle.

NBT101

Detach key lock rod and outside handle rod at joining area (on
the outside handle side).

Disconnect door lock actuator connector.

10. Remove screws securing door lock assembly, then remove

door lock assembly.

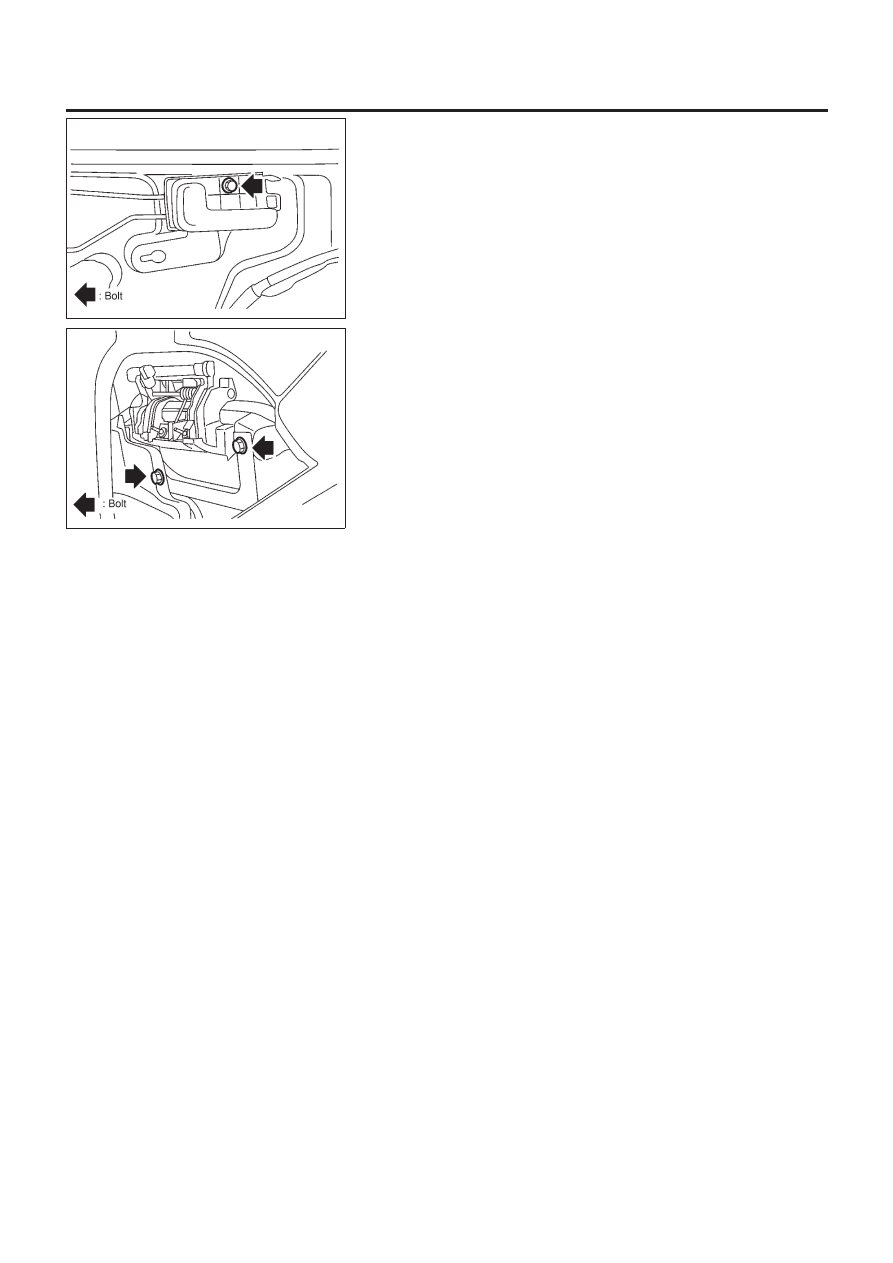

11. Remove bolts securing outside handle, then remove outside

handle assembly.

DOOR

Front Door Lock (Cont’d)

BT-19

Rear Door Lock

=NLBT0011

NBT102

For removal of rear door finisher, refer to “DOOR TRIM”,
BT-32.

Remove sealing screen.

SBT978

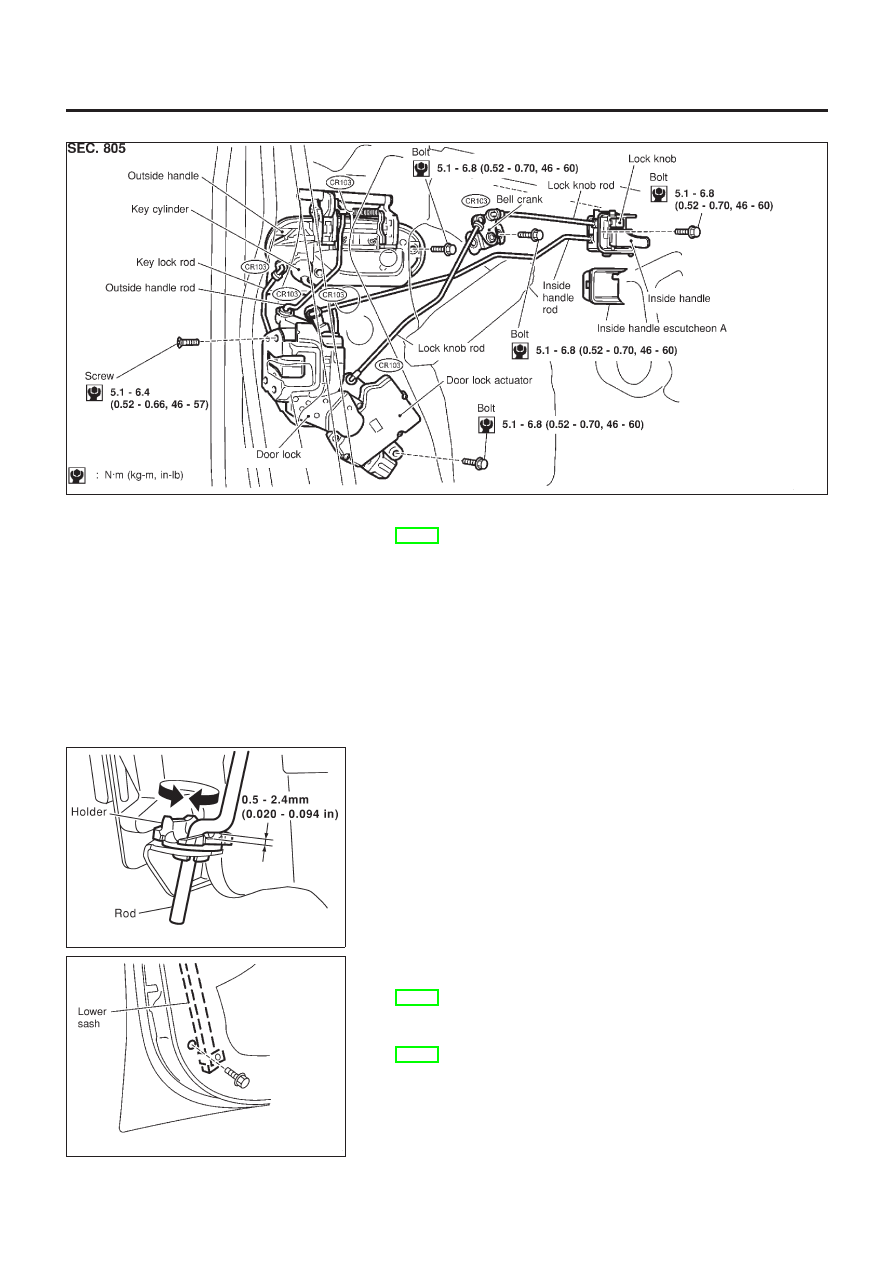

OUTSIDE HANDLE ROD ADJUSTMENT

NLBT0011S01

Rotate rod holder so that rod-to-holder clearance is adjusted as
shown in the figure at left.

CAUTION:

Make sure that rod-to-holder clearance is not “0” mm (0 in),
and that rod is not held pressed.

DOOR

Rear Door Lock

BT-20

SBT983

REMOVAL

=NLBT0011S02

For removal of rear door finisher, refer to “DOOR TRIM”,
BT-32.

Remove sealing screen.

Set the door glass in the full-close position.

Remove inside handle escutcheon A.

Remove screw securing inside handle.

Detach inside handle rod on the door lock assembly side.

NBT103

Detach lock knob rod (on the door lock assembly side).

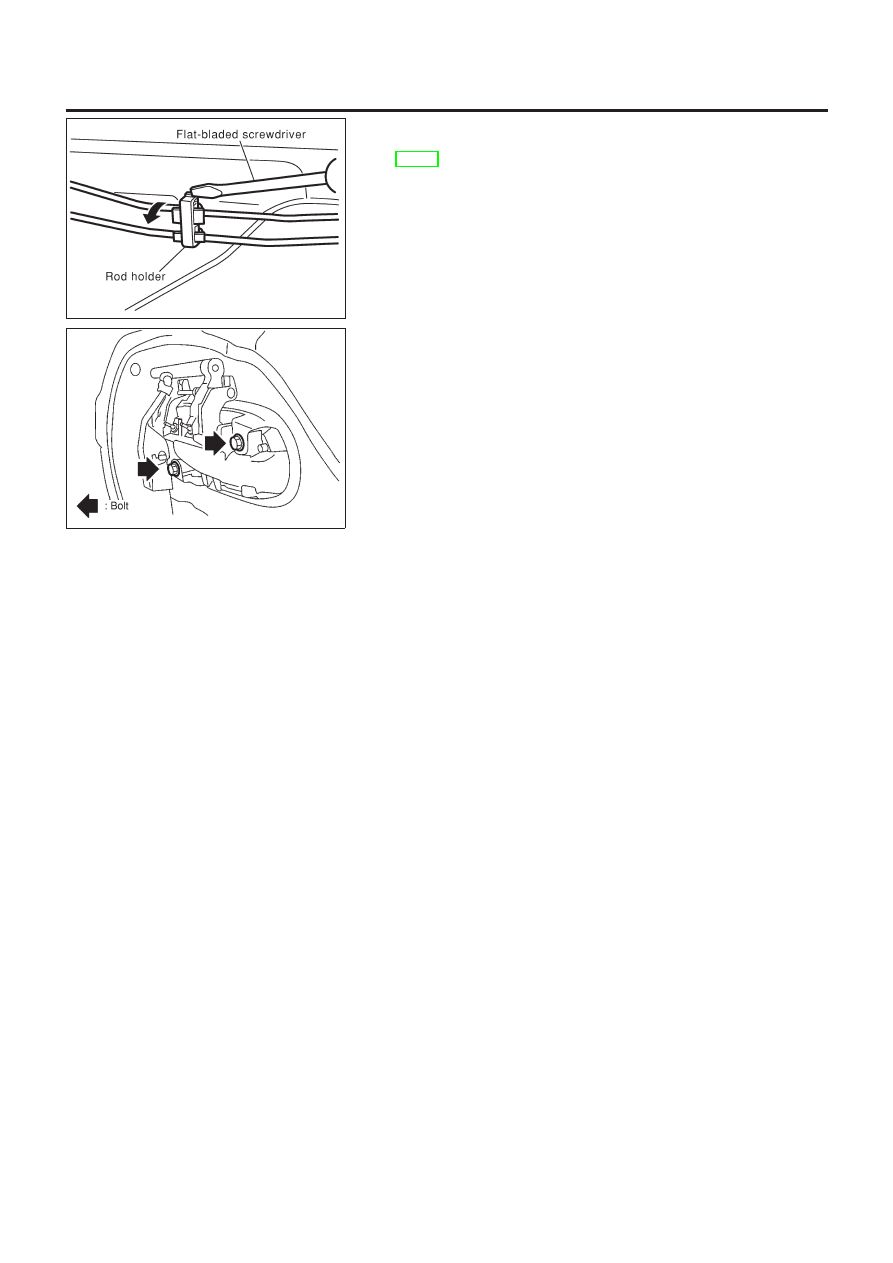

Using a flat-bladed screwdriver, expand rod holder. Remove
rod from rod holder.

Slide inside handle backward and remove inside handle.

Remove rod from inside handle.

Disconnect door lock actuator connector.

Remove screws securing door lock assembly, then remove
door lock assembly.

10. Remove bolts securing outside handle, then remove outside

handle.

DOOR

Rear Door Lock (Cont’d)

BT-21

Removal and Installation

NLBT0012

CAUTION:

Disconnect ground terminal from battery in advance.

Disconnect air bag system line in advance.

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

Be careful not to scratch pad and other parts.

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

BT-22
