Nissan Almera Tino V10 (2001 year). Manual - part 2

SFA800

Transaxle side (T83, T86C & GI2300I)

NLAX0019S05

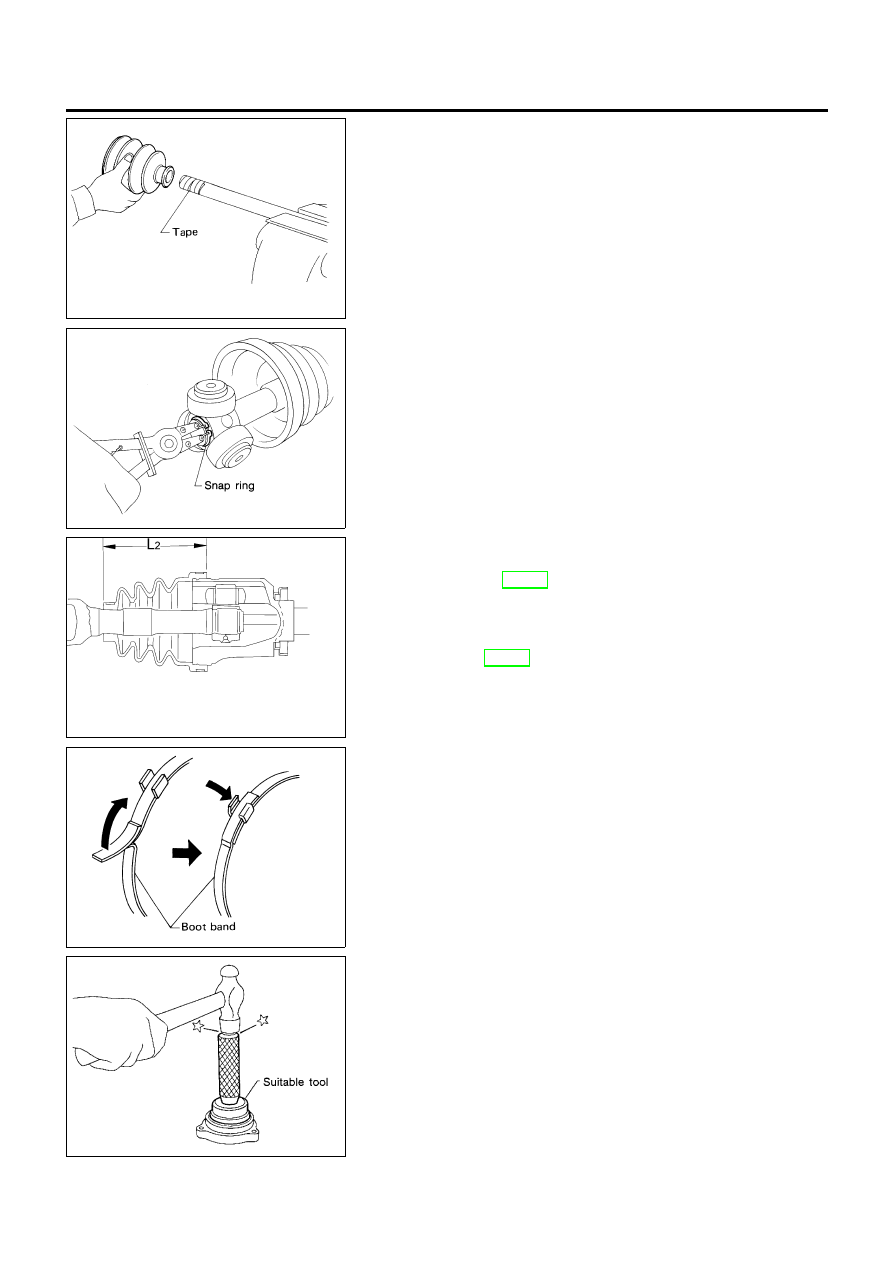

Install boot and new small boot band on drive shaft.

Cover drive shaft serration with tape so as not to damage boot
during installation.

SFA612

Install spider assembly securely, making sure the marks which
were made during disassembly are properly aligned.

Install new snap ring.

NAX005

Pack drive shaft with specified amount of grease.

Specified amount of grease:

Refer to AX-19, SDS

Install slide joint housing.

Set boot so that it does not swell and deform when its lenght
is “L

”:

Refer to AX-19, SDS

SFA395

Make sure that the boot is properly installed on the drive shaft
groove.
7.

Lock new larger and smaller boot bands securely with a suit-
able tool.

SFA618

Support Bearing

NLAX0019S04

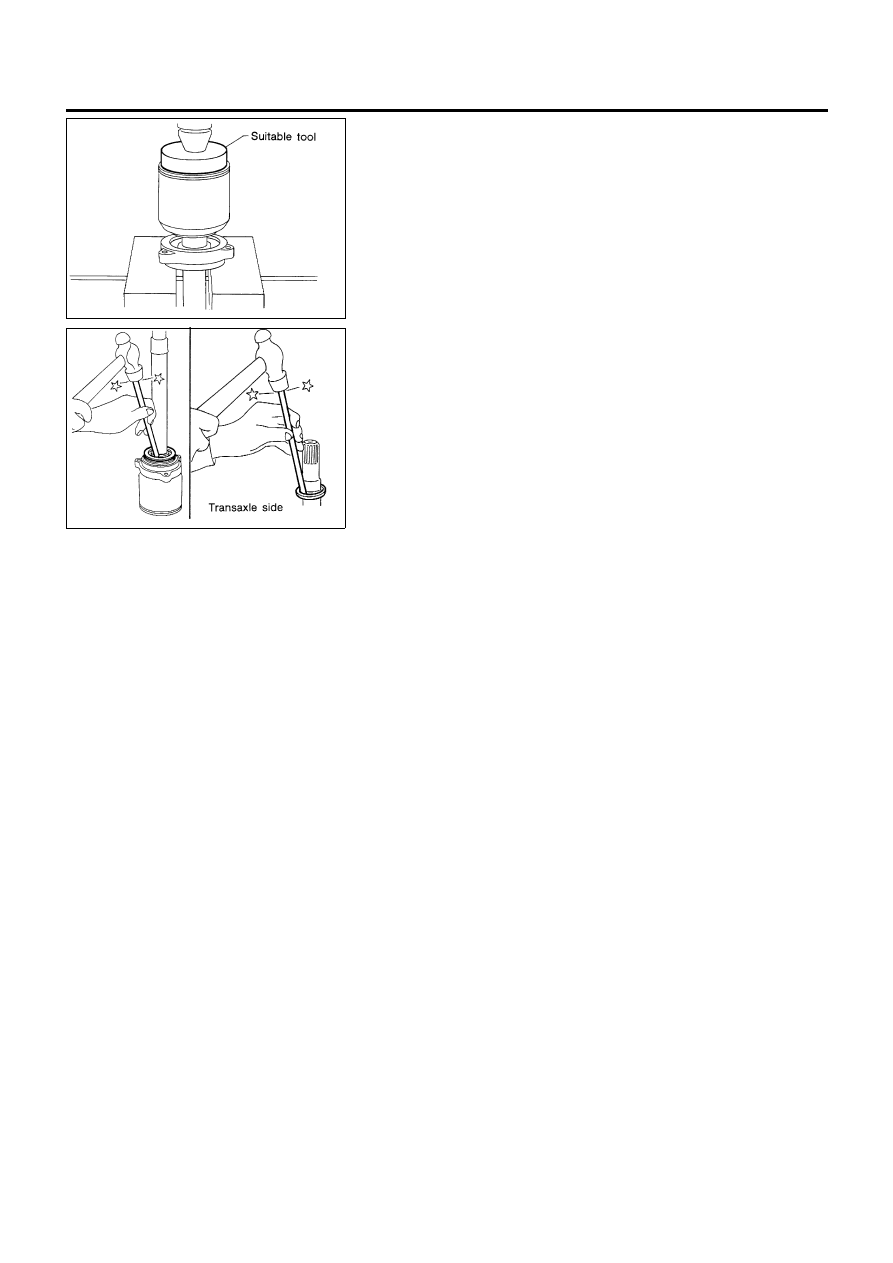

Press bearing into retainer.

FRONT AXLE

Drive Shaft (Cont’d)

AX-17

SFA694

Press drive shaft into bearing.

SFA444B

Install snap ring.

Install new dust shield.

FRONT AXLE

Drive Shaft (Cont’d)

AX-18

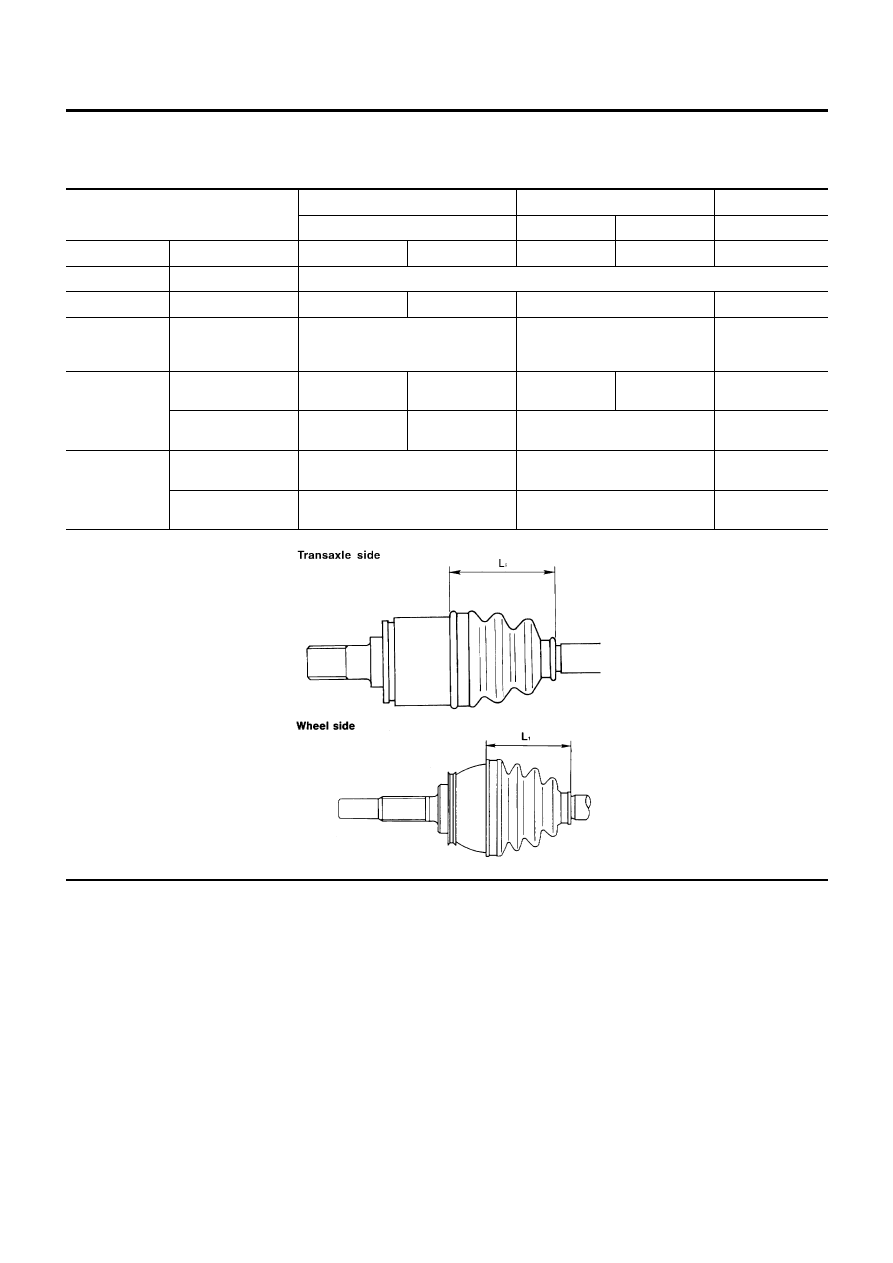

Service Data and Specifications (SDS)

DRIVE SHAFT

=NLAX0020

NLAX0020S02

Joint type

Transaxle side

T83

GI2300I

D90

T86C

D90

Grease

Quality

39709-55E00

Joint type

Wheel side

B83

AC2300I

Z100

B90

Grease

Quality

Nissan genuine grease or equivalent

39209-01A00

Nissan genuine

grease or equiva-

lent

Grease
Capacity
g (oz)

Transaxle side

125 - 145

(4.41 - 5.11)

125.5 - 135.5

(4.42 - 4.77)

165 - 175

(5.82 - 6.17)

145 - 155

(5.11 - 5.47)

145 - 165

(5.11 - 5.82)

Wheel side

80 - 100

(2.82 - 3.53)

40 - 50

(1.41 - 1.76)

Cannot be disassembled *2

120 - 140

(4.41 - 4.94)

Boot length
mm (in)

Transaxle side “L

”

98 - 100

(3.86 - 3.94)*1

97 - 99 (3.82 - 3.90)*1

98 (3.86) *1

Wheel side “L

”

94 - 96

(3.70 - 3.78)*1

Cannot be disassembled *2

110 (4.33)

SFA961AA

SFA962A

*1: Fit boot to boot groove in bar shaft
*2: Z100 type joint assembly cannot be disassembled because a plastic boot and special boot band are used. Do not use other drive
shaft boots. If the boot or joint is damaged, replace the drive shaft assembly.

FRONT AXLE

Service Data and Specifications (SDS)

AX-19

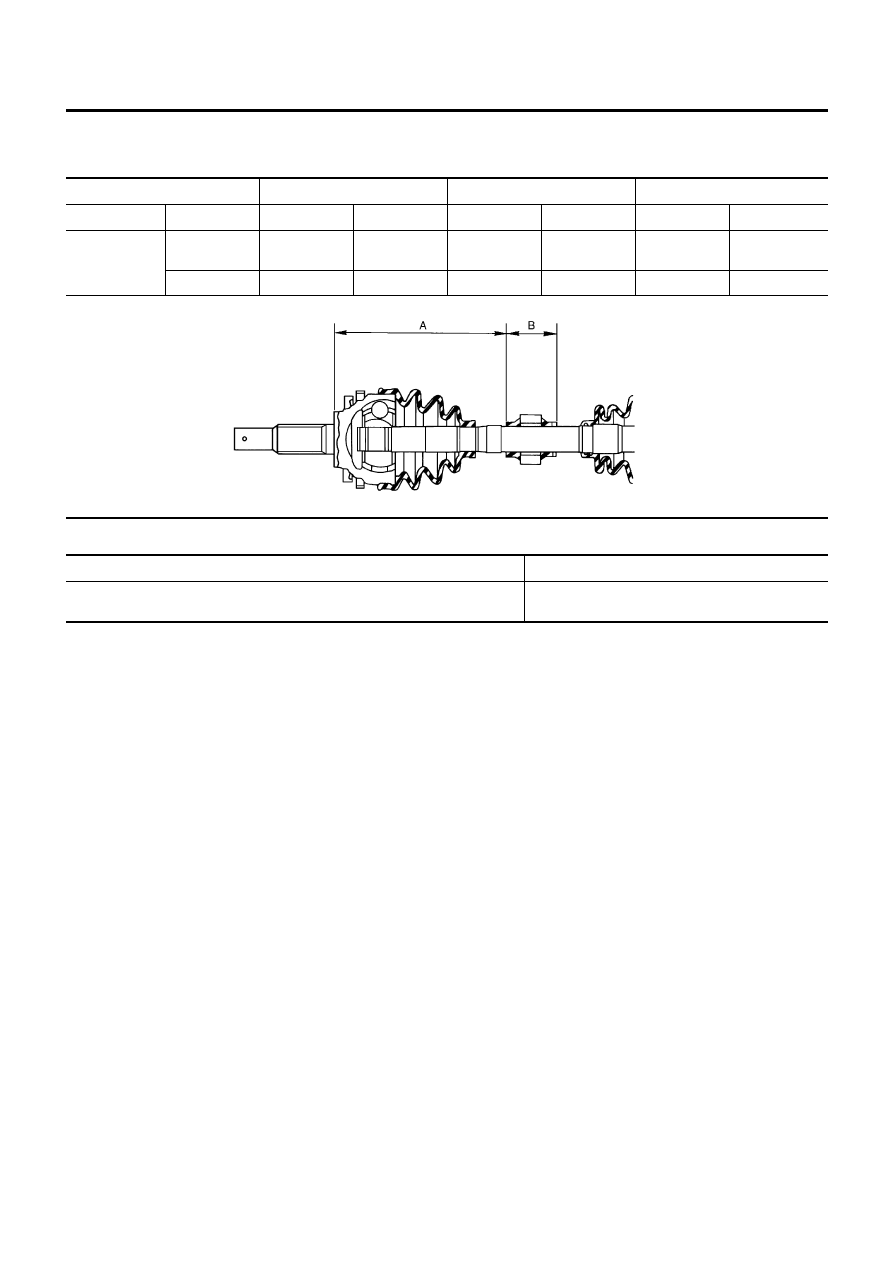

DYNAMIC DAMPER (WHERE FITTED)

=NLAX0033

NLAX0033S01

Unit: mm (in)

Distance

“A”

178 - 184

(7.01 - 7.24)

375 - 381

(14.76 - 15.00)

172 - 178

(6.77 - 7.01)

190 -196

(7.48 - 7.72)

205 -215

(8.07 - 8.46)

205 - 215

(8.07 - 8.46)

“B”

70 (2.76)

64 (2.52)

70 (2.76)

SAX015

WHEEL BEARING (FRONT)

NLAX0021

Wheel bearing axial end play limit

mm (in)

0.05 (0.0020)

Wheel bearing lock nut tightening torque
N·m (kg-m, ft-lb)

255 - 333 (26 - 34, 188 - 245)

FRONT AXLE

Service Data and Specifications (SDS) (Cont’d)

AX-20

SBR686C

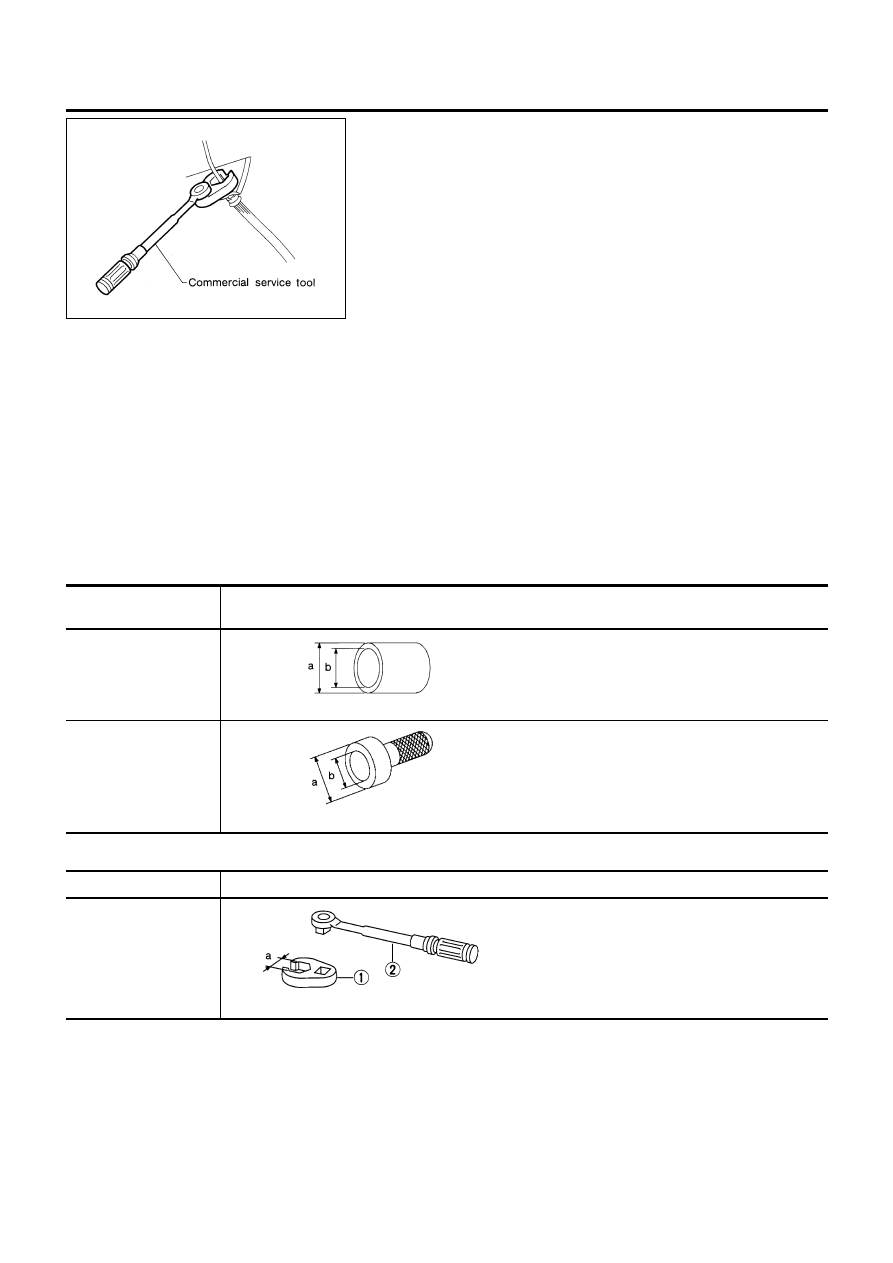

Precautions

PRECAUTIONS

NLAX0022

When installing each rubber part, final tightening must be
carried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

Use flare nut wrench when removing or installing brake
tubes.

After installing removed suspension parts, check wheel
alignment.

Do not jack up at the trailing arm and lateral link.

Always torque brake lines when installing.

Preparation

SPECIAL SERVICE TOOLS

NLAX0032

Tool number
Tool name

Description

KV40104710
Drift

NT474

Install ABS sensor rotor
a: 76.3 mm (3.004 in) dia.
b: 67.9 mm (2.673 in) dia.

ST3072000
Drift

NT115

Install ABS sensor rotor
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

COMMERCIAL SERVICE TOOLS

NLAX0024

Tool name

Description

1 Flare nut crowfoot
2 Torque wrench

NT360

Removing and installing brake piping
a: 10 mm (0.39 in)

REAR AXLE

Precautions

AX-21

Noise, Vibration and Harshness (NVH)
Troubleshooting

NLAX0025

Refer to “Noise, Vibration and Harshness (NVH) Troubleshooting”,
“FRONT AXLE”, AX-3.

SMA525A

On-vehicle Service

REAR AXLE PARTS

NLAX0026

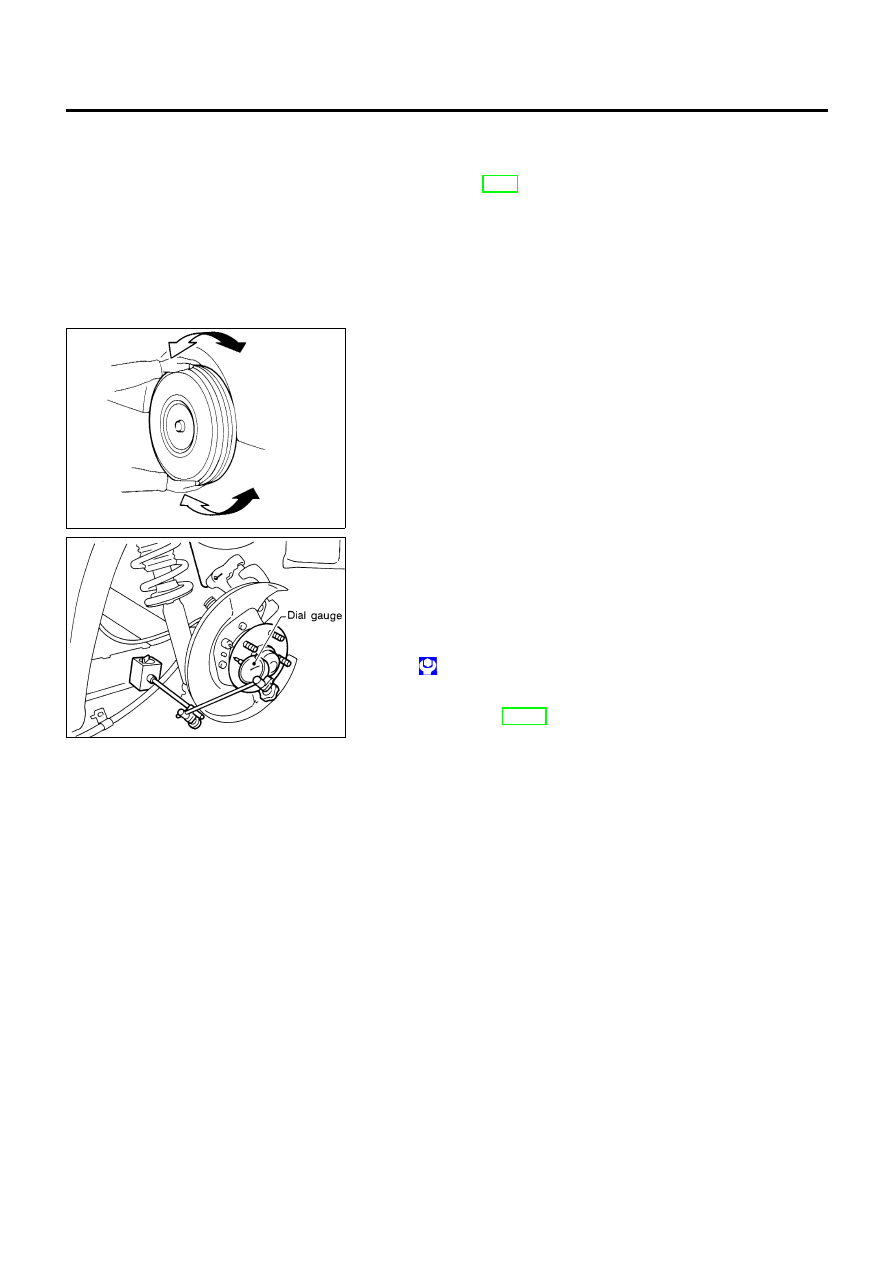

Check axle and suspension parts for excessive play, wear or dam-
age.

Shake each rear wheel to check for excessive play.

SRA690A

REAR WHEEL BEARING

NLAX0027

Check axial end play.

Axial end play:

0.05 mm (0.0020 in)

Check that wheel hub bearings operate smoothly.

Check tightening torque of wheel bearing lock nut.

: 187 - 254 N·m (19 - 26 kg-m, 138 - 188 ft-lb)

Replace wheel bearing assembly if there is axial end play or
wheel bearing does not turn smoothly. Refer to “Wheel Hub”,
“REAR AXLE”, AX-23.

REAR AXLE

Noise, Vibration and Harshness (NVH) Troubleshooting

AX-22

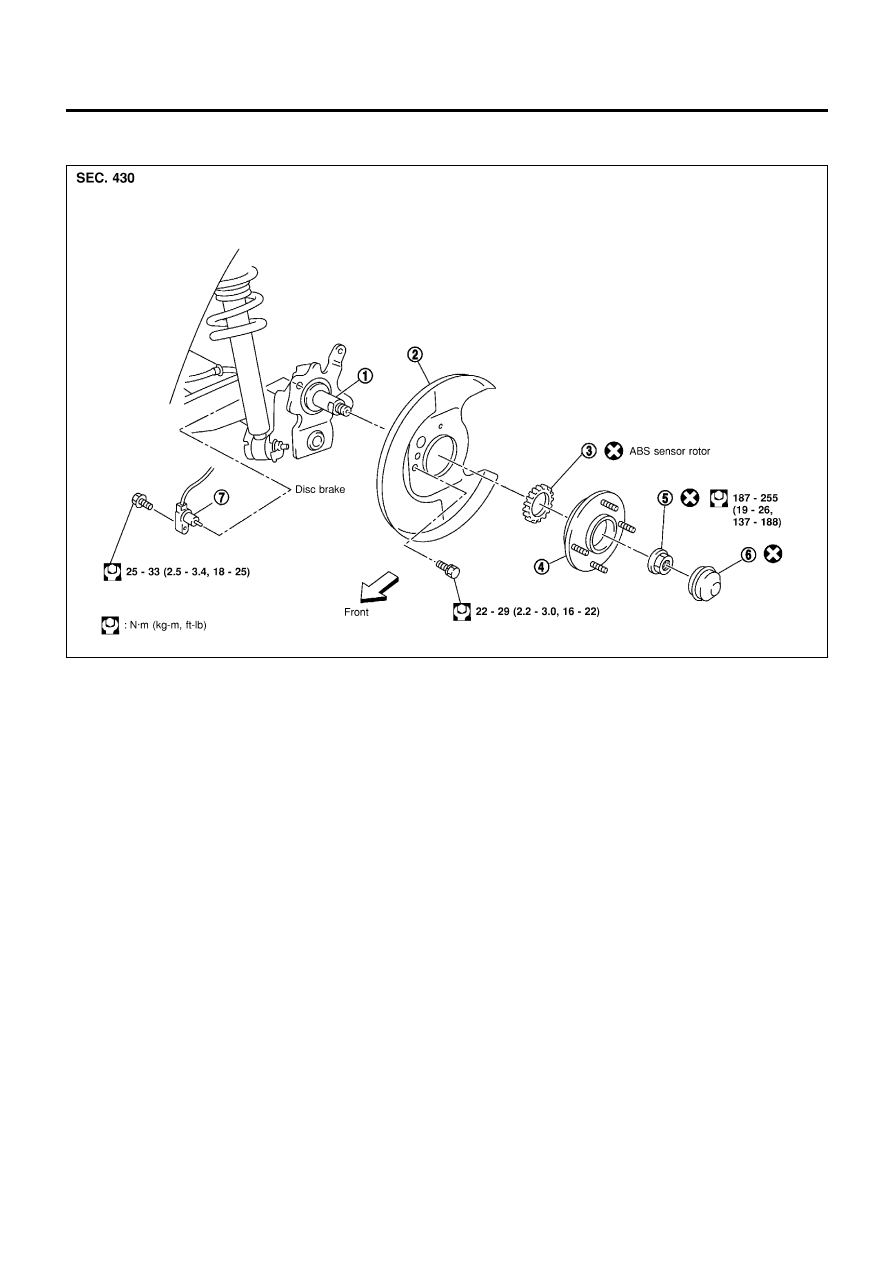

Wheel Hub

COMPONENTS

NLAX0028

NAX001

Spindle

Baffle plate

ABS sensor rotor

Wheel hub bearing

Wheel bearing lock nut

Hub cap

ABS sensor

REMOVAL

NLAX0029

CAUTION:

Before removing the rear wheel hub assembly, disconnect
the ABS wheel sensor from the assembly. Then move it
away from the hub assembly. Failure to do so may result
in damage to the sensor wires and the sensor becoming
inoperative.

Wheel hub bearing does not require maintenance. If any of
the following symptoms are noted, replace wheel hub
bearing assembly.

Growling noise is emitted from wheel hub bearing dur-
ing operation.

Wheel hub bearing drags or turns roughly. This occurs
when turning hub by hand after bearing lock nut is tight-
ened to specified torque.

REAR AXLE

Wheel Hub

AX-23

SRA711A

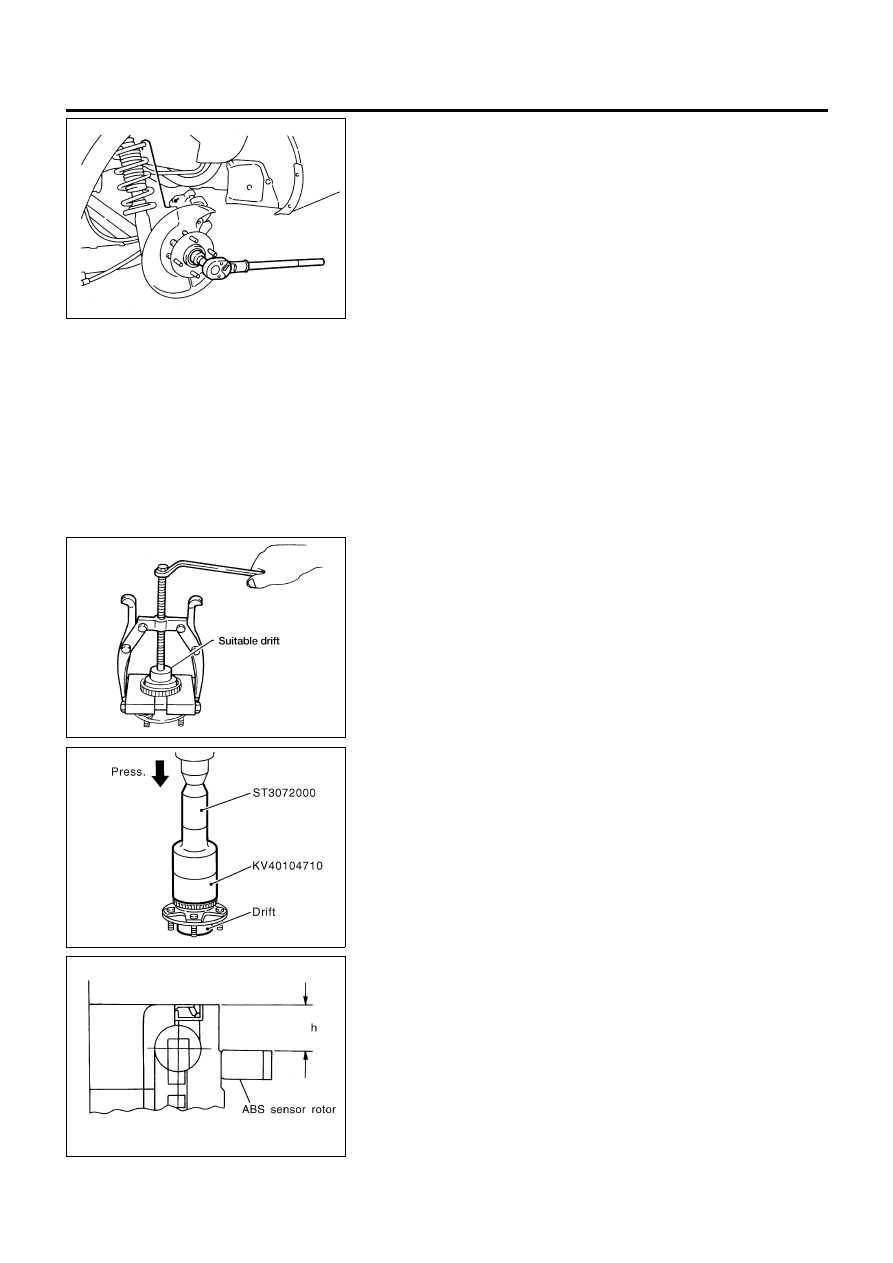

Remove brake caliper assembly.

Remove wheel bearing lock nut.

Remove brake rotor (models with disk brake) or brake drum
(models with drum brakes).

Remove wheel hub bearing from spindle.

CAUTION:

Do not disconnect brake hose from caliper.

Suspend caliper assembly with wire so as not to stretch
brake hose.

Be careful not to depress brake pedal, or piston will pop
out.
Make sure brake hose is not twisted.

ARA082

Remove the sensor rotor using suitable puller, drift and bea
ring replacer.

SAX014

INSTALLATION

NLAX0030

With vehicles equipped with ABS, press-fit ABS sensor rotor
into wheel hub bearing using a drift.
Do not reuse ABS sensor rotor. When installing, replace it
with a new one.

SRA734AB

Press-fit ABS sensor rotor as far as the location shown in fig-
ure at left.

Height “h”:

12.5 - 13.5 mm (0.492 - 0.531 in)

REAR AXLE

Wheel Hub (Cont’d)

AX-24

SRA712A

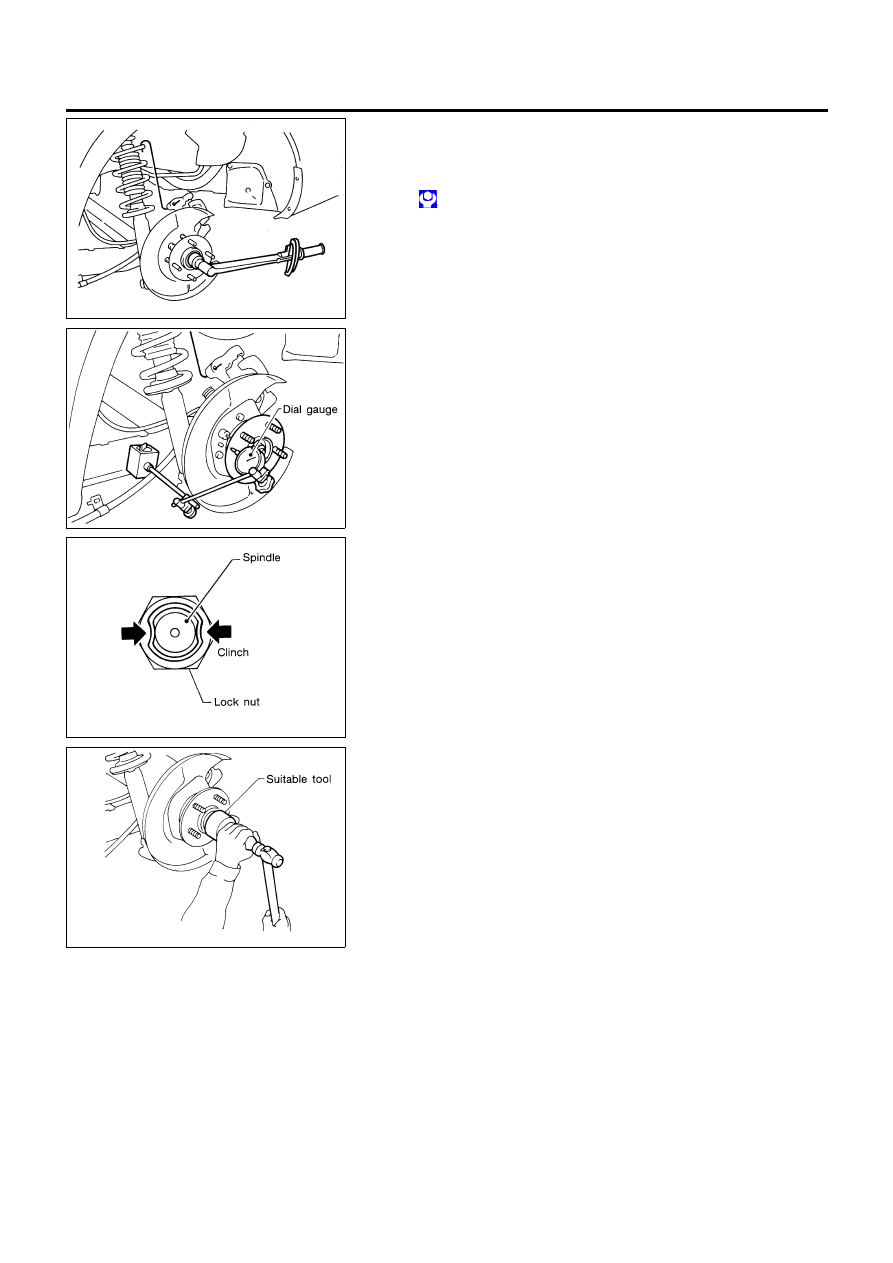

Install wheel hub bearing.

Tighten wheel bearing lock nut.
Before tightening, apply oil to threaded portion of rear spindle.
Do not reuse wheel bearing lock nut.

: 187 - 254 N·m (19 - 26 kg-m, 138 - 188 ft-lb)

Check that wheel bearings operate smoothly.

SRA737A

Check wheel hub bearing axial end play.

Axial end play:

0.05 mm (0.0020 in)

SFA599B

Clinch two places of lock nut.

SRA738A

Install hub cap using a suitable tool.
Do not reuse hub cap. When installing, replace it with a
new one.

REAR AXLE

Wheel Hub (Cont’d)

AX-25

Service Data and Specifications (SDS)

WHEEL BEARING (REAR)

=NLAX0031

Wheel bearing axial end play

mm (in)

0.05 (0.0020)

Wheel bearing lock nut tightening torque

N·m (kg-m, ft-lb)

187 - 254 (19 - 26, 138 - 188)

REAR AXLE

Service Data and Specifications (SDS)

AX-26
