AT-476

[ALL]

REPAIR FOR COMPONENT PARTS

INSPECTION

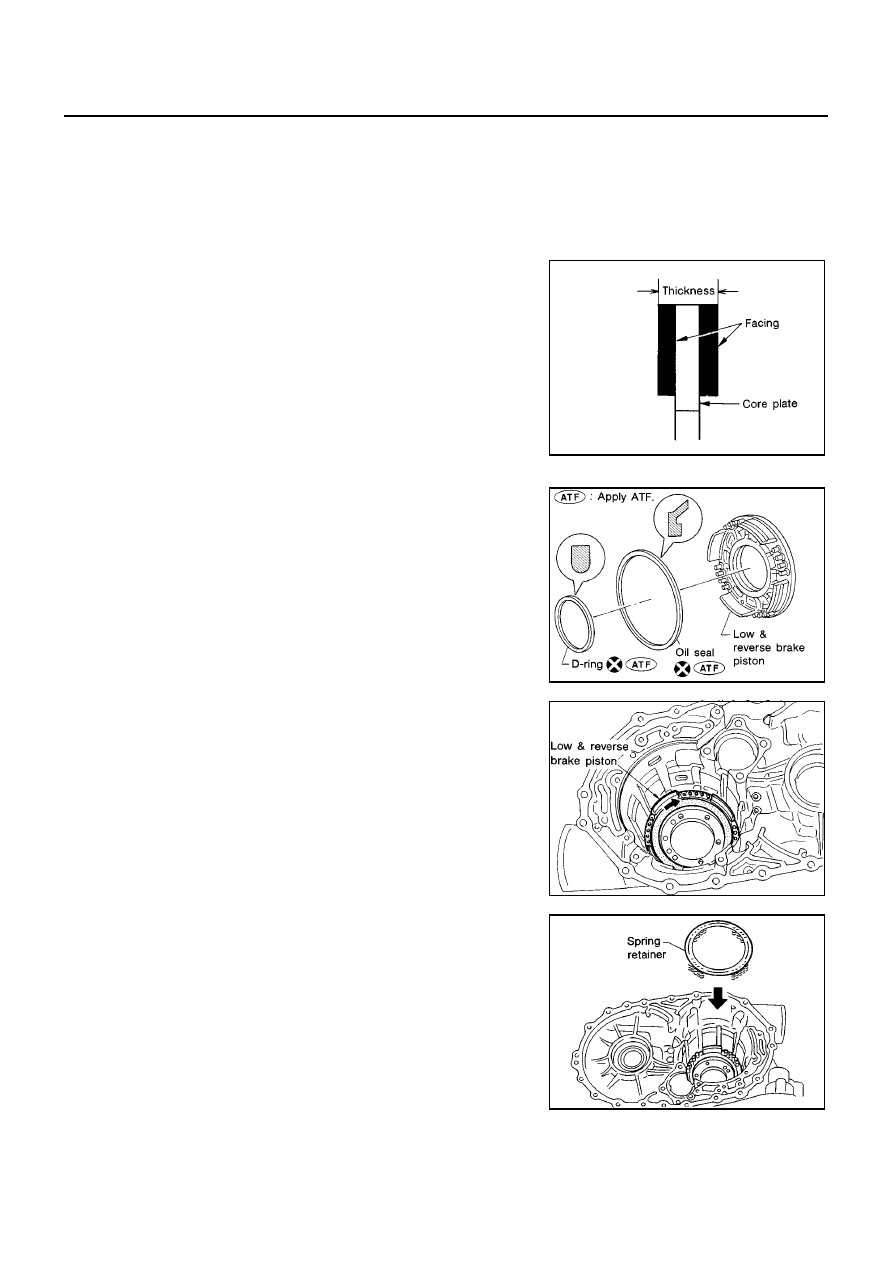

Low & Reverse Brake Snap Ring, Spring Retainer and Return Springs

Check for deformation, fatigue or damage.

If necessary, replace.

When replacing spring retainer and return springs, replace them as a set.

Low & Reverse Brake Drive Plate

Check facing for burns, cracks or damage.

Measure thickness of facing.

If not within wear limit, replace.

ASSEMBLY

1.

Install D-ring and oil seal on piston.

Take care with the direction of the oil seal.

Apply ATF to both parts.

2.

Stand transmission case.

3.

Install piston assembly on transmission case while turning it
slowly.

Apply ATF to inner surface of transmission case.

4.

Install return springs and spring retainer on piston.

Thickness of drive plate:

Standard value 2.0 mm (0.079 in)

Wear limit 1.8 mm (0.071 in)

SAT162D

SAT235DA

SAT239D

SAT241D

REPAIR FOR COMPONENT PARTS

AT-477

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

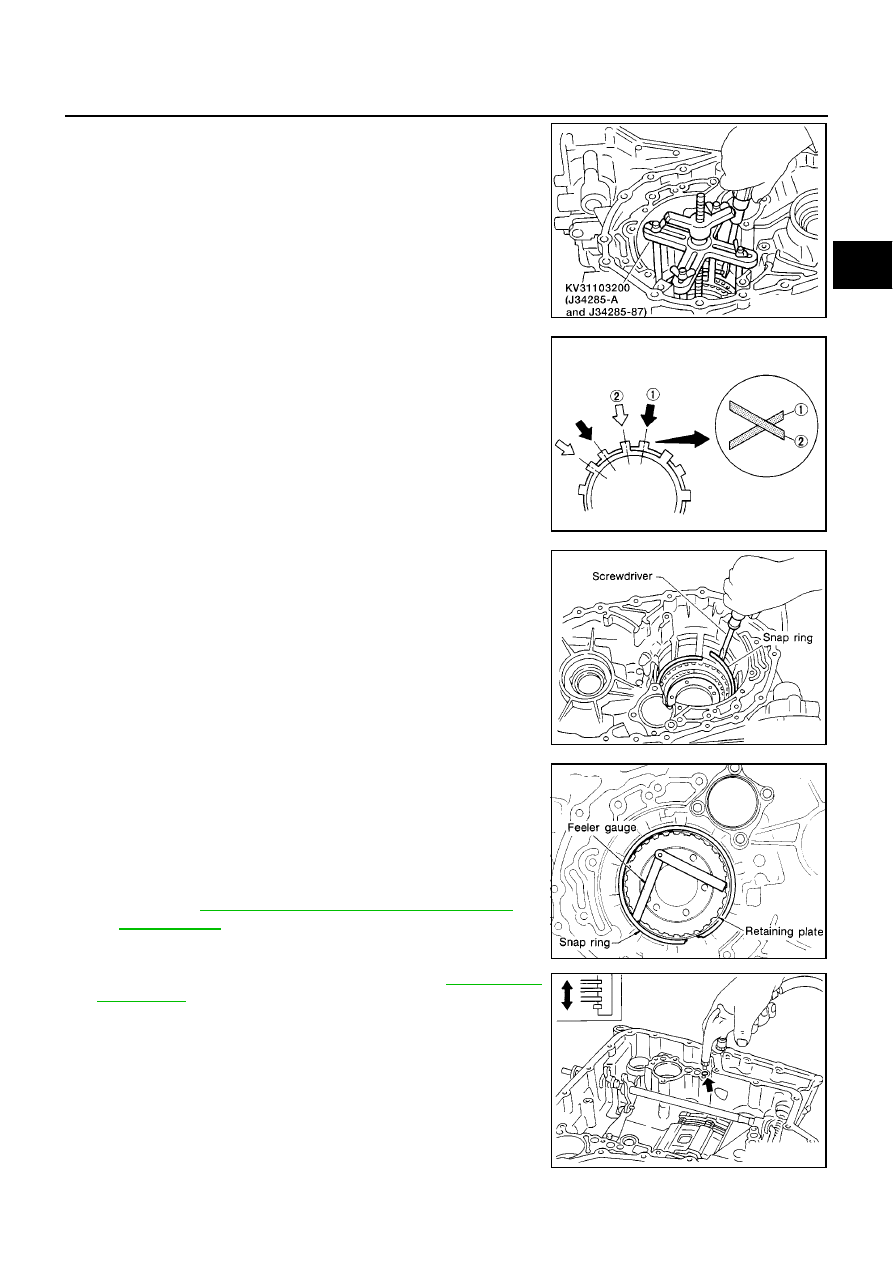

5.

Install snap ring while compressing return springs.

Set Tool directly above return springs.

6.

Install drive plates, driven plates, retaining plates and dished
plates.

Do not align the projections on the two dished plates.

Make sure to put the plates in the correct order and direc-
tion.

7.

Install snap ring.

8.

Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate (front side).

9.

Check operation of low & reverse brake. Refer to

AT-474, "DIS-

ASSEMBLY"

.

AAT687

SAT254E

SAT231D

Specified clearance:

Standard 1.4 - 1.8 mm (0.055 - 0.071 in)

Allowable limit 2.8 mm (0.110 in)

Retaining plate:

Refer to

AT-519, "SERVICE DATA AND SPECIFICA-

TIONS (SDS)"

.

SAT246D

SAT230D

AT-478

[ALL]

REPAIR FOR COMPONENT PARTS

Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub

ECS009CQ

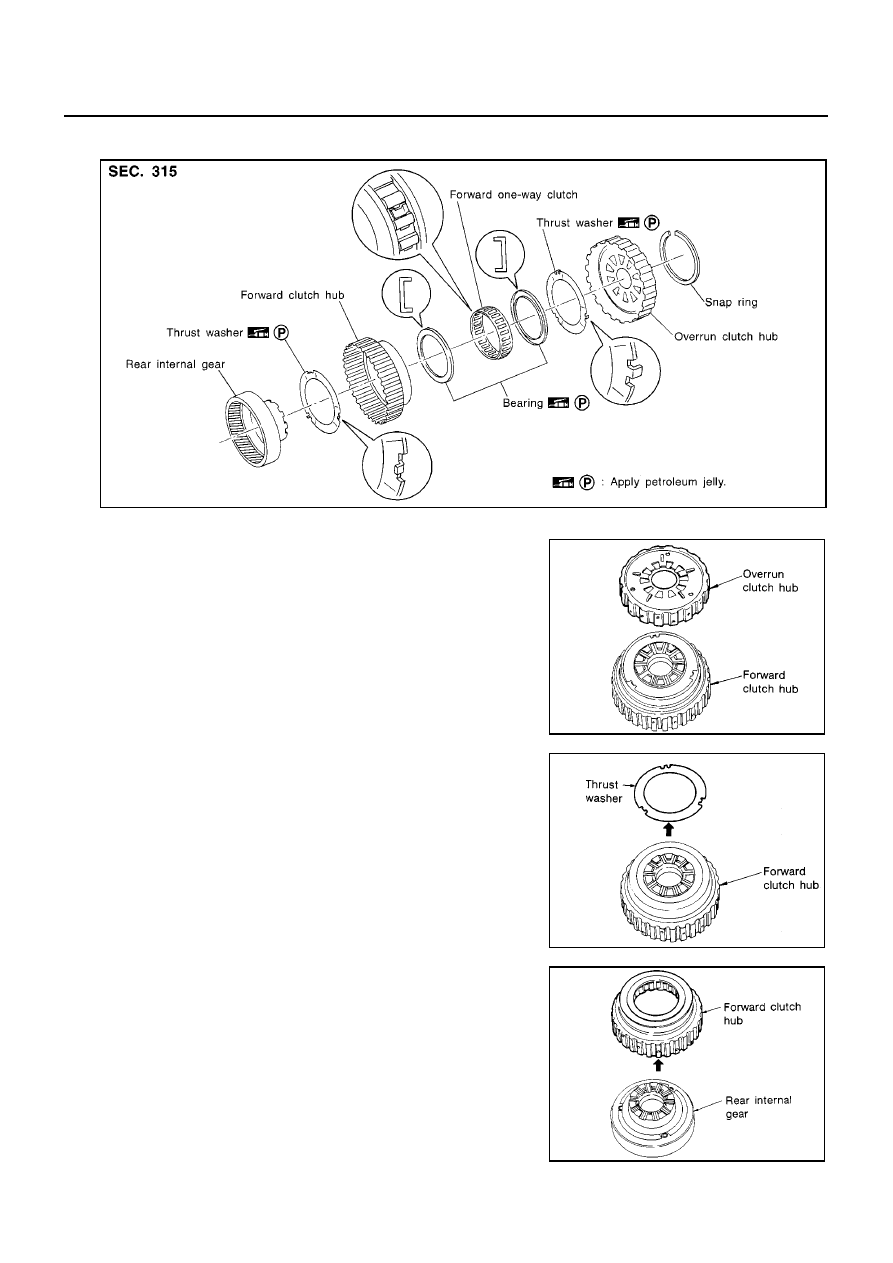

COMPONENTS

DISASSEMBLY

1.

Remove snap ring from overrun clutch hub.

2.

Remove overrun clutch hub from forward clutch hub.

3.

Remove thrust washer from forward clutch hub.

4.

Remove forward clutch hub from rear internal gear.

SAT875J

SAT249D

SAT250D

SAT251D

REPAIR FOR COMPONENT PARTS

AT-479

[ALL]

D

E

F

G

H

I

J

K

L

M

A

B

AT

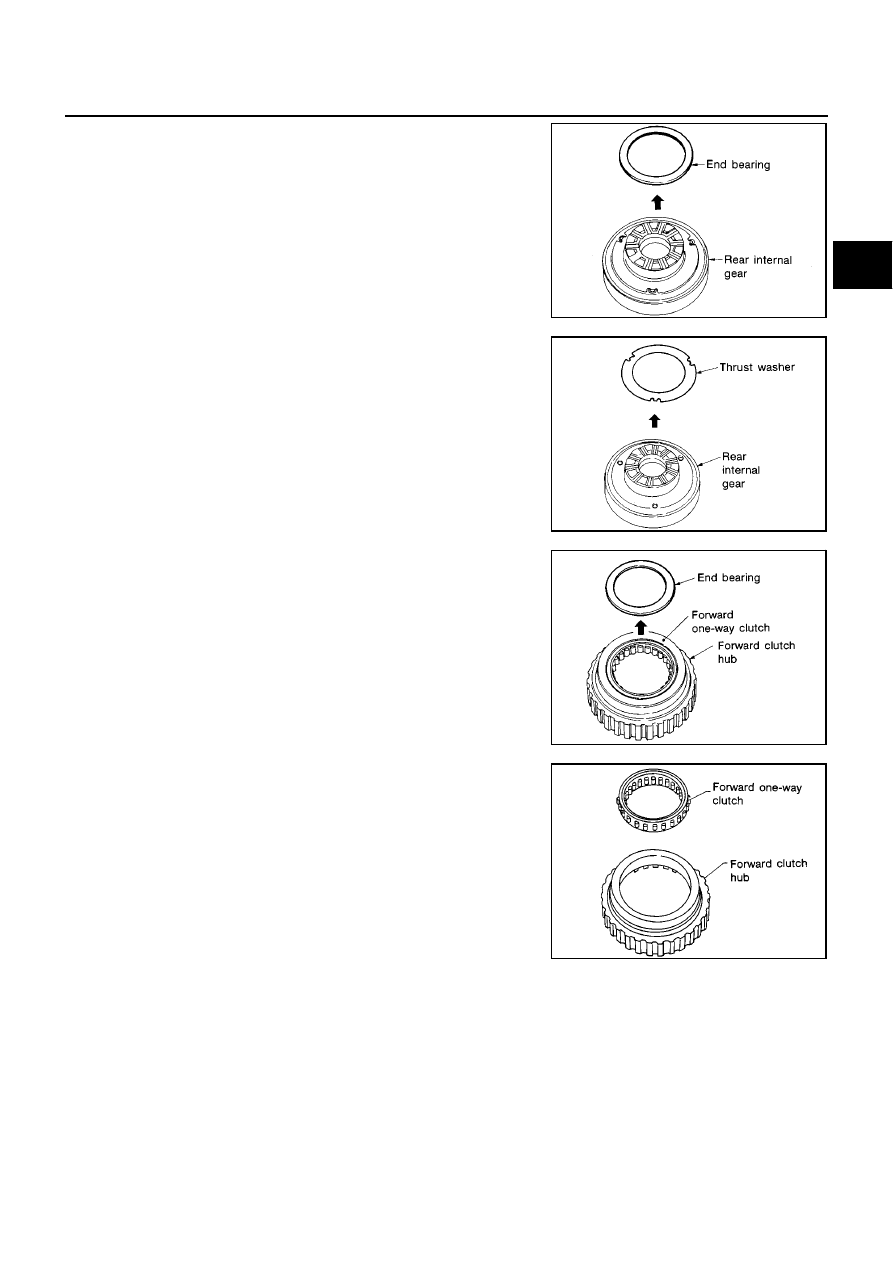

5.

Remove end bearing from rear internal gear.

6.

Remove thrust washer from rear internal gear.

7.

Remove end bearing from forward one-way clutch.

8.

Remove forward one-way clutch from forward clutch hub.

SAT252D

SAT253D

SAT254D

SAT255D
