FAX-6

< PERIODIC MAINTENANCE >

WHEEL HUB

PERIODIC MAINTENANCE

WHEEL HUB

On-Vehicle Inspection and Service

INFOID:0000000006246826

Make sure the mounting conditions (looseness, backlash) of each component and component status (wear,

damage) are normal.

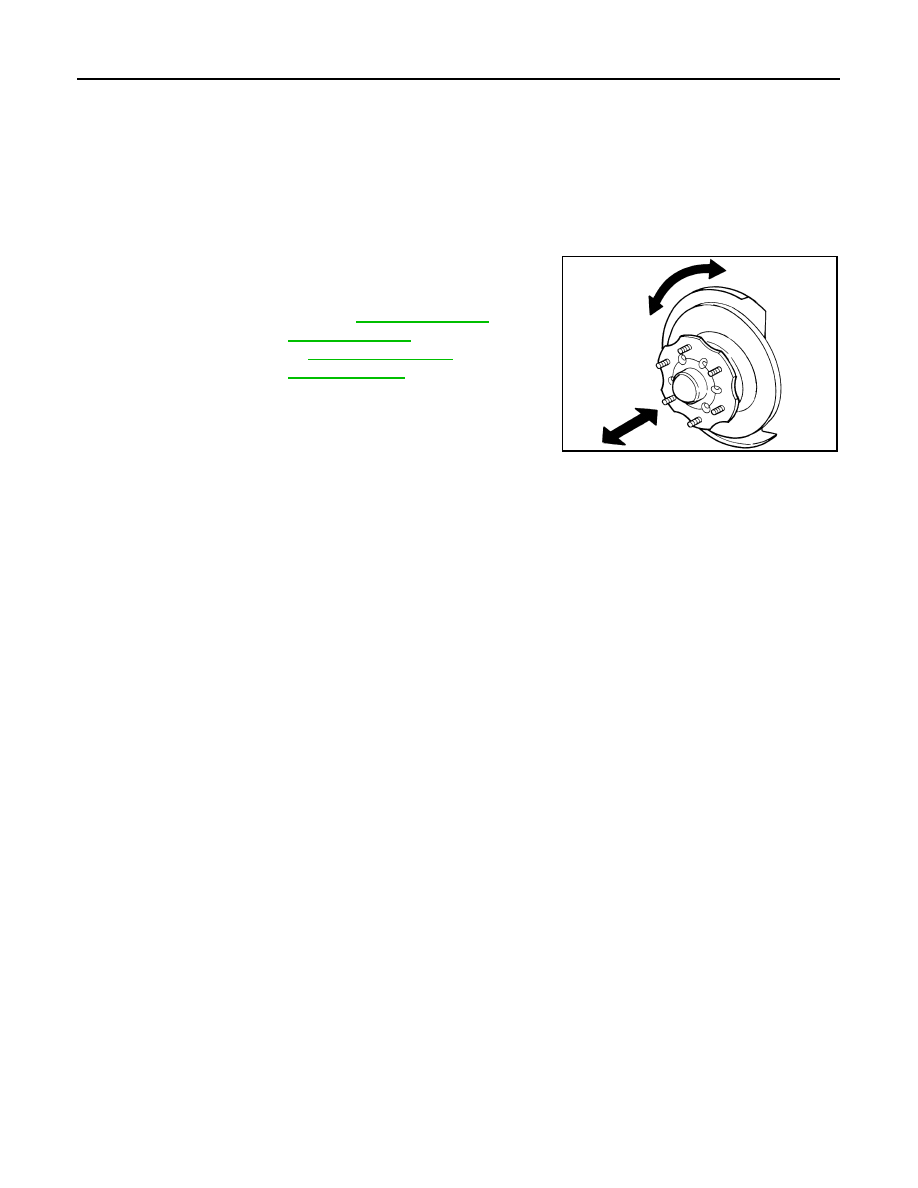

WHEEL BEARING INSPECTION

• Move wheel hub in the axial direction by hand. Make sure there is

no looseness of wheel bearing.

• Rotate wheel hub and make sure there is no unusual noise or

other irregular conditions. If there are any irregular conditions,

replace wheel hub and bearing assembly.

Axial end play limit  : Refer to

FAX-22, "VQ40DE

: Wheel Bearing"

 (VQ40DE)

or

FAX-22, "VK56DE :

Wheel Bearing"

 (VK56DE).

SMA571A

2011 Pathfinder

DRIVE SHAFT

FAX-7

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

UNIT REMOVAL AND INSTALLATION

DRIVE SHAFT

VQ40DE
VQ40DE : Removal and Installation

INFOID:0000000006246827

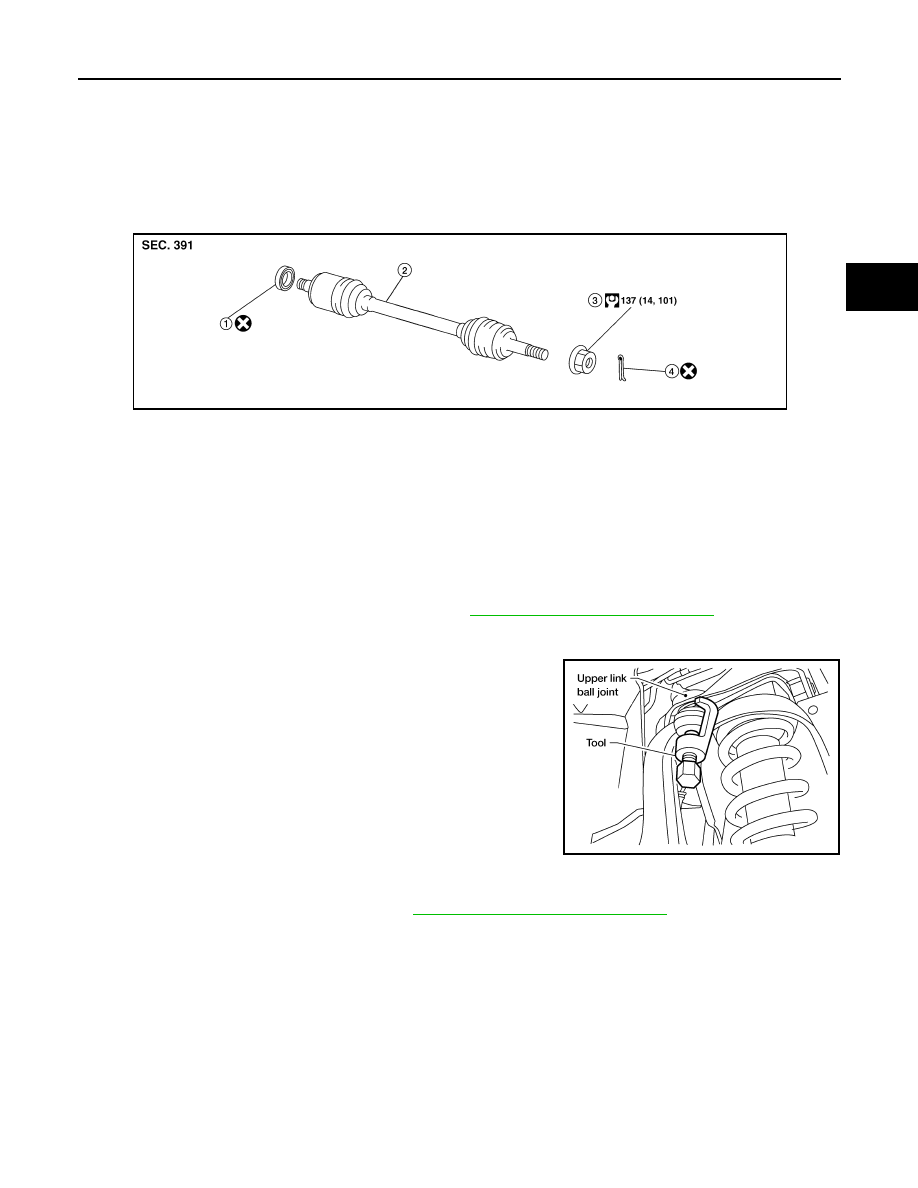

REMOVAL

1. Remove wheel and tire using power tool.
2. Remove rear engine under cover using power tool.
3. Remove wheel sensor harness from mount on knuckle, then disconnect wheel sensor harness connector.

CAUTION:

Do not pull on wheel sensor harness.

4. Remove wheel hub and bearing assembly. Refer to

FAX-10, "Removal and Installation"

.

• It is not necessary to remove wheel sensor from wheel hub when wheel hub is not being replaced.

• Carefully feed wheel sensor harness through hole in splash shield.

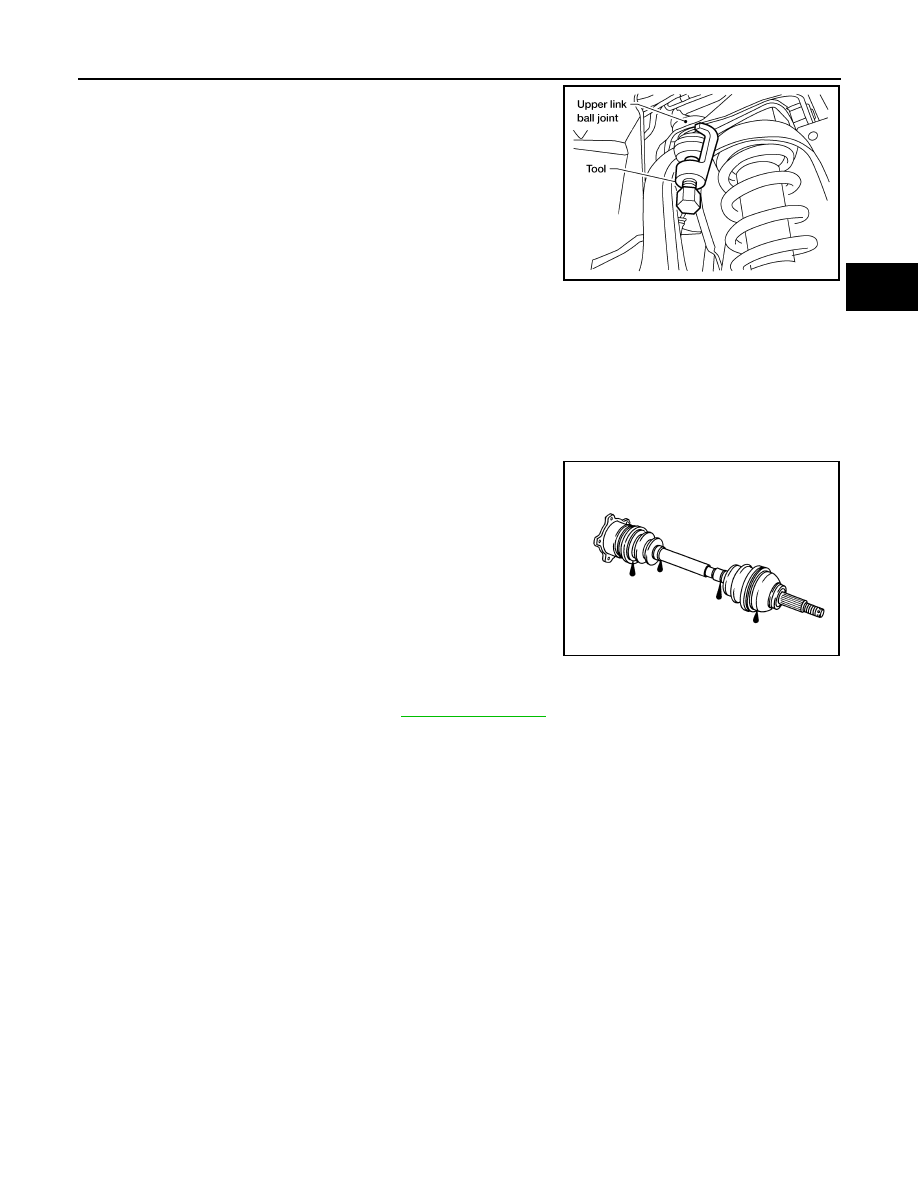

5. Separate upper link ball joint stud from steering knuckle using

Tool.

• Support lower link with jack.

6. Remove drive shaft assembly.

• Pry drive shaft front final drive using suitable tool.

• Remove differential side oil seal. Refer to

DLN-354, "Removal and Installation"

.

CAUTION:

• When removing drive shaft, do not apply an excessive angle to drive shaft joint. Also be careful

not to excessively extend slide joint.

INSPECTION AFTER REMOVAL

• Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-

ness.

1.

Differential side oil seal

2.

Drive shaft

3.

Drive shaft lock nut

4.

Cotter pin

WDIA0341E

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

2011 Pathfinder

FAX-8

< UNIT REMOVAL AND INSTALLATION >

DRIVE SHAFT

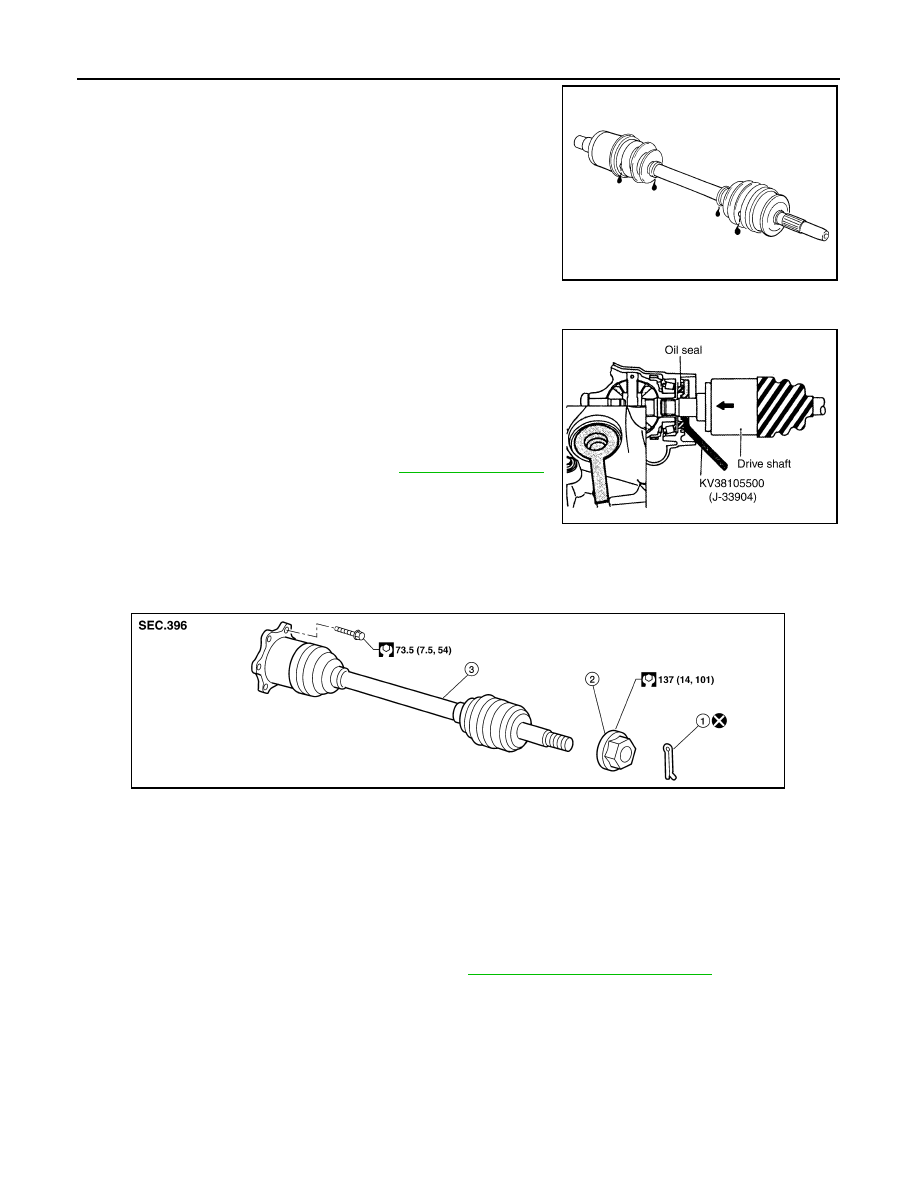

• Check boot for cracks or other damage, and for grease leakage.

• If damaged, disassemble drive shaft to verify damage, and repair

or replace as necessary.

INSTALLATION

Installation is in the reverse order of removal.

• When installing drive shaft onto front final drive, use Tool to pre-

vent damage to the oil seal while inserting drive shaft. Slide drive

shaft sliding joint and tap with a hammer to install securely.

CAUTION:

Never reuse the differential side oil seal.

• Tighten wheel nuts to specification. Refer to

WT-50, "Adjustment"

.

VK56DE
VK56DE : Removal and Installation

INFOID:0000000006246828

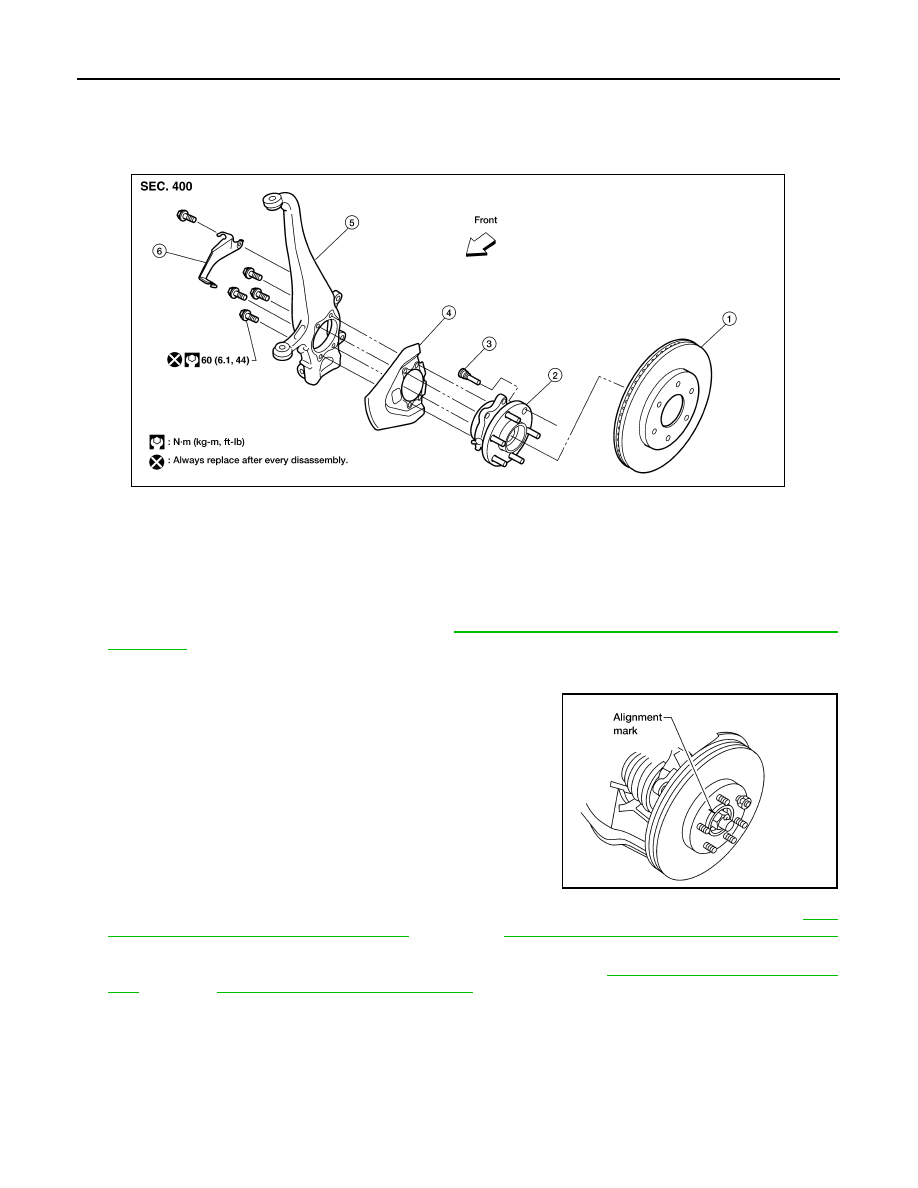

REMOVAL

1. Remove wheel and tire using power tool.
2. Remove engine under cover using power tool.
3. Remove wheel sensor harness from mount on knuckle, then disconnect wheel sensor harness connector.

CAUTION:

Do not pull on wheel sensor harness.

4. Remove wheel hub and bearing assembly. Refer to

FAX-10, "Removal and Installation"

.

• It is not necessary to remove wheel sensor from wheel hub when wheel hub is not being replaced.

• Carefully feed wheel sensor harness through hole in splash shield.

SFA108A

Tool number

: KV38105500 (J-33904)

SDIA2615E

1.

Cotter pin

2.

Drive shaft nut

3.

Drive shaft

WDIA0329E

2011 Pathfinder

DRIVE SHAFT

FAX-9

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

5. Separate upper link ball joint stud from steering knuckle using

Tool.

• Support lower link with jack.

6. Remove drive shaft mounting bolts from front final drive.
7. Remove drive shaft assembly.

CAUTION:

• When removing drive shaft, do not apply an excessive angle to drive shaft joint. Also be careful

not to excessively extend slide joint.

INSPECTION AFTER REMOVAL

• Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-

ness.

• Check boot for cracks or other damage, and for grease leakage.

• If damaged, disassemble drive shaft to verify damage, and repair

or replace as necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten wheel nuts to specification. Refer to

WT-50, "Adjustment"

.

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

RAA0030D

2011 Pathfinder

FAX-10

< UNIT REMOVAL AND INSTALLATION >

WHEEL HUB

WHEEL HUB

Removal and Installation

INFOID:0000000006246829

REMOVAL

1. Remove wheel and tire using power tool.
2. Without disassembling the hydraulic lines, remove caliper torque member bolts using power tool. Then

reposition brake caliper aside with wire. Refer to

BR-43, "Removal and Installation of Brake Caliper and

Disc Rotor"

.

CAUTION:

Do not press brake pedal while brake caliper is removed.

3. Put alignment mark on disc rotor and wheel hub and bearing

assembly, then remove disc rotor.

4. On 4WD models, remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to

FAX-

7, "VQ40DE : Removal and Installation"

 (VQ40DE),

FAX-8, "VK56DE : Removal and Installation"

(VK56DE).

5. Remove wheel sensor from wheel hub and bearing assembly. Refer to

BRC-110, "Removal and Installa-

tion"

 (TYPE 1),

BRC-229, "Removal and Installation"

 (TYPE 2).

• Inspect the wheel sensor O-ring, replace the wheel sensor assembly if damaged.

• Clean the wheel sensor hole and mounting surface with a suitable brake cleaner and clean lint-free

shop rag. Be careful that dirt and debris do not enter the axle bearing area.

• Apply a coat of suitable grease to the wheel sensor O-ring and mounting hole.

CAUTION:

Do not pull on the wheel sensor harness.

6. On 4WD models, separate drive shaft from wheel hub and bearing assembly.
7. Remove wheel hub and bearing assembly bolts using power tool.

1.

Disc rotor

2.

Wheel hub and bearing assembly

3.

Wheel stud

4.

Splash guard

5.

Steering knuckle

6.

Wheel sensor bracket

WDIA0228E

WDIA0044E

2011 Pathfinder

WHEEL HUB

FAX-11

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

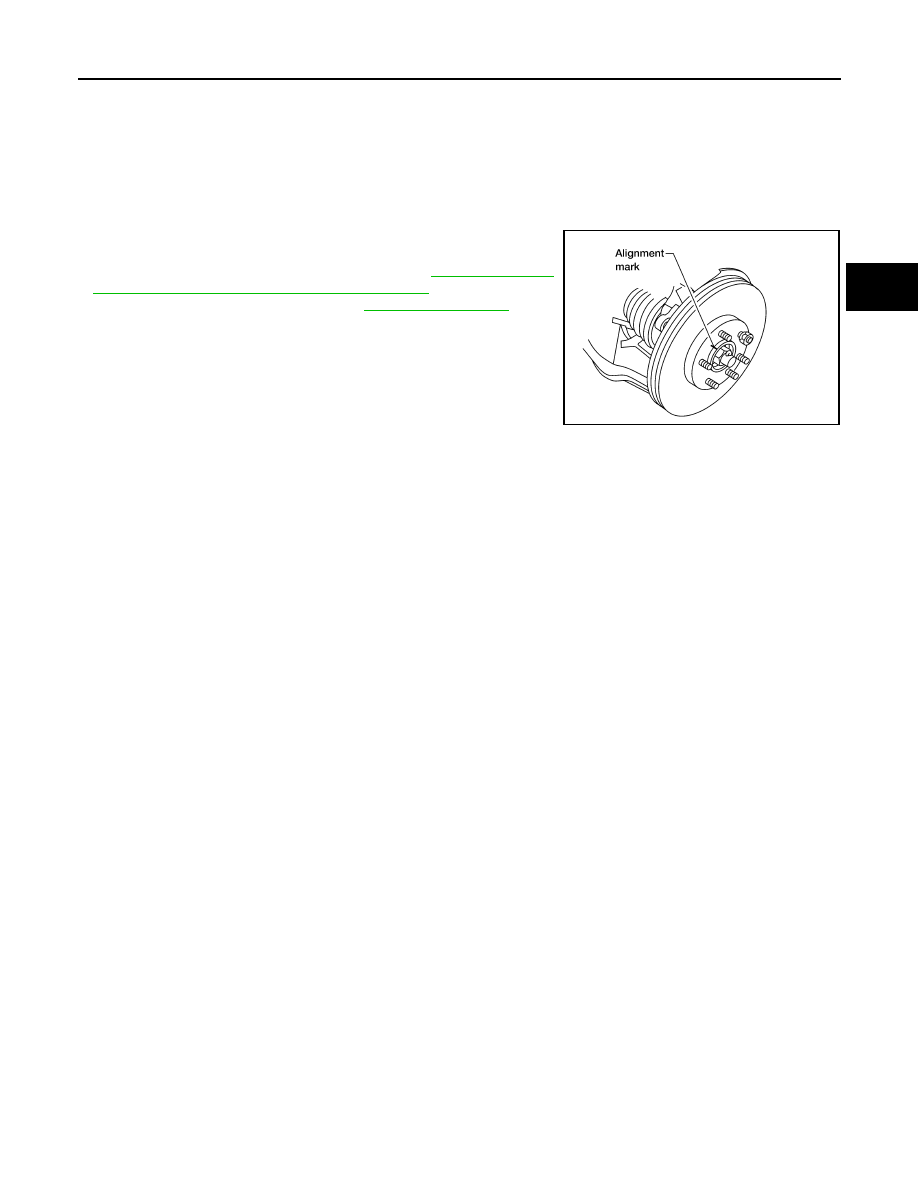

8. Remove splash guard and wheel hub and bearing assembly from steering knuckle.

• Carefully remove wheel sensor and harness through hole in splash guard.

INSPECTION AFTER REMOVAL

Check for deformity, cracks and damage on each part and replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Use new bolts when installing the wheel hub and bearing assembly.

• When installing disc rotor on wheel hub and bearing assembly,

position the disc rotor according to alignment mark.

(When not using the alignment mark, refer to

BR-43, "Removal

and Installation of Brake Caliper and Disc Rotor"

.)

• When installing wheel and tire, refer to

WT-50, "Adjustment"

.

WDIA0044E

2011 Pathfinder

FAX-12

< UNIT DISASSEMBLY AND ASSEMBLY >

DRIVE SHAFT

UNIT DISASSEMBLY AND ASSEMBLY

DRIVE SHAFT

VQ40DE
VQ40DE : Disassembly and Assembly

INFOID:0000000006246830

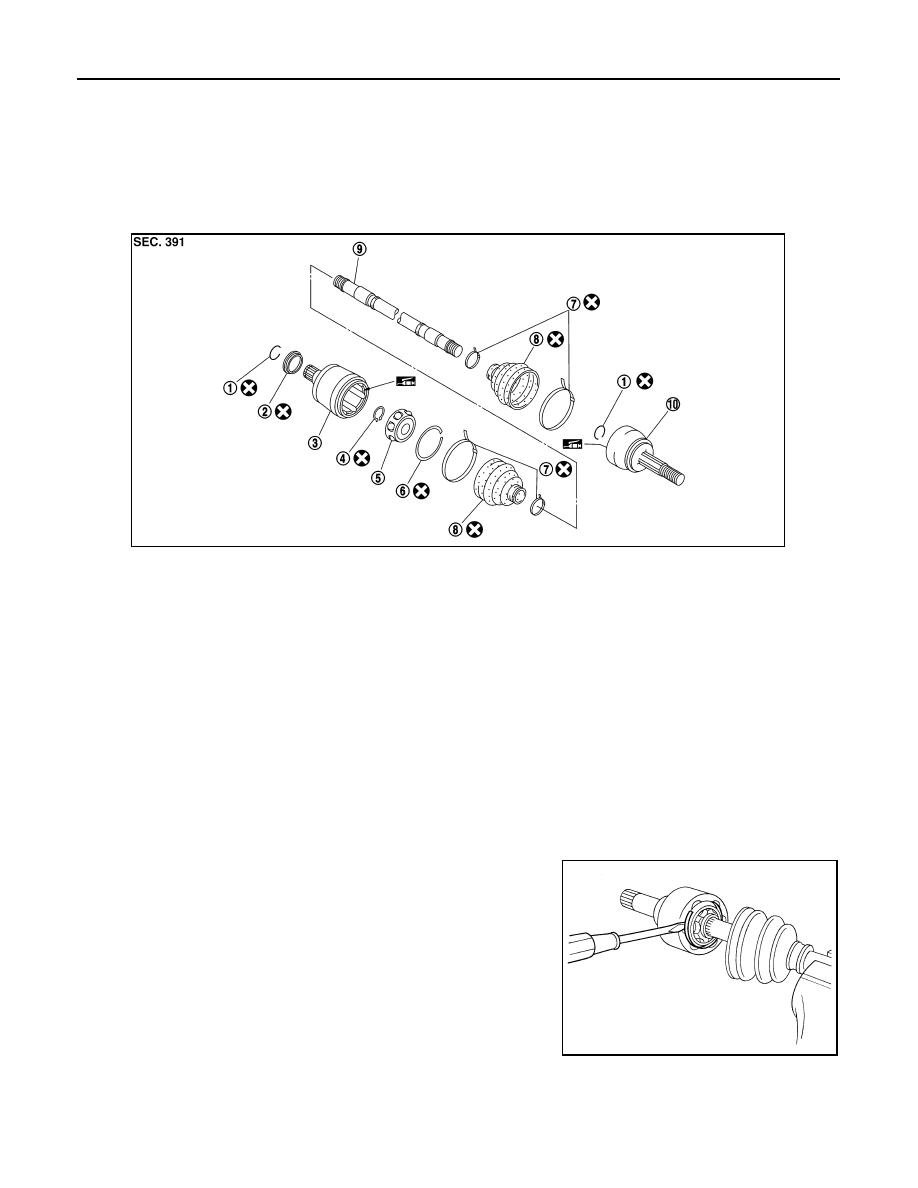

DISASSEMBLY

Final Drive Side

1. Mount the drive shaft in a vise.

CAUTION:

When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the

drive shaft.

2. Remove boot bands and slide the boot back.
3. Put matching marks on housing and shaft before separating joint assembly.

CAUTION:

Use paint or similar substance for matching marks. Do not scratch the surfaces.

4. Remove the stopper ring with a flat-bladed screwdriver as

shown, and pull the housing off.

1.

Circlip

2.

Dust cover

3.

Housing

4.

Snap ring

5.

Ball cage, steel ball and inner race assembly

6.

Stopper ring

7.

Boot band

8.

Boot

9.

Shaft

10.

Joint sub-assembly

WDIA0342E

SFA476

2011 Pathfinder

DRIVE SHAFT

FAX-13

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

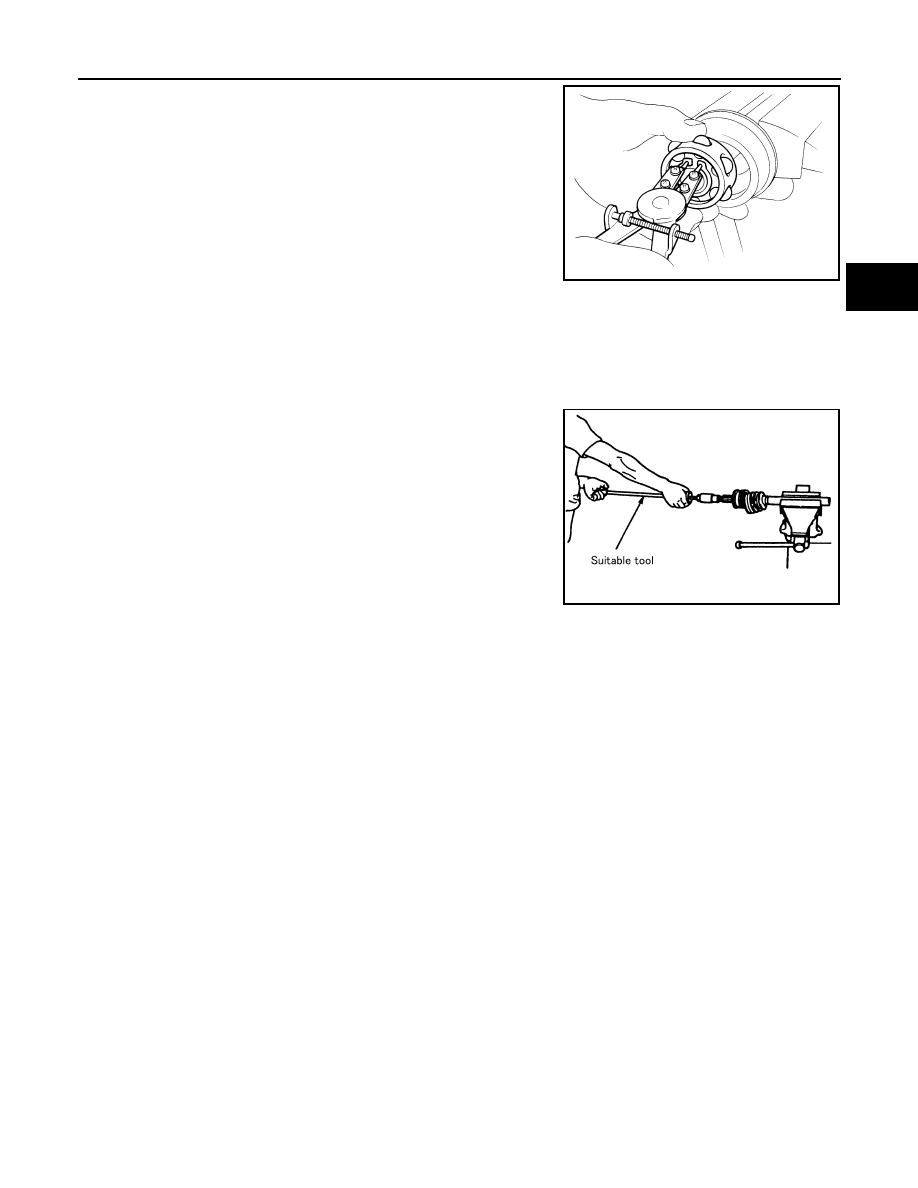

5. Remove the snap ring, then remove the ball cage, steel ball,

inner race assembly from the shaft.

6. Remove the boot from the shaft.
7. Remove circlip and dust cover from housing.
8. Clean the old grease off of the housing using paper towels.

Wheel Side

1. Mount the drive shaft in a vise.

CAUTION:

When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the

drive shaft.

2. Remove the boot bands and slide the boot back.
3. Screw a sliding hammer or suitable tool 30 mm (1.18 in) or more

into threaded part of joint sub-assembly. Pull joint sub-assembly

off of shaft as shown.

NOTE:

Align the sliding hammer and shaft and remove the joint sub-

assembly by pulling directly.

CAUTION:

• If the joint sub-assembly cannot be removed after five or

more unsuccessful attempts, replace the entire drive shaft

assembly.

4. Remove boot from the shaft.
5. Remove circlip from the shaft.
6. While rotating the ball cage, clean the old grease off of the joint sub-assembly using paper towels.

INSPECTION AFTER DISASSEMBLY

Shaft

• Replace the shaft if there is any bending, cracking, or other damage.

Joint Sub-assembly

• Check for any rough rotation or unusual axial looseness.

• Clean any foreign material from inside the joint sub-assembly.

• Check for any compression scars, cracks, or fractures.

CAUTION:

If any irregular conditions are found in the joint sub-assembly components, replace the entire joint

sub-assembly.

Housing

NOTE:

Housing, ball cage, steel ball, and inner race are in a set.

• Check for any compression scars, cracks, fractures, or unusual wear on the ball rolling surface.

• Check for any deformation of the boot installation components.

Ball Cage

• Check the sliding surface for any compression scars, cracks, or fractures of sliding surface.

Steel Ball

• Check for any compression scars, cracks, fractures, or unusual wear.

Inner Race

• Check the ball sliding surface for any compression scars, cracks, or fractures.

• Check for any damage to the serrated part.

ASSEMBLY

SFA514A

SDIA0606E
