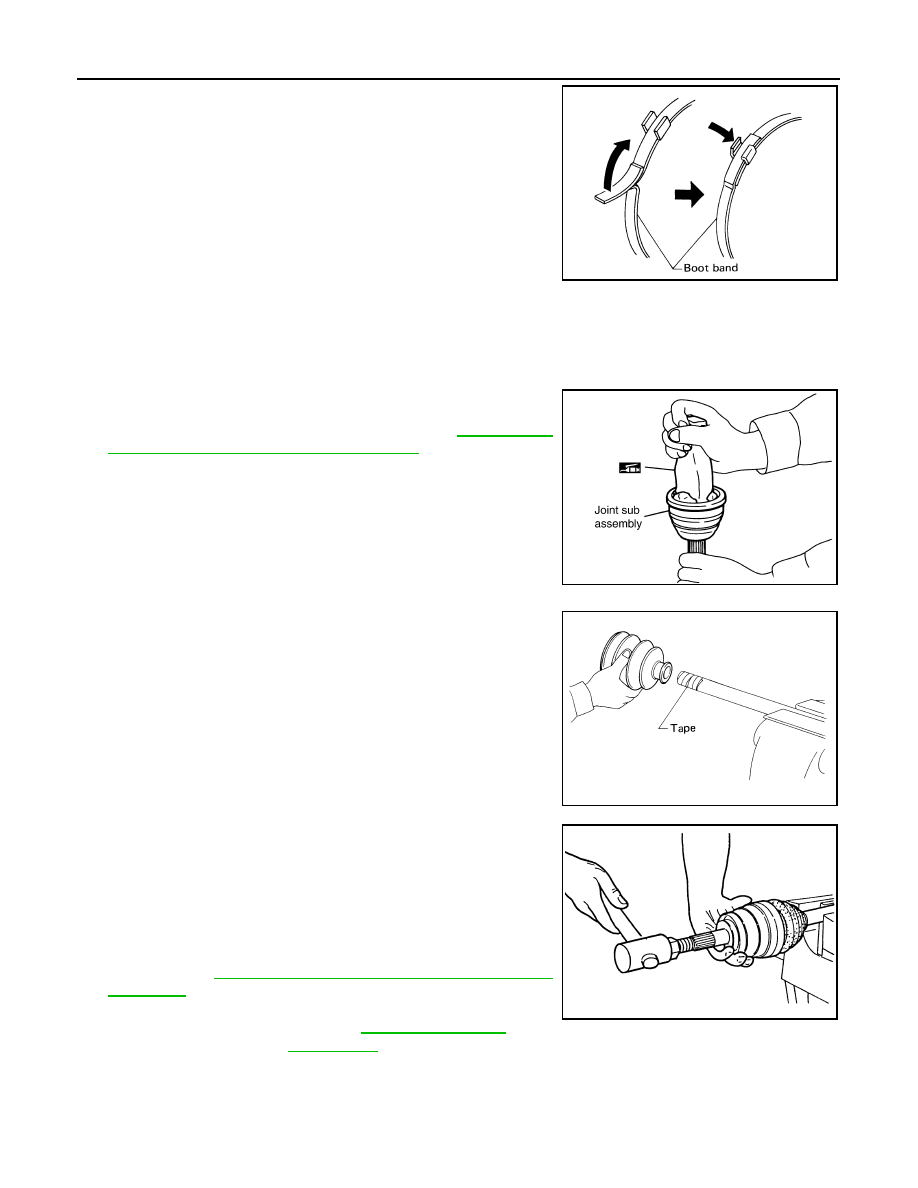

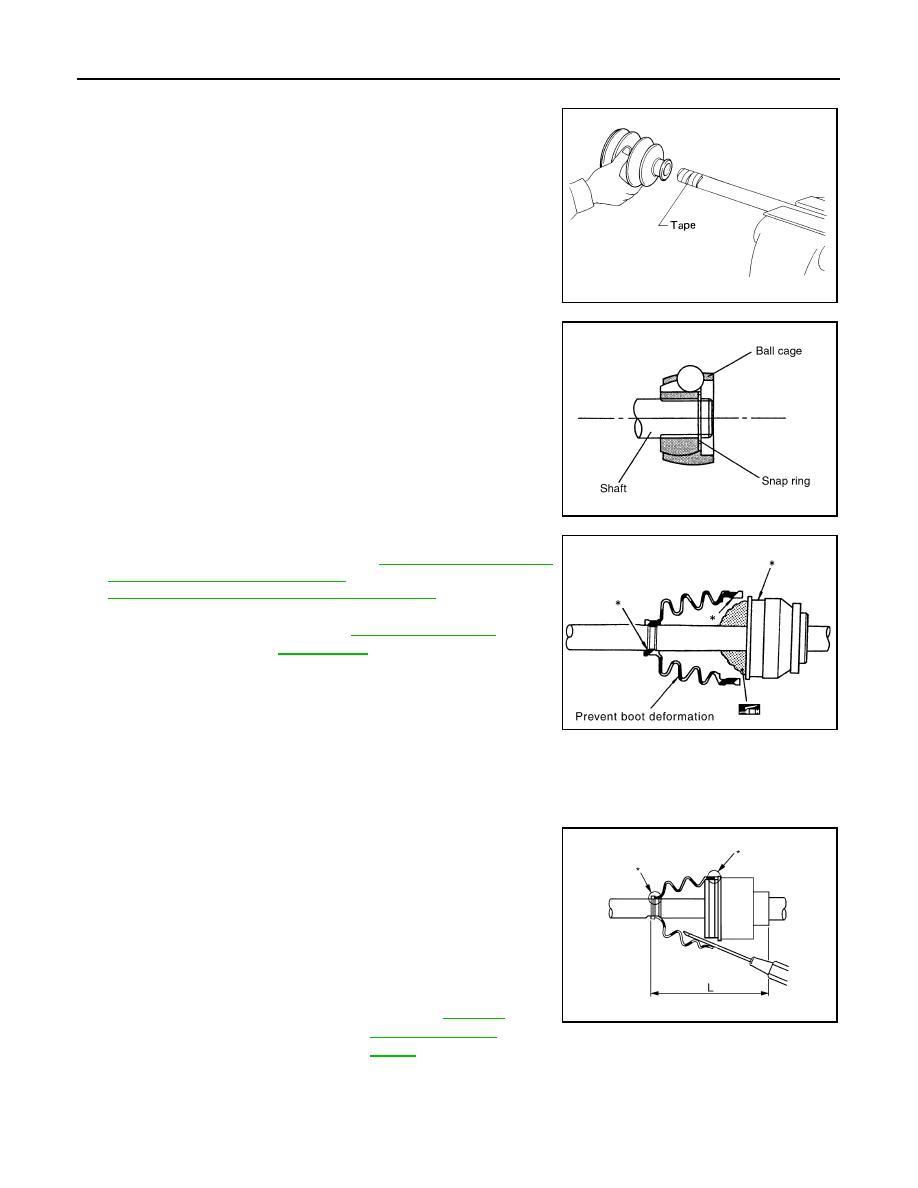

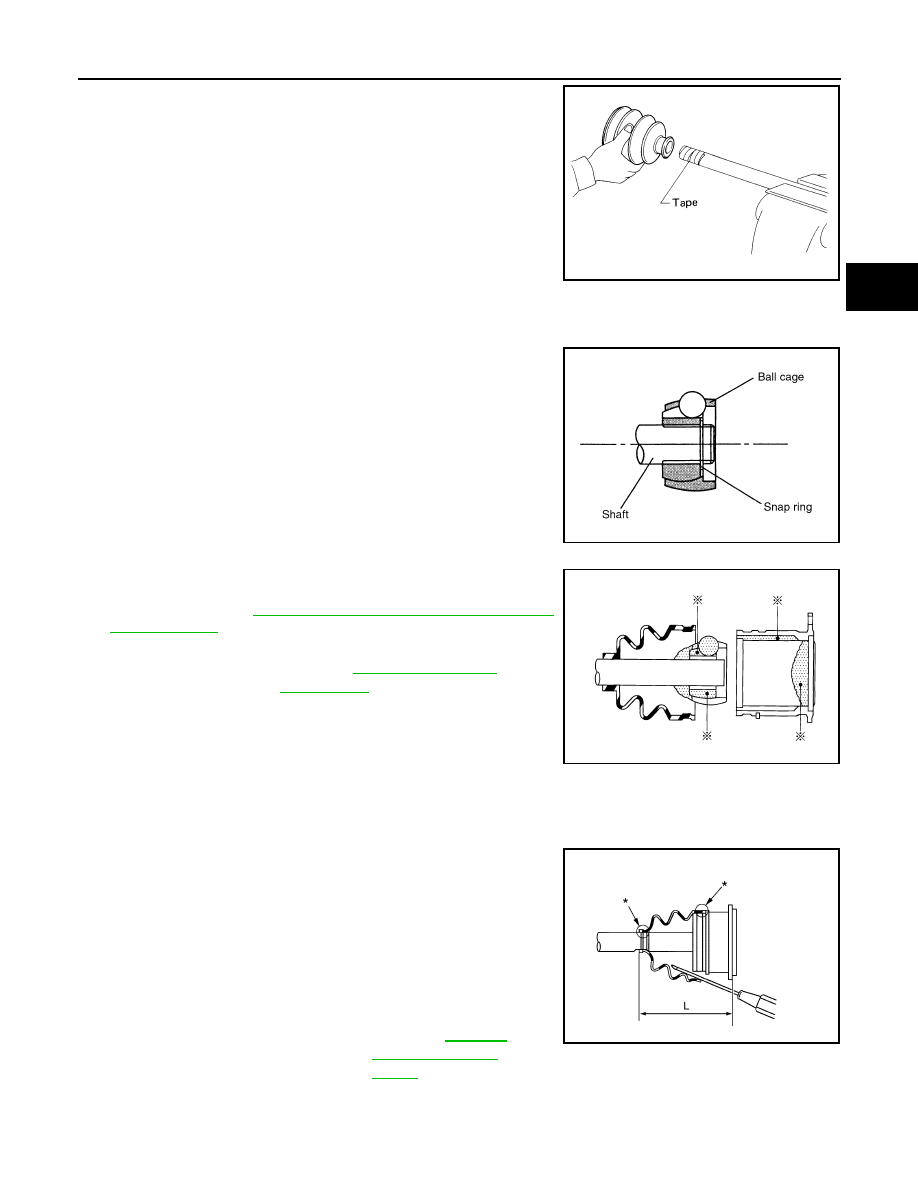

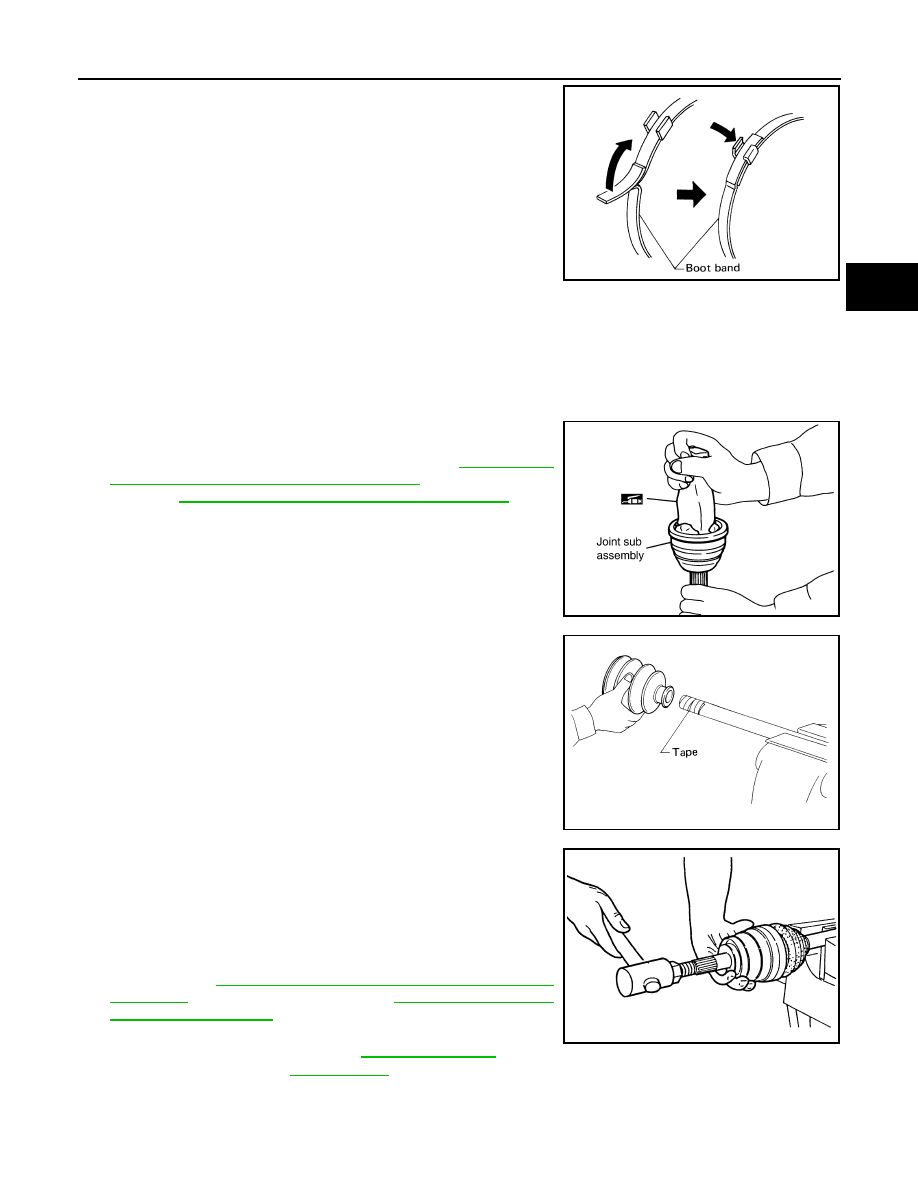

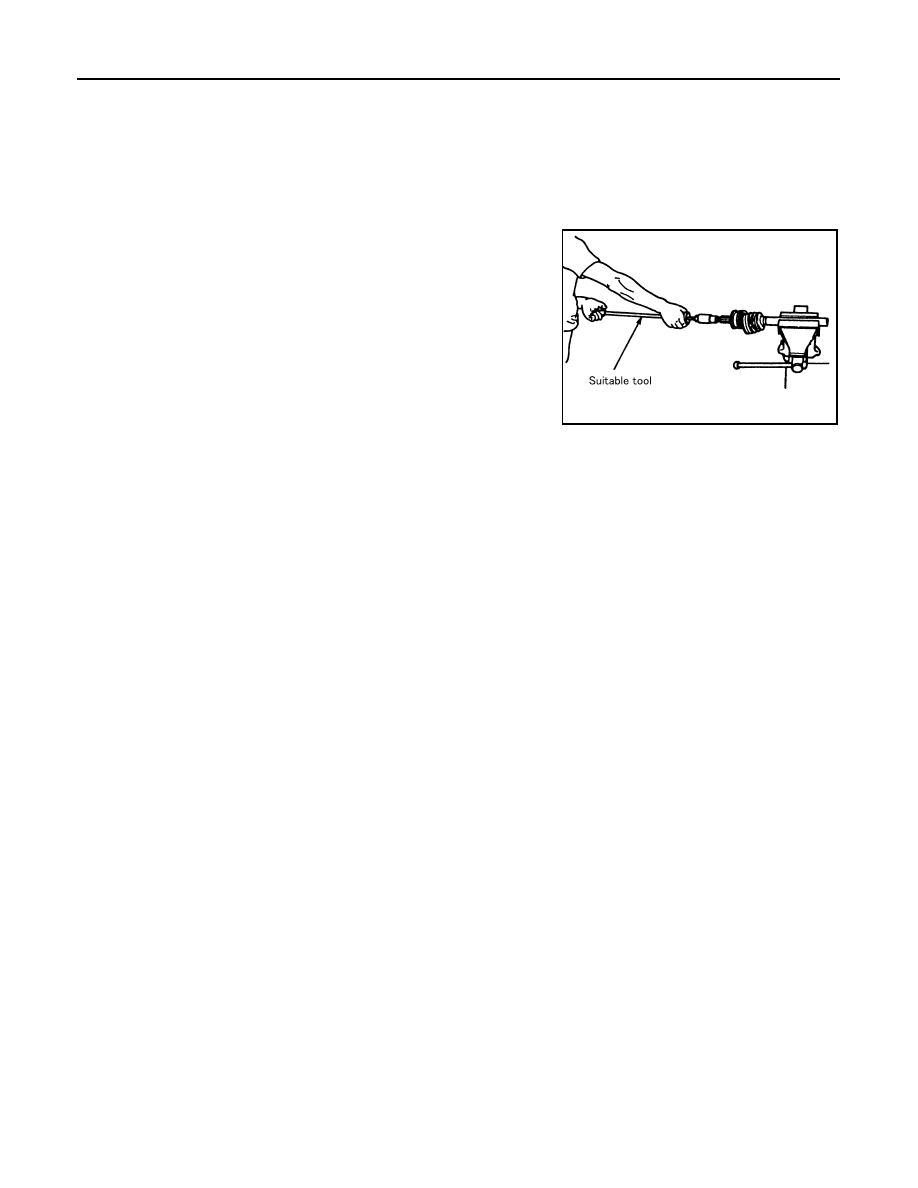

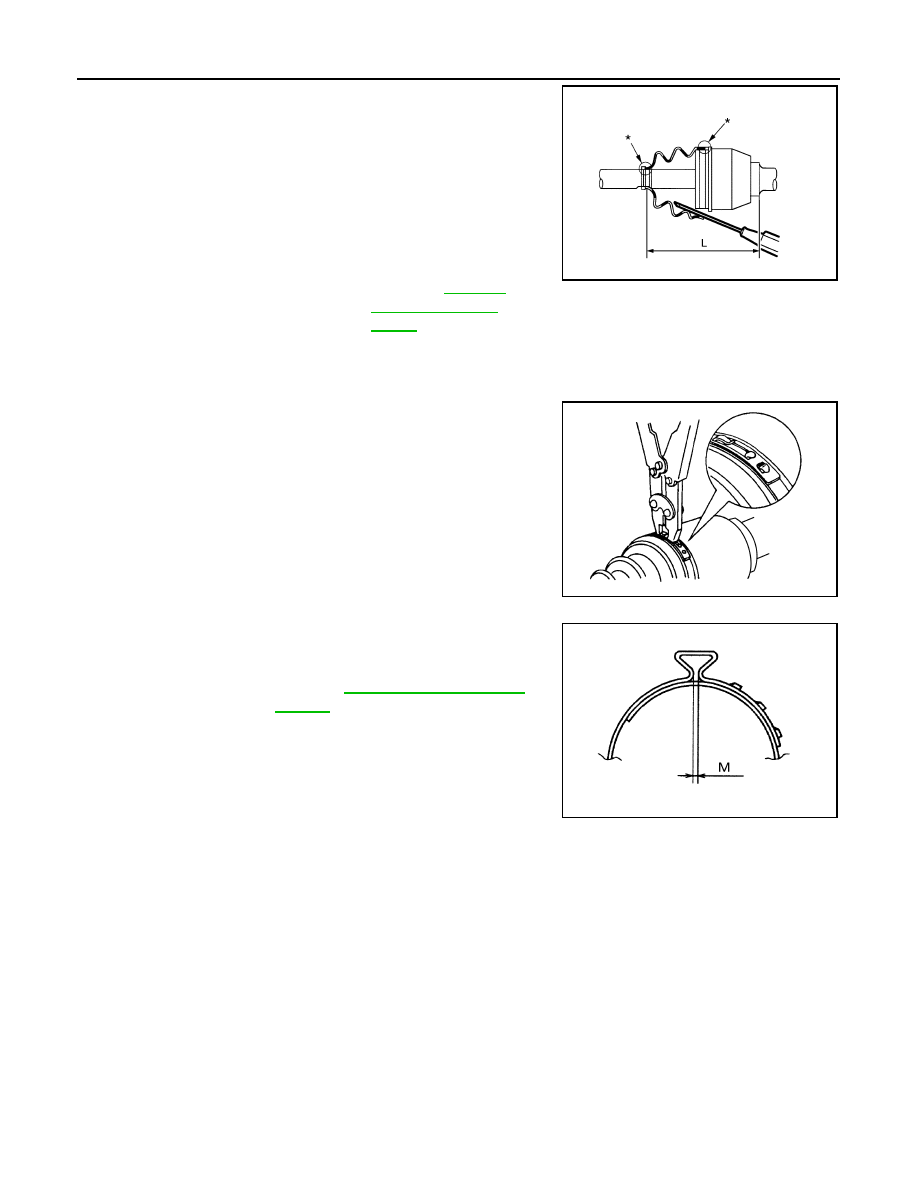

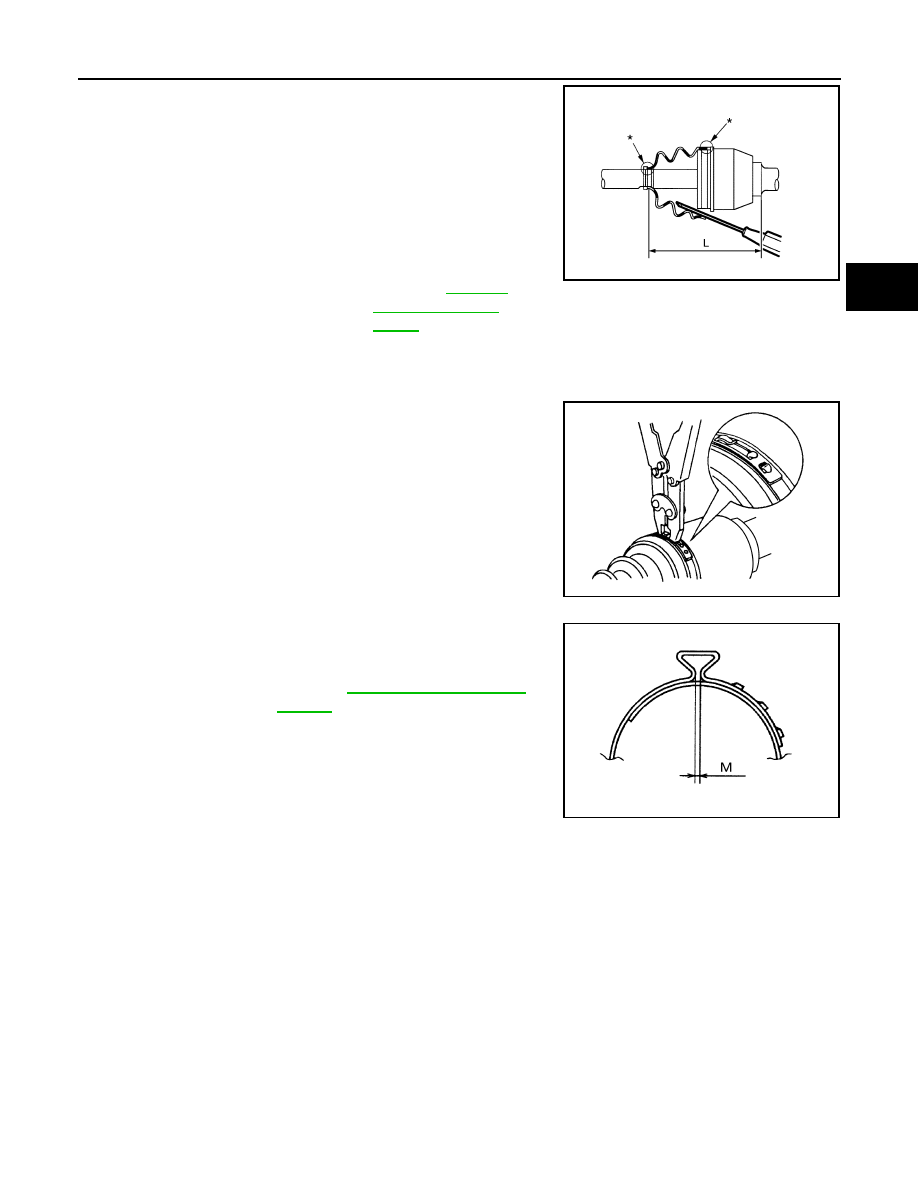

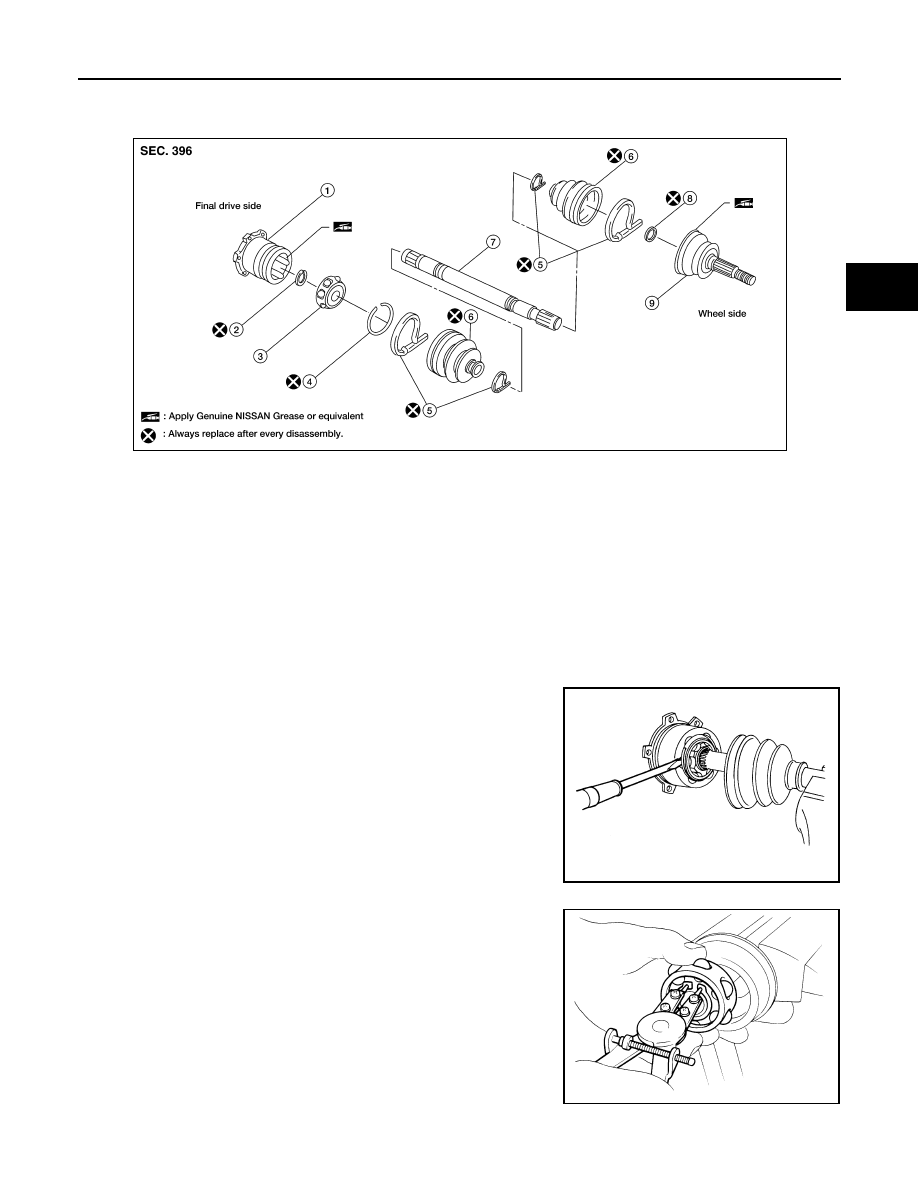

FAX-14 < UNIT DISASSEMBLY AND ASSEMBLY > DRIVE SHAFT Final Drive Side 1. Wrap the serrated part of the shaft with tape. Install the boot band and boot to shaft. NOTE: Discard the old boot band and boot and use a new one for assembly. 2. Remove the tape wound around the serrated part of the shaft. 3. Install the ball cage, steel ball, and inner race assembly on the shaft, and secure them using the snap ring. NOTE: Discard the old snap ring and use a new one for assembly. 4. Insert the specified quantity of Genuine NISSAN Grease or equivalent, into the housing. Refer to CANADA : Fluids and Lubricants" (United States and Canada), MA-20, "FOR MEXICO : Fluids and Lubricants" CAUTION: If grease adheres to the boot mounting surface (indicated by * marks) on shaft and housing, boot may come off. Remove all grease from surfaces. 5. Install the stopper ring onto the housing. CAUTION: • Do not reuse stopper rings. • Make sure that housing and stopper ring are fully engaged. 6. Install the boot securely into the grooves (indicated by * marks) as shown. CAUTION: If there is grease on boot mounting surfaces (indicated by * marks) of shaft and housing, boot may come off. Remove all grease from surfaces. 7. Check that the boot installation length (L) is the length indicated below. Insert a suitable tool into the large side of boot. Bleed air from boot to prevent boot deformation. CAUTION: • The boot may break if the boot installation length is less than the specified value. • Do not to touch the tip of the screwdriver to the inside of the boot. SFA800 SDIA1125E Grease capacity : Refer to SDIA1446E Boot installation length (L) : Refer to . AWDIA0681GB 2011 Pathfinder |
