Nissan Pathfinder (2011 year). Manual - part 416

EXT-20

< REMOVAL AND INSTALLATION >

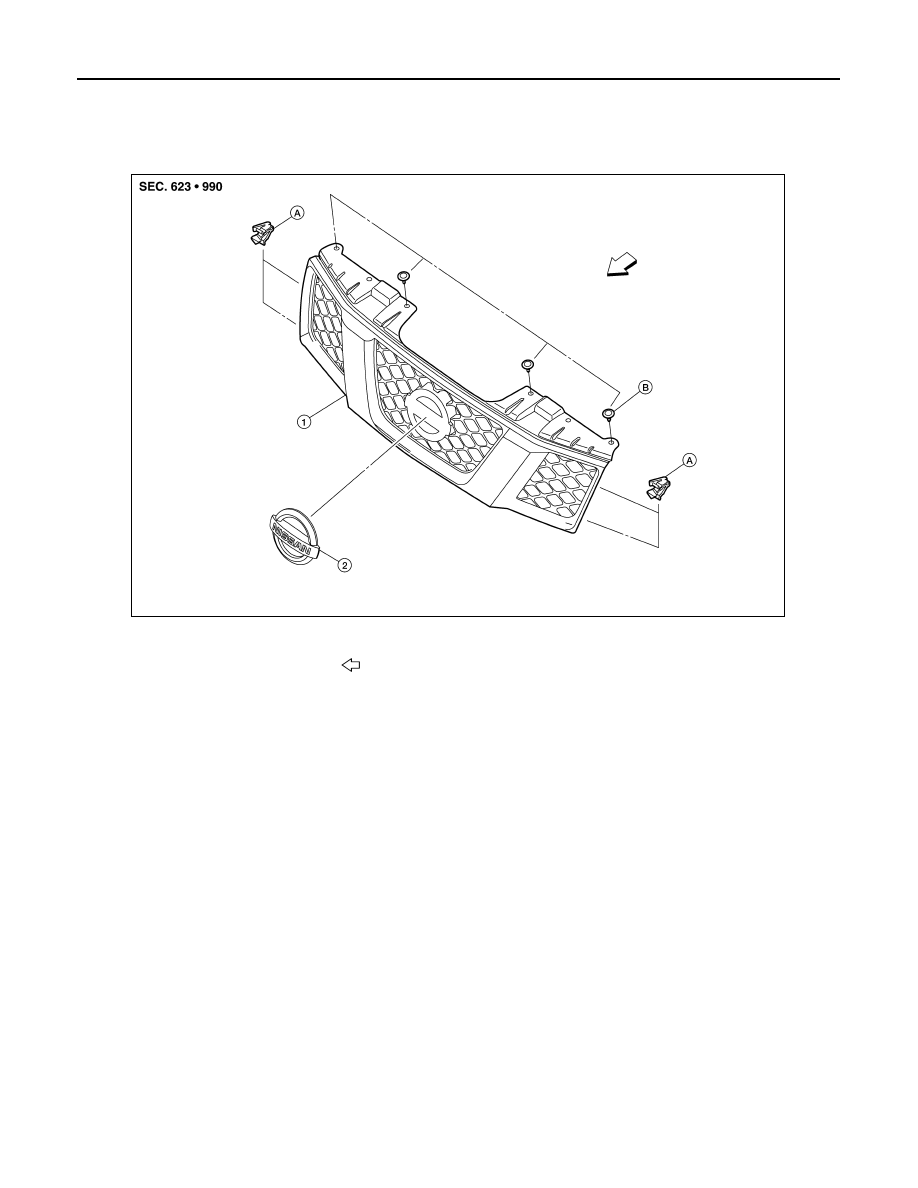

FRONT GRILLE

FRONT GRILLE

Removal and Installation

INFOID:0000000006245333

REMOVAL

1. Remove the upper clips from the front grille.
2. Twist and release the LH and RH side clips and release the top of the front grille.
3. Detach the lower front grille clips and remove the front grille.
4. Remove the front emblem (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1.

Front grille

2.

Front emblem

A.

Clips CG101

B.

Clips C205

Vehicle front

AWKIA1511ZZ

2011 Pathfinder

COWL TOP

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

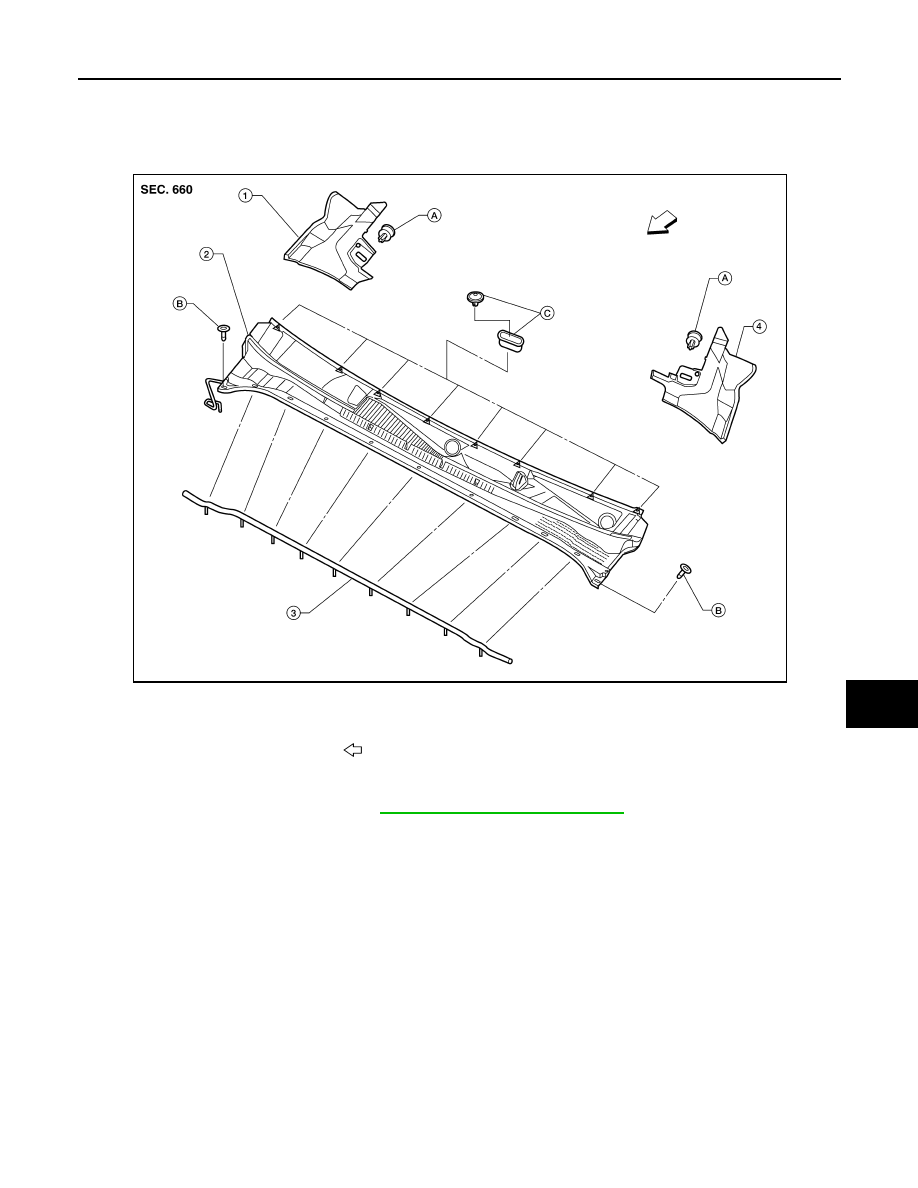

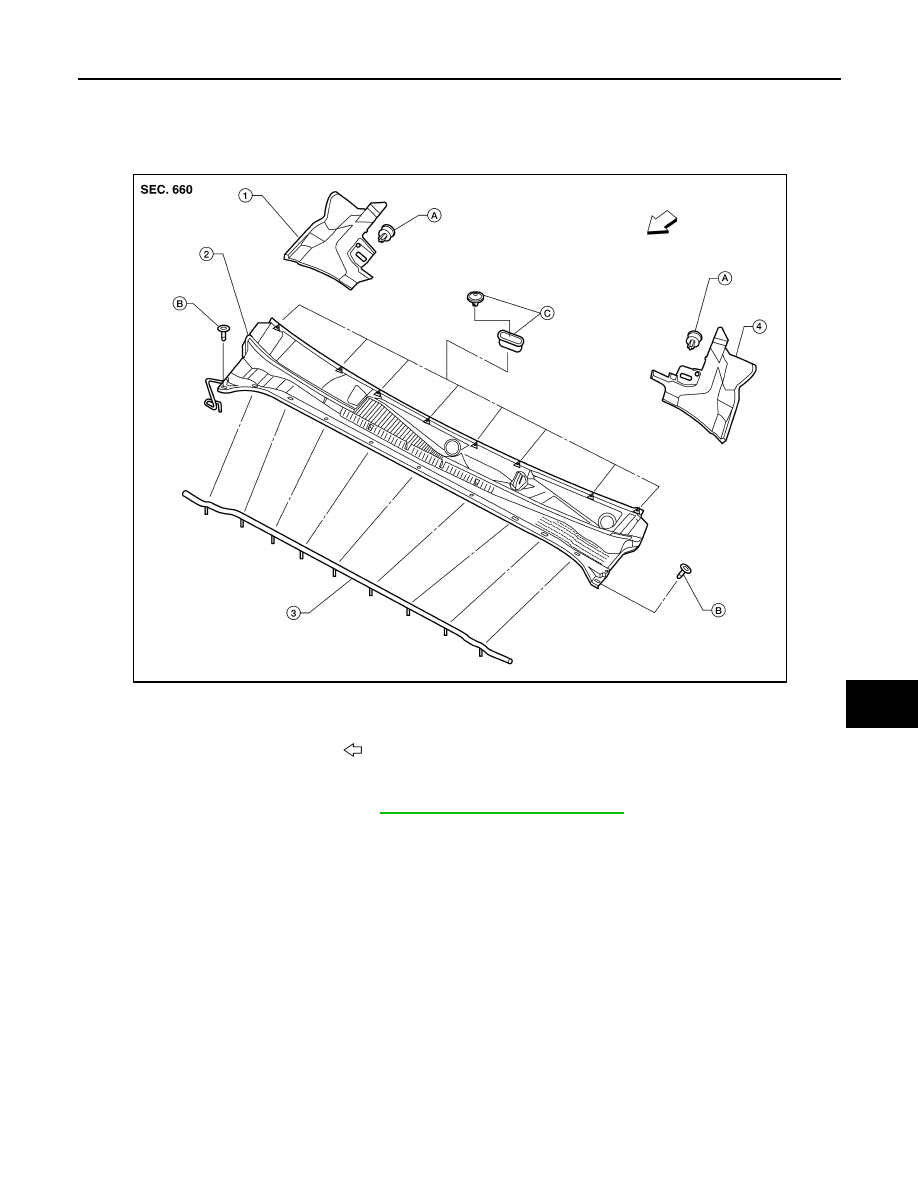

COWL TOP

Removal and Installation

INFOID:0000000006245334

REMOVAL

1. Remove the front wiper arms. Refer to

WW-70, "Removal and Installation"

.

2. Remove the cowl top seal.
3. Remove the cowl top clips and lift the cowl top, disconnect the washer tubes from the washer nozzles and

remove the cowl top.

4. Release the clips and remove the LH and RH cowl top extensions.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cowl top extension RH

2.

Cowl top

3.

Cowl top seal

4.

Cowl top extension LH

A.

Clip C205

B.

Clip C103

C.

Grommet CF110

Vehicle front

AWKIA0063ZZ

2011 Pathfinder

EXT-22

< REMOVAL AND INSTALLATION >

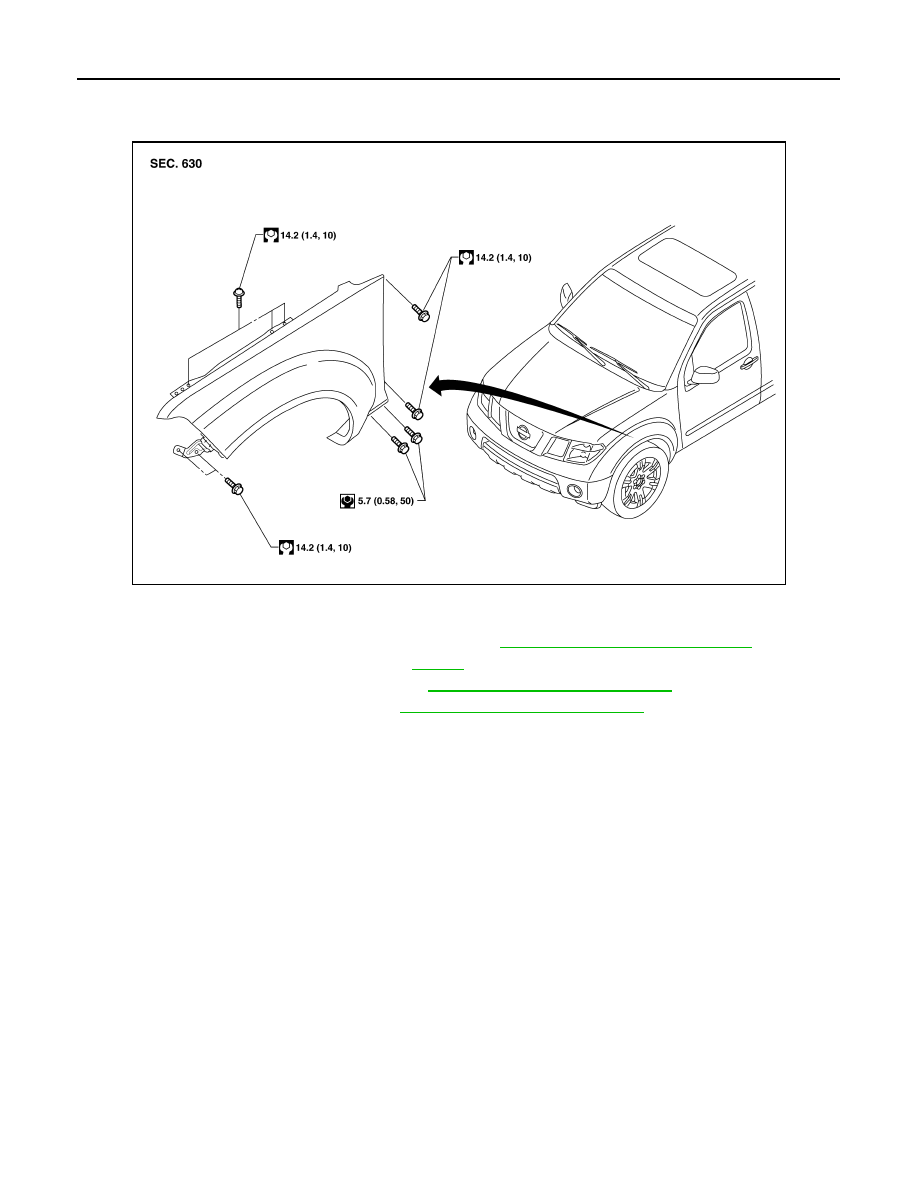

FRONT FENDER

FRONT FENDER

Removal and Installation

INFOID:0000000006245335

REMOVAL

1. Remove the LH and RH headlamp assemblies. Refer to

EXL-145, "Removal and Installation"

.

2. Remove the front fender protector. Refer to

EXT-24

.

3. Remove the mudguard (if equipped). Refer to

EXT-27, "Removal and Installation"

.

4. Remove the front bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

5. Remove the hood prop rod and hood prop rod hold down clip.
6. Remove the front fender bolts from hoodledge and the dash panel.
7. Remove the front fender bolts from the rocker panel and the radiator core support member.
8. Remove the front fender.

INSTALLATION

Installation is in the reverse order of removal.

AWKIA0086GB

2011 Pathfinder

LICENSE LAMP FINISHER

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

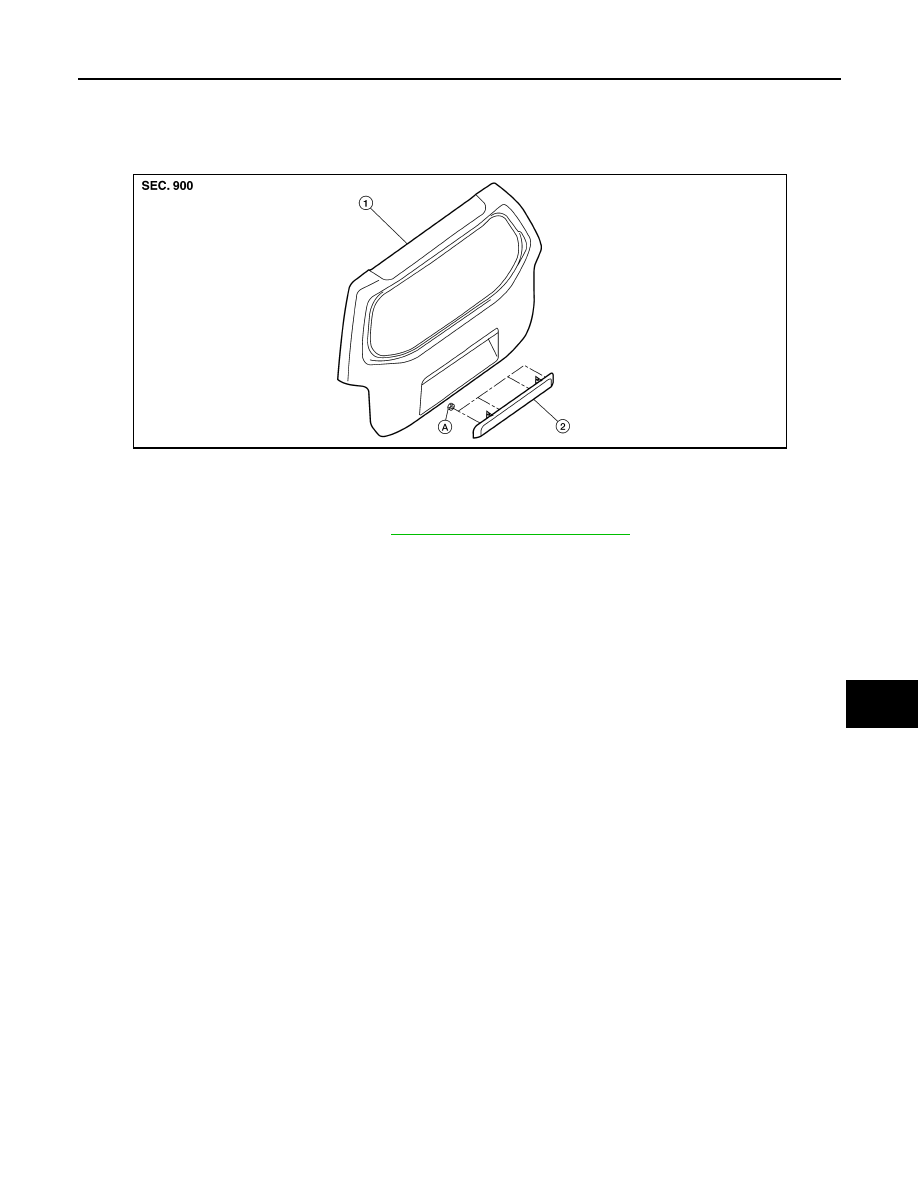

LICENSE LAMP FINISHER

Removal and Installation

INFOID:0000000006245336

REMOVAL

1. Remove the back door finisher. Refer to

INT-27, "Removal and Installation"

.

2. Remove the vapor barrier plastic.
3. Remove the license lamp finisher nuts and remove the license lamp finisher.

INSTALLATION

Installation is in the reverse order of removal.

1.

Back door

2.

License lamp finisher

A.

License lamp finisher nuts

AWKIA0065ZZ

2011 Pathfinder

EXT-24

< REMOVAL AND INSTALLATION >

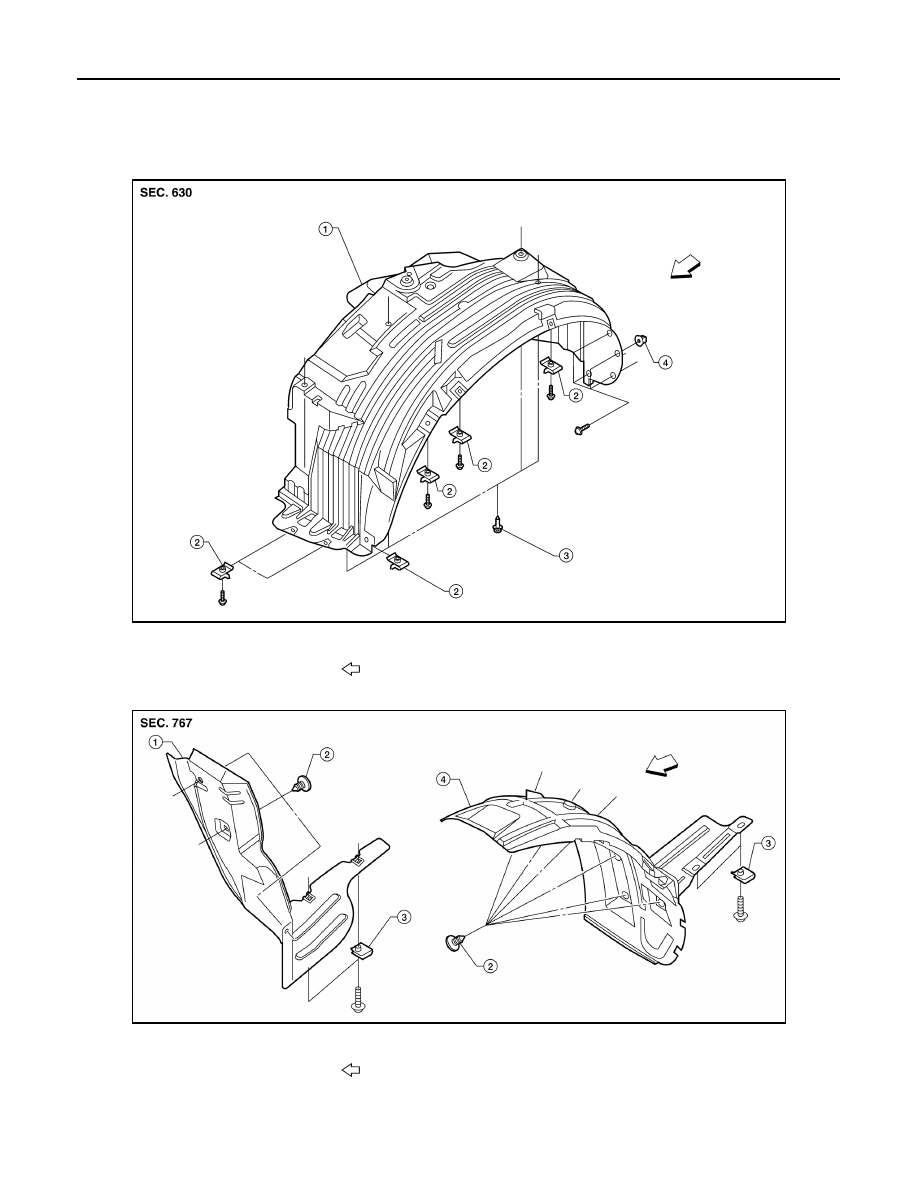

FENDER PROTECTOR

FENDER PROTECTOR

Component

INFOID:0000000006245337

Front Fender Protector

Rear Fender Protector

WIIA1078E

1.

Front fender protector LH shown

2.

J-Nut

3.

Clip C205

4.

Grommet

Vehicle front

AWKIA1924ZZ

1.

Rear fender protector RH

2.

Clips C103

3.

J-Nuts

4.

Rear fender protector LH

Vehicle front

2011 Pathfinder

FENDER PROTECTOR

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation of Front Fender Protector

INFOID:0000000006245338

REMOVAL

1. Remove the front mudguard (if equipped). Refer to

EXT-27, "Removal and Installation"

.

2. Remove the screws.
3. Remove the plastic clips.
4. Remove the front fender protector.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation of Rear Fender Protector

INFOID:0000000006245339

REMOVAL

1. Remove the rear mudguard (if equipped). Refer to

EXT-27, "Removal and Installation"

.

2. Remove the screws.
3. Remove the plastic clips.
4. Remove the rear fender protector.

INSTALLATION

Installation is in the reverse order of removal.

2011 Pathfinder

EXT-26

< REMOVAL AND INSTALLATION >

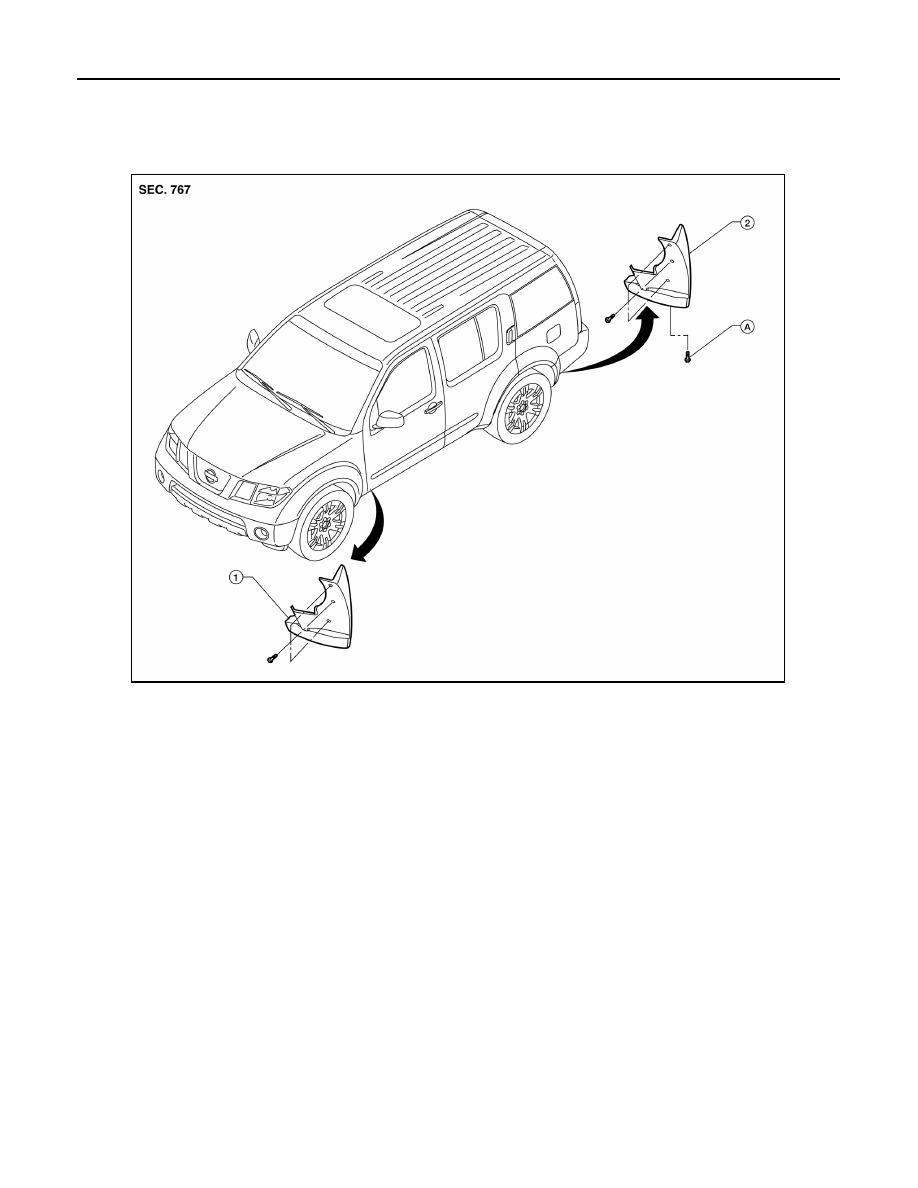

MUDGUARD

MUDGUARD

Removal and Installation

INFOID:0000000006827752

REMOVAL

1. Remove the front mudguard screws, then remove the front mudguard.
2. Remove the rear mudguard clips and screws and remove the rear mudguard.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front mudguard

2.

Rear mudguard

A.

Clip C205

AWKIA1741ZZ

2011 Pathfinder

RUNNING BOARDS

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

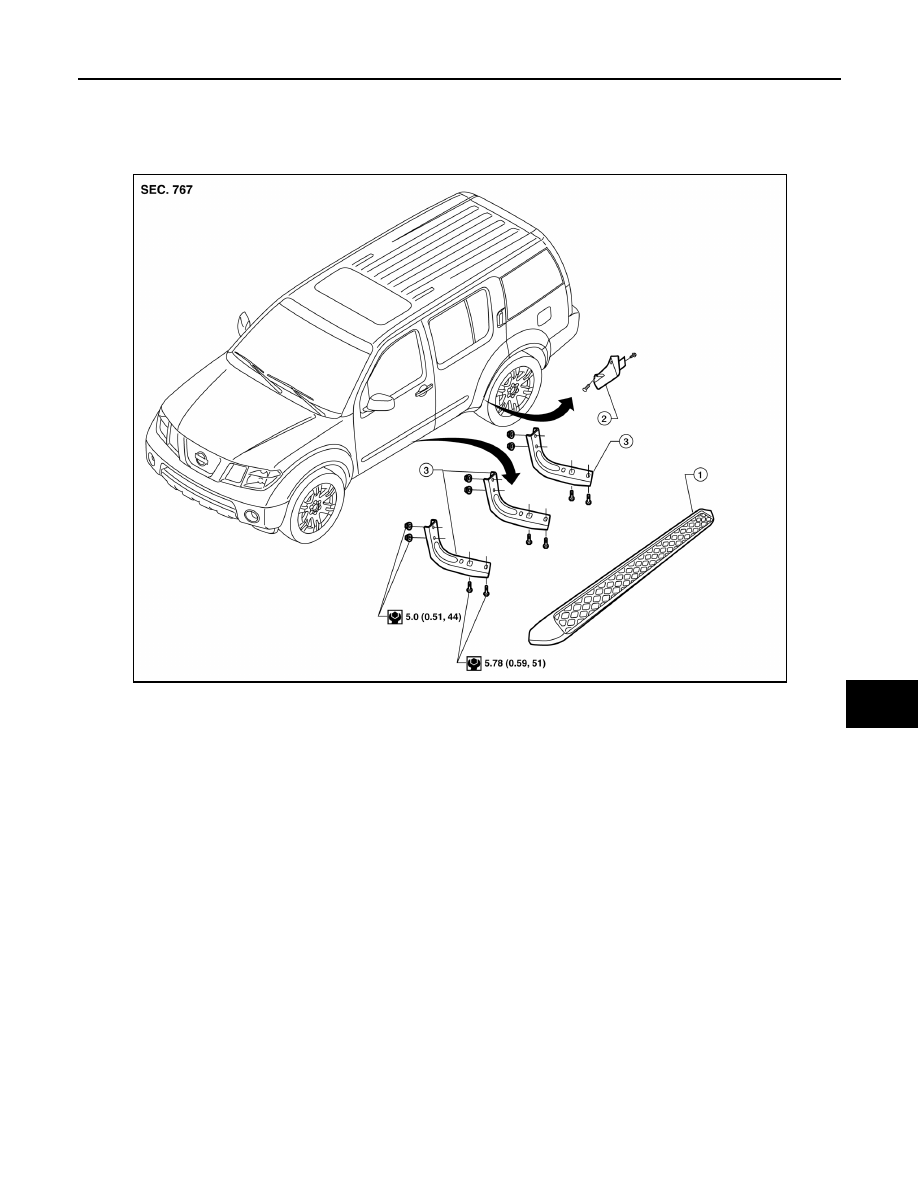

RUNNING BOARDS

Removal and Installation

INFOID:0000000006245340

REMOVAL

1. Remove the bolts and remove the running board from the running board brackets.
2. Remove the nuts and remove the running board brackets from the chassis.
3. Remove the screw and clip and remove the wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Running board

2.

Rear wheel wind deflector

3.

Running board bracket

AWKIA1739GB

2011 Pathfinder
