Nissan Pathfinder (2008 year). Manual - part 623

CONTROL UNIT

VTL-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

2.

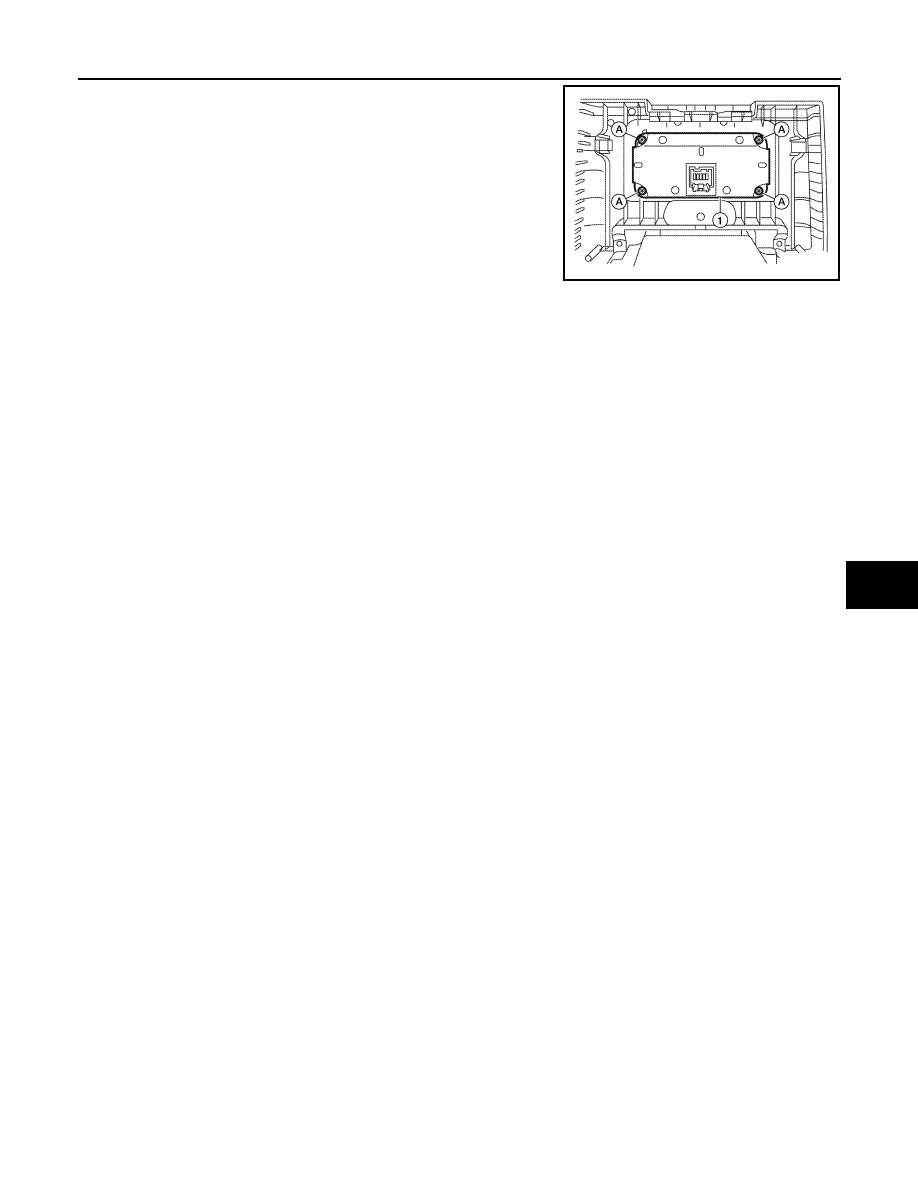

Remove the four rear air control (rear) screws (A) and remove
the rear air control (rear) (1) from the rear finisher assembly.

Installation

Installation is in the reverse order of removal.

ALIIA0136ZZ

VTL-10

< ON-VEHICLE REPAIR >

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000001672960

REMOVAL

1.

Remove the cluster lid D. Refer to

IP-10, "Removal and Installation"

.

2.

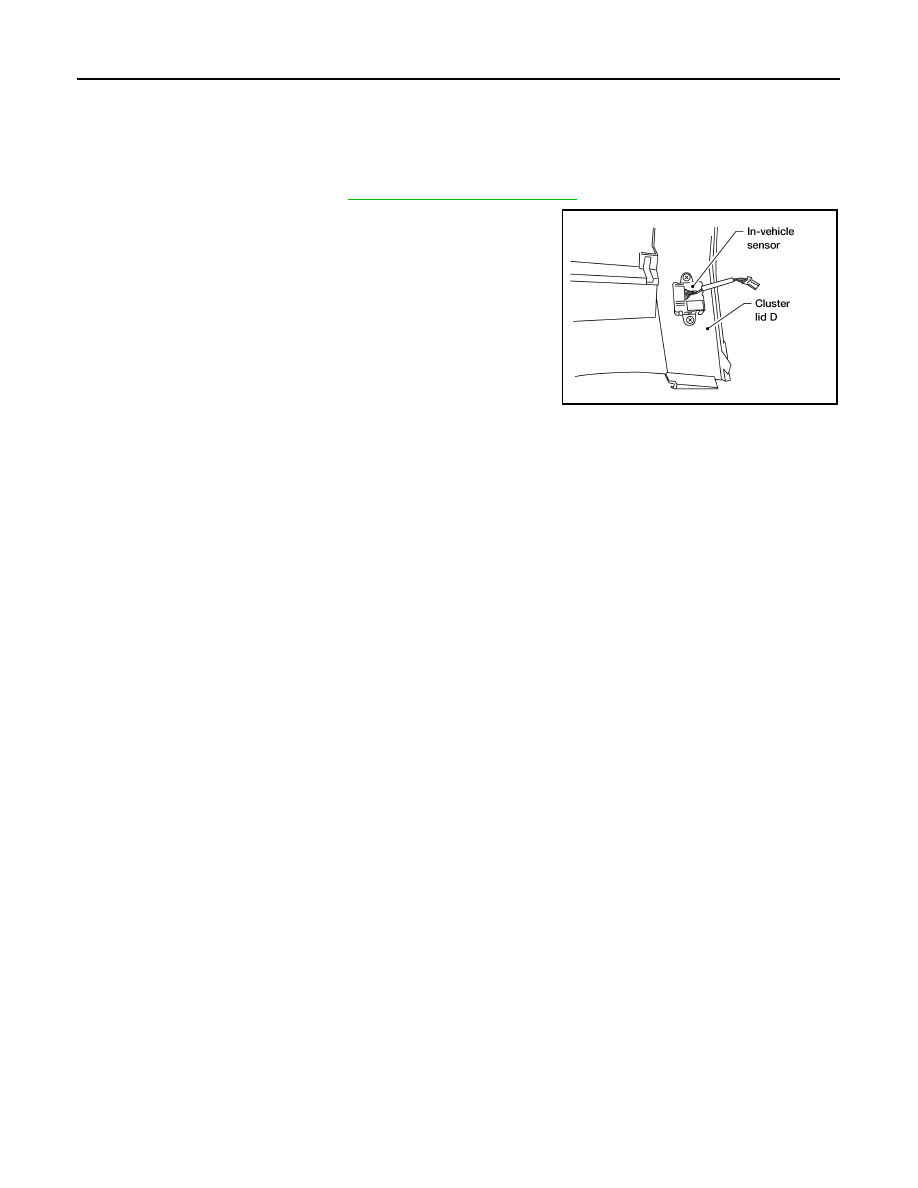

Remove the two screws and remove the in-vehicle sensor.

INSTALLATION

Installation is in the reverse order of removal.

WJIA1073E

OPTICAL SENSOR

VTL-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

OPTICAL SENSOR

Removal and Installation

INFOID:0000000001683811

REMOVAL

1.

Remove the defroster grille from the instrument panel. Refer to

IP-10, "Exploded View"

.

2.

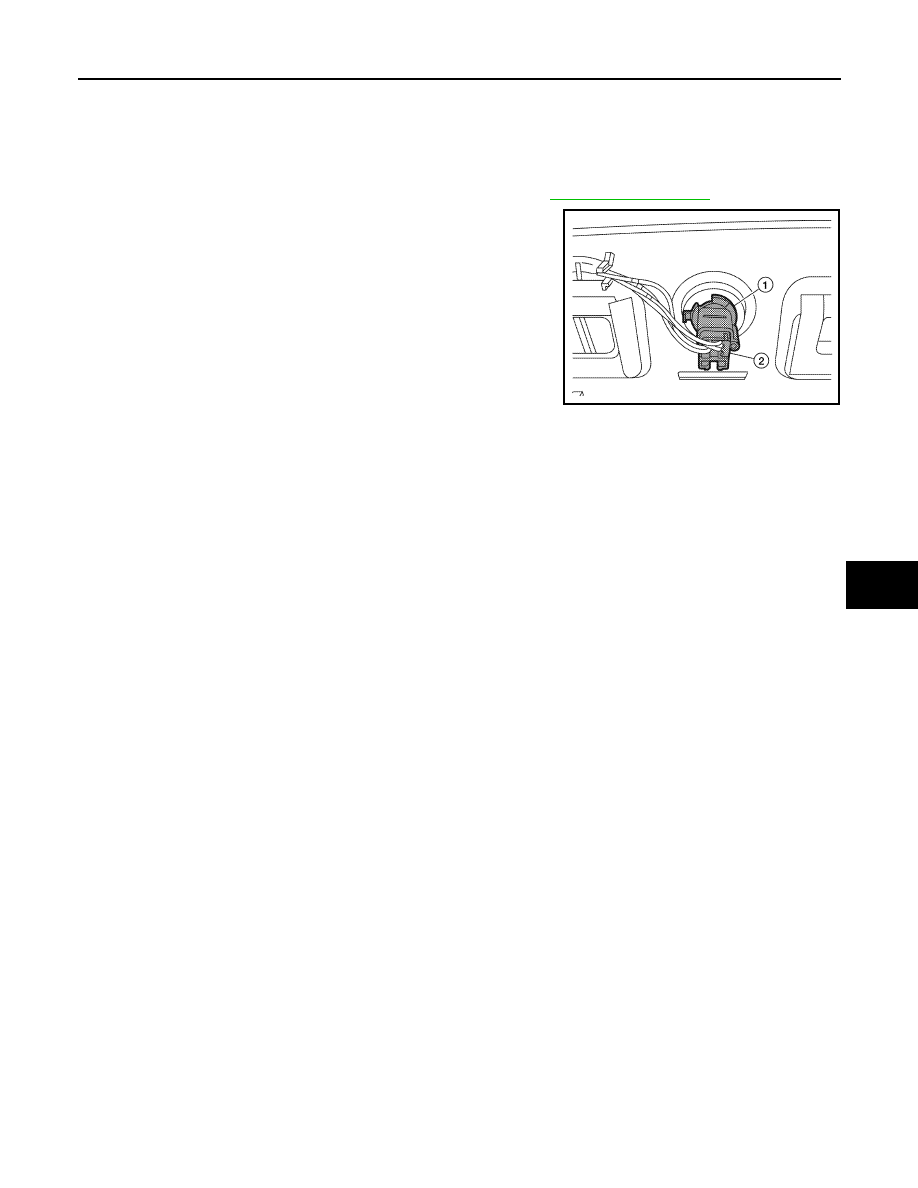

Disconnect the optical sensor connector (2).

3.

Twist the optical sensor (1) counter clockwise to remove it from
the defroster grille.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0061ZZ

VTL-12

< ON-VEHICLE REPAIR >

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000001672962

REMOVAL

1.

Remove the front kick plate. Refer to

INT-12, "Component"

.

2.

Remove the lower dash side finisher. Refer to

IP-10, "Exploded View"

.

3.

Remove the front pillar lower finisher. Refer to

INT-12, "Component"

.

4.

Remove the assist grip handle.

5.

Remove the front pillar upper finisher. Refer to

INT-12, "Component"

.

6.

Remove the lower glove box. Refer to

IP-10, "Exploded View"

.

7.

Remove the upper glove box (cluster lid E). Refer to

IP-10, "Exploded View"

.

8.

Disconnect the intake sensor electrical connector.
NOTE:

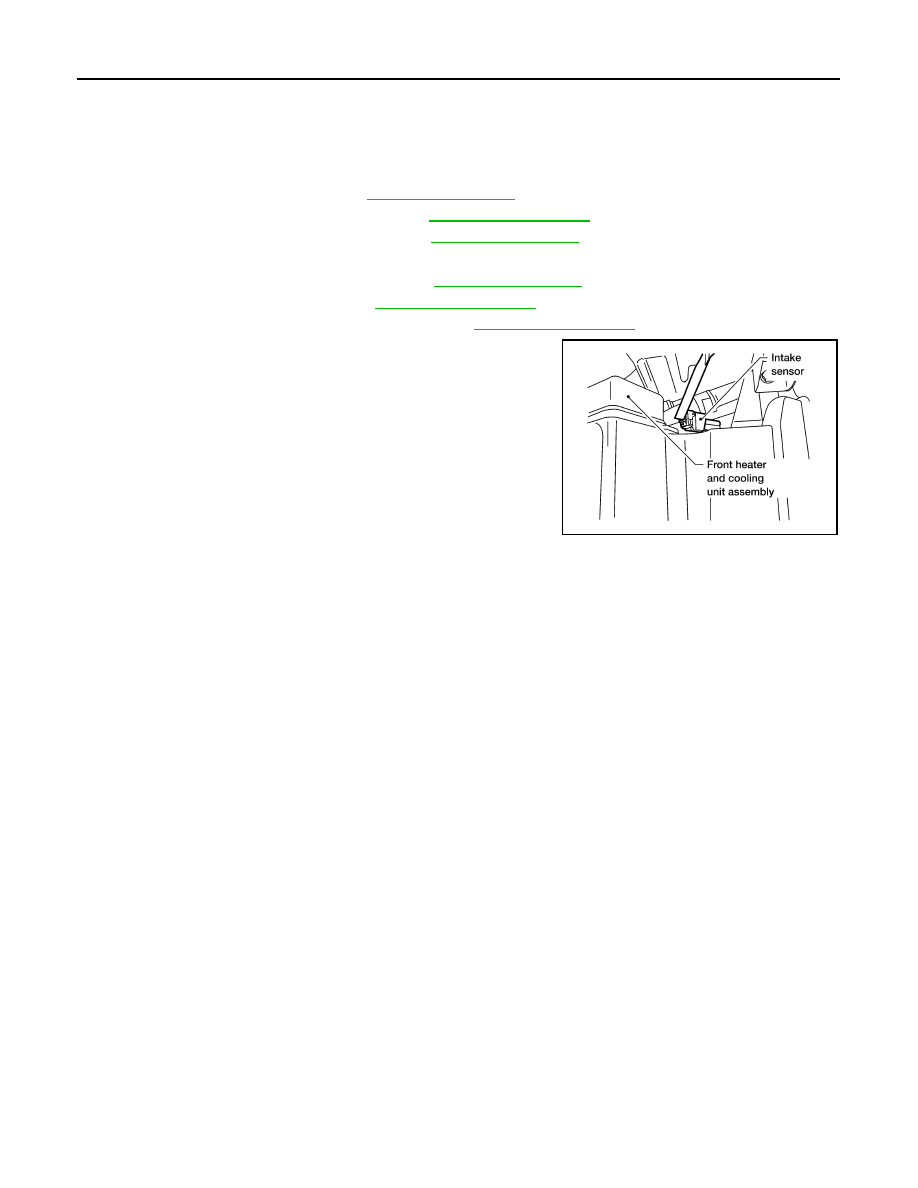

The intake sensor is located on the top of the front heater and
cooling unit assembly next to the A/C evaporator cover.

9.

Twist the intake sensor to remove the intake sensor from the
front heater and cooling unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

LJIA0133E

BLOWER MOTOR

VTL-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

BLOWER MOTOR

Component

INFOID:0000000001672963

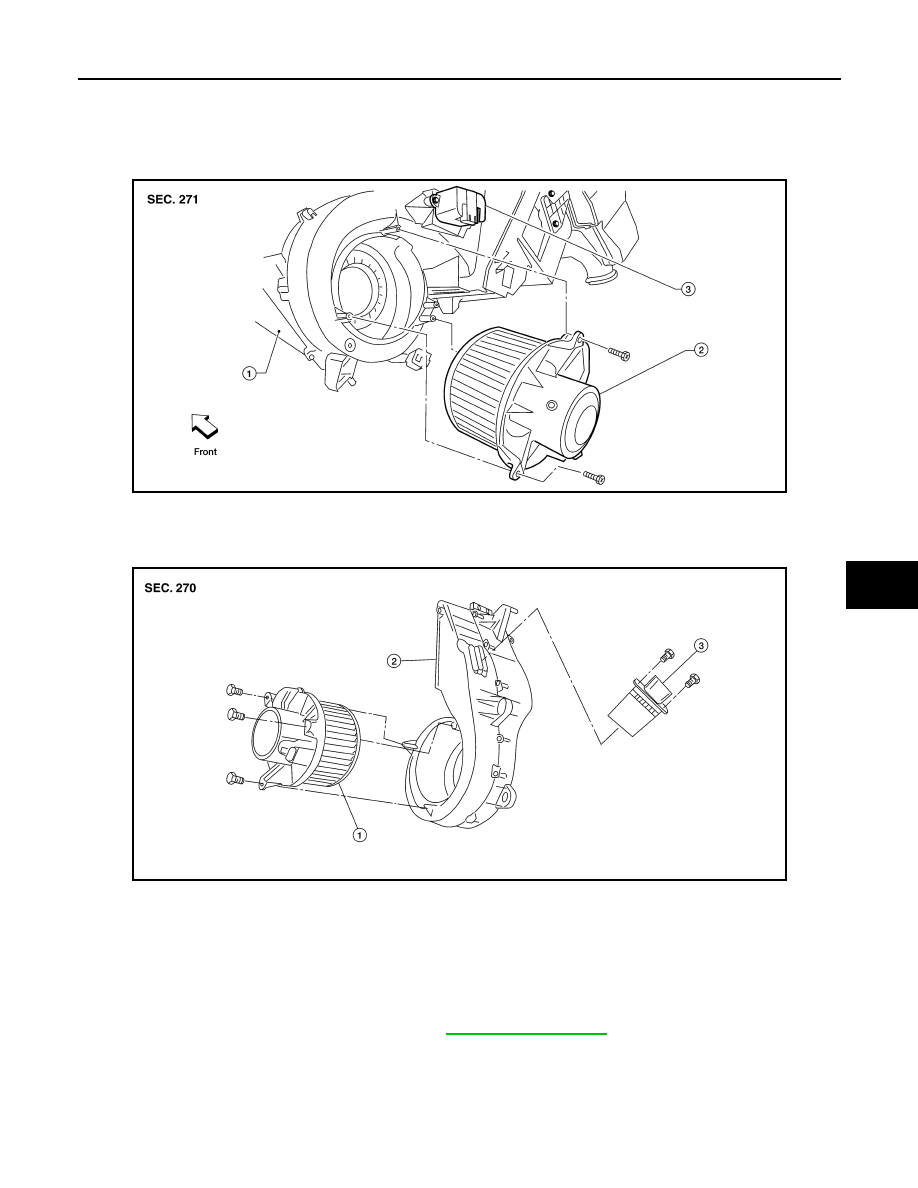

Front Blower Motor

Rear Blower Motor

Removal and Installation

INFOID:0000000001672964

FRONT BLOWER MOTOR

Removal

1.

Remove the lower glove box assembly. Refer to

IP-10, "Exploded View"

.

2.

Disconnect the front blower motor electrical connector.

3.

Remove the three screws and remove the front blower motor.

Installation

Installation is in the reverse order of removal.

LJIA0136E

1.

Front heater and cooling unit assembly

2.

Front blower motor

3.

Variable blower control

LJIA0055E

1.

Rear blower motor

2.

Rear blower motor case

3.

Rear blower motor resistor

VTL-14

< ON-VEHICLE REPAIR >

BLOWER MOTOR

REAR BLOWER MOTOR

Removal

1.

Remove the rear heater and cooling unit assembly. Refer to

VTL-18, "Removal and Installation"

.

2.

Disconnect the rear blower motor electrical connector.

3.

Remove the three screws and remove the rear blower motor.

Installation

Installation is in the reverse order of removal.

VARIABLE BLOWER CONTROL

VTL-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

VARIABLE BLOWER CONTROL

Removal and Installation

INFOID:0000000001672973

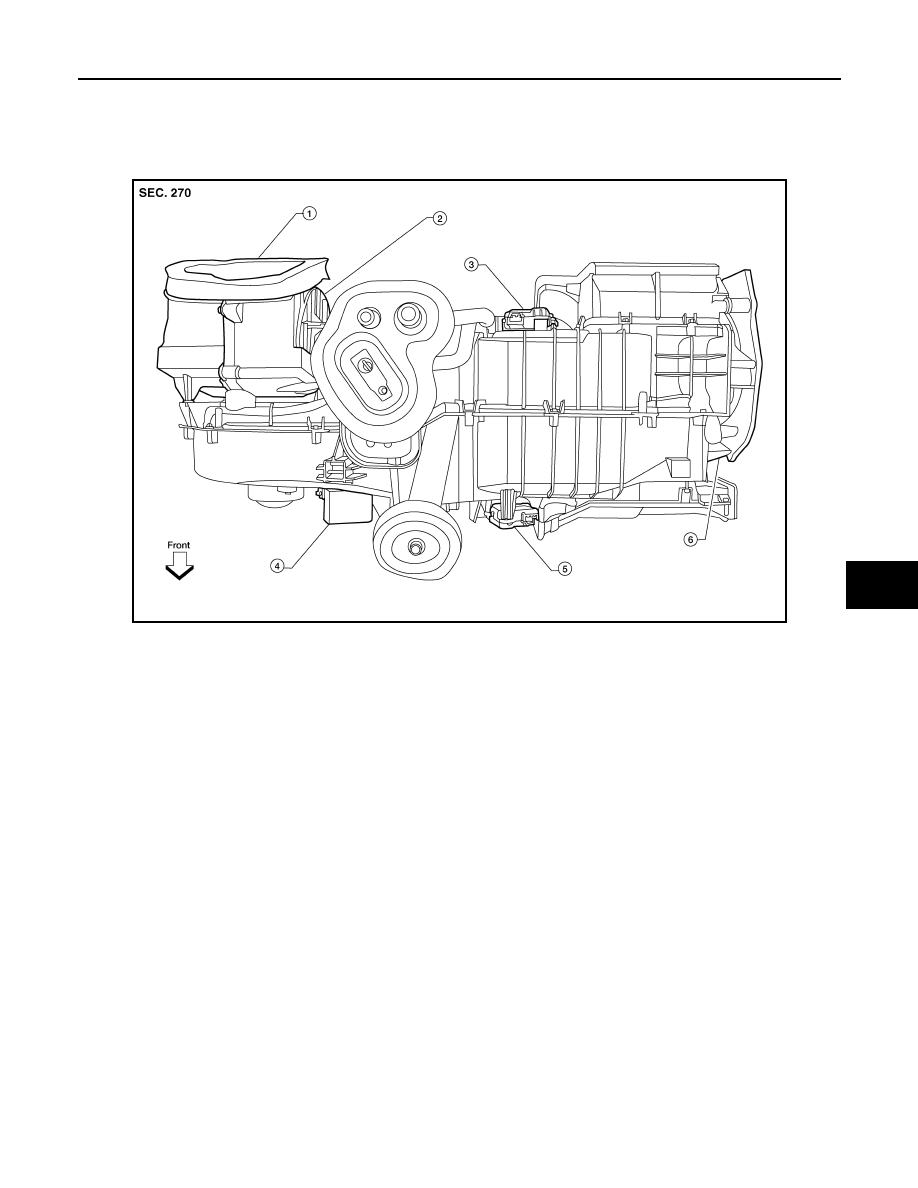

Variable Blower Control - Front Heater and Cooling Unit Assembly

REMOVAL

1.

Disconnect the variable blower control electrical connector.

2.

Remove the two screws and remove the variable blower control.

INSTALLATION

Installation is in the reverse order of removal.

LBIA0415E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (passenger)

4.

Variable blower control

5.

Air mix door motor (driver)

6.

Mode door motor

VTL-16

< ON-VEHICLE REPAIR >

REAR BLOWER MOTOR RESISTOR

REAR BLOWER MOTOR RESISTOR

Removal and Installation

INFOID:0000000001672974

Rear Blower Motor Resistor

REMOVAL

1.

Remove the luggage side lower finisher RH. Refer to

INT-12, "Component"

.

2.

Disconnect the rear blower motor resistor electrical connector.

3.

Remove the two screws and remove the rear blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

LJIA0055E

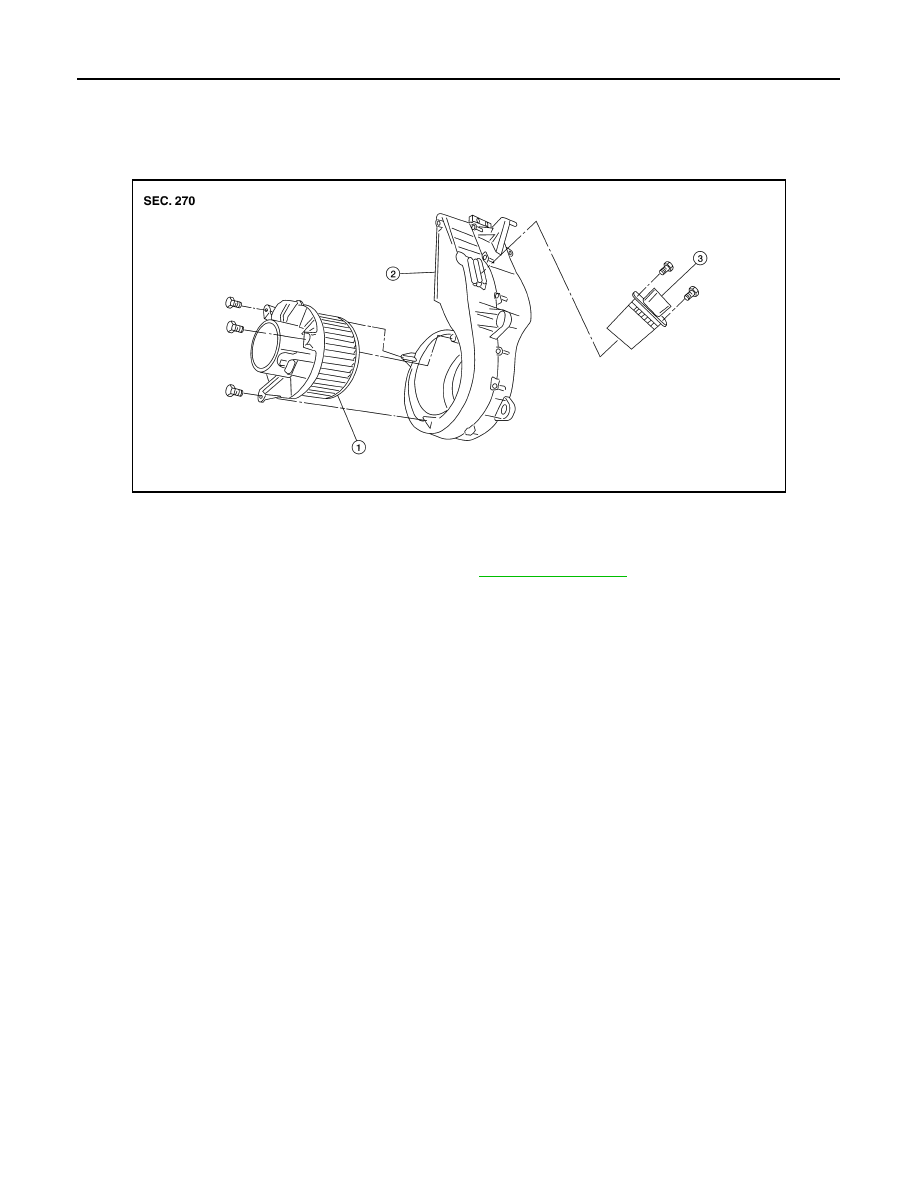

1.

Rear blower motor

2.

Rear blower motor case

3.

Rear blower motor resistor
