TM-310

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

e.

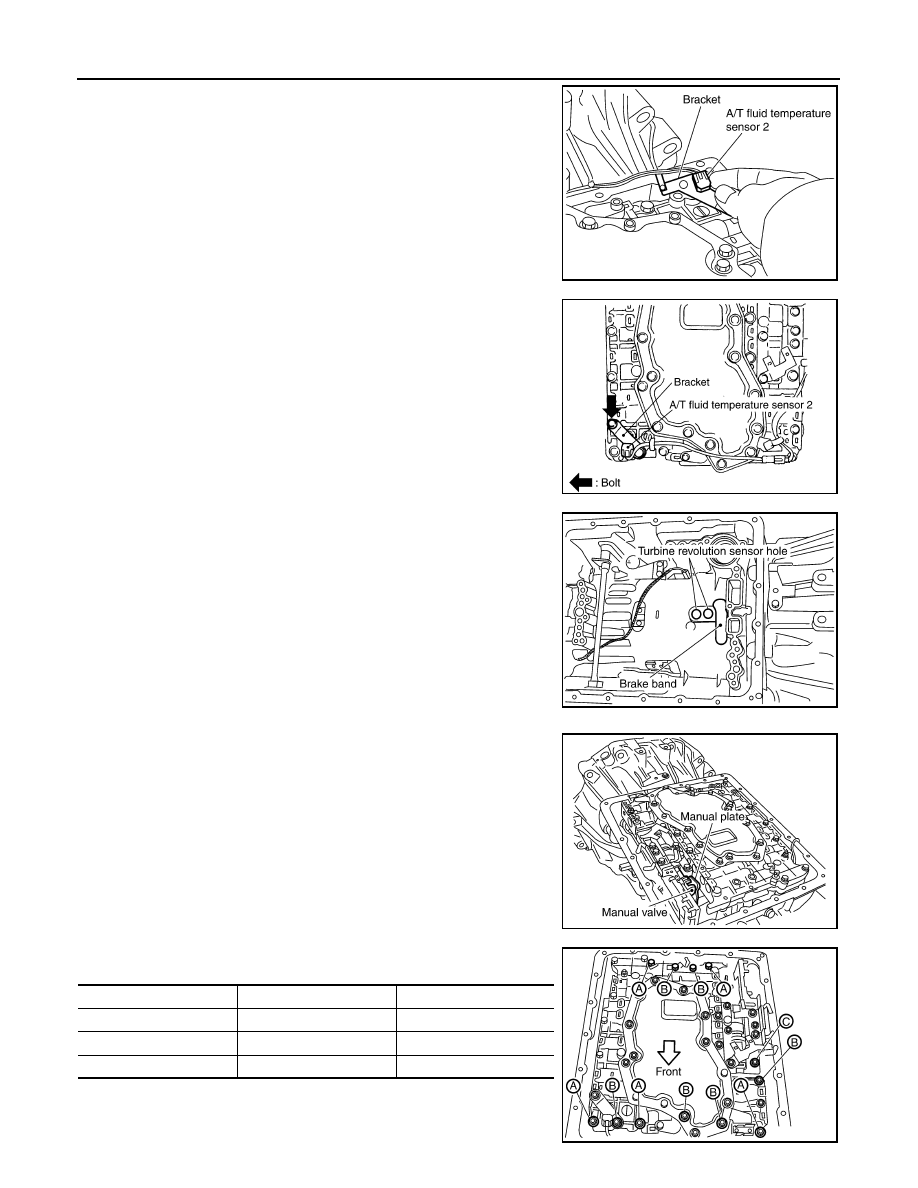

Install A/T fluid temperature sensor 2 to bracket.

f.

Install A/T fluid temperature sensor 2 (with bracket) to control
valve with TCM and tighten bolt to specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

g.

Install control valve with TCM in transmission case.

CAUTION:

• Make sure that turbine revolution sensor is securely

installed into turbine revolution sensor hole.

• Hang down revolution sensor harness toward outside so

as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

h.

Install bolts (A), (B) and (C) to control valve with TCM.

SCIA5264E

Bracket bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5301E

SCIA5034E

SCIA5035E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5025E

ASSEMBLY

TM-311

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

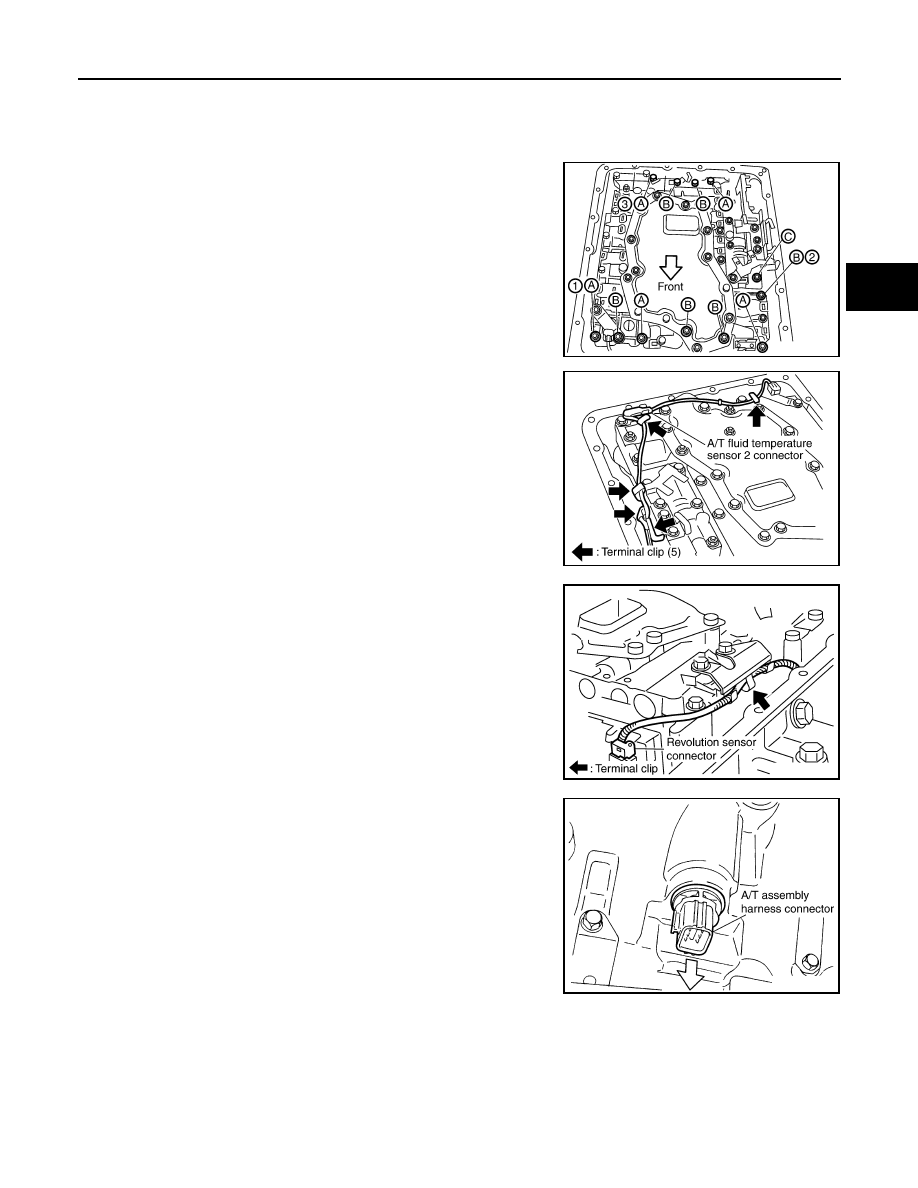

i.

Tighten bolt (1), (2) and (3) temporarily to prevent dislocation.
After that tighten them in order (1

→

 2

→

 3), and then tighten

other bolts.

10. Connect A/T fluid temperature sensor 2 connector.

11. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

12. Connect revolution sensor connector.

13. Securely fasten revolution sensor harness with terminal clip.

14. Pull down A/T assembly harness connector.

CAUTION:

Do not damage connector.

Bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5037E

SCIA5446E

SCIA7526E

SCIA5299E

TM-312

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

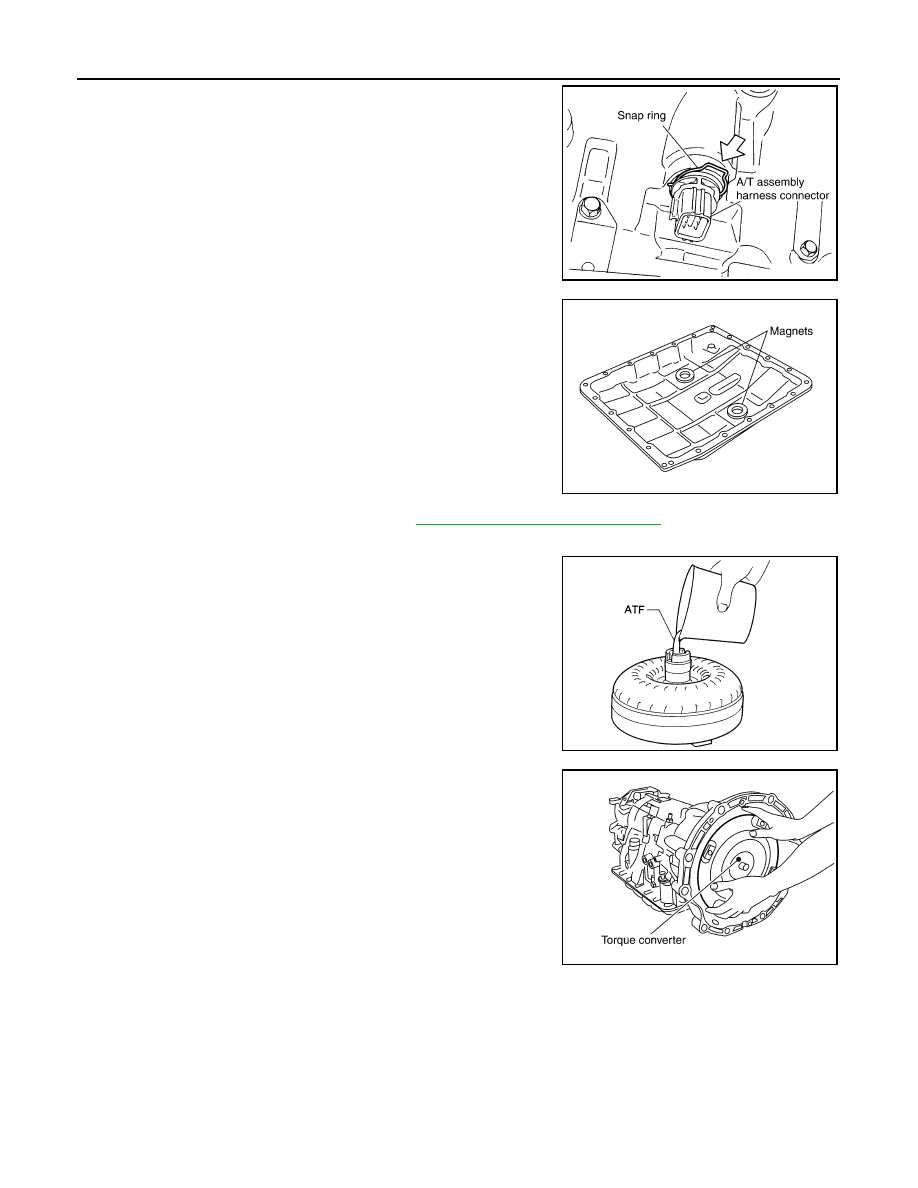

15. Install snap ring to A/T assembly harness connector.

16. Install magnets in oil pan.

17. Install oil pan to transmission case. Refer to

TM-197, "Removal and Installation"

.

18. Install torque converter.

a.

Pour ATF into torque converter.
NOTE:
• Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is

required for a new torque converter.

• When reusing old torque converter, add the same amount of

fluid as was drained.

b.

Install torque converter while aligning notches of torque con-
verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

SCIA5300E

SCIA5200E

SAT428DA

SCIA5010E

ASSEMBLY

TM-313

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

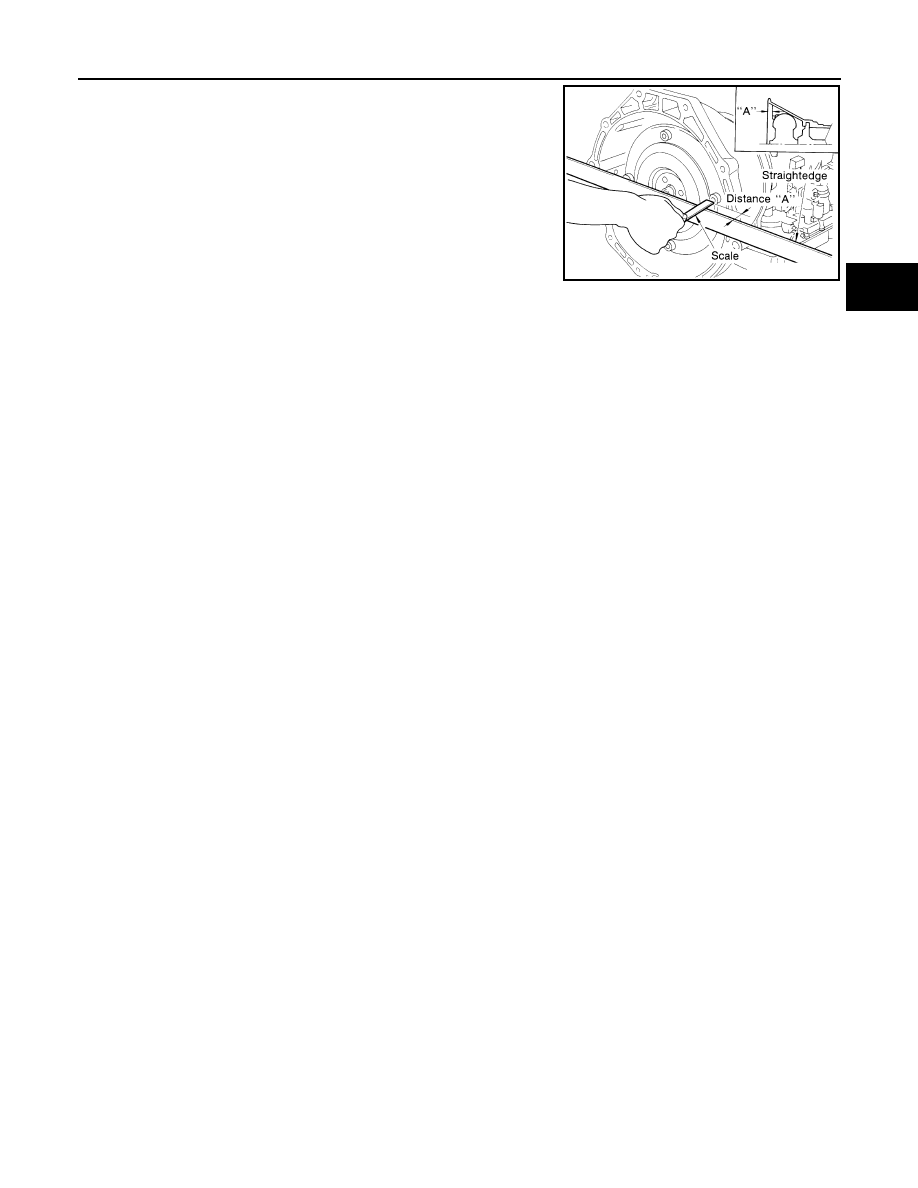

c.

Measure distance "A" to make sure that torque converter is in
proper position.

Distance “A"

VQ40DE models

: 25.0 mm (0.98 in) or more

VK56DE models

: 24.0 mm (0.94 in) or more

SCIA5694E

TM-314

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001282997

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000001282998

VQ40DE MODELS FOR 2WD

VQ40DE MODELS FOR 4WD

VK56DE MODELS

Applied model

VQ40DEengine

VK56DE engine

2WD

4WD

2WD

4WD

Automatic transmission model

RE5R05A

Transmission model code number

98X3E

98X4A

96X0A

96X0B

Stall torque ratio

1.76: 1

2.0: 1

Transmission gear ratio

1st

3.842

3.827

2nd

2.353

2.368

3rd

1.529

1.520

4th

1.000

1.000

5th

0.839

0.834

Reverse

2.765

2.613

Recommended fluid

Genuine NISSAN Matic J ATF*1 1: Refer to

MA-10, "Fluids and Lubricants"

.

Fluid capacity

10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)

10.6 liter (11-1/4 US qt, 9-3/8 Imp qt)

CAUTION:

• Use only Genuine NISSAN Matic J ATF. Do not mix with other fluid.
• Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will deteriorate in driveability and automat-

ic transmission durability, and may damage the automatic transmission, which is not covered by the warranty.

Throttle position

Vehicle speed km/h (MPH)

D

1



→

D

2

D

2



→

D

3

D

3



→

D

4

D

4



→

D

5

D

5



→

D

4

D

4



→

D

3

D

3



→

D

2

D

2



→

D

1

Full throttle

62 - 66

(39 - 41)

100 - 108

(63 - 68)

156 - 166

(98 - 104)

241 - 251

(151 - 157)

237 - 247

(148 - 154)

145 - 155

(91 - 97)

98 - 96

(55 - 60)

42 - 46

(26 - 29)

Half throttle

50 - 54

(31 - 34)

82 - 88

(51 - 55)

126 - 134

(79 - 84)

153 - 161

(96 - 101)

117 - 125

(73 - 78)

71 - 79

(44 - 49)

50 - 56

(31 - 35)

11 - 15

(7 - 9)

Tire size

Throttle po-

sition

Vehicle speed km/h (MPH)

D

1



→

D

2

D

2



→

D

3

D

3



→

D

4

D

4



→

D

5

D

5



→

D

4

D

4



→

D

3

D

3



→

D

2

D

2



→

D

1

P265/75R16

Full throttle

62 - 66

(39 - 41)

100 - 108

(63 - 68)

156 - 166

(98 - 104)

241 - 251

(151 - 157)

237 - 247

(148 - 154)

145 - 155

(91 - 97)

98 - 96

(55 - 60)

42 - 46

(26 - 29)

Half throttle

50 - 54

(31 - 34)

82 - 88

(51 - 55)

126 - 134

(79 - 84)

153 - 161

(96 - 101)

117 - 125

(73 - 78)

71 - 79

(44 - 49)

50 - 56

(31 - 35)

11 - 15

(7 - 9)

P245/75R16
P265/65R17

Full throttle

59 - 63

(37 - 39)

95 - 103

(59 - 64)

147 - 157

(92 - 98)

228 - 238

(143 - 149)

224 - 234

 (140 - 146)

137 - 147

(86 - 92)

83 - 91

(52 - 57)

40 - 44

(25 - 28)

Half throttle

47 - 51

(29 - 32)

77 - 83

(48 - 52)

119 - 127

(74 - 79)

144 - 152

 (90 - 95)

111 - 119

(69 - 74)

67 - 75

(42 - 47)

48 - 54

(30 - 34)

11 - 15

(7 - 9)

Throttle position

Vehicle speed km/h (MPH)

D

1



→

D

2

D

2



→

D

3

D

3



→

D

4

D

4



→

D

5

D

5



→

D

4

D

4



→

D

3

D

3



→

D

2

D

2



→

D

1

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-315

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Vehicle Speed at Which Lock-up Occurs/Releases

INFOID:0000000001282999

VQ40DE MODELS FOR 2WD

• At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

• At half throttle, the accelerator opening is 1/2 of the full opening.

VQ40DE MODELS FOR 4WD

• At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

• At half throttle, the accelerator opening is 1/2 of the full opening.

VK56DE MODELS FOR 2WD

• At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)

• At half throttle, the accelerator opening is 1/2 of the full opening.

Stall Speed

INFOID:0000000001283000

Line Pressure

INFOID:0000000001283001

Full throttle

64 - 68

(40 - 43)

103 - 111

(64 - 69)

163 - 173

(102 - 108)

230 - 240

(144 - 148)

226 - 236

(141 - 148)

153 - 163
(96 - 102)

92 - 100

(58 - 63)

43 - 47

(27 - 29)

Half throttle

42 - 46

(26 - 29)

69 - 75

(43 - 47)

96 - 104

(60 - 65)

126 - 134

(79 - 84)

102 - 110

(64 - 69)

70 - 78

(44 - 49)

41 - 47

(26 - 29)

10 - 14

(6 - 9)

Throttle position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

Closed throttle

57 - 65 (35 - 40)

54 - 62 (34 - 39)

Half throttle

172 - 180 (107 - 112)

136 - 144 (85 - 89)

Tire size

Throttle position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

P265/75R16

Closed throttle

57 - 65 (35 - 40)

54 - 62 (34 - 39)

Half throttle

172 - 180 (107 - 112)

136 - 144 (85 - 89)

P245/75R16
P265/65R17

Closed throttle

54 - 62 (34 - 39)

51 - 59 (32 - 37)

Half throttle

162 - 170 (101 - 106)

129 - 137 (80 - 85)

Throttle position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

Closed throttle

60 - 68 (37 - 42)

53 - 61 (33 - 38)

Half throttle

164 - 172 (102 - 107)

126 - 134 (78 - 83)

Engine Model

VQ40DE

VK56DE

Stall speed

2,200 - 2,500 rpm

2,350 - 2,650 rpm

Engine speed

Line pressure [kPa (kg/cm

2

, psi)]

“R” position

“D” position

At idle speed

425 - 465 (4.3 - 4.7, 62 - 67)

379 - 428 (3.9 - 4.4, 55 - 62)

At stall speed

1,605 - 1,950 (16.4 - 19.9, 233 - 283)

1,310 - 1,500 (13.4 - 15.3, 190 - 218)

TM-316

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

A/T Fluid Temperature Sensor

INFOID:0000000001283002

Turbine Revolution Sensor

INFOID:0000000001283003

Vehicle Speed Sensor A/T (Revolution Sensor)

INFOID:0000000001283004

Reverse brake

INFOID:0000000001283005

*: Always check with the Parts Department for the latest parts information.

Total End Play

INFOID:0000000001283006

BEARING RACE FOR ADJUSTING TOTAL END PLAY

Name

Condition

CONSULT-II “DATA MONITOR” (Approx.) (V)

Resistance (Approx.) (k

Ω

)

A/T fluid temperature sensor 1

0

°

C (32

°

F)

3.3

15

20

°

C (68

°

F)

2.7

6.5

80

°

C (176

°

F)

0.9

0.9

A/T fluid temperature sensor 2

0

°

C (32

°

F)

3.3

10

20

°

C (68

°

F)

2.5

4

80

°

C (176

°

F)

0.7

0.5

Name

Condition

Data   (Ap-

prox.)

Turbine revolution
sensor 1

When running at 50 km/h (31 MPH) in 4th speed with the closed throttle position signal “OFF”.

 1.3 (kHz)

Turbine revolution
sensor 2

When moving at 20 km/h (12 MPH) in 1st speed with the closed throttle position signal “OFF”.

Name

Condition

Data (Approx.)

Revolution sensor

When moving at 20 km/h (12 MPH).

185 (Hz)

Model code number

98X3E, 98X4A

96X0A, 96X0B

Number of drive plates

6

7

Number of driven plates

6

7

Clearance [mm (in)]

Standard

0.7 - 1.1 (0.028 - 0.043)

Thickness of retaining plates

Thickness

mm (in)

Part number*

4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

31667 90X14
31667 90X15
31667 90X16
31667 90X17
31667 90X18
31667 90X19

Total end play

mm (in)

0.25 - 0.55 (0.0098 - 0.0217)

Thickness

mm (in)

Part number*

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)

31435 95X00
31435 95X01
31435 95X02
31435 95X03
31435 95X04
31435 95X05

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-317

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: Always check with the Parts Department for the latest parts information.
