TM-262

< DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

a.

2WD models

i.

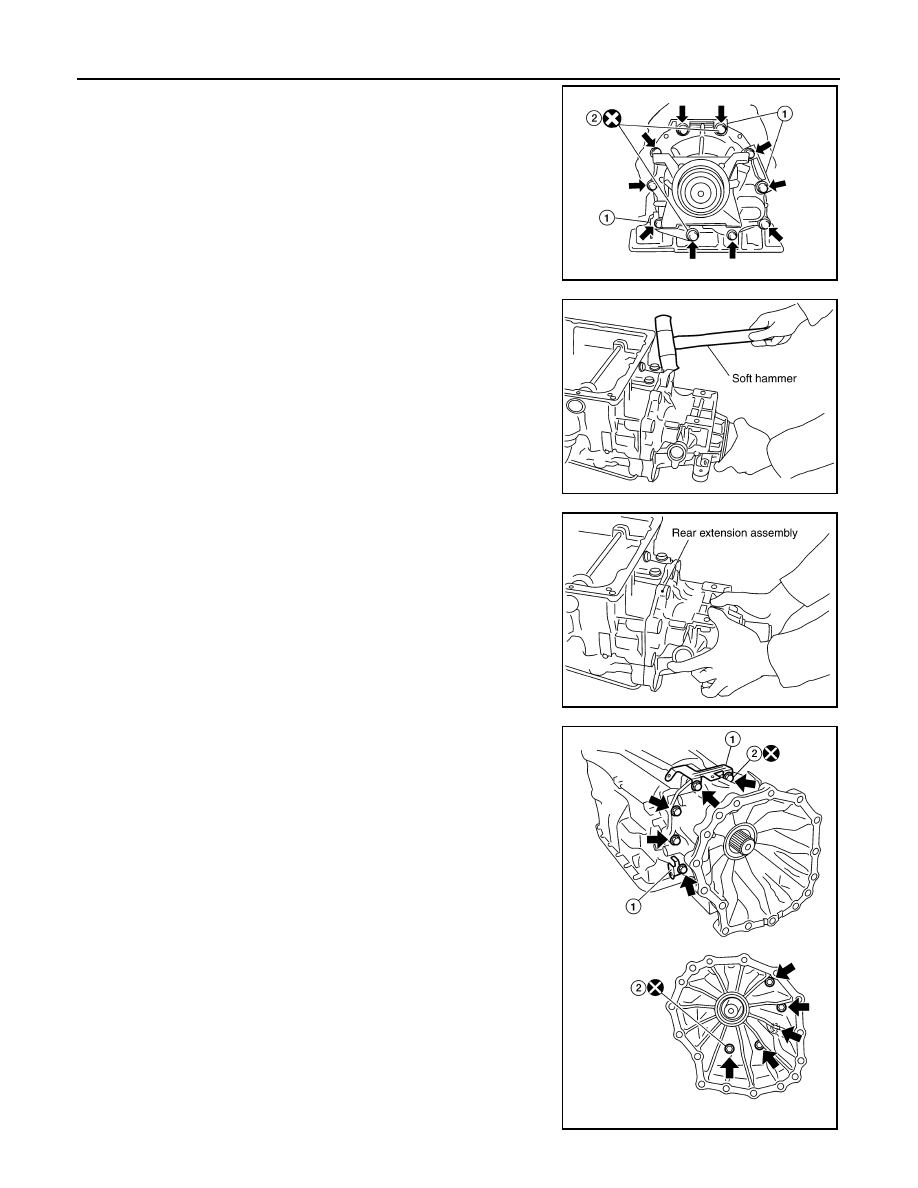

Remove bolts for rear extension assembly and transmission
case.
• Self-sealing bolts (2)

ii.

Remove brackets (1) (VK56DE models only.)

iii.

Tap rear extension assembly with soft hammer.

iv.

Remove rear extension assembly (with needle bearing) from
transmission case.

b.

4WD models

i.

Remove adapter case to transmission case bolts and terminal
bracket (2).
• Self-sealing bolt (2)

ii.

Remove brackets (1) (VK56DE models only).

WCIA0562E

SCIA5028E

SCIA5029E

WCIA0563E

DISASSEMBLY

TM-263

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

iii.

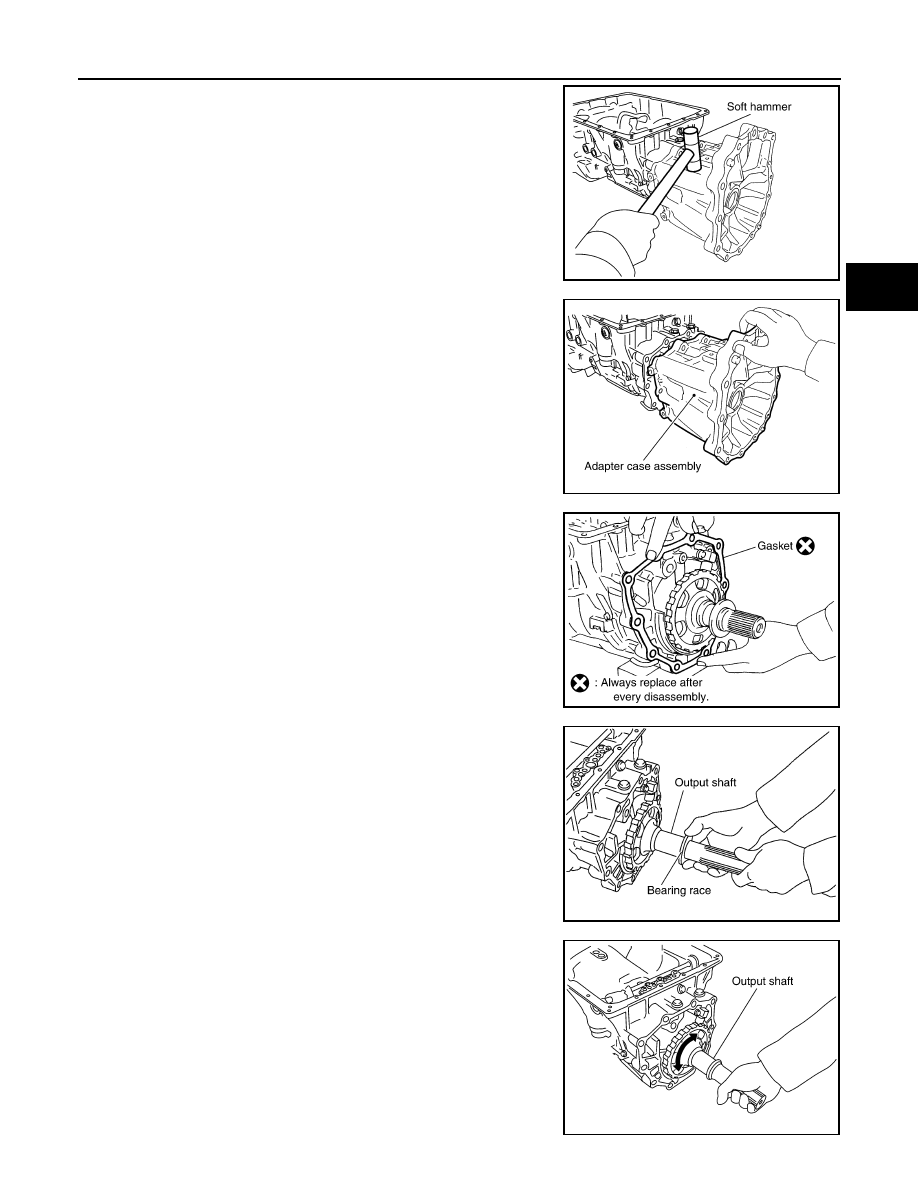

Tap adapter case assembly using suitable tool.

iv.

Remove adapter case assembly (with needle bearing) from
transmission case.

v.

Remove gasket from transmission case.

44. Remove bearing race from output shaft.

45. Remove output shaft from transmission case by rotating left and

right.

SCIA5201E

SCIA5186E

SCIA5231E

SCIA5245E

SCIA5030E

TM-264

< DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

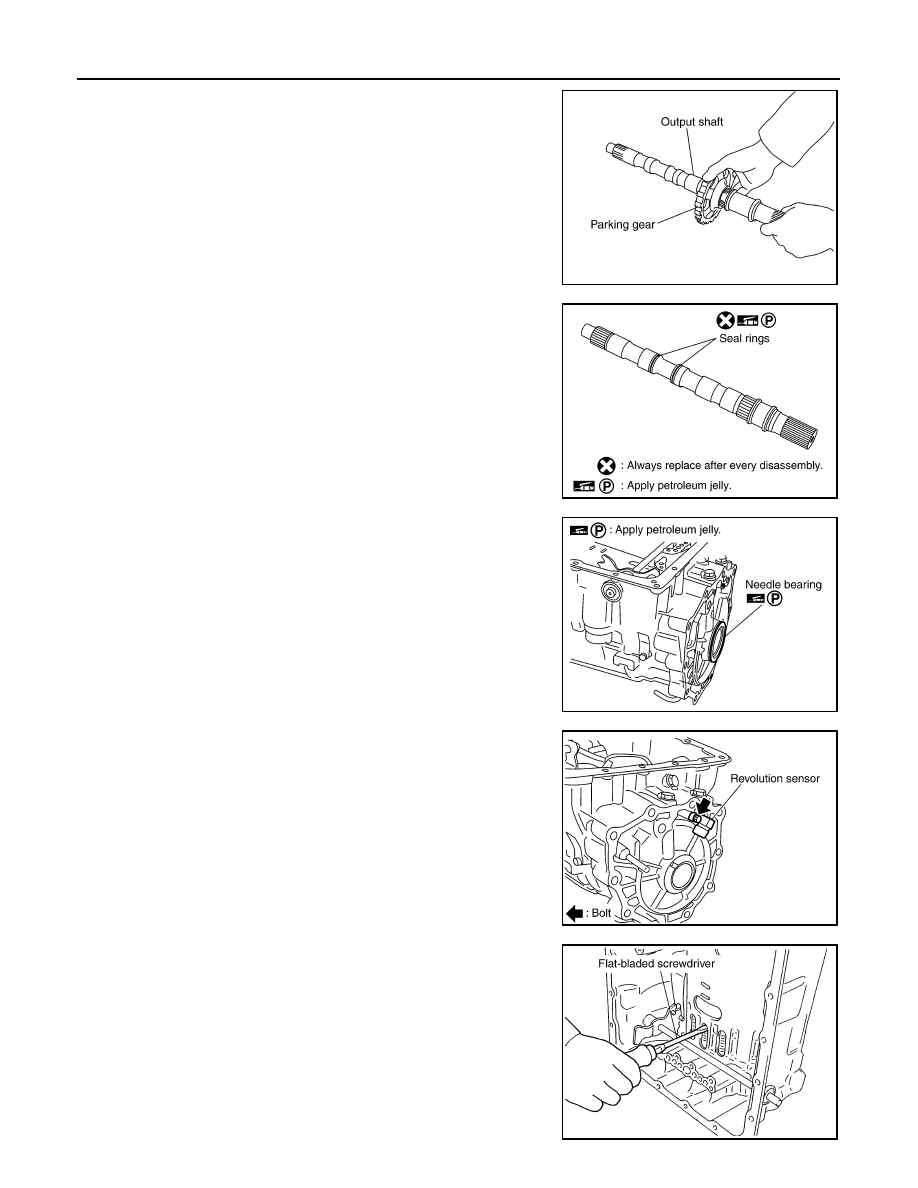

46. Remove parking gear from output shaft.

47. Remove seal rings from output shaft.

48. Remove needle bearing from transmission case.

49. Remove revolution sensor from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings or any foreign material to get on

the sensor's front edge magnetic area.

• Do not place in an area affected by magnetism.

50. Remove reverse brake snap ring using two flat-bladed screw-

drivers.
NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using a another
screwdriver.

51. Remove reverse brake retaining plate from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

SCIA5247E

SCIA5209E

SCIA5031E

SCIA2320E

SCIA5032E

DISASSEMBLY

TM-265

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

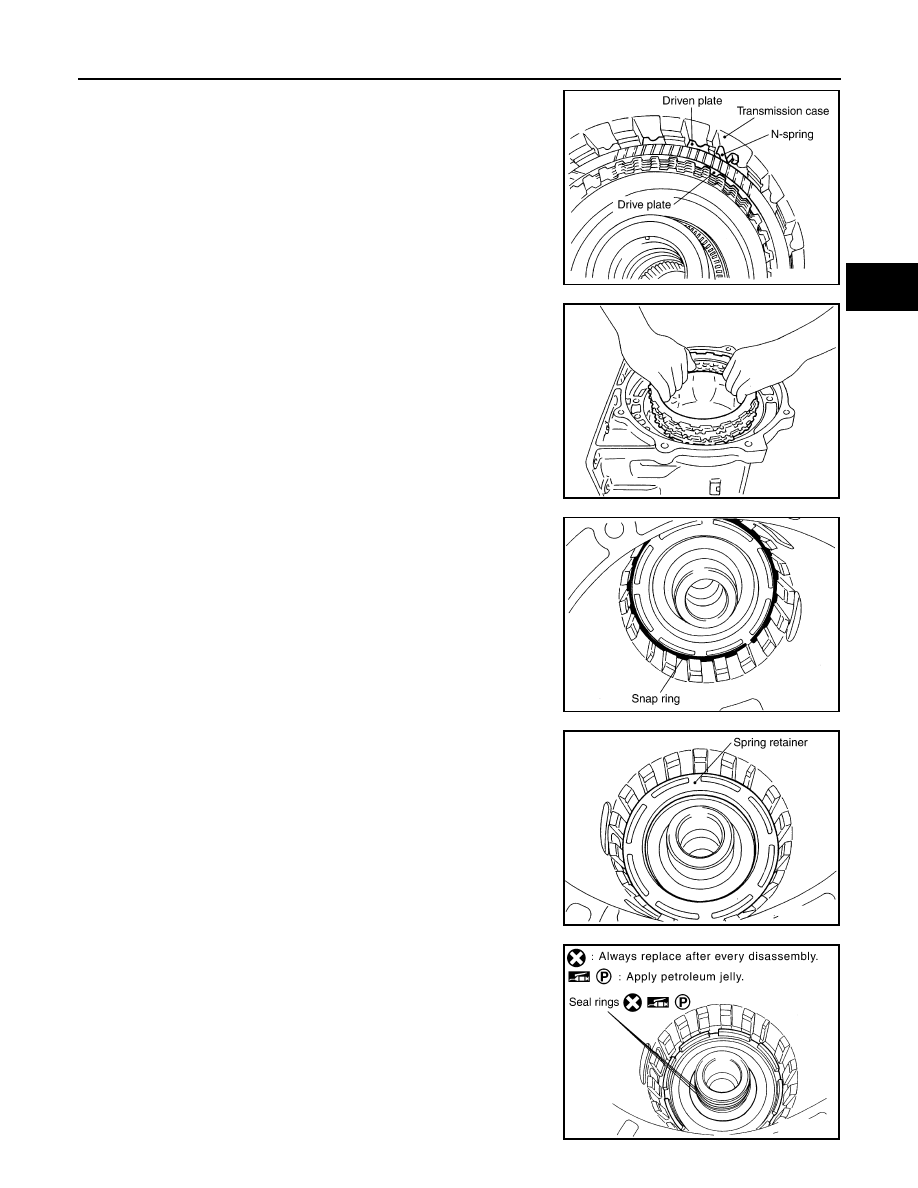

52. Remove N-spring from transmission case.

53. Remove reverse brake drive plates, driven plates and dish plate

from transmission case.
• Check facing for burns, cracks or damage. If necessary,

replace the plate.

54. Remove snap ring using suitable tool.

55. Remove spring retainer and return spring from transmission

case.

56. Remove seal rings from drum support.

SCIA5214E

SCIA2322E

SCIA2323E

SCIA2324E

SCIA3333E

TM-266

< DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

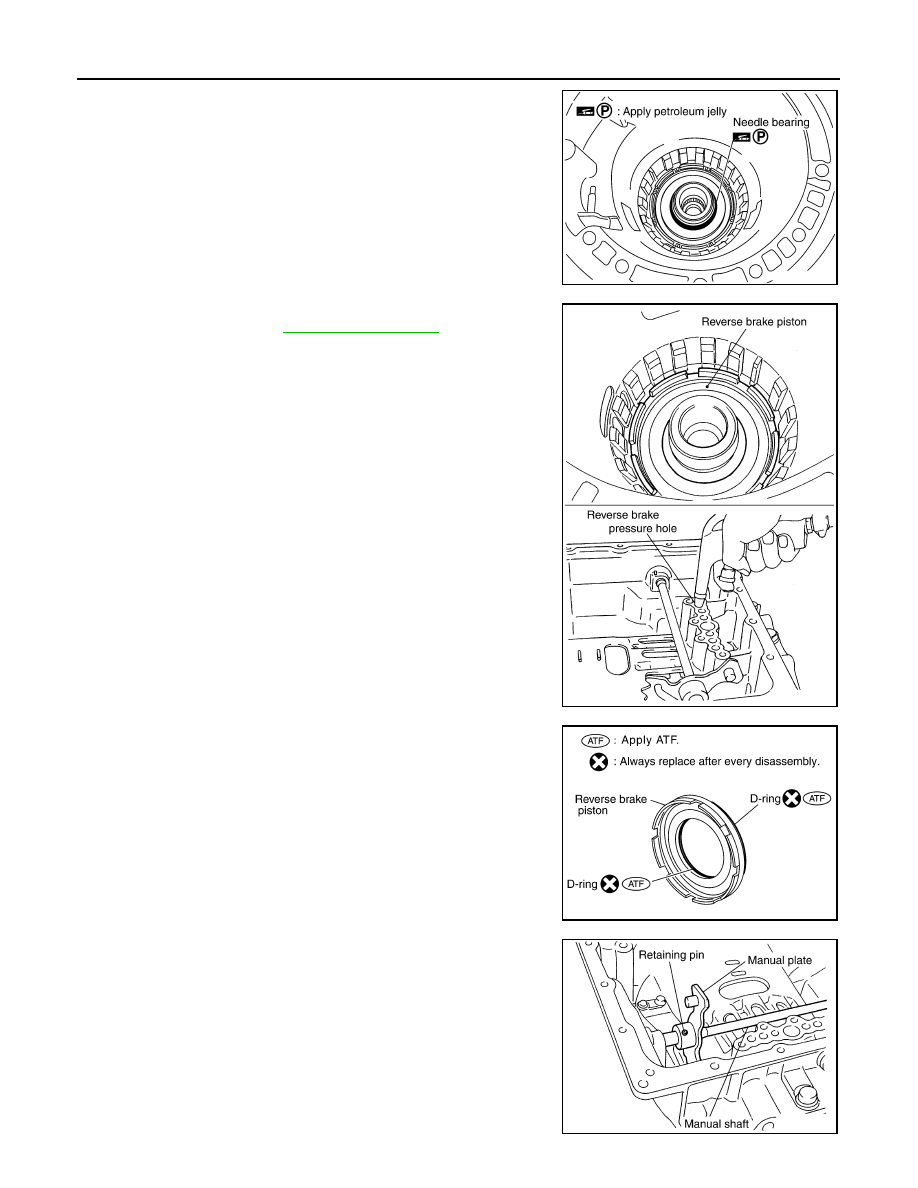

57. Remove needle bearing from drum support edge surface.

58. Remove reverse brake piston from transmission case using

compressed air. Refer to

TM-246, "Oil Channel"

.

CAUTION:

Care should be taken not to abruptly blow air. It makes the
piston incline, and as a result, it becomes hard to disas-
semble the pistons.

59. Remove D-rings from reverse brake piston.

60. Knock out retaining pin using suitable tool.

SCIA2796E

SCIA5047E

SCIA6330E

SCIA2328E

DISASSEMBLY

TM-267

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

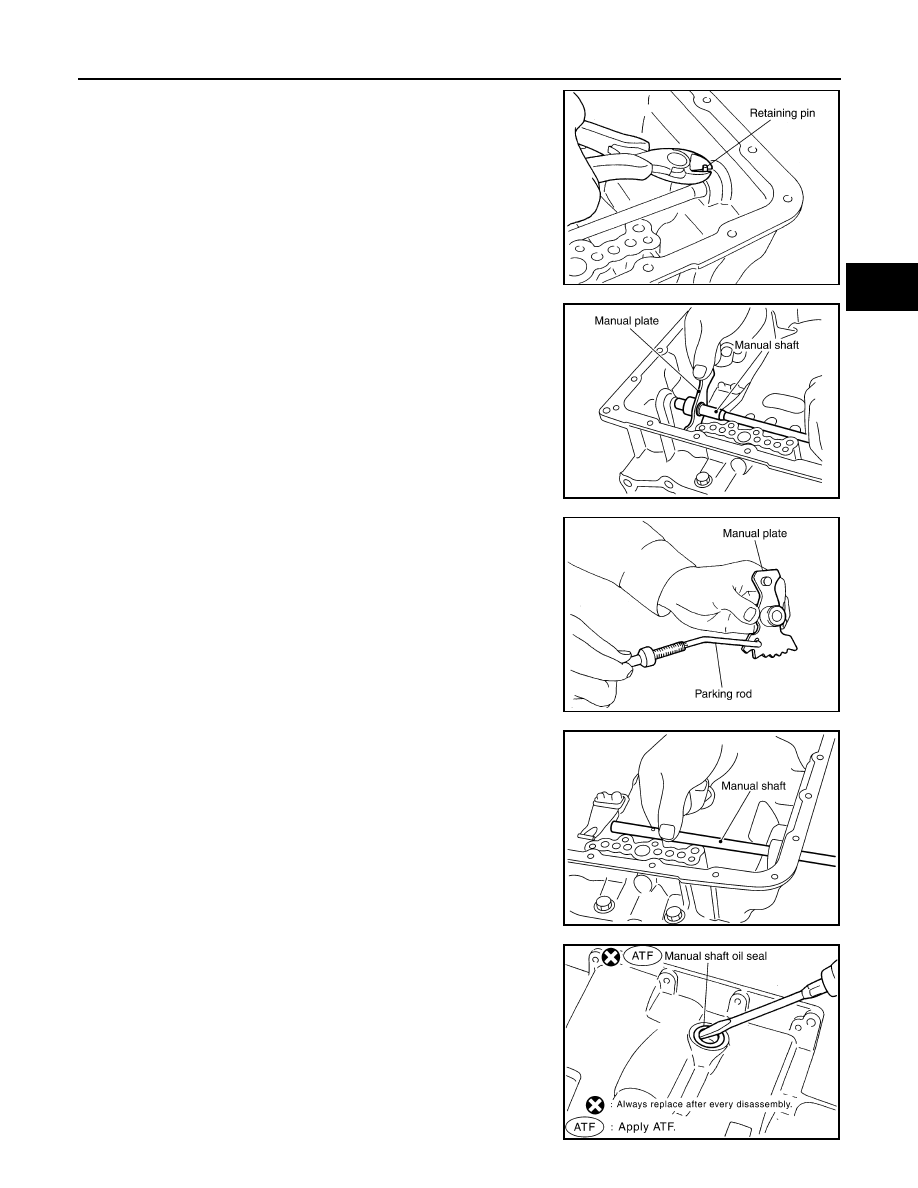

61. Remove manual shaft retaining pin using suitable tool.

62. Remove manual plate (with parking rod) from manual shaft.

63. Remove parking rod from manual plate.

64. Remove manual shaft from transmission case.

65. Remove manual shaft oil seals using suitable tool.

CAUTION:

Do not scratch transmission case.

SCIA2329E

SCIA5715E

SCIA5220E

SCIA5716E

SCIA2331E

TM-268

< DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

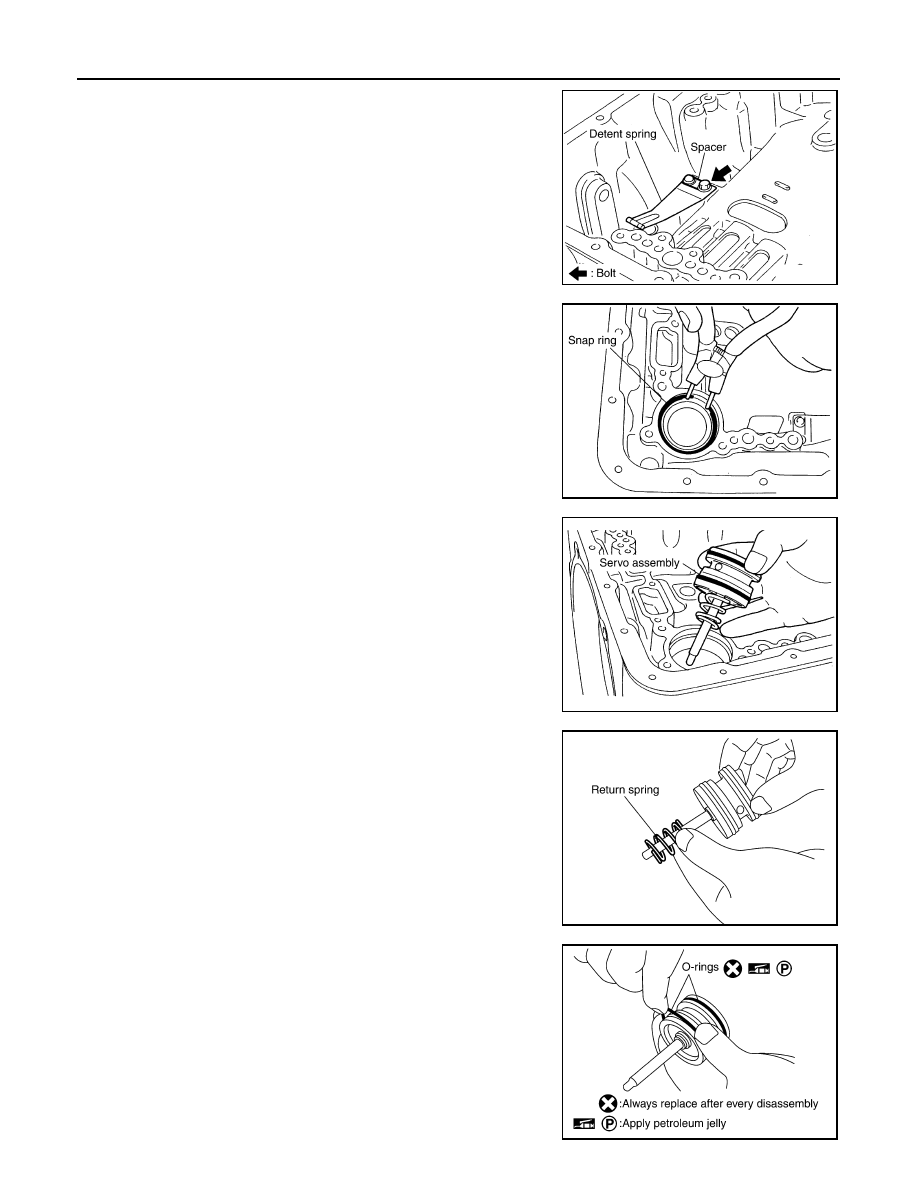

66. Remove detent spring and spacer from transmission case.

67. Remove snap ring from transmission case using suitable tool.

68. Remove servo assembly (with return spring) from transmission

case.

69. Remove return spring from servo assembly.

70. Remove O-rings from servo assembly.

SCIA5248E

SCIA2333E

SCIA5679E

SCIA5717E

SCIA5719E

DISASSEMBLY

TM-269

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

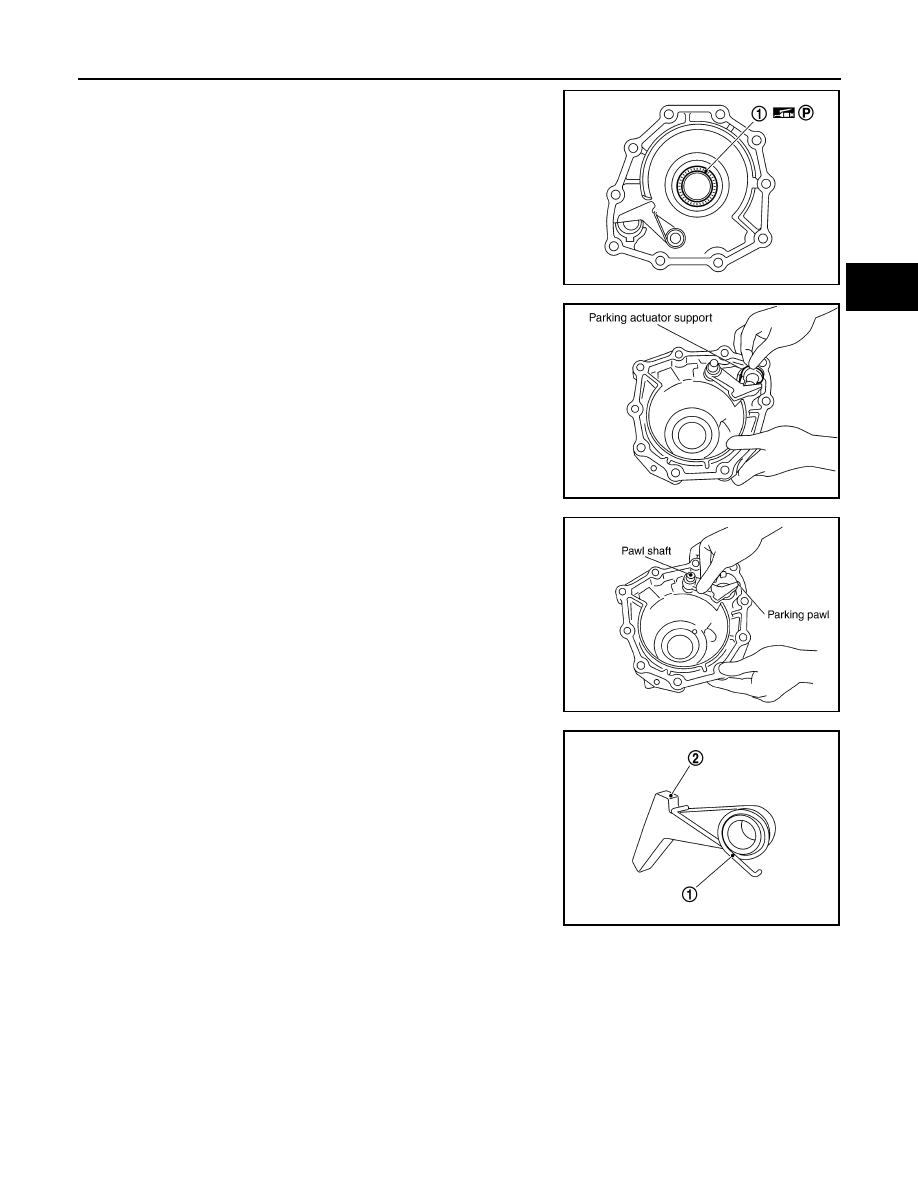

71. Remove needle bearing (1) from rear extension (2WD models)

or adapter case (4WD models).

72. Remove parking actuator support from rear extension (2WD

models) or adapter case (4WD models).

73. Remove parking pawl (with return spring) and pawl shaft from

rear extension (2WD models) or adapter case (4WD models).

74. Remove return spring (1) from parking pawl (2).

SCIA6179J

SCIA3423E

SCIA3424E

SCIA6180J
