< ON-VEHICLE REPAIR >

OIL PAN

2.

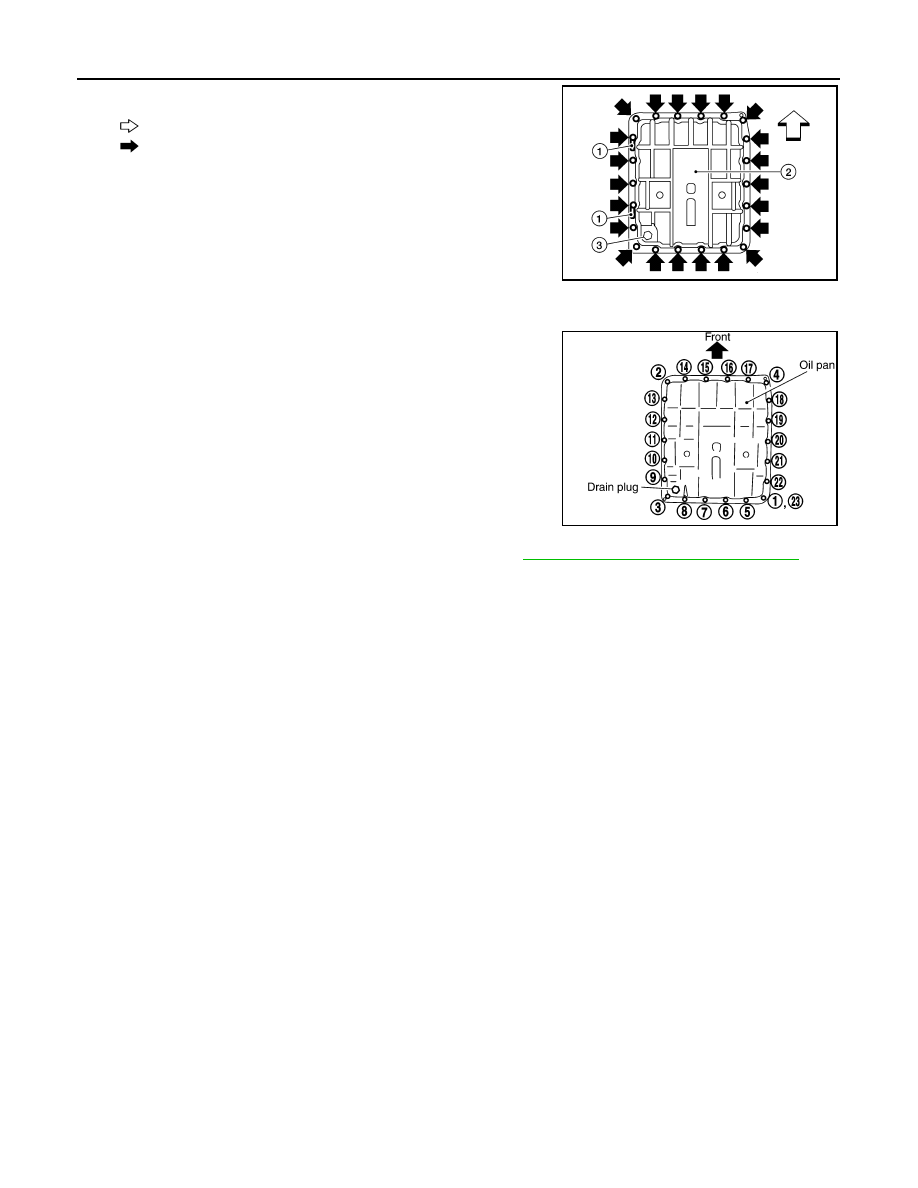

Install the oil pan (2) with new oil pan gasket with the bolts and
clips (1) finger tight to secure inplace as shown.
•

 : Vehicle Front

•

 : Oil pan bolts

CAUTION:

• Be sure the oil drain plug is located to the rear of the

transmission assembly.

• Before installing oil pan bolts, remove any traces of old

sealant from the sealing surfaces and threaded holes.

• Do not reuse old gasket, replace with a new one.
• Always replace the oil pan bolts as they are self-sealing.
• Partially install the oil pan bolts in a criss-cross pattern to

prevent dislocation of the gasket.

3.

Tighten oil pan bolts in numerical order as shown.

4.

Refill the A/T with fluid and check for fluid leakage. Refer to

TM-180, "Checking the A/T Fluid (ATF)"

.

AWDIA0023ZZ

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA4113E

CONTROL VALVE WITH TCM

TM-199

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL VALVE WITH TCM

Control Valve with TCM and A/T Fluid Temperature Sensor 2

INFOID:0000000001282978

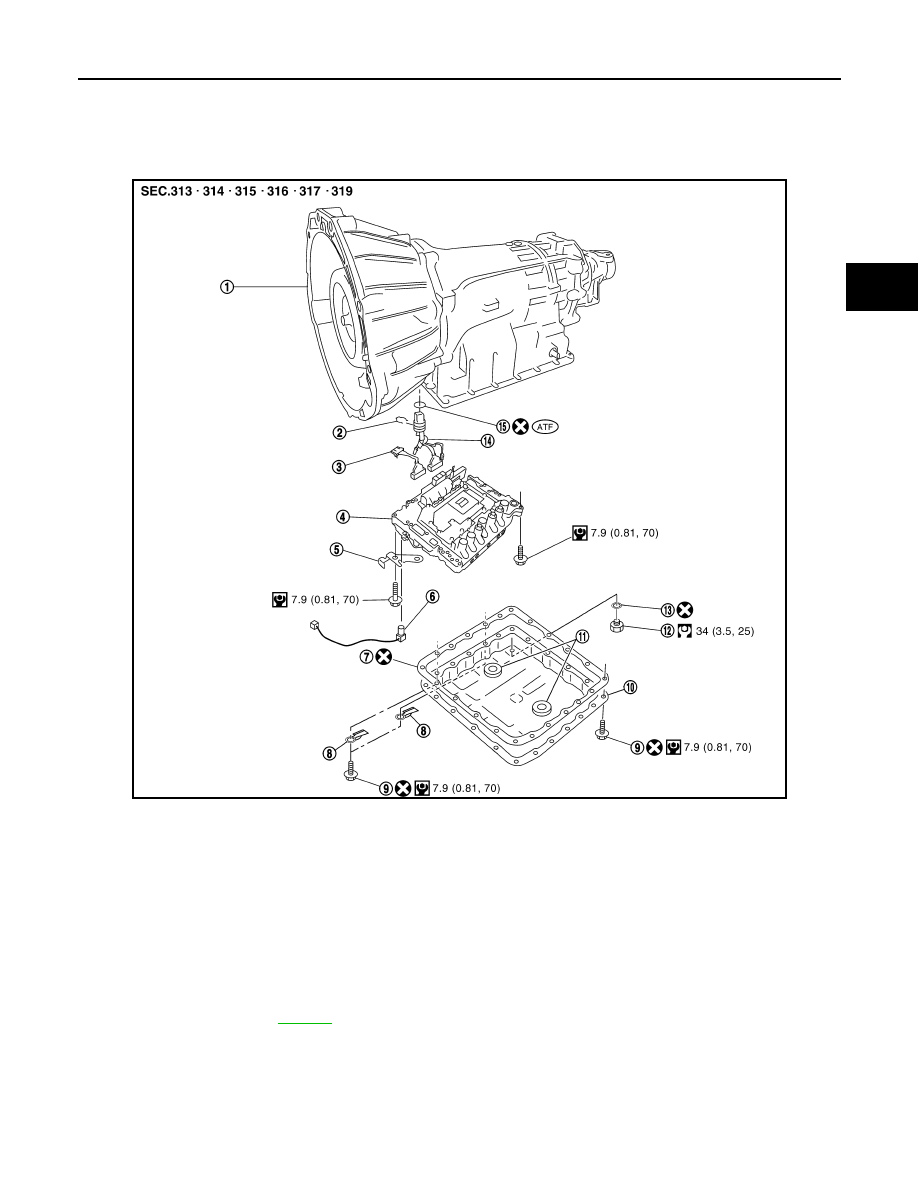

Exploded view

CONTROL VALVE WITH TCM AND A/T FLUID TEMPRATURE SENSOR 2

Removal

1.

Disconnect negative battery terminal.

2.

Drain A/T fluid. Refer to

TM-180

.

3.

Disconnect A/T assembly harness connector.

AWDIA0024ZZ

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

A/T fluid temperature sensor 2

7.

Oil pan gasket

8.

Clips

9.

Oil pan bolt

10. Oil pan

11.

Magnet

12. Drain plug

13. Drain plug gasket

14. Terminal cord assembly

15.  O-ring

TM-200

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

4.

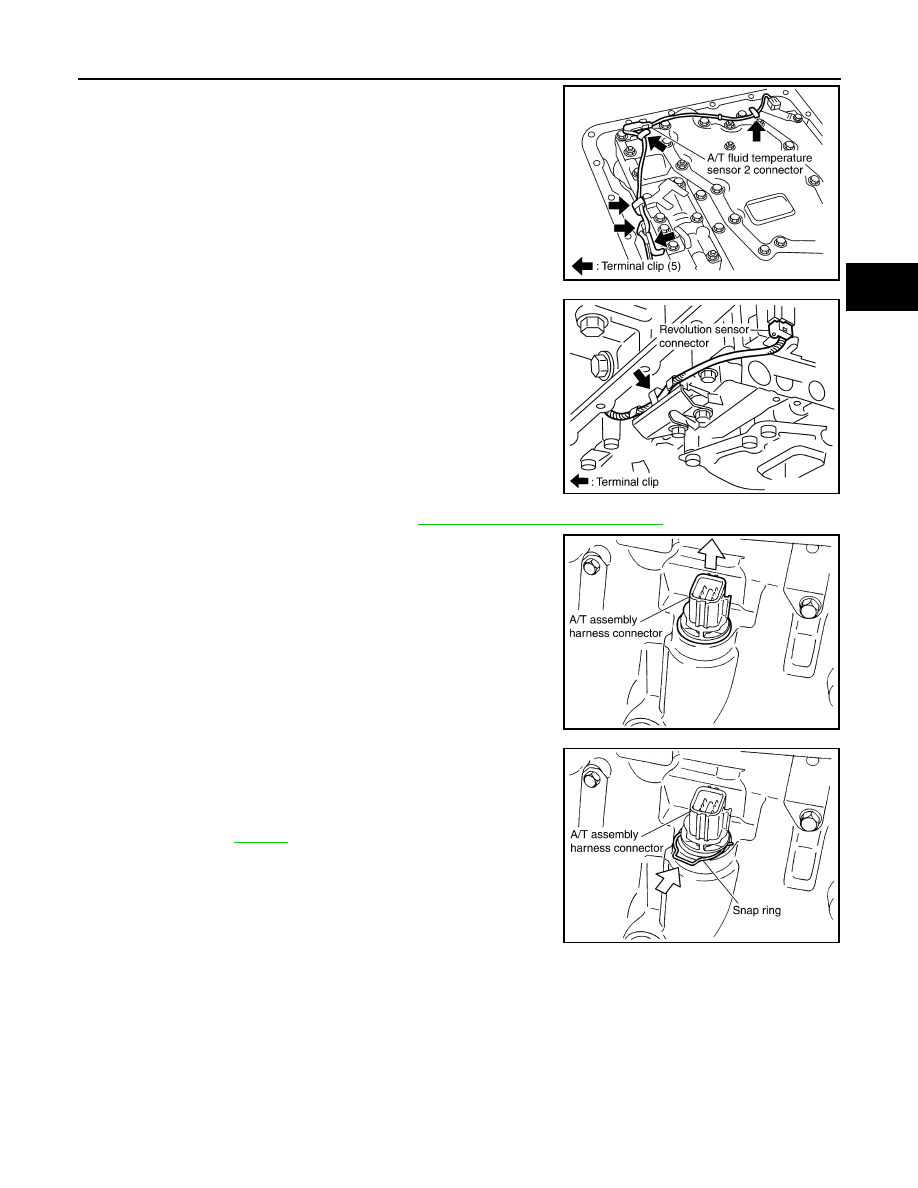

Remove snap ring from A/T assembly harness connector.

5.

Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

6.

Remove oil pan and oil pan gasket. Refer to

TM-197, "Removal and Installation"

.

7.

Straighten the terminal clip to free the terminal cord assembly for
A/T fluid temperature sensor 2 harness.

8.

Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

 Do not damage connector.

9.

Straighten terminal clip to free the revolution sensor harness.

10. Disconnect revolution sensor connector.

CAUTION:

Do not damage connector.

SCIA5021E

SCIA5022E

SCIA5446E

SCIA7525E

CONTROL VALVE WITH TCM

TM-201

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

11. Remove bolts (A), (B) and (C) from control valve with TCM.

12. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

13. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

14. Remove bracket from A/T fluid temperature sensor 2.

15. Remove O-ring from A/T assembly harness connector.

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5139E

SCIA5142E

SCIA5301E

SCIA5264E

SCIA5155E

TM-202

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

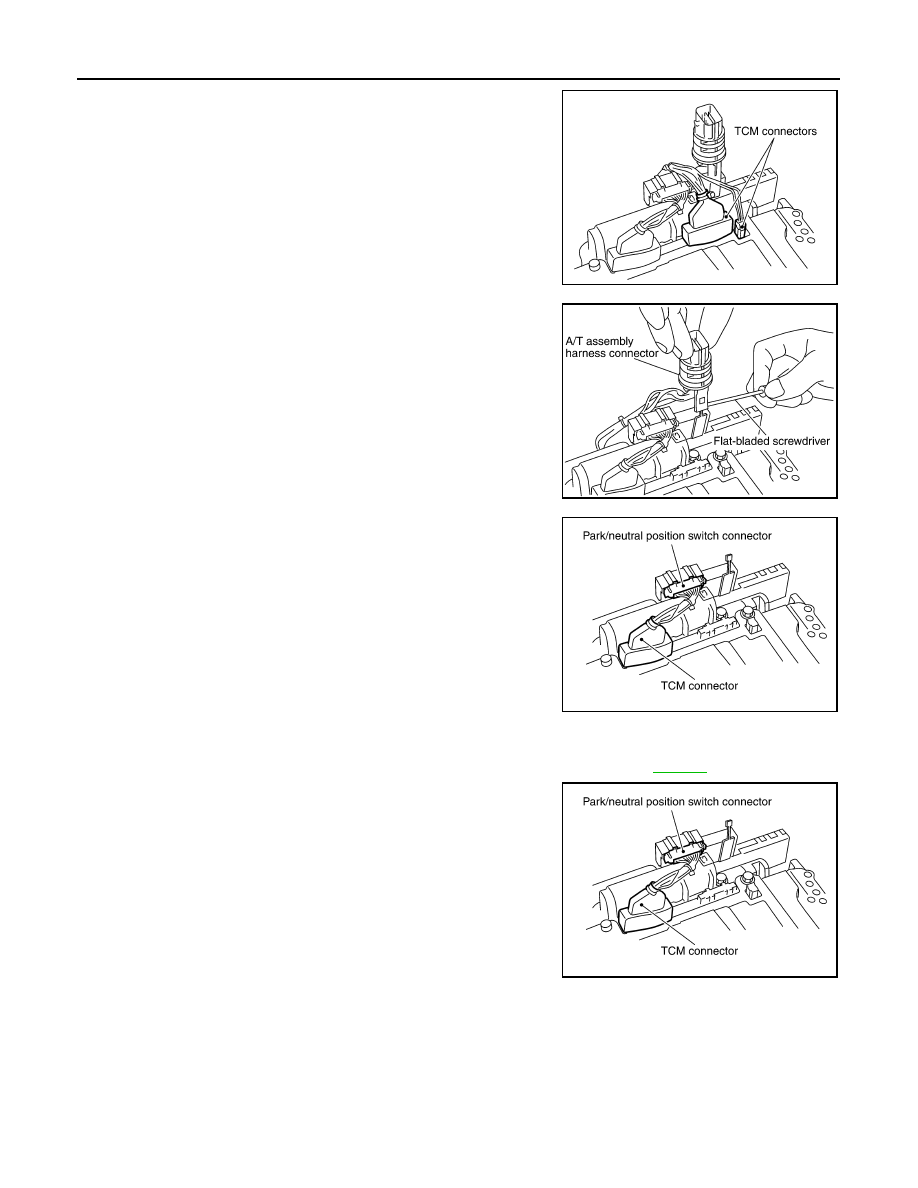

16. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

17. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

18. Disconnect TCM connector and park/neutral position switch

connector

CAUTION:

Do not damage connectors.

Installation

CAUTION:

After completing installation, check A/T fluid leakage and fluid level. Refer to

TM-180

.

1.

Connect TCM connector and park/neutral position switch con-
nector.

SCIA5447E

SCIA5448E

SCIA5449E

SCIA5449E

CONTROL VALVE WITH TCM

TM-203

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

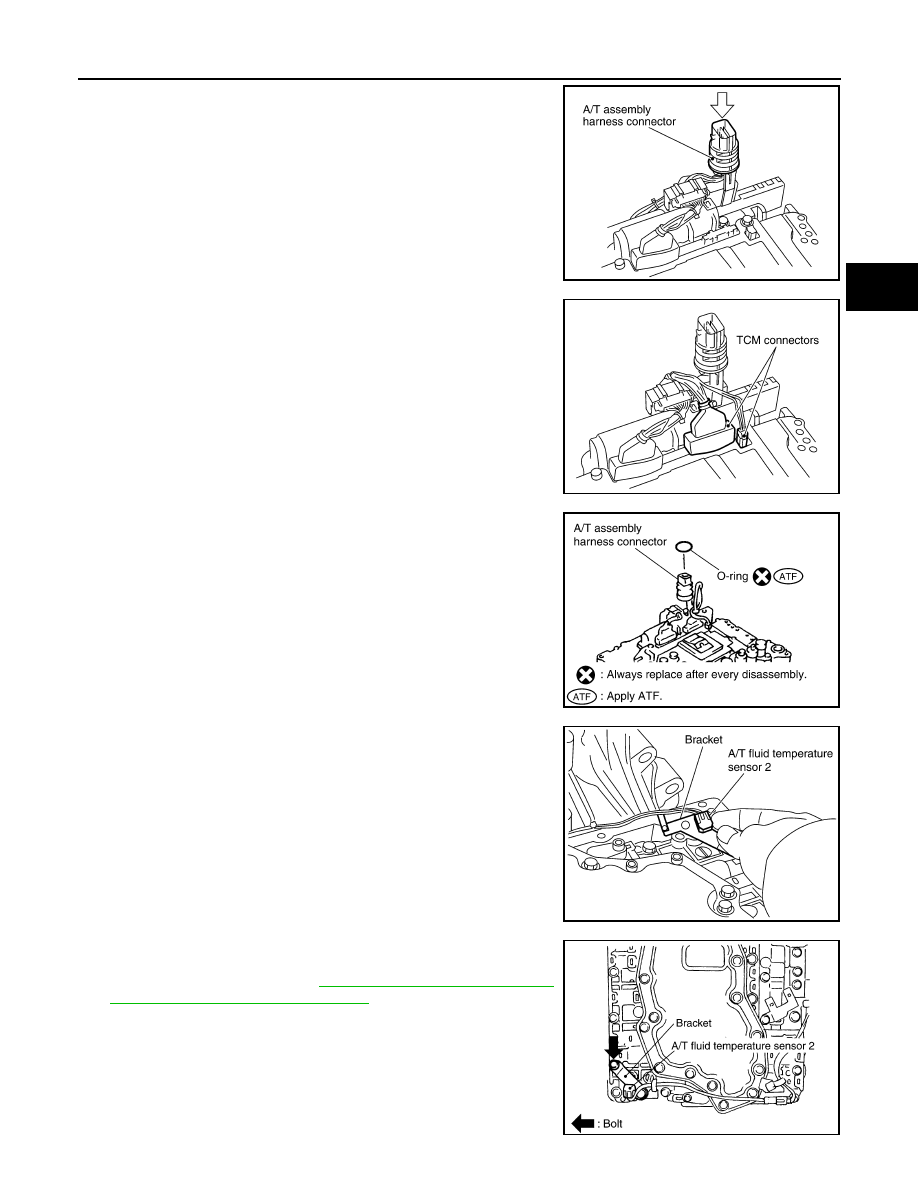

2.

Install A/T assembly harness connector to control valve with
TCM.

3.

Connect TCM connector.

4.

Install new O-ring in A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.

5.

Install A/T fluid temperature sensor 2 to bracket.

6.

Install A/T fluid temperature sensor 2 (with bracket) to control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to
the specified torque. Refer to

TM-199, "Control Valve with TCM

and A/T Fluid Temperature Sensor 2"

.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with
TCM.

SCIA5450E

SCIA5447E

SCIA5155E

SCIA5264E

SCIA5301E

TM-204

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

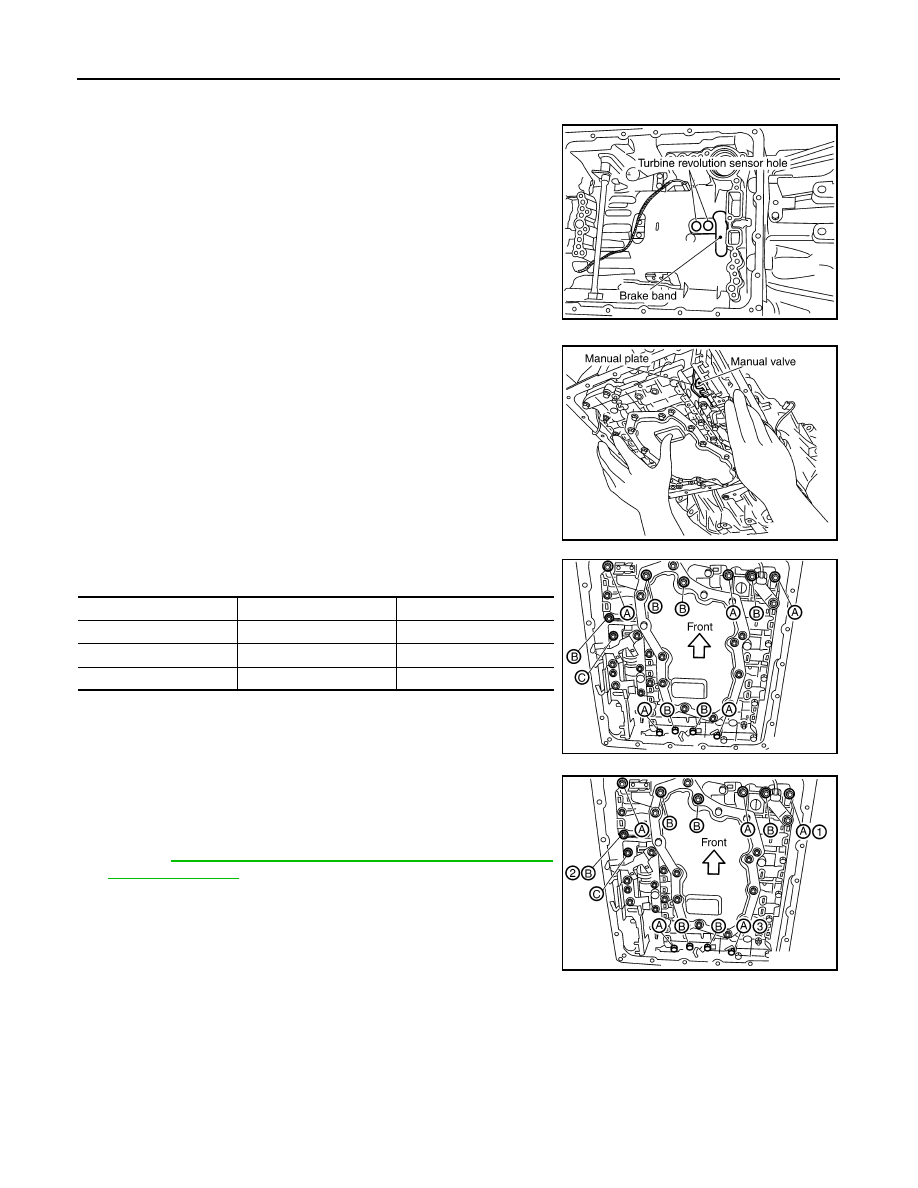

7.

Install control valve with TCM in transmission case.

CAUTION:

• Make sure that turbine revolution sensor is securely

installed into turbine revolution sensor hole.

• Hang down revolution sensor harness toward outside so

as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

8.

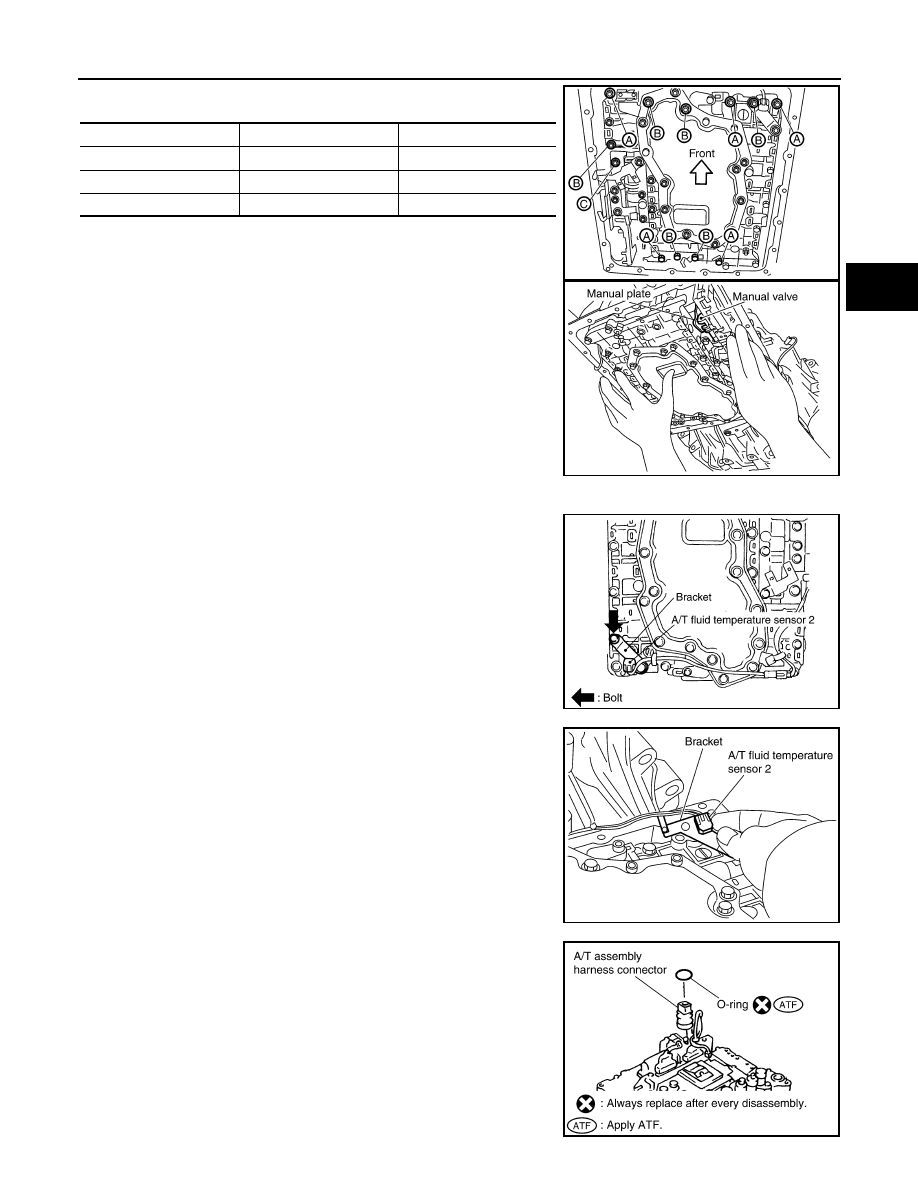

Install bolts (A), (B) and (C) in control valve with TCM.

9.

Tighten bolt (1), (2) and (3) temporarily to prevent dislocation.
After that tighten them in order (1

→

 2

→

 3). Then tighten other

bolts.

10. Tighten control valve with TCM bolts to the specified torque.

Refer to

TM-199, "Control Valve with TCM and A/T Fluid Tem-

perature Sensor 2"

.

SCIA5034E

SCIA5142E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5139E

SCIA5140E

CONTROL VALVE WITH TCM

TM-205

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

11. Connect A/T fluid temperature sensor 2 connector.

12. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

13. Connect revolution sensor connector.
14. Securely fasten revolution sensor harness with terminal clip.

15. Install oil pan to transmission case. Refer to

TM-197, "Removal and Installation"

.

16. Pull up A/T assembly harness connector.

CAUTION:

Do not damage connector.

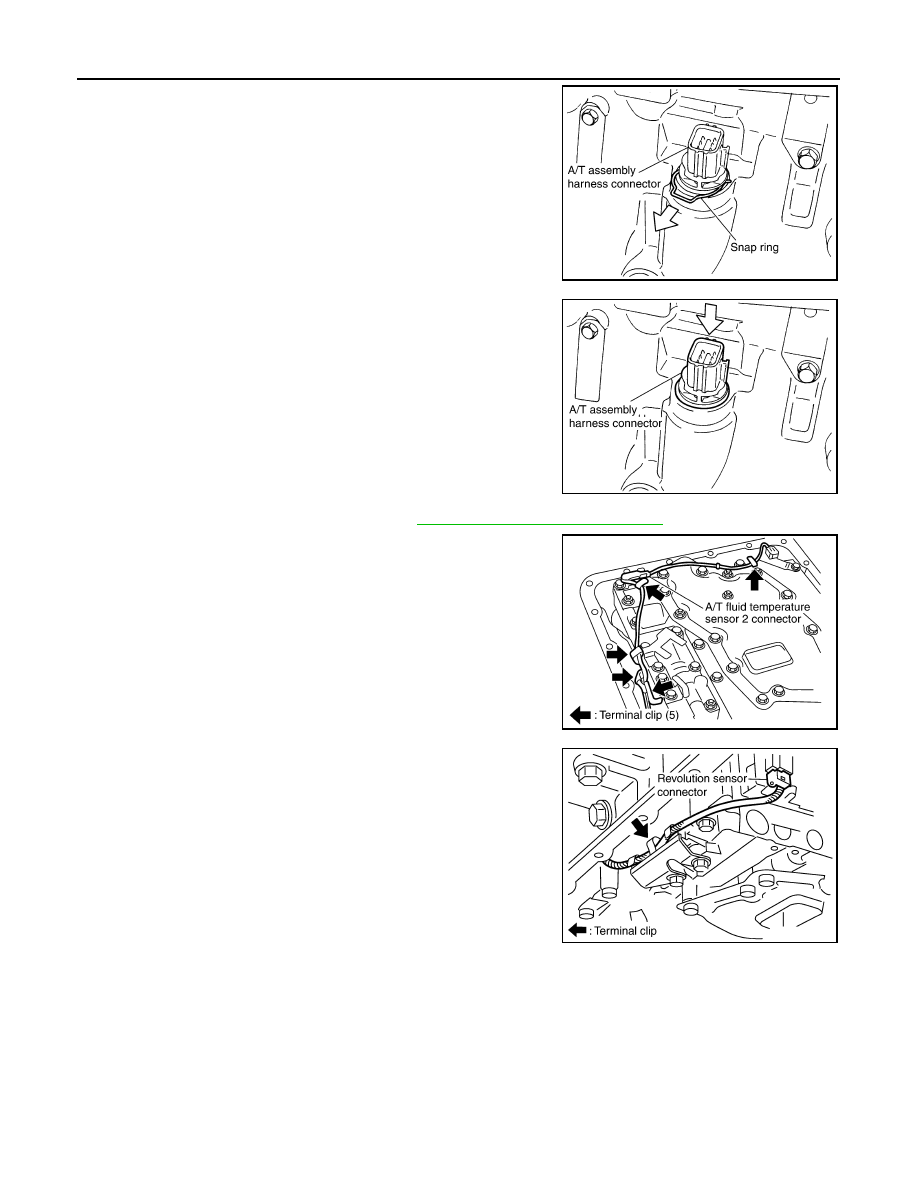

17. Install snap ring to A/T assembly harness connector.
18. Connect A/T assembly harness connector.

19. Connect the negative battery terminal.

20. Refill the A/T with fluid and check the fluid level and for fluid

leakage. Refer to

TM-180

.

SCIA5446E

SCIA7525E

SCIA5038E
