ROAD TEST

ROAD TEST

Check Before Engine Is Started

INFOID:0000000001282749

1.

CHECK O/D OFF INDICATOR LAMP

1.

Park vehicle on level surface.

2.

Move selector lever to “P” position.

3.

Turn ignition switch to “OFF” position and wait at least 10 seconds.

4.

Turn ignition switch to “ON” position. (Do not start engine.)

Does O/D OFF indicator lamp light up for about 2 seconds?

YES

>> 1.

Turn ignition switch “OFF”.

2.

Perform self-diagnostics and record all NG items on the

TM-7, "Diagnostic Work Sheet"

.

Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

,

TM-42, "Diagnosis Procedure

without CONSULT-III"

.

3.

Go to

TM-190, "Check at Idle"

.

NO

>> Stop the test and go to

TM-126, "O/D OFF Indicator Lamp Does Not Come On (Without Manual

Mode)"

.

Check at Idle

INFOID:0000000001282750

1.

CHECK STARTING THE ENGINE

1.

Park vehicle on level surface.

2.

Move selector lever to “P” or “N” position.

3.

Turn ignition switch to “OFF” position.

4.

Turn ignition switch to “START” position.

Does the engine start?

YES

>> GO TO 2.

NO

>> Stop the road test and go to

TM-127, "Engine Cannot Be Started in "P" or "N" Position"

.

2.

CHECK VEHICLE EQUIPMENT

Is vehicle equipped with manual mode shifter?

YES or NO?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK STARTING THE ENGINE

1.

Turn ignition switch to “ON” position.

2.

Move selector lever in “D”, "M" and “R” position.

3.

Turn ignition switch to “START” position.

Does the engine start in either position?

YES

>> Stop the road test and go to

TM-127, "Engine Cannot Be Started in "P" or "N" Position"

.

NO

>> GO TO 5.

4.

CHECK STARTING THE ENGINE

1.

Turn ignition switch to “ON” position.

2.

Move selector lever in “D”, “3”, “2”, “1” or “R” position.

3.

Turn ignition switch to “START” position.

Does the engine start in either position?

YES

>> Stop the road test and go to

TM-127, "Engine Cannot Be Started in "P" or "N" Position"

.

NO

>> GO TO 5.

5.

CHECK “P” POSITION FUNCTIONS

Without manual mode
1.

Move selector lever to “P” position.

2.

Turn ignition switch to “OFF” position.

3.

Release the parking brake.

4.

Push the vehicle forward or backward.

ROAD TEST

TM-191

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

Engage the parking brake.

When you push the vehicle with disengaging the parking brake, does it move?

YES

>> Record the malfunction, then continue the road test.

NO

>> GO TO 6.

6.

CHECK “N” POSITION FUNCTIONS

1.

Start the engine.

2.

Move selector lever to “N” position.

3.

Release the parking brake.

Does vehicle move forward or backward?

YES

>> Record the malfunction, then continue the road test.

NO

>> GO TO 7.

7.

CHECK SHIFT SHOCK

1.

Engage the brake.

2.

Move selector lever to “D” position.

When the transmission is shifted from “N” to “D”, is there an excessive shock?

YES

>> Record the malfunction, then continue the road test.

NO

>> GO TO 8.

8.

CHECK “R” POSITION FUNCTIONS

1.

Engage the brake.

2.

Move selector lever to “R” position.

3.

Release the brake for 4 to 5 seconds.

Does the vehicle creep backward?

YES

>> GO TO 9.

NO

>> Record the malfunction, then continue the road test.

9.

CHECK “D” POSITION FUNCTIONS

Inspect whether the vehicle creep forward when the transmission is put into the “D” position.
Does the vehicle creep forward in the “D” positions?

YES

>> Go to

TM-191, "Cruise Test - Part 1"

,

TM-193, "Cruise Test - Part 2"

and

TM-194, "Cruise Test -

Part 3"

.

NO

>> Record the malfunction, then continue the road test.

Cruise Test - Part 1

INFOID:0000000001282751

1.

CHECK STARTING OUT FROM D1

1.

Drive the vehicle for about 10 minutes to warm up the engine oil and ATF.
Appropriate temperature for the ATF: 50 - 80

°

C (122 - 176

°

F)

2.

Park the vehicle on a level surface.

3.

Move selector lever to “P” position.

4.

Start the engine.

5.

Set overdrive control switch to ON position (without manual mode).

6.

Move selector lever to “D” position.

7.

Press the accelerator pedal about half way down to accelerate the vehicle.

With CONSULT-III

Read off the gear positions.

Starts from D1?

YES

>> GO TO 2.

NO

>> Record the malfunction,“” then continue the road test.

2.

CHECK SHIFT-UP D1

→

 D2

Press down the accelerator pedal about half way and inspect if the vehicle shifts up (D1

→

 D2) at the appropri-

ate speed.
• Refer to

TM-314, "Vehicle Speed at Which Gear Shifting Occurs"

.

With CONSULT-III

TM-192

< ON-VEHICLE MAINTENANCE >

ROAD TEST

Read the gear position, throttle degree of opening, and vehicle speed.

Does the A/T shift-up D1

→

 D2 at the correct speed?

YES

>> GO TO 3.

NO

>> Record the malfunction,“” then continue the road test“

→

”e road test.

3.

CHECK SHIFT-UP D2

→

 D3

Press down the accelerator pedal about half way and inspect if the vehicle shifts up (D2

→

 D3) at the appropri-

ate speed.
• Refer to

TM-314, "Vehicle Speed at Which Gear Shifting Occurs"

.

With CONSULT-III

Read the gear position, throttle degree of opening, and vehicle speed.
Does the A/T shift-up D2

→

 D3 at the correct speed?

YES

>> GO TO 4.

NO

>> Record the malfunction, then continue the road test.

4.

CHECK SHIFT-UP D3

→

 D4

Press down the accelerator pedal about half way and inspect if the vehicle shifts up (D3

→

 D4) at the appropri-

ate speed.
• Refer to

TM-314, "Vehicle Speed at Which Gear Shifting Occurs"

.

With CONSULT-III

Read the gear position, throttle degree of opening, and vehicle speed.

Does the A/T shift-up D3

→

 D4 at the correct speed?

YES

>> GO TO 5.

NO

>> Record the malfunction, then continue the road test.

5.

CHECK SHIFT-UP D4

→

 D5

Press down the accelerator pedal about half way and inspect if the vehicle shifts up (D4

→

 D5) at the appropri-

ate speed.
• Refer to

TM-314, "Vehicle Speed at Which Gear Shifting Occurs"

.

With CONSULT-III

Read the gear position, throttle degree of opening, and vehicle speed.
Does the A/T shift-up D4

→

 D5 at the correct speed?

YES

>> GO TO 6.

NO

>> Record the malfunction, then continue the road test.

6.

CHECK LOCK-UP

When releasing accelerator pedal from D5 (closed throttle position signal: OFF), check lock-up from D5 to L/U.
• Refer to

TM-314, "Vehicle Speed at Which Gear Shifting Occurs"

.

With CONSULT-III

Select “TCC SOLENOID” with the “MAIN SIGNAL” mode for A/T.
Does it lock-up?

YES

>> GO TO 7.

NO

>> Record the malfunction, then continue the road test.

7.

CHECK LOCK-UP HOLD

Check hold lock-up.

With CONSULT-III

Select “TCC SOLENOID” with the “MAIN SIGNAL” mode for A/T.
Does it maintain lock-up status?

YES

>> GO TO 8.

NO

>> Record the malfunction, then continue the road test.

8.

CHECK LOCK-UP RELEASE

Check lock-up cancellation by depressing brake pedal lightly to decelerate.

With CONSULT-III

Select “TCC SOLENOID” with the “MAIN SIGNAL” mode for A/T.

ROAD TEST

TM-193

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Does lock-up cancel?

YES

>> GO TO 9.

NO

>> Enter a check mark at “Lock-up Is Not Released” on the diagnostics worksheet, then continue the

road test.

9.

CHECK SHIFT-DOWN D5

→

 D4

Decelerate by pressing lightly on the brake pedal.

With CONSULT-III

Read the gear position and engine speed.

When the A/T shift-down D5

→

 D4, does the engine speed drop smoothly back to idle?

YES

>> 1.

 Stop the vehicle.

2.

Go to Cruise test - Part 2 (Refer to

TM-193

).

NO

>> Record the malfunction, then continue the road test. Go To Cruise test - Part 2 (Refer to

TM-193

).

Cruise Test - Part 2

INFOID:0000000001282752

1.

CHECK VEHICLE EQUIPMENT

Is vehicle equipped with manual mode shifter?

YES or NO?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

MANUAL MODE FUNCTION

Move selector lever to manual mode from “D” position.

Does it switch to manual mode?

YES

>> GO TO 3.

NO

>> Record the malfunction, “then continue the road test.

3.

CHECK SHIFT - DOWN

During manual mode driving, move gear selector from M5

→

 M4

→

 M3

→

 M2

→

 M1.

With CONSULT-III

Read the gear position, throttle position and vehicle speed.
Is downshifting correctly performed?

YES

>> GO TO 6.

NO

>> Record the malfunction, “then continue the road test.

4.

CHECK STARTING FROM D1

1.

Move selector lever to “D” position.

2.

Accelerate at half throttle.

With CONSULT-III

Read the gear position.

Does it start from D1?

YES

>> GO TO 5.

NO

>> Record the malfunction, “then continue the road test.

5.

CHECK SHIFT - DOWN

During D4 driving, move gear selector from D

→

 3

→

 2

→

.

With CONSULT-III

Read the gear position.
Is downshifting correctly performed

→

?

YES

>> GO TO 6.

NO

>> Record the malfunction, “then continue the road test.

6.

CHECK ENGINE BRAKE

TM-194

< ON-VEHICLE MAINTENANCE >

ROAD TEST

Does engine braking effectively reduce speed in M1 position (with manual mode) or 11 position (without man-
ual mode)?

YES

>> 1.

Stop the vehicle.

2.

Carry out the self-diagnostics. Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

.

NO

>> Record the malfunction, “then continue the trouble diagnosis.

Cruise Test - Part 3

INFOID:0000000001282753

1.

CHECK SHIFT-DOWN

1.

Confirm overdrive control switch is ON position.

2.

Confirm gear selector lever is in “D” position.

3.

Accelerate vehicle using half-throttle to D

5

.

4.

Release accelerator pedal.

5.

Set overdrive control switch to OFF position while driving in D

5

.

With CONSULT-II

Read the gear position.

Does A/T shift from D

5

 to D

4

 (O/D OFF)?

YES

>> GO TO 2.

NO

>> Record the malfunction, then continue the road test.

2.

CHECK SHIFT-DOWN

During D

4

driving, move gear selector from D

→

 3

→

 2

→

 1.

 With CONSULT-II

Read the gear position.
Is downshifting correctly performed?

YES

>> GO TO 3.

NO

>> Record the malfunction, then continue the road test.

3.

CHECK ENGINE BRAKE

Does engine braking effectively reduce speed in 1

1

 position?

YES

>> 1.

Stop the vehicle.

2.

Carry out the self-diagnostics. Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

.

NO

>> Record the malfunction, then continue the trouble diagnosis.

SHIFT CONTROL SYSTEM

TM-195

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE REPAIR

SHIFT CONTROL SYSTEM

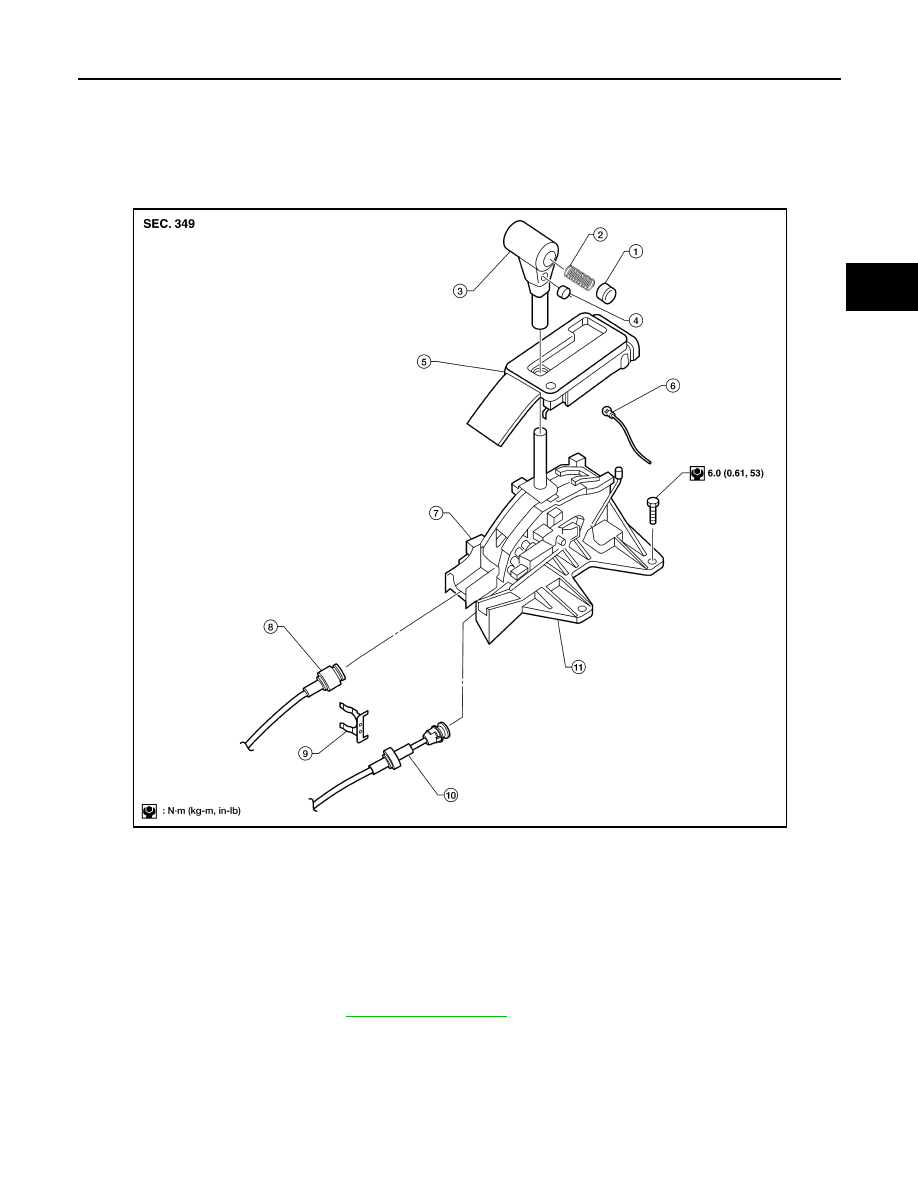

Exploded view

INFOID:0000000001724657

Removal and Installation

INFOID:0000000001724659

REMOVAL

1.

Remove the A/T finisher. Refer to

IP-15, "Exploded View"

.

2.

Disconnect the following from the A/T control device assembly.
• A/T selector control cable
• A/T key interlock cable
• A/T device connector

3.

Remove the A/T control device assembly.

INSTALLATION

1.

Selector button

2.

Selector spring

3.

Selector lever

4.

Overdrive control switch

5.

Position indicator

6.

Position lamp

7.

A/T device harness connector

8.

A/T selector control cable

9.

Lock plate

10.

A/T key interlock cable

11.

A/T control device assembly

WCIA0503E

TM-196

< ON-VEHICLE REPAIR >

SHIFT CONTROL SYSTEM

Installation is in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000001724660

INSPECTION

With the selector lever in the “P” position, turn the ignition switch to the ON position with the engine OFF.
Confirm that the following conditions apply.
• The selector lever can be shifted from the “P” position only when the brake pedal is depressed.
• The selector lever stops at each position with the feel of engagement when it is moved through all the posi-

tions.

• There is no excessive effort, sticking, noise or rattle.
• The actual position of the selector lever matches the position shown by the shift position indicator and the A/

T body.

• The back-up lamps illuminate only when the selector lever is placed in the “R” position.
• The back-up lamps do not illuminate when the selector lever is pushed against the “R” position when in the

“P” or “N” position.

• The engine can only be started with the selector lever in the “P” and “N” positions.
• The A/T is locked completely when in the “P” position.

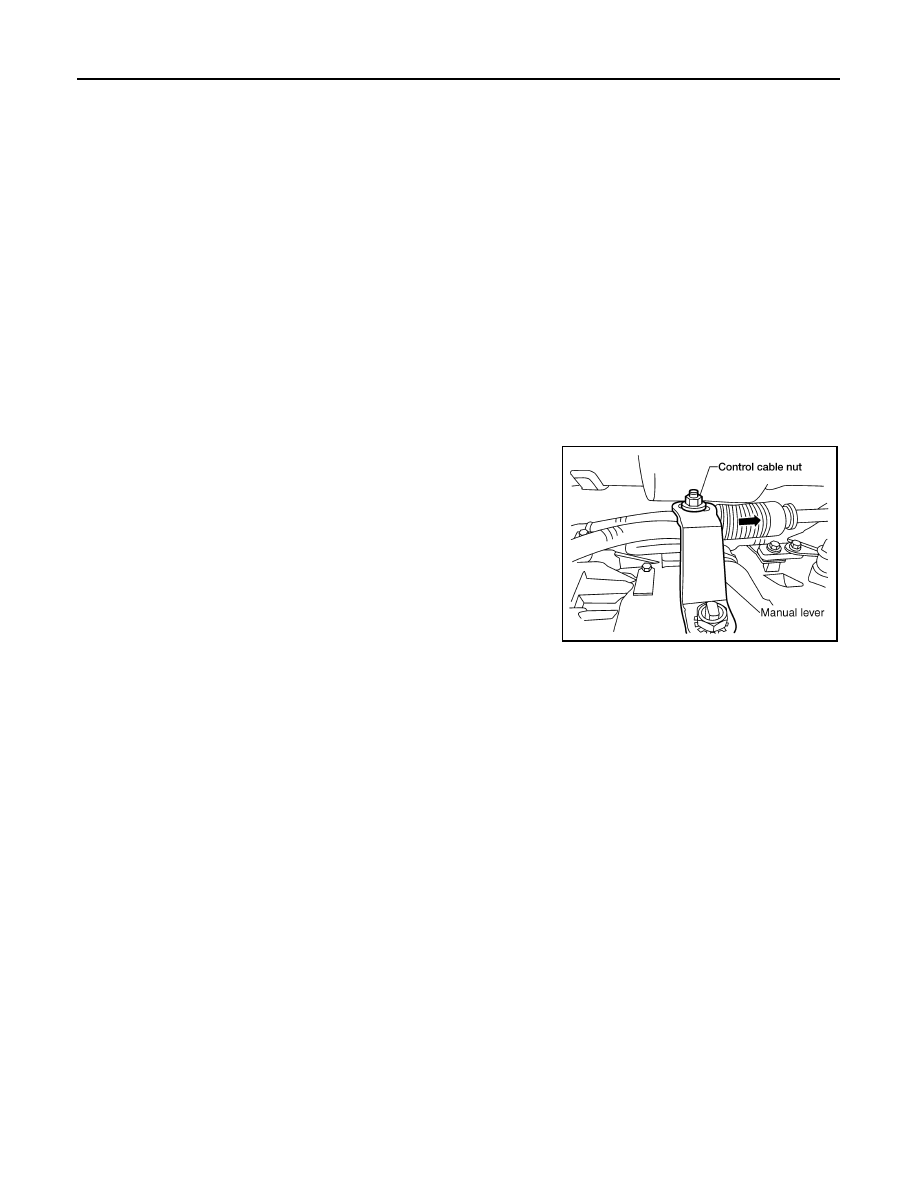

ADJUSTMENT

1.

Loosen nut of control cable.

2.

Place the manual lever and selector lever in “P” position.

3.

Push the control cable in the direction shown with a force of 9.8
N (1kg, 2.2 lb), and release it. This is in the natural state, tighten
control cable nut to specifications.

Control cable nut

: 14.5 N·m (1.5 kg-m, 11 ft-lb)

SCIA6532E

OIL PAN

TM-197

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PAN

Removal and Installation

INFOID:0000000001724690

REMOVAL AND INSTALLATION

Removal

1.

Drain A/T fluid. Refer to

TM-182, "Changing the A/T Fluid (ATF)"

.

2.

Remove oil pan clips (1).

3.

Remove oil pan (2).

4.

Remove oil pan gasket.
•

 Vehicle front

•

 Oil pan bolts

• Drain plug (3)

5.

Check for foreign materials in oil pan to help determine cause of malfunction. If the A/T fluid is very dark,
has some burned smell, or contains foreign particles then friction material (clutches, band) may need
replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves,
servo, and clutches to stick and can inhibit pump pressure.

CAUTION:

If friction material is detected, flush the transmission cooler after repair. Refer to

TM-183, "A/T

Fluid Cooler Cleaning"

.

6.

Remove magnets from oil pan.

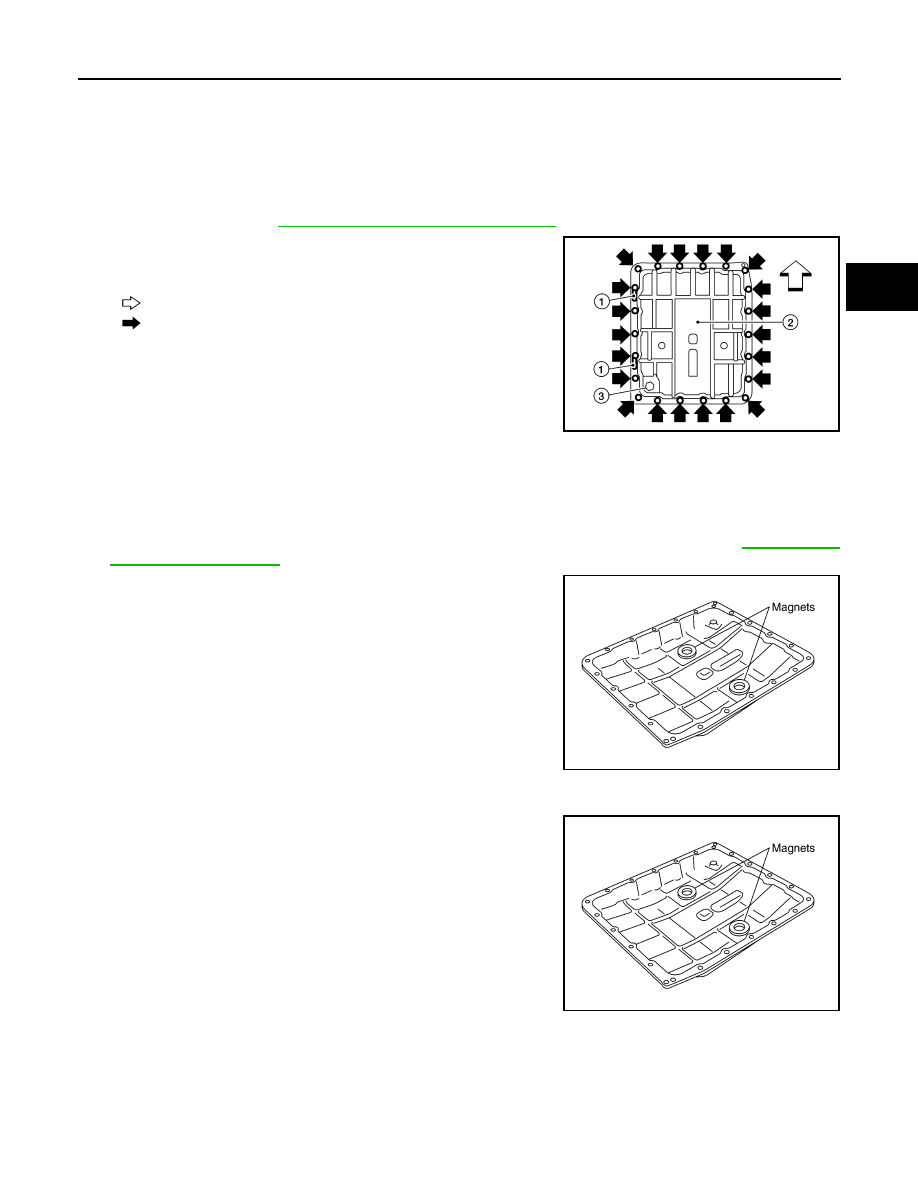

Installation

1.

Install the oil pan magnets as shown.

AWDIA0023ZZ

SCIA5200E

SCIA5200E
