SQUEAK AND RATTLE TROUBLE DIAGNOSES

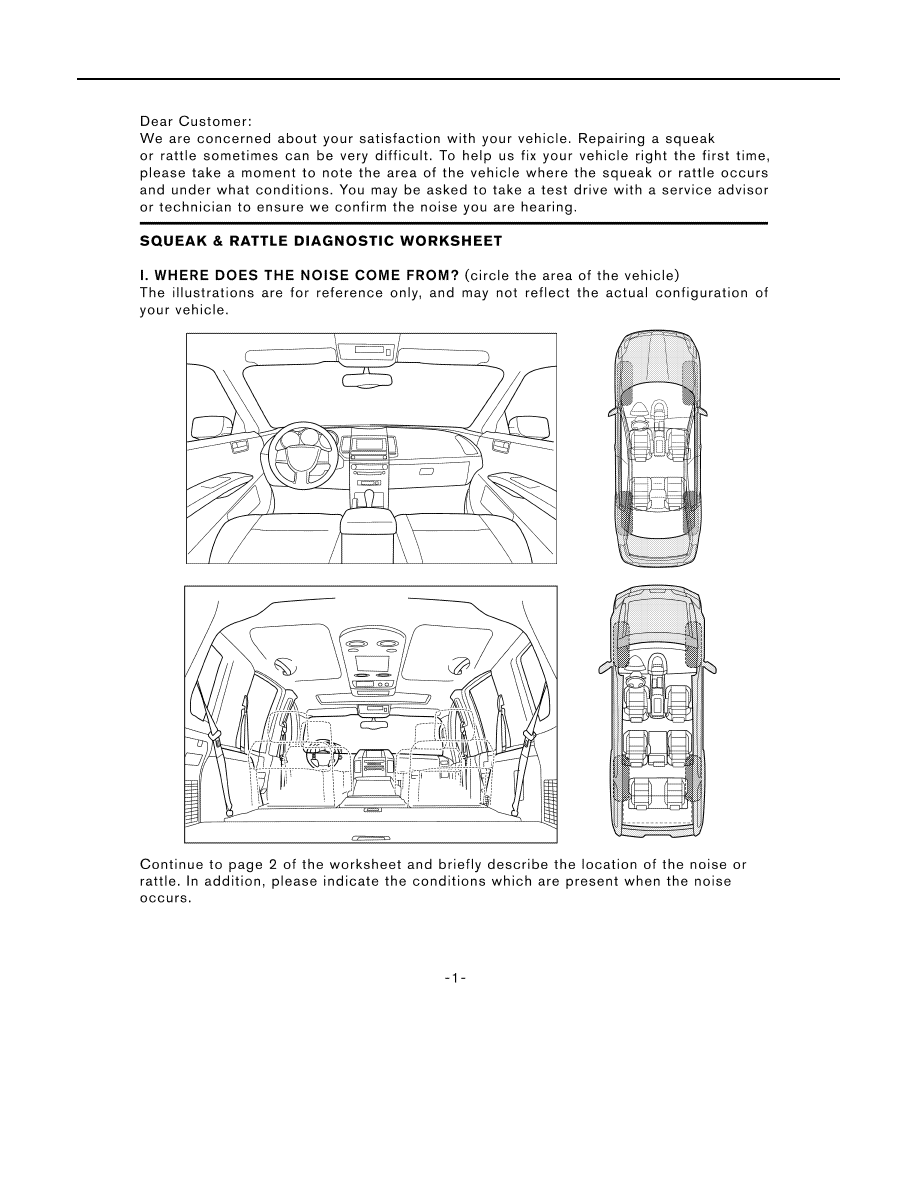

Diagnostic Worksheet

INFOID:0000000001689411

LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-9

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

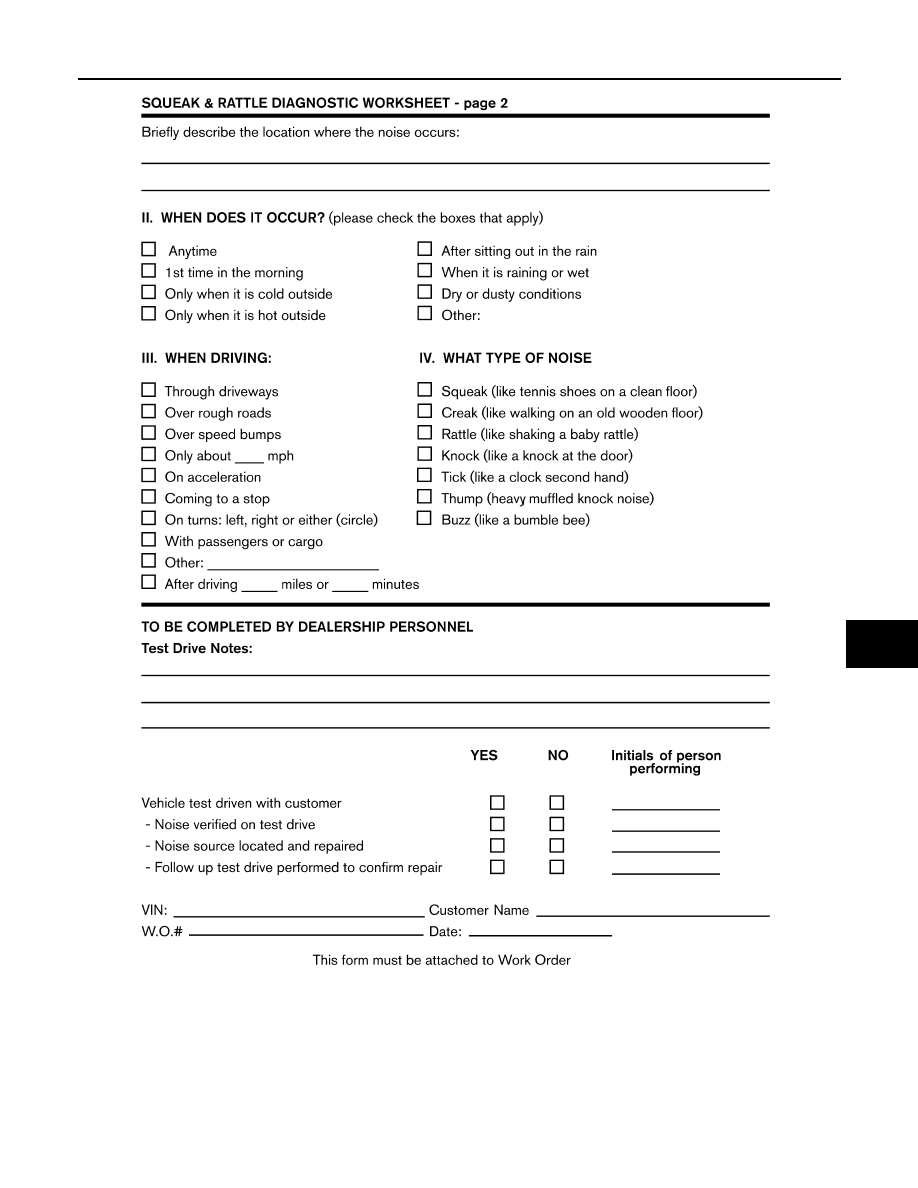

LAIA0071E

IP-10

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

ON-VEHICLE REPAIR

INSTRUMENT PANEL ASSEMBLY

Exploded View

INFOID:0000000001689422

Removal and Installation

INFOID:0000000001689412

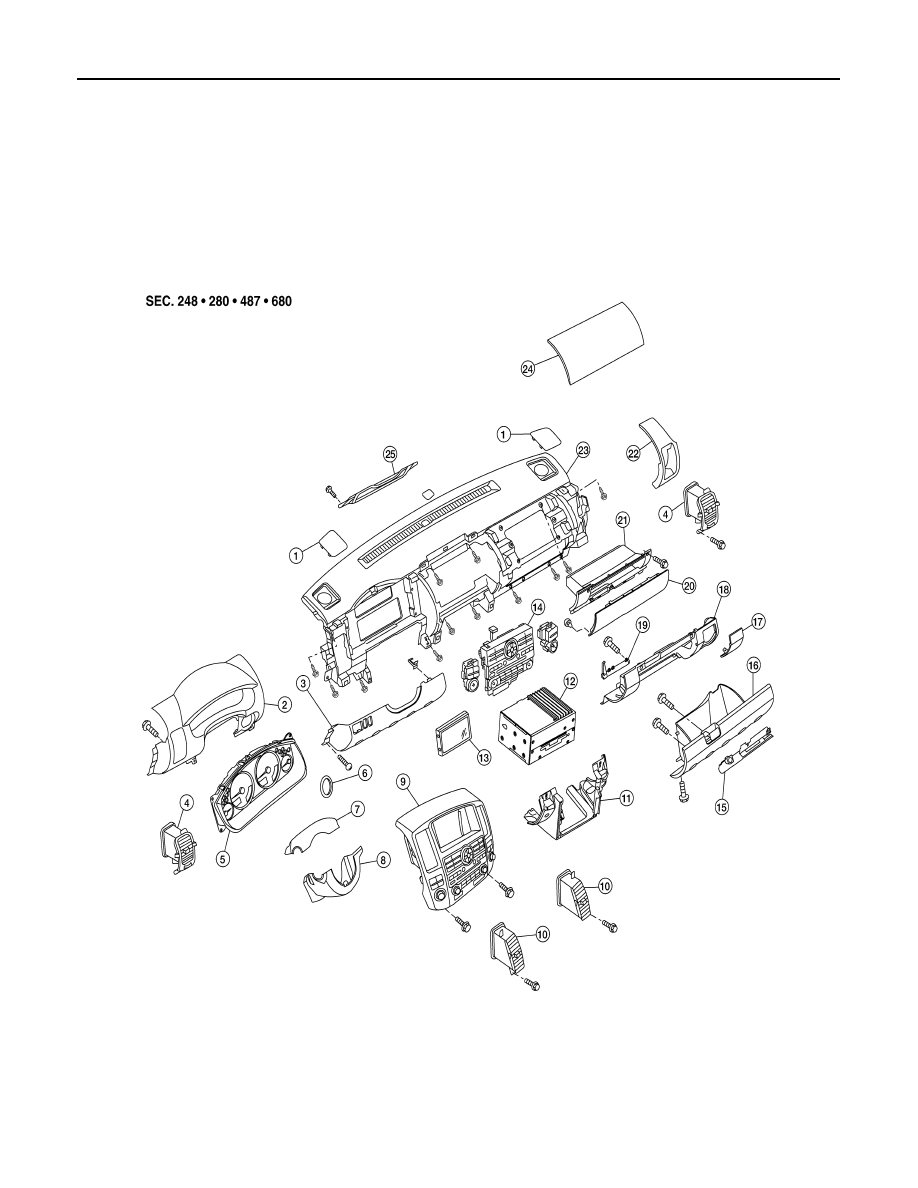

INSTRUMENT PANEL

1.

Speaker grille RH/LH

2.

Cluster lid A

3.

Lower instrument panel LH

4.

Side ventilator grille RH/LH

5.

Combination meter

6.

Steering lock escutcheon

AWJIA0033ZZ

INSTRUMENT PANEL ASSEMBLY

IP-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals, then wait at least 3
minutes.
1.

Disconnect the battery negative terminal.

2.

Remove the center console. Refer to

IP-10, "Removal and Installation"

.

3.

Remove the combination meter. Refer to

MWI-94, "Removal and Installation"

.

4.

Remove front pillar upper finisher. Refer to

INT-13, "Removal and Installation"

.

5.

Remove optical sensor. Refer to

EXL-114, "Removal and Installation"

.

6.

Remove AV control unit. Refer to

AV-134, "Removal and Installation"

.

7.

Remove display unit, if equipped. Refer to

AV-424, "Removal and Installation"

.

8.

Remove cluster lid D.

9.

Disconnect GPS antenna.

10. Remove the passenger air bag module. Refer to

SR-8, "Removal and Installation"

.

11. Remove the instrument stay RH/LH bolts.

12. Remove instrument panel and pad assembly.

• Disconnect all remaining harnesses.

Installation

Installation is in the reverse order of removal.

CLUSTER LID C

Removal

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals, then wait at least 3
minutes.

1.

Disconnect the battery negative terminal.

2.

Select neutral, then remove shifter handle.

3.

Remove A/T finisher.

4.

Remove the center console bin screws and center console bin.

7.

Column cover upper

8.

Column cover lower

9.

Cluster lid C

10.

Center ventilator grill RH/LH

11.

Cluster lid D

12.

 AV control unit

13.

Display unit

14.

A/C and AV switch assembly

15.

Lower glove box latch assembly

16.

Lower glove box

17.

Fuse block cover

18.

Lower instrument panel RH

19.

Lower glove box damper assembly

20.

Upper glove box door

21.

Upper glove box

22.

Instrument side finisher

23.

Instrument panel and pad assembly 24.

Passenger air bag module

25.

Knee protector brace

AWJIA0055ZZ

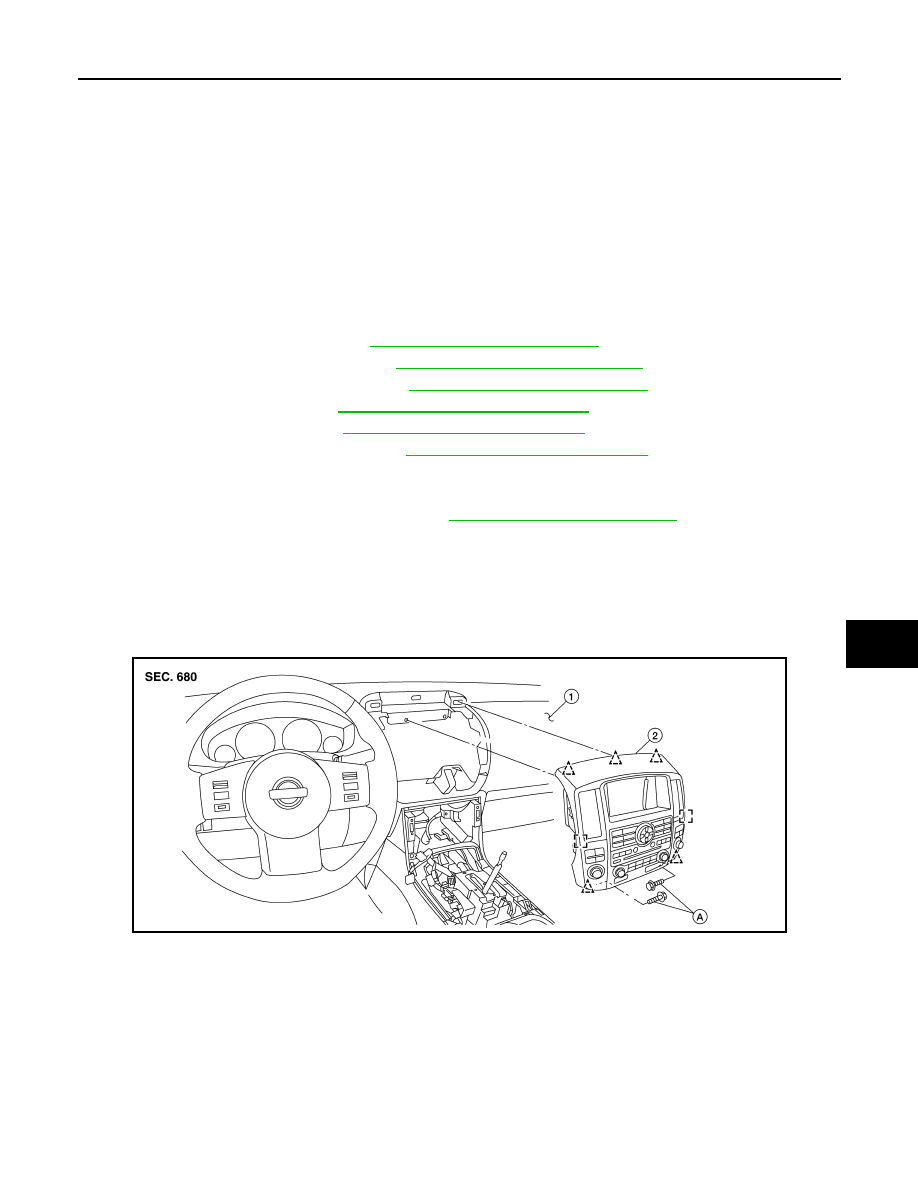

1.

Instrument panel

2.

Cluster lid C

A.

Cluster lid C Bolt

IP-12

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

5.

Remove cluster lid C bolts, then release the clips and remove cluster lid C.

6.

Disconnect electrical connectors and remove cluster lid C.

Installation

Installation is in the reverse order of removal.

CLUSTER LID D

Removal

1.

Remove A/T finisher.

2.

Remove lower instrument panel LH.

3.

Remove lower instrument panel RH.

4.

Remove cluster lid C.

5.

Disconnect the electrical connectors and remove cluster lid D.

Installation

Installation is in the reverse order of removal.

LOWER INSTRUMENT PANEL LH

Removal

1.

Remove front pillar lower finisher. Refer to

INT-13, "Removal and Installation"

.

2.

Remove lower instrument panel LH, using power tool.

3.

Pull rearward to release lower instrument panel LH.

4.

Disconnect lower instrument panel LH harness connectors.

Installation

Installation is in the reverse order of removal.

AWJIA0056ZZ

1.

Cluster lid D

A.

Cluster lid D screw

LIIA1744E

INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

COMBINATION METER

Removal

1.

Disconnect the negative battery cable.

2.

Remove front pillar upper finisher. Refer to

INT-13, "Removal and Installation"

.

3.

Remove lower instrument panel LH.

4.

Remove steering lock escutcheon.

5.

Remove cluster lid A, using power tool.

6.

Remove combination meter, using power tool.

7.

Disconnect combination meter electrical connectors.

Installation

Installation is in the reverse order of removal.

A/T FINISHER

Removal

1.

Remove cup holder finisher.

2.

Release the shifter handle clip, then remove shifter handle.

3.

Pull up to release clips and disconnect the connectors, then remove the A/T finisher.

Installation

Installation is in the reverse order of removal.

LOWER INSTRUMENT PANEL RH AND LOWER GLOVE BOX

Removal

WIIA1053E

1.

Combination meter

2.

Combination meter screws

3.

Cluster lid A

4.

Ignition key lamp assembly

5.

Steering lock escutcheon

6.

Cluster lid A screws

AWJIA0057ZZ

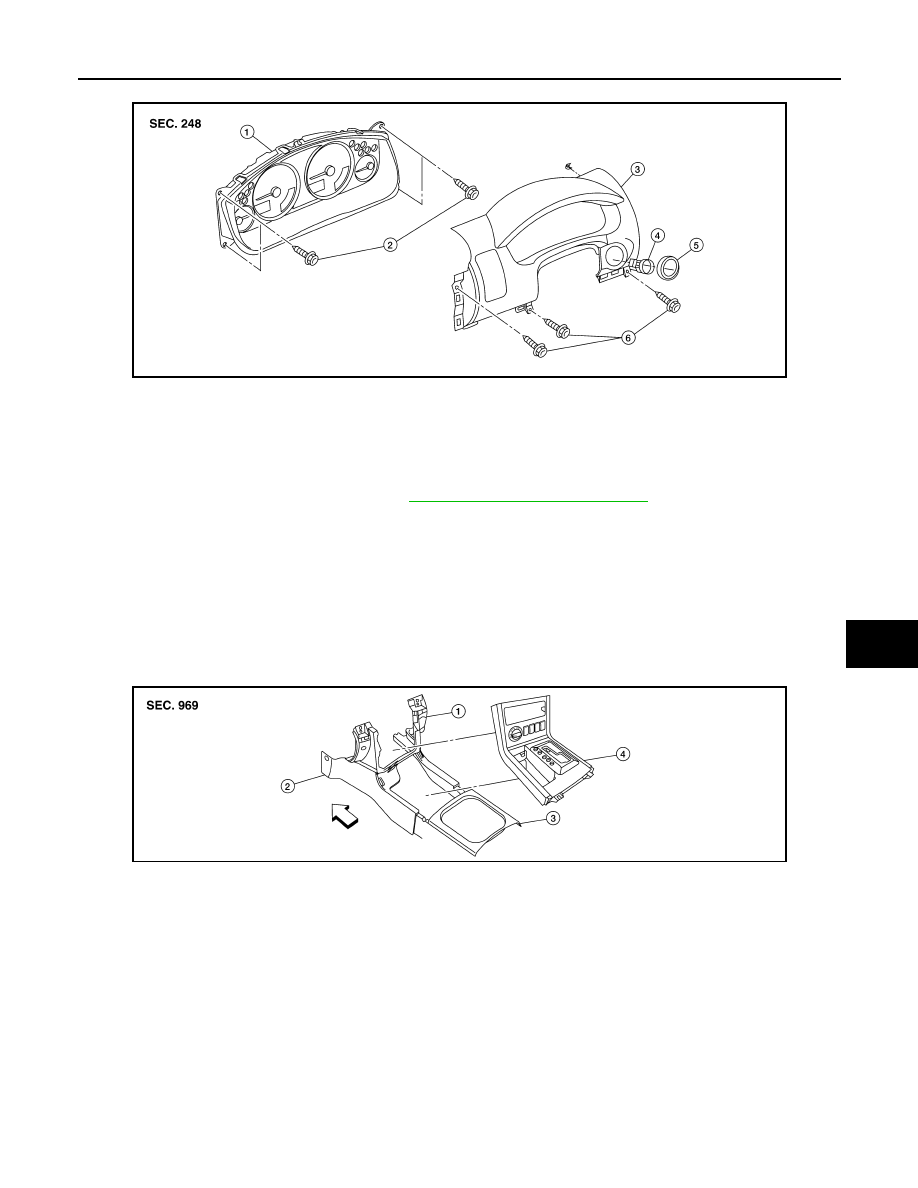

1.

Cluster lid D

2.

Center console front base

3.

Cup holder finisher

4.

A/T finisher

⇐

Front

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

1.

Disconnect the negative battery terminal.

2.

Remove front pillar lower finisher. Refer to

INT-13, "Removal and Installation"

.

3.

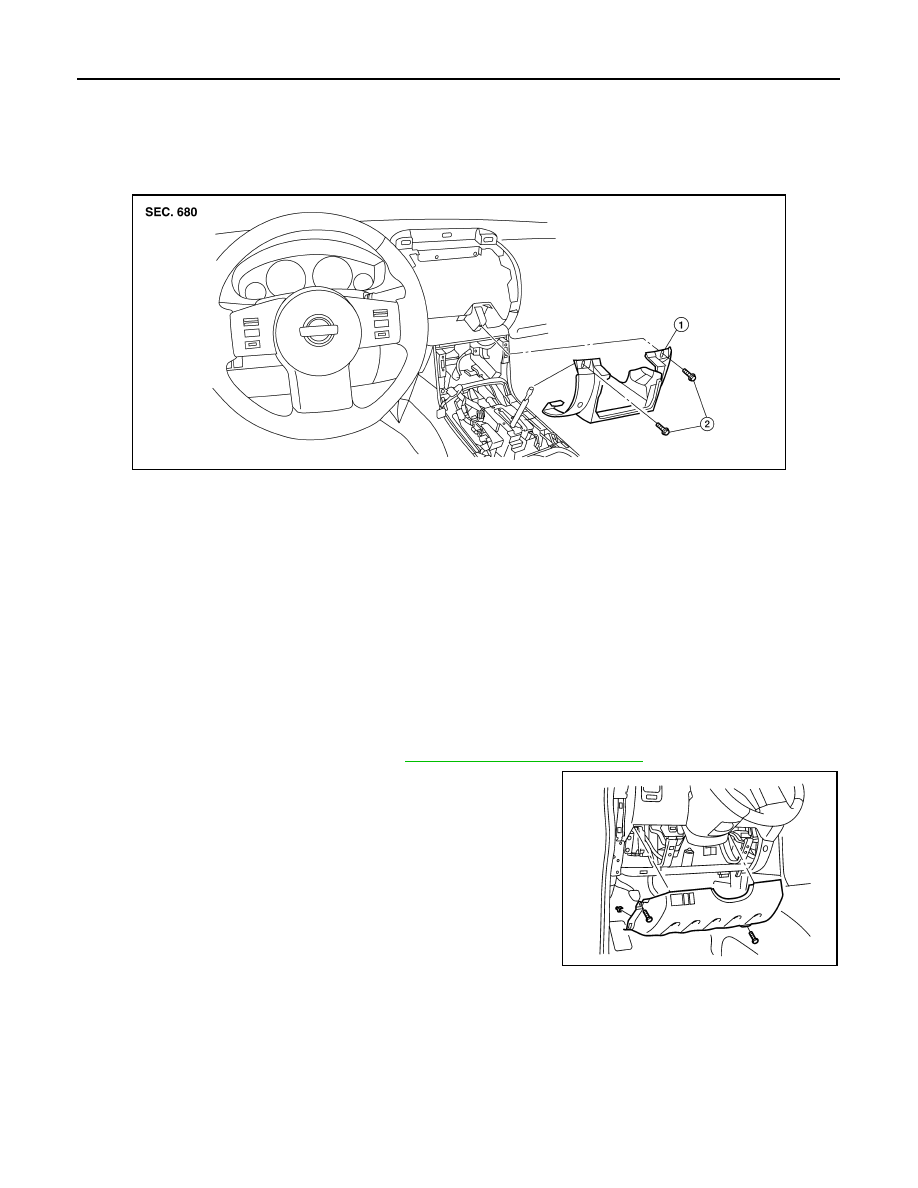

Remove lower instrument panel RH screws, using power tool.

4.

Remove lower instrument panel RH and lower glove box.

Installation

NOTE:
Install upper glove box before installing lower glove box.
Installation is in the reverse order of removal.

UPPER GLOVE BOX

Removal

1.

Remove lower instrument panel RH and lower glove box.

2.

Remove cluster lid C.

3.

Remove upper glove box screws, using power tool.

4.

Remove upper glove box.

Installation

Installation is in the reverse order of removal.

CENTER CONSOLE

Removal

1.

Remove lower instrument panel RH.

2.

Remove cup holder finisher.

3.

Remove A/T finisher.

4.

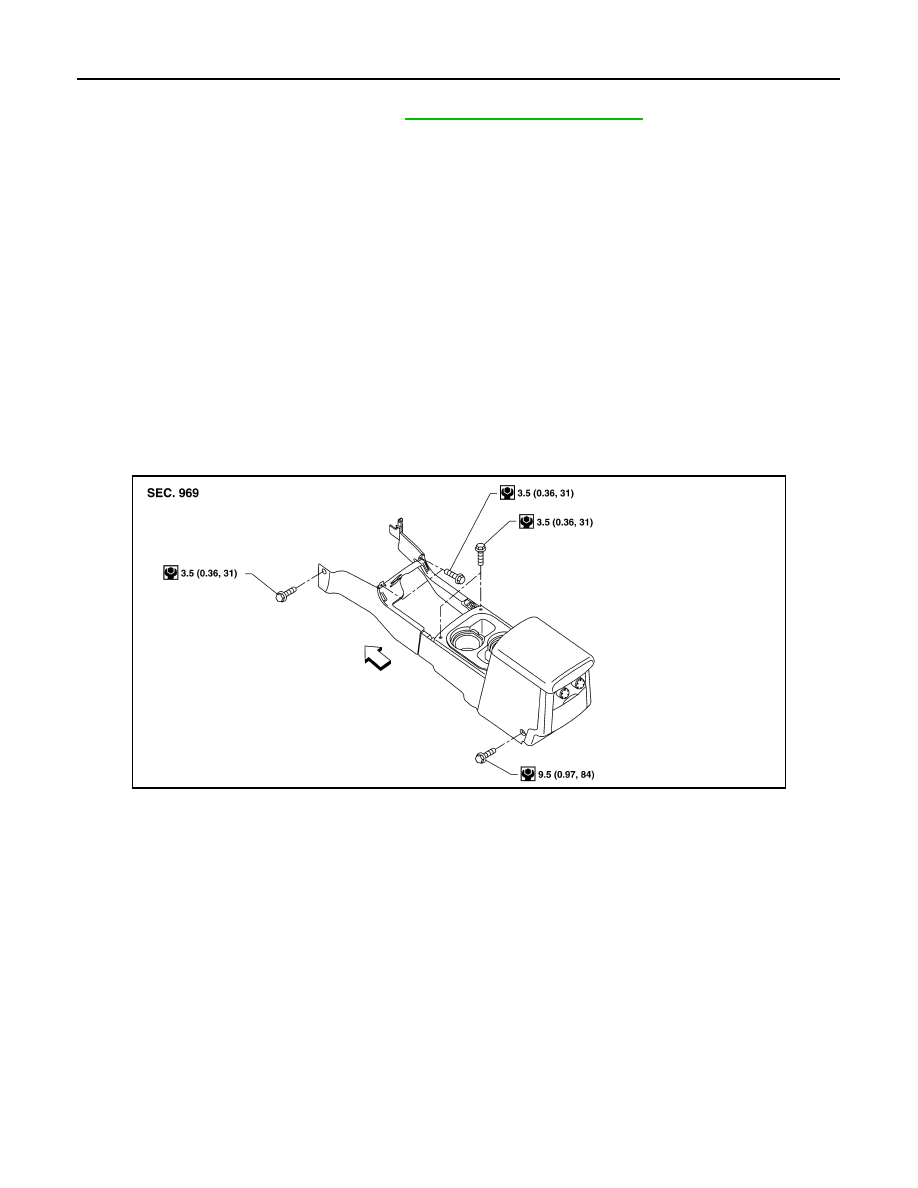

Remove center console screws.

5.

Disconnect electrical connectors and remove center console.

Installation

Installation is in the reverse order of removal.

WIIA1058E

CENTER CONSOLE ASSEMBLY

IP-15

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

DISASSEMBLY AND ASSEMBLY

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000001689423

Disassembly and Assembly

INFOID:0000000001689421

LOWER GLOVE BOX

Disassembly

1.

Remove fuse block cover.

2.

Remove damper hook.

3.

Remove lower glove box latch cover.

4.

Remove lower glove box latch assembly.

Assembly

Assembly is in the reverse order of disassembly.

UPPER GLOVE BOX

Disassembly

1.

Remove upper glove box door screws.

2.

Remove upper glove box door.

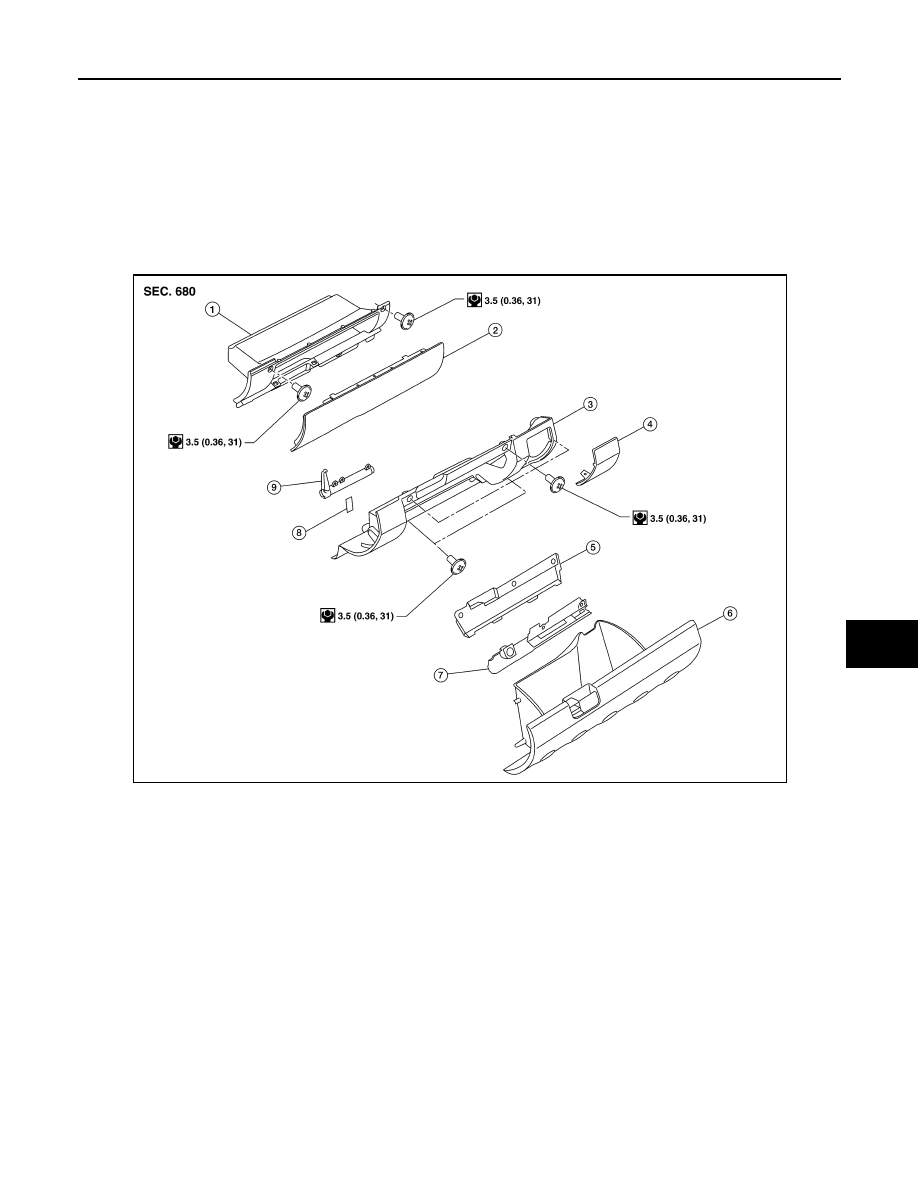

1.

Upper glove box

2.

Upper glove box door

3.

Lower instrument panel RH

4.

Fuse block cover

5.

Lower glove box latch assembly cover 6.

Lower glove box

7.

Lower glove box latch assembly

8.

Damper hook

9.

Lower glove box damper

WIIA1049E
