BODY SIDE TRIM

INT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000001686225

LOWER DASH SIDE FINISHER

Removal

1.

Remove the push pin from lower dash side finisher.

2.

Remove the front kick plate from center pillar lower finisher.

3.

Remove the lower dash side finisher and the front kick plate together.

4.

Remove the lower dash side finisher from the front kick plate.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR LOWER FINISHER

Removal

1.

Remove the seat belt anchor. Refer to

SB-11, "Removal and Installation"

.

• On RH side, disconnect seat belt tension sensor.

2.

Remove the front and rear kick plates. Refer to

INT-13, "Removal and Installation"

.

3.

Remove the center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1.

Remove the front and rear door welts.

2.

Remove the seat belt shoulder anchor and D-ring. Refer to

SB-11, "Removal and Installation"

.

3.

Remove the front and rear kick plates. Refer to

INT-13, "Removal and Installation"

.

4.

Remove the center pillar lower finisher.

5.

Remove the center pillar assist grip.

6.

Remove the center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR UPPER FINISHER

Removal

1.

Remove the front pillar assist grip.

2.

Remove the front pillar upper finisher bolt.

3.

Remove the front pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR LOWER FINISHER

Removal

1.

Remove the lower dash side finisher. Refer to

INT-19, "Removal and Installation"INT-19, "Removal and

Installation"

.

2.

Remove the front pillar lower finisher.

Installation

Installation is in the reverse order of removal.

KICK PLATES

Removal

Release clips and remove the front and/or rear kick plates.

Installation

INT-14

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

Installation is in the reverse order of removal.

FLOOR TRIM

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

FLOOR TRIM

Removal and Installation

INFOID:0000000001686226

Front and Rear Floor Carpet

REMOVAL

Front Carpet

1.

Remove the front seats. Refer to

SE-29, "Removal and Installation"

.

2.

Remove the lower seat belt anchors. Refer to

SB-11, "Removal and Installation"

.

3.

Remove the lower body side trim panels. Refer to

INT-13, "Removal and Installation"

.

4.

Remove the center console. Refer to

IP-10, "Removal and Installation"

.

5.

Remove the floor mat hook from the front carpet.

6.

Remove the front carpet.

Rear Carpet

1.

Remove the third row seats. Refer to

SE-30, "Removal and Installation"

.

2.

Remove the luggage side lower finisher RH and LH. Refer to

INT-19, "Removal and Installation"

.

3.

Remove the flipper doors and the floor tray. Refer to

INT-19, "Removal and Installation"

.

4.

Remove the bolts and the storage box. Refer to

INT-19, "Removal and Installation"

.

5.

Remove the rear carpet.

INSTALLATION

Installation is in the reverse order of removal.

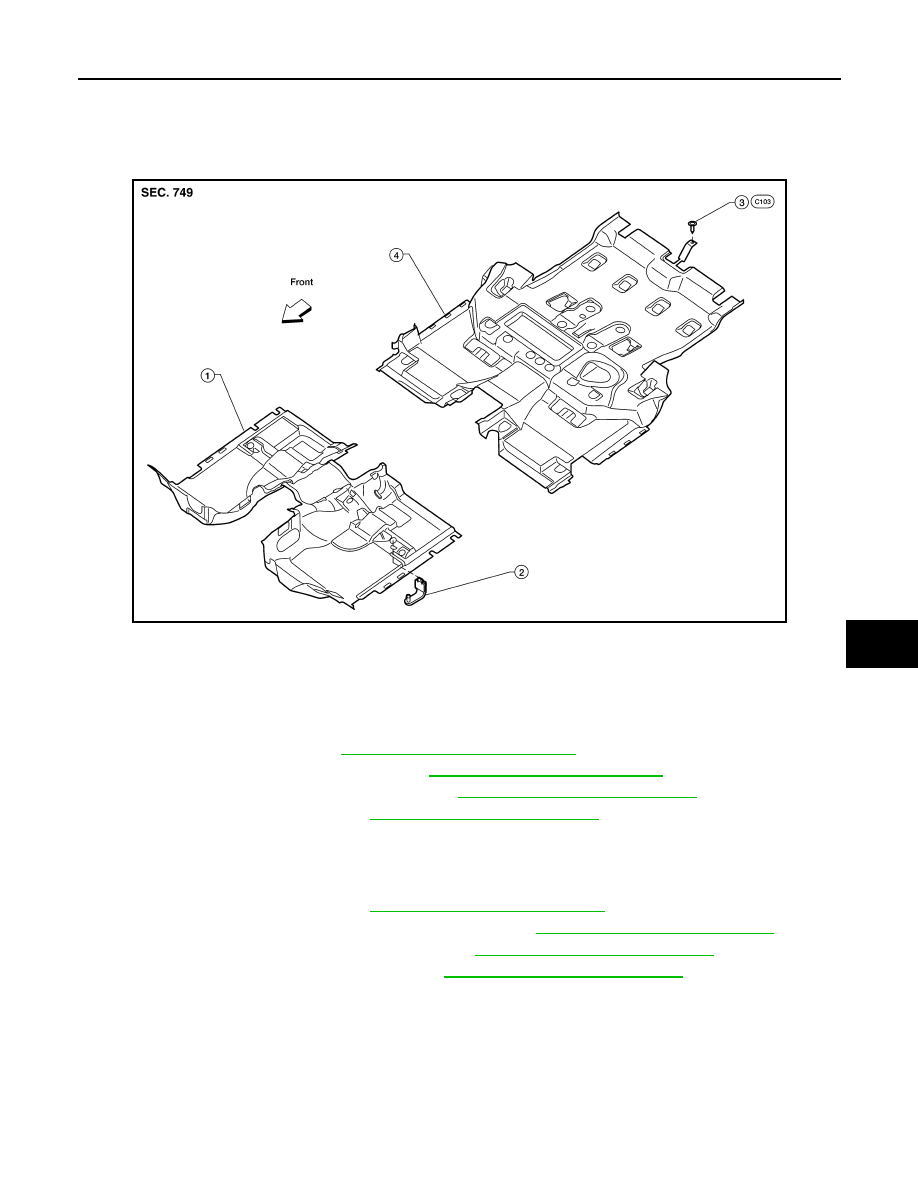

LIIA1770E

1.

Front carpet

2.

Floor mat hook

3.

Clip

4.

Rear carpet

INT-16

< ON-VEHICLE REPAIR >

HEADLINING

HEADLINING

Removal and Installation

INFOID:0000000001686227

REMOVAL

CAUTION:

Disconnect both the negative and positive battery terminals in advance.

1.

Disconnect the negative and positive battery terminals, then wait at least 3 minutes.

2.

Remove the body side trim panels. Refer to

INT-12

.

3.

Remove the luggage floor trim upper panels. Refer to

INT-18

.

4.

Remove the sun visor assemblies, both LH and RH.

5.

Remove the sun visor holders LH and RH.

6.

Remove the sunroof welt (if equipped).

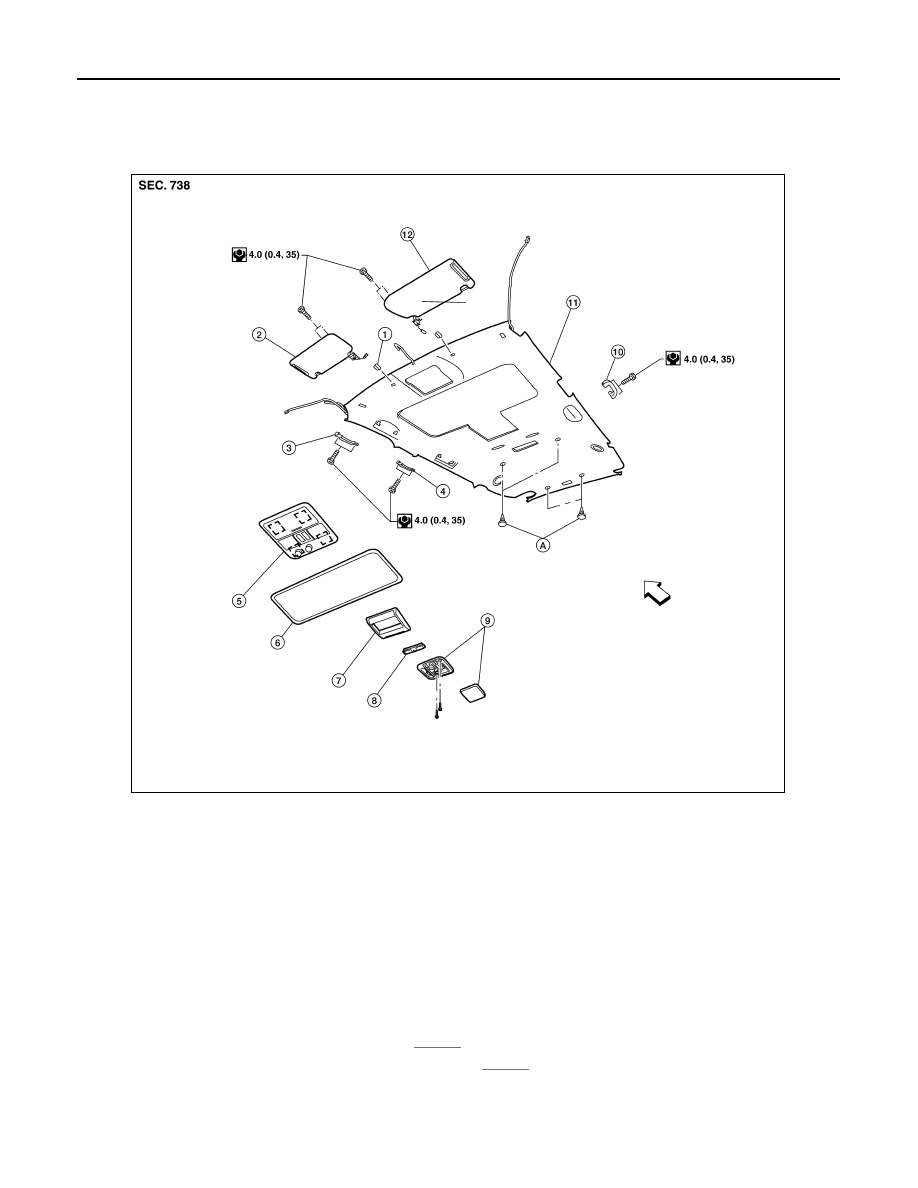

1.

Sun visor holder LH/RH

2.

Sun visor assembly RH

3.

Front assist grip RH

4.

Rear assist grip RH

5.

Front roof console with front room
lamp assembly and sunglass bin

6.

Sunroof welt (if equipped)

7.

DVD video monitor finisher (if
equipped)

8.

Center room lamp assembly

9.

Rear room lamp assembly

10.

Rear assist grip LH

11.

Headlining

12. Sun visor assembly LH

A.

Clip C103

⇐

Front

AWJIA0052GB

HEADLINING

INT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

7.

Remove the DVD video monitor assembly (if equipped). Refer to

AV-274, "Removal and Installation"

.

• Disconnect the harnesses.

8.

Remove the front and rear RH and LH assist grips.

9.

Release the front roof console clips, using a suitable tool and remove the front roof console.
• Disconnect the harness.

10. Remove the center room and the rear room lamp assemblies.

11. Remove the rear upper overhead duct (if equipped). Refer to

VTL-33, "Removal and Installation"

.

12. Remove the headlining.

NOTE:
Use an assistant to steady the headlining while lowering from roof.
• Remove the clips from center of headlining.
• Remove the clips from rear of headlining.
• Disconnect the rear washer tube at front connection, allow to drain.
• Disconnect the harnesses and rear washer tube rear connections.

13. Remove the overhead grilles, then transfer them to the new headlining.
14. Remove the assist grip brackets from the roof.

INSTALLATION

Installation is in the reverse order of removal.

INT-18

< ON-VEHICLE REPAIR >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

Component

INFOID:0000000001686228

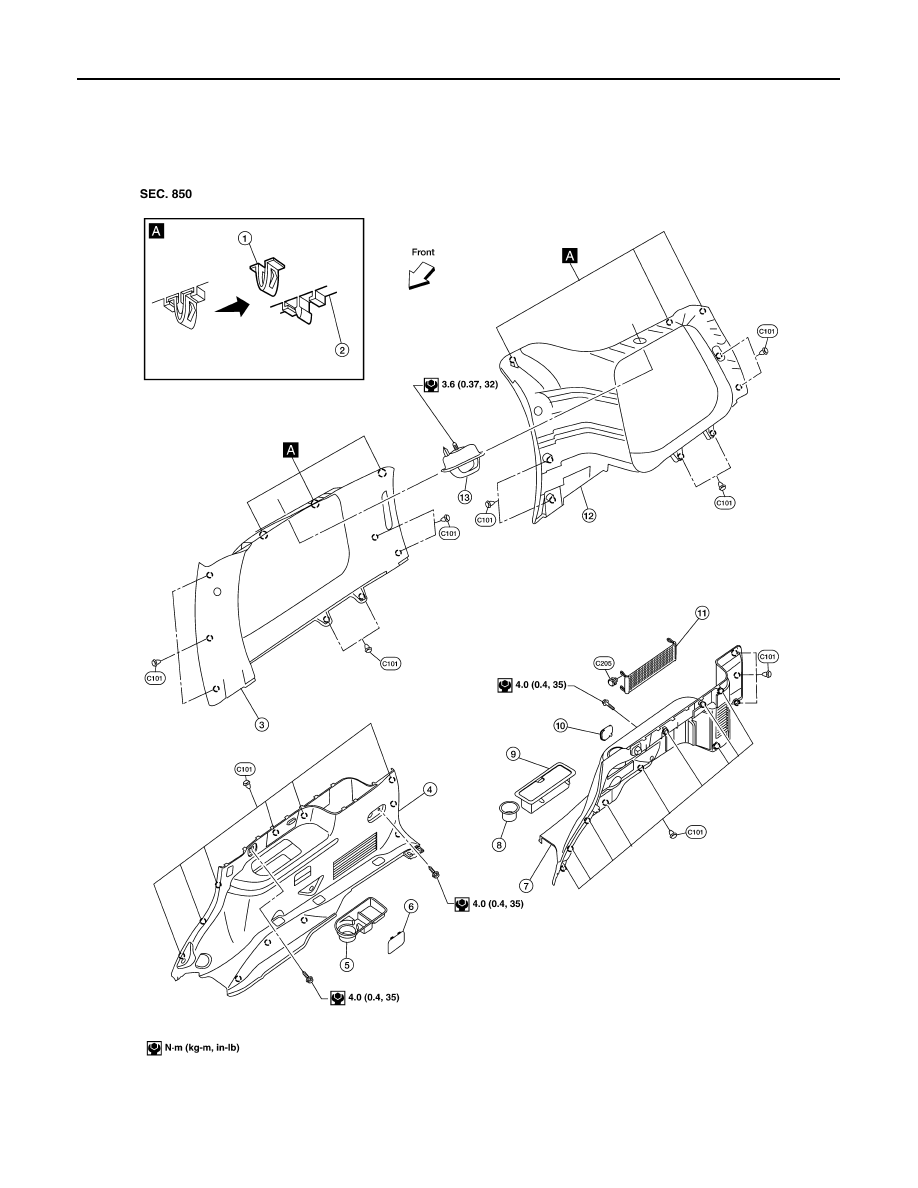

Luggage Trim - Side

LIIA1783E

1.

Metal clip

2.

Garnish

3.

Luggage side upper finisher RH

4.

Luggage side lower finisher RH

5.

Cup holder and tray

6.

Access cover

7.

Luggage side lower finisher LH

8.

Cup holder

9.

Storage bin

LUGGAGE FLOOR TRIM

INT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Luggage Trim - Floor

Removal and Installation

INFOID:0000000001686229

REMOVAL

1.

Remove the 2nd and 3rd row seat belts. Refer to

SB-5, "Removal and Installation of Rear Seat Belt"

 and

SB-7, "Removal and Installation of Third Row Seat Belt"

.

2.

Remove the third row seat belt buckles. Refer to

SB-7, "Removal and Installation of Third Row Seat Belt"

.

3.

Remove the third row seat assembly. Refer to

SE-30, "Removal and Installation"

.

4.

Remove the rear door kick plates. refer to

INT-12

.

5.

Remove the tailgate kick plate.

10. Access cover

11.

Side cargo net

12. Luggage side upper finisher LH

13. Coat hook

AWJIA0053GB

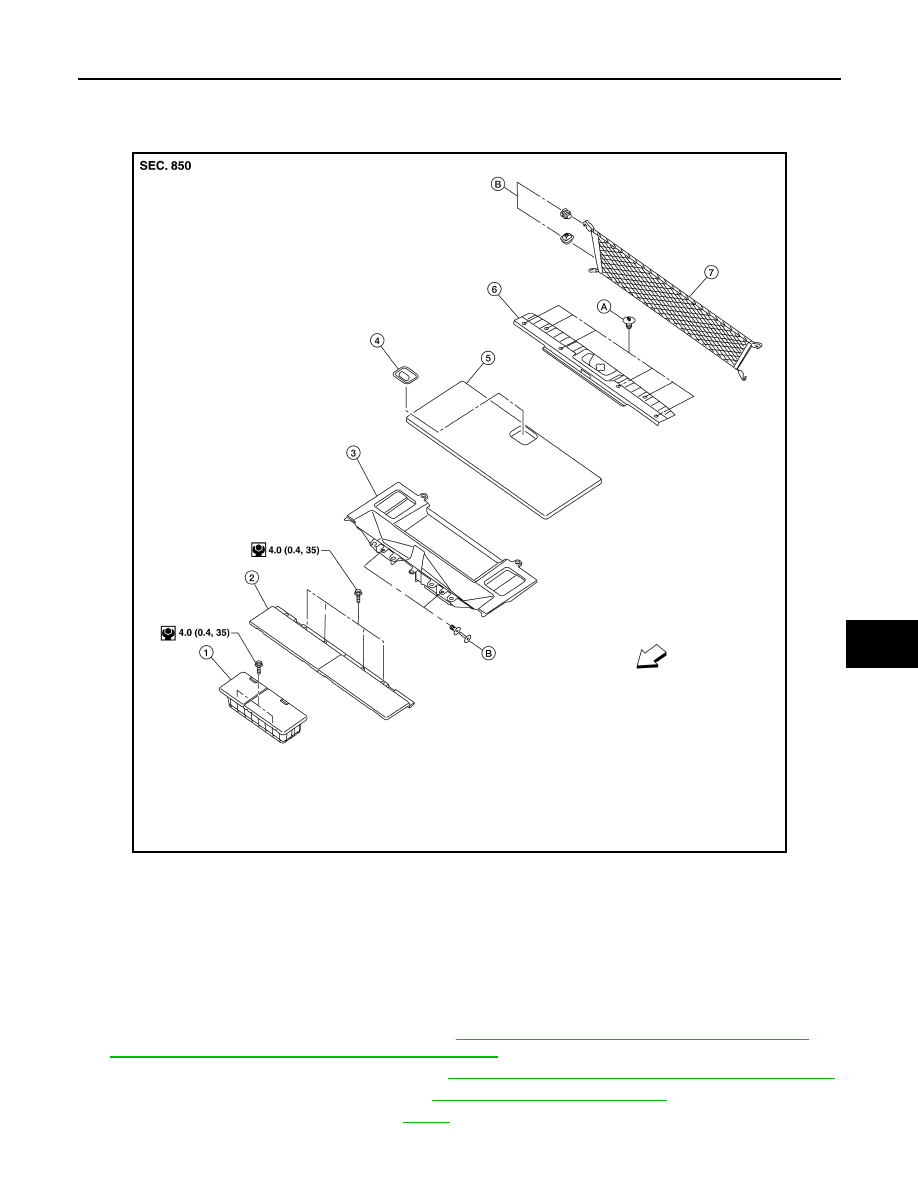

1.

Floor storage bin

2.

Flipper panel

3.

Storage tray

4.

Luggage floor board latch

5.

Luggage floor board

6.

Tailgate kick plate

7.

Cargo net

A.

Clip C101

B.

Clip C205

⇐

Front

INT-20

< ON-VEHICLE REPAIR >

LUGGAGE FLOOR TRIM

6.

Disconnect the door open/close link. Refer to

DLK-194, "Component Structure"

.

7.

Remove the cargo net hooks.

8.

Remove the LH and RH luggage side lower finishers.
• Disconnect the power point on the RH side.

9.

Remove the LH and RH coat hooks.

10. Remove the LH and RH luggage side upper finishers.

11. Remove the cargo net hooks LH/RH.

12. Remove the luggage floor board.

13. Remove the flipper panel.
14. Remove the storage tray.

15. Remove the floor storage bin.

INSTALLATION

Installation is in the reverse order of removal.
