Nissan Pathfinder (2008 year). Manual - part 387





EX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001303546

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PREPARATION

EX-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PREPARATION

PREPARATION

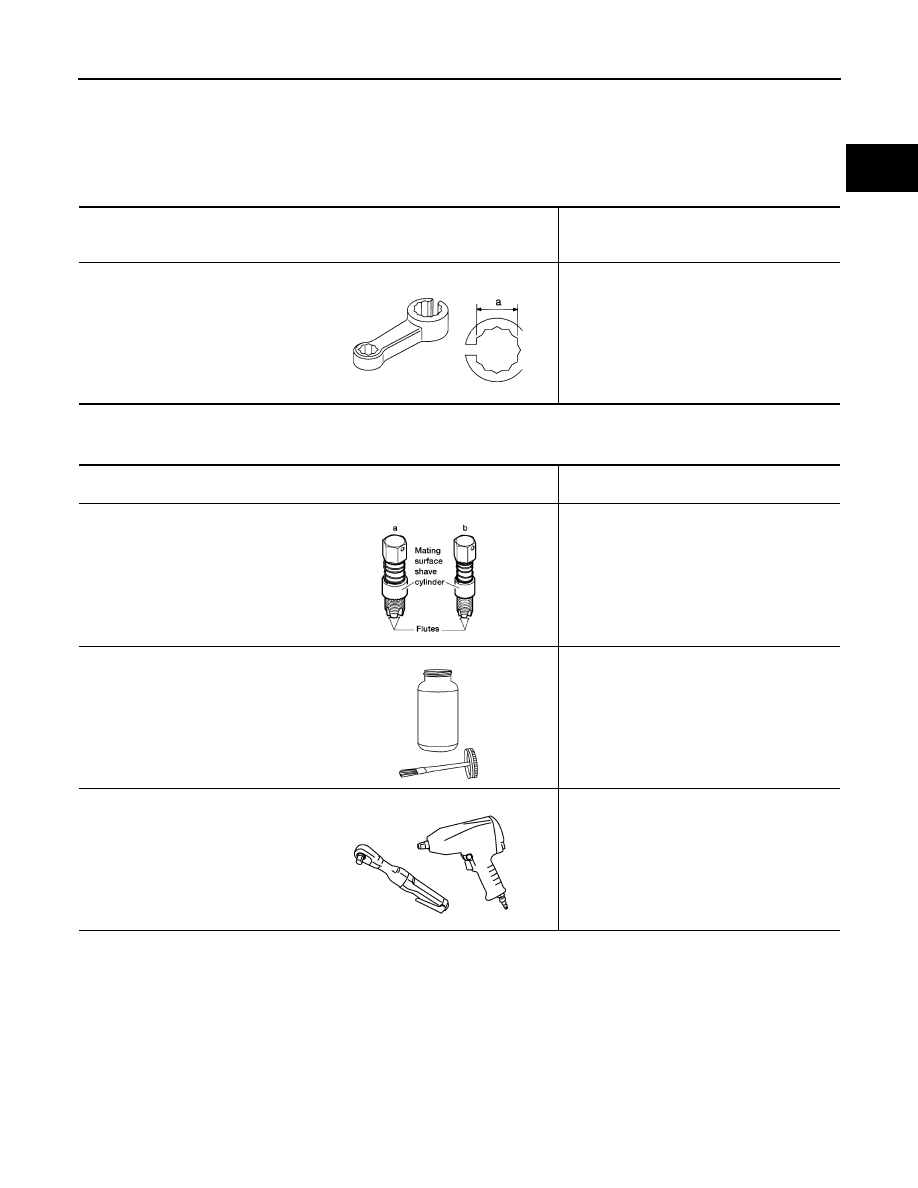

Special Service Tool

INFOID:0000000001282200

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001282201

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sors:
a: 22 mm (0.87 in)

S-NT636

(Kent-Moore No.)
Tool name

Description

 (J-43897-18)
 (J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below):
a: J-43897-18 (18 mm, 0.71 in) dia. for zirco-
nia oxygen sensor
b: J-43897-12 (12 mm, 0.47 in) dia. for tita-
nia oxygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Power tool

Loosening nuts and bolts

AEM488

AEM489

PBIC0190E

EX-4

< ON-VEHICLE MAINTENANCE >

EXHAUST SYSTEM

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM

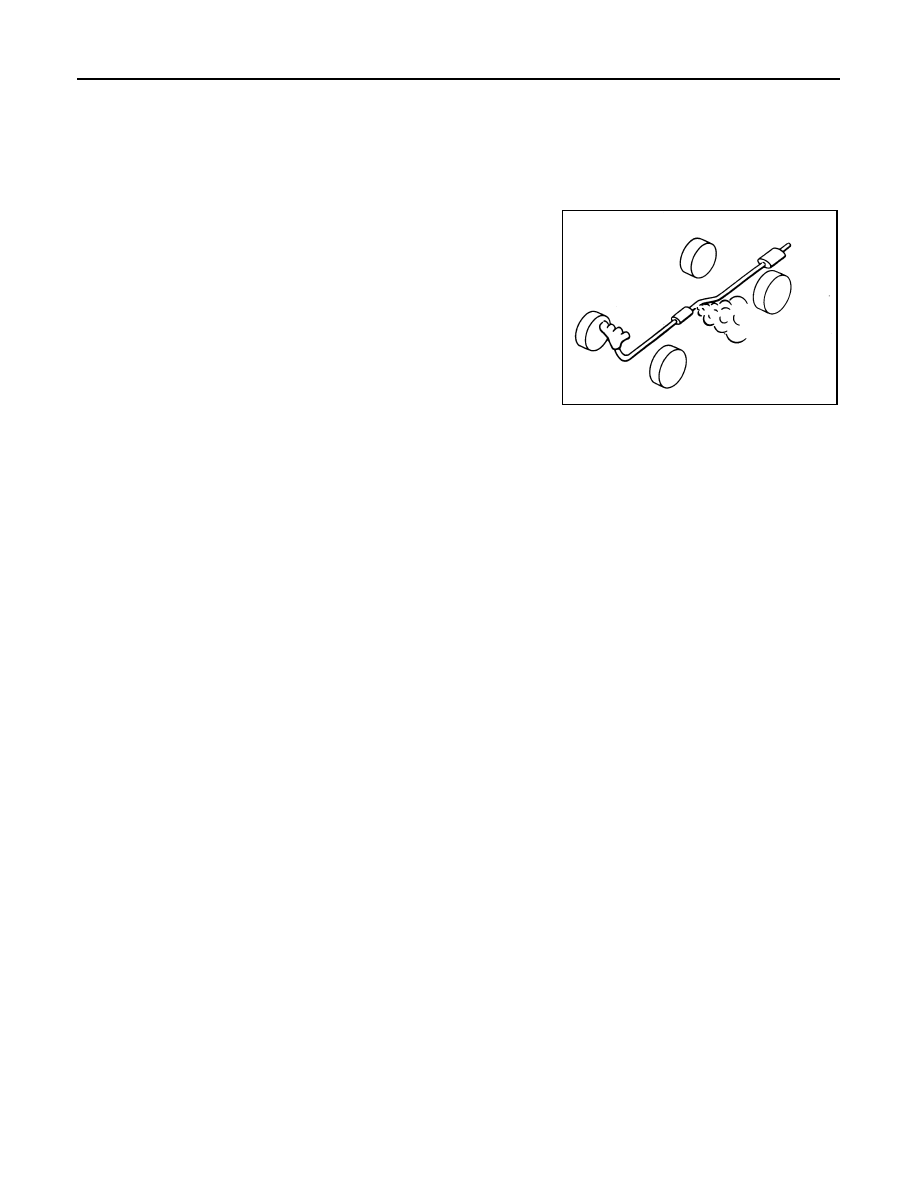

Checking Exhaust System

INFOID:0000000001282202

Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EXHAUST SYSTEM

EX-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

ON-VEHICLE REPAIR

EXHAUST SYSTEM

Removal and Installation

INFOID:0000000001282203

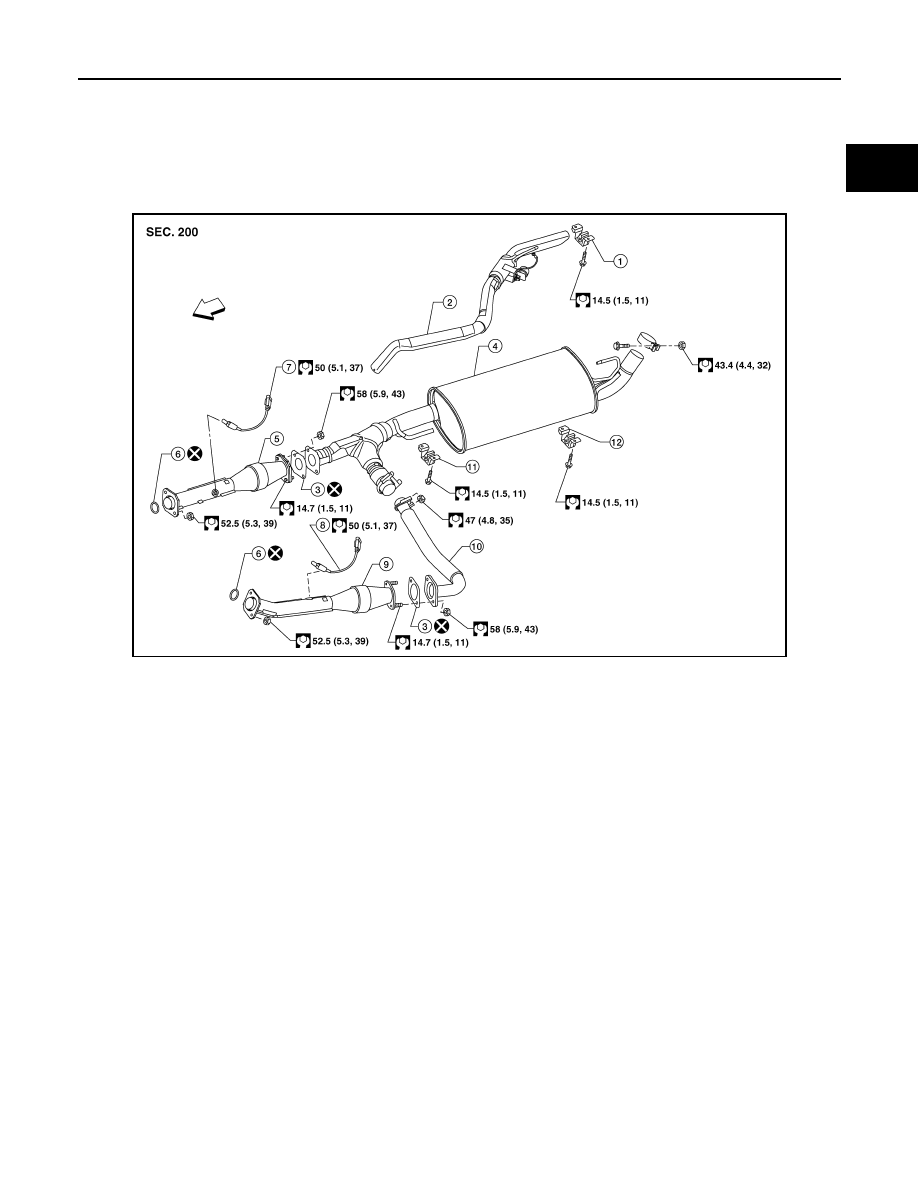

VQ40DE Exhaust System

WBIA0729E

1.

Tailpipe hanger bracket

2.

Tailpipe

3.

Gasket

4.

Main muffler

5.

Right front exhaust tube

6.

Ring gasket

7.

Heated oxygen sensor 2 (bank 2)

8.

Heated oxygen sensor 2 (bank 1)

9.

Left front exhaust tube

10. Center exhaust tube

11. Muffler hanger bracket front

12. Muffler hanger bracket rear

Front

EX-6

< ON-VEHICLE REPAIR >

EXHAUST SYSTEM

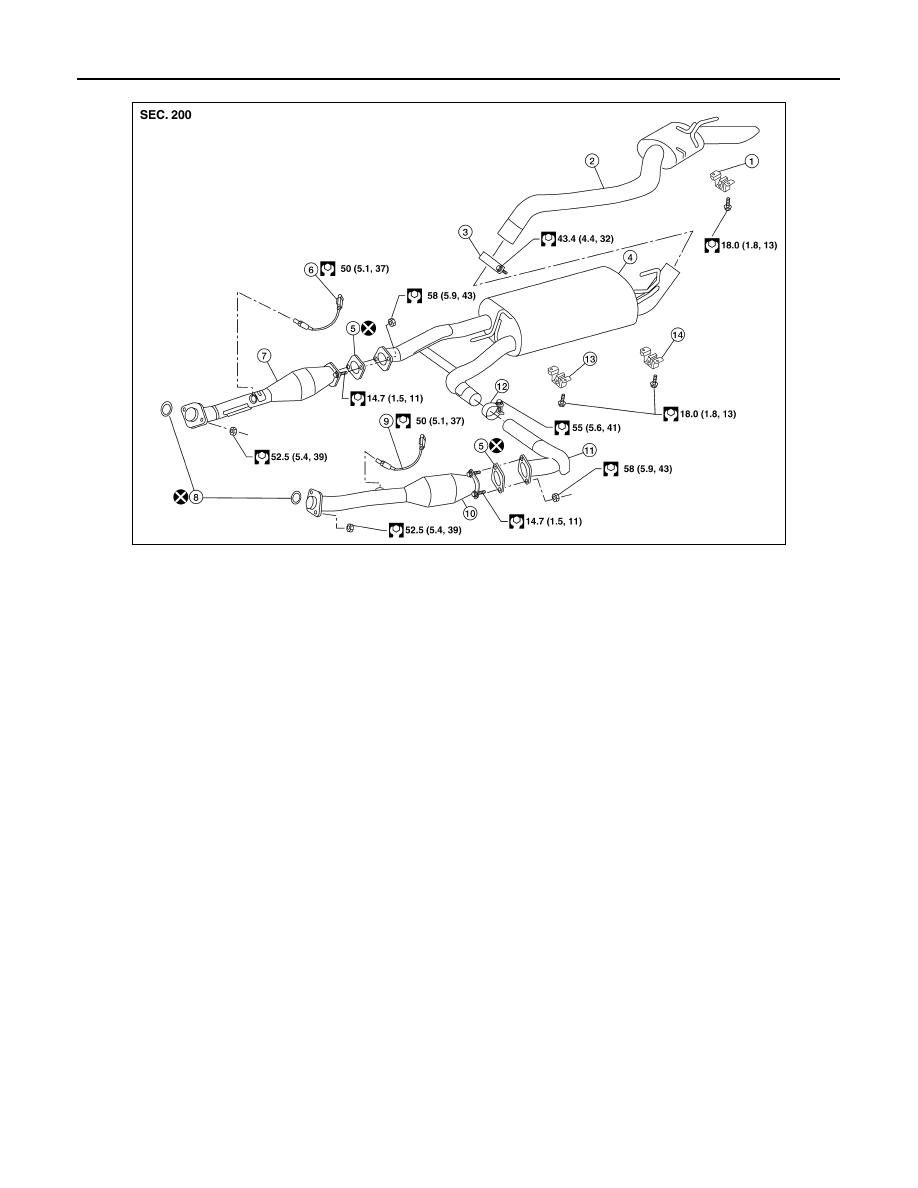

VK56DE Exhaust System

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

• Perform the operation with the exhaust system fully cooled. The system will be hot just after the

engine stops.

• Be careful not to cut your hand on the heat insulator edge.

REMOVAL

Remove exhaust system components using power tool.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace exhaust gaskets with new ones when reassembling.
• Before installing a new heated oxygen sensor, clean and lube the exhaust tube threads using suit-

able tool.

• Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7

in) onto a hard surface such as a concrete floor; install a new one.

• Do not over-torque the heated oxygen sensor. Doing so may damage the heated oxygen sensor,

resulting in the MIL coming on.

• If any mounting insulator is badly deformed, repair or replace it. If deposits such as mud pile up on

the mounting insulators, clean and inspect them.

AWBIA0080GB

1.

Tailpipe hanger bracket

2.

Tailpipe

3.

Clamp

4.

Main muffler

5.

Gasket

6.

Heated oxygen sensor 2 (bank 2)

7.

Right front exhaust tube

8.

Ring gasket

9.

Heated oxygen sensor 2 (bank 1)

10. Left front exhaust tube

11. Center exhaust tube

12. Clamp

13. Muffler hanger bracket front

14. Muffler hanger bracket rear

Oxygen sensor thread cleaner

(J-43897-18)

Oxygen sensor thread cleaner

(J-43897-12)

EXHAUST SYSTEM

EX-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

• Temporarily tighten the mounting nuts on the exhaust manifold side and the mounting bolts on the

vehicle side. Check each part for interference with other components, and then tighten the nuts and
bolts to specification.

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

EXL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

EXL

A

B

EXL

N

O

P

CONTENTS

EXTERIOR LIGHTING SYSTEM

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

FUNCTION DIAGNOSIS ...............................

7

HEADLAMP (HALOGEN TYPE)  .........................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Parts Location ........................................

7

Component Description .............................................

7

DAYTIME RUNNING LIGHT SYSTEM  ...............

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

10

Component Description ...........................................

10

AUTO LIGHT SYSTEM  ......................................

11

System Diagram ......................................................

11

System Description  .................................................

11

Component Parts Location ......................................

12

Component Description ...........................................

12

FRONT FOG LAMP ............................................

14

System Diagram ......................................................

14

System Description  .................................................

14

Component Parts Location ......................................

14

Component Description ...........................................

14

TURN SIGNAL AND HAZARD WARNING
LAMPS ...............................................................

15

System Diagram ......................................................

15

System Description  .................................................

15

Component Parts Location ......................................

16

Component Description ...........................................

16

PARKING, LICENSE PLATE AND TAIL
LAMPS ...............................................................

17

System Diagram ......................................................

17

System Description  .................................................

17

Component Parts Location  ......................................

17

Component Description  ...........................................

18

COMBINATION SWITCH ..................................

19

System Description ..................................................

19

DIAGNOSIS SYSTEM (BCM)  ...........................

20

COMMON ITEM  .........................................................

20

COMMON ITEM : Diagnosis Description  ................

20

COMMON ITEM : CONSULT-III Function  ...............

20

EXTERNAL LAMP  .....................................................

20

EXTERNAL LAMP : CONSULT-III Function ............

21

FLASHER ...................................................................

22

FLASHER : CONSULT-III Function (BCM -
FLASHER) ...............................................................

22

DIAGNOSIS SYSTEM (IPDM E/R)  ...................

24

CONSULT - III Function (IPDM E/R)  .......................

24

COMPONENT DIAGNOSIS .........................

25

POWER SUPPLY AND GROUND CIRCUIT  ....

25

BCM (BODY CONTROL MODULE)  ..........................

25

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ................................................................

25

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  ..............................

25

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure ......................................................................

25

HEADLAMP (HI) CIRCUIT ................................

26

Description ...............................................................

26

Component Function Check  ....................................

26

Diagnosis Procedure  ...............................................

26

HEADLAMP (LO) CIRCUIT  ..............................

28

Description ...............................................................

28

Component Function Check  ....................................

28

EXL-2

Diagnosis Procedure  ..............................................

28

FRONT FOG LAMP CIRCUIT  ...........................

30

Description ..............................................................

30

Component Function Check  ...................................

30

Diagnosis Procedure  ..............................................

30

PARKING LAMP CIRCUIT  ................................

32

Description ..............................................................

32

Component Function Check  ...................................

32

Diagnosis Procedure  ..............................................

32

TURN SIGNAL LAMP CIRCUIT  ........................

37

Description ..............................................................

37

Component Function Check  ...................................

37

Diagnosis Procedure  ..............................................

37

OPTICAL SENSOR  ...........................................

40

Description ..............................................................

40

Component Function Check  ...................................

40

Diagnosis Procedure  ..............................................

40

HEADLAMP .......................................................

42

Wiring Diagram  .......................................................

42

DAYTIME LIGHT SYSTEM ................................

46

Wiring Diagram  .......................................................

46

AUTO LIGHT SYSTEM ......................................

55

Wiring Diagram  .......................................................

55

FRONT FOG LAMP SYSTEM  ...........................

62

Wiring Diagram  .......................................................

62

TURN SIGNAL AND HAZARD WARNING
LAMP SYSTEM  .................................................

66

Wiring Diagram  .......................................................

66

PARKING, LICENSE PLATE AND TAIL
LAMPS SYSTEM  ...............................................

73

Wiring Diagram  .......................................................

73

STOP LAMP  ......................................................

81

Wiring Diagram  .......................................................

81

BACK-UP LAMP ................................................

87

Wiring Diagram  .......................................................

87

TRAILER TOW  ..................................................

92

Wiring Diagram  .......................................................

92

ECU DIAGNOSIS  .......................................

100

BCM (BODY CONTROL MODULE)  ................

100

Description .............................................................

100

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ...............

101

Description .............................................................

101

SYMPTOM DIAGNOSIS  ............................

102

EXTERIOR LIGHTING SYSTEM SYMPTOMS .

102

Symptom Table .....................................................

102

NORMAL OPERATING CONDITION  ...............

104

Description ............................................................

104

BOTH SIDE HEADLAMPS DO NOT SWITCH
TO HIGH BEAM ................................................

105

Description ............................................................

105

Diagnosis Procedure .............................................

105

BOTH SIDE HEADLAMPS (LO) ARE NOT
TURNED ON .....................................................

106

Description ............................................................

106

Diagnosis Procedure .............................................

106

PARKING, LICENSE PLATE AND TAIL
LAMPS ARE NOT TURNED ON  ......................

107

Description ............................................................

107

Diagnosis Procedure .............................................

107

BOTH SIDE FRONT FOG LAMPS ARE NOT
TURNED ON .....................................................

108

Description ............................................................

108

Diagnosis Procedure .............................................

108

ON-VEHICLE REPAIR  ..............................

109

ADJUSTMENT AND INSPECTION  ..................

109

HEADLAMP .............................................................

109

HEADLAMP : Aiming Adjustment  .........................

109

FRONT FOG LAMP .................................................

110

FRONT FOG LAMP : Aiming Adjustment  .............

110

REMOVAL AND INSTALLATION .............

112

HEADLAMP ......................................................

112

Bulb Replacement .................................................

112

Removal and Installation .......................................

112

Disassembly and Assembly  ..................................

113

OPTICAL SENSOR  ..........................................

114

Removal and Installation .......................................

114

FRONT FOG LAMP  ..........................................

115

Bulb Replacement .................................................

115

Removal and Installation .......................................

115

LIGHTING & TURN SIGNAL SWITCH .............

116

Removal and Installation .......................................

116

HAZARD SWITCH  ............................................

117

Removal and Installation .......................................

117

HIGH-MOUNTED STOP LAMP  ........................

118

High-Mounted Stop Lamp  .....................................

118

LICENSE PLATE LAMP ...................................

119

Bulb Replacement .................................................

119

Removal and Installation .......................................

119

REAR COMBINATION LAMP  ..........................

120















Content      ..     385      386      387      388     ..
