HOW TO SELECT PISTON AND BEARING

EM-243

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

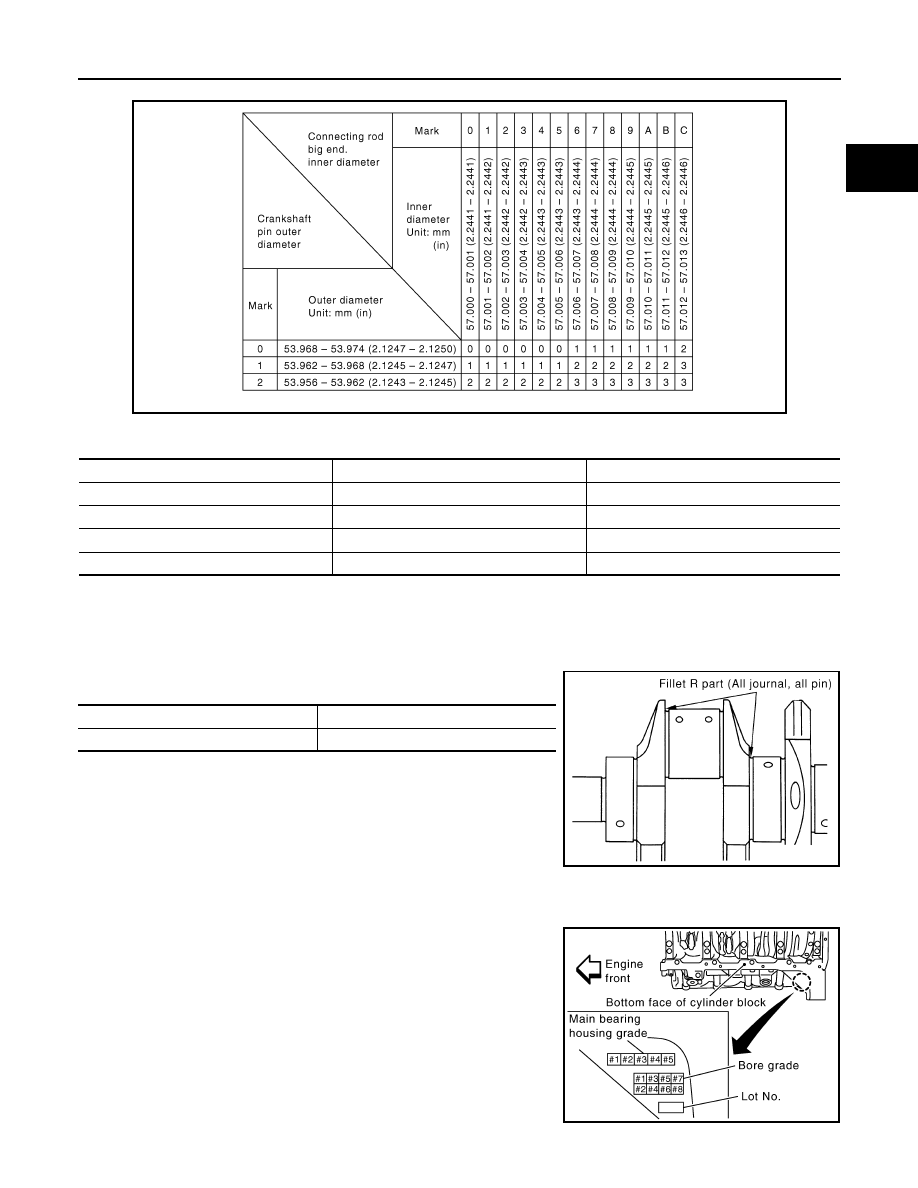

Connecting Rod Bearing Selection Table

Connecting Rod Bearing Grade Table.

Undersize Bearings Usage Guide

• When the specified oil clearance is not obtained with standard size connecting rod bearings, use undersize

(US) bearings.

• When using undersize bearing, measure the bearing inside diameter with the bearing installed, and grind the

crankshaft pin so that the oil clearance satisfies the standard.

   Bearing undersize table

Unit: mm (in)

CAUTION:

In grinding the crankshaft pin to use undersize bearings, keep
the fillet R (All crankshaft pins).

HOW TO SELECT MAIN BEARING

When New Cylinder Block and Crankshaft are Used

1.

Apply the main bearing housing grade on the bottom face of the
cylinder block to the row in "Main Bearings Selection Table".

KBIA2538E

Grade number

Thickness “T”

mm (in)

Identification color (mark)

0

1.500 - 1.503 (0.0591 - 0.0592)

Black

1

1.503 - 1.506 (0.0592 - 0.0593)

Brown

2

1.506 - 1.509 (0.0593 - 0.0594)

Green

3

1.509 - 1.512 (0.0594 - 0.0595)

Yellow

Undersize

Thickness

0.25 (0.0098)

1.627 - 1.635 (0.0641 - 0.0644)

Fillet R

: 1.5 - 1.7 mm (0.059 - 0.067 in)

PBIC0111E

KBIA2495E

EM-244

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

HOW TO SELECT PISTON AND BEARING

2.

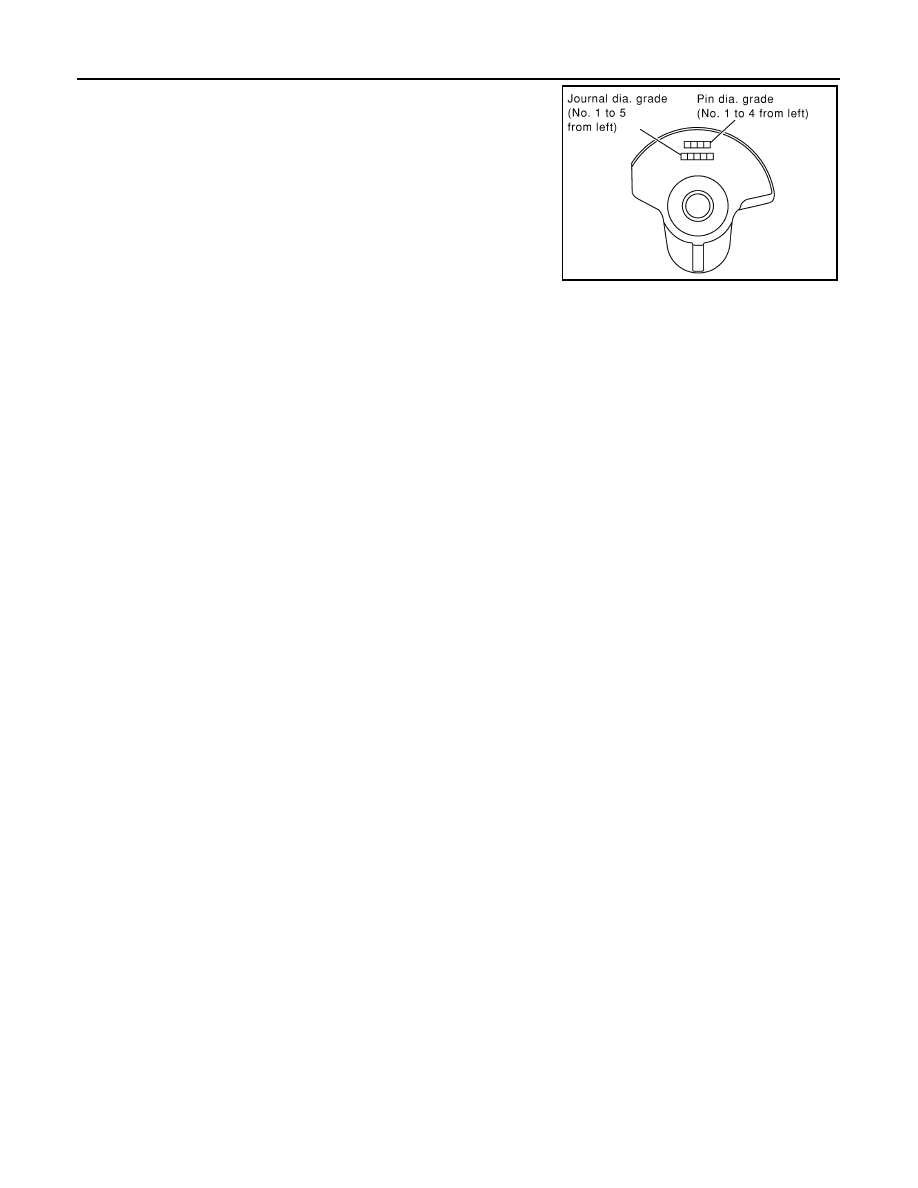

Apply the journal diameter grade on the crankshaft front to the
column in "Main Bearings Selection Table".

3.

Read the symbol at the cross point of the selected row and column in the "Main Bearings Selection Table".

CAUTION:

• Initial clearance for No. 1, 5 journal and No. 2, 3, 4 journal is different. Use two different selection

lists for each part.

• No. 1, 5 journal and No. 2, 3, 4 journal have the same signs but different measures. Do not con-

fuse them.

4.

Apply the symbol to the "Main Bearings Grade Table" to select.
NOTE:
• Grade list applies to all journals.
• Service parts are available as a set of both upper and lower.

When Cylinder Block and Crankshaft are Reused

1.

Measure the inside diameter of the cylinder block main bearings housing and the outside diameter of the
crankshaft journal.

2.

Apply measurement in above step 1 to "Main Bearings Selection Table".

3.

The following steps are same as in “When New Cylinder Block and Crankshaft are Used”. Follow the
"HOW TO SELECT MAIN BEARING" procedure.

PBIC0110E

HOW TO SELECT PISTON AND BEARING

EM-245

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Main Bearings Selection Table (No. 1 and No. 5 journal)

WBIA0608E

EM-246

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

HOW TO SELECT PISTON AND BEARING

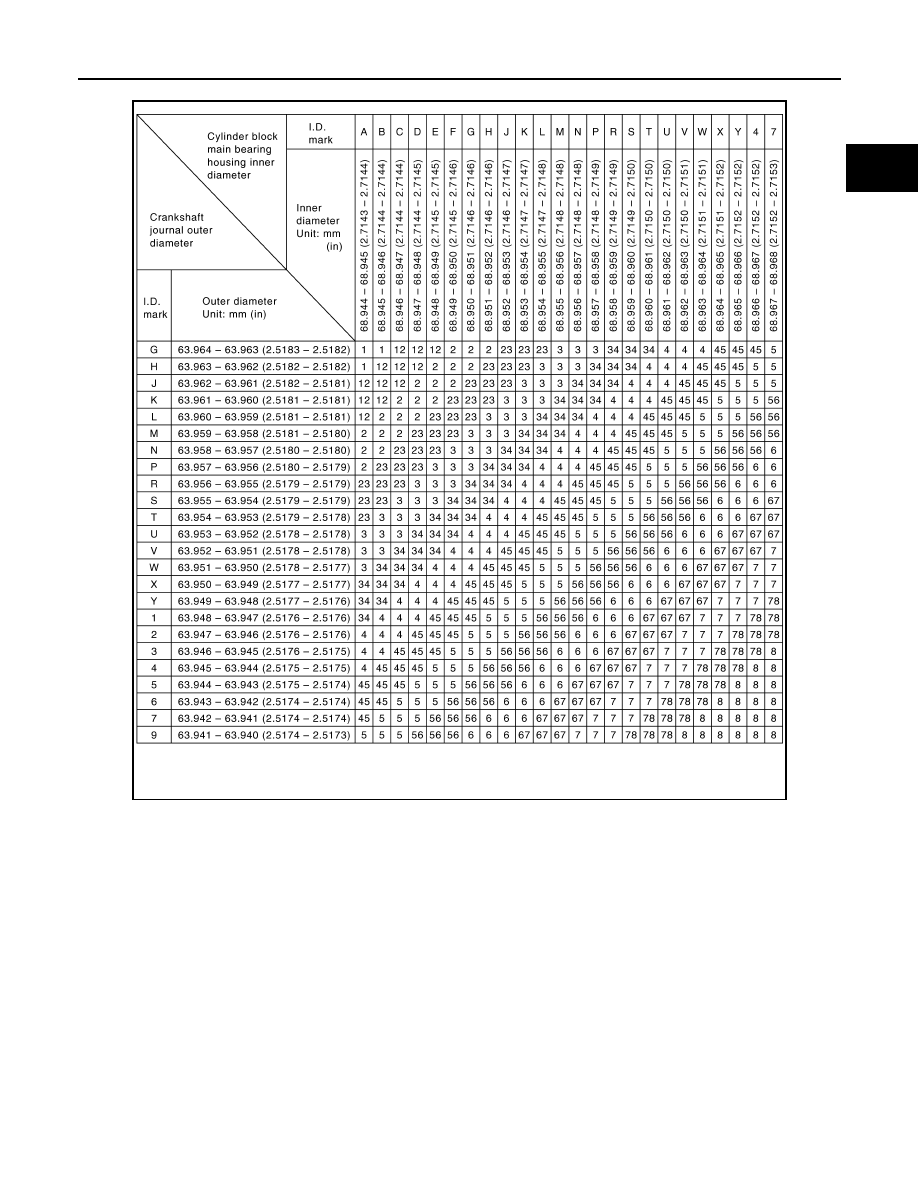

Main Bearings Selection Table (No. 2, 3 and 4 journal)

Main Bearings Grade Table (All Journals)

Unit: mm (in)

WBIA0609E

Grade number

UPR/LWR

Thickness

Identification color

Remarks

0

—

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade is the same for upper
and lower bearings.

1

—

2.486 - 2.489 (0.0979 - 0.0980)

Brown

2

—

2.489 - 2.492 (0.0980 - 0.0981)

Green

3

—

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

4

—

2.495 - 2.498 (0.0982 - 0.0983)

Blue

5

—

2.498 - 2.501 (0.0983 - 0.0985)

Pink

6

—

2.501 - 2.504 (0.0985 - 0.0986)

Purple

7

—

2.504 - 2.507 (0.0986 - 0.0987)

White

8

—

2.507 - 2.510 (0.0987 - 0.0988)

Red

HOW TO SELECT PISTON AND BEARING

EM-247

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

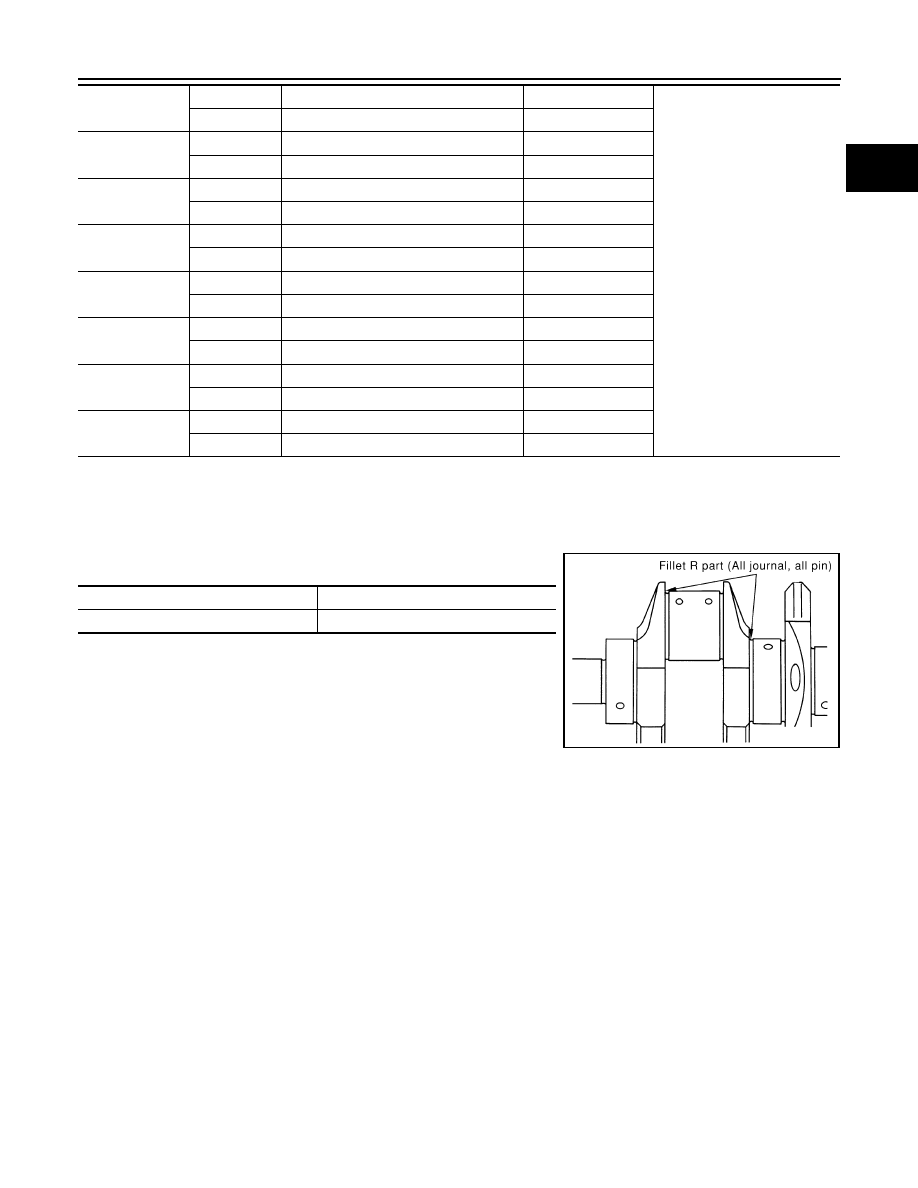

Use Undersize Bearing Usage Guide

• Use undersize (US) bearing when the oil clearance with standard size main bearing is not within specifica-

tion.

• When using undersize (US) bearing, measure the inside diameter of the bearing installed and grind the jour-

nal until the oil clearance falls within specification.
Bearing undersize table

Unit: mm (in)

CAUTION:

Do not damage fillet R when grinding crankshaft journal in
order to use undersized bearing (All journals).

01

UPR

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade and color are different
for upper and lower bearings.

LWR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

12

UPR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

LWR

2.489 - 2.492 (0.0980 - 0.0981)

Green

23

UPR

2.489 - 2.492 (0.0980 - 0.0981)

Green

LWR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

34

UPR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

LWR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

45

UPR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

LWR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

56

UPR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

LWR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

67

UPR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

LWR

2.504 - 2.507 (0.0986 - 0.0987)

White

78

UPR

2.504 - 2.507 (0.0986 - 0.0987)

White

LWR

2.507 - 2.510 (0.0987 - 0.0988)

Red

Undersize

Thickness

0.25 (0.0098)

2.618 - 2.626 (0.1031 - 0.1034)

Fillet R

: 1.5 - 1.7 mm (0.059 - 0.067 in)

PBIC0111E

EM-248

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

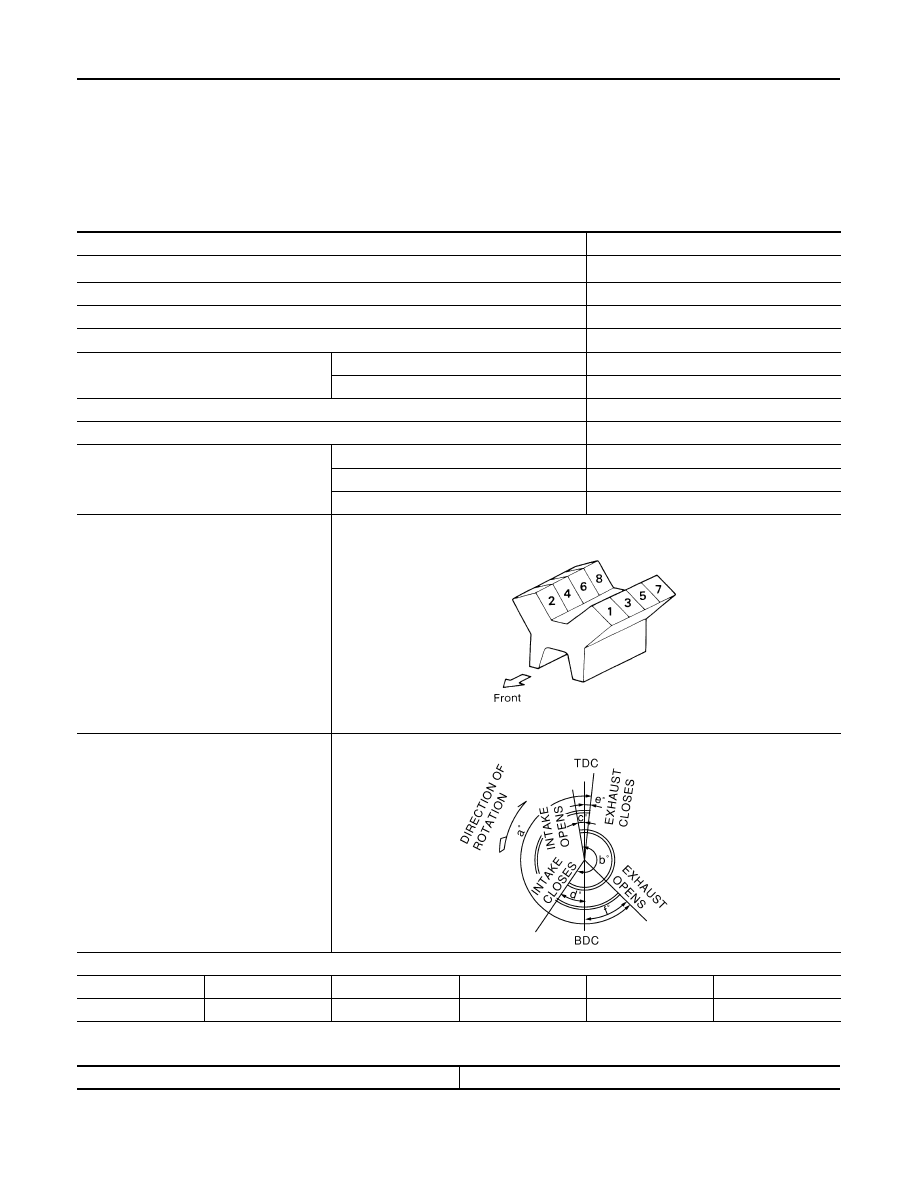

Standard and Limit

INFOID:0000000001282041

GENERAL SPECIFICATIONS

DRIVE BELTS

EXHAUST MANIFOLD

Cylinder arrangement

V-8

Displacement

cm

3

 (in

3

)

5,552 (338.80)

Bore and stroke

mm (in)

98 x 92 (3.86 x 3.62)

Valve arrangement

DOHC

Firing order

1-8-7-3-6-5-4-2

Number of piston rings

Compression

2

Oil

1

Number of main bearings

5

Compression ratio

9.8:1

Compression pressure                                  kPa

(kg/cm

2

, psi)/rpm

Standard

1,520 (15.5, 220)/200

Minimum

1,324 (13.5, 192)/200

Differential limit between cylinders

98 (1.0, 14)/200

Cylinder number

Valve timing

Unit: degree

a

b

c

d

e

f

244

°

232

°

8

°

60

°

10

°

54

°

SEM957C

PBIC0187E

Tension of drive belts

Auto adjustment by auto tensioner

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-249

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

SPARK PLUG

CAMSHAFT AND CAMSHAFT BEARING

Unit: mm (in)

*: Total indicator reading

Valve Lifter

Unit: mm (in)

Valve Clearance

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

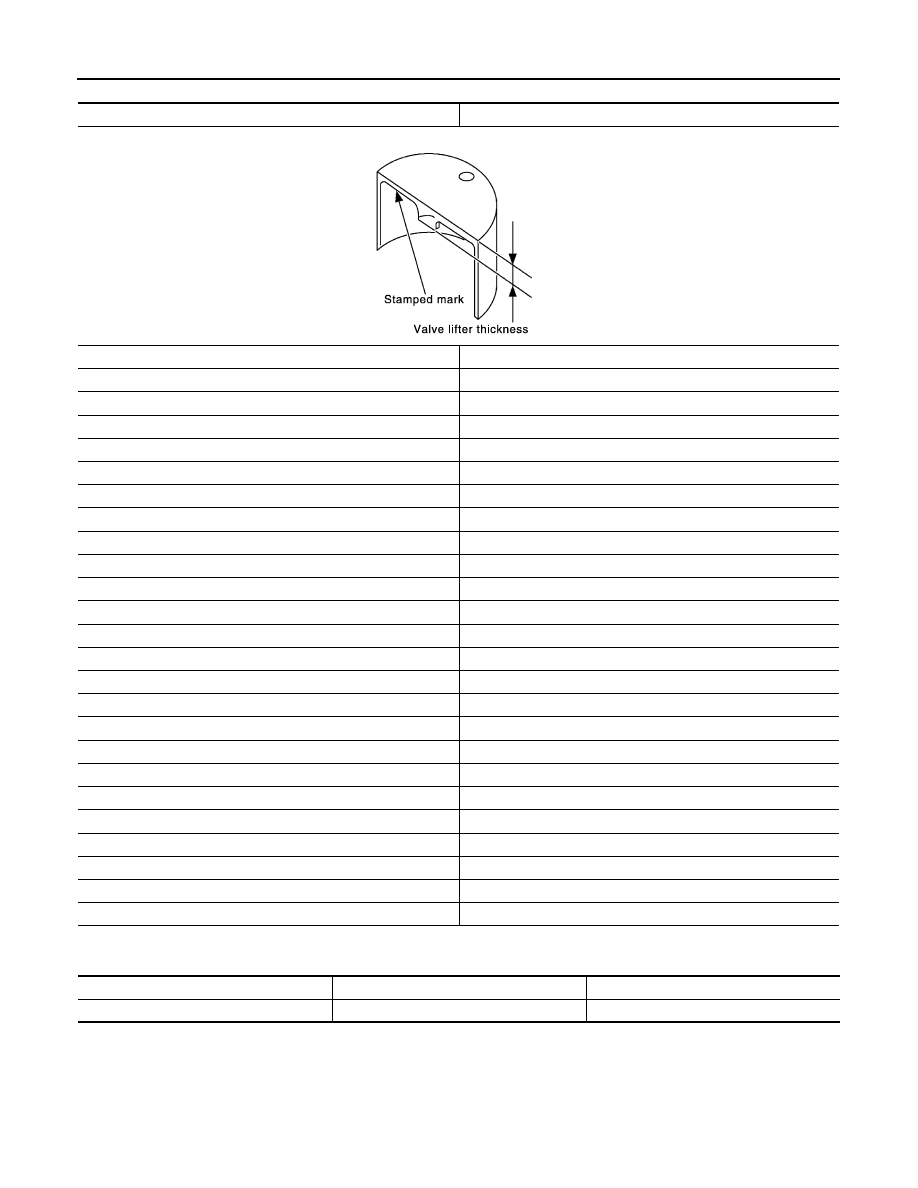

Available Valve Lifter

Items

Limit

Surface distortion

Exhaust manifold

0.3 (0.012)

Make

NGK

Standard type

DILFR5A-11

Gap (nominal)

1.1 mm (0.043 in)

Items

Standard

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

Camshaft cam height “A”

Intake

44.865 - 45.055 (1.7663 - 1.7738)

Exhaust

45.075 - 45.265 (1.7746 - 1.7821)

Cam wear limit

0.02 (0.0008)

Outside diameter of camshaft journal

25.950 - 25.970 (1.0217 - 1.0224)

Camshaft bracket inside diameter

26.000 - 26.021 (1.0236 - 1.0244)

Camshaft journal clearance

0.030 - 0.071 (0.0012 - 0.0028)

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

Camshaft sprocket runout [TIR*]

Less than 0.15 (0.0059)

SEM671

Items

Standard

Valve lifter diameter

33.977 - 33.987 (1.3377 - 1.3381)

Valve lifter hole diameter

34.000 - 34.016 (1.3386 - 1.3392)

Clearance between lifter and lifter guide

0.013 - 0.039 (0.0005 - 0.0015)

Items

Hot*

Cold

Intake

0.304 - 0.416 (0.012 - 0.016)

0.26 - 0.34 (0.010 - 0.013)

Exhaust

0.308 - 0.432 (0.012 - 0.017)

0.29 - 0.37 (0.011 - 0.015)

EM-250

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

CYLINDER HEAD

Unit: mm (in)

Identification (stamped) Mark

Thickness

N788

7.88 (0.3102)

N790

7.90 (0.3110)

N792

7.92 (0.3118)

N794

 7.94 (0.3126)

N796

7.96 (0.3134)

N798

7.98 (0.3142)

N800

8.00 (0.3150)

N802

8.02 (03.157)

N804

8.04 (0.3165)

N806

8.06 (0.3173)

N808

8.08 (0.3181)

N810

8.10 (0.3189)

N812

8.12 (0.3197)

N814

8.14 (0.3205)

 N816

8.16 (0.3213)

N818

8.18 (0.3220)

N820

8.20 (0.3228)

N822

8.22 (0.3236)

N824

8.24 (0.3244)

N826

8.26 (0.3252)

N828

8.28 (0.3260)

N830

8.30 (0.3268)

N832 8.32

(0.3276)

N834

8.34 (0.3283)

N836

8.36 (0.3291)

SEM758G

Items

Standard

Limit

Head surface distortion

0.03 (0.0012)

0.1 (0.004)
