Nissan Pathfinder (2008 year). Manual - part 388





EXL-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001712344

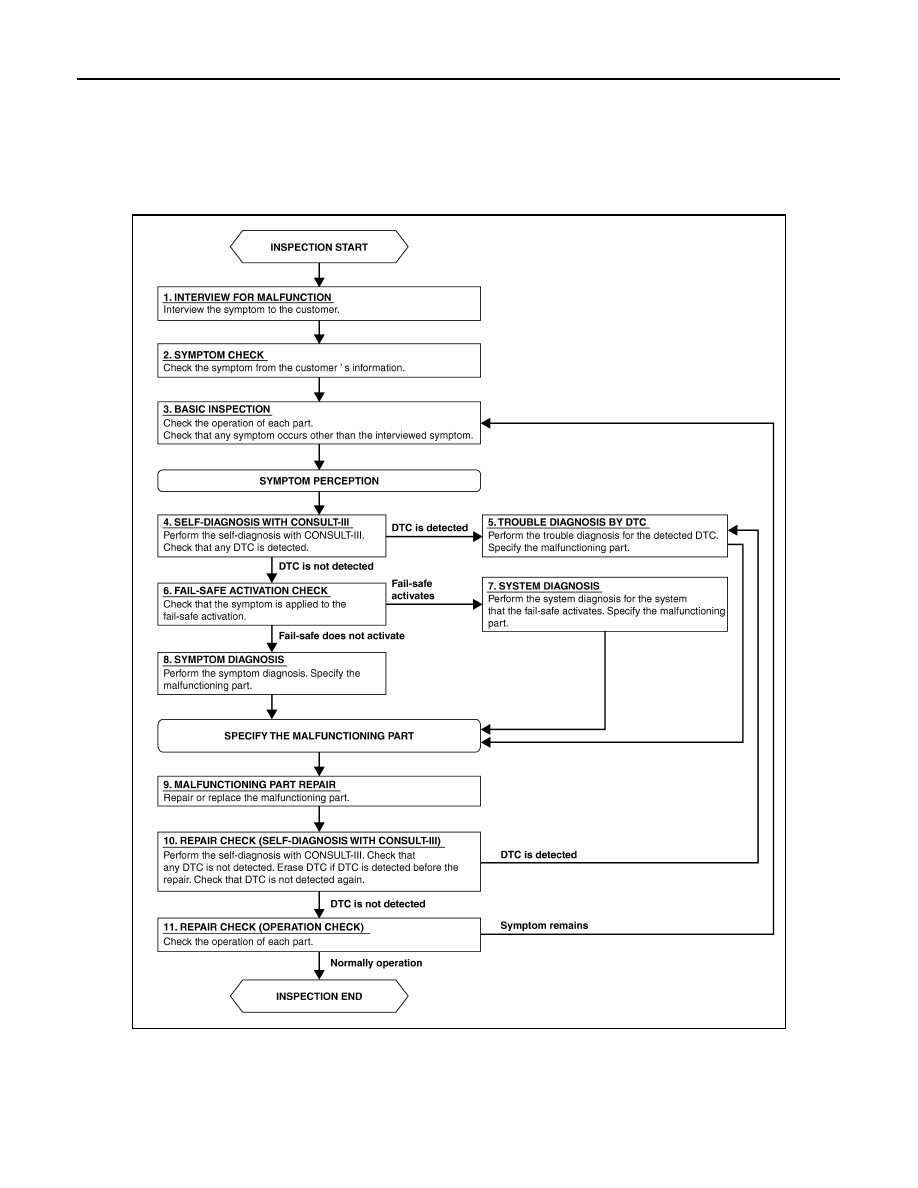

OVERALL SEQUENCE

JPLIA0089GB

DIAGNOSIS AND REPAIR WORKFLOW

EXL-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

3.

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer
interview.

>> GO TO 4

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self diagnosis with CONSULT-III. Check that any DTC is detected.

Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 6

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.

Does the fail-safe activate?

YES

>> GO TO 7

NO

>> GO TO 8

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 11

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self diagnosis with CONSULT-III. Verfied that no DTCs are detected. Erase all DTCs detected
prior to the repair. Verify that DTC is not detected again.
Is any DTC detected?

EXL-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

YES

>> GO TO 5

NO

>> GO TO 11

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.

Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3

HEADLAMP (HALOGEN TYPE)

EXL-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FUNCTION DIAGNOSIS

HEADLAMP (HALOGEN TYPE)

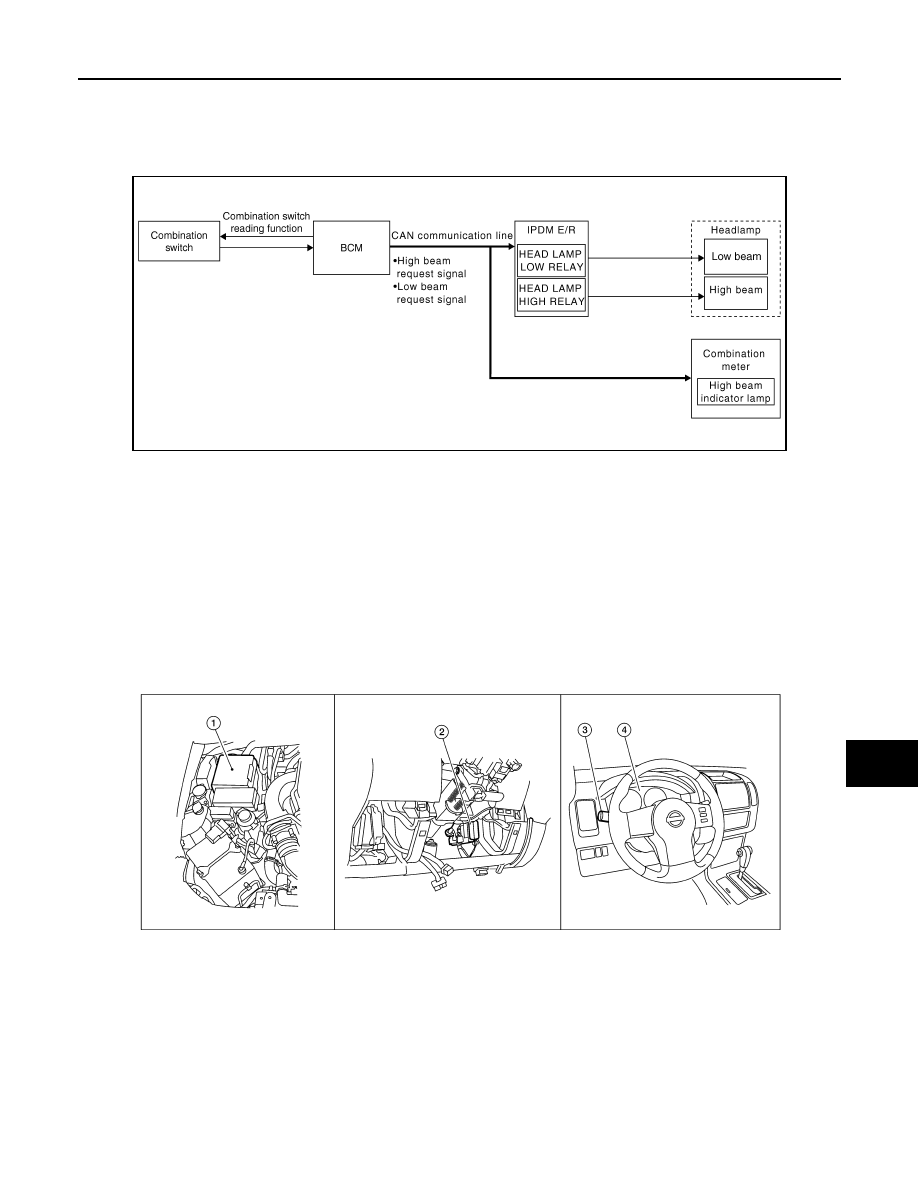

System Diagram

INFOID:0000000001712345

System Description

INFOID:0000000001712346

Control of the headlamp system operation is dependent upon the position of the lighting switch (combination
switch). When the lighting switch is placed in the 2nd position, the BCM (body control module) receives input
requesting the headlamps and park lamps to illuminate. This input is communicated to the IPDM E/R (intelli-
gent power distribution module engine room) via the CAN communication lines. The CPU (central processing
unit) of the IPDM E/R controls the headlamp high and headlamp low relay coils. When energized, these relays
direct power to the respective headlamps, which then illuminate.

Component Parts Location

INFOID:0000000001712347

Component Description

INFOID:0000000001712348

LOW BEAM OPERATION

AWLIA0002GB

1.

IPDM E/R E122, E123, E124

2.

BCM M18, M20 (view with instrument
panel removed)

3.

Combination switch M28

4.

Combination meter M23, M24

WKIA4957E

EXL-8

< FUNCTION DIAGNOSIS >

HEADLAMP (HALOGEN TYPE)

When the lighting switch is in 2ND position, the BCM receives input requesting the headlamps to illuminate.
This input is communicated to the IPDM E/R via the CAN communication lines. The CPU of the IPDM E/R
controls the headlamp low relay coil which supplies power to the low beam headlamps.

HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION

With the lighting switch in the 2ND position and placed in HIGH position, the BCM receives input requesting
the headlamp high beams to illuminate. The flash to pass feature can be used any time and also sends a sig-
nal to the BCM. This input is communicated to the IPDM E/R via the CAN communication lines. The CPU of
the combination meter controls the ON/OFF status off the HIGH BEAM indicator. The CPU of the IPDM E/R
controls the headlamp high relay coil which supplies power to the high beam headlamps.
The combination meter receives a high beam request signal (ON) via the CAN communication lines and turns
the high beam indicator lamp ON.

COMBINATION SWITCH READING FUNCTION

Refer to

BCS-7, "System Description"

.

AUTO LIGHT OPERATION

Refer to

EXL-11, "System Description"

.

DAYTIME RUNNING LIGHT SYSTEM

EXL-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DAYTIME RUNNING LIGHT SYSTEM

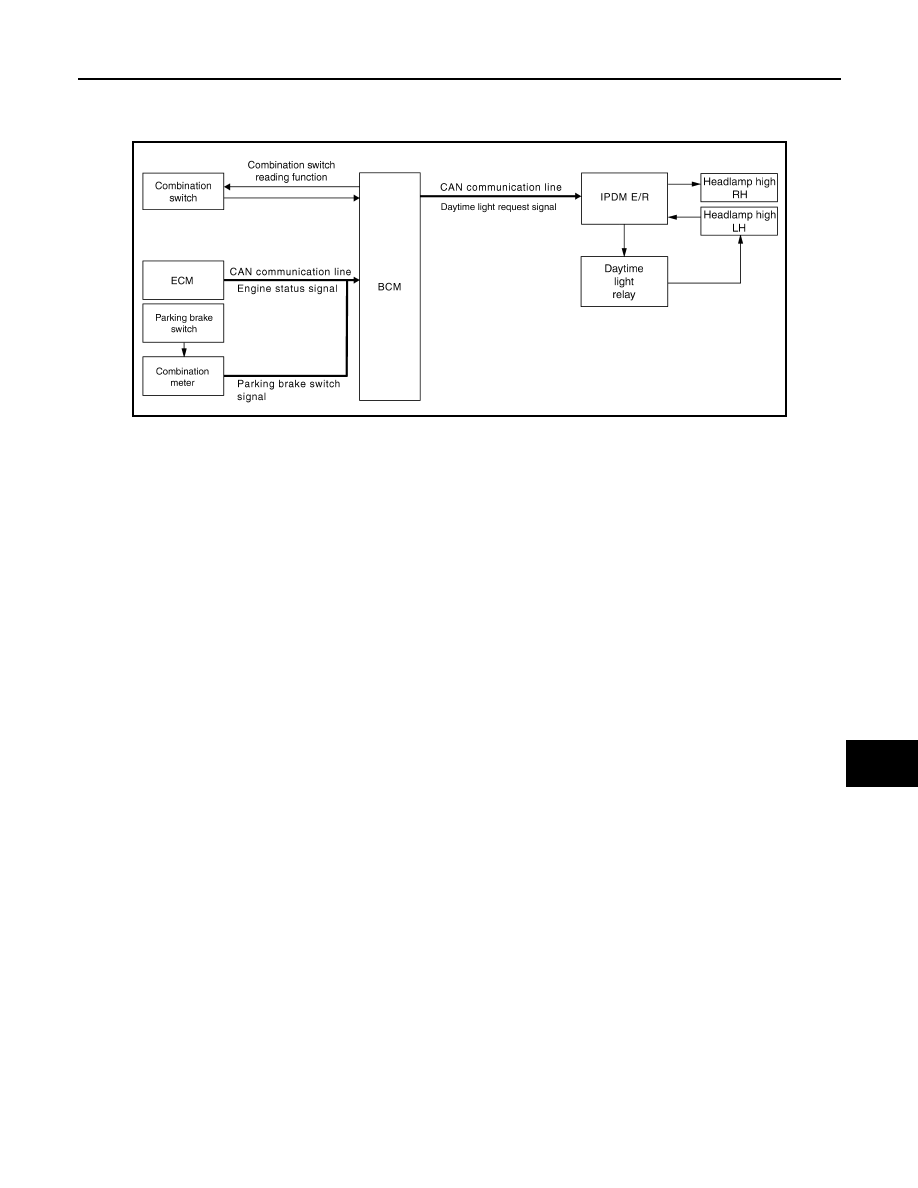

System Diagram

INFOID:0000000001712349

System Description

INFOID:0000000001712350

The headlamp system for Canada vehicles is equipped with a daytime light control unit that activates the high
beam headlamps at approximately half illumination whenever the engine is operating. If the parking brake is
applied before the engine is started the daytime lights will not be illuminated. The daytime lights will illuminate
once the parking brake is released. Thereafter, the daytime lights will continue to operate when the parking
brake is applied.

ALLIA0621GB

EXL-10

< FUNCTION DIAGNOSIS >

DAYTIME RUNNING LIGHT SYSTEM

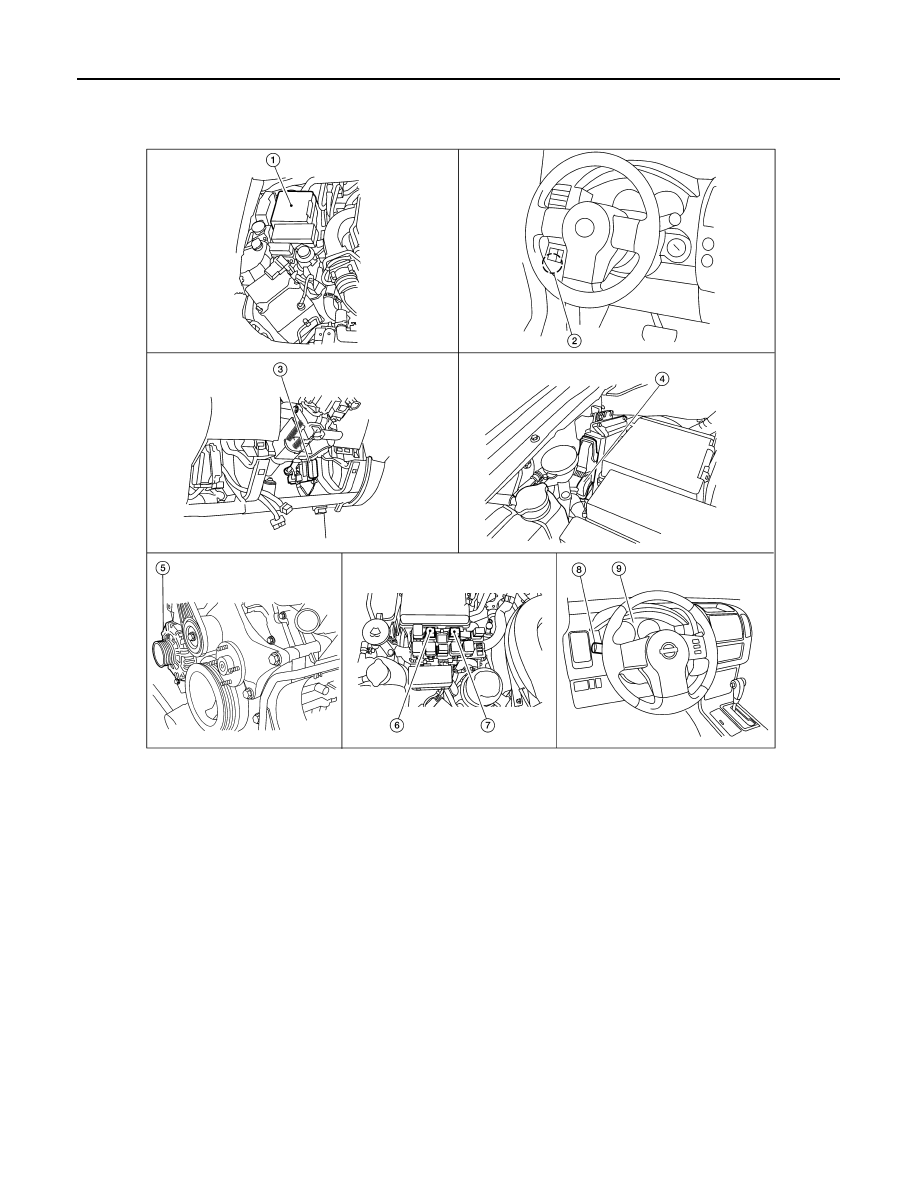

Component Parts Location

INFOID:0000000001712351

Component Description

INFOID:0000000001712352

After starting the engine with the parking brake released and the lighting switch in the OFF or 1ST position, the
headlamp high beam automatically turns on at a reduced intensity. With the lighting switch in the 2nd position
or with autolamps ON, the headlamps function the same as conventional light systems.

OPERATION

The BCM monitors inputs from the parking brake switch and the combination switch to determine when to acti-
vate the daytime light system.  The BCM sends a daytime light request to the IPDM E/R via the CAN commu-
nication lines.  The IPDM E/R grounds the daytime light relay which in turn, provides power to the ground side
of the LH high beam lamp.  Power flows backward through the LH high beam lamp to the IPDM E/R, through
the high beam fuses, through the RH high beam lamp circuit to the RH high beam lamp and on to ground.  The
high beam lamps are wired in series which causes them to illuminate at a reduced intensity.

1.

IPDM E/R E119, E122, E123, E124

2.

Parking brake switch E53

3.

BCM M18, M20 (view with instrument
panel removed)

4.

ECM E16 (view with ECM cover re-
moved)

5.

Generator E205

6.

Daytime light relay 1

7.

Daytime light relay 2

8.

Combination switch (lighting switch)
M28

9.

Combination meter M24

WKIA4958E
