DLN-144

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

AIR BREATHER HOSE

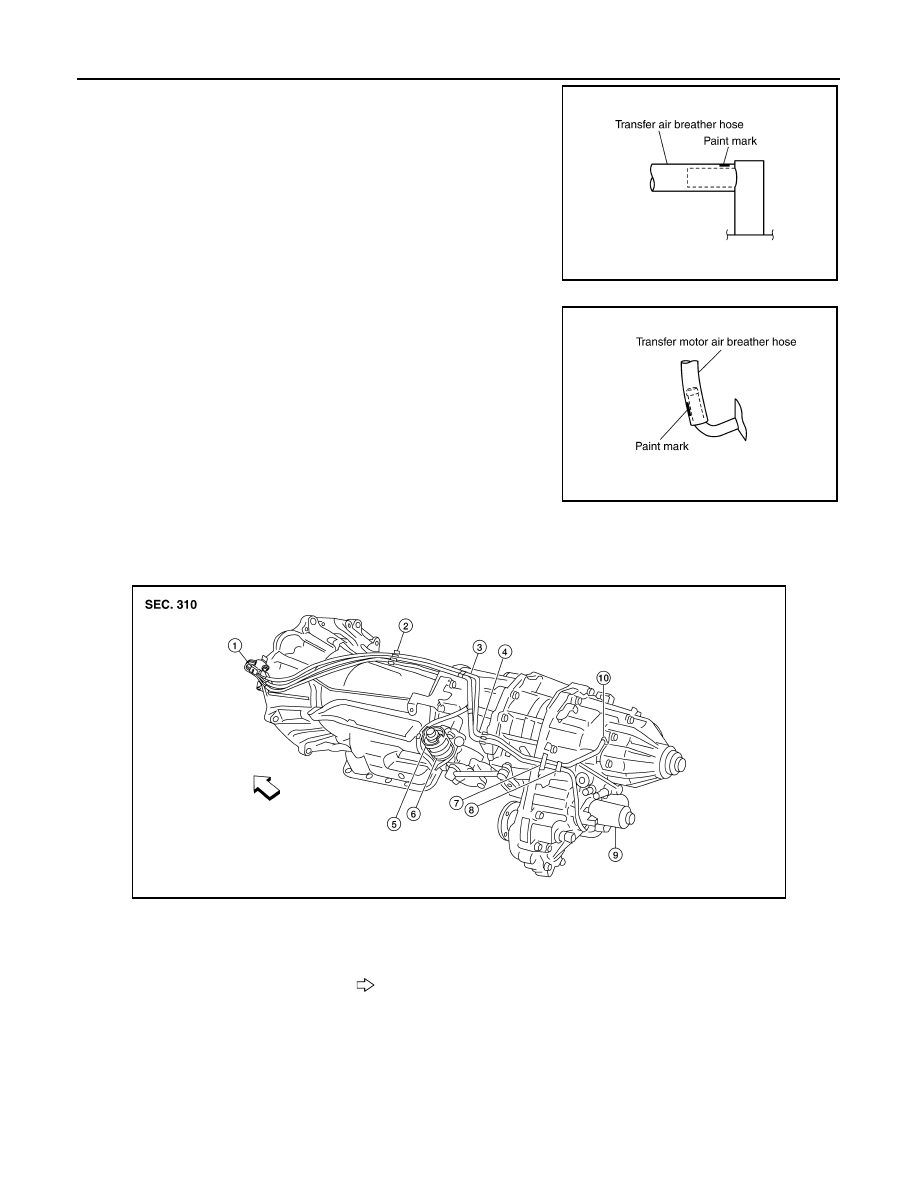

• Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the
base of the tube. Set transfer air breather hose with paint
mark facing upwards.

• Install the transfer motor air breather hose into the transfer

motor (case connector) until the hose end reaches the end of
the curved section. Set transfer motor air breather hose with
paint mark facing leftward.

Removal and Installation

VK56DE

CAUTION:

• Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.

SDIA3196E

SDIA3194E

AWDIA0010ZZ

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Actuator

7.

Air breather hose clamp

8.

 Clip E

9.

Transfer motor

10. Breather tube (transfer)

Vehicle front

AIR BREATHER HOSE

DLN-145

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

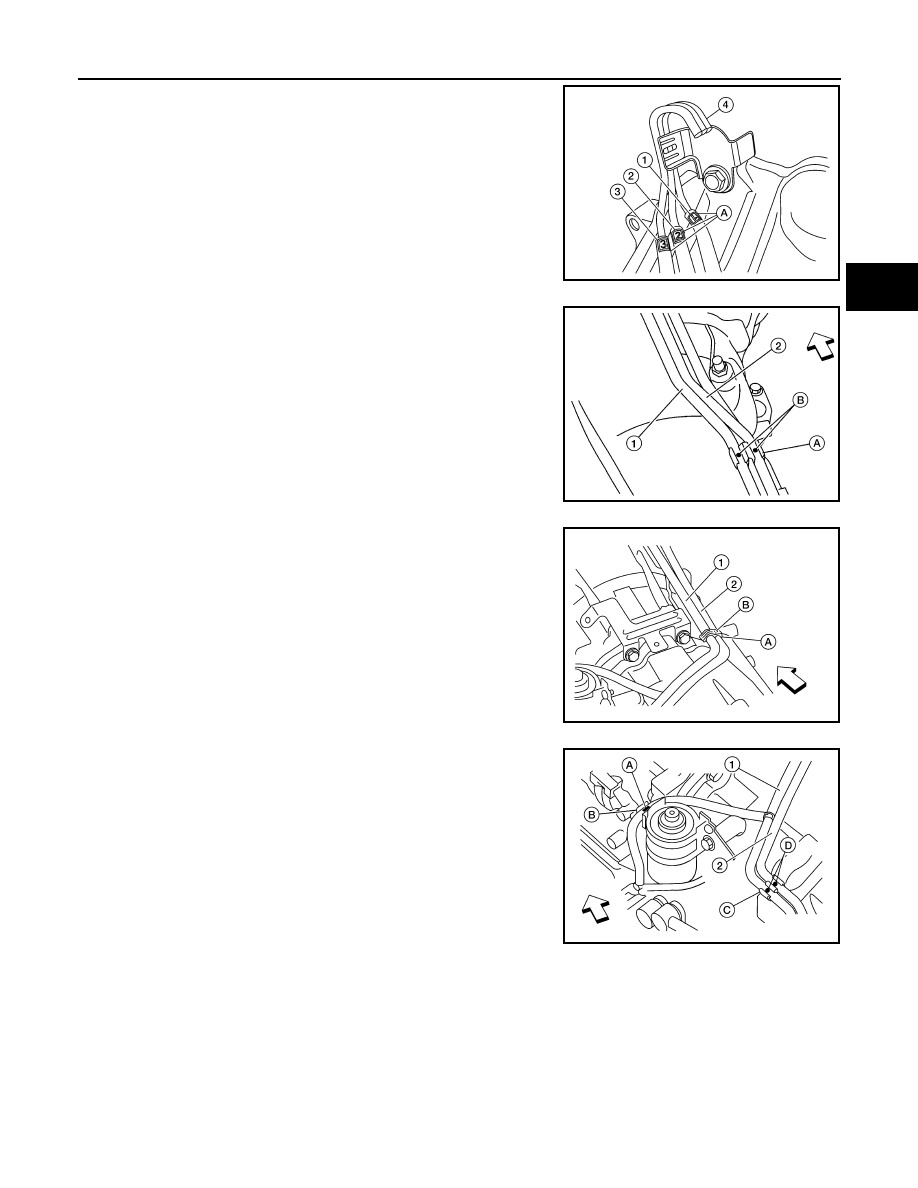

• Install each air breather hose into the breather tube (4). Set

each air breather hose with paint mark facing upward.

- A: Paint marks
- 1: A/T breather hose
- 2: Transfer control device air breather hose
- 3: Transfer air breather hose

• Install transfer control device air breather hose (2) and trans-

fer air breather hose (1) on clip A with the paint mark (b) fac-
ing upward.

• Install clip C on transfer control device air breather hose (1)

and transfer air breather hose (2) with the paint mark (B)
matched.

• Install transfer control device air breather hose (1) and trans-

fer air breather hose (2) on clip B and clip C with the paint
mark (D) facing upward.

ALDIA0110ZZ

ALDIA0111ZZ

AWDIA0011ZZ

AWDIA0012ZZ

DLN-146

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

AIR BREATHER HOSE

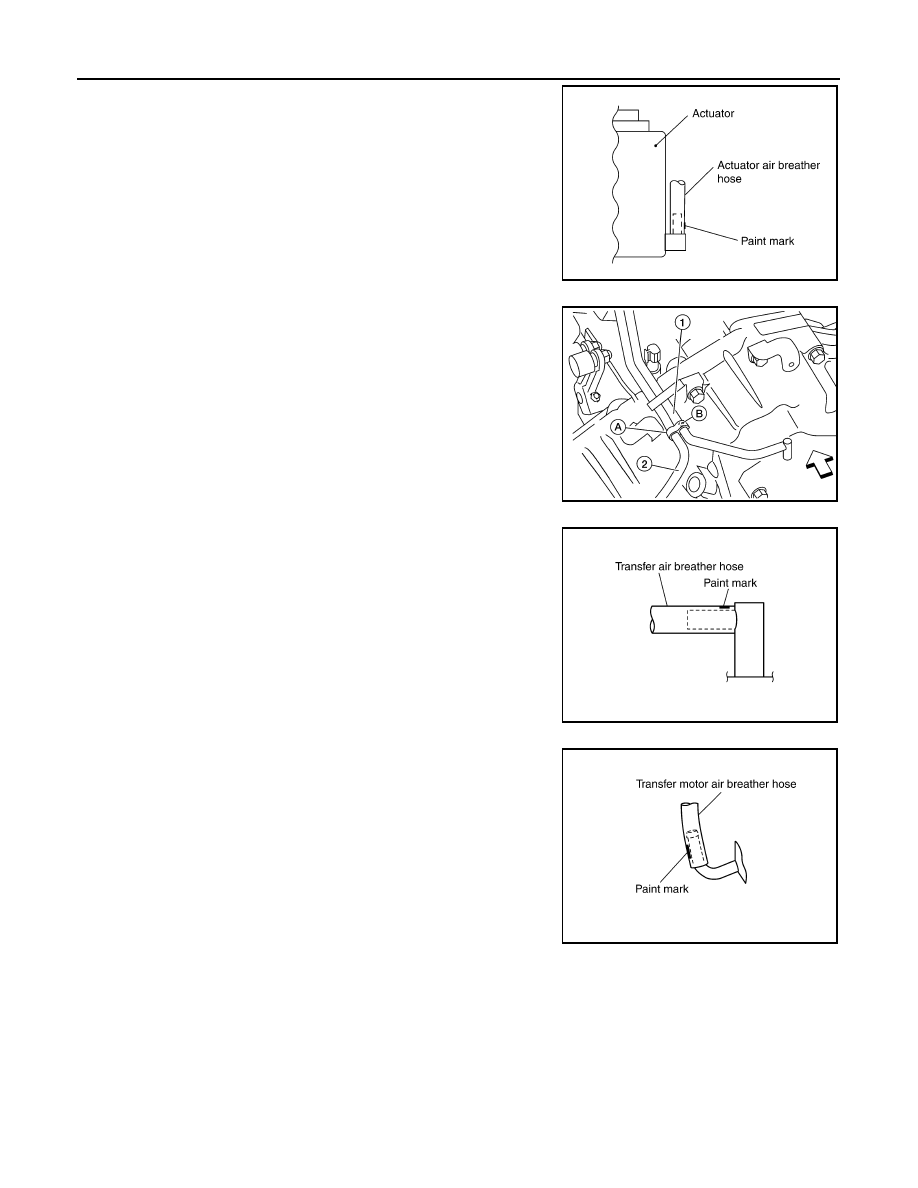

• Install the actuator air breather hose into the actuator (case

connector) until the hose end reaches the base of the tube.
Set actuator air breather hose with paint mark facing leftward.

• Install clip (A) on transfer actuator air breather hose (1) and

transfer air breather hose (1) with the paint mark (B) matched.

• Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the
base of the tube. Set transfer air breather hose with paint
mark facing upwards.

• Install the transfer motor (control device) air breather hose

into the transfer motor (case connector) until the hose end
reaches the end of the curved section. Set transfer motor air
breather hose with paint mark facing leftward.

SDIA3226E

AWDIA0013ZZ

SDIA3196E

SDIA3194E

TRANSFER MOTOR

DLN-147

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

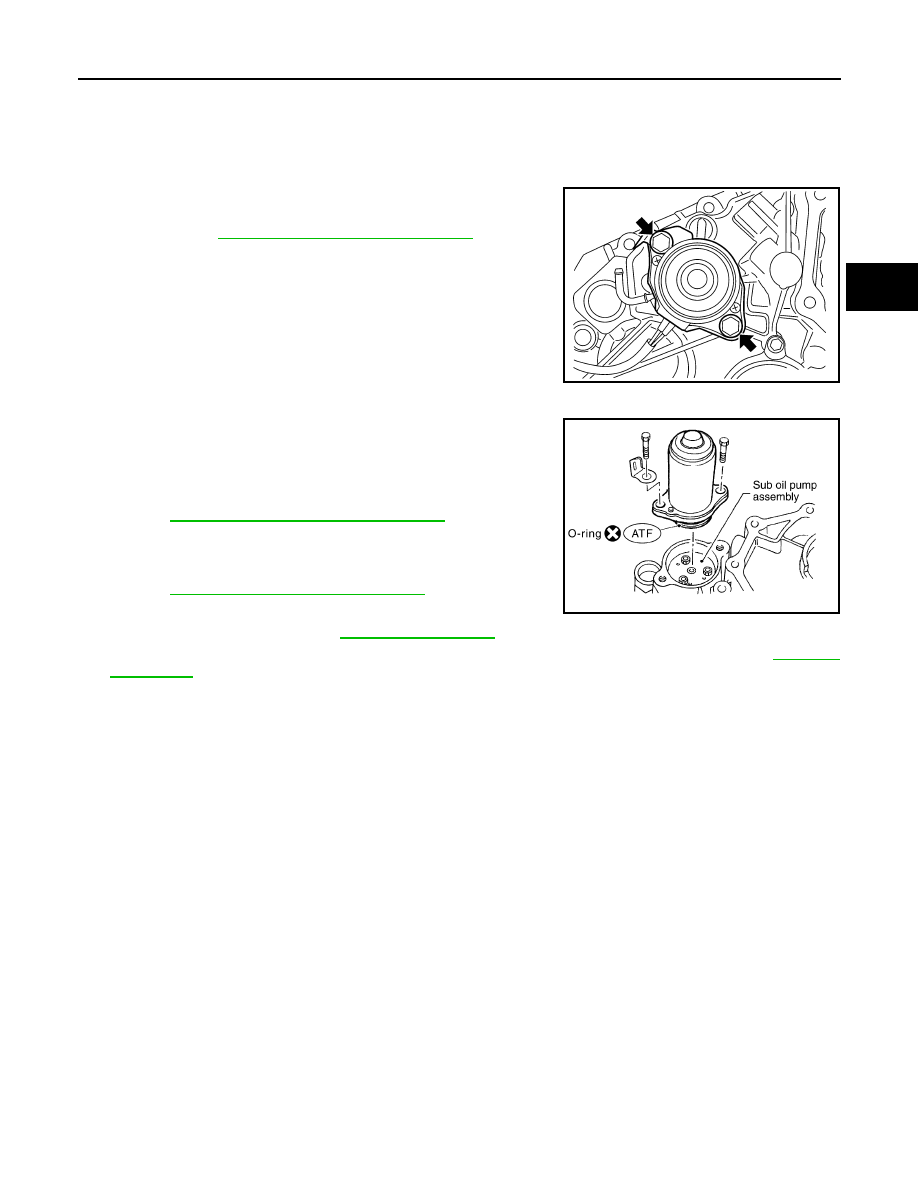

TRANSFER MOTOR

Removal and Installation

INFOID:0000000001282266

REMOVAL

1.

Disconnect the transfer motor connector.

2.

Remove the transfer motor air breather hose from the transfer
motor. Refer to

DLN-142, "Removal and Installation"

.

3.

Remove the transfer motor bolts.

4.

Remove the transfer motor.

INSTALLATION

1.

Apply ATF to the new O-ring and install it to the transfer motor.

CAUTION:

Do not reuse O-rings.

2.

Fit the double-flat end of the transfer motor shaft into the slot of
the sub-oil pump assembly. Then tighten to the specified torque.
Refer to

DLN-149, "Disassembly and Assembly"

.

CAUTION:

Be sure to install connector bracket.

3.

Install the transfer motor air breather hose to the transfer motor.
Refer to

DLN-142, "Removal and Installation"

.

4.

Connect the transfer motor connector.

5.

Check the transfer fluid. Refer to

DLN-132, "Inspection"

.

6.

Start the engine for one minute. Then stop the engine and recheck the transfer fluid. Refer to

DLN-132,

"Inspection"

.

SDIA2133E

SDIA2787E

DLN-148

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

Removal and Installation

INFOID:0000000001282268

REMOVAL

1.

Set transfer state as 2WD when 4WD shift switch is at 2WD.

2.

Remove the undercovers using power tool.

3.

Drain the transfer fluid. Refer to

DLN-132, "Replacement"

.

4.

Remove the center exhaust tube and main muffler. Refer to

EX-5, "Removal and Installation"

.

5.

Remove the front and rear propeller shafts. Refer to

DLN-308, "Removal and Installation"

 (front),

DLN-

316, "Removal and Installation"

 or

DLN-325, "Removal and Installation"

 (rear).

CAUTION:

Do not damage spline, sleeve yoke and rear oil seal when removing rear propeller shaft.
NOTE:
Insert a plug into the rear oil seal after removing the rear propeller shaft.

6.

Remove the A/T nuts from the A/T crossmember. Refer to

TM-228, "4WD : Exploded View"

.

7.

Position two suitable jacks under the A/T and transfer assembly.

8.

Remove the crossmember. Refer to

TM-228, "4WD : Exploded View"

.

WARNING:

Support A/T and transfer assembly using two suitable jacks while removing crossmember.

9.

Disconnect the electrical connectors from the following:
• ATP  switch
• Neutral 4LO switch
• Wait detection switch
• Transfer motor
• Transfer control device
• Transfer terminal cord assembly

10. Disconnect each air breather hose from the following. Refer to

DLN-142, "Removal and Installation"

.

• Actuator
• Breather tube (transfer)
• Transfer motor

11. Remove the transfer control device from the extension housing.

12. Remove the transfer to A/T and A/T to transfer bolts.

13. Remove the transfer assembly.

WARNING:

Support transfer assembly with suitable jack while removing it.

CAUTION:

Do not damage rear oil seal (A/T).

INSTALLATION

Installation is in the reverse order of removal.
• Tighten the bolts to specification.

• Fill the transfer with new fluid and check for fluid leakage and fluid

level. Refer to

DLN-132

.

• Start the engine for one minute. Then stop the engine and recheck

the transfer fluid. Refer to

DLN-132, "Inspection"

.

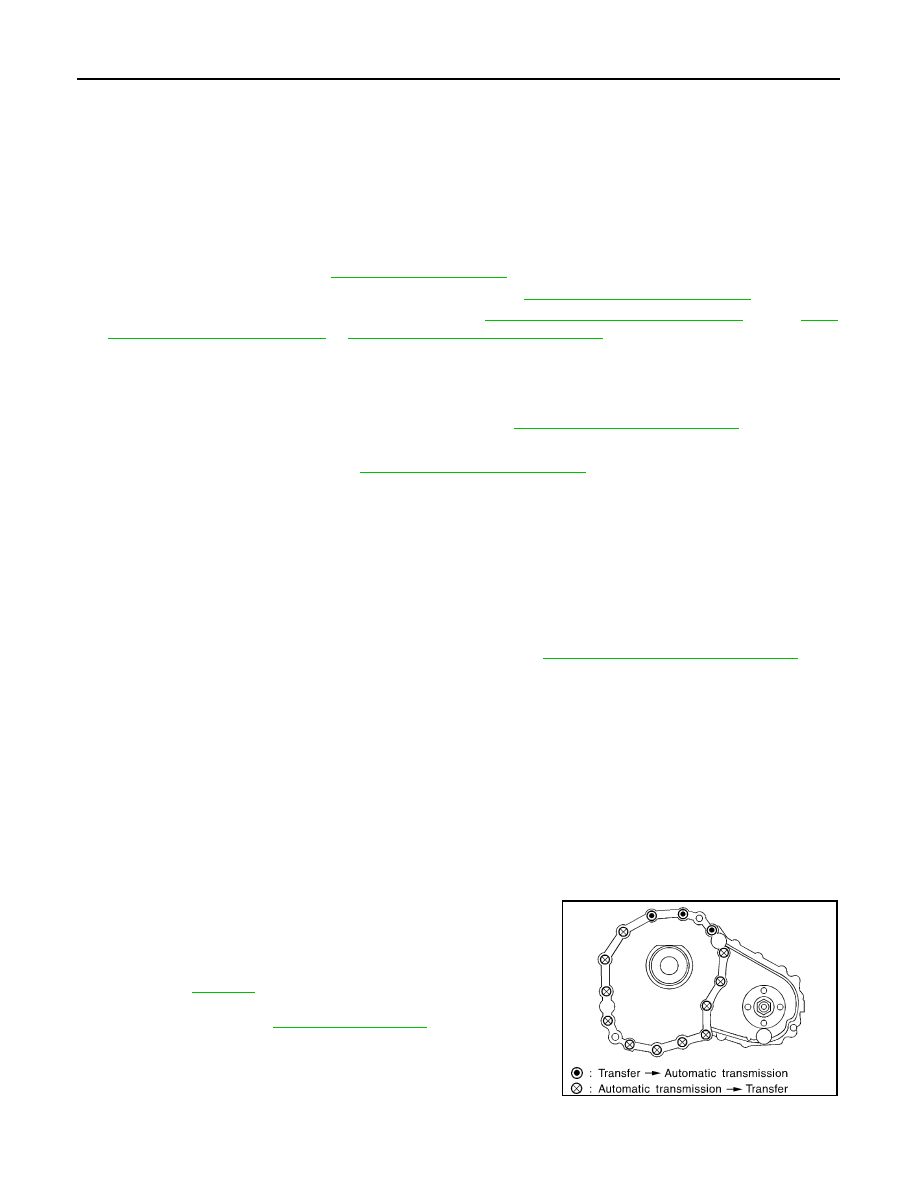

Transfer bolt torque

: 36 N·m (3.7 kg-m, 27 ft-lb)

SMT872C

TRANSFER ASSEMBLY

DLN-149

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DISASSEMBLY AND ASSEMBLY

TRANSFER ASSEMBLY

Disassembly and Assembly

INFOID:0000000001282269

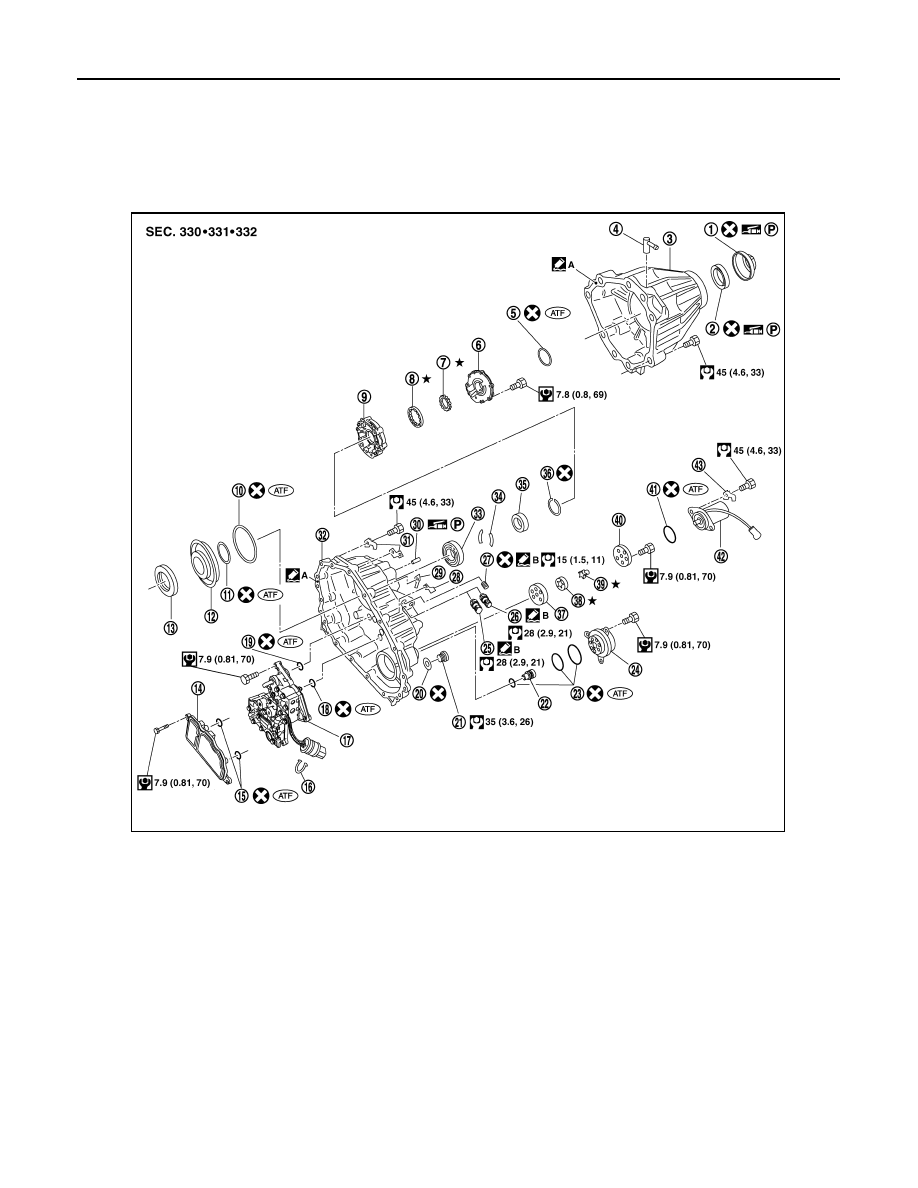

COMPONENTS

1.

2-4 sleeve

2.

L-H sleeve

3.

Snap ring

4.

Internal gear

5.

Planetary carrier assembly

6.

Metal bushing

7.

Needle bearing

8.

Sun gear

9.

Carrier bearing

10.

Snap ring

11.

Snap ring

12.

Input bearing

13.

Wait detection switch

14.

Check plug

15.

Check spring

16.

Check ball

17.

Front case

18.

Snap ring

19.

Input oil seal

20.

Shift cross

21.

Side oil seal

22.

Lock pin

23.

Shift lever

24.

Gasket

25.

Drain plug

26.

Front oil seal

27.

Companion flange

28.

Self-lock nut

29.

Mainshaft

30.

Needle bearing

31.

Front bearing

32.

Front drive shaft

33.

Rear bearing

34.

Spacer

35.

Drive chain

36.

Clutch drum

37.

Snap ring

38.

Clutch hub

39.

Snap ring

AWDIA0014GB

DLN-150

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

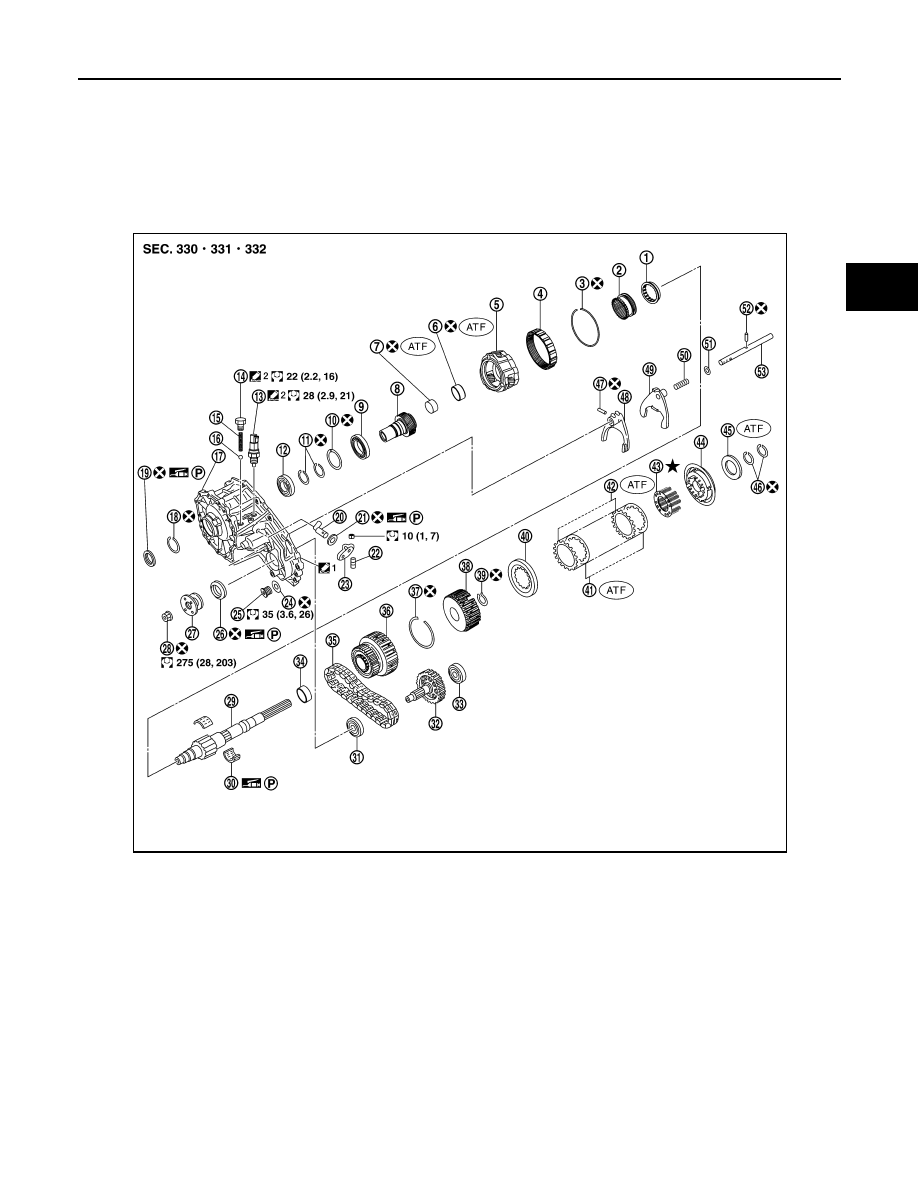

40.

Retaining plate

41.

Driven plate (10 sheet)

42.

Drive plate (10 sheet)

43.

Return spring assembly

44.

Press flange

45.

Thrust needle bearing

46.

Snap ring

47.

Retaining pin

48.

L-H fork

49.

2-4 fork

50.

Shift fork spring

51.

Fork guide

52.

Retainer pin

53.

Shift rod

1.

Dust cover

2.

Rear oil seal

3.

Rear case

4.

Breather tube

5.

Seal ring

6.

Main oil pump cover

7.

Inner gear

8.

Outer gear

9.

Main oil pump housing

10.

D-ring

11.

D-ring

12.

Clutch piston

13.

Thrust needle bearing race

14. Oil strainer

15.

O-ring

16.

Snap ring

17. Control valve assembly

18.

Lip seal (large 5 pieces)

19.

Lip seal (small 2 pieces)

20. Gasket

21.

Filler plug

22.

Oil filter stud

23. O-ring

24.

Oil filter

25

ATP switch

26. Neutral-4LO switch

27.

Oil pressure check plug

28.

Harness bracket

29. Air breather hose clamp

30.

Stem bleeder

31.

Harness bracket

32. Center case

33.

Mainshaft rear bearing

34.

C-ring

35. Washer holder

36.

Snap ring

37.

Sub oil pump housing

38. Outer gear

39.

Inner gear

WDIA0302E

TRANSFER ASSEMBLY

DLN-151

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DISASSEMBLY

Rear Case

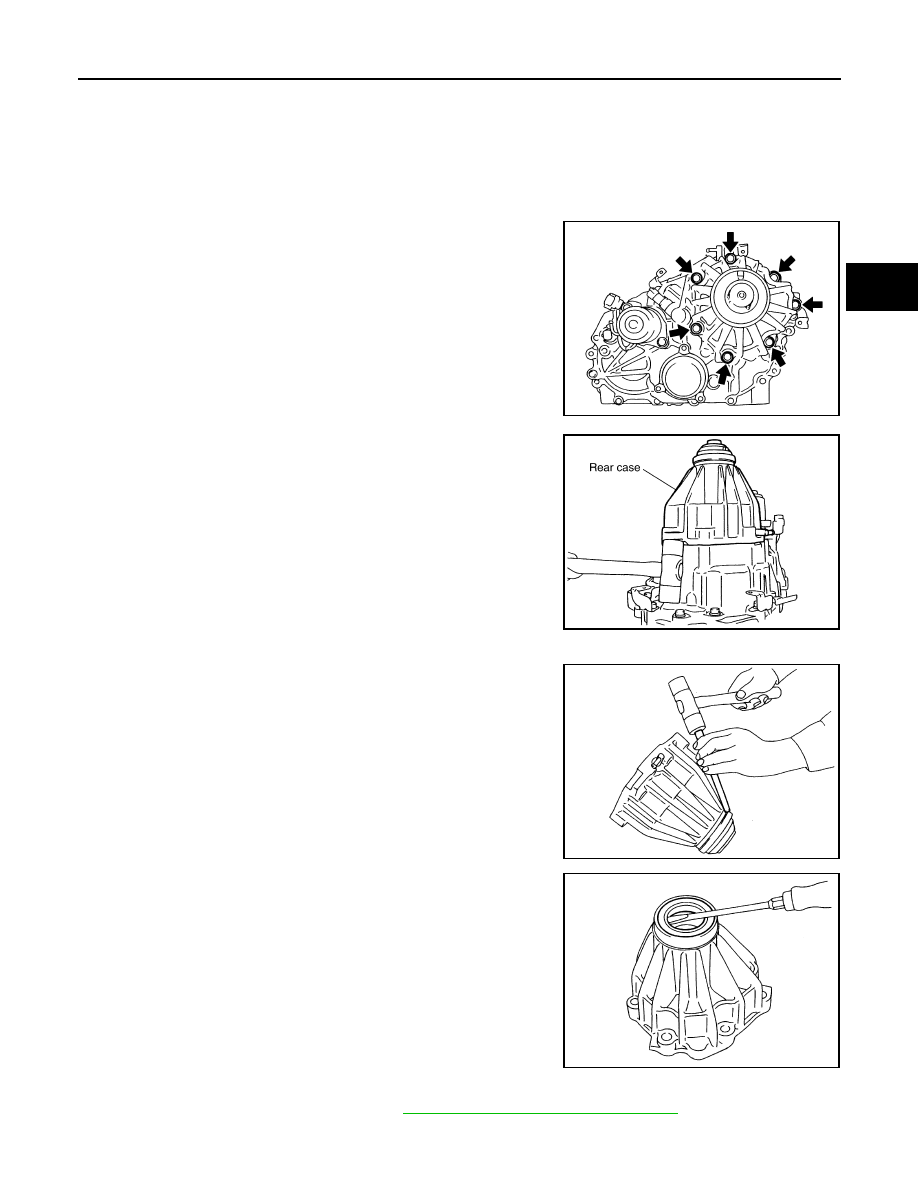

1.

Remove the rear case bolts.

2.

Remove the rear case from the center case.

3.

Remove the dust cover using suitable tool.

4.

Remove the rear oil seal using suitable tool.

CAUTION:

Do not damage rear case.

5.

Remove the breather tube.

Front Case

1.

Remove the rear case assembly. Refer to

DLN-149, "Disassembly and Assembly"

.

2.

Remove the lock pin nut.

40.

Sub oil pump cover

41. O-ring

42.

Transfer motor

43.

Connector bracket

A.

Apply Genuine Anaerobic Liquid
Gasket, Three Bond TB1133C or
equivalent.

B.

Apply Genuine Liquid Gasket,
Three Bond TB1215 or equiva-
lent.

SDIA2092E

SDIA2093E

SDIA2094E

SDIA2095E
