KEYFOB ID SET UP WITHOUT CONSULT-III

DLK-245

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB ID SET UP WITHOUT CONSULT-III

ID Code Entry Procedure

INFOID:0000000001728548

KEYFOB ID SET UP WITHOUT CONSULT-III

NOTE:
• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID

code can be erased with CONSULT-III. However, when the ID code of a lost keyfob is not known, all control-

LIIA1670E

DLK-246

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

KEYFOB ID SET UP WITHOUT CONSULT-III

ler ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key-
fobs must be re-registered.

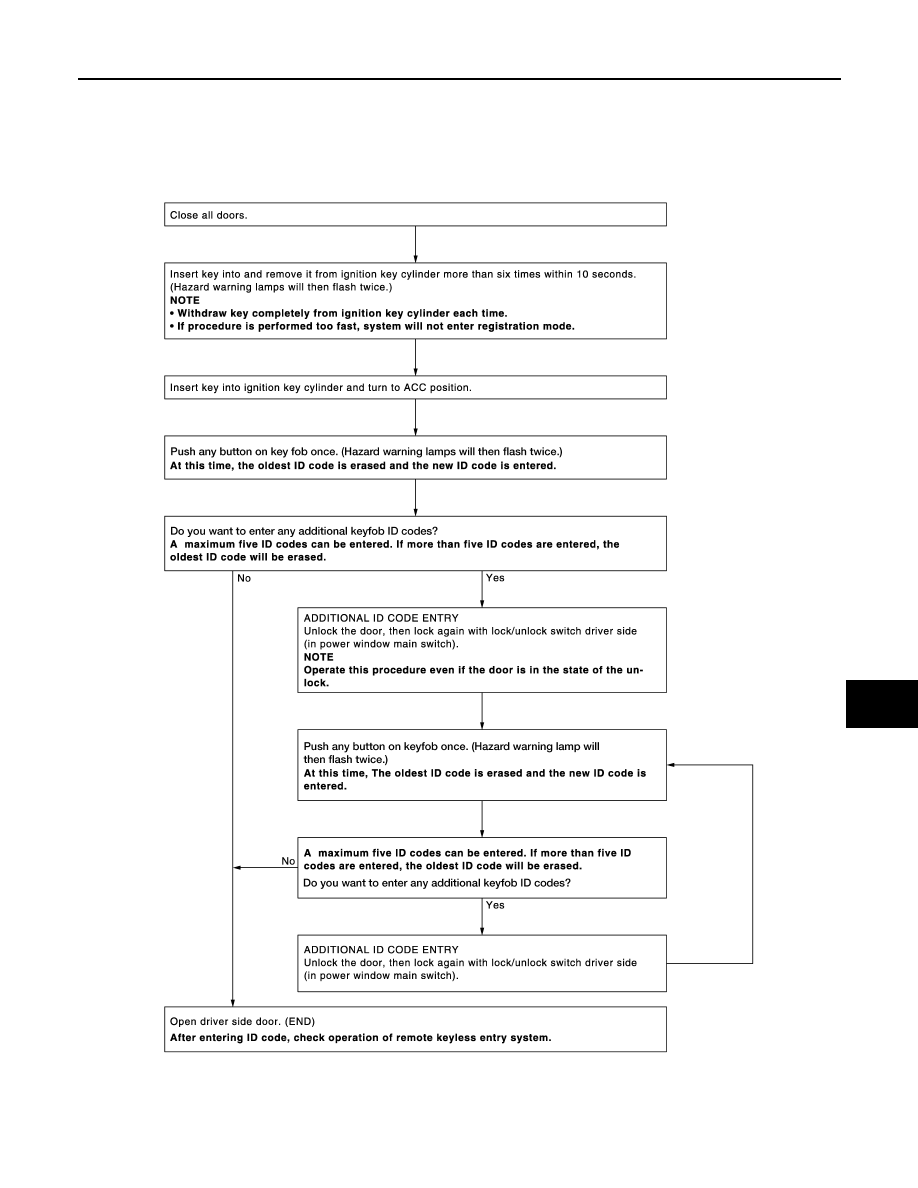

To erase all ID codes in memory, register one ID code (keyfob) five times. After all ID codes are erased, the
ID codes of all remaining and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five ID

codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less
than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added
and no ID codes are erased.

• If you need to activate more than two additional new keyfobs, repeat the procedure “Additional ID code

entry” for each new keyfob.

• Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code

will be erased.

• Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is

counted as an additional code.

BACK DOOR HALF SWITCH

DLK-247

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR HALF SWITCH

Diagnosis Procedure

INFOID:0000000001728549

1.

BACK DOOR HALF SWITCH SIGNAL INSPECTION

1.

Turn ignition switch OFF.

2.

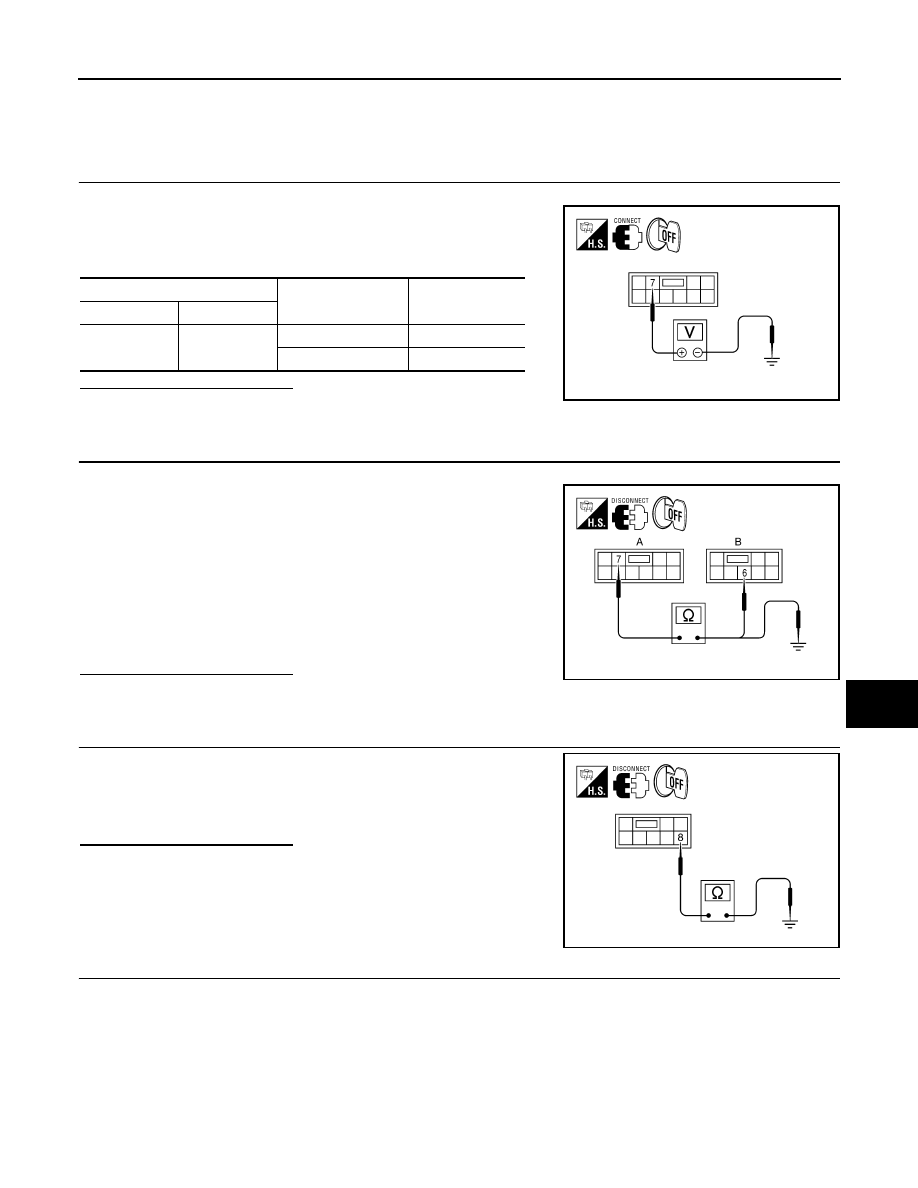

While opening and closing the back door, check voltage
between back door control unit connector D509 terminal 7 and
ground.

s the inspection result normal?

YES

>> Switch is OK.

NO

>> GO TO 2.

2.

BACK DOOR HALF SWITCH CIRCUIT INSPECTION

1.

Disconnect back door control unit and back door cinching latch unit connectors.

2.

Check continuity between back door control unit connector (A)
D509 terminal 7 and back door cinching latch unit connector (B)
D502 terminal 6.

3.

Check continuity between back door control unit connector (A)
D509 terminal 7 and ground.

s the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

BACK DOOR HALF SWITCH GROUND INSPECTION

Check continuity between back door cinching latch unit connector
D502 terminal 8 and ground.

s the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

BACK DOOR HALF SWITCH SIGNAL INSPECTION

Terminals

Back door position

Voltage (V)

(Approx.)

(+)

(-)

7

Ground

Half-latch

0

Open/close

Battery voltage

ALKIA1222ZZ

7 - 6

: Continuity should exist.

7 - Ground

: Continuity should not exist.

ALKIA1225ZZ

8 - Ground

: Continuity should exist.

ALKIA1226ZZ

DLK-248

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR HALF SWITCH

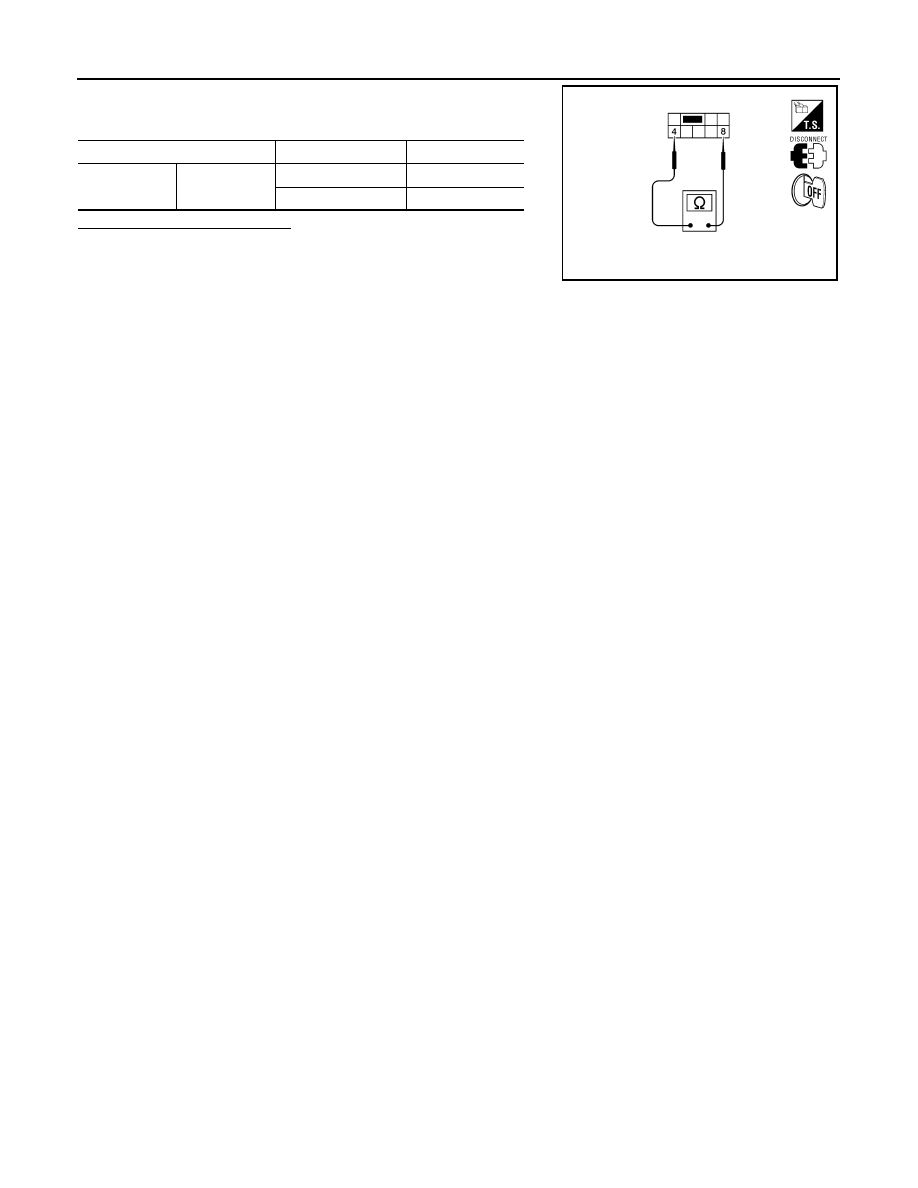

Check continuity between back door cinching latch unit terminals 6
and 8.

s the inspection result normal?

YES

>> Replace back door control unit.

NO

>> Replace back door cinching latch unit.

Terminals

Back door position

Continuity

6

8

Half-latch

Yes

Open/close

No

ALKIA1228ZZ

BACK DOOR CLOSE SWITCH SYSTEM

DLK-249

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR CLOSE SWITCH SYSTEM

Diagnosis Procedure

INFOID:0000000001728550

1.

BACK DOOR CLOSE SWITCH SIGNAL INSPECTION

1.

Turn ignition switch OFF.

2.

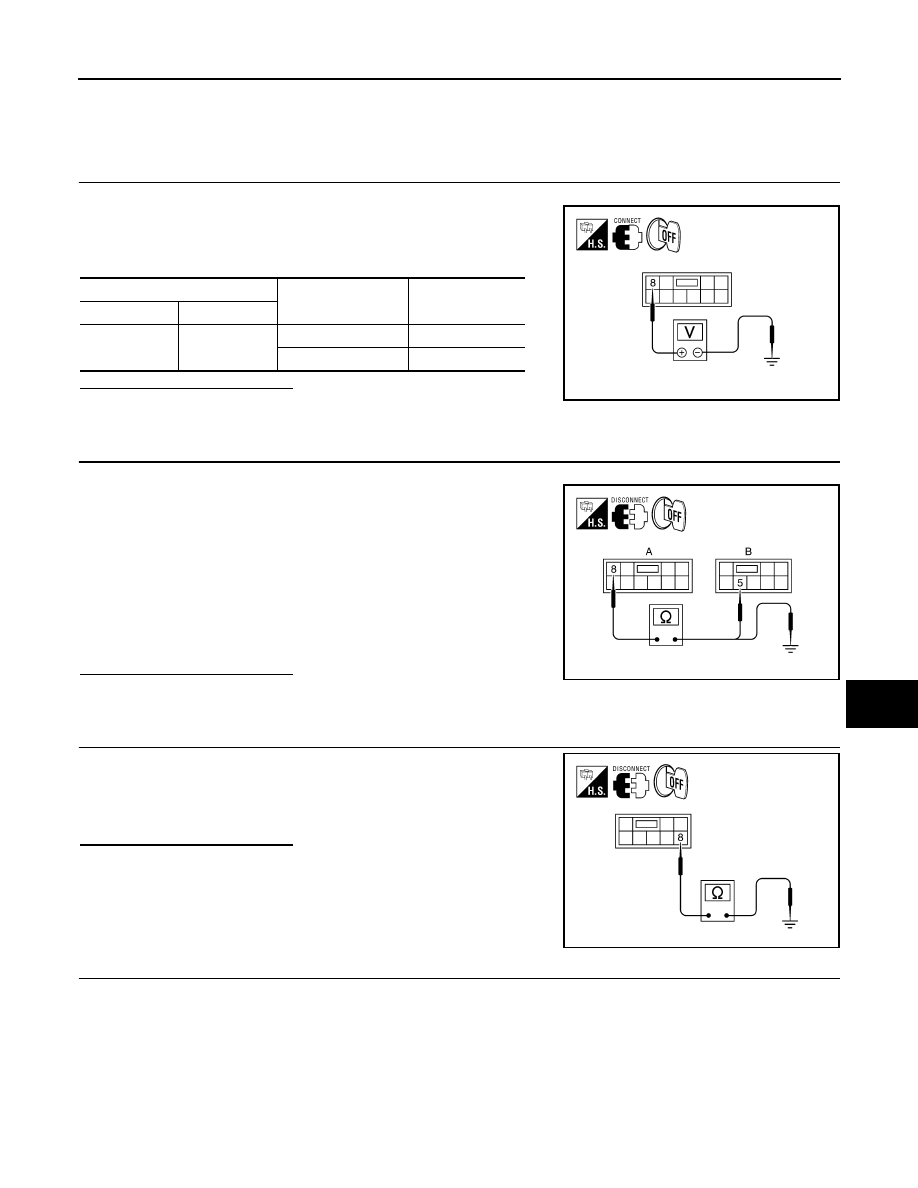

While opening and closing the back door, check voltage
between back door control unit connector D509 terminal 8 and
ground.

s the inspection result normal?

YES

>> Switch is OK.

NO

>> GO TO 2.

2.

BACK DOOR CLOSE SWITCH CIRCUIT INSPECTION

1.

Disconnect back door control unit and back door cinching latch unit connectors.

2.

Check continuity between back door control unit connector (A)
D509 terminal 8 and back door cinching latch unit connector (B)
D502 terminal 5.

3.

Check continuity between back door control unit connector (A)
D509 terminal 8 and ground.

s the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

BACK DOOR CLOSE SWITCH GROUND INSPECTION

Check continuity between back door cinching latch unit connector
D502 terminal 8 and ground.

s the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

BACK DOOR CLOSE SWITCH SIGNAL INSPECTION

Terminals

Back door position

Voltage (V)

(Approx.)

(+)

(-)

8

Ground

Open/half-latch

Battery voltage

Closed

0

ALKIA1232ZZ

8 - 5

: Continuity should exist.

8 - Ground

: Continuity should not exist.

ALKIA1233ZZ

8 - Ground

: Continuity should exist.

ALKIA1226ZZ

DLK-250

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR CLOSE SWITCH SYSTEM

Check continuity between back door cinching latch unit terminals 5
and 8.

s the inspection result normal?

YES

>> Replace back door control unit.

NO

>> Replace back door cinching latch unit.

Terminals

Back door position

Continuity

5

8

Half-latch/open

No

Closed

Yes

ALKIA1234ZZ

BACK DOOR NEUTRAL SWITCH

DLK-251

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR NEUTRAL SWITCH

Diagnosis Procedure

INFOID:0000000001728551

1.

BACK DOOR NEUTRAL SWITCH SIGNAL INSPECTION

1.

Turn ignition switch OFF.

2.

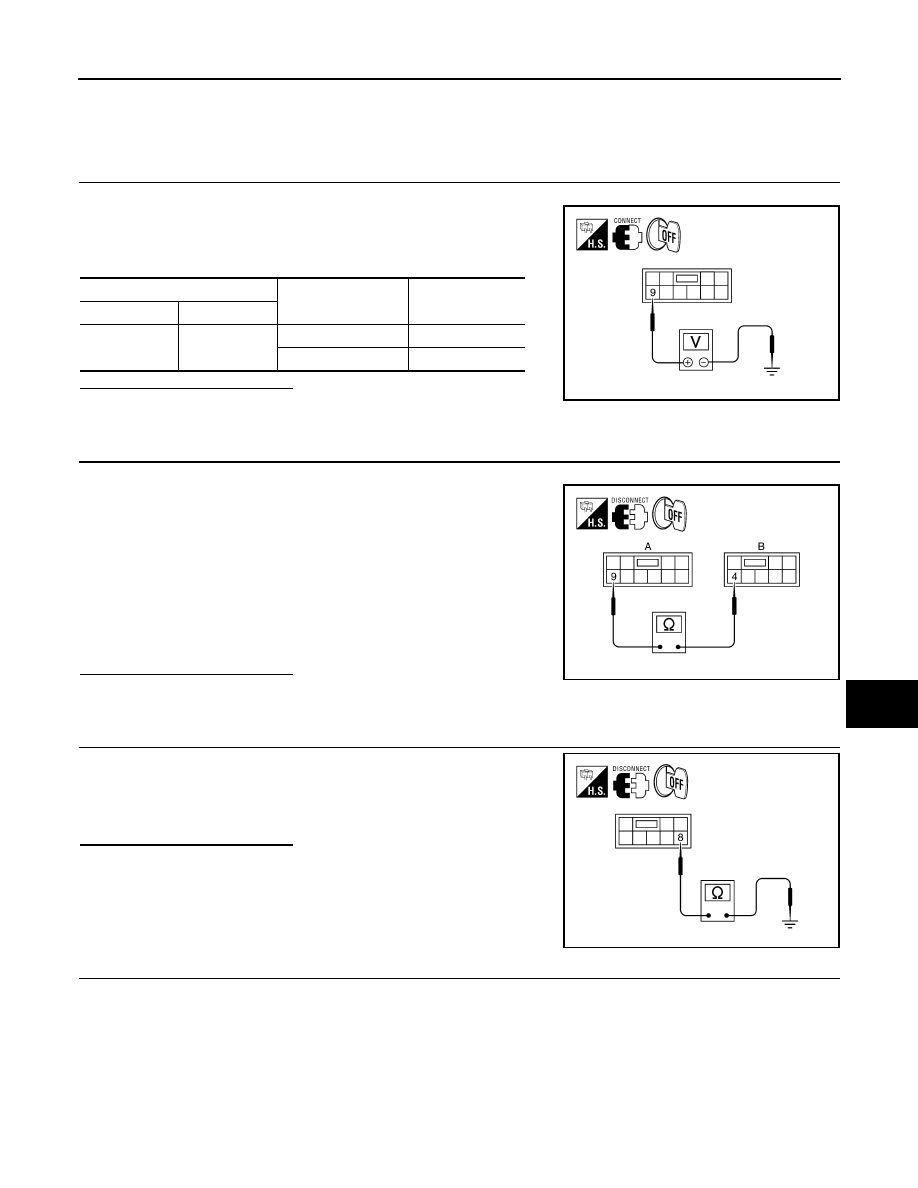

While opening and closing the back door, check voltage
between back door control unit connector D509 terminal 9 and
ground.

s the inspection result normal?

YES

>> Switch is OK.

NO

>> GO TO 2.

2.

BACK DOOR NEUTRAL SWITCH CIRCUIT INSPECTION

1.

Disconnect back door control unit and back door cinching latch unit connectors.

2.

Check continuity between back door control unit connector (A)
D509 terminal 9 and back door cinching latch unit connector (B)
D502 terminal 4.

3.

Check continuity between back door control unit connector (A)
D509 terminal 9 and ground.

s the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

BACK DOOR NEUTRAL SWITCH GROUND INSPECTION

Check continuity between back door cinching latch unit connector
D502 terminal 8 and ground.

s the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

BACK DOOR NEUTRAL SWITCH SIGNAL INSPECTION

Terminals

Back door position

Voltage (V)

(Approx.)

(+)

(-)

9

Ground

Half-latch/closed

Battery voltage

Open

0

ALKIA1235ZZ

9 - 4

: Continuity should exist.

9 - Ground

: Continuity should not exist.

ALKIA1236ZZ

8 - Ground

: Continuity should exist.

ALKIA1226ZZ

DLK-252

< COMPONENT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR NEUTRAL SWITCH

Check continuity between back door cinching latch unit terminals 4
and 8.

s the inspection result normal?

YES

>> Replace back door control unit.

NO

>> Replace back door cinching latch unit.

Terminals

Back door position

Continuity

4

8

Half-latch/closed

No

Open

Yes

ALKIA1237ZZ
