SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000001282199

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (US gal, Imp gal)

RADIATOR

Unit: kPa (kg/cm

2

, psi)

THERMOSTAT

Engine coolant capacity (With reservoir tank at
“MAX” level)

Without rear A/C

10.2 (2-3/4, 2-1/4)

With rear A/C

13.4 (3-1/2, 3)

Cap relief pressure

Standard

78 -098 (0.8 - 1.2.0 11 - 14)

Limit

59 (0.6, 9)

Leakage testing pressure

137 (1.4, 20)

Valve opening temperature

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum valve lift

8.6 mm / 95

°

C (0.339 in / 203

°

F)

valve closing temperature

77

°

C (171

°

F)

CO-30

< PRECAUTION >

[VK56DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001297371

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Liquid Gasket

INFOID:0000000001297372

REMOVAL OF LIQUID GASKET SEALING

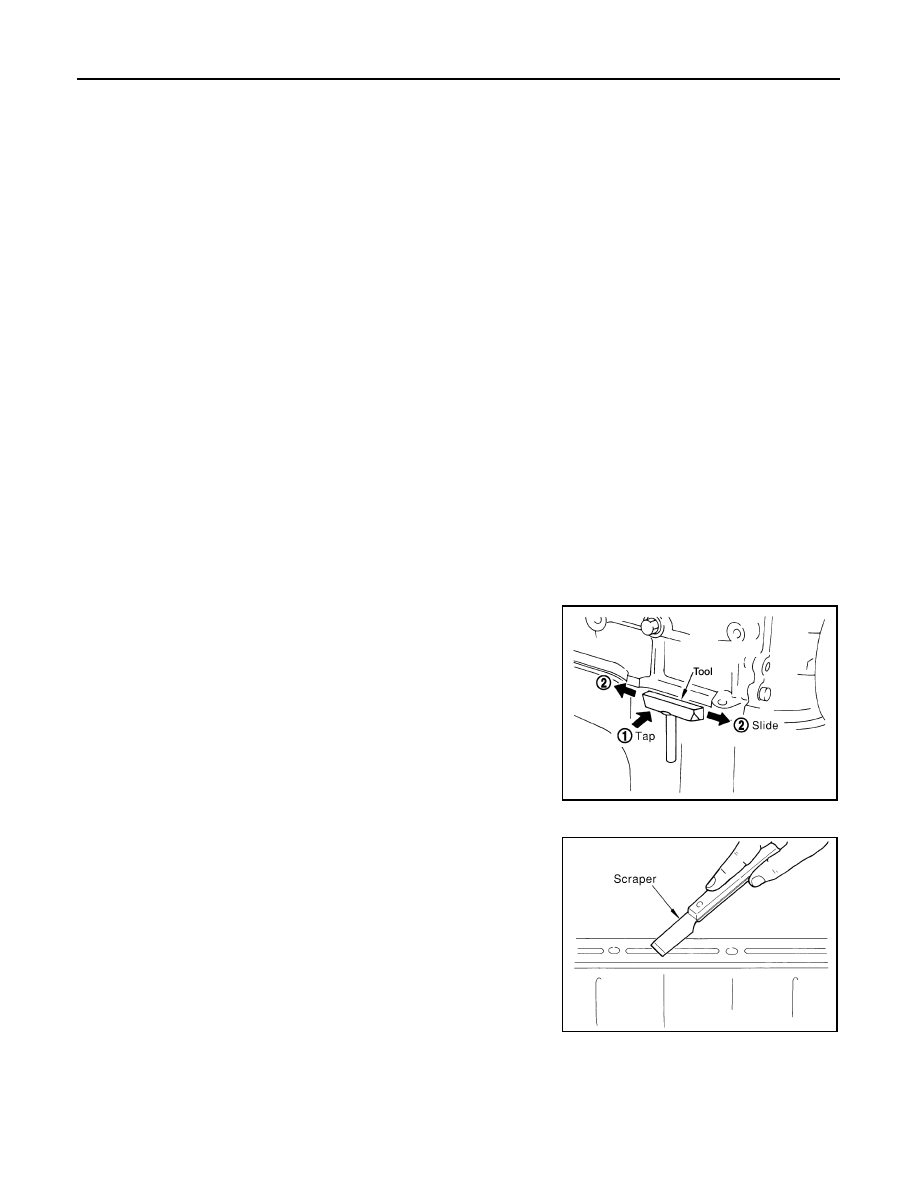

• After removing nuts and bolts, separate the mating surface, using Tool and remove old liquid gasket sealing.

CAUTION:

Be careful not to damage the mating surfaces.

• Tap Tool to insert it, and then slide it by tapping on the side as

shown.

• In areas where Tool is difficult to use, use plastic hammer to lightly

tap the parts, to remove it.

CAUTION:

If for some unavoidable reason suitable tool such as screw-
driver is used, be careful not to damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Remove the old liquid gasket adhering to the gasket application
surface and the mating surface using suitable tool.
• Remove the liquid gasket completely from the groove of the

liquid gasket application surface, bolts, and bolt holes.

2.

Thoroughly clean the mating surfaces and remove adhering
moisture, grease and foreign material.

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E

PRECAUTIONS

CO-31

< PRECAUTION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

3.

Attach the liquid gasket tube to the Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-26, "Recommended Chemical Products and Sealants"

.

4.

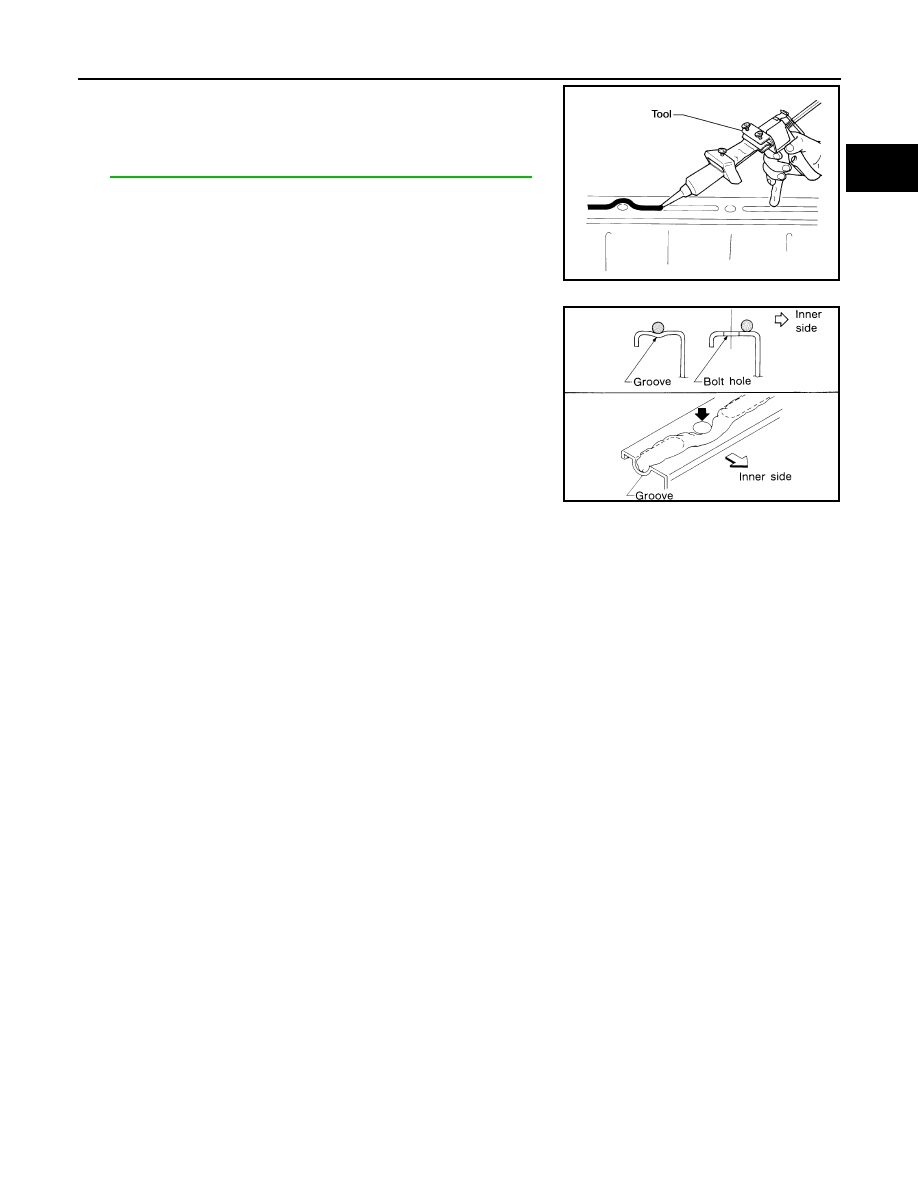

Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

• If there is a groove for the liquid gasket application, apply the

liquid gasket to the groove.

• As for the bolt holes, normally apply the liquid gasket inside

the holes. If specified in the procedure, it should also be
applied outside the holes.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If the liquid gasket protrudes, wipe it off immediately.
• Do not retighten after the installation.
• Wait 30 minutes or more after installation before refilling the

engine with engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

Tool number

: WS39930000 (

—

)

WBIA0567E

SEM159F

CO-32

< PREPARATION >

[VK56DE]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000001297373

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001297374

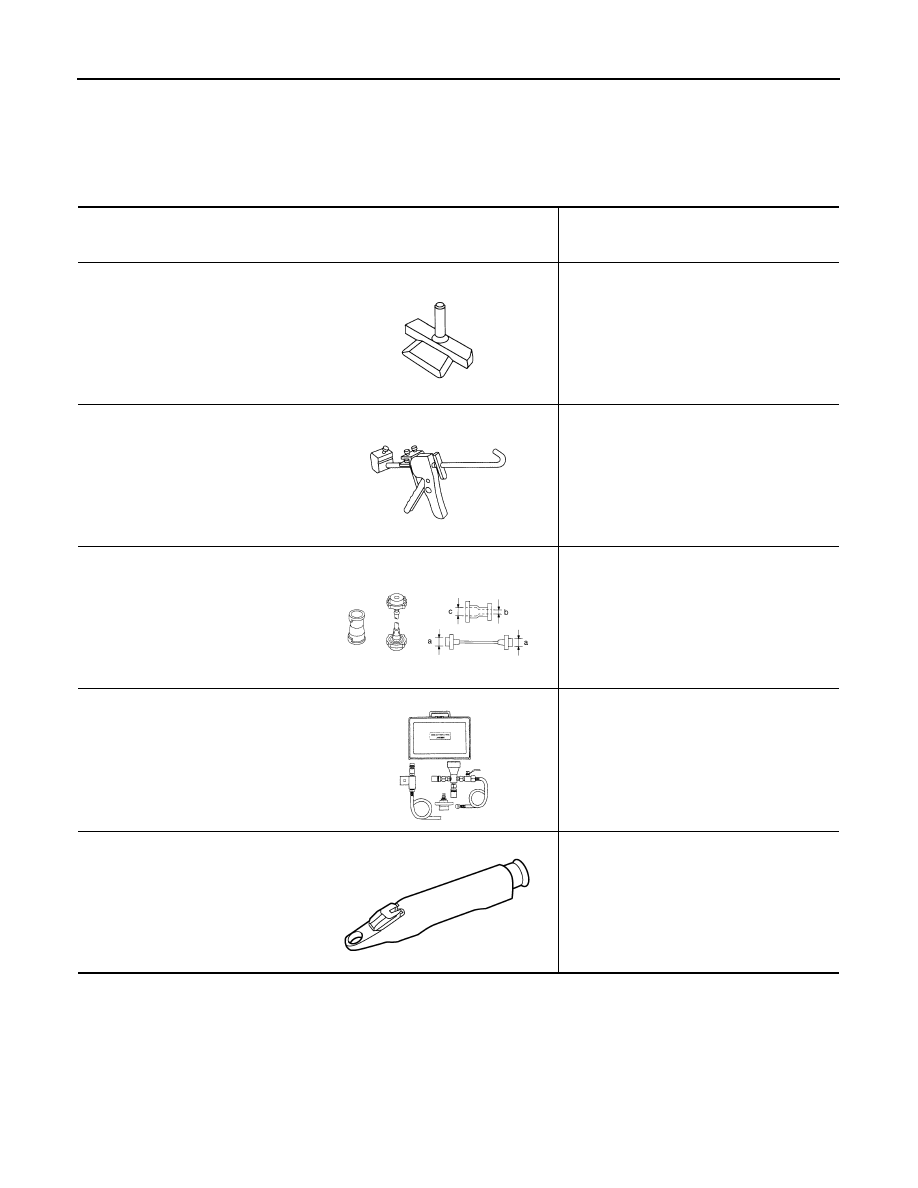

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

WS39930000
(

—

)

Tube pressure

Pressing the tube of liquid gasket

EG17650301
(J-33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV991J0070
(J-45695)
Coolant Refill Tool

Refilling engine cooling system

—

(J-23688)
Engine coolant refractometer

Checking concentration of ethylene glycol in
engine coolant

NT046

S-NT052

S-NT564

LMA053

WBIA0539E

PREPARATION

CO-33

< PREPARATION >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

Tool name

Description

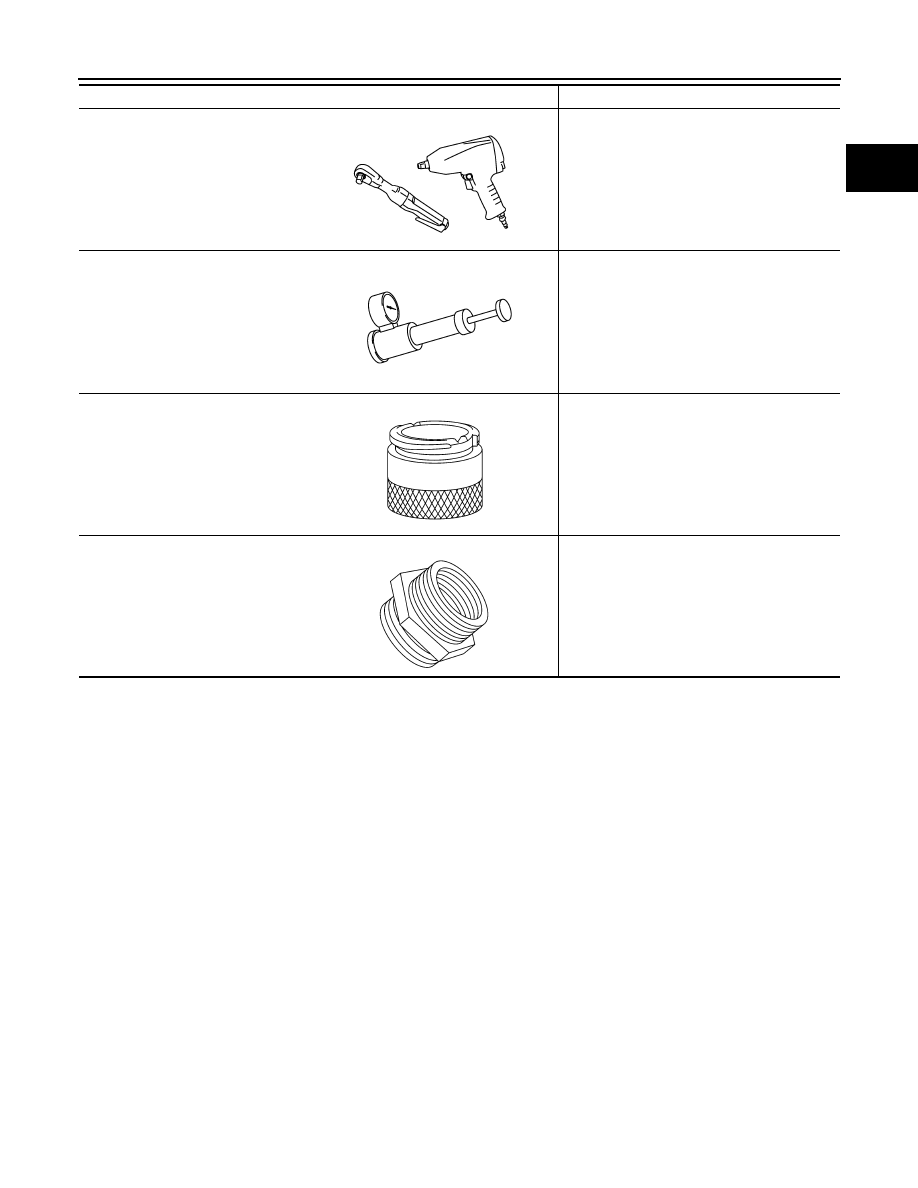

Power tool

Loosening bolts and nuts

Radiator cap tester

Checking radiator and radiator cap

Coolant system tester adapter

Adapting radiator cap tester to reservoir filler
neck

Coolant system tester adapter

Adapting radiator cap tester to reservoir cap

PBIC0190E

PBIC1982E

WBIA0408E

WBIA0409E

CO-34

< FUNCTION DIAGNOSIS >

[VK56DE]

COOLING SYSTEM

FUNCTION DIAGNOSIS

COOLING SYSTEM

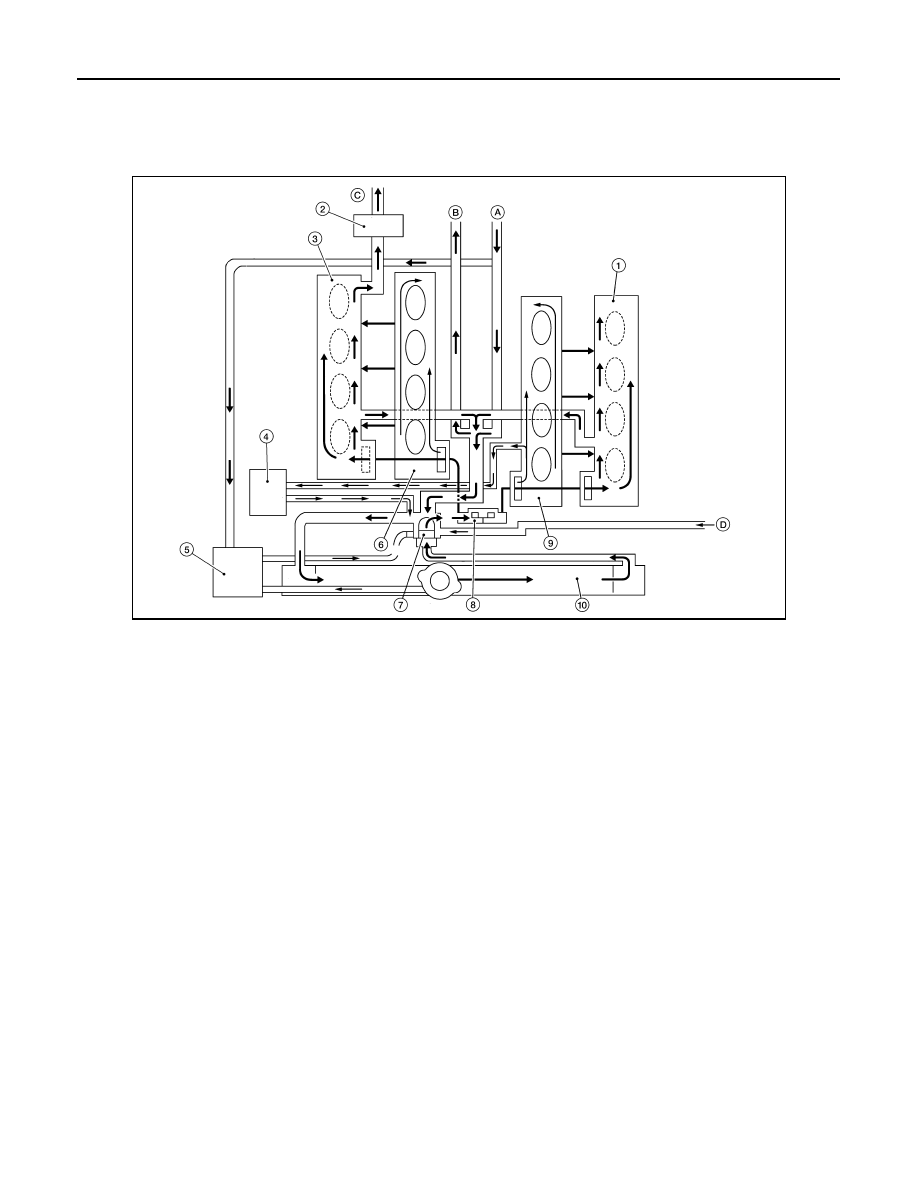

Cooling Circuit

INFOID:0000000001297376

AWBIA0089ZZ

1.

Cylinder head (LH)

2.

Water cut valve

3.

Cylinder head (RH)

4.

Oil cooler

5.

Reservoir tank

6.

Cylinder block (RH)

7.

Thermostat

8.

Water pump

9.

Cylinder block (LH)

10.

Radiator

A.

From heater

B.

To electronic throttle control actuator

C.

To heater

D.

From electronic throttle control actuator

COOLING SYSTEM

CO-35

< FUNCTION DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

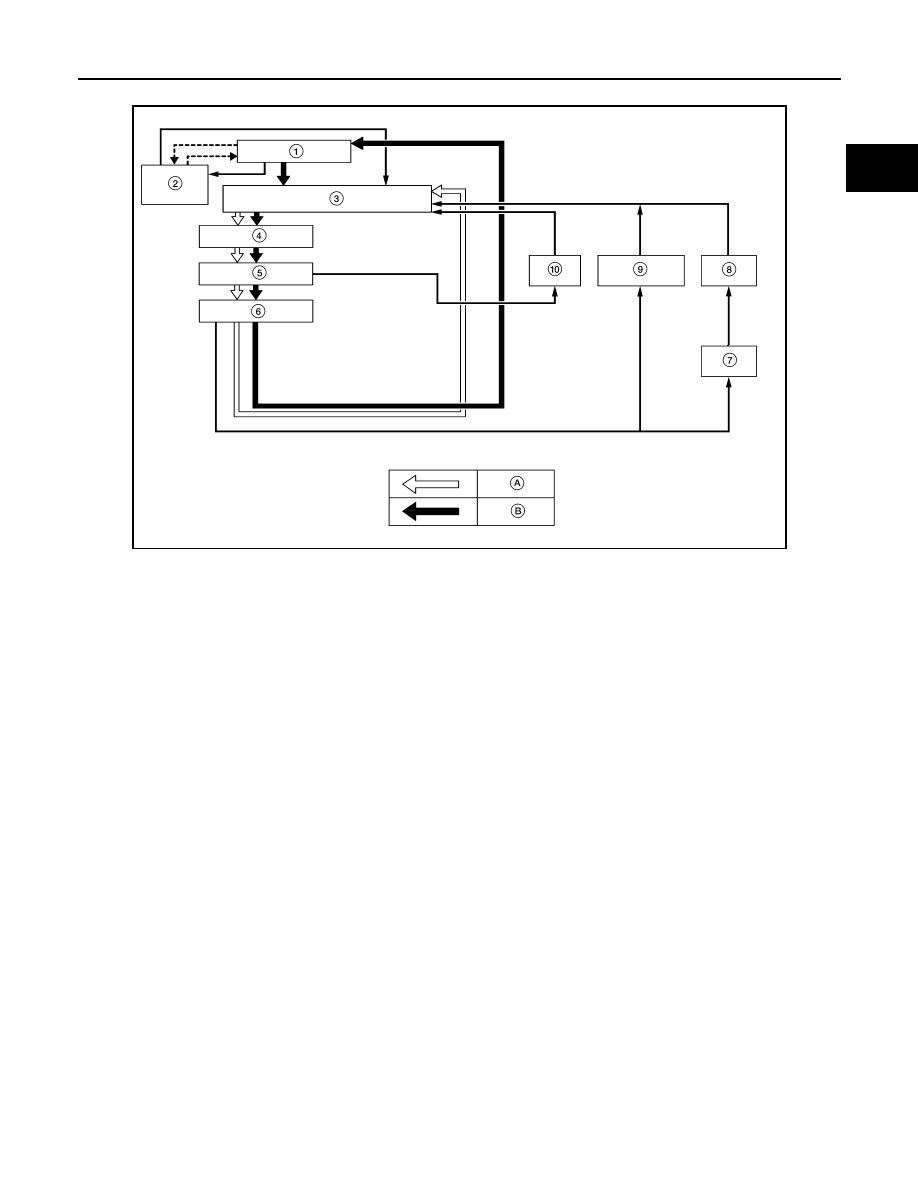

Schematic

INFOID:0000000001297377

AWBIA0090ZZ

1.

Radiator

2.

Reservoir tank

3.

Thermostat and thermostat housing

4.

Water pump

5.

Cylinder block

6.

Cylinder head

7.

Water cut valve

8.

Heater

9.

Electronic throttle control actuator

10. Oil cooler

A.

Thermostat closed

B.

Thermostat open

CO-36

< FUNCTION DIAGNOSIS >

[VK56DE]

OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSIS

Troubleshooting Chart

INFOID:0000000001297375

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

—

Thermostat stuck closed

—

Damaged fins

Dust contamination or pa-
per clogging

Physical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Water cut valve malfunction

Excess foreign material
(rust, dirt, sand, etc.)

Physical damage

Reduced air flow

Cooling fan does not oper-
ate

Fan assembly

—

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

—

—

—

Improper engine coolant
mixture ratio

—

—

—

Poor engine coolant quality

—

Engine coolant density

—

Insufficient engine coolant

Engine coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into cool-
ing system

Cylinder head deterioration

Cylinder head gasket deteri-
oration
