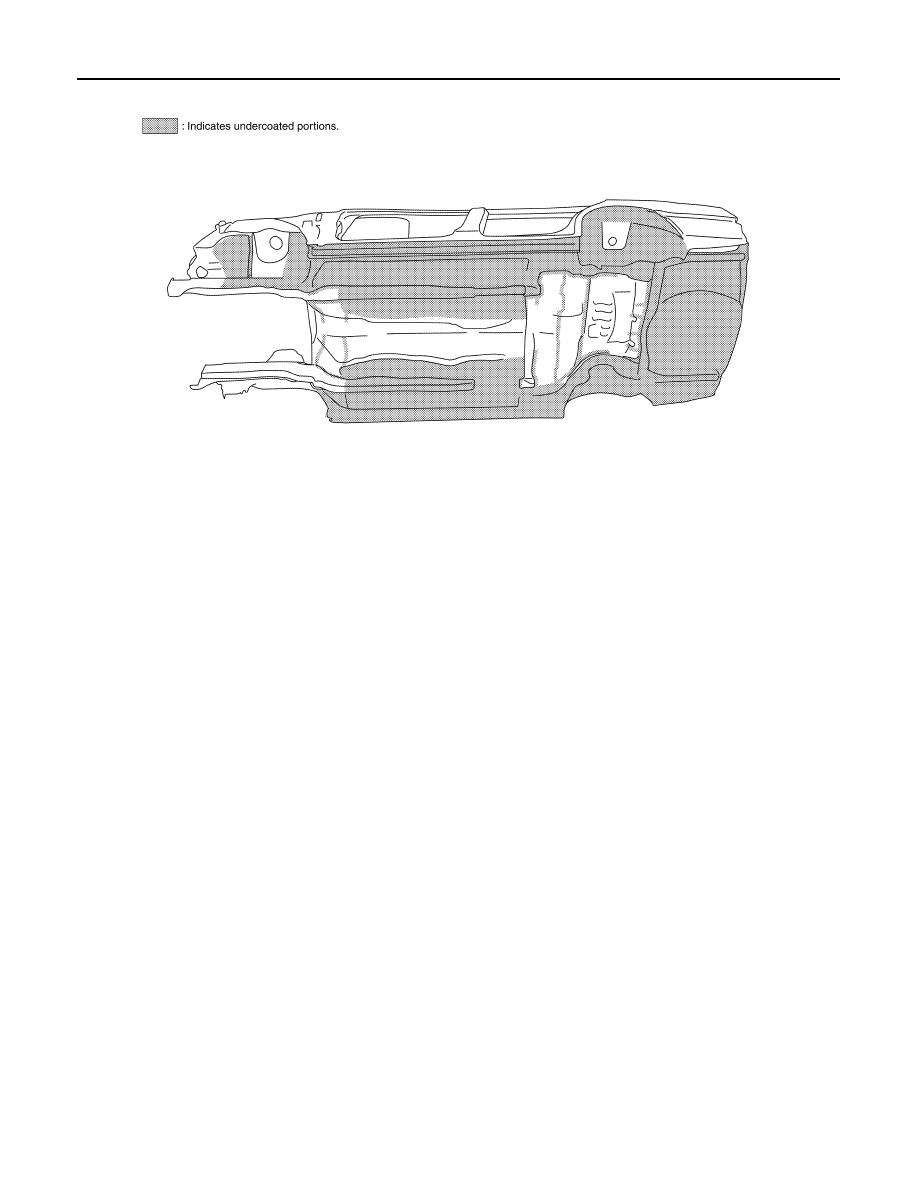

Apply bitumen wax after applying undercoating.

Body Sealing

INFOID:0000000001697783

DESCRIPTION

LIIA0129E

BODY REPAIR

BRM-13

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

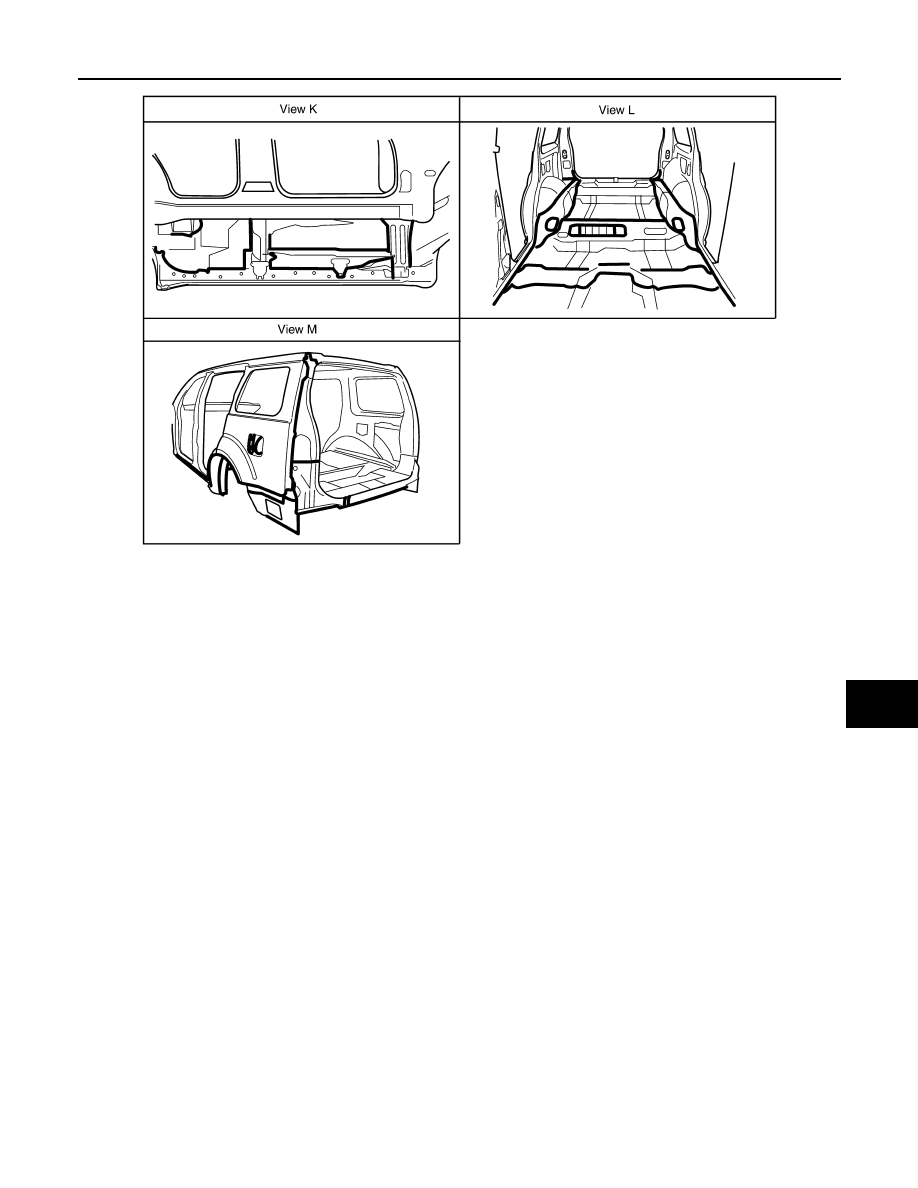

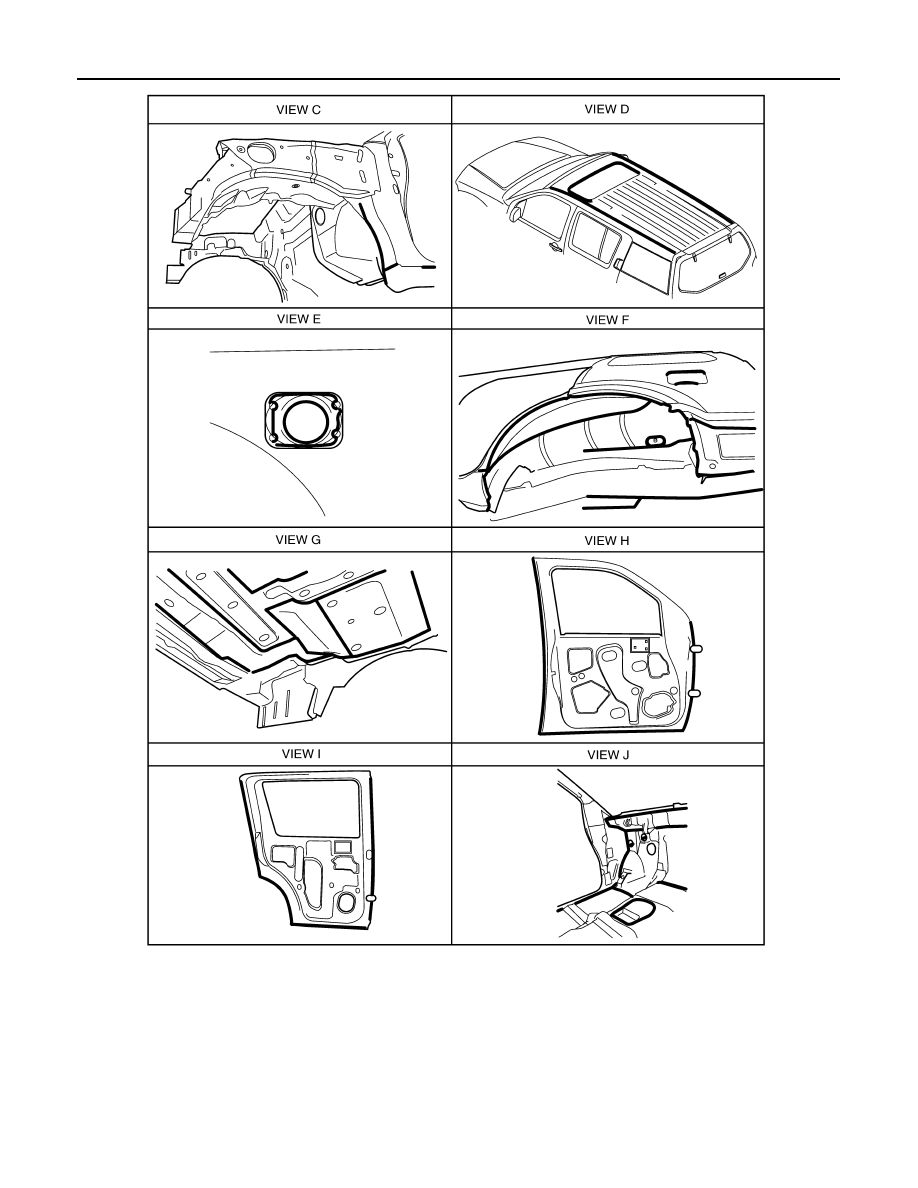

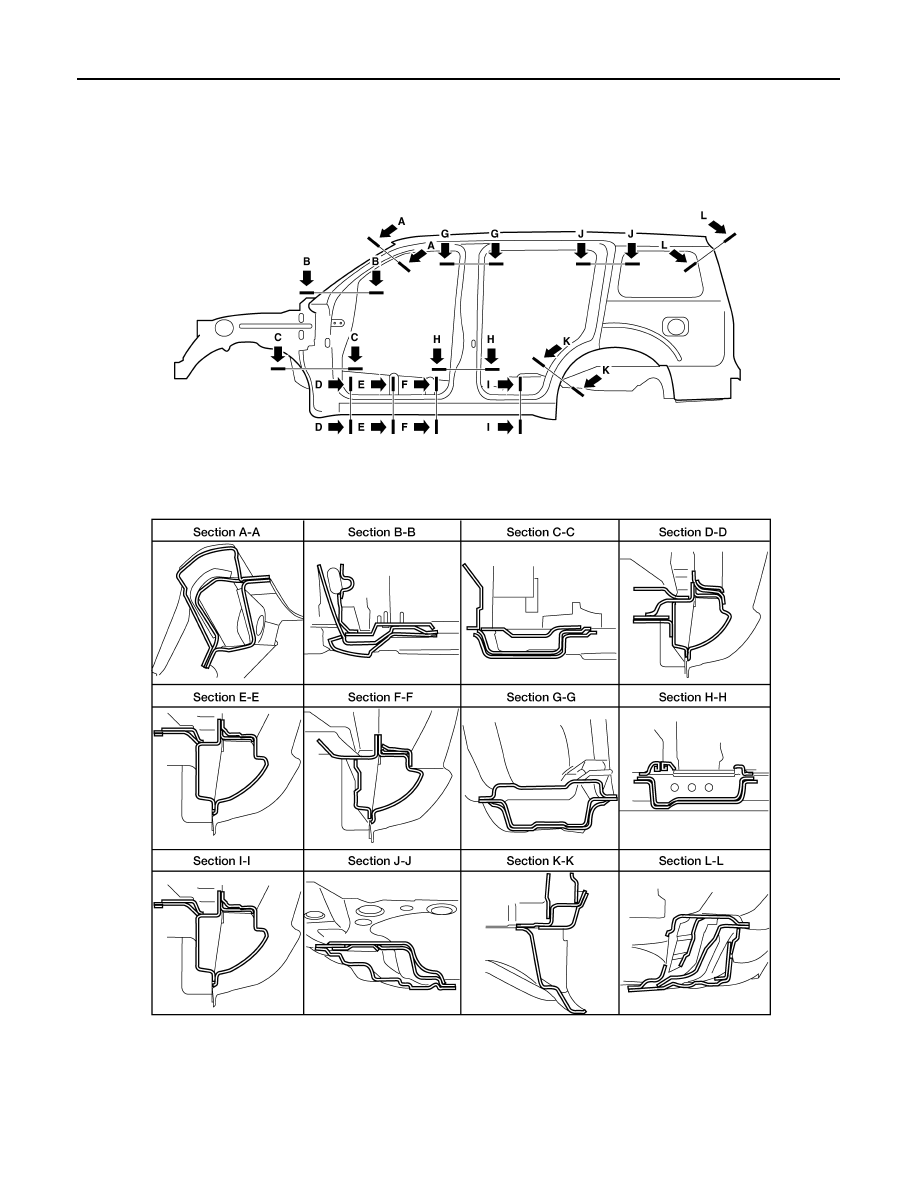

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected parts to come into contact with the sealant.

LIIA1736E

BRM-14

< SERVICE INFORMATION >

BODY REPAIR

WIIA0728E

BODY REPAIR

BRM-15

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

LIIA1738E

BRM-16

< SERVICE INFORMATION >

BODY REPAIR

Body Construction

INFOID:0000000001697784

BODY CONSTRUCTION

Body Alignment

INFOID:0000000001697785

BODY CENTER MARKS

LIIA1739E

BODY REPAIR

BRM-17

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

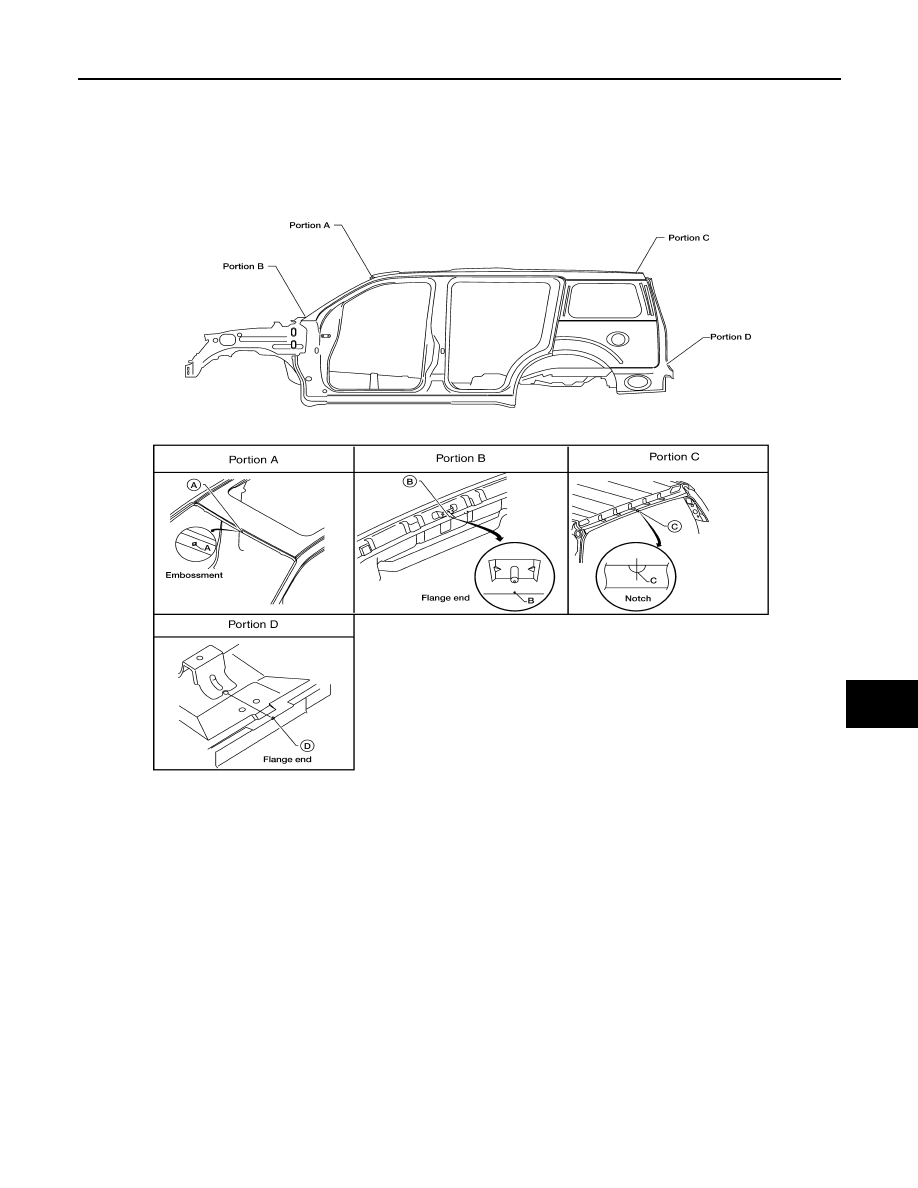

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.

PANEL PARTS MATCHING MARKS

LIIA1790E

BRM-18

< SERVICE INFORMATION >

BODY REPAIR

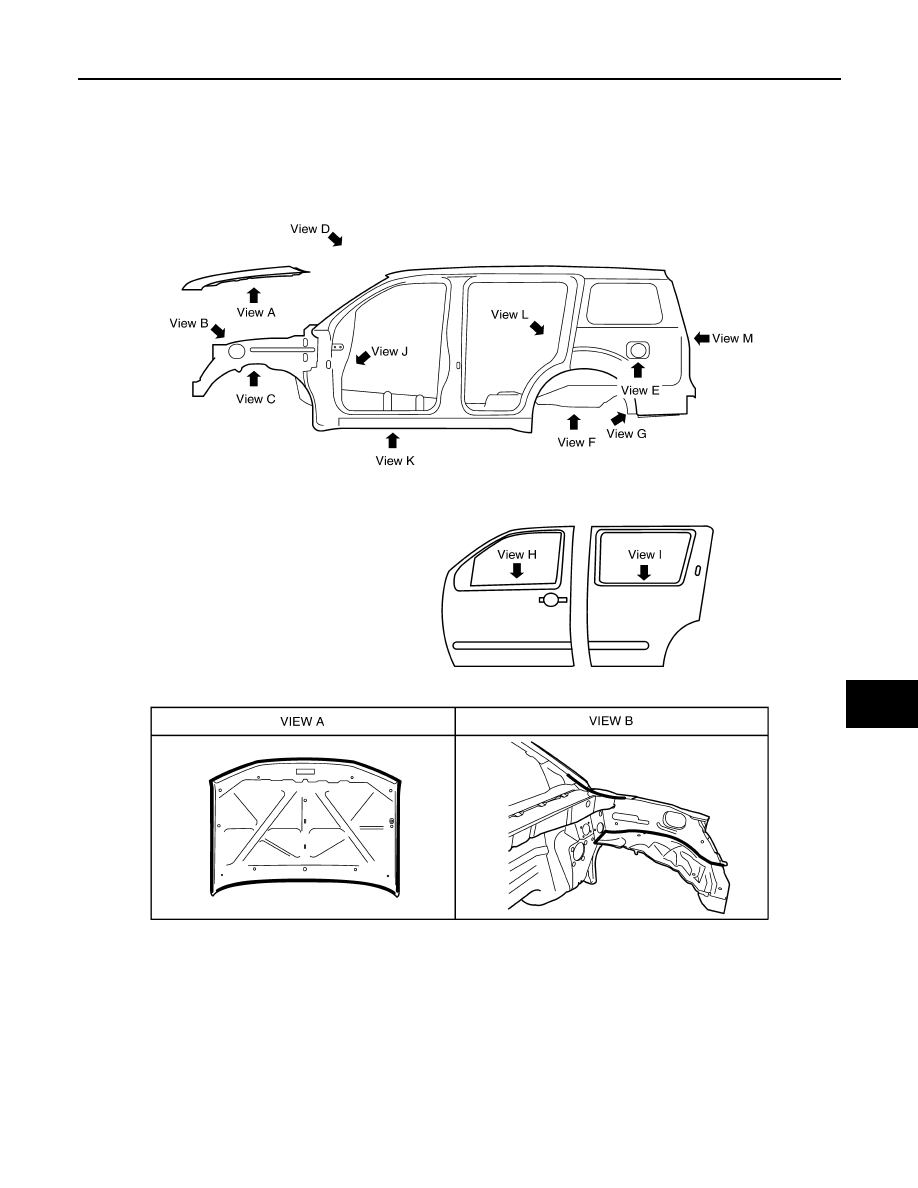

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.

DESCRIPTION

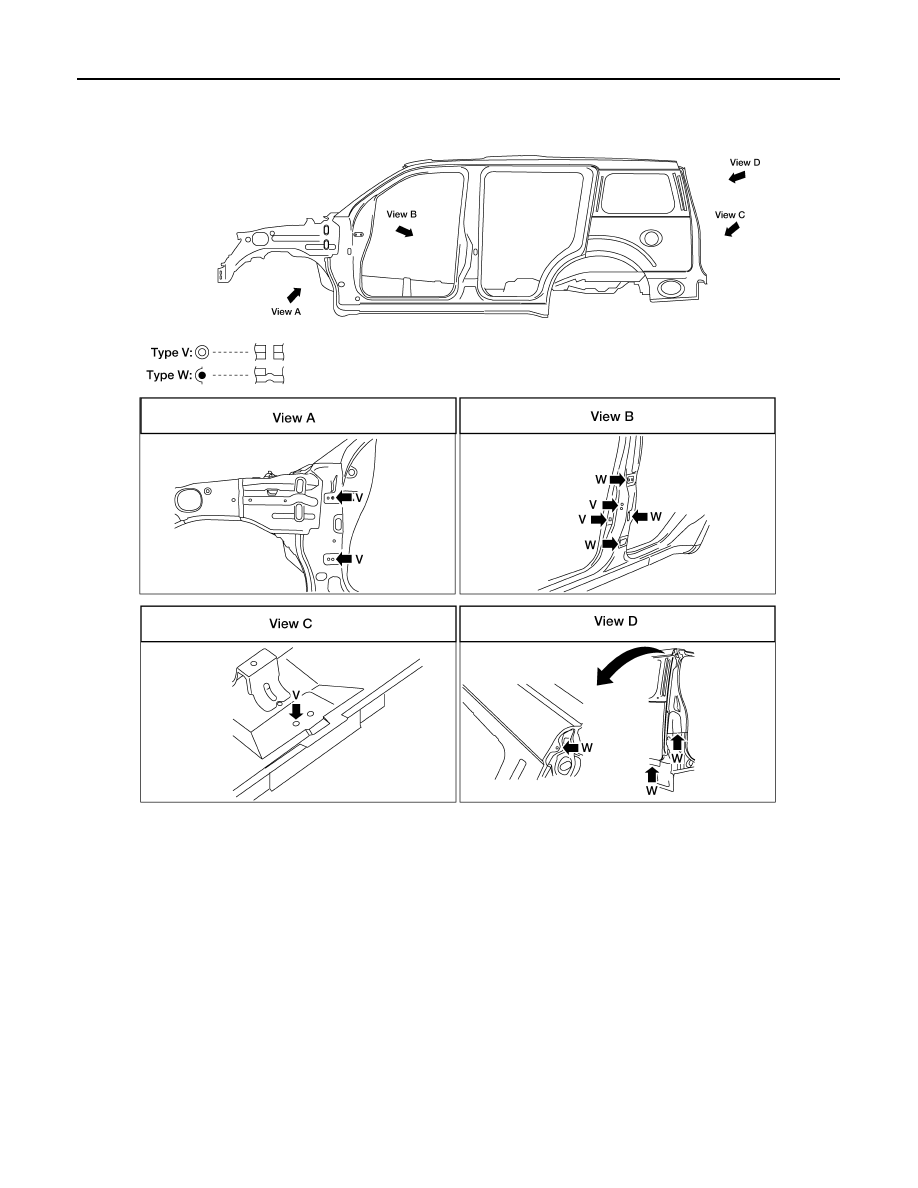

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

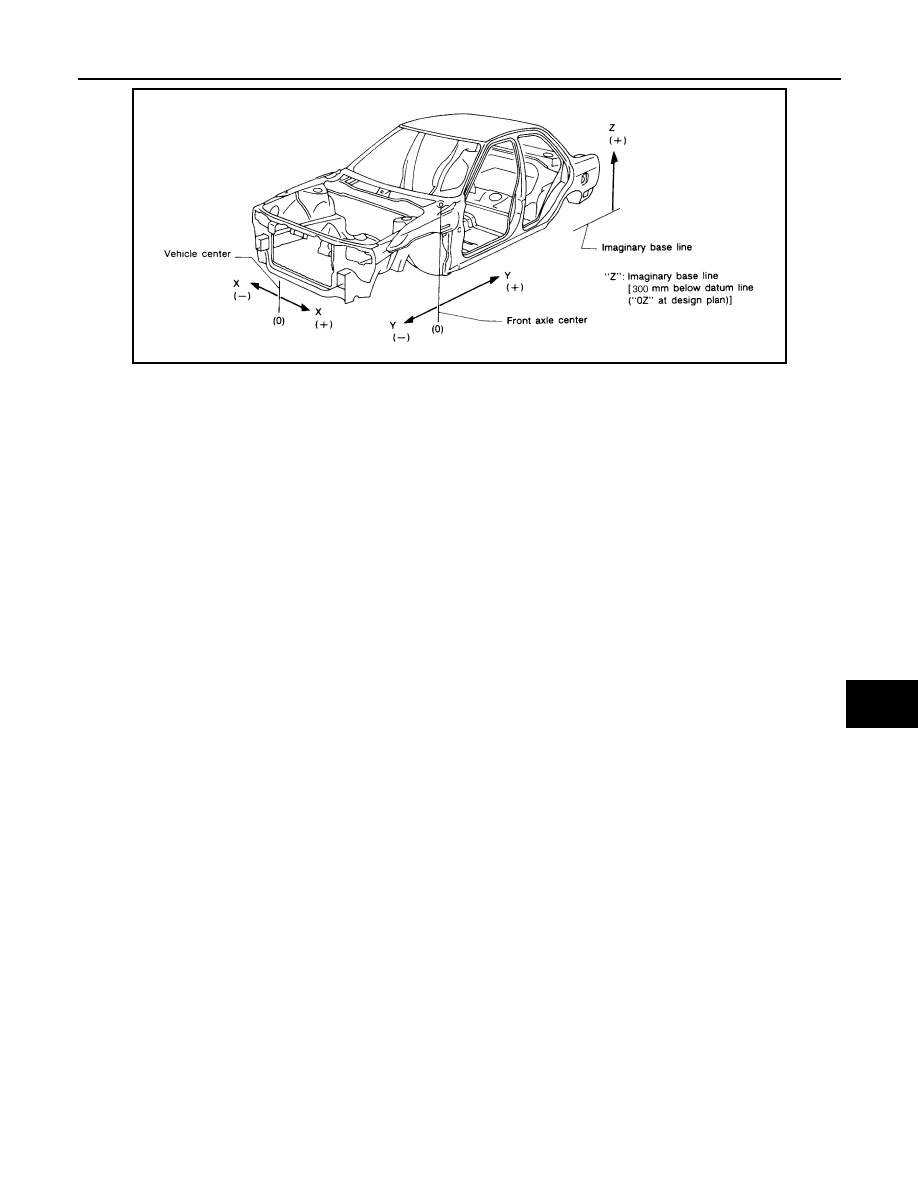

• The coordinates of the measurement points are the distances measured from the standard line of "X", "Y"

and "Z".

LIIA1791E

BODY REPAIR

BRM-19

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Engine Compartment

LIIA1506E
