Nissan Pathfinder (2008 year). Manual - part 117





BRM-4

< SERVICE INFORMATION >

BODY REPAIR

5.

Rear floor front

6.

Center pillar crossmember assembly

7.

Front seat mounting rear crossmember

8.

Front floor

9.

Front seat mounting crossmember

10. Second crossmember extension

11. Front floor reinforcement

12. Side dash RH

13. Lower dash
14. Wash tank bracket

15. Hoodledge reinforcement RH

16. Hoodledge plate
17. Hoodledge RH

18. Hoodledge reinforcement assembly RH

19. Rear lower hoodledge RH
20. Battery tray

21. Rear lower hoodledge LH

22. Hoodledge LH
23. Hoodledge reinforcement assembly LH

24. Hoodledge reinforcement LH

25. Side dash LH
26. Second crossmember assembly (RH/LH)

27. Inner sill (RH/LH)

28. Front side member assembly (RH/LH)
29. Center floor member assembly

30. Rear side member rear (RH/LH)

31. Rear crossmember
32. Second seat mounting crossmember

33. Third seat mounting bracket assembly

34. Rope hook bracket
35. Rear floor side LH

36. Rear floor side upper extension assembly LH

37. Third seat mounting rear crossmember assembly
38. Trim mounting bracket

39. Rear floor side upper extension assembly RH

BODY REPAIR

BRM-5

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

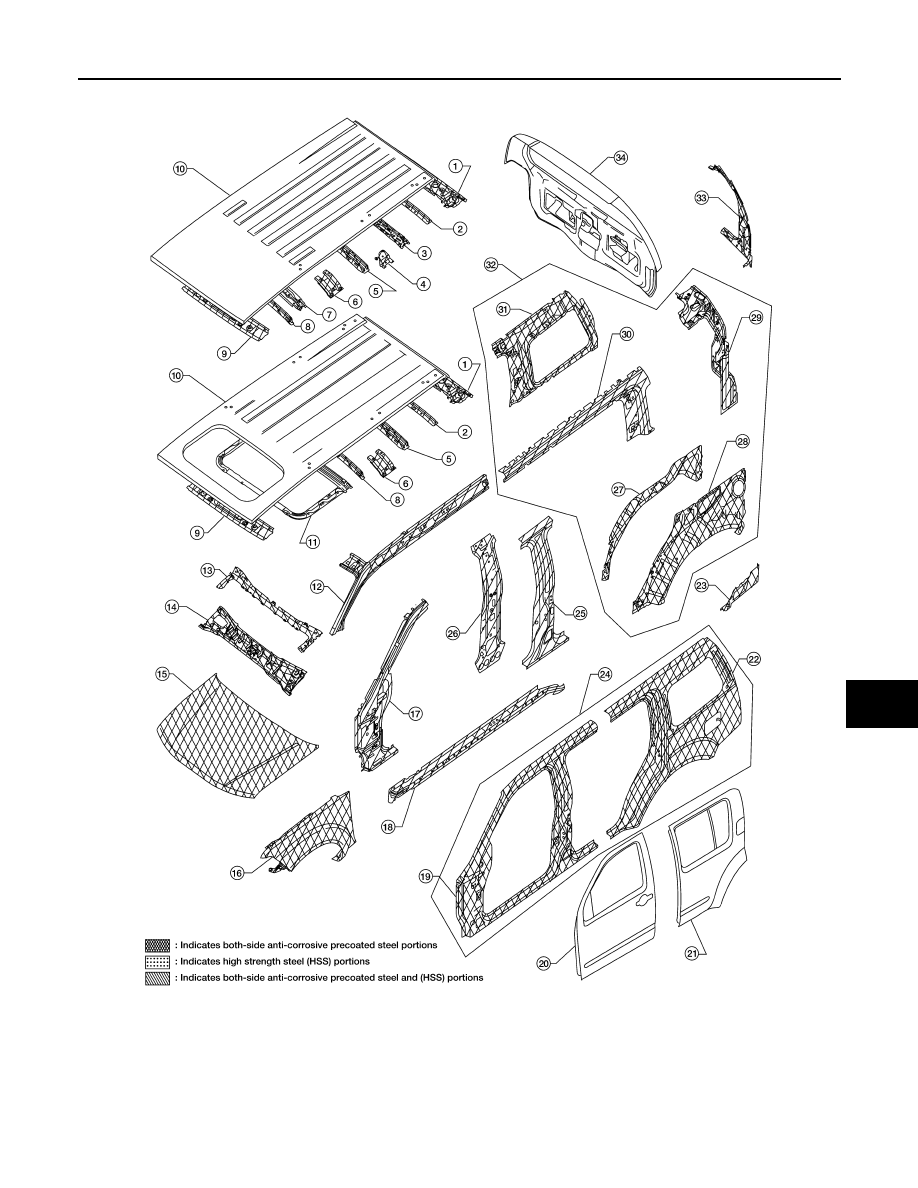

BODY COMPONENT PARTS

1.

Rear roof rail

2.

Roof bow No 5

3.

Roof 4th bow

4.

Roof rack plate

LIIA1788E

BRM-6

< SERVICE INFORMATION >

BODY REPAIR

5.

Roof 3rd bow

6.

Roof bow second bracket

7.

Roof 2nd bow

8.

Roof 1st bow

9.

Front roof rail

10. Roof

11. Sunroof reinforcement

12. Front inner pillar upper (RH, LH)

13. Dash upper crossmember assembly
14. Dash upper assembly

15. Hood assembly

16. Front fender (RH, LH)
17. Front pillar hinge brace (RH, LH)

18. Outer sill reinforcement (RH, LH)

19. Front body side outer (RH, LH)
20. Front door assembly (RH, LH)

21. Rear door assembly (RH, LH)

22. Rear body side outer (RH, LH)
23. Rear fender extension RH/LH

24. Body side outer assembly

25. Center pillar hinge brace
26. Center inner pillar (RH, LH)

27. Rear wheel housing inner (RH, LH)

28. Rear wheel housing outer (RH, LH)
29. Back pillar reinforcement (RH, LH)

30. Outer roof side rail reinforcement (RH/LH)

31. Rear inner side panel (RH, LH)
32. Body side inner reinforcement assembly (RH, LH)

33. Main back pillar (RH, LH)

34. Lift gate assembly

BODY REPAIR

BRM-7

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

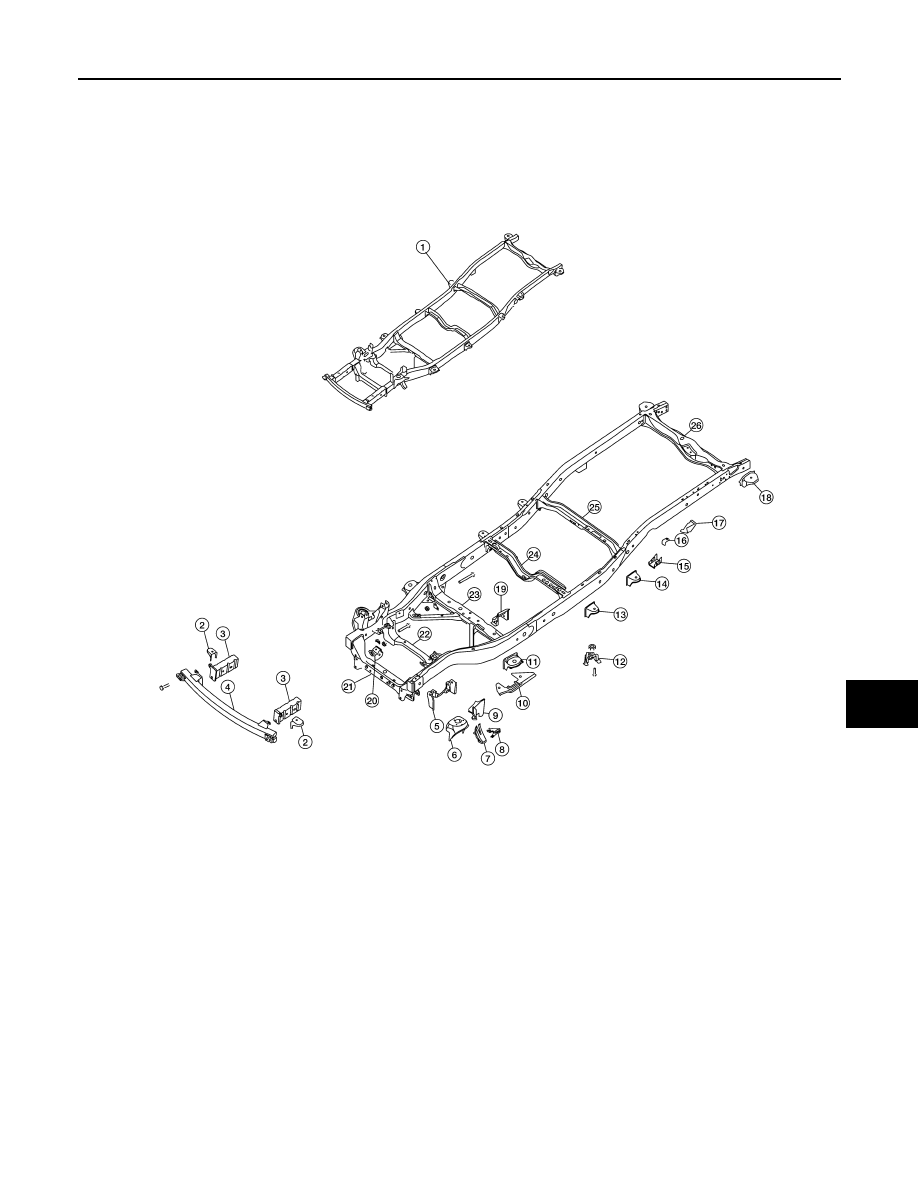

FRAME COMPONENT PARTS

1.

Frame assembly

2.

1st cab mounting bracket RH/LH

3.

Front side member extension assembly RH/LH

4.

1st crossmember assembly

5.

Front upper link mounting bracket RH/LH

LIIA1789E

BRM-8

< SERVICE INFORMATION >

BODY REPAIR

6.

Front shock absorber mounting bracket RH/LH

7.

Bound bumper bracket RH/LH

8.

Front brake hose bracket RH/LH

9.

Panhard rod bracket reinforcement

10. 4th crossmember gusset RH/LH
11. 2nd cab mounting bracket RH/LH

12. Crossmember support RH/LH

13. 3rd cab mounting bracket RH/LH

14. 4th cab mounting bracket RH/LH
15. Rear suspension mounting bracket RH/LH

16. Rear brake hose bracket

17. Rear bound bumper bracket RH/LH
18. Cab mounting bracket assembly RH/LH

19. 4th crossmember gusset RH/LH

20. Front differential mounting bracket RH/LH
21. 2nd crossmember assembly

22. 3rd crossmember assembly

23. 4th crossmember assembly
24. 5th crossmember assembly

25. 6th crossmember assembly

26. 9th crossmember assembly

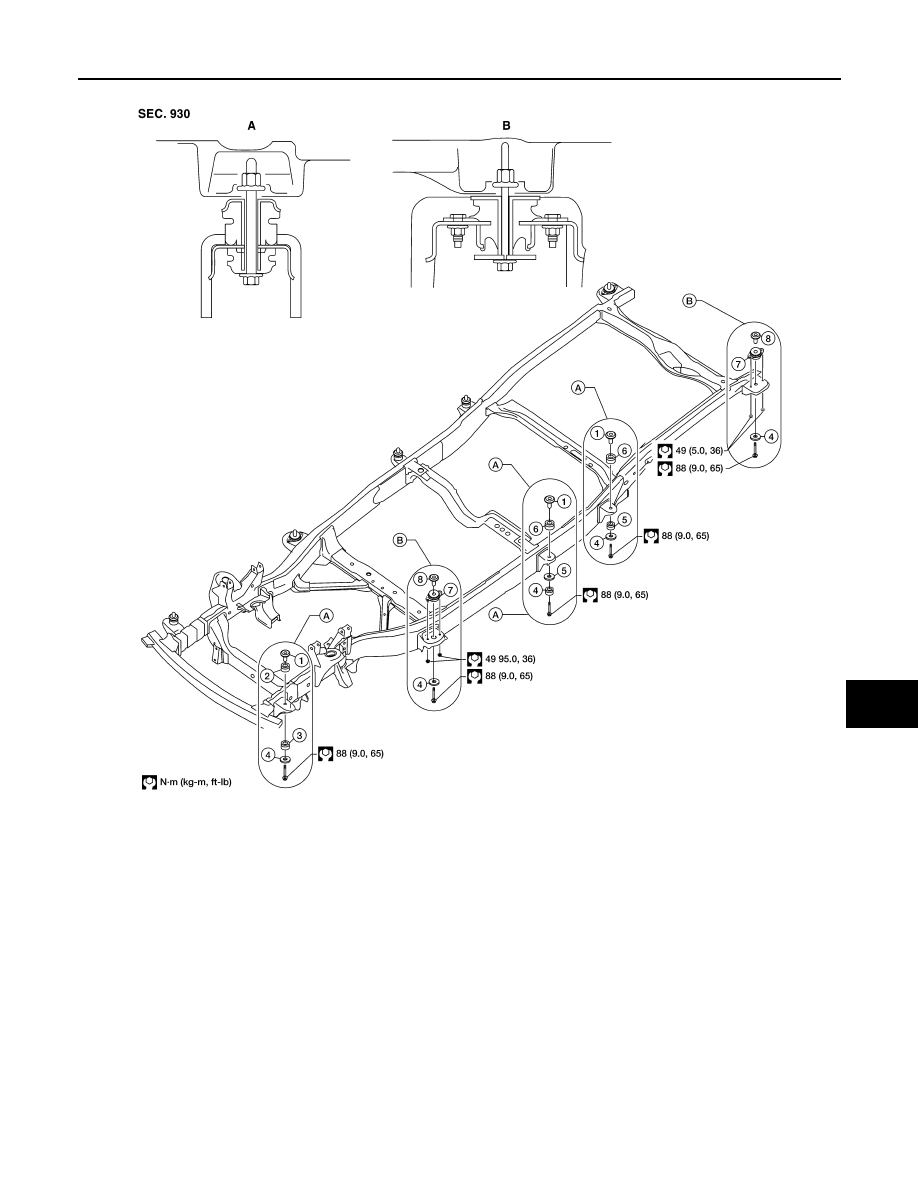

Body Mounting

INFOID:0000000001733164

• When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

mounting).

• Unless otherwise noted, the bushings and insulators have paint marks that are to be installed facing out-

ward.

BODY REPAIR

BRM-9

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Corrosion Protection

INFOID:0000000001697782

DESCRIPTION

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

1.

Gold washer

2.

Upper bushing

3.

Lower bushing

4.

Black washer

5.

Lower bushing without paint mark

6.

Upper bushing without paint mark

7.

Body mount insulator

8.

Body washer

LIIA1734E

BRM-10

< SERVICE INFORMATION >

BODY REPAIR

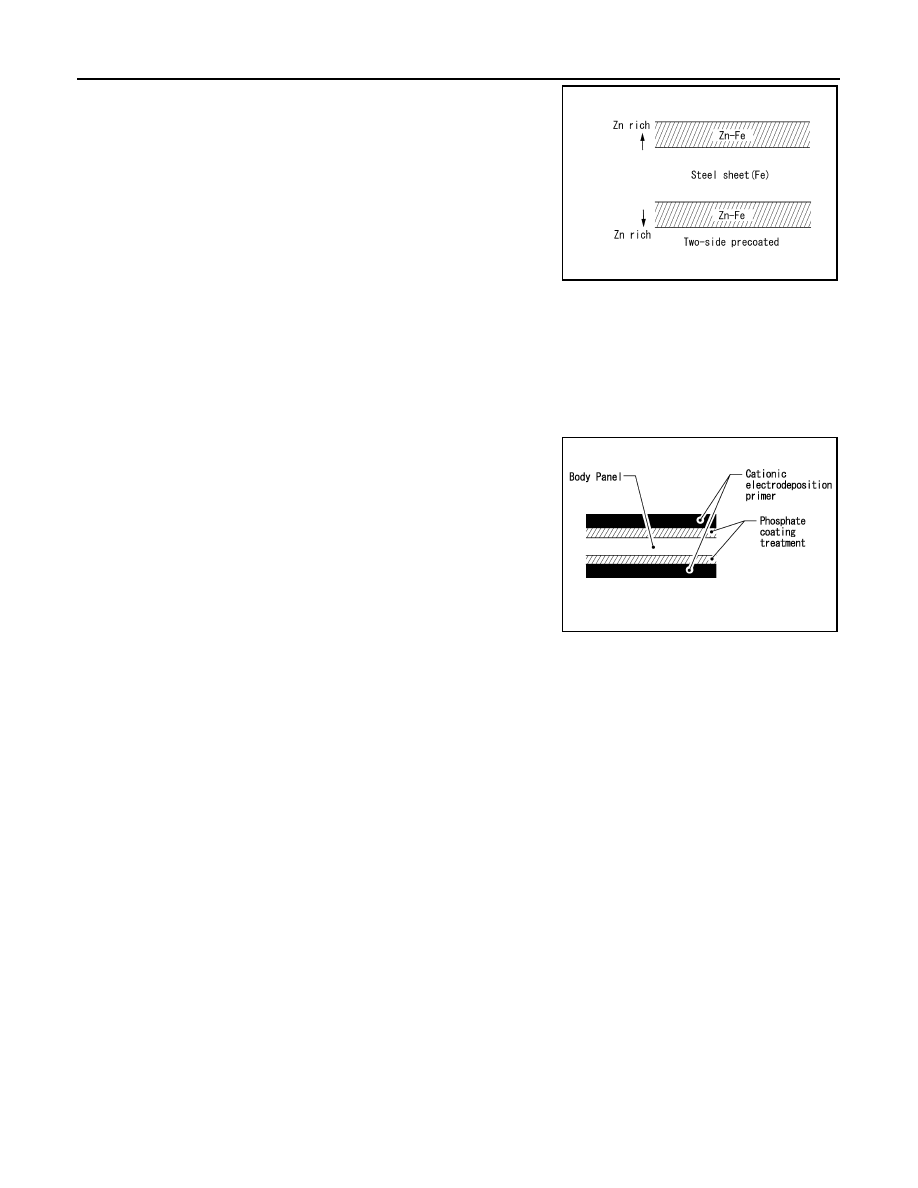

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet has been adopted replacing conven-
tional zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrode position primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that
GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-
mance built into the vehicle at the factory.

PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER

A phosphate coating treatment and a cationic electrode position primer, which provide excellent corrosion pro-
tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute
minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-
INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built
into the vehicle at the factory.

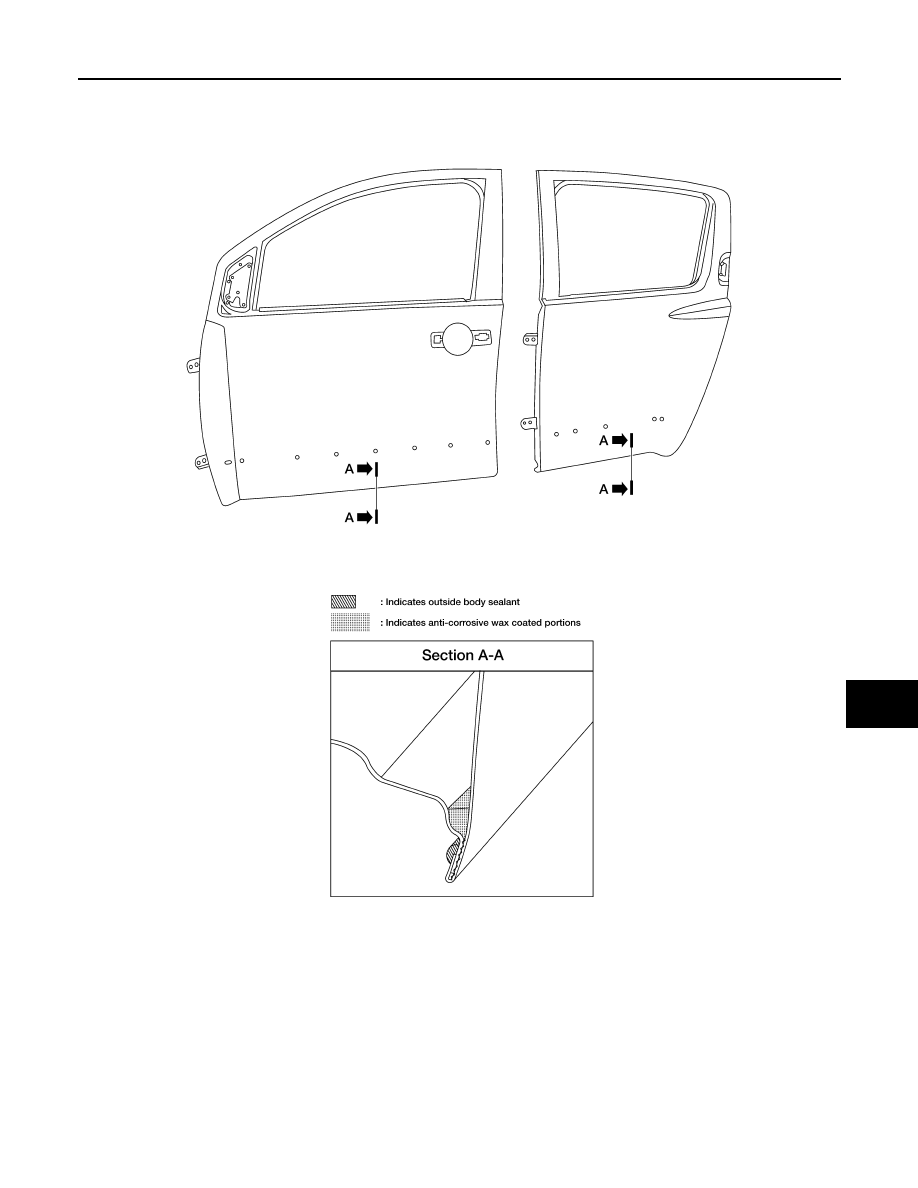

ANTI-CORROSIVE WAX

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

PIIA0093E

PIIA0095E

BODY REPAIR

BRM-11

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.

UNDERCOATING

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in undercoating

1.

Do not apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst which are subjected to heat).

2.

Do not undercoat the exhaust pipe or other parts which become hot.

3.

Do not undercoat rotating parts.

LIIA0905E
