FRONT DISC BRAKE

BR-11

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

• While removing cylinder body never depress brake pedal because piston will pop out.
• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of cylinder body. In this case, hang cylinder body with a wire so as not to stretch brake
hose.

• Do not damage piston boot.
• Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or if a soft

pedal occurs at very low mileage. Refer to

BR-27, "Brake Burnishing"

.

Removal and Installation of Brake Pad

INFOID:0000000001297475

REMOVAL

1.

Remove wheel and tire using power tool.

2.

Remove master cylinder reservoir cap.

3.

Remove lower sliding pin bolt using power tool.

4.

Suspend cylinder body with a wire and remove pad return spring, pads, shim, shim covers, and retainers
from torque member.

INSTALLATION

1.

Apply Molykote M-77 grease between outer brake pad plate and shim, then attach shim and shim covers
to brake pads. Refer to

MA-10, "Fluids and Lubricants"

.

2.

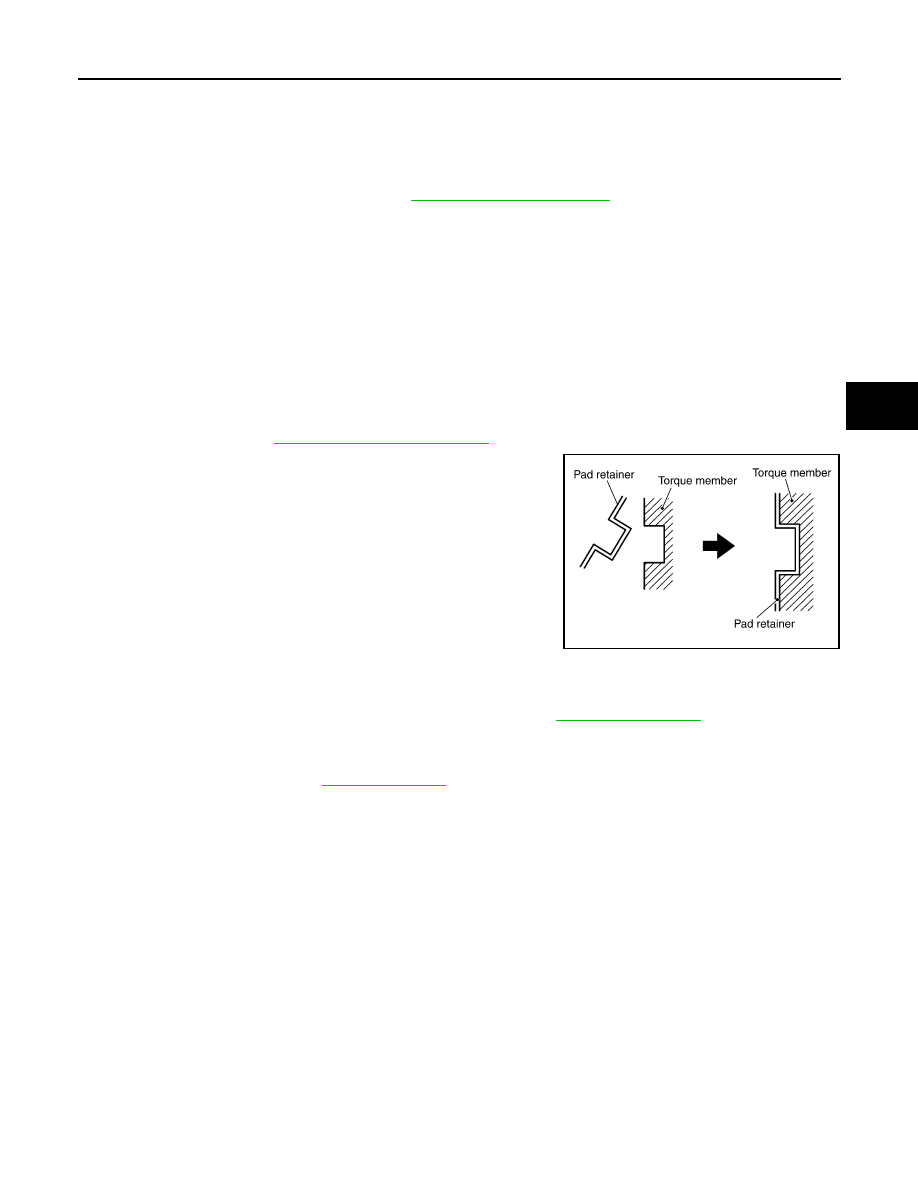

Attach pad retainer to torque member, then install brake pad,
shims and pad return spring.

CAUTION:

When attaching pad retainer, attach it firmly so that it is
flush with torque member, as shown.

3.

Using a suitable tool push pistons into cylinder body.
NOTE:
Using a disc brake piston tool (commercial service tool), etc.,
makes it easier to push pistons into cylinder body.

CAUTION:

By pushing in piston, brake fluid returns to master cylinder
reservoir tank. Watch the level of the surface of reservoir
tank.

4.

Remove wire then swing cylinder body down over brake pad assemblies.

5.

Install lower sliding pin bolt and tighten to specification. Refer to

BR-10, "Component"

.

6.

Check brake for drag.

7.

Inspect fluid level, then install master cylinder reservoir cap.

8.

Install wheel and tire. Refer to

WT-36, "Rotation"

.

Brake Burnishing

INFOID:0000000001297656

Burnish brake contact surface according to the following procedure after refinishing or replacing rotors, after
replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1.

Drive the vehicle on a straight smooth road at 50 km/h (31 MPH).

2.

Use medium brake pedal/foot effort to bring the vehicle to a complete stop from 50 km/h (31 MPH). Adjust
brake pedal/foot pressure such that vehicle stopping time equals 3 to 5 seconds.

3.

To cool brake system, drive the vehicle at 50 km/h (31 MPH) for 1 minute without stopping.

4.

Repeat steps 1 to 3, 10 times or more to complete the burnishing procedure.

PFIA0273E

BR-12

< ON-VEHICLE MAINTENANCE >

REAR DISC BRAKE

REAR DISC BRAKE

Component

INFOID:0000000001297480

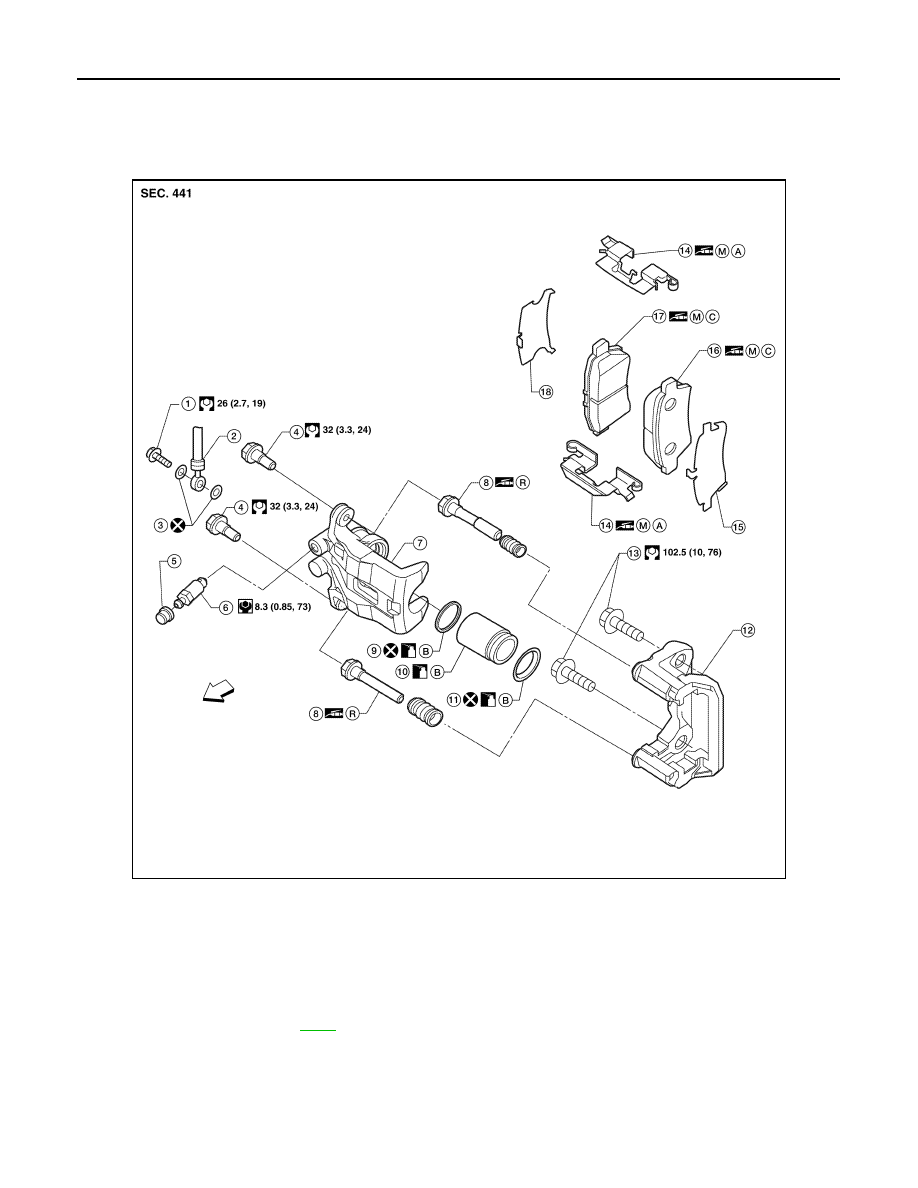

Rear Disc Brake Caliper and Pads

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne
particles or other materials.

AWFIA0038GB

1.

Union bolt

2.

Brake hose

3.

Copper washers

4.

Sliding pin bolt

5.

Cap

6.

Bleed valve

7.

Cylinder body

8.

Sliding pin

9.

Piston seal

10.

Piston

11. Piston boot

12. Torque member

13.

Torque member bolt

14. Pad retainer

15. Outer shim

16.

Outer brake pad

17. Inner brake pad

18. Inner shim

A.

Molykote 7439 Refer to

BR-13

  for appli-

cation areas

B.

Brake fluid

C.

Molykote 77

R.

Rubber grease

⇐

: Front

REAR DISC BRAKE

BR-13

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

CAUTION:

• While removing cylinder body, never depress brake pedal because piston will pop out.
• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of cylinder body. In this case, hang cylinder body with a wire so as not to stretch brake
hose.

• Do not damage piston boot.
• Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or it a soft

pedal occurs at very low mileage. Refer to

BR-14, "Brake Burnishing"

.

Removal and Installation of Brake Pad

INFOID:0000000001297481

REMOVAL

1.

Remove wheel and tire using power tool.

2.

Remove master cylinder reservoir cap.

3.

Remove lower sliding pin bolt using power tool.

4.

Suspend cylinder body with a wire and remove pads, shims and retainers from torque member.

INSTALLATION

1.

Apply Molykote M-77 grease between outer brake pad plate and shim, then attach shims to brake pads.
Refer to

MA-10, "Fluids and Lubricants"

.

2.

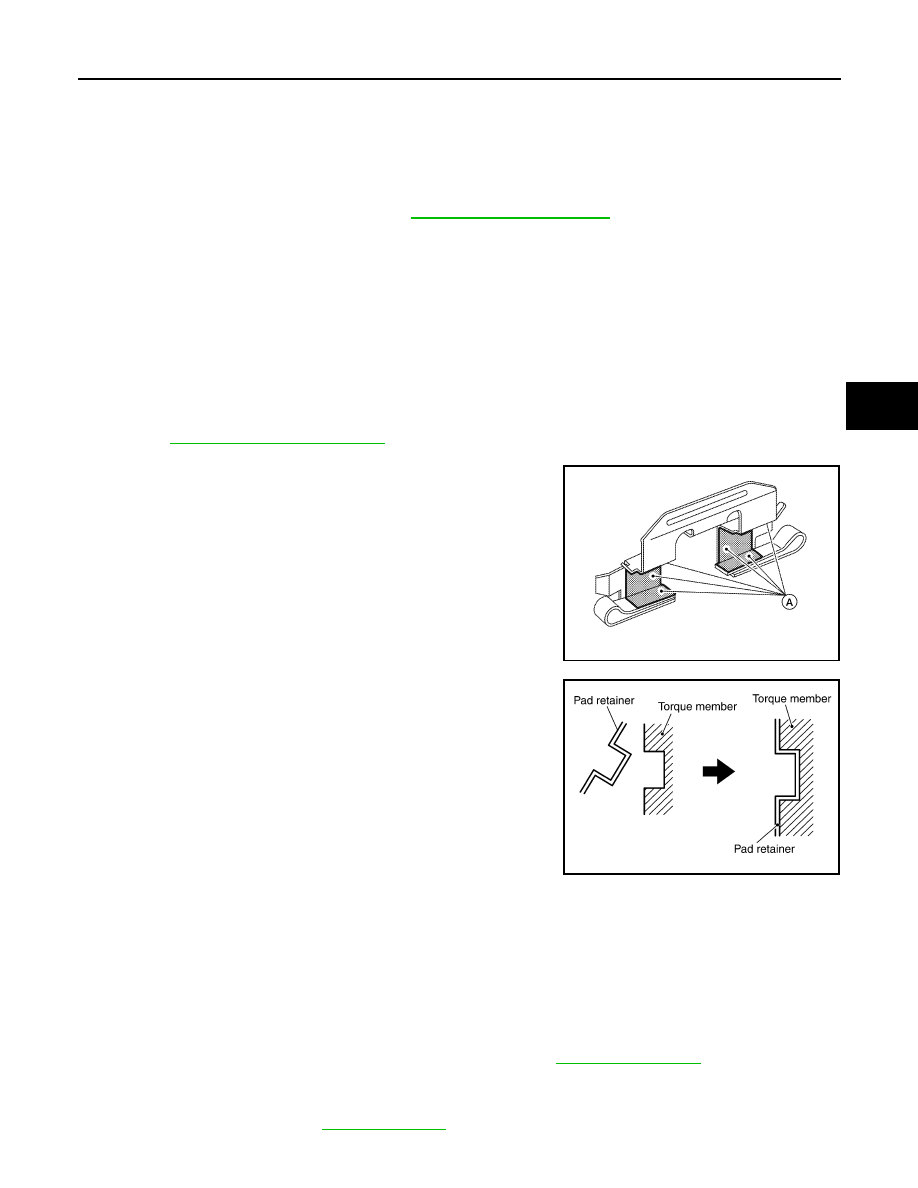

Apply Molykote 7439 to pad retainers (A) as shown

3.

Attach pad retainer to torque member, then install brake pad and
shim assemblies.

CAUTION:

When attaching pad retainer, attach it firmly so that it is
flush with torque member, as shown.

4.

Using a suitable tool push piston into cylinder body.
NOTE:
Using a disc brake piston tool (commercial service tool), etc., makes it easier to push piston into cylinder
body.

CAUTION:

By pushing in piston, brake fluid returns to master cylinder reservoir tank. Watch the level of the
surface of reservoir tank.

5.

Remove wire then swing cylinder body down over brake pad assemblies.

6.

Install lower sliding pin bolt and tighten to specification. Refer to

BR-12, "Component"

.

7.

Check brake for drag.

8.

Inspect fluid level, then install master cylinder reservoir cap.

9.

Install wheel and tire. Refer to

WT-36, "Rotation"

.

AWFIA0039ZZ

PFIA0273E

BR-14

< ON-VEHICLE MAINTENANCE >

REAR DISC BRAKE

Brake Burnishing

INFOID:0000000001297484

Burnish brake contact surface according to the following procedure after refinishing or replacing rotors, after
replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

Only perform this procedure under safe road and traffic conditions. Use extreme caution.

1.

Drive the vehicle on a straight smooth road at 50 km/h (31 MPH).

2.

Use medium brake pedal/foot effort to bring the vehicle to a complete stop from 50 km/h (31 MPH). Adjust
brake pedal/foot pressure such that vehicle stopping time equals 3 to 5 seconds.

3.

To cool brake system, drive the vehicle at 50 km/h (31 MPH) for 1 minute without stopping.

4.

Repeat steps 1 to 3, 10 times or more to complete the burnishing procedure.

BRAKE PEDAL

BR-15

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REMOVAL AND INSTALLATION

BRAKE PEDAL

Removal and Installation

INFOID:0000000001297430

COMPONENTS

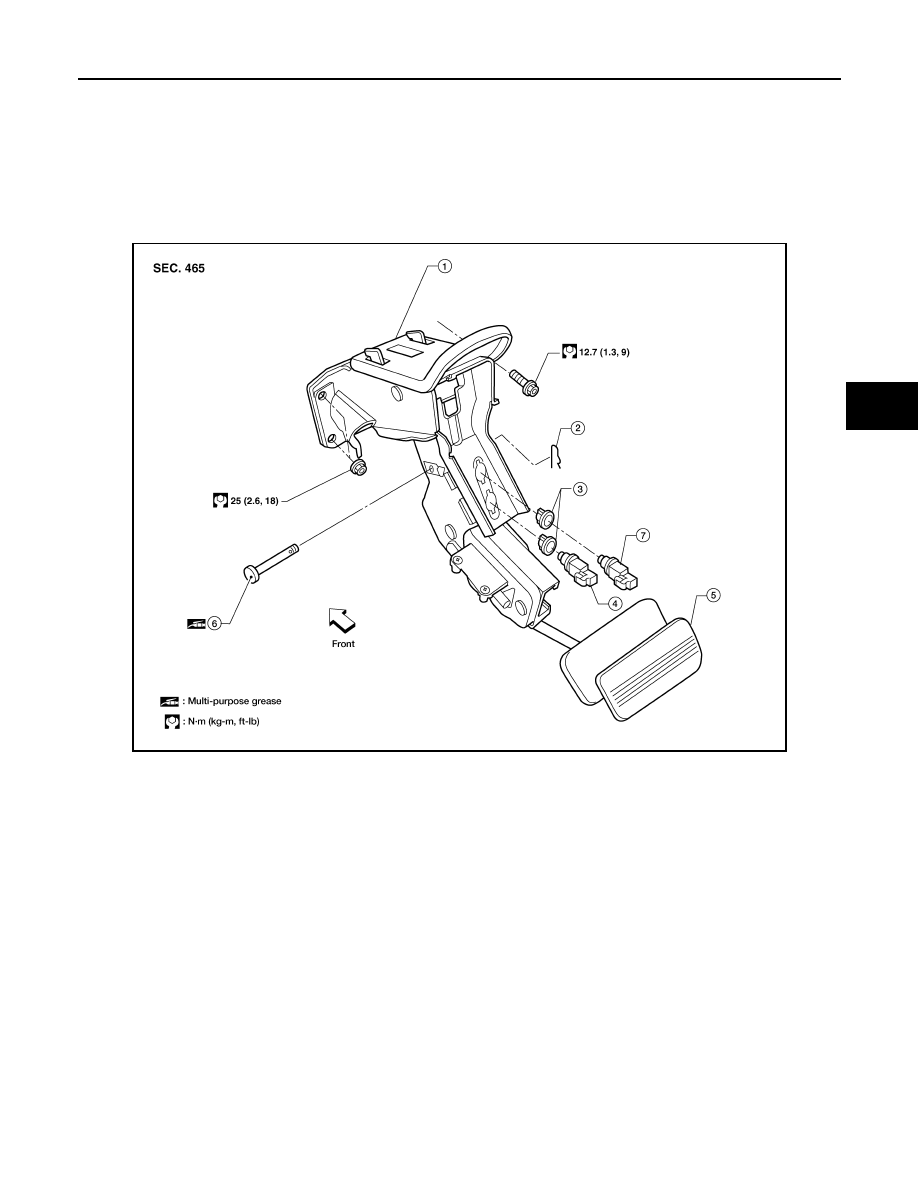

Adjustable Brake Pedal

LFIA0231E

1.

Brake pedal assembly

2.

Snap pin

3.

Clip

4.

Stop lamp switch

5.

Pedal pad

6.

Clevis pin

7.

ASCD cancel switch

BR-16

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

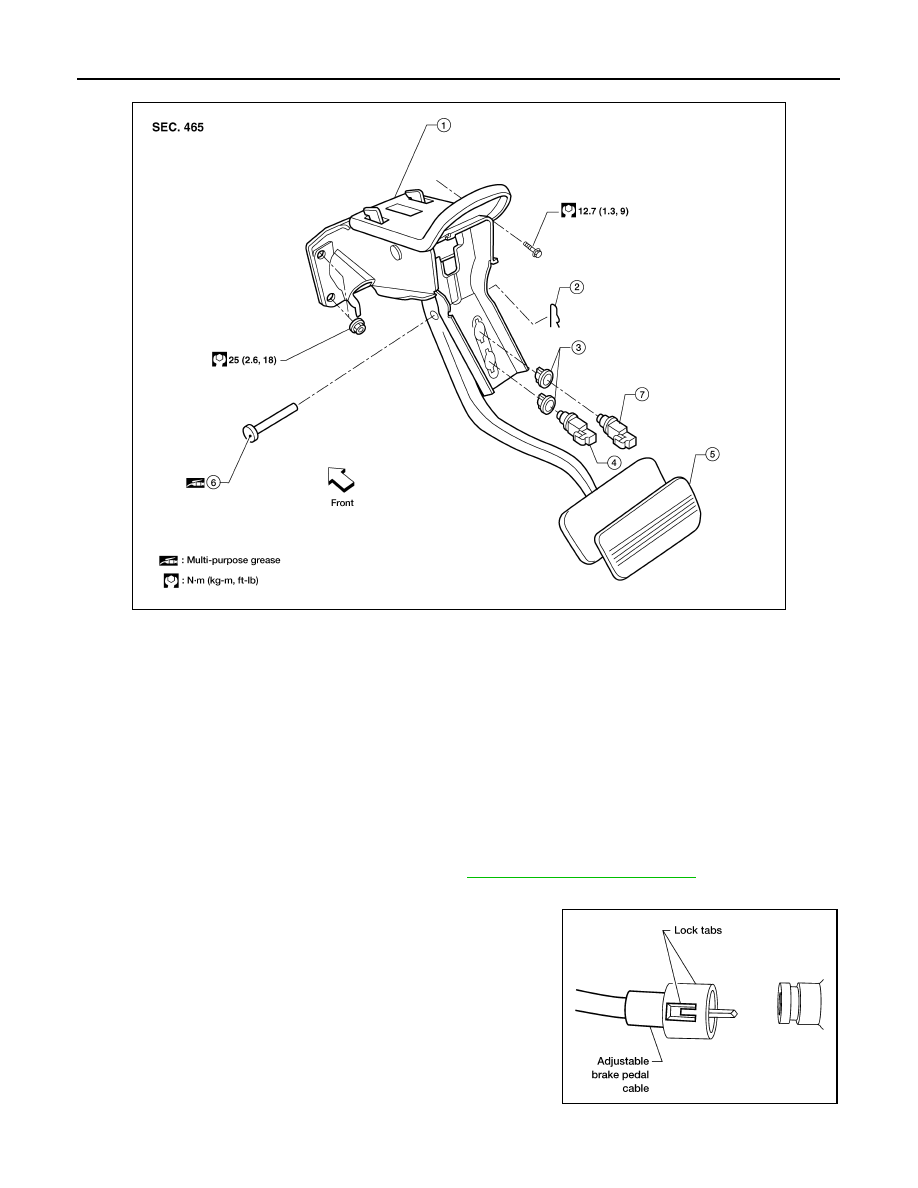

Non-adjustable Brake Pedal

REMOVAL FOR ADJUSTABLE BRAKE PEDAL

WARNING:

Do not deform the brake tube.

CAUTION:

• Before removal and installation the accelerator and brake pedals must be in the forward most posi-

tion (closest to the floor). This is to align the base position of the accelerator and brake pedals.

• Do not disassemble the brake pedal adjusting mechanism.
• Avoid damage from dropping the brake pedal assembly during handling.
• Keep the brake pedal assembly away from water.

1.

Remove the lower driver instrument panel. Refer to

IP-10, "Removal and Installation"

.

2.

Remove the stop lamp switch and ASCD cancel switch from the pedal assembly.

3.

Disconnect the adjustable brake pedal cable from the adjustable
pedal.
• Release the two lock tabs, then pull the adjustable brake pedal

cable to disconnect it from the adjustable brake pedal.

4.

Remove snap pin and clevis pin from the clevis of the brake booster.

LFIA0232E

1.

Brake pedal assembly

2.

Snap pin

3.

Clip

4.

Stop lamp switch

5.

Pedal pad

6.

Clevis pin

7.

ASCD cancel switch

LFIA0233E

BRAKE PEDAL

BR-17

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

5.

Remove nuts and the pedal assembly.
• Temporarily install the nuts by hand to support the booster.

CAUTION:

• Before removal and installation the accelerator and brake pedals must be in the frontmost posi-

tion (closest to the floor). This is to align the base position of the accelerator and brake pedals.

• Do not disassemble the brake pedal adjusting mechanism.
• Avoid damage from dropping the brake pedal assembly during handling.
• Keep the brake pedal assembly away from water.

REMOVAL FOR NON-ADJUSTABLE BRAKE PEDAL

WARNING:

Do not deform the brake tube.

CAUTION:

• Do not disassemble the brake pedal assembly.
• Avoid damage from dropping the brake pedal assembly during handling.
• Keep the brake pedal assembly away from water.
1.

Remove the lower driver instrument panel. Refer to

IP-10, "Removal and Installation"

.

2.

Remove the stop lamp switch and ASCD cancel switch from the pedal assembly.

3.

Remove snap pin and clevis pin from the clevis of the brake booster.

4.

Remove nuts and the pedal assembly.
• Temporarily install the nuts by hand to support the booster.

INSPECTION AFTER REMOVAL

Check brake pedal for following items.

• Crack or deformation of clevis pin stopper
• Clevis pin deformation
• Crack of any welded portion
• Brake pedal bend

INSTALLATION

1.

Installation is in the reverse order of removal.
• Check the brake pedal for smooth operation. There should be no binding or sticking when applying or

releasing the brake pedal.

• On models equipped with adjustable brake pedal, check the adjustable feature for smooth operation.

There should be no binding or sticking when adjusting the brake pedal forward and backward.

• After installing the brake pedal assembly in the vehicle, be sure to adjust it. Refer to

BR-7, "Brake Pedal

Inspection and Adjustment"

.

SBR997

BR-18

< REMOVAL AND INSTALLATION >

BRAKE PIPING AND HOSE

BRAKE PIPING AND HOSE

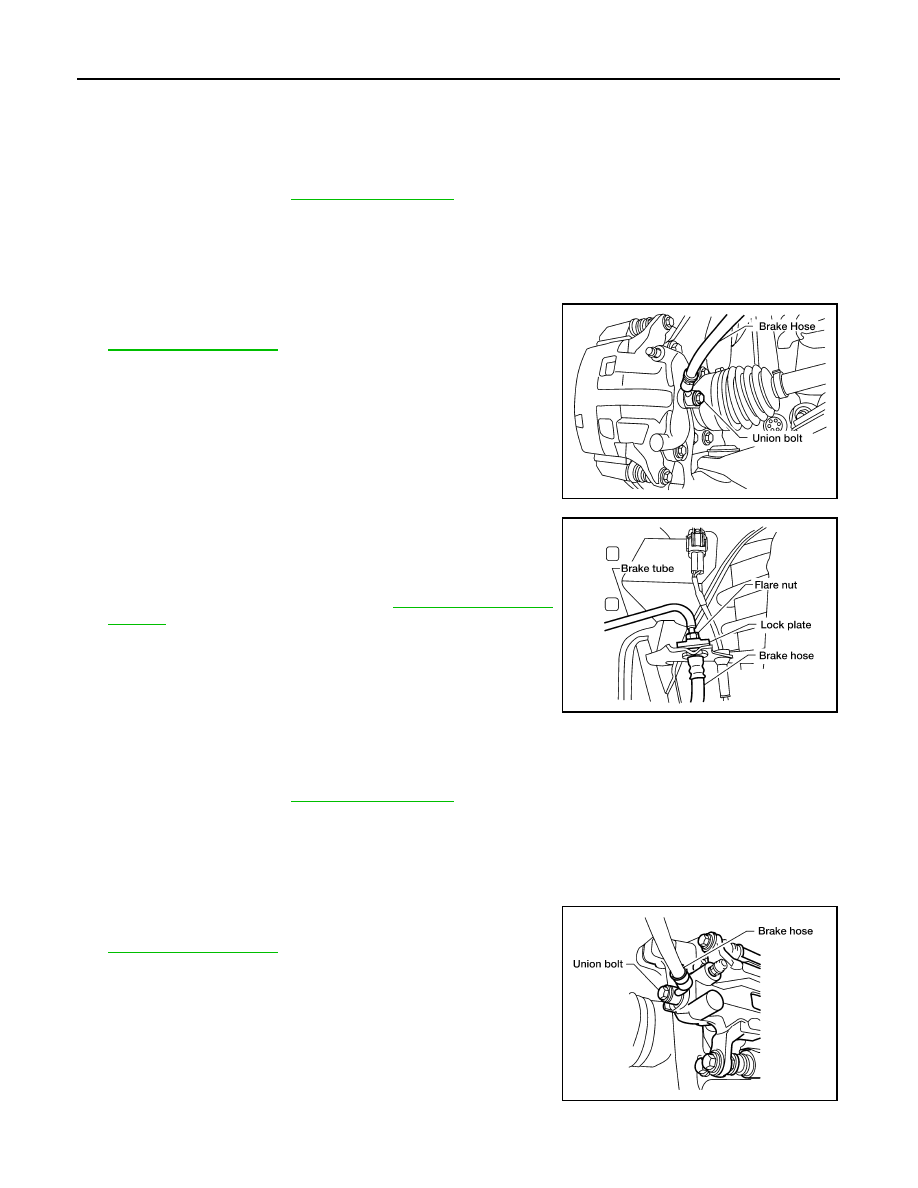

Removal and Installation of Front Brake Piping and Brake Hose

INFOID:0000000001297435

REMOVAL

1.

Drain brake fluid. Refer to

BR-9, "Drain and Refill"

.

2.

Remove brake tube from brake hose, using a suitable tool.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt and then remove brake hose from caliper assembly.

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, and tighten union bolt to the specified torque. Refer to

BR-6, "Hydraulic Circuit"

.

NOTE:
Do not reuse copper washer.

2.

Insert brake hose end through bracket, then secure it to bracket
with lock plate.

3.

Install brake tube to brake hose, then tighten flare nut to the
specified torque using a suitable tool.

4.

Refill brake fluid and bleed air. Refer to

BR-9, "Bleeding Brake

System"

.

Removal and Installation of Rear Brake Piping and Brake Hose

INFOID:0000000001297436

REMOVAL

1.

Drain brake fluid. Refer to

BR-9, "Drain and Refill"

.

2.

Remove brake tube from brake hose, using a suitable tool.

3.

Remove lock plate and brake hose from bracket.

4.

Remove union bolt, and then remove brake hose from caliper assembly.

INSTALLATION

1.

Install brake hose by aligning with the protrusion on caliper
assembly, and tighten union bolt to the specified torque. Refer to

BR-6, "Hydraulic Circuit"

.

NOTE:
Do not reuse copper washer.

LFIA0235E
