AV-32

< ON-VEHICLE REPAIR >

[BASE AUDIO]

AUDIO UNIT

INSTALLATION

Installation is in the reverse order of removal.

AV

FRONT TWEETER

AV-33

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Removal and Installation

INFOID:0000000001315978

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1.

Remove the front tweeter grille.

2.

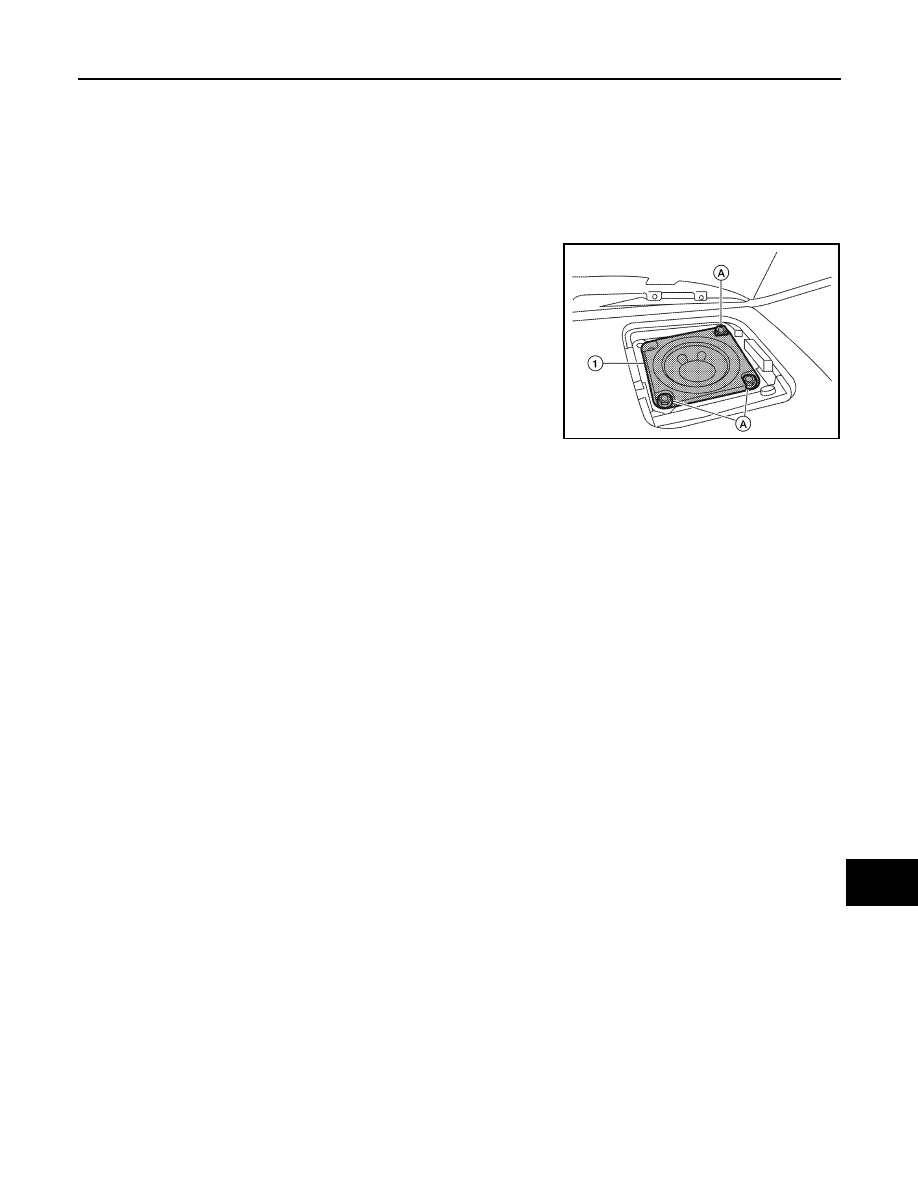

Remove the front tweeter screws (A).

3.

Pull out the front tweeter speaker (1) and disconnect front
tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

AV-34

< ON-VEHICLE REPAIR >

[BASE AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000001315979

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

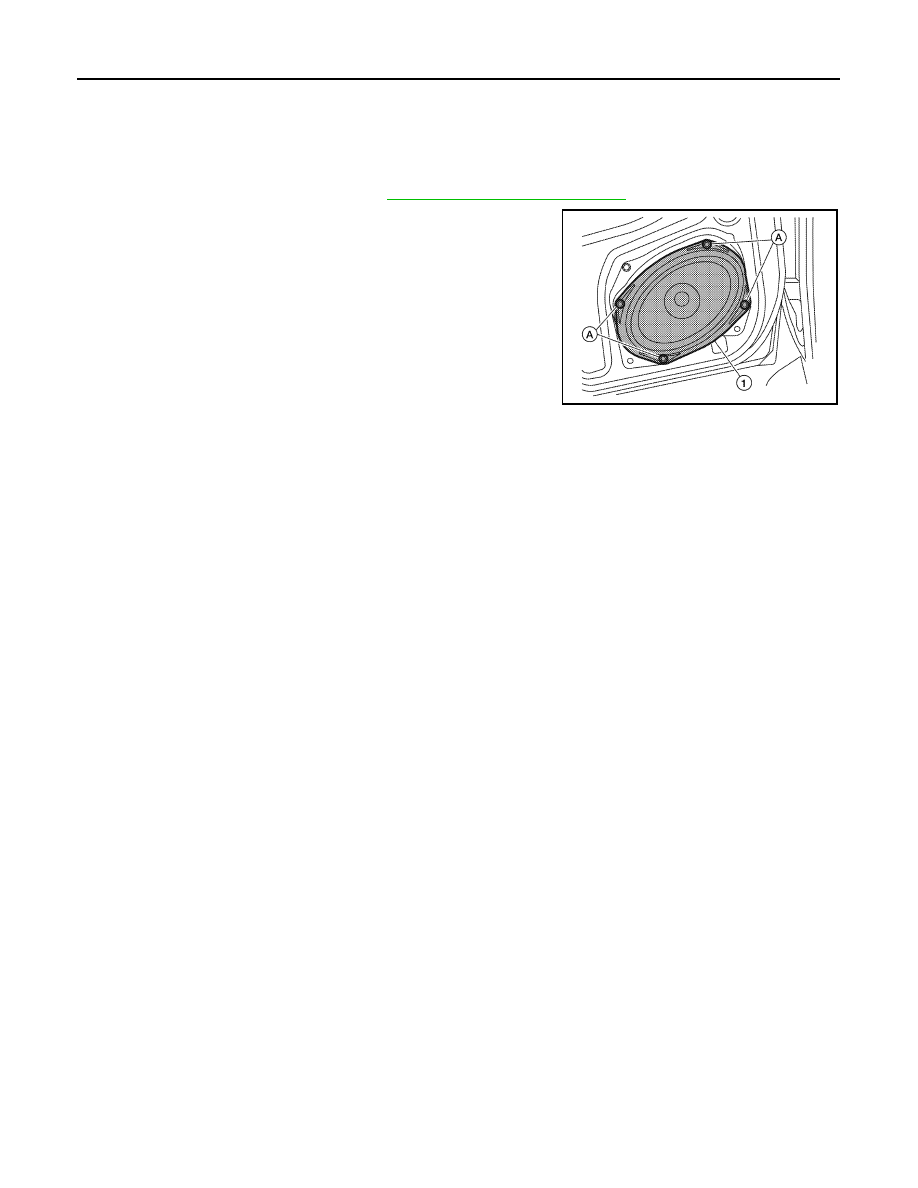

Remove the front door speaker screws (A).

3.

Pull out the front door speaker (1), and disconnect the front door
speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

AV

REAR DOOR SPEAKER

AV-35

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000001315980

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

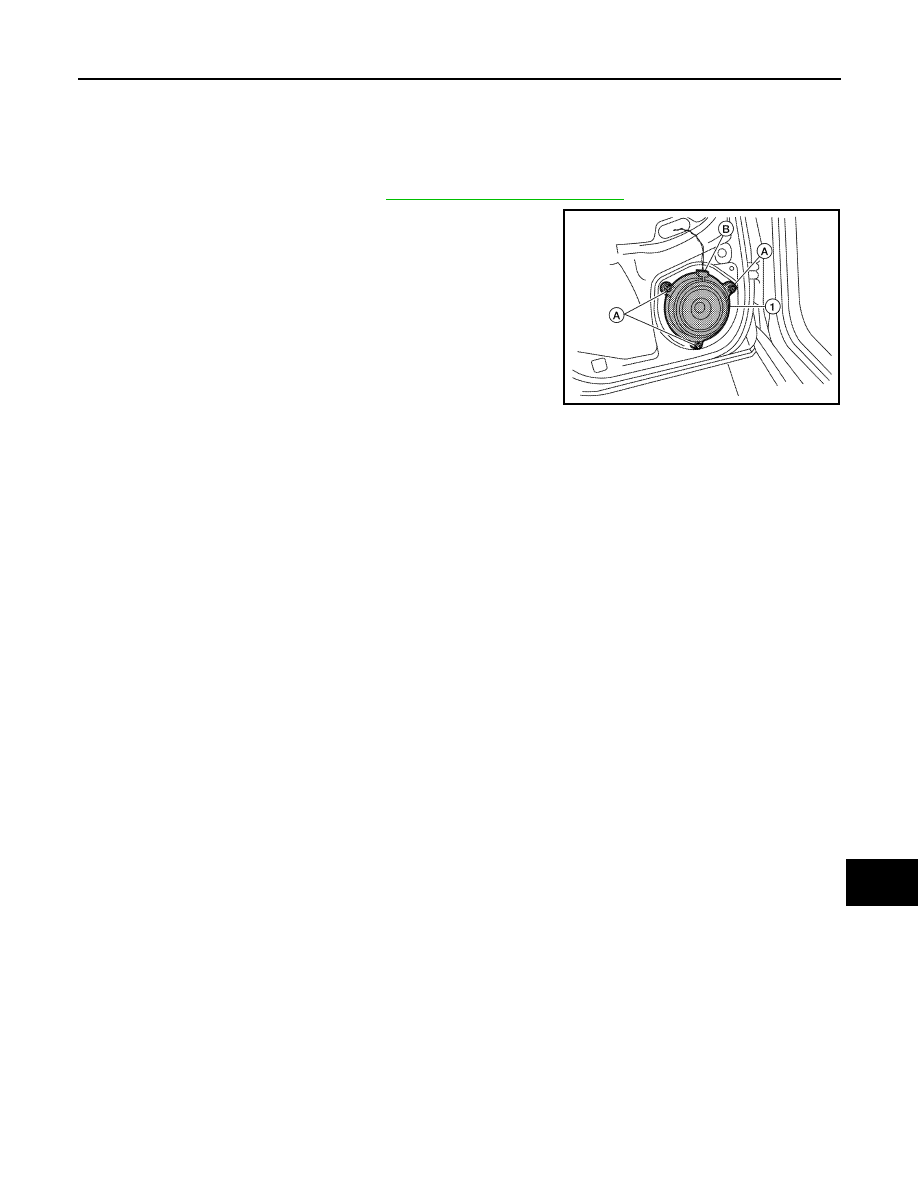

Remove the rear door speaker screws (A).

3.

Disconnect the rear door speaker connector (B) and remove
rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0348ZZ

AV-36

< ON-VEHICLE REPAIR >

[BASE AUDIO]

AUDIO ANTENNA

AUDIO ANTENNA

Window Antenna Repair

INFOID:0000000001317778

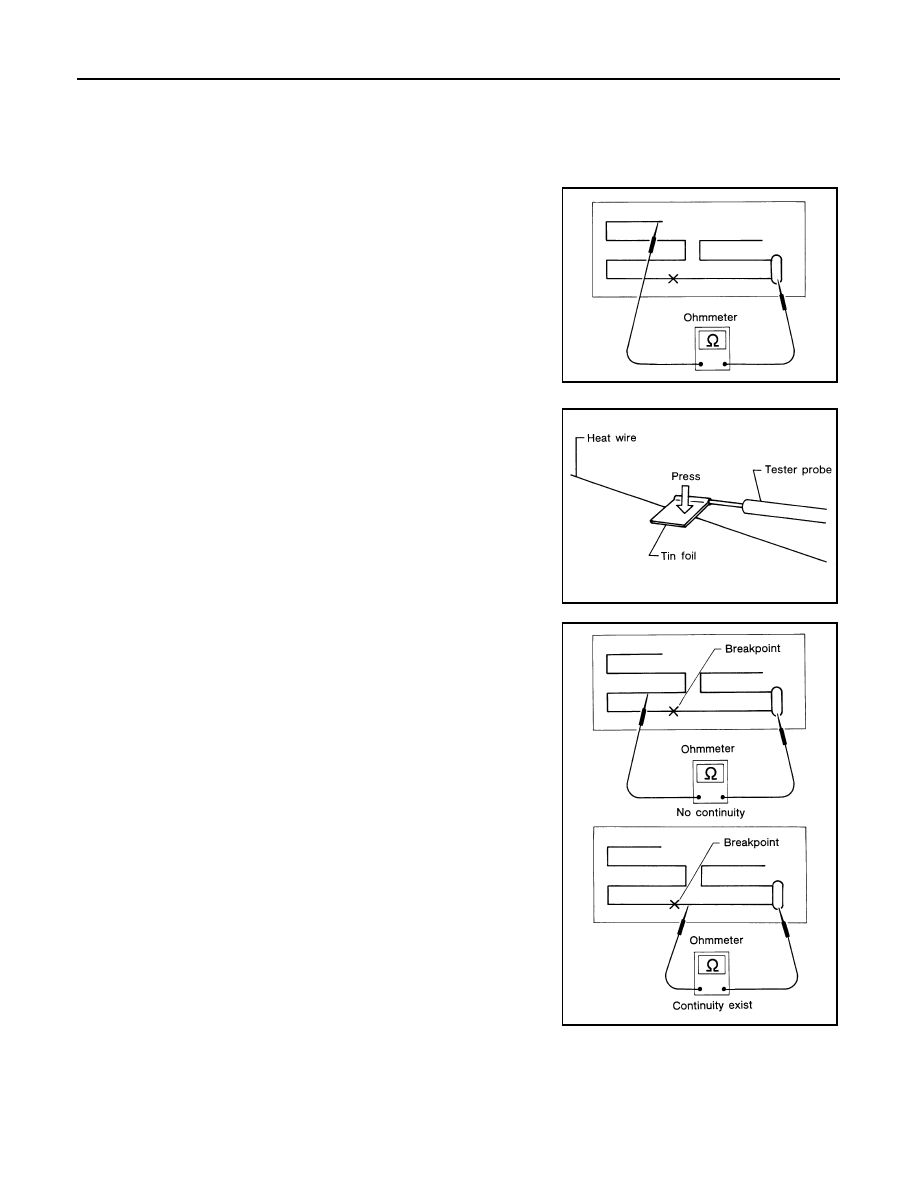

ELEMENT CHECK

1.

Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-
ger.

2.

If an element is broken, no continuity will exist.

SEL250I

SEL122R

SEL252I

AV

AUDIO ANTENNA

AV-37

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3.

To locate a break, move probe along element. Tester indication
will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-34, "Filament Repair"

.

SEL253I

AV-38

< BASIC INSPECTION >

[MID AUDIO]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

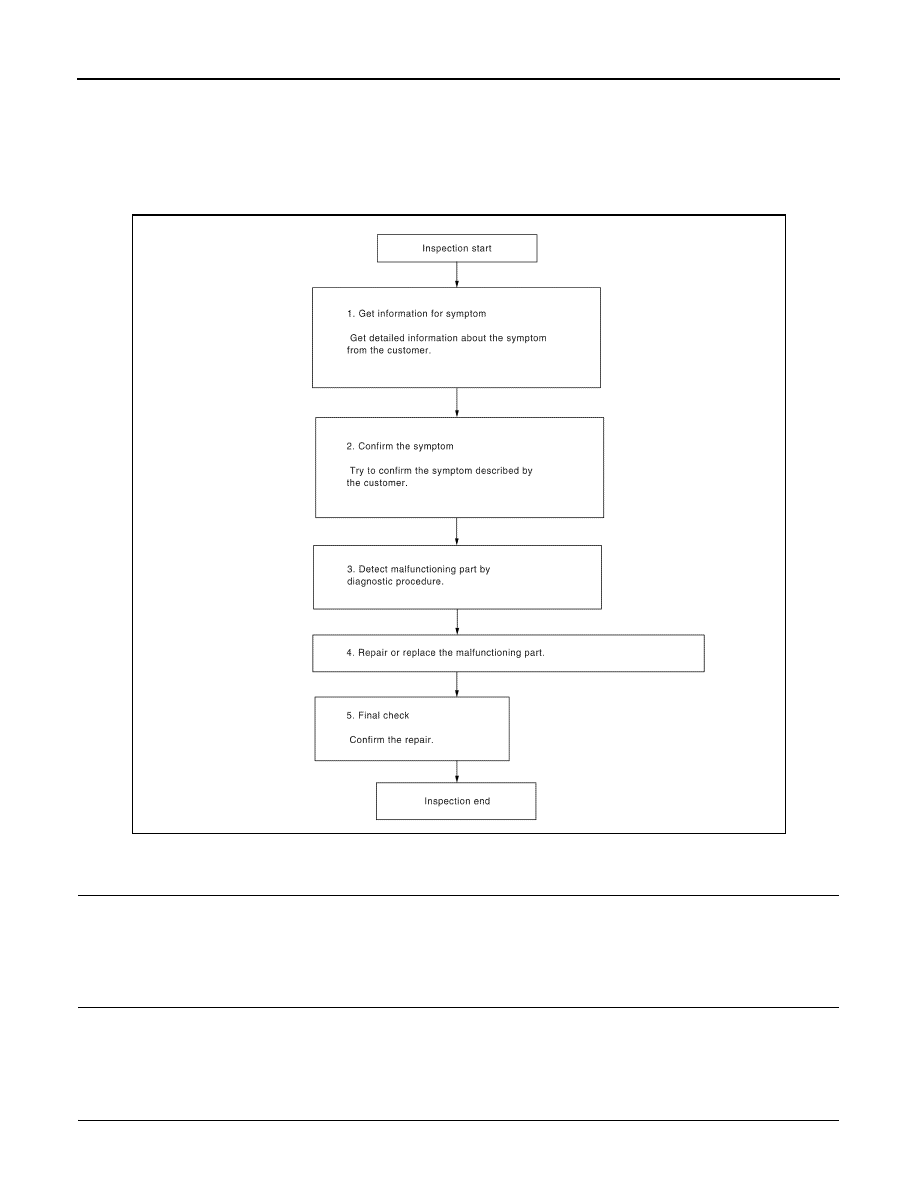

Work Flow

INFOID:0000000001450765

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the
incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition
when the symptom is detected.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-39

< BASIC INSPECTION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is malfunctioning part detected?

YES

>> GO TO 4

NO

>> GO TO 2

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.

Has the symptom been repaired?

YES

>> Inspection End.

NO

>> GO TO 2
