AV-24

< ECU DIAGNOSIS >

[BASE AUDIO]

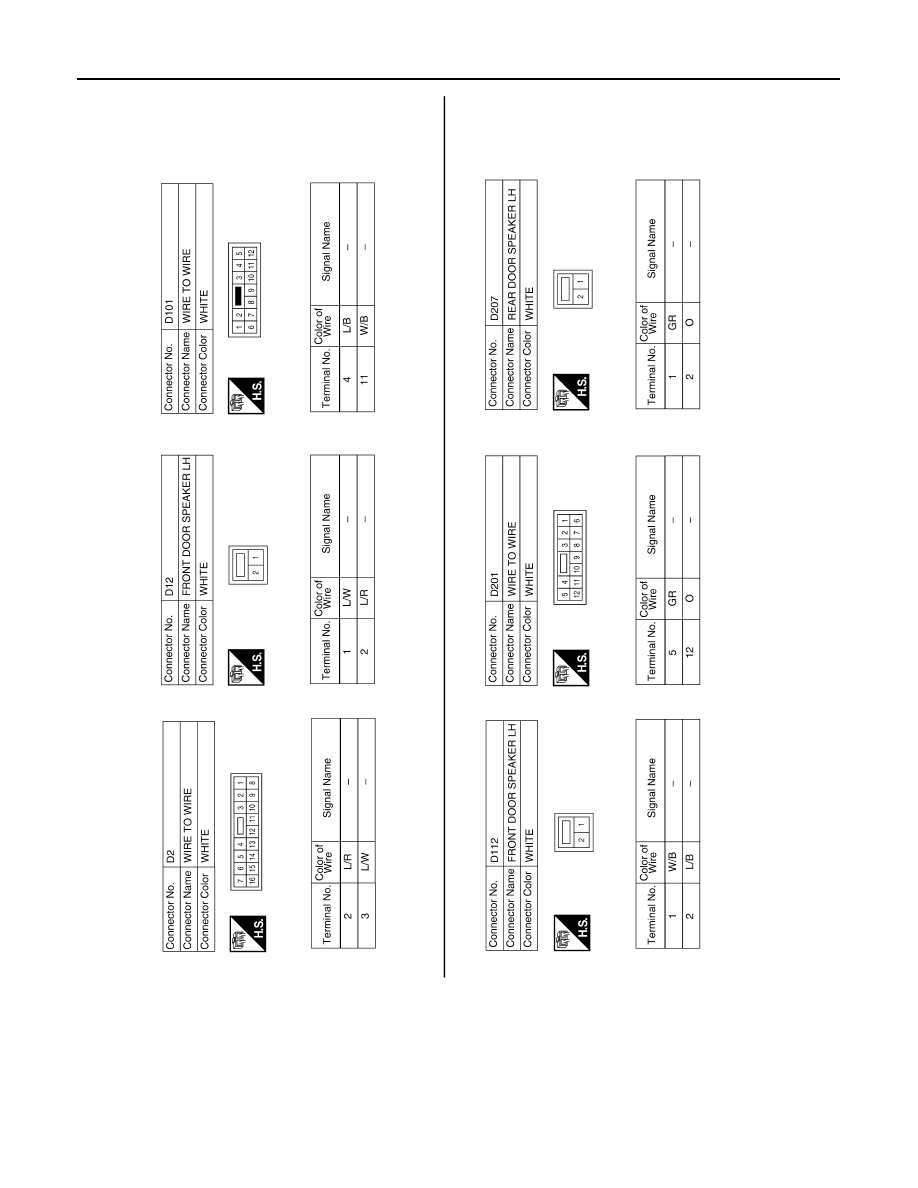

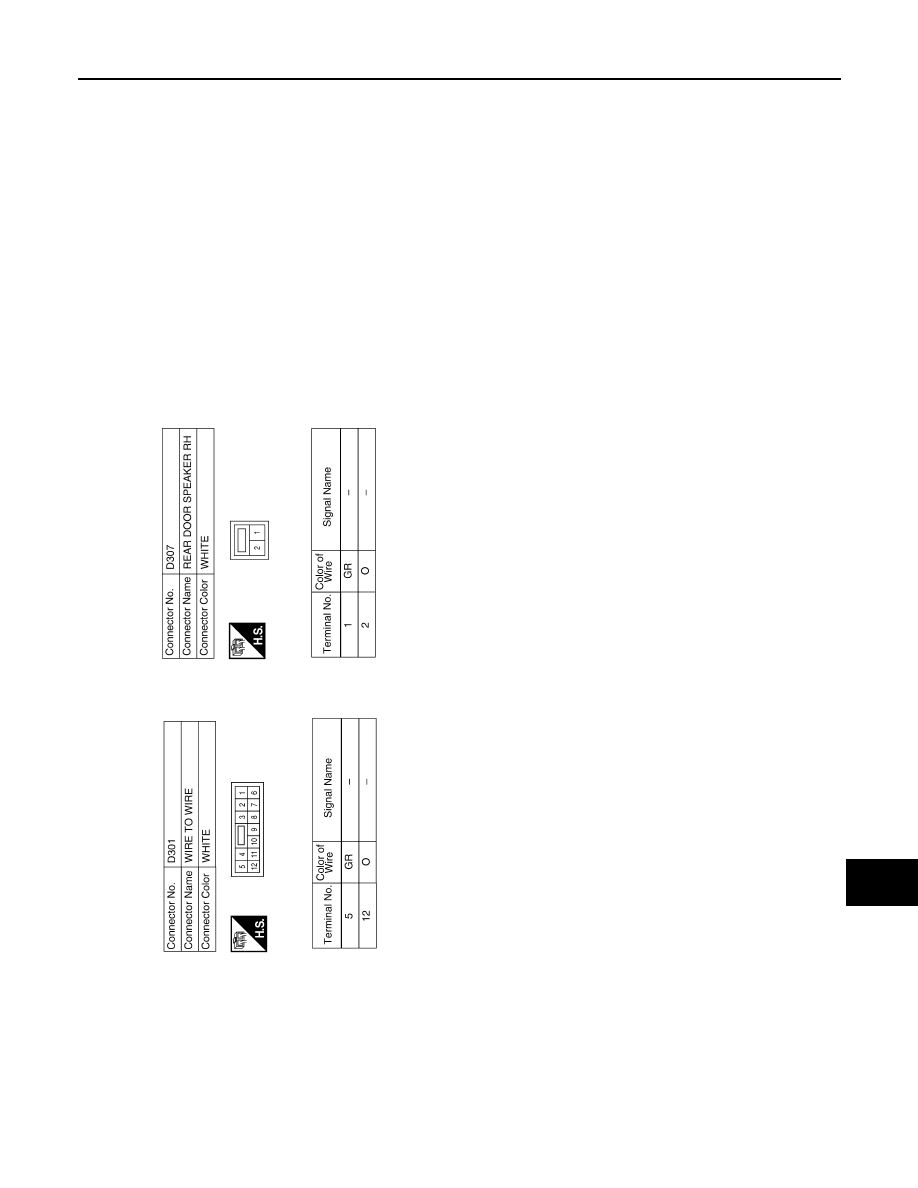

AUDIO UNIT

ALNIA0569GB

AV

AUDIO UNIT

AV-25

< ECU DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ALNIA0570GB

AV-26

< ECU DIAGNOSIS >

[BASE AUDIO]

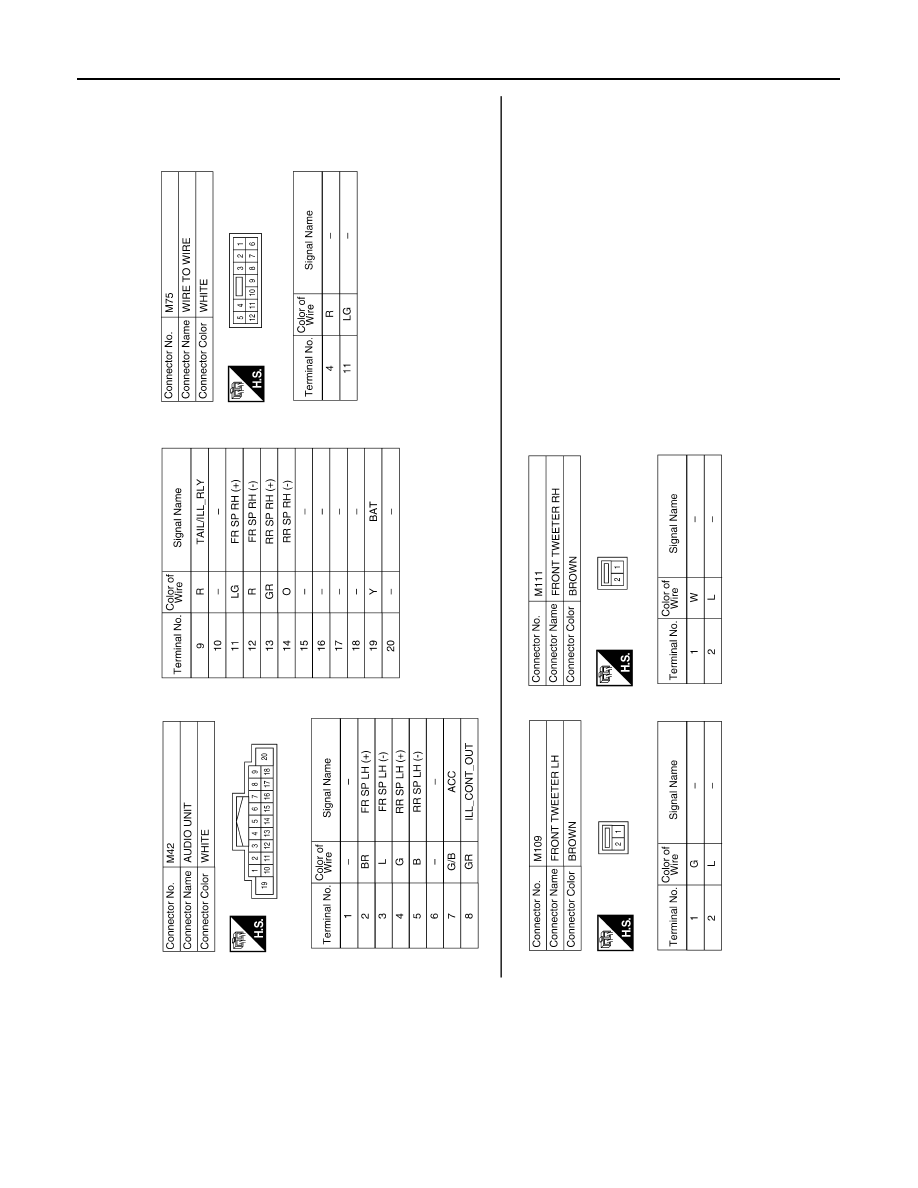

AUDIO UNIT

ALNIA0571GB

AV

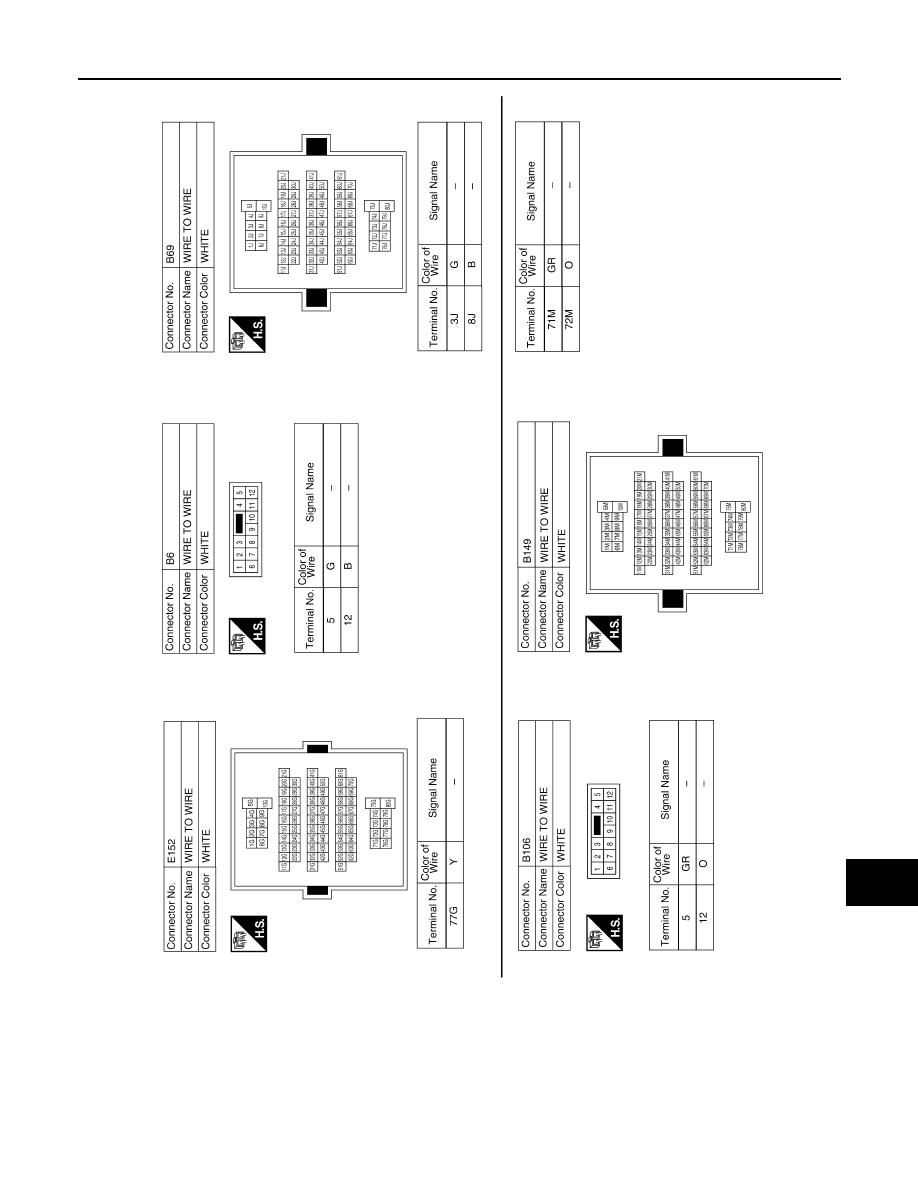

AUDIO UNIT

AV-27

< ECU DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ALNIA0572GB

AV-28

< SYMPTOM DIAGNOSIS >

[BASE AUDIO]

AUDIO SYSTEM

SYMPTOM DIAGNOSIS

AUDIO SYSTEM

AUDIO UNIT

AUDIO UNIT : Symptom Table

INFOID:0000000001499946

Symptom

Possible cause

Reference page

Inoperative

• Audio unit power circuit
• Audio unit

•

AV-13

•

AV-31

All speakers do not sound

• Audio unit power circuit
• Audio unit

•

AV-13

•

AV-31

One or several speakers do not sound

• Front door speaker
• Front tweeter
• Rear door speaker

•

AV-14

•

AV-16

•

AV-18

AV

NORMAL OPERATING CONDITION

AV-29

< SYMPTOM DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000001499949

The majority of the audio concerns are the result of outside causes (bad CD, electromagnetic interference,
etc.).

NOISE

The following noise results from variations in field strength, such as fading noise and multi-path noise, or
external noise from trains and other sources. It is not a malfunction.
• Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-

tains or buildings blocking the signal.

• Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the

antenna at a different time from the waves which reflect off mountains or buildings.

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.
Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and opera-
tion of each piece of electrical equipment, and determine the cause.
NOTE:
The source of the noise can be found easily by listening to the noise while removing the fuses of electrical
components, one by one.

Type of Noise and Possible Cause

Occurrence condition

Possible cause

Occurs only when engine is ON.

A continuous growling noise occurs. The speed of
the noise varies with changes in the engine speed.

• Ignition components

The occurrence of the noise is linked with the operation of the fuel pump.

• Fuel pump condenser

Noise only occurs when various
electrical components are oper-
ating.

A cracking or snapping sound occurs with the op-
eration of various switches.

• Relay malfunction, audio unit malfunction

The noise occurs when various motors are operat-
ing.

• Motor case ground
• Motor

The noise occurs constantly, not just under certain conditions.

• Rear defogger coil malfunction
• Open circuit in printed heater
• Poor ground of antenna feeder line

A cracking or snapping sound occurs while the vehicle is being driven, especially when
it is vibrating excessively.

• Ground wire of body parts
• Ground due to improper part installation
• Wiring connections or a short circuit

AV-30

< PRECAUTION >

[BASE AUDIO]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001731048

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

AV

AUDIO UNIT

AV-31

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ON-VEHICLE REPAIR

AUDIO UNIT

Removal and Installation

INFOID:0000000001315974

Removal and Installation

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-10, "Removal and Installation"

.

2.

Remove the audio control unit screws, using power tool.

3.

Remove the audio control unit and disconnect audio control unit connectors.

4.

Remove the audio control unit brackets screws and remove the audio control unit brackets.

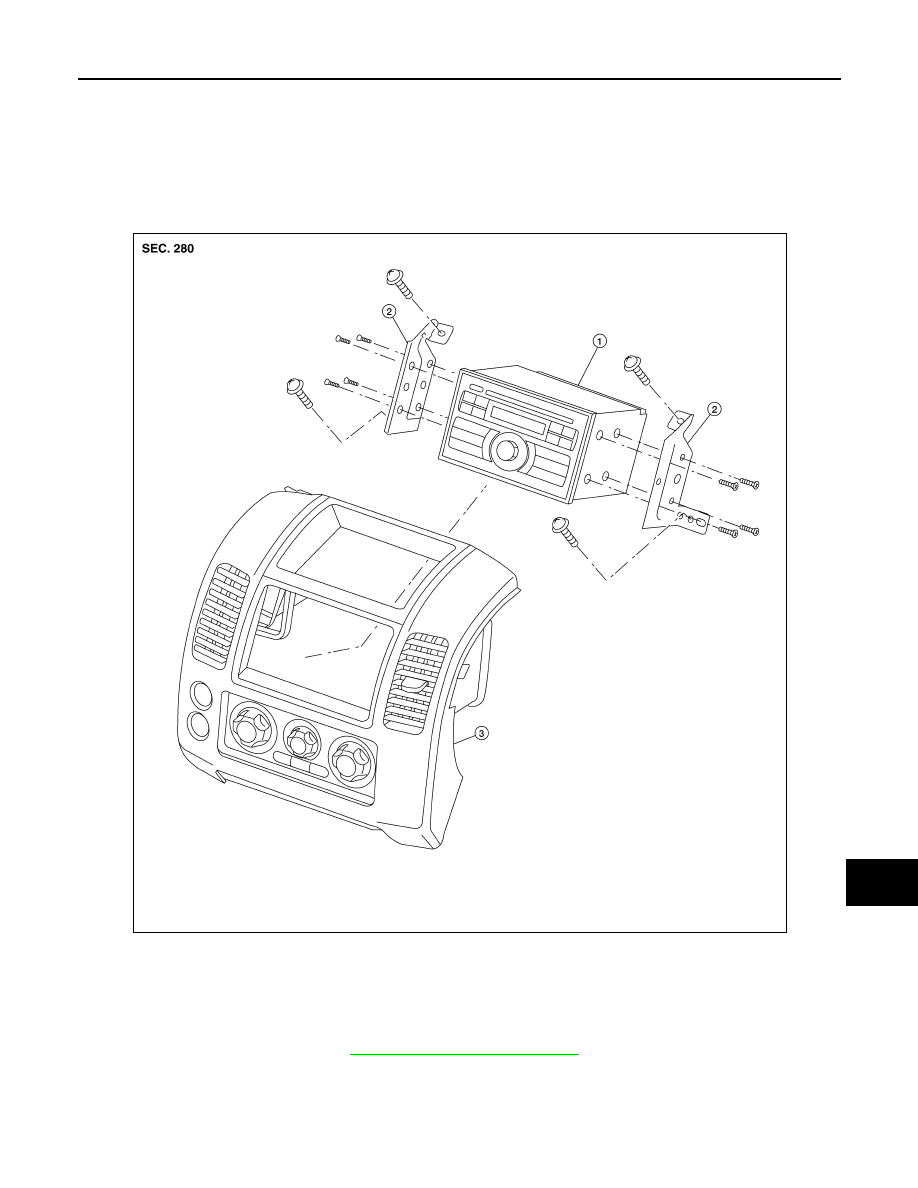

1.

Audio control unit

2.

Audio control unit brackets (LH) and
(RH)

3.

Cluster lid C

ALNIA0341ZZ
